3. AGENDA • A New Era Requires Change in the Data Center • Virtualization Technology Takes Hold • Steps Towards Automating the Data Center Data Center Fabric Coordinated Virtual Infrastructure • The Application Fluent Programmable Network • Conclusion

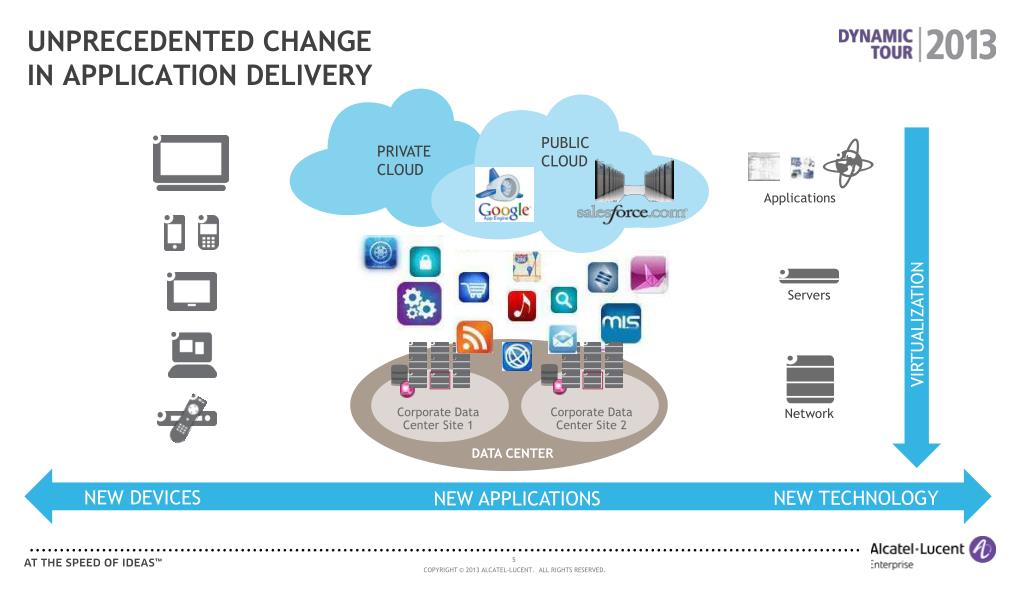

5. UNPRECEDENTED CHANGE IN APPLICATION DELIVERY PUBLIC CLOUD PRIVATE CLOUD Applications VIRTUALIZATION Servers Network Corporate Data Center Site 1 Corporate Data Center Site 2 Data Center New Devices New Technology New Applications

6. FOR TOO LONG, NETWORKS WERE ABOUT THE BIGGEST AND FASTEST

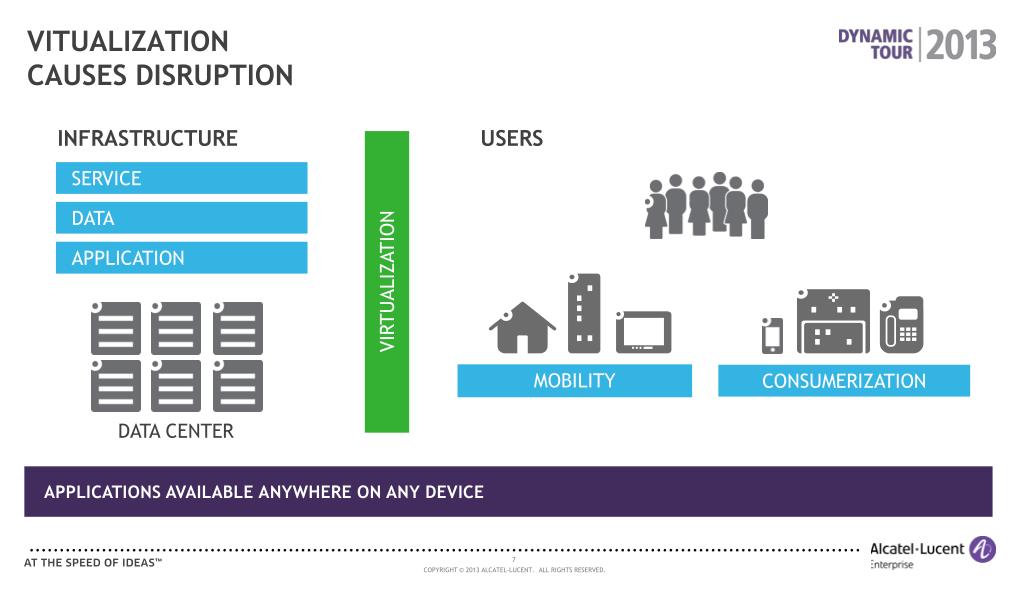

7. VITUALIZATION CAUSES DISRUPTION INFRASTRUCTURE USERS SERVICE DATA APPLICATION VIRTUALIZATION MOBILITY CONSUMERIZATION DATA CENTER APPLICATIONS AVAILABLE ANYWHERE ON ANY DEVICE

8. NOW IT IS ALL ABOUT AUTOMATION NETWORK • Computing is now completely flexible but the data center network is not • The network and the applications are operating effectively in silos • The network today has little awareness of applications • Virtual application control systems are unaware of the network • Any attempt to improve resource utilization likely delivers a suboptimal result GLOBAL CONTROL Applications DISTRIBUTED CONTROL VIRTUAL WORKLOADS MEANS NEW REQUIREMENTS TO ENABLE AUTOMATION

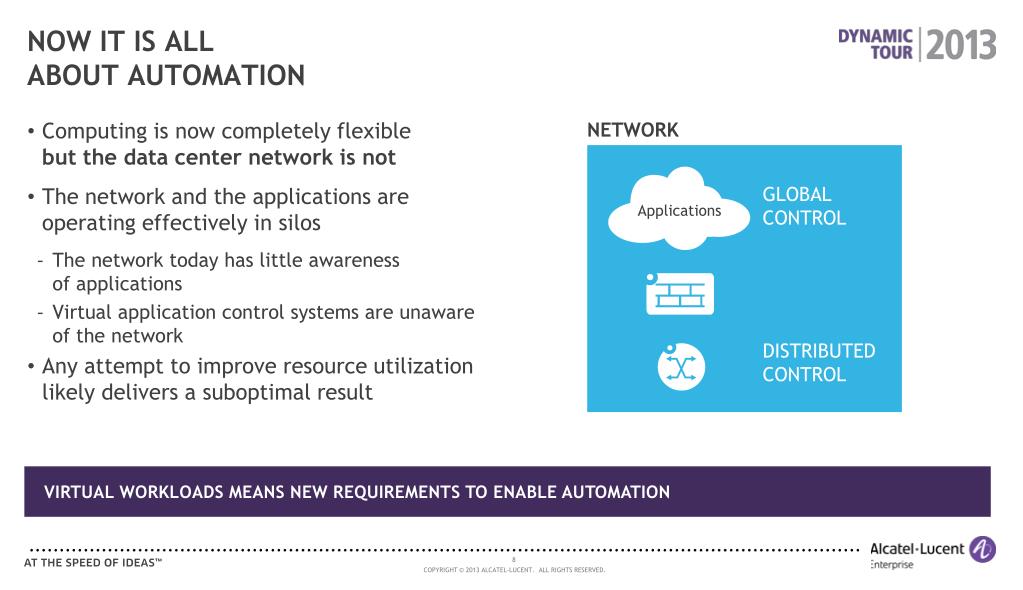

9. NETWORK INVESTMENT HAS ENTERED THE CIO COUNCIL’S TOP 5 PRIORITIES — FOR THE FIRST TIME EVER. ADVANCED NETWORKING NOW TOP OF MIND Source: Forrester’s annual CIO Council priorities survey, Q1 2011

10. DATA CENTER NETWORK TRANSFORMATION • COMPUTING as a SERVICE • Elastic, on-demand computing • Application Plug and Play • End-to-end performance • NETWORK • VIRTUALIZATION • Business workload agility • SDN for optimized service • Open DC eco-system • SERVER • VIRTUALIZATION • 10G servers • Low latency • Profile for VM Motion • CLIENT-SERVER • 1 App - 1 server

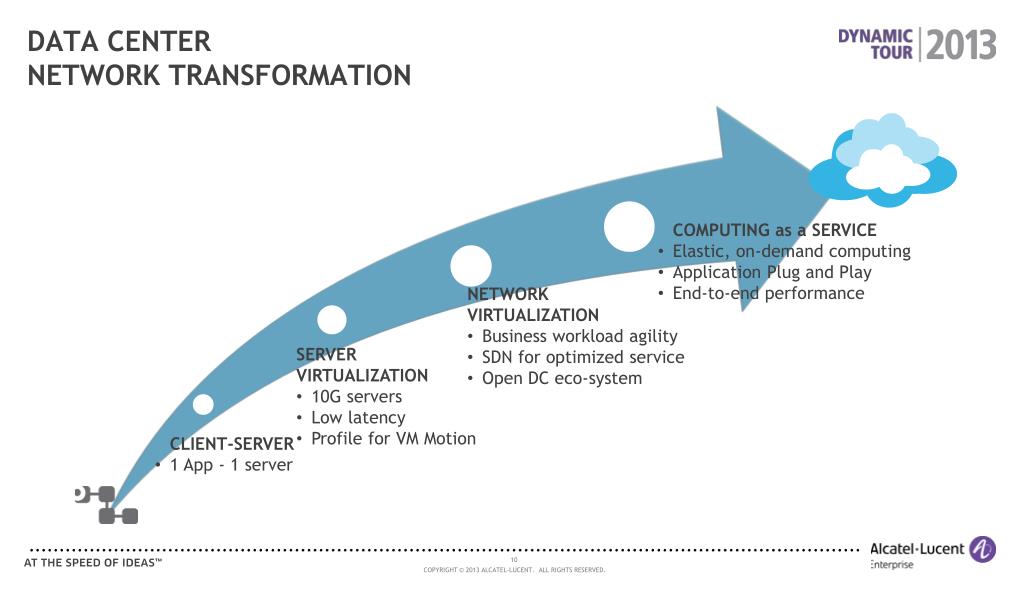

11. MOVING TO A FABRIC AUTOMATING THE NETWORK

12. WHEN THE NETWORK BECOMES A FABRIC Routers LOW LATENCY – ALL PATHS ACTIVE VIRTUALIZATION AUTOMATION Switches TOR TOR TRACKING, MONITORING TOOLS TOR TOR Server VMs SCALABLE, FLEXIBLE, LOW TCO TOR TOR OPEN STANDARD BASED FABRIC SAN

13. THE NETWORK UNDERSTANDS EACH APPLICATION THE NETWORK AUTOMATICALLY MANAGES APPLICATIONS APPLICATIONS ARE MANAGED AS A SERVICE NETWORK PROFILE NP Data center fabric

14. AUTOMATED VM MOBILITY TOR TOR TOR TOR TOR NP2 NP1 NP NP • VM Classification • Profile Association • QoS • Security • Priority • Bandwidth • Automated VM Mobility • Network Follows the VM • Transparent to DC Interconnect VM1 VM2

15. APPLICATION PROVISIONING AND VISIBILITY VM LIVE/HISTORICAL SEARCH TOR TOR TOR TOR TOR NP2 NP1 NP NP NP NP NP VM1 VM2 Create NP Profiles Bulk Provisioning across the fabric DATA CENTER INVENTORY SEEN THROUGH 2 INTERFACES: NETWORK MANAGEMENT AND HYPERVISOR

16. SOFTWARE DEFINED NETWORKS AUTOMATION FOR THE DATA CENTER

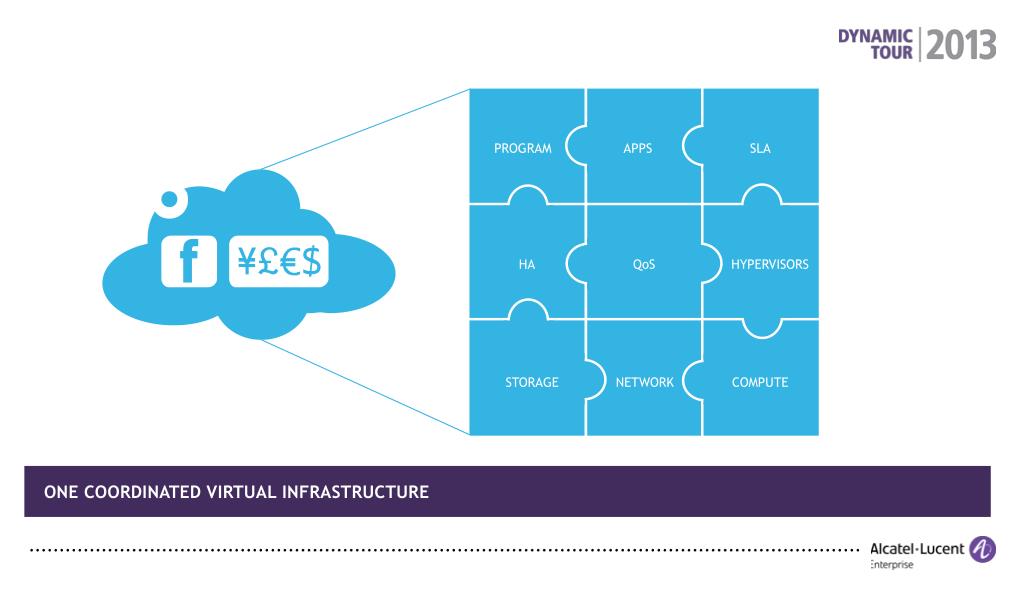

17. PROGRAM APPS SLA HA QoS HYPERVISORS STORAGE NETWORK COMPUTE ONE COORDINATED VIRTUAL INFRASTRUCTURE

18. A COORDINATED VIRTUAL INFRASTRUCTURE THREE KEY ELEMENTS NETWORK • PROGRAMMABILITY • Link between application and network • Orchestrated activity to optimize performance • Cross-referenced performance visibility GLOBAL CONTROL Applications • FROM APPLICATION AWARENESS TO APPLICATION FLUENCY • Network automatically reacts to virtualized workloads • Dynamic tuning of network traffic handling GLOBAL CONTROLVIEW • GLOBAL CONTROL VIEW • Improve local decisions making • Export view to application control

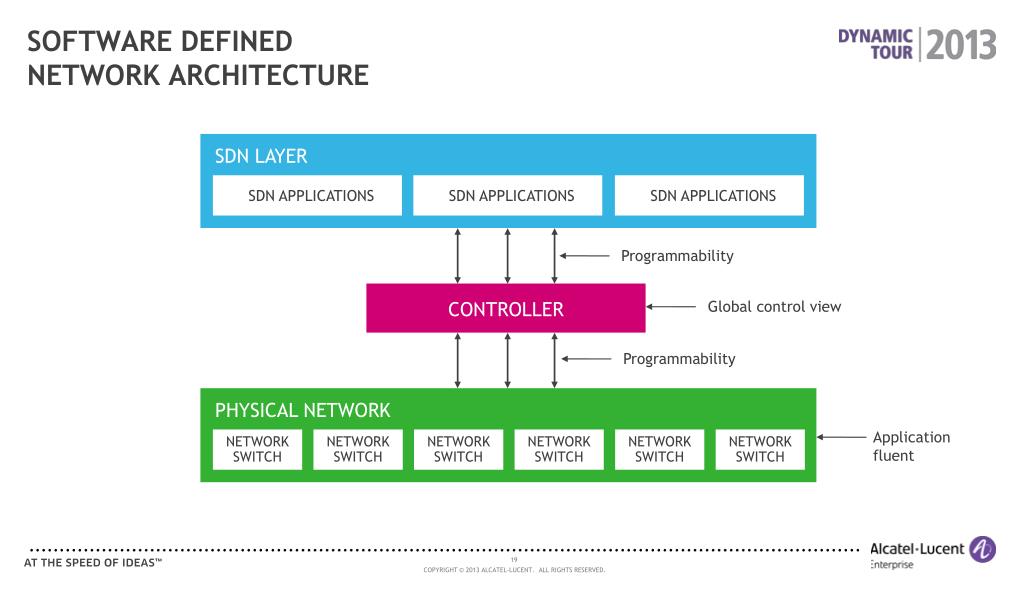

19. SOFTWARE DEFINED NETWORK ARCHITECTURE SDN LAYER SDN APPLICATIONS SDN APPLICATIONS SDN APPLICATIONS Programmability Global control view CONTROLLER Programmability PHYSICAL NETWORK Applicationfluent NETWORKSWITCH NETWORKSWITCH NETWORKSWITCH NETWORKSWITCH NETWORKSWITCH NETWORKSWITCH

20. The Application Fluent Programmable Network Alcatel-Lucent Approach to Deliver Automated Data Centers

21. ALCATEL-LUCENT’S APPLICATION FLUENT APPROACH • Recognized the need for enterprise networks to be more aware of the applications • Follow a collaborative approach for network control • Maintain distributed and autonomous decision making • Augment with global view • Increased embedded knowledge on applications, users and devices • Increased ability for each network node to take autonomous action • Developed links between existing network management platforms and application control platforms BRINGING TOGETHER APPLICATIONS AND NETWORK SINCE 2010 ARCHITECTURE CONTROL OPERATIONS

22. THE ALCATEL-LUCENT MESH ALCATEL LUCENT ENTERPRISE MESH OS10K OS10K POD 5x40G 6900 6900 240 6900 6900 POD 6900 6900 • Max Server Ports • (2 Core Switches) • 14,400 • Max Switching Capacity • 169 Tb/s • Over Subscription Rate* • 1.8 :1 • Power per Server Port • 5Watts • # 48U Racks • 10 Racks 6900 6900 6900 6900 2μs latency 6900 6900 5μs Aggregate Latency* • Any-to-any 10/40 GigE connectivity • Virtual Network Profile (vNP) • Fiber Channel over Ethernet • Network virtualized with SPB • Multi-site private Cloud • Hybrid Cloud services *Assuming Server to Server Traffic 70% within a Pod, 20% between Pods and 10% Via Core

23. ALCATEL-LUCENT’S ONE COORDINATED VIRTUAL INFRASTRUCTURE SERVICES • Plug-N-Play • Open standards ON-BOARDING APPLICATION FLUENCY APPLICATION ANALYSIS ADJUST VitalQIP ORCHESTRATION ABSTRATION LAYER Global Control View Registration and discovery VIRTUAL INFRASTRUCTURE PHYSICAL INFRASTRUCTURE VIRTUAL APPLICATIONS OpenTouch End user Appliance Hypervisor • Single pane of glass • Vendor agnostic Network services Controller Custom verticals vSwitch

24. FIRST USE CASE OF ENTERPRISE SDN IT TRAFFIC • Problem space • Massive data transfer requirements • High volume of very “bursty” traffic • Standard Ethernet Switches not optimized • CandIT Media SDN2 Solution • High performance media networking • CandIT-Media SDN Controller takes control • Creates Multipath Lossless and load balanced media network • Alcatel-Lucent Enterprise OmniSwitch 6900 • Multi-hop PFC and 802.3x Flow Control • Buffer mgmt, scheduling & bandwidth control • L2/L3 protocols, multi-path • Programmability without operational interruption 20% 40% 20% Switch MEDIA TRAFFIC Excess of packets 50% 40% 50% Switch ALCATEL-LUCENT ENTERPRISE DELIVERING ON SDN VISION WITH PRACTICAL USE CASE

25. FACILITATE SOLUTION ADOPTIONAND MAXIMIZE BUSINESS VALUE TEAMING WITH PARTNERS SPECIALISTADVISE SEAMLESSINTEGRATION INCREASE EXPERTISE PROTECTINVESTMENT

26. CONCLUSION

27. KEY TAKEAWAYS • Consumer led revolution has changed society for the long term • Virtualization Trend Accelerating • Driven by need for better user experience w reduce costs • Automation for the data center becoming critical • Data center networking undergoing significant evolution • Deploy a fully featured fabric • Low latency multipath • Automated virtual mobility • Prepare for Software Defined Networking • End to end solution for enterprise scale networks • Solution focused on human experience

28. FOLLOW US ON www.twitter.com/ALUEnterprise www.facebook.com/ALUEnterprise www.youtube.com/user/enterpriseALU www.linkedin.com - Group Alcatel-Lucent Enterprise www.slideshare.net/tagged/Enterprise www.storify.com/ALUEnterprise
