So you want to run an MVPA experiment… Lindsay Morgan April 9, 2012

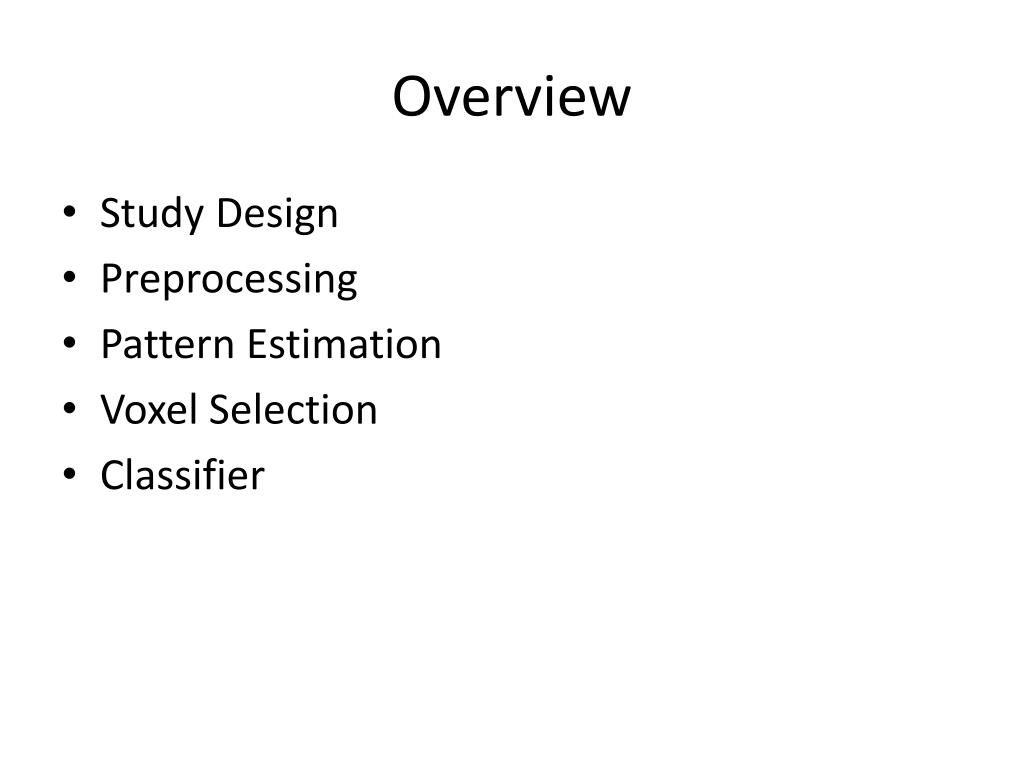

Overview • Study Design • Preprocessing • Pattern Estimation • Voxel Selection • Classifier

Study Design Blocked design • Smaller # of conditions • Better estimate of the average response pattern Event Related Design • Larger # of conditions • Similarity analyses • Better estimate of the response distribution across exemplars • Psychologically less predictable • Requires sequence optimization (e.g., OptSeq, de Bruijn)

Study Design Suggestions • Multiple runs • Independent data sets for training & testing • Many short runs preferable to a few long runs (Coutanche & Thompson-SchillNeuroImage 2012) • Equal # of exemplars per stimulus class • Or use subsamples of more numerous class

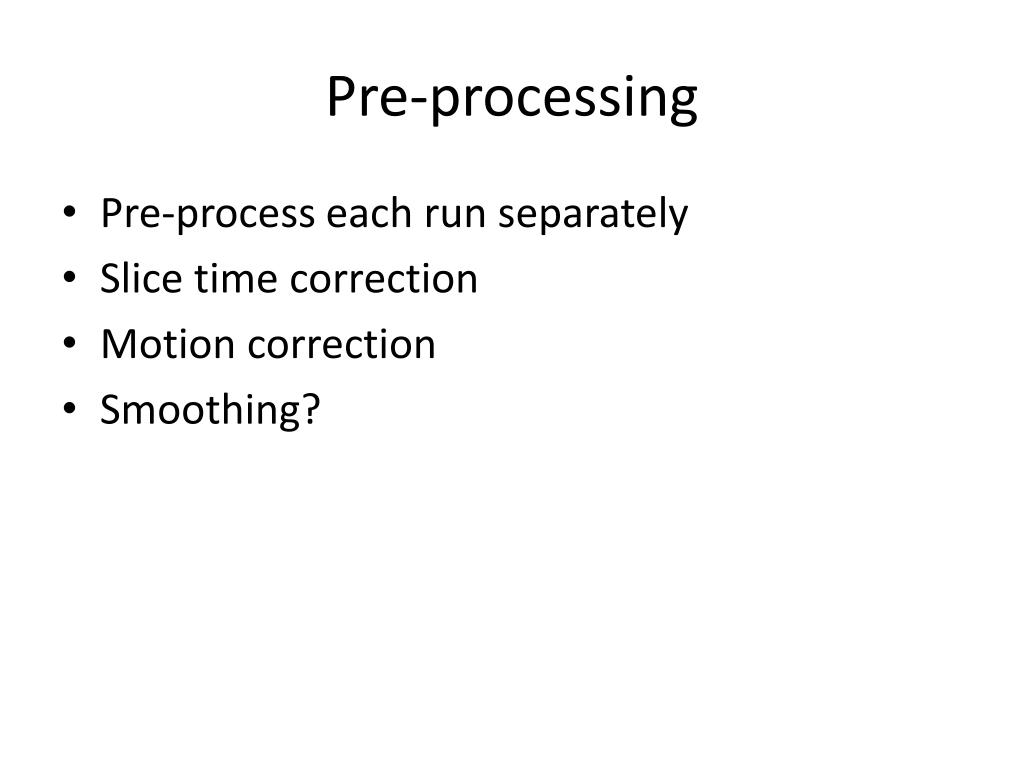

Pre-processing • Pre-process each run separately • Slice time correction • Motion correction • Smoothing?

To Smooth or Not to Smooth? Op de BeeckNeuroImage 2010

Pattern Estimation Raw signal intensity values • Suitable for block or slow event-related Betas (parameter estimates) or t values • Suitable for all designs • Derived from GLM • Accounts for overlap in HRF • Can remove motion effects and linear trends

Data transformation so far… Mur et al., Soc Cog Affective Neurosci, 2009

Ungrouped design • 96 images • Each image presented 1x/run • 3 comparisons • Inanimate vs. animate • Face vs. body • Natural vs. artificial Kriegeskorte et al., Frontiers Sys Neurosci, 2008

Betas or t values? Misaki et al., NeuroImage, 2010

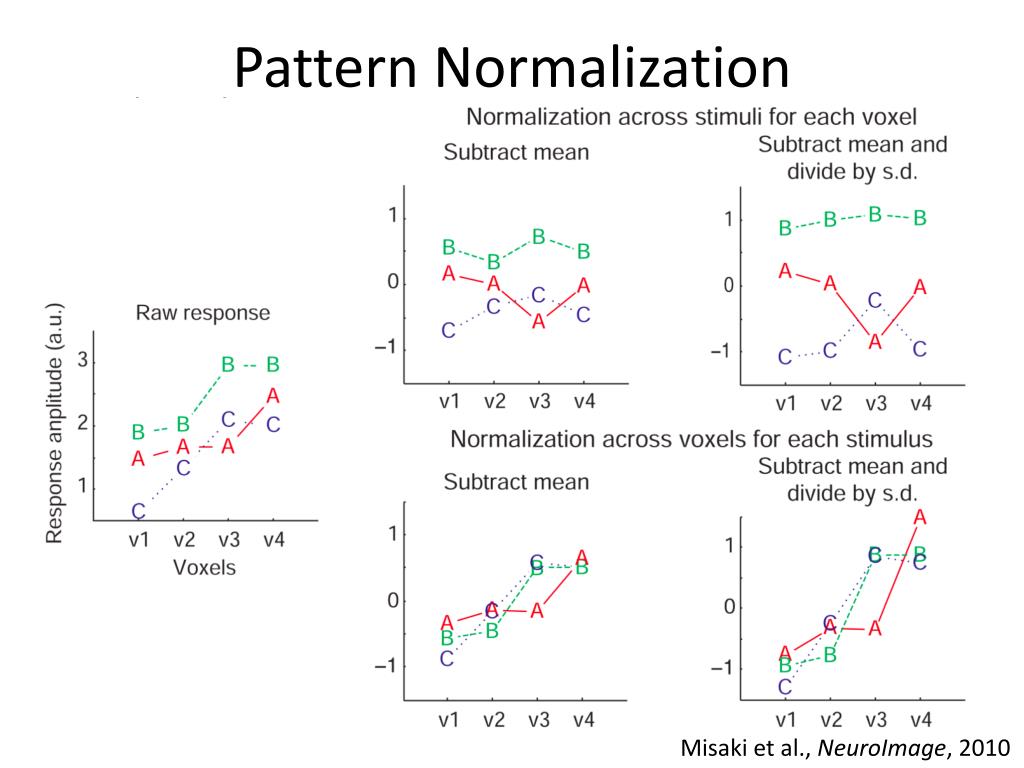

Pattern Normalization Misaki et al., NeuroImage, 2010

Data transformation so far… Mur et al., Soc Cog Affective Neurosci, 2009

Voxel Selection • Typically, performance decreases as the # of voxels increases • Data must be independent of classifier • Anatomically-defined region • Functional localizer • Training set from your experimental data • E.g., ANOVA for all conditions at each voxel  select top N voxels

The Classifier Misaki et al., NeuroImage, 2010

Which classifier should you use? Misaki et al., NeuroImage, 2010

Data transformation complete! Mur et al., Soc Cog Affective Neurosci, 2009

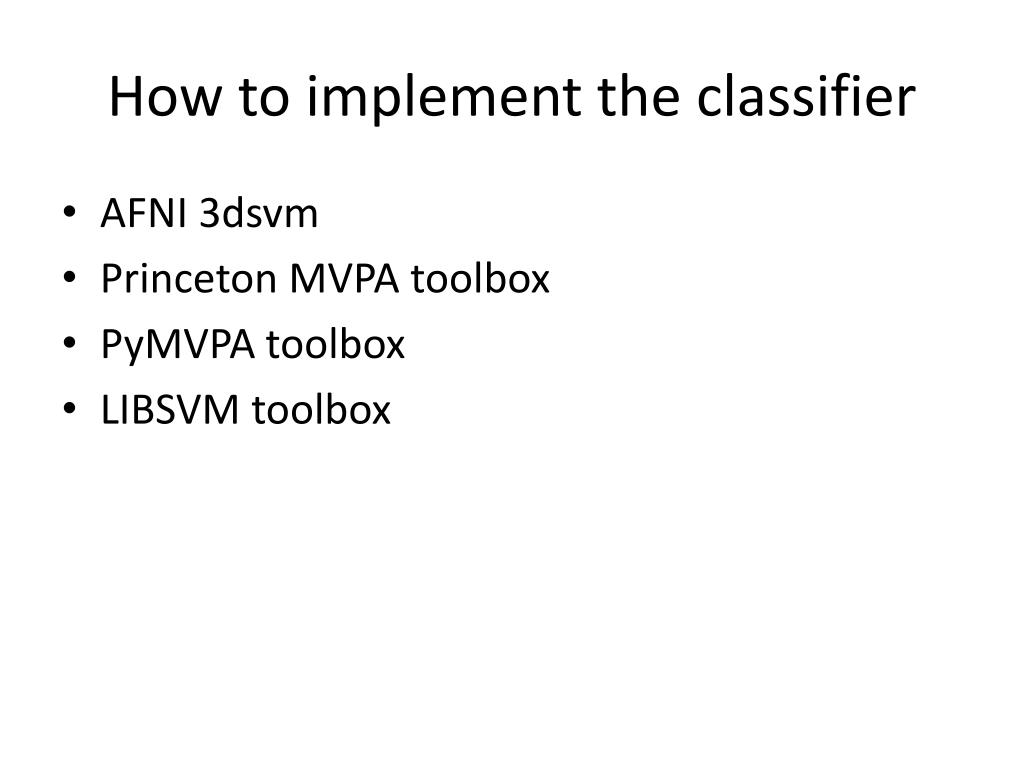

How to implement the classifier • AFNI 3dsvm • Princeton MVPA toolbox • PyMVPA toolbox • LIBSVM toolbox

General Conclusions • Design your experiment to yield as many independent patterns as possible • Estimate your patterns using t values (or z scores) • Use a linear classifier
