Exploring Microscopy: The History and Functions of the Microscope in Biology

marek avatar
marek
15 diapositives · 307 Views · Aug 04, 2014

Discover the fascinating world of microscopy, beginning with Robert Hooke's groundbreaking discovery of 'cells' in cork. This overview delves into the history of microscopy, tracing back to the pioneering work of Dutch lens makers and Galileo's advancements. Learn about the essential components and functions of a microscope, including objective lenses, adjustment knobs, and the diaphragm. Understand how to calculate magnification and create accurate biological drawings that reflect your observations. Perfect for students and biology enthusiasts!

Exploring Microscopy: The History and Functions of the Microscope in Biology - slide 1
01 / 15Exploring Microscopy: The History and Functions of the Microscope in Biology
1 / 17

Télécharger la présentation

Exploring Microscopy: The History and Functions of the Microscope in Biology
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Biology Cells, Tissues, Organs, Systems Plants and Animals

  2. 1663: Robert Hooke discovers ‘cells’ in corks

  3. How Big Is A Cell?

  4. Microscopy: An overview

  5. But first a little history! About 1590, two Dutch spectacle makers, Zaccharias Janssen and his son Hans, while experimenting with several lenses in a tube, discovered that nearby objects appeared greatly enlarged. That was the forerunner of the compound microscope and of the telescope. In 1609, Galileo, father of modern physics and astronomy, heard of these early experiments, worked out the principles of lenses, and made a much better instrument with a focusing device.

  6. The anatomy of the microscope

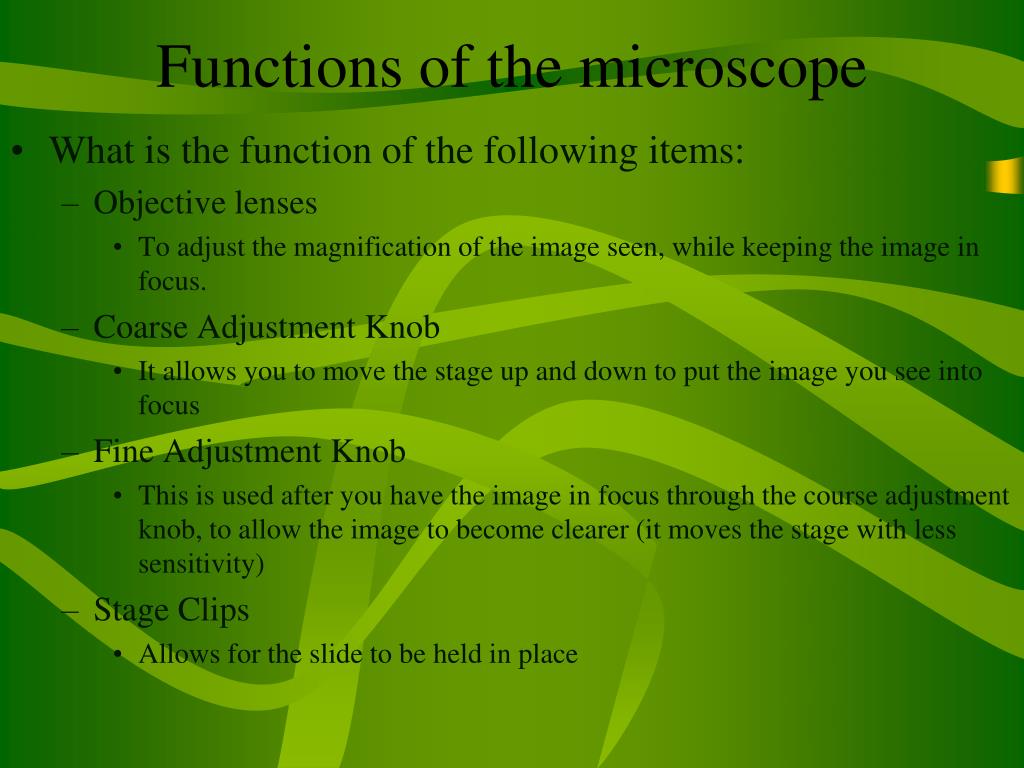

  7. Functions of the microscope • What is the function of the following items: • Objective lenses • To adjust the magnification of the image seen, while keeping the image in focus. • Coarse Adjustment Knob • It allows you to move the stage up and down to put the image you see into focus • Fine Adjustment Knob • This is used after you have the image in focus through the course adjustment knob, to allow the image to become clearer (it moves the stage with less sensitivity) • Stage Clips • Allows for the slide to be held in place

  8. Functions of the microscope • Revolving nosepiece • Holds the objective lenses and allows for rotation from one lens to another • Diaphragm • A diaphragm is a simple device between the light and the slide that controls the amount of light that passes through the object being viewed

  9. How to calculate magnification • The ocular lens usually has a magnification on it’s own of about 10x • The objective lenses can range considerably but usually are 4x, 10x, and 40x • To calculate the total magnification you multiply the ocular lens magnification by the objective lens magnification you use • So if your medium is 10x then your total magnification will be 10 X 10 = 100x

  10. Drawing what you see! All drawings should include clear and proper labels (and be large enough to view details). Drawings should be labeled with the specimen name and magnification. Labels should be written on the outside of the circle. The circle indicates the viewing field as seen through the eyepiece, specimens should be drawn to scale - ie..if your specimen takes up the whole viewing field, make sure your drawing reflects that.

  11. Drawing what you see! • When you are completing biological drawings in class please ensure that the following are adhered to: • The page is clean and neat • The circle for the field of view is in pen and is created using a compass or a round object. • The image is drawn to scale. • The image is drawn in pencil.

  12. Drawing what you see! When filling an image in, stippling not shading is used. All labels are to the right side and a ruler is used to create lines. Magnification is placed in the lower right corner of the drawing. The title is specific and underlined, in pen. The entire image has been duplicated, not just part of it. The image is complete and drawn to the best of your ability.
