Presentation Transcript

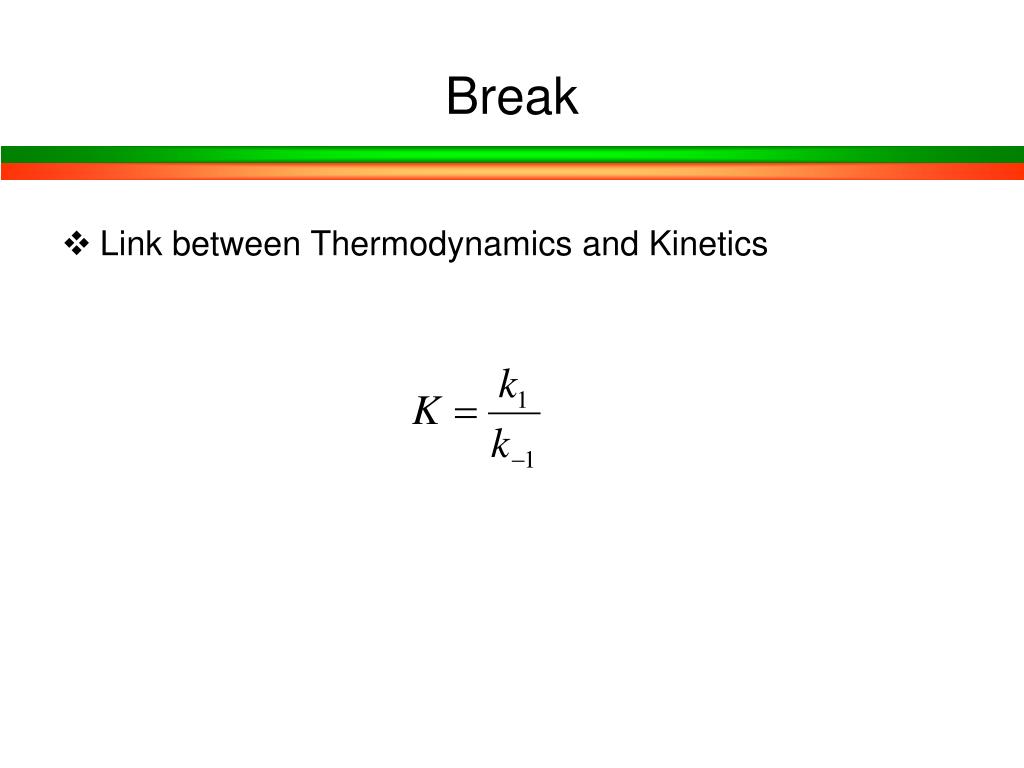

  1. Break • Link between Thermodynamics and Kinetics

  2. Kinetics Modern Methods in Heterogeneous Catalysis F.C. Jentoft, November 1, 2002

  3. Outline • Motivation and Strategy • Some Important Concepts • Rate Equations • Mechanisms and Kinetics • Temperature Dependence of Rate Constant • Compensation Effect

  4. What Kinetics Will (Not) Deliver… • Reaction rates • Rate equation / reaction order • Rate constant • Apparent activation energies • Will not deliver a mechanism….. • But any mechanism we think of should be consistent with the kinetic data….

  5. E E Catalyst A Catalyst B EA EA Reactants Reactants Products Products Reaction coordinate Reaction coordinate Motivation • Compare catalysts: Activation energy EA • Design Parameters for Setup

  6. Microscopic Reversibility k1 A + B AB k-1 k2 k3 k-2 k-3 A* + B • Equilibrium conditions • Unidirectional reaction with identical rates is not an option

  7. Steady State Approximation • Bodenstein’s approximation for consecutive reactionsIf k1*>>k1, then k1 k1* A B C • Simplifies Rate Equations

  8. Rate Equations I • Typical rate equation: • With a,b,c, the individual reaction order with respect to a particular reactant and the total reaction order n the sum of the exponents • With r the reaction rate in units of mol/l per time

  9. Rate Equations II • Typical rate equation: • With k the rate constant in units of min-1 for a first order reaction, for higher orders in inverse units of concentration in different powers

  10. pseudo 1st order Catalysis in Solution:Specific Acid / Base Catalysis • Rate constant a linear function of pH • Proton donor: H3O+ (solvated protons)Proton acceptor: OH- • Rate equation (analogous for base catalysis)

  11. Specific Acid Catalysis • Dependence of the observed rate constant for oximation of acetone on pH at 25°C. The rate equation is r = kobs * Cacetone

  12. 2nd order HA H+ + A- Catalysis in Solution:General Acid Base Catalysis • Proton donor HA, H2O...Proton acceptor B, H2O • Rate equation

  13. General Acid Catalysis

  14. Rates in Heterogeneous Catalysis • Rate with respect to mass or surface area

  15. Turn Over Frequency • Rate with respect to number of active sites low site density high site density • Turnover frequency is the number of molecules formed per active site per second (in a stage of saturation with reactant, i.e. a zero order reaction with respect to the reactant)

  16. TOF, TON, Catalysis • TONTotal number of product formed molecules per active siteTON= TOF*catalyst life time • TON = 1 stoichiometric reactionTON  102 catalytic reactionTON = 106-107 industrial application • TON origins from enzyme kinetics, definitions vary

  17. Examples for TOFs

  18. Reaction Steps in Heterogeneous Catalysis • Diffusion of reactant to catalyst • Adsorption of reactant on catalyst surface • Reaction • Desorption of products from catalyst surface • Diffusion of products away from catalyst We want to know the reaction kinetics. Diffusion should thus not be a rate limiting step.

  19. Interfacial Gradient Effects • Mass transfer bulk of fluid to surface • Case 1: reaction at surface instantaneousglobal rate controlled through mass transfer“diffusion control”, favored at high T • Case 2: reactant concentration at surface same as in bulk fluidglobal rate controlled through reaction rate“reaction controlling”, favored at low T and high turbulence

  20. Intraparticle Gradient Effects • Mass transfer within the pores of a catalyst • Vary particle size!

  21. Langmuir Hinshelwood Mechanism • Both species are adsorbed, adsorption follows Langmuir isotherm (see class next week) B A

  22. Eley Rideal Mechanism B A • Only one species is adsorbed, adsorption follows Langmuir isotherm

  23. How to Derive a Rate Equation I H+ 2 C2H5OH C2H5-O-C2H5 + H2O

  24. How to Derive a Rate Equation II

  25. How to Derive a Rate Equation III

  26. + H2 Structure Insensitivity • rate per exposed metal surface area is NOT a function of the metal particle size • active site 1-2 atoms • Example: the hydrogenation of cyclohexene

  27. Structure Insensitivity

  28. C2H6 + H2 2 CH4 Structure Sensitivity • also: ammonia synthesis (reactions involving C-C, N-N bond breaking) • rate per exposed metal surface area is a function of the metal particle size / the exposed facet plane • active site an ensemble of atoms • Example: the hydrogenolysis of ethane

  29. Structure Sensitivity

  30. Temperature Dependence of Rate Constant • Once a rate equation has been established, a rate constant can be calculated • The rate constant is temperature dependent • There are three different ways to derive this relation:Arrhenius TheoryCollision Theory Transition State Theory (Eyring)

  31. k1 van’t Hoff’s Equation A B k-1 Arrhenius Theory

  32. Arrhenius Theory • With E the apparent activation energy in kJ mol-1A the frequency factor • Plot of ln k vs. 1/T gives a slope of -EA/R which allows the calculation of the activation energy • A rule of thumb: the rate doubles for 10 K rise in temperature

  33. Collision Theory • According to the simple collision theory, the preexponential factor is dependent on T1/2 • with NA Avogadro’s number, σ cross section, μ reduced mass, k Boltzmann’s constant

  34. Activated Complex Theory A + BC A B C AB + C • Evans/Polanyi, Eyring • based on statistical thermodynamics

  35. Results of Activated Complex Theory • Rate constant (based on number of moles) • Function of T • From the equilibrium constant for the activated complex, a standard free enthalpy of activation can be calculated

  36. Example for Arrhenius Plot 2 different slopes may indicate change in mechanismor change from reaction to diffusion control

  37. Compensation Effect • A “sympathetic variation of the activation energy with the ln of the pre-exponential factor” • ln A and EA/RT have the same order of magnitude but different signs • Change in EA may b compensated by change in A

  38. Compensation Effect • Observed for the same reaction on a family of catalysts

  39. Compensation Effect • Observed for similar reactions on the same catalyst

  40. Compensation Effect: Explanations • “Apparent” activation energy EA,app derived from measured rate and rate equation • With increasing temperature, the “true” reaction rate will increase • With increasing temperature the coverage decreases (exothermic adsorption), leading to a smaller measured rate • EA,app is a weighted sum of the EA,true and the enthalpy of adsorption

  41. Literature • Gabor A. Somorjai, Introduction to Surface Chemistry and Catalysis, John Wiley, New York, 1994 • Bruce C. Gates, Catalytic Chemistry, John Wiley, New York, 1992 • G Ertl, H. Knözinger, J. Weitkamp, Handbook of Heterogeneous Catalysis, Wiley-VCH, Weinheim 1997 • G. Wedler, Physikalische Chemie, Verlag Chemie Weinheim • G.F. Froment, K.B. Bischoff, Chemical Reactor Analysis and Design, Wiley 1990 • Compensation effect: G.C. Bond, Catal. Today 1993, J. Catal. 1996
