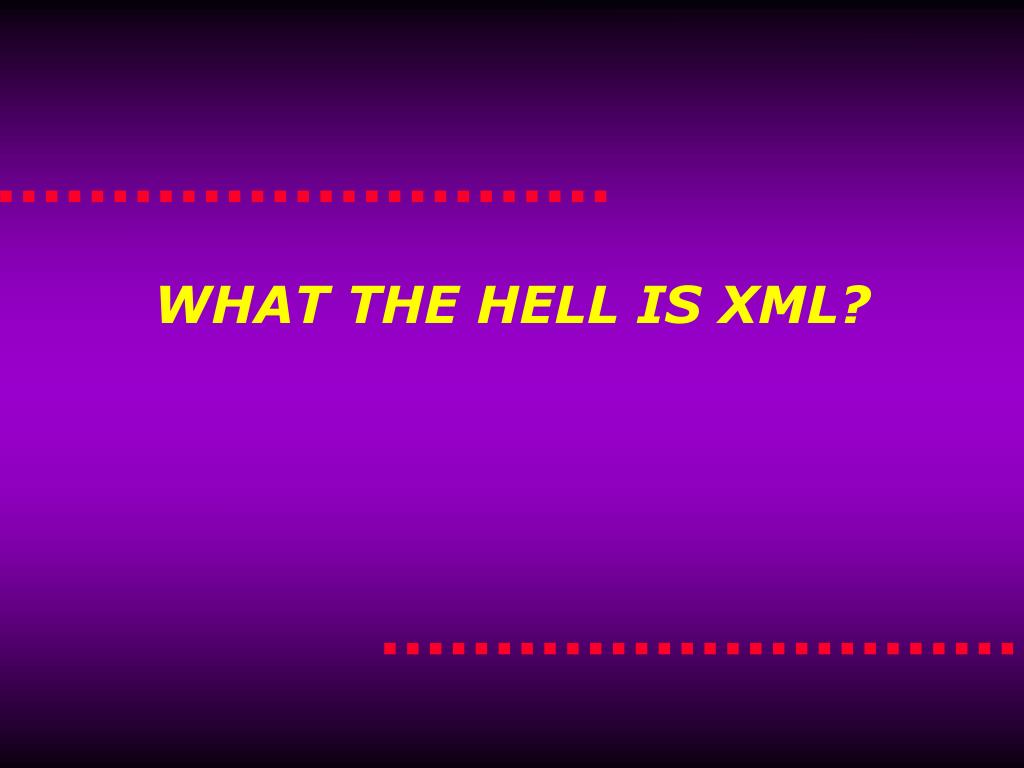

  1. WHAT THE HELL IS XML?

  2. What the hell is XML? • Markup Language • Derived from SGML (Standardized General Markup Language) • Describes the CONTENT (stylesheet has to be applied to format content) • Structured documents, can be used like a database that you can send to your clients/suppliers • They can then use the data in any XML-supporting database/app

  3. Like HTML? • Both based on SGML • Both use tags < … > • In both, tags enclose content.. • <TAGNAME>..content..</TAGNAME> • In both, tags have attributes.. • <TAGNAME ATTRIBUTENAME=“attributevalue”>

  4. Like HTML? • XML MUST have closing tags • <P>This is a paragraph • <P>This is invalid in XML • MUST have quotation marks around attributes • <FONT SIZE=9>No quotes</FONT> • CaSE senSiTivE! • <CaSE>This will not close</CASE> • XML has a strict syntax • Documents must be well-formed! • XML documents must start with an xml tag.. • <?xml version=“1.0” standalone=“yes” ?>

  5. Object Modelling • <APOGEE> • <EMPLOYEE> • <NAME>Irfan</NAME> • <PHONE>770-980-0099</PHONE> • </EMPLOYEE> • <EMPLOYEE> • <NAME>Michelle</NAME> • <PHONE>678-357-3661</PHONE> • </EMPLOYEE> • </APOGEE> • In a database, Apogee would be the database name, Employee would be the Table, Name and Phone would be columns • In object models, Employee would be the object, Name and Phone would be Properties

  6. Attributes • <APOGEE> • <EMPLOYEE role=“programmer”> • <NAME>Irfan</NAME> • <PHONE type=“home”>678-981-0193</PHONE> • <PHONE type=“cell”>770-980-0099</PHONE> • </EMPLOYEE> • <EMPLOYEE role=“director”> • <NAME>Joel</NAME> • <PHONE type=“cell”>678-357-3661</PHONE> • </EMPLOYEE> • </APOGEE> • Debate over when to use attributes and when to use elements • MS XML tends to use attributes by default (faster to process?) • Standard XML used elements more

  7. XML – The Rules • Document Type Definitions (DTDs) • Give the rules for validating documents • A bit like a database schema/object model • Describes the rules of the structure • Relationships between elements (e.g. one to many) • Which elements contain which other elements • In Backus Naur Form (BNF) – obscure? • XML Schemas • For a similar purpose to DTDs • Are taking over from DTDs • Are expressed in XML • <xsd:schema>…</xsd:schema>

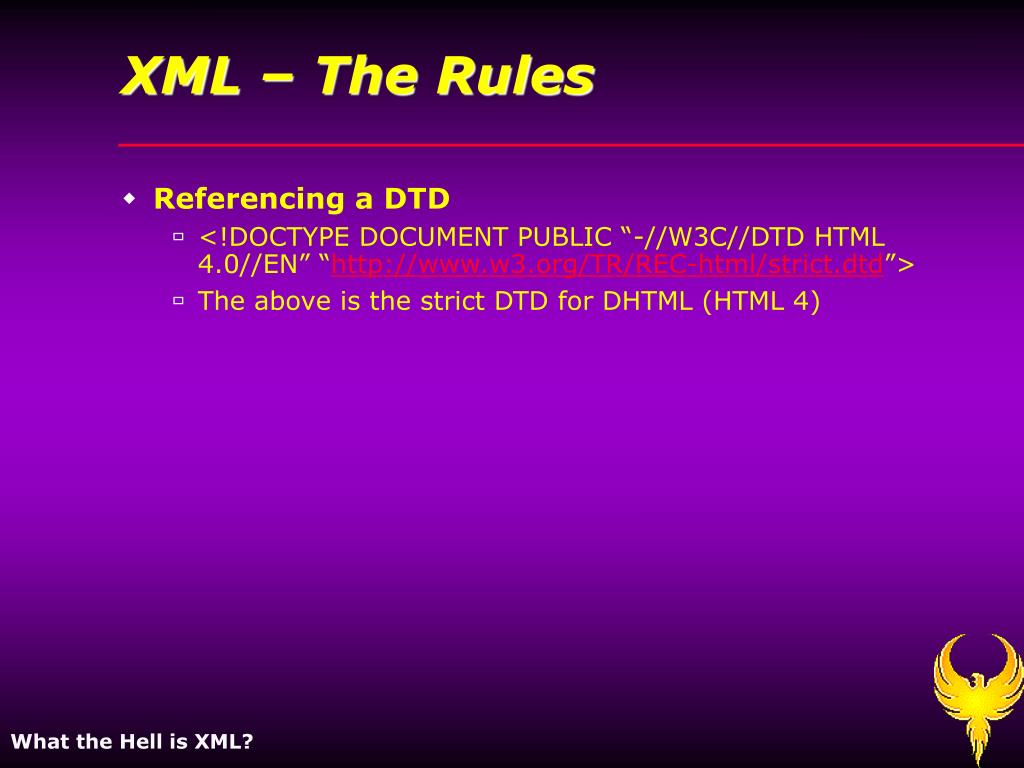

  8. XML – The Rules • Referencing a DTD • <!DOCTYPE DOCUMENT PUBLIC “-//W3C//DTD HTML 4.0//EN” “http://www.w3.org/TR/REC-html/strict.dtd”> • The above is the strict DTD for DHTML (HTML 4)

  9. XML Editors • Schema Editors • Some allow you to turn a DTD into a schema • XML Spy • Turbo XML • Schema Verifiers • Only check the doc is well formed • Expat http://www.jclark.com/xml/expat.html • Schema Validator • World Wide Web Consortium • http://www.w3.org/2000/09/webdata/xsv • XML Parser • Xerces Java • http://xml.apache.org/xerces-j/
