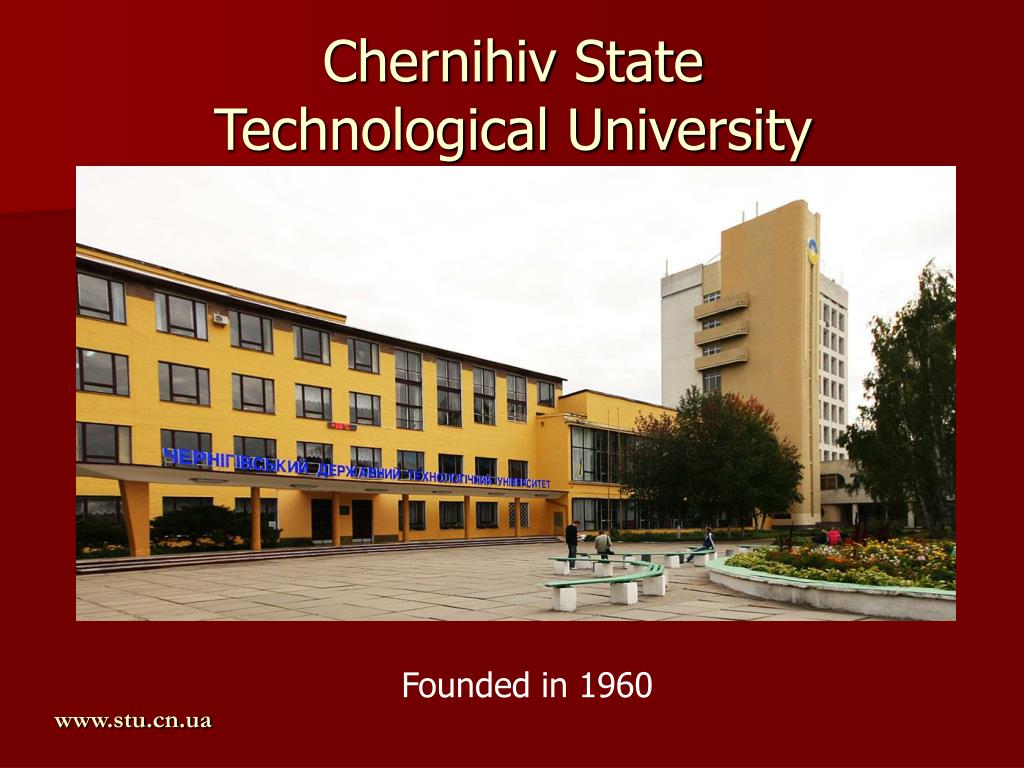

  1. Chernihiv State Technological University НАУЧНЫЕ РАЗРАБОТКИ Founded in 1960 www.stu.cn.ua

  2. Chernihiv More than 1300 years Population: 350 thousand people 3 National Nature Reserve More than 50 large enterprises and nearly 2000  small and medium-sized 2 Universities, 1 state and 3 commercial institutions

  3. University structure • 4 FACULTIES: • Mechanical technology • Electronic and informationtechnologies • Economic • Management  • CENTER OF POSTGRADUATE EDUCATION  • DOCTORAL STUDIES • SCIENCE AND RESEARCH DEPARTMENT • LAW INSTITUTE • COMMERCIAL COLLEGE 40 departments 700 teachers 47 professors 170 PhDs teachers 10000 students 50 PhD students

  4. Mechanical technology faculty • Departments: • Integrated Technologies Engineering and cars • Welding  • Machines and apparatus of chemical fiberand textile industry • Manufacturing Engineering • Fundamentals of machine design • Theoretical and Applied Mechanics

  5. The technology of vacuum welding semiconductor sensors the external wall of a nuclear reactor

  6. The technology of chemical and thermal hardening the surfaces of machine parts by treatment in glow discharge plasma

  7. Corrosion inhibitor Anticorrosionprotection of structural steel, when used in corrosive liquids. Produced from waste vegetable oil. Scope: circulating cooling system in technological cycles, acid etching baths Protection level is 92-99% in neutral and acidic media at room and elevated (up to 60 deg. C) temperatures in steady and dynamic modes. Advantages: • ecology safety  • low cost  • ease of use

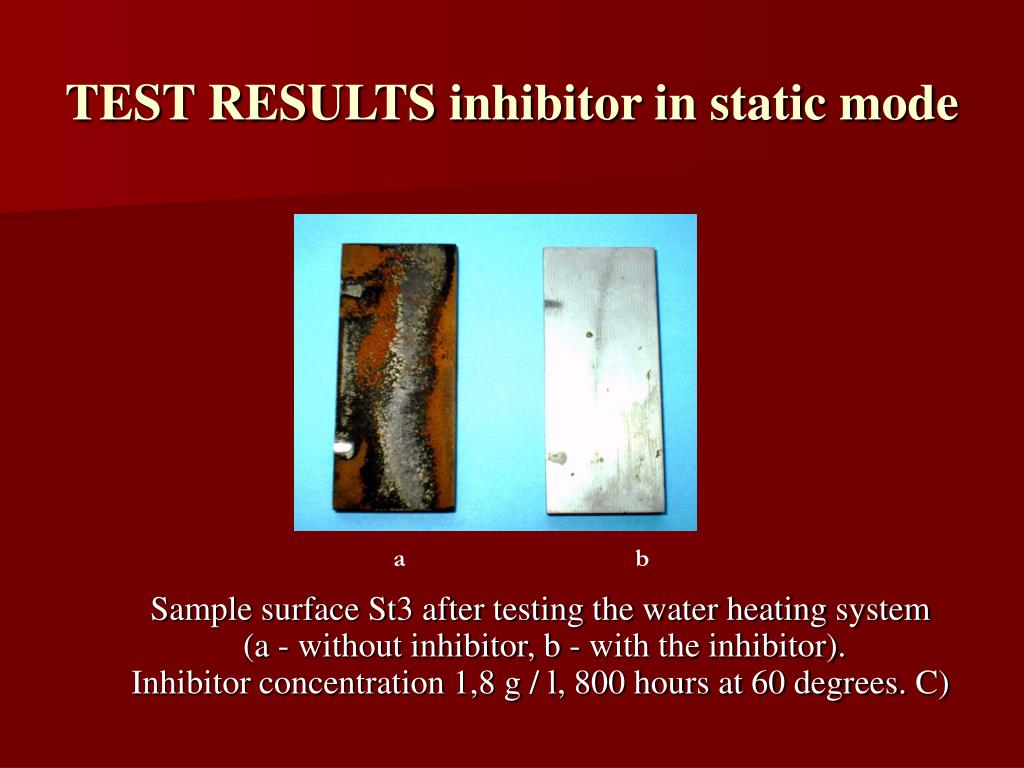

  8. TEST RESULTS inhibitor in static mode Sample surface St3 after testing the water heating system (a - without inhibitor, b - with the inhibitor).Inhibitor concentration 1,8 g / l, 800 hours at 60 degrees. C) а b

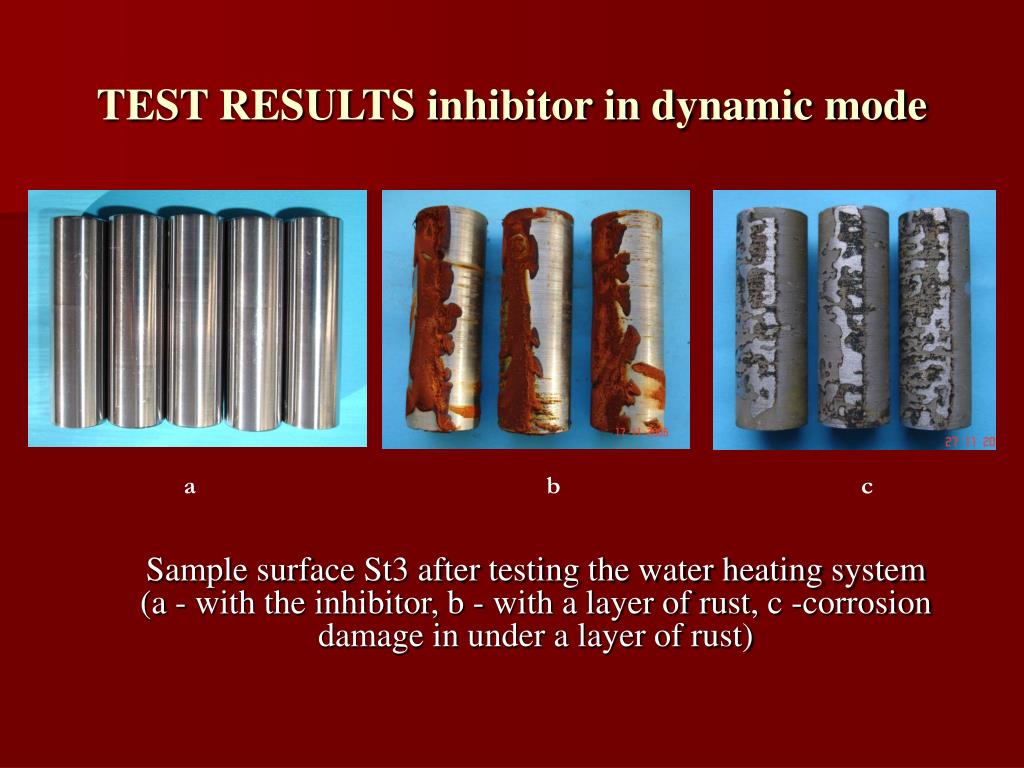

  9. TEST RESULTS inhibitor in dynamic mode Sample surface St3 after testing the water heating system (a - with the inhibitor, b - with a layer of rust, c -corrosion damage in under a layer of rust) а b c

  10. Electronic and Information Technologyfaculty • Departments: • Industrial Electronics   • Information and Computer Systems • Electrical systems and networks Full-time teaching:Bachelor - 4 years.Master - 1,5 years. Distance learning:Bachelor - 4,5 years.Short term training - 3 years.

  11. Processing modules based on Xilinx, ARM7, ARM9.

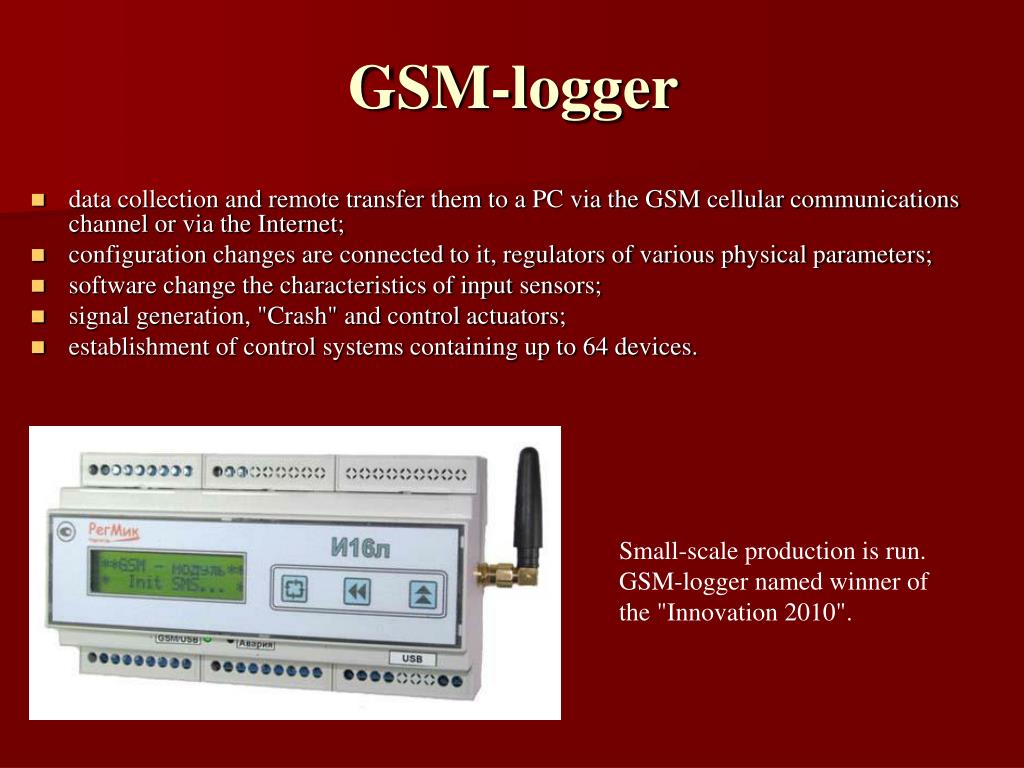

  12. GSM-logger • data collection and remote transfer them to a PC via the GSM cellular communications channel or via the Internet; • configuration changes are connected to it, regulators of various physical parameters; • software change the characteristics of input sensors; • signal generation, "Crash" and control actuators; • establishment of control systems containing up to 64 devices. Small-scale production is run.GSM-logger named winner of the "Innovation 2010".

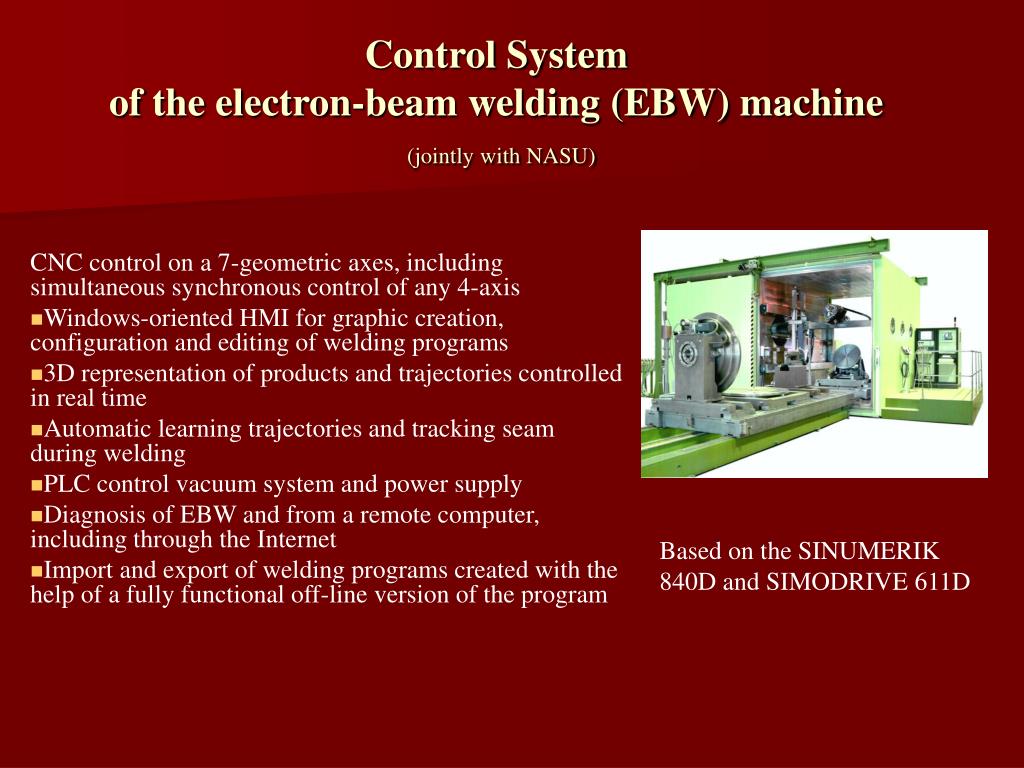

  13. Control System of the electron-beam welding (EBW) machine (jointly with NASU) CNC control on a 7-geometric axes, including simultaneous synchronous control of any 4-axis • Windows-oriented HMI for graphic creation, configuration and editing of welding programs • 3D representation of products and trajectories controlled in real time • Automatic learning trajectories and tracking seam during welding • PLC control vacuum system and power supply • Diagnosis of EBW and from a remote computer, including through the Internet • Import and export of welding programs created with the help of a fully functional off-line version of the program Based on the SINUMERIK 840D and SIMODRIVE 611D

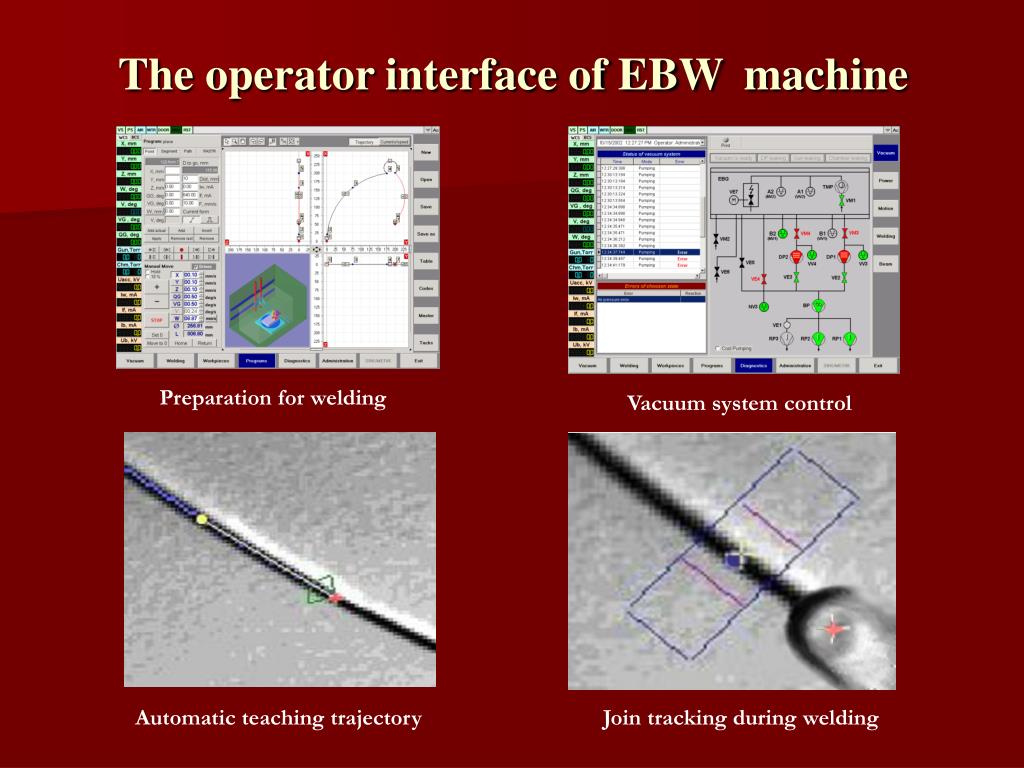

  14. The operator interface of EBWmachine Preparation for welding Vacuum system control Automatic teaching trajectory Join tracking during welding

  15. UA Cryptophone(jointly with NASU) • Product aim • For individuals and bodies corporate who are concerned about the security of voice communications using standard mobile telephony. Using UA Cryptophone alleviates the risk of calls being intercepted and eavesdropped. • Area of Application • Security & enforcement agencies • Government departments • Banks and financial institutions • Corporate business and manufacturing community • Research and R&D industries • Stock and Trade exchanges • Brokers, Legal and Accounting firms • Medical Professionals • Security conscious individuals. • Conditions • UA Crypto phone is a dual ended system, meaning that both parties must have a one • In crypto mode it works on standard data call enabled networks (CSD) Security and facility with GSM

  16. UA Cryptophone feature set • Work in two modes: normal and crypto links • Easy intuitive user interface with contact list support • Secure voice calls and SMS • High quality of conversational speech in safe mode • Automatic recognition modes of incoming calls • Symmetric encryption algorithm GOST 28147-89 with a key length 256 bits • By-session key changing • Memory capacity - 750 000 pairs of keys (up to 250 subscribers at 3000 communication sessions) • Automatically checking of key availability and updating • Any GSM provider support • International roaming support

  17. UA Cryptophone design • Phone case Nokia 6021 • Own board3 processor, color display • Screen Resolution: 128 x 128 pixels • Slot to fill key • Own software

  18. ENERGY SAVING LED LIGHTING SYSTEMS (jointly with NASU) • Fields of application: • light industrial areas, warehouses and commercial premises; • Domestic (decorative) lighting.Advantages over traditional lighting systems: • energy savings (2-fold compared with fluorescent lamps and 3-4 times - with incandescent bulbs); • long life - up to 100,000 hours, i.e. 11.5 years, provided continuouswork, which is 100 times longer than incandescent bulbs and 50 times longerhalogen lamp; • minimal operating expenses, which is principally in the placementlighting in remote locations; • compactness, ease of installation; • Operating Temperature: (- 40 - 120) C; • no infrared and ultraviolet radiation, do not contain mercury.

  19. Highlighting the Cabinet of Ministers (90 LED lamps. Power consumed by a lamp - 15W)

  20. Proposal for cooperation Joint Bachelor Joint Masters Exchange practices Double diplomas PhD Joint Science Research and Grants

  21. Contact Information Chernihiv State Technological UniversityShevchenko, 95, Chernihiv, 14027 tel. +38 0462952088 e-mail: nauka@stu.cn.ua, vvkazymyr@gmail.com www. stu.cn.ua
