  1. FT36 Future of GC Patrick Dussud Technical Fellow Developer Division

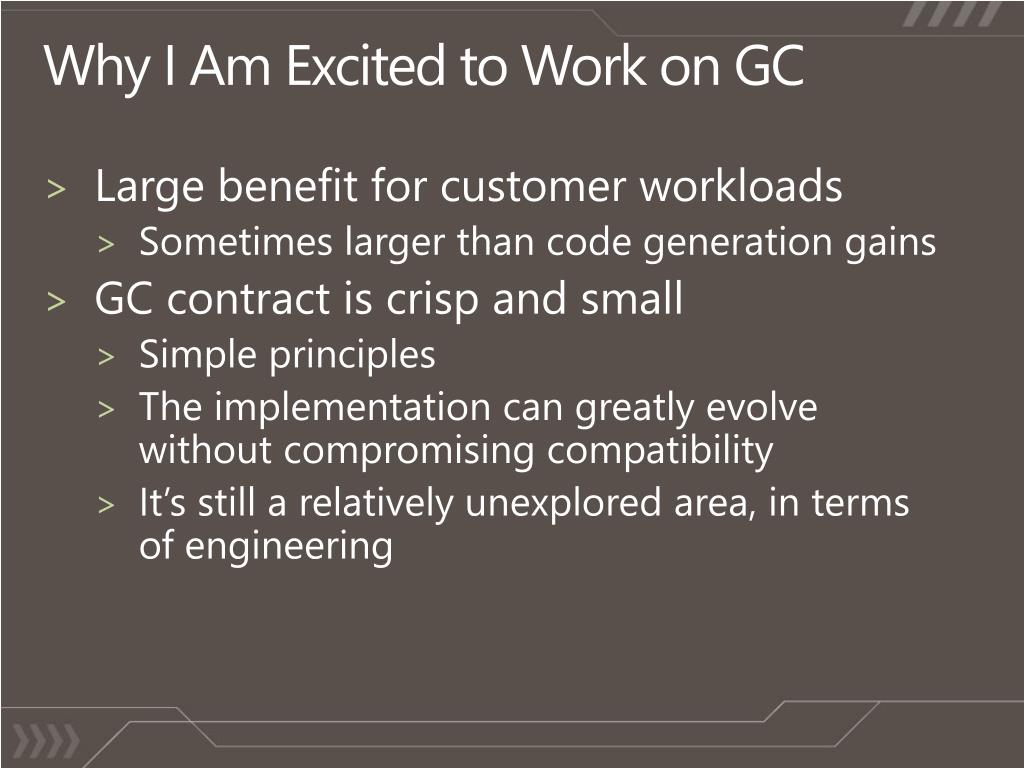

  2. Why I Am Excited to Work on GC • Large benefit for customer workloads • Sometimes larger than code generation gains • GC contract is crisp and small • Simple principles • The implementation can greatly evolve without compromising compatibility • It’s still a relatively unexplored area, in terms of engineering

  3. Contents • GC backgrounder • CLR GC history • Future Directions

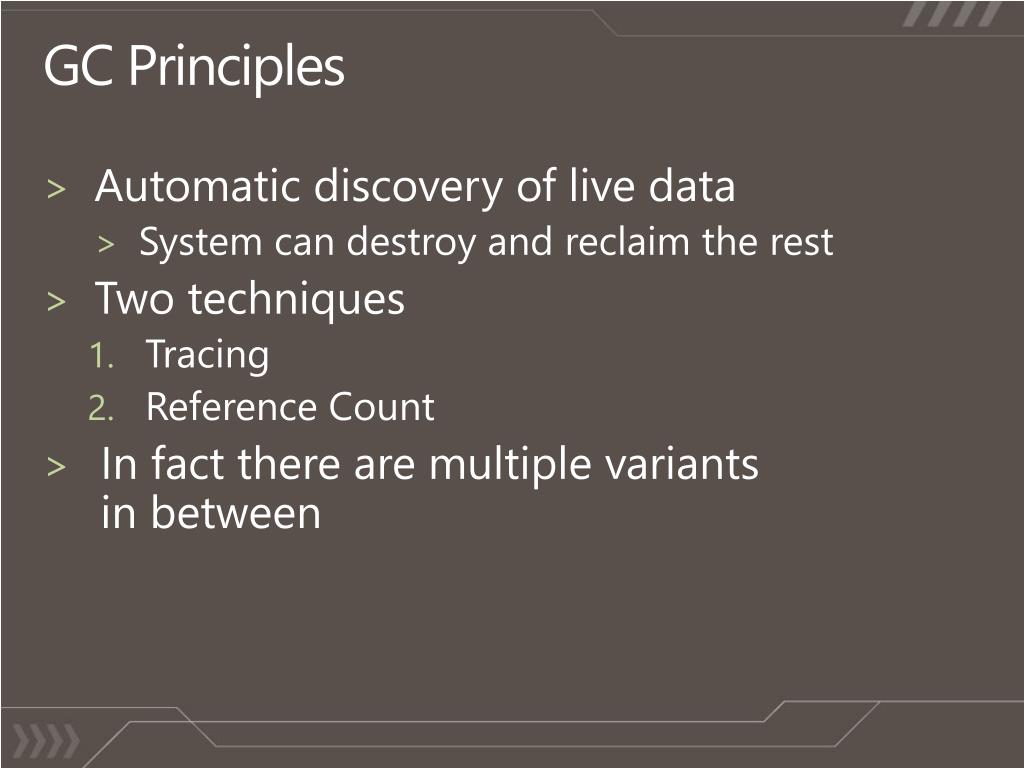

  4. GC Principles • Automatic discovery of live data • System can destroy and reclaim the rest • Two techniques • Tracing • Reference Count • In fact there are multiple variants in between

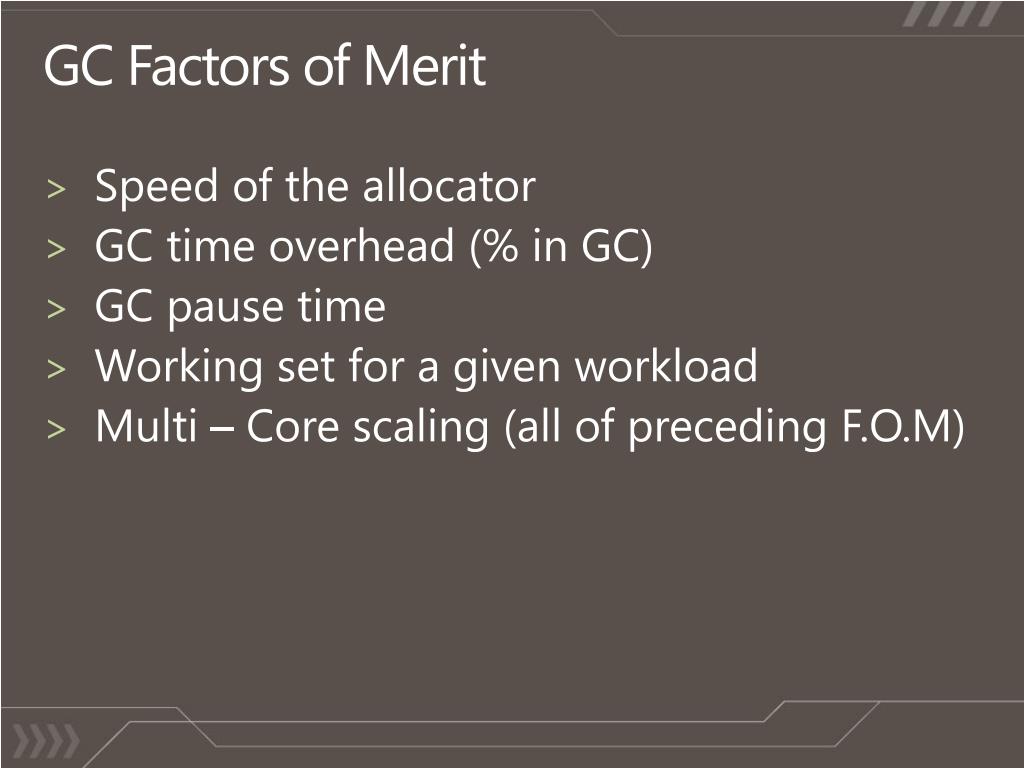

  5. GC Factors of Merit • Speed of the allocator • GC time overhead (% in GC) • GC pause time • Working set for a given workload • Multi – Core scaling (all of preceding F.O.M)

  6. Mechanisms and Policy • Often mechanisms are a clever way to implement a policy (see favorite GC research papers) • Better: An architecture including multiple policy-free mechanisms controlled by policy • Key to a long lived implementation

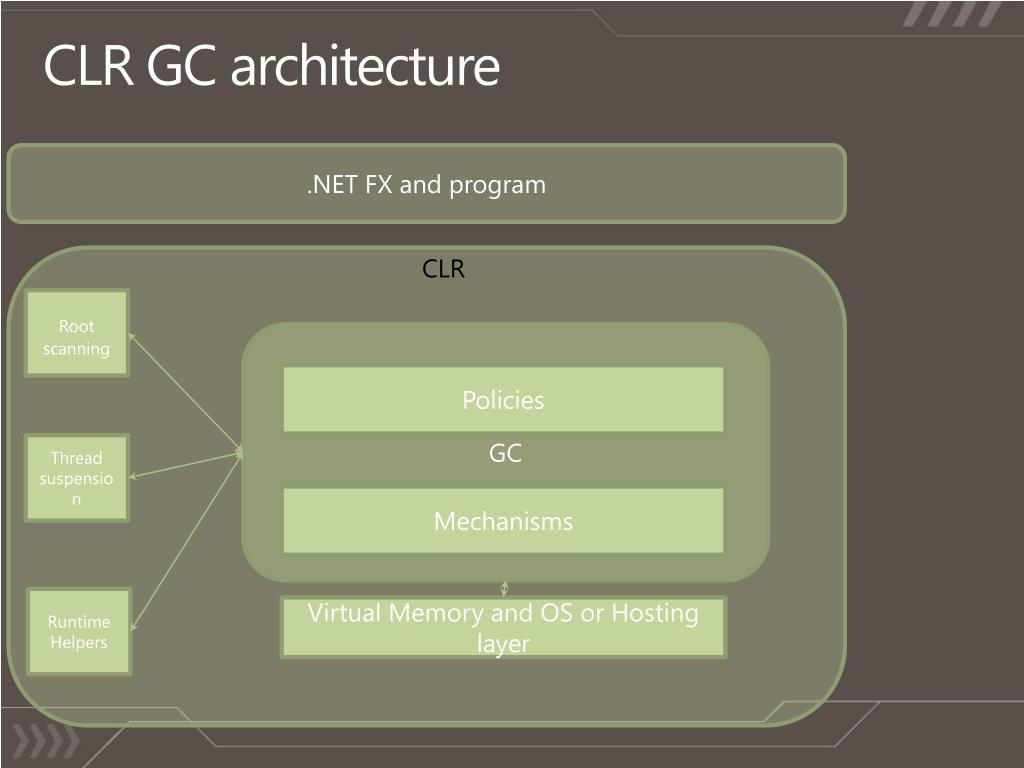

  7. CLR GC architecture .NET FX and program CLR Rootscanning GC Policies Thread suspension Mechanisms Runtime Helpers Virtual Memory and OS or Hosting layer

  8. CLR GC V1 • Choice of Workstation or server GC • Common architecture • Both allocators are MP scalable • Most mechanisms are shared • Policies are tuned to each scenarios • Concurrent GC to reduce pause time • MP scalable GC for servers to reduce GC overhead

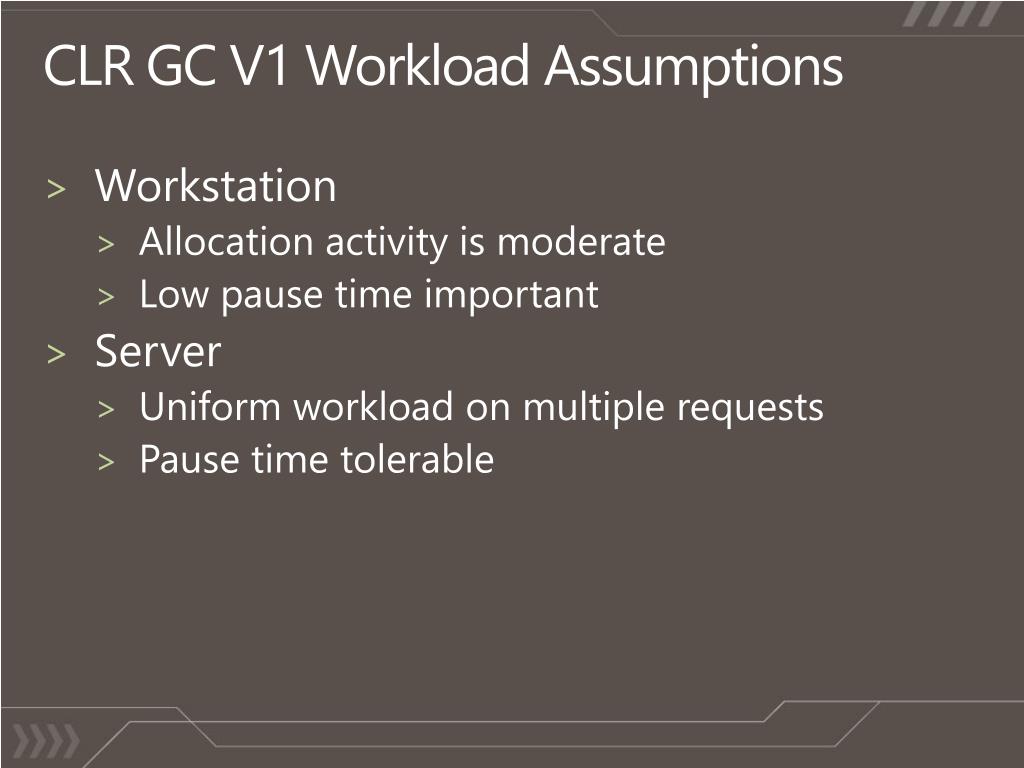

  9. CLR GC V1 Workload Assumptions • Workstation • Allocation activity is moderate • Low pause time important • Server • Uniform workload on multiple requests • Pause time tolerable

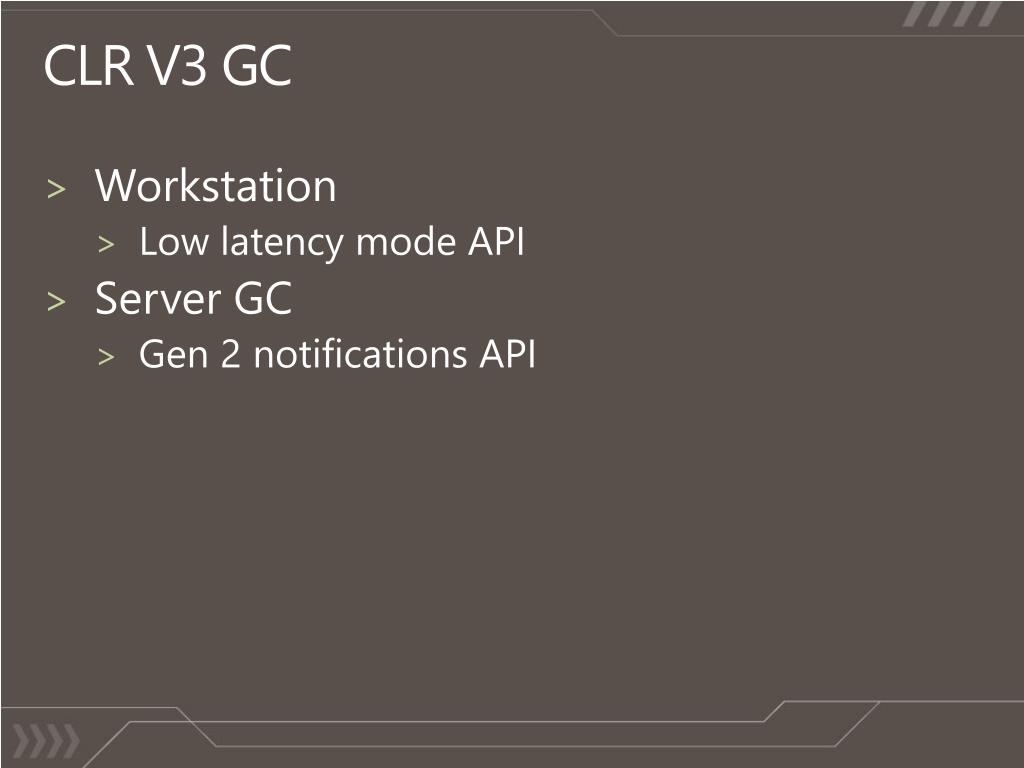

  10. CLR V3 GC • Workstation • Low latency mode API • Server GC • Gen 2 notifications API

  11. CLR V4 GC • Workstation • Background GC: Allows ephemeral GCs (Gen0-1) while engaged in a concurrent Gen2 GC • Alleviate the assumption that allocation activity is moderate • Net effect: Reduced pause time in full GC for all workloads

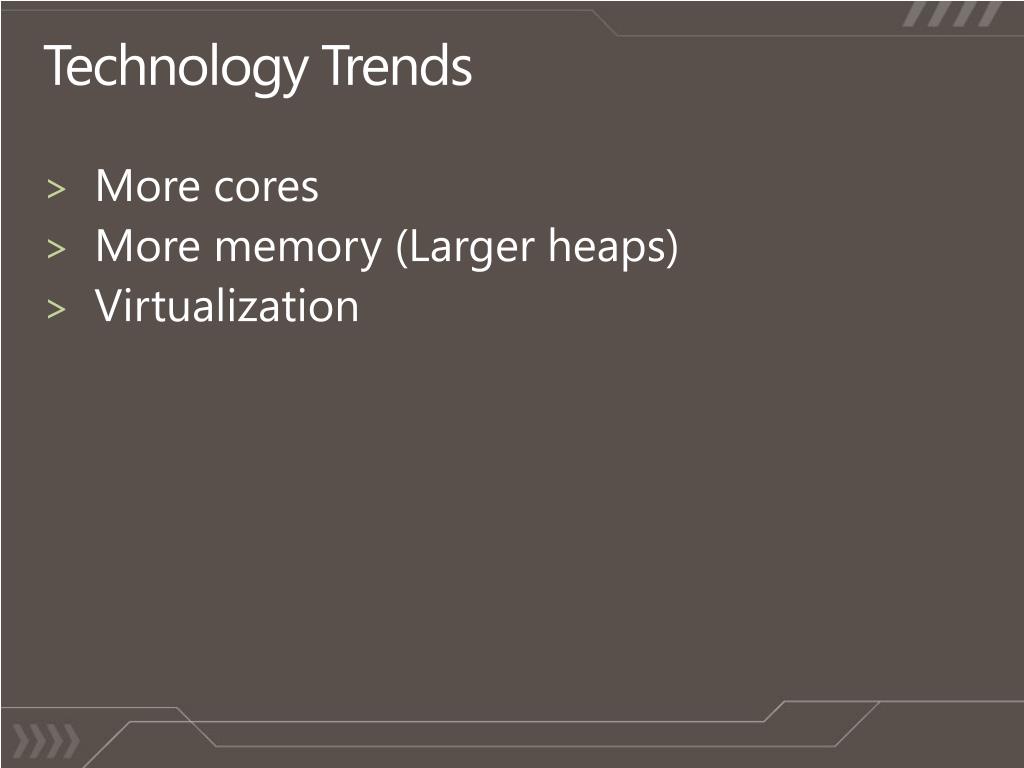

  12. Technology Trends • More cores • More memory (Larger heaps) • Virtualization

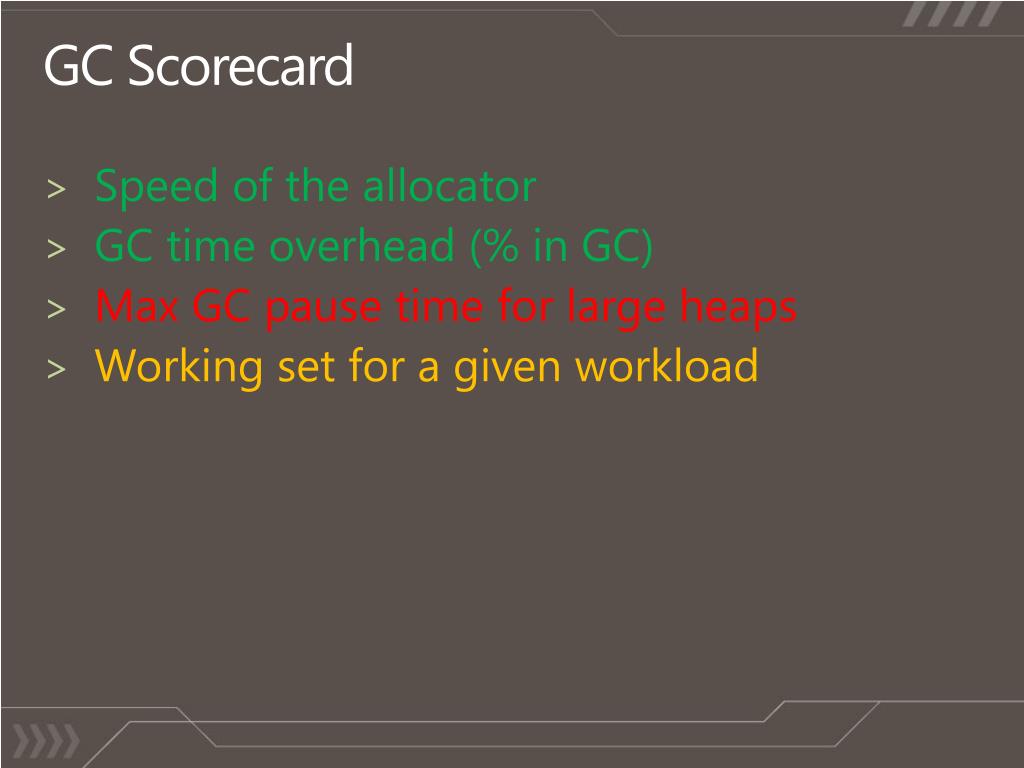

  13. GC Scorecard • Speed of the allocator • GC time overhead (% in GC) • Max GC pause time for large heaps • Working set for a given workload

  14. GC Pause Time • Background GC needs more feedback but it seems very good so far • Same approach can be brought to Server GC • Real Time GC not likely for mainstream CLR because of its adverse effect on program execution speed (read barriers)

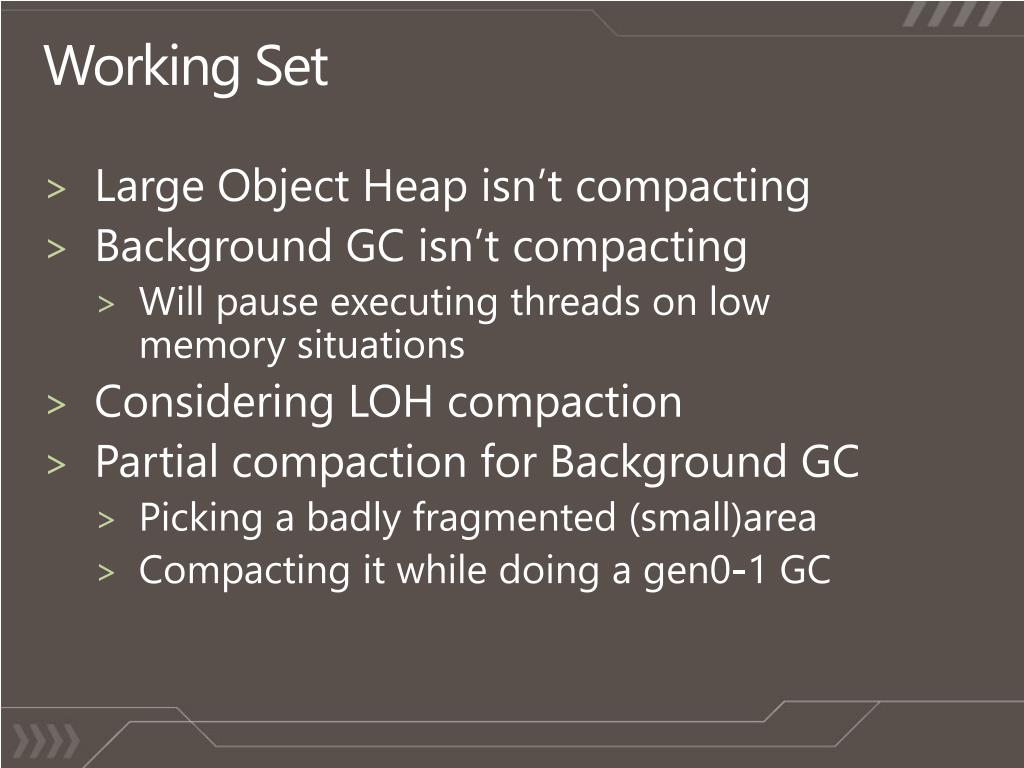

  15. Working Set • Large Object Heap isn’t compacting • Background GC isn’t compacting • Will pause executing threads on low memory situations • Considering LOH compaction • Partial compaction for Background GC • Picking a badly fragmented (small)area • Compacting it while doing a gen0-1 GC

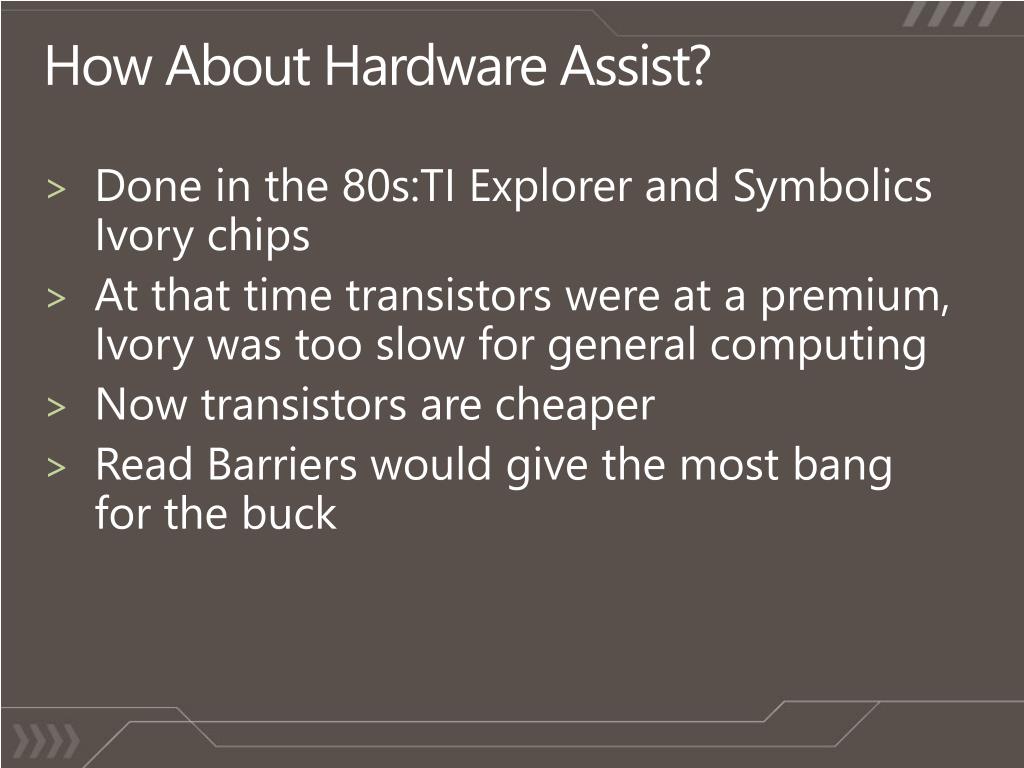

  16. How About Hardware Assist? • Done in the 80s:TI Explorer and Symbolics Ivory chips • At that time transistors were at a premium, Ivory was too slow for general computing • Now transistors are cheaper • Read Barriers would give the most bang for the buck

  17. How About OS assist? • Good research on avoiding paged out object scanning • Paging is becoming less relevant • Some mechanisms canbe improved by having more integration between the Virtual Memory manager and the segment manager of GC • Useful for virtualization • Can delay paging

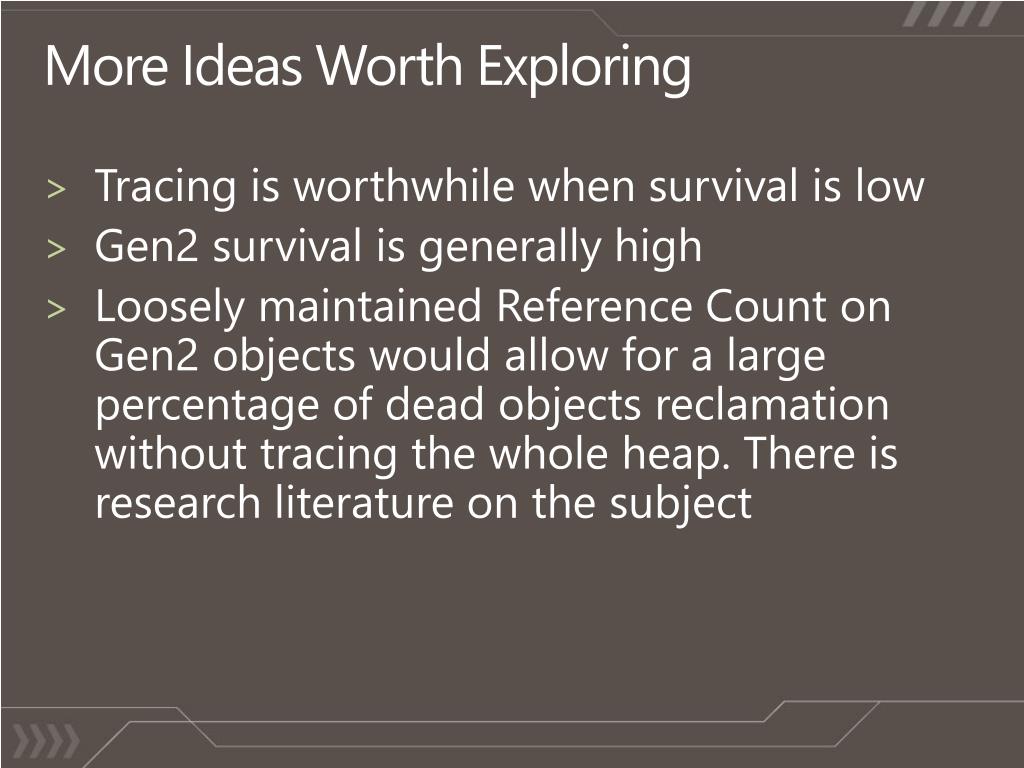

  18. More Ideas Worth Exploring • Tracing is worthwhile when survival is low • Gen2 survival is generally high • Loosely maintained Reference Count on Gen2 objects would allow for a large percentage of dead objects reclamation without tracing the whole heap. There is research literature on the subject

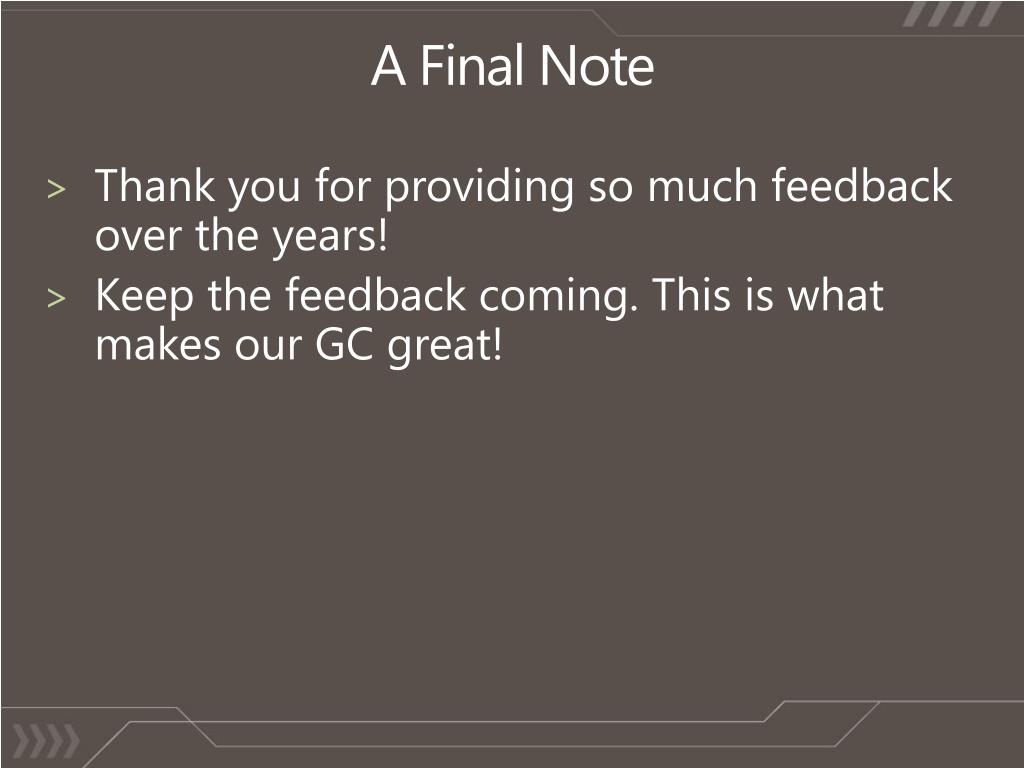

  19. A Final Note • Thank you for providing so much feedback over the years! • Keep the feedback coming. This is what makes our GC great!
