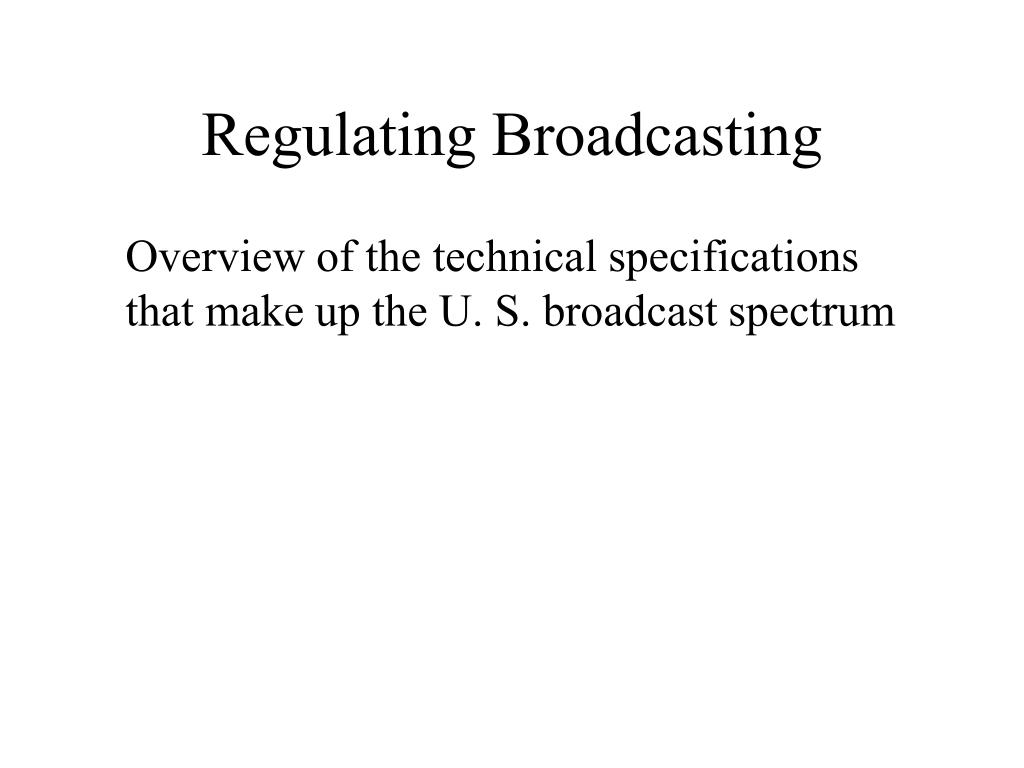

  1. Regulating Broadcasting Overview of the technical specifications that make up the U. S. broadcast spectrum

  2. Regulating Broadcasting • FCC derives its power from • The Communications Act of 1934 • The Telecommunications Act of 1996 • Other amendments to these acts • Satellite Communications Act • Children’s Television Rules

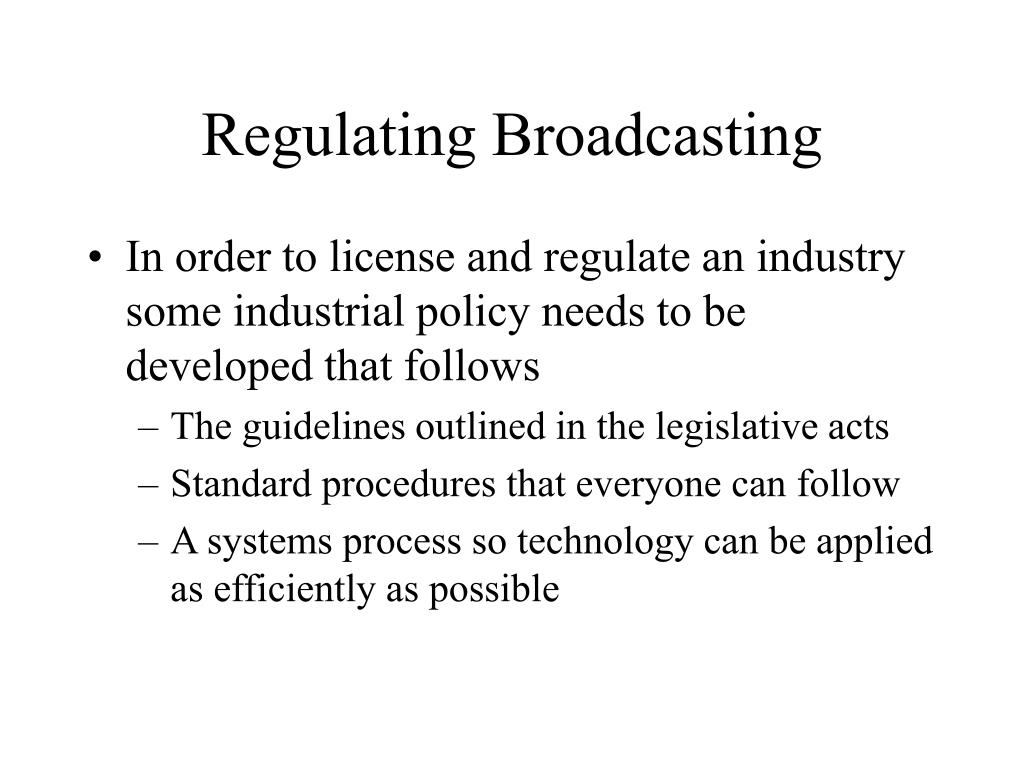

  3. Regulating Broadcasting • In order to license and regulate an industry some industrial policy needs to be developed that follows • The guidelines outlined in the legislative acts • Standard procedures that everyone can follow • A systems process so technology can be applied as efficiently as possible

  4. Regulating Broadcasting • Broadcasting uses a series of frequencies and we call those frequencies allocated to stations CHANNELS • Channels are part of the spectrum allocation process • Different parts of the spectrum are used for different purposes

  5. Regulating Broadcasting • Broadcasting - to be useful to every potential user of the spectrum - needs to have standards applied to • The transmission of signals • The reception of signals • The use of the spectrum

  6. Regulating Broadcasting • Terminology used • Frequency - the wavelength of the channel • Frequency (response) - the frequencies broadcast that affect the quality of the programs • Amplitude - how the signal is modulated • Carrier wave - the frequency used to transmit • Hertz - the measure of frequency (1 HZ = 1 cycle per second)

  7. Regulating Broadcasting • Modulation methods used • Amplitude modulation - the audio portion of the program is superimposed upon the carrier • Frequency modulation - the carrier is made to oscillate in proportion to the program audio • Pulse code modulation - the amplitude is turned on and off to represent the digital words transmitted

  8. Regulating Broadcasting • Standards • AM - Medium wave transmitting stations use amplitude modulation • FM - VHF wave transmitting stations that use frequency modulation • TV - VHF and UHF transmitting stations that use NTSC standards (AM for the video picture and FM for the audio portion) • DTV - VHF and UHF transmitting stations using 8 VSB (vestigal side band) modulation, MPEG 2 compression

  9. Regulating Broadcasting • More Standards • DTV standards • 480 Interlace - 480 lines X 640 pixels odd and even scan lines interlace • 480 Progressive - 480 lines X 640 pixels with lines scanned progressively • 720 - 720 lines X 1280 pixels either I or P • 1080i - 1080 lines X 1920 pixels I (ATSC standard)

  10. Regulating Broadcasting • The electromagnetic spectrum • 300,000 HZ to 3 MHZ (medium wave) • 107 AM Channels • Air and Marine, SOS and Ham radio - 3 MHZ to 30 MHZ (shortwave) • International Shortwave, military, Ham

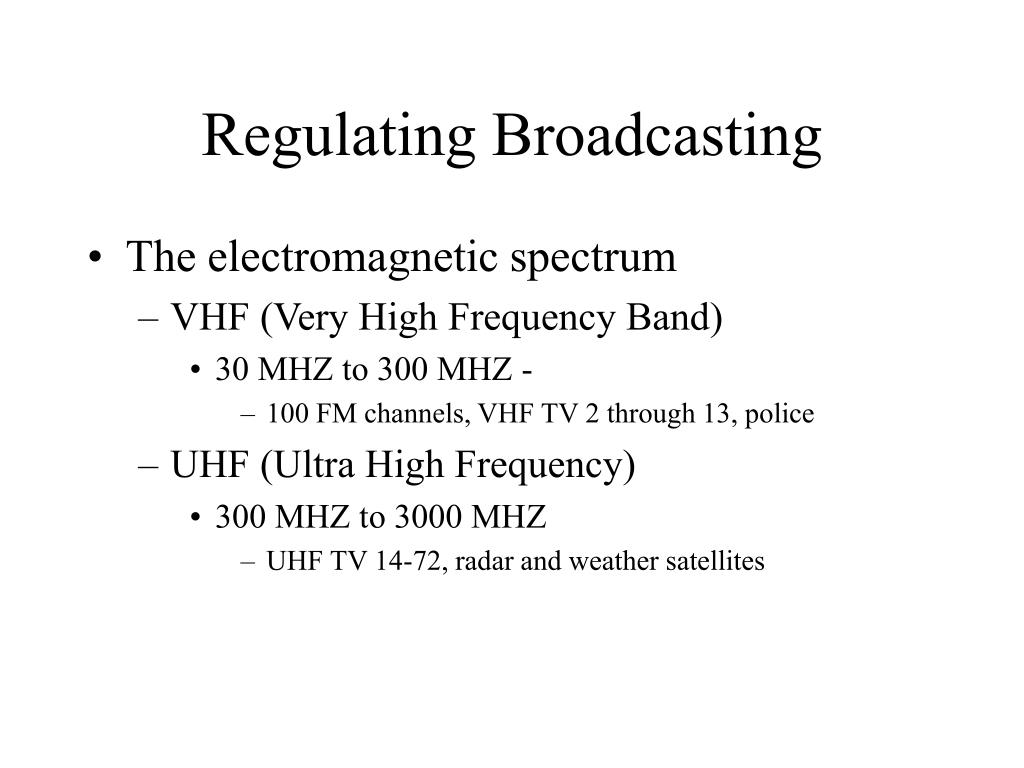

  11. Regulating Broadcasting • The electromagnetic spectrum • VHF (Very High Frequency Band) • 30 MHZ to 300 MHZ - • 100 FM channels, VHF TV 2 through 13, police • UHF (Ultra High Frequency) • 300 MHZ to 3000 MHZ • UHF TV 14-72, radar and weather satellites

  12. Regulating Broadcasting • The electromagnetic spectrum • SHF (Super High Frequency Band) • 3000 MHZ to 3 GHZ • Ku and C band communication satellites, Satellite radio, microwave relay, air navagation, radar • EHF (Extremely High Frequency Band) • 3 GHZ to 300 GHZ • Military communications and future expansion

  13. Regulating Broadcasting • Radio Classification • AM (Standard Broadcast Band) • 107 Channels between 530KHZ and 1705 KHZ • 60 Clear Channels - Class A (high power) • 41 Regional - Class B (medium power) • 6 Local Channels - Class C (low power) • Each station has a 10 KHZ bandwidth

  14. Regulating Broadcasting • Radio Broadcasting • FM (authorized in 1945) • 100 Channels between 88.0 MHZ and 108 MHZ • 80 Channels between 92 and 108 MHZ commercial • 20 Channels between 88 and 92 MHZ educational • Each channel is 200 KHZ wide and provides for the ability to multiplex transmission (FM Stereo) • Power levels are classified A (lowest), B (medium) C (highest) and new D (low power FM)

  15. Regulating Broadcasting • Television Broadcasting • VHF - Channels 2 - 13 • 54 MHZ to 216 MHZ spectrum • Each TV channel is 6 MHZ wide • UHF - Channels 14 - 72 • 470 MHZ to 890 Mhz spectrum • DTV - Both VHF and UHF • Each channel is 6 MHZ and uses MPEG 2 compression with 8 VSB modulation

  16. Regulating Broadcasting • Other approved broadcasting services • DBS - Direct Broadcast Satellite • TV service with satellite to home transmission • Using the DVB-2 modulation system capable of both digital standard and HD signals in 12.75 to 14.5 GHZ band • Satellite Radio • Audio service with satellite to car/home transmission • Uses ACC coding in the S Band in the 2.332 to 2.345 GHZ band

  17. Regulating Broadcasting

  18. Regulating Broadcasting

  19. Regulating Broadcasting

  20. Regulating Broadcasting

  21. Regulating Broadcasting
