Protein Synthesis

Protein Synthesis. Translation. The Big Picture. DNA (genes) information copied to make  mRNA (transcription) Information in mRNA sequence used to put together  Chain of amino acids(protein) Proteins determine physical traits of organism. Translation: Why.

maxima
Télécharger la présentation

Protein Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Protein Synthesis Translation

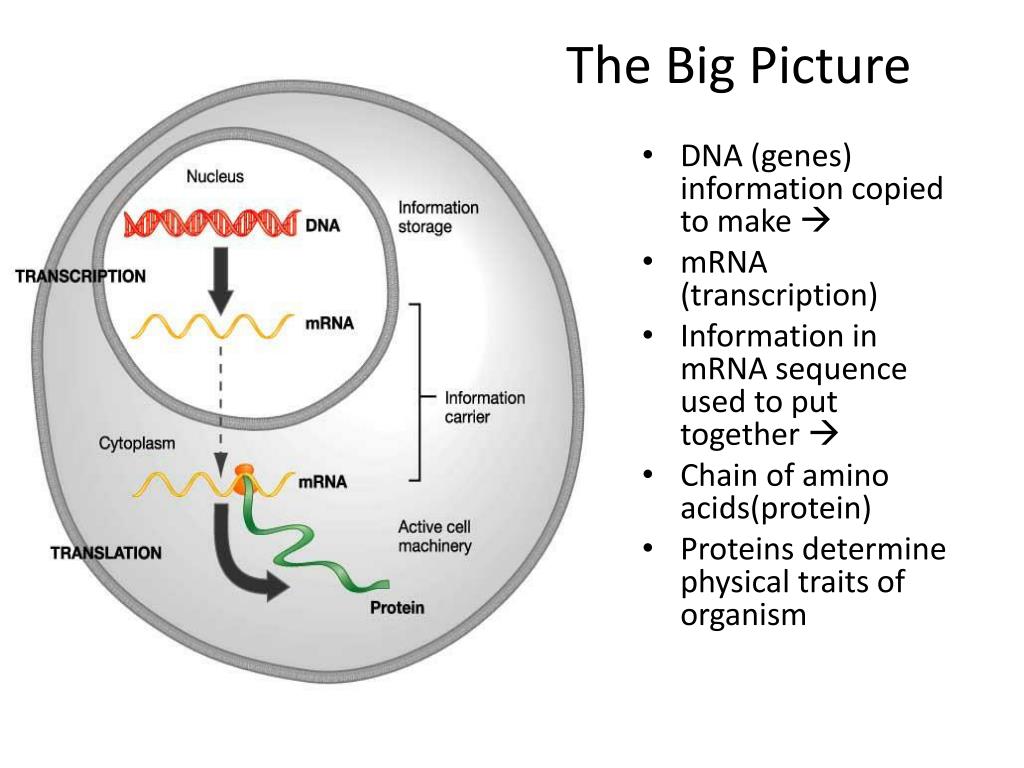

  2. The Big Picture • DNA (genes)information copied to make  • mRNA(transcription) • Information in mRNA sequence used to put together  • Chain of amino acids(protein) • Proteins determine physical traits of organism

  3. Translation: Why • mRNA has copied information from DNA into “nucleic acid” language (A,U,G,C) • Must be translated into “protein” language (amino acids)

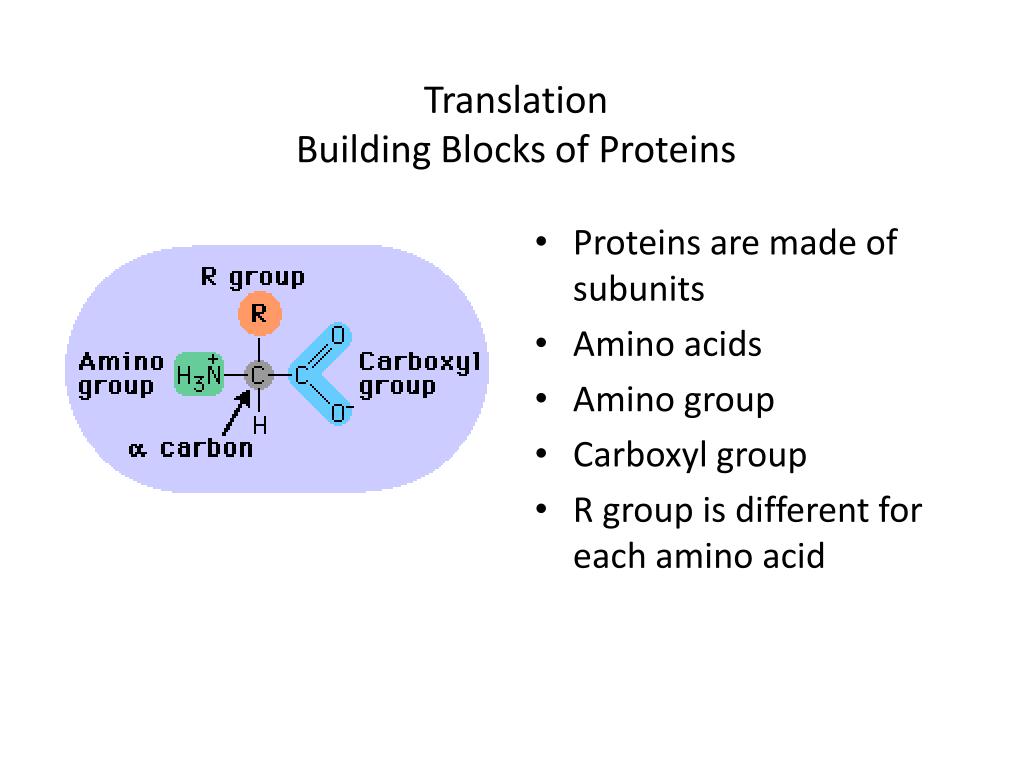

  4. Translation Building Blocks of Proteins • Proteins are made of subunits • Amino acids • Amino group • Carboxyl group • R group is different for each amino acid

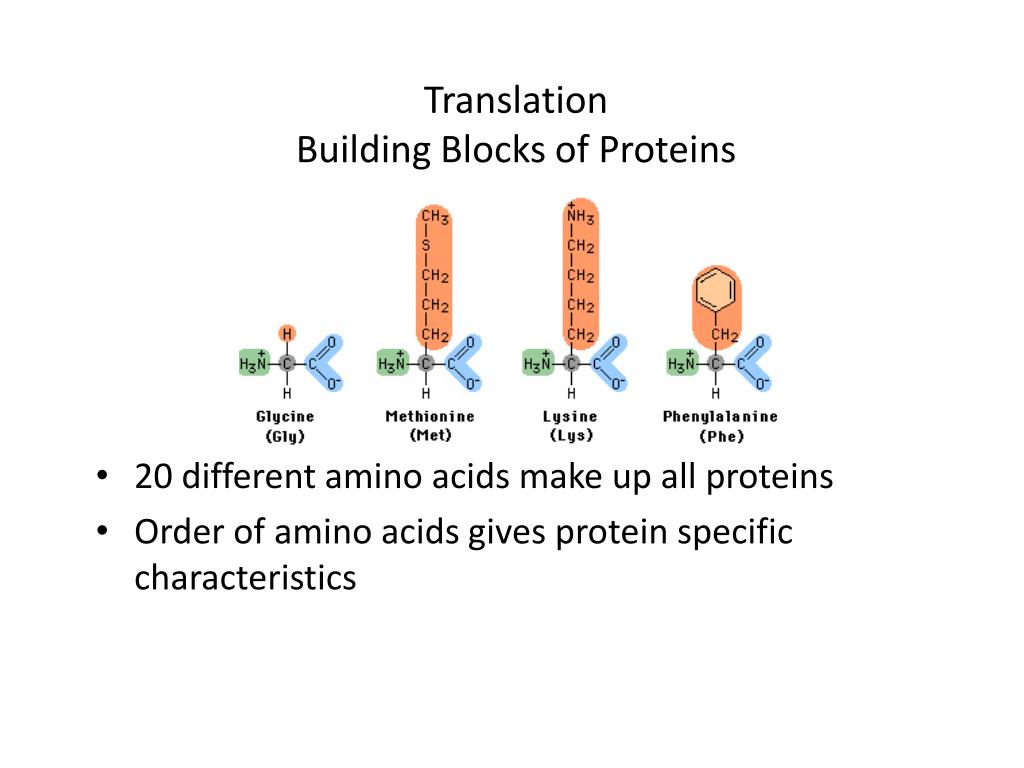

  5. Translation Building Blocks of Proteins • 20 different amino acids make up all proteins • Order of amino acids gives protein specific characteristics

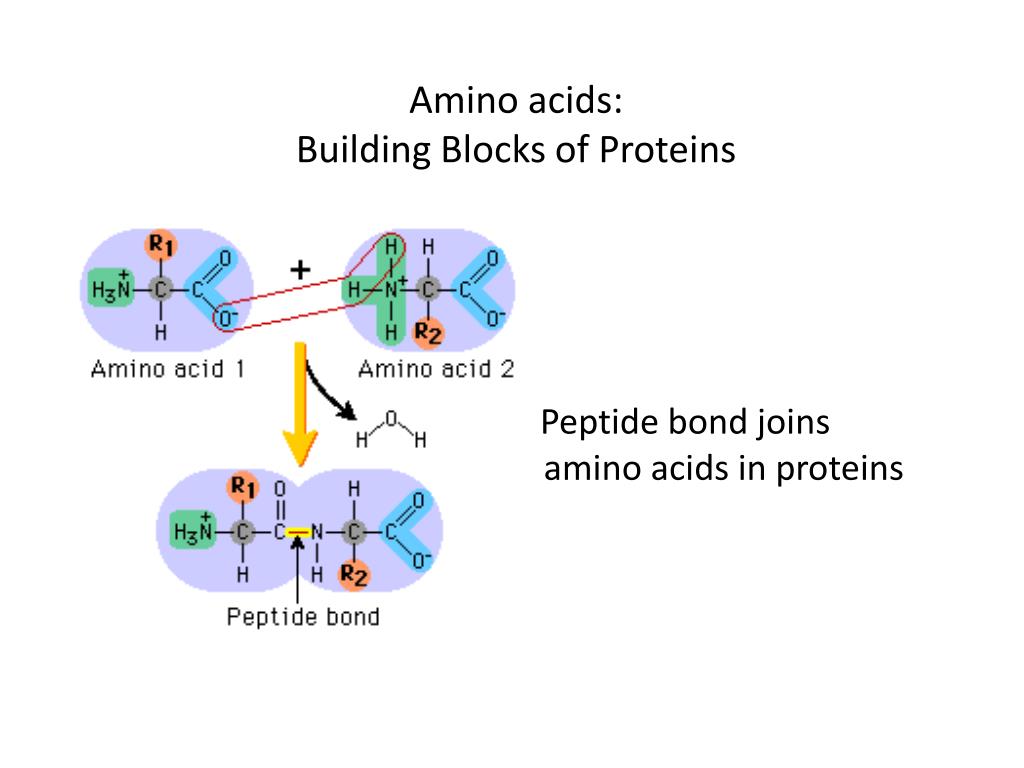

  6. Amino acids: Building Blocks of Proteins Peptide bond joins amino acids in proteins

  7. Translation: The Code • 4 letters in RNA:A, U, C, G • 3 letters = code for each amino acid • Codon = 3 base code for a specific amino acid

  8. Translation: The Code • 64 possible combinations (4x4x4) • More than 1 code for some amino acids • Start = AUG • Stop = UAA, UAG, UGA

  9. Translation: Where • Cytoplasm of cell

  10. Translation: The Players • mRNA with 3-base codons • Start codon • Stop codon

  11. Translation: The Players • tRNA • Matches correct amino acid with codon • Anticodon • Amino acid

  12. Translation: The Players • Composed of rRNA & protein • Ribosomes assemble the protein • Move along mRNA • tRNA brings amino acids

  13. Translation: Initiation • Begin at start codon • Assemble ribosomes • http://www.phschool.com/science/biology_place/biocoach/translation/init.html

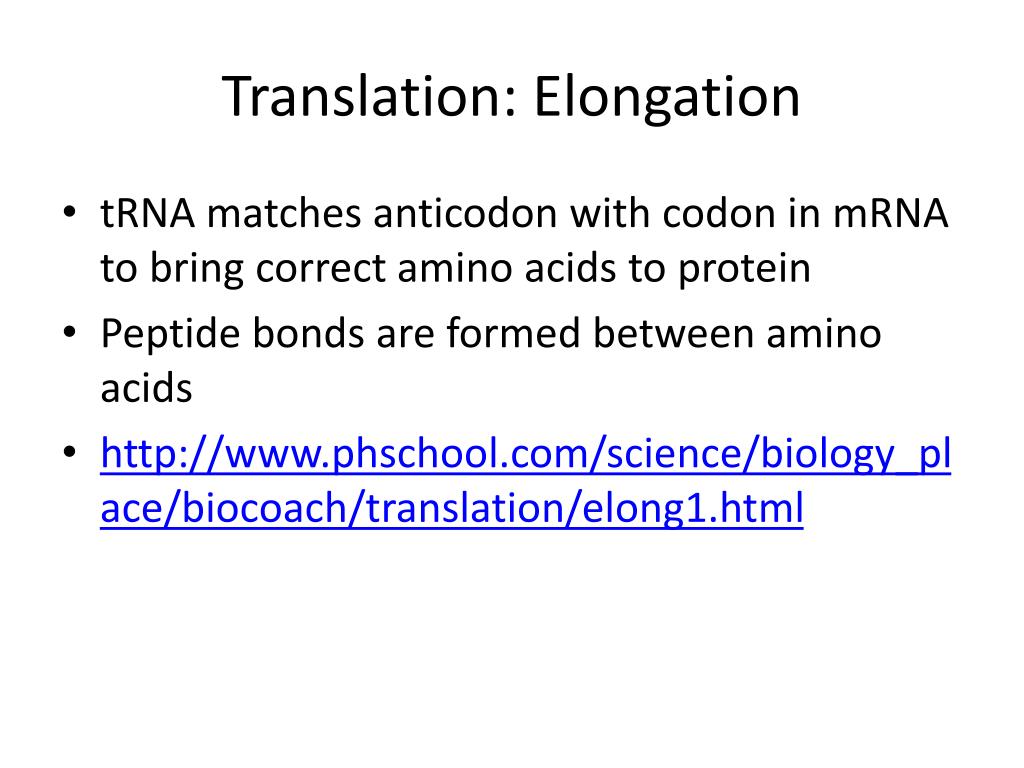

  14. Translation: Elongation • tRNA matches anticodon with codon in mRNA to bring correct amino acids to protein • Peptide bonds are formed between amino acids • http://www.phschool.com/science/biology_place/biocoach/translation/elong1.html

  15. Translation: Termination • “Stop” codon is reached • Protein is released from ribosome • Protein folds into 3-D shape • http://www.phschool.com/science/biology_place/biocoach/translation/term.html

  16. Translation • Many proteins can be translated from a single message

  17. The Complete Process • http://www.wisc-online.com/objects/index_tj.asp?objid=AP1302

  18. Transcribe & translate a gene • Practice! • http://gslc.genetics.utah.edu/units/basics/transcribe/
