Protein Synthesis

Protein Synthesis. Biology 12. Protein Synthesis. Think of a cell as a miniature factory that makes, among other things, all the different kinds of proteins that organisms need. Ex. Structural Enzymes Hormones Antibodies. Protein Synthesis.

taniel
Télécharger la présentation

Protein Synthesis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

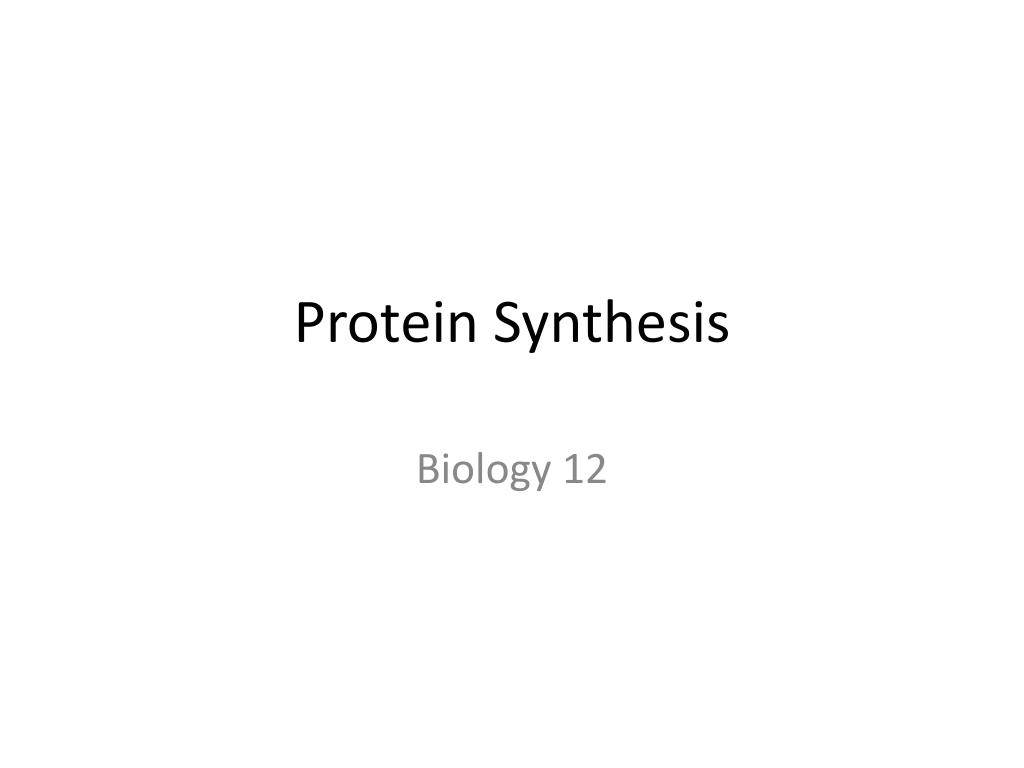

  1. Protein Synthesis Biology 12

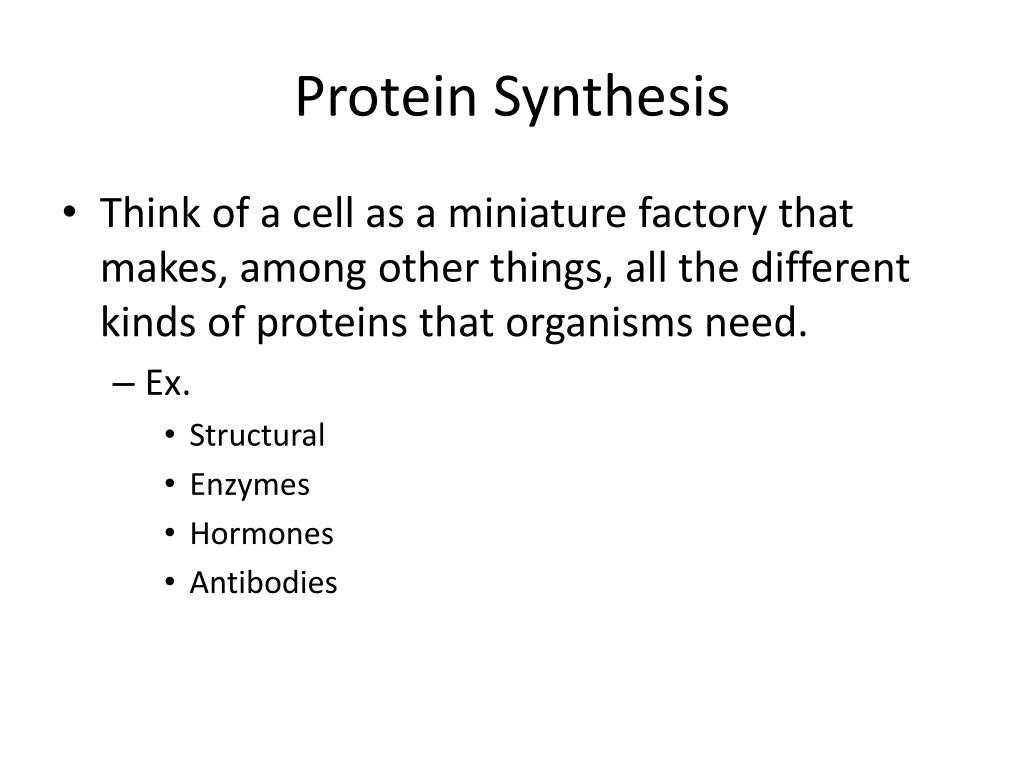

  2. Protein Synthesis • Think of a cell as a miniature factory that makes, among other things, all the different kinds of proteins that organisms need. • Ex. • Structural • Enzymes • Hormones • Antibodies

  3. Protein Synthesis • All of the proteins are made from a pool of 20 different amino acids that are found floating around in the cytoplasm of the cell. • The instructions needed for the exact sequence of amino acids to synthesize the correct proteinare encoded on genes located along the rails of the DNA double helix.

  4. Protein Synthesis • These instructions never leave the nucleus. • So, just how can DNA direct the synthesis of a protein without directly taking part in it?

  5. The Process • Quick summary:

  6. Transcription • A small section of DNA unwinds and unzips in the nucleus.

  7. Transcription • RNA polymerase joins complementary nucleotides (A,U,C,G) to the DNA strand from a pool of nucleotides in the nucleus.

  8. Transcription • The strand of mRNA grows attached to the DNA strand.

  9. Transcription • The mRNA detaches and the DNA strands rewind.

  10. Transcription • mRNA is ready to exit the nucleus through pores in the nuclear membrane.

  11. Transcription • Every 3 nucleotides of mRNA = 1 codon

  12. Translation • The decoding of codons of mRNA into actual proteins. • It takes place at the ribosomes.

  13. Translation • Ribosomes are made of rRNA (ribosomal RNA). • They have 2 parts, 1 large subunit and 1 small subunit. • Each ribosome has a binding site for mRNA and 2 tRNA molecules.

  14. Translation • tRNA is a single strand of RNA that has folded back onto itself. • The complementary base pairs cause this to happen.

  15. Translation • tRNA base pairs with mRNA at the ribosome. • As base pairing occurs, amino acids bond together to form peptide bonds to make proteins.

  16. Translation • Polyribosomes: • These are bunches of several ribosomes that move along mRNA at once. • Several proteins can be built at one time. • They can be as close as 80 base pairs apart on the mRNA.

  17. Translation • Translation requires 3 steps: • Chain initiation • Chain elongation • Chain termination

  18. Translation • Chain initiation: • The polypeptide (protein) chain begins. • tRNA UAC binds with mRNA AUG at the ribosome.

  19. Translation • Chain Elongation: • Ribosome moves along the mRNA. • The polypeptide chain grows longer as amino acids are added.

  20. Translation • Chain termination: • The tRNA anticodon binds to a stop codon. • The ribosomal subunits separate. • The protein is released.
