CPLD

With 1 pulse every ms and using 13 bits on counter the entire circuit will loop every 8.192 seconds, and each fiber will get 128 pulses. DEMUX on LED Board Use bits 8, 9, 10. DEMUX on CPLD Board Use 11, 12, 13. High speed Pulse line - Coax. Pulse Generator. CPLD. 8 DEMUX.

may-stein
Télécharger la présentation

CPLD

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

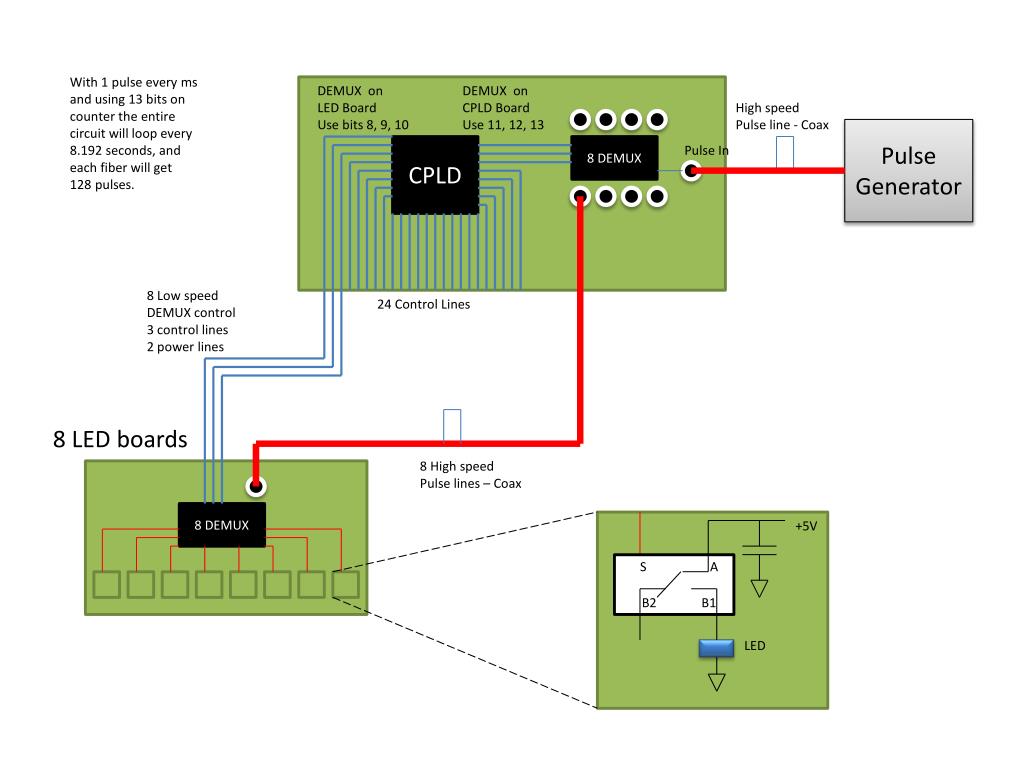

  1. With 1 pulse every ms and using 13 bits on counter the entire circuit will loop every 8.192 seconds, and each fiber will get 128 pulses. DEMUX on LED Board Use bits 8, 9, 10 DEMUX on CPLD Board Use 11, 12, 13 High speed Pulse line - Coax Pulse Generator CPLD 8 DEMUX Pulse In 8 Low speed DEMUX control 3 control lines 2 power lines 24 Control Lines 8 LED boards 8 High speed Pulse lines – Coax 8 DEMUX +5V S A B2 B1 LED
