  1. Raw Data Builder • Package to transform UnpDataChunks into RawDataChunks. • In v00-03-00 of unpack_reco (not in any DØ release) • pack_reco • requires the UnpDataChunk to be made first (duh) • calunpdata/CalMCToUnpReco • smtraw/SmtData2RawUnp • muo_unpdata/MuoMCToUnpReco • Been demonstrated to work producing both separately, and all together in one file: • CAL_FE • MUO_FE • SMT_FE • And there was much rejoicing.....

  2. How to Build a Calorimeter RDC • packages: • unpack_reco: v00-03-00 • calunpdata: v00-03-01 • caldata: head • t85 good for everything else (t86 had build problems on IRIX) • add PackReco.x to unpack_reco/bin/BINARIES • gmake unpack_reco.lib, unpack_reco.bin • adjust thresholds (default set to 0.001 GeV) in calunpdata/CalMCToUNPReco.rcp • copy framework rcp file (“PackReco_fwk.rcp”), and run configuration file (“cfg.dat”) from unpack_reco/bin to executable directory. • copy ReadEvent.rcp, WriteEvent.rcp to rcp directory • run PackReco.x -rcp PackReco_fwk.rcp

  3. Notes for Unpacker Coders • We’ve seen a lot of error messages like: • ERROR: UnpDataChunk::createModuleList() • factory was unable to create a module of type XXX mode YYY • This is because the module factory isn’t aware of the type of module that you’re asking for. It’s made aware of it via a registration macro that is found in the appropriate unpack_xxx_fe header file. Which means that this header needs to be included somewhere. • Best place to put it: framework registration source file for your MC  UDC code. • This means that people who use your MC  UDC package won’t have to bother you (me) when they can’t figure out why their program isn’t working.

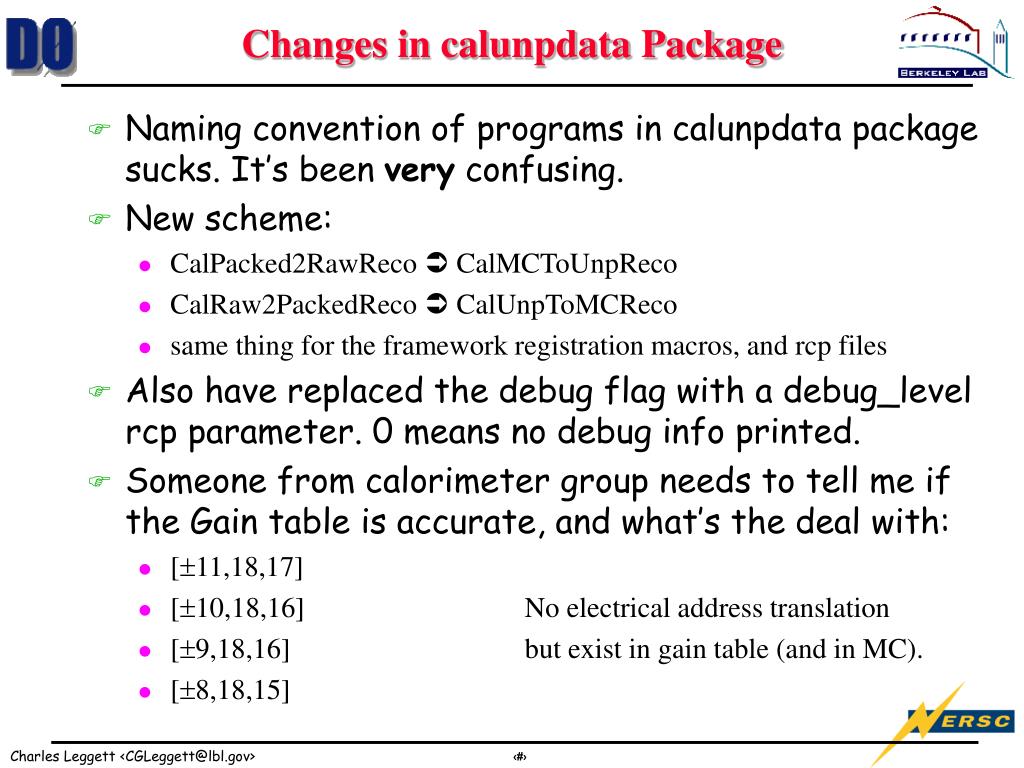

  4. Changes in calunpdata Package • Naming convention of programs in calunpdata package sucks. It’s been very confusing. • New scheme: • CalPacked2RawReco  CalMCToUnpReco • CalRaw2PackedReco  CalUnpToMCReco • same thing for the framework registration macros, and rcp files • Also have replaced the debug flag with a debug_level rcp parameter. 0 means no debug info printed. • Someone from calorimeter group needs to tell me if the Gain table is accurate, and what’s the deal with: • [11,18,17] • [10,18,16] No electrical address translation • [9,18,16] but exist in gain table (and in MC). • [8,18,15]
