  1. Control System Requirements for the CBM detector Burkhard Kolb GSI HADES Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  2. CBM Requirements • CBM is a complex detector system with more than 100000 parameters • It has all the usual controls as HV, gas, power, temperature etc. • Many of the FE components will be custom build and require loading of FPGA or CPLD designs Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  3. CBM Requirements • FE and trigger electronics require thresholds and tuning parameters • FE and trigger electronics require monitoring of status and performance. • All loadable parameter sets/ design files will come from version controlled records of SQL database • Access to parameters with security control Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

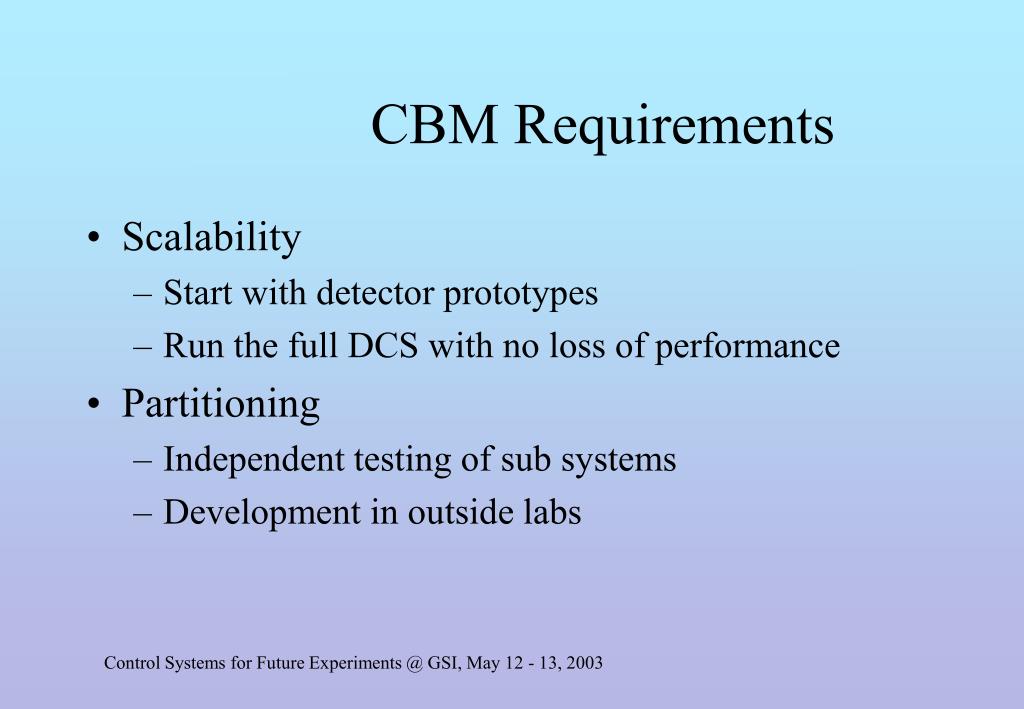

  4. CBM Requirements • Scalability • Start with detector prototypes • Run the full DCS with no loss of performance • Partitioning • Independent testing of sub systems • Development in outside labs Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  5. CBM Requirements • Alarm handling • Interlock monitoring • Archiving to SQL database Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  6. CBM Requirements • No dependence on proprietary tools, protocols, hardware and software, except on custom chip and board level for front ends • Long time range of operation and maintenance • Interoperability with existing control systems to allow flexible inclusion of sub systems • Open standards Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

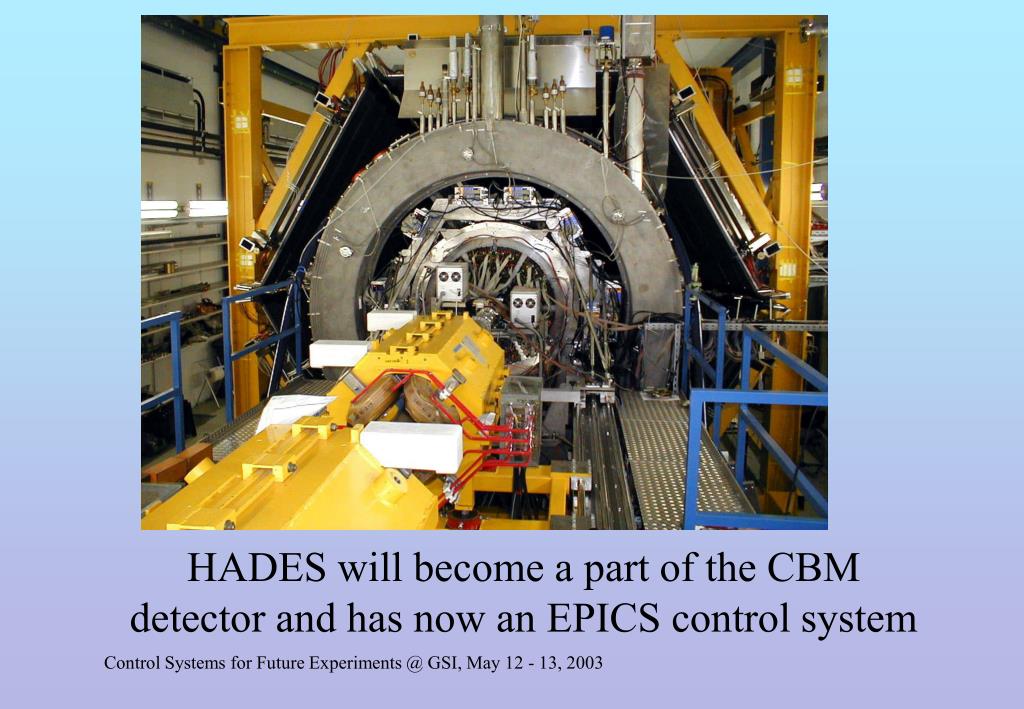

  7. HADES will become a part of the CBM detector and has now an EPICS control system Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  8. Geometry Six sectors form a hexagonal frustum: • 2p in f • 18 < J < 85 Lepton Identification • RICH • Radiator: C4F10 • Spherical mirror • Photon Detector: CsI photo cathode • META • TOF plastic scintillators • Lead PreShower detector Tracking • Superconducting toroid (6 coils) • Bmax = 0.7 T, • Bending power 0.34 Tm • MDC (multiwire drift chamber) • Low mass design • four planes of small cell (» 1 cm) drift chamber. In total about 100.000 detector channels Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  9. HADES trigger scheme • 106 s-1 interact. rate (1 % target) • LVL1 trigger : multiplicity (TOF) • Central collision: 105 s-1 • all detectors read out (3 Gbyte/sec) • storage in pipeline memory (< 32 evts.) • LVL2 trigger: Ring & Shower search in RICH & META • Lepton candidates: 103 s-1 • transfer of data to next pipeline memory • track info to 3LVL processor • LVL3 trigger: MDC & LVL2 info • Not yet implemented as we can write with 40 Mbytes/s to disk Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  10. Status • EPICS is installed: • EPICS base on Linux, WinNT, and MAC OS X • Some EPICS extensions • MEDM (Motif editor and display manager) • ALH (alarm handler) • Burt (backup and restore) • Channel Archiver Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

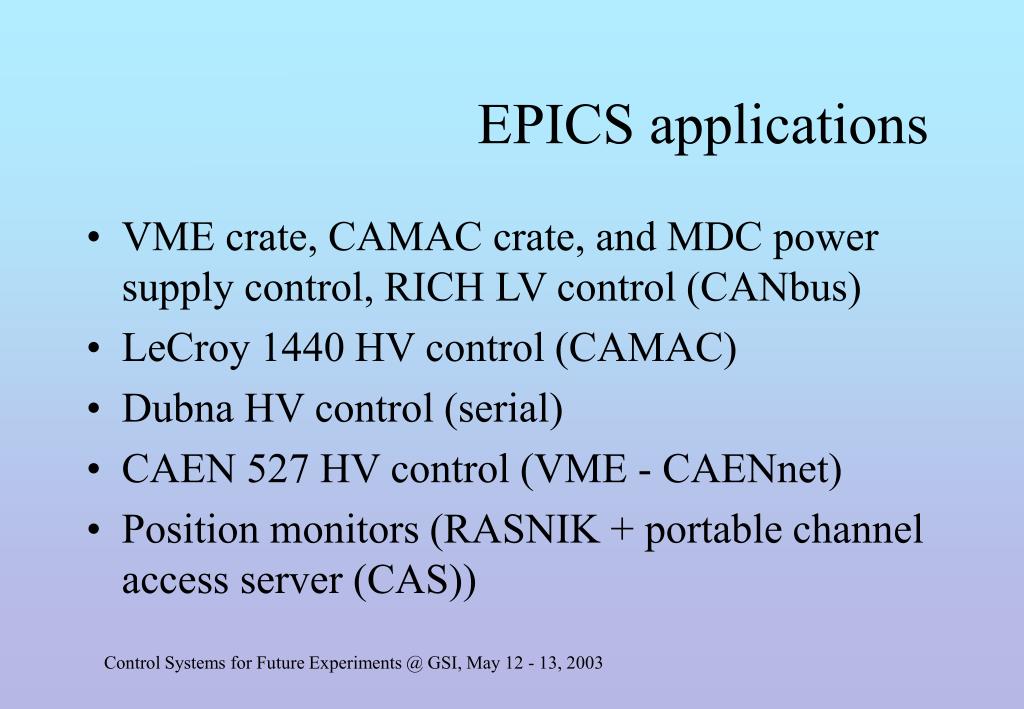

  11. EPICS applications • VME crate, CAMAC crate, and MDC power supply control, RICH LV control (CANbus) • LeCroy 1440 HV control (CAMAC) • Dubna HV control (serial) • CAEN 527 HV control (VME - CAENnet) • Position monitors (RASNIK + portable channel access server (CAS)) Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  12. EPICS applications • Gas bottle scales readout (serial) • CFD control (CAMAC) • Temperature sensors (via sockets) • General purpose ADCs (VME) • TOF laser and filter control (VME) • Start detector discriminator & veto logic (VME) • Accelerator parameters (CAS on VMS) Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  13. EPICS applications • MDC drift time monitor (LabView CA server) • MDC oxygen monitor (VME) • MDC gas pressure • Spill start • Scalers for start, veto and trigger detectors • RICH gas monitor • RICH HV trip sequencer Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  14. EPICS security • Security is now enabled on an (UNIX) account basis • All read parameters are visible to everybody • All set parameters are owned by accounts Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

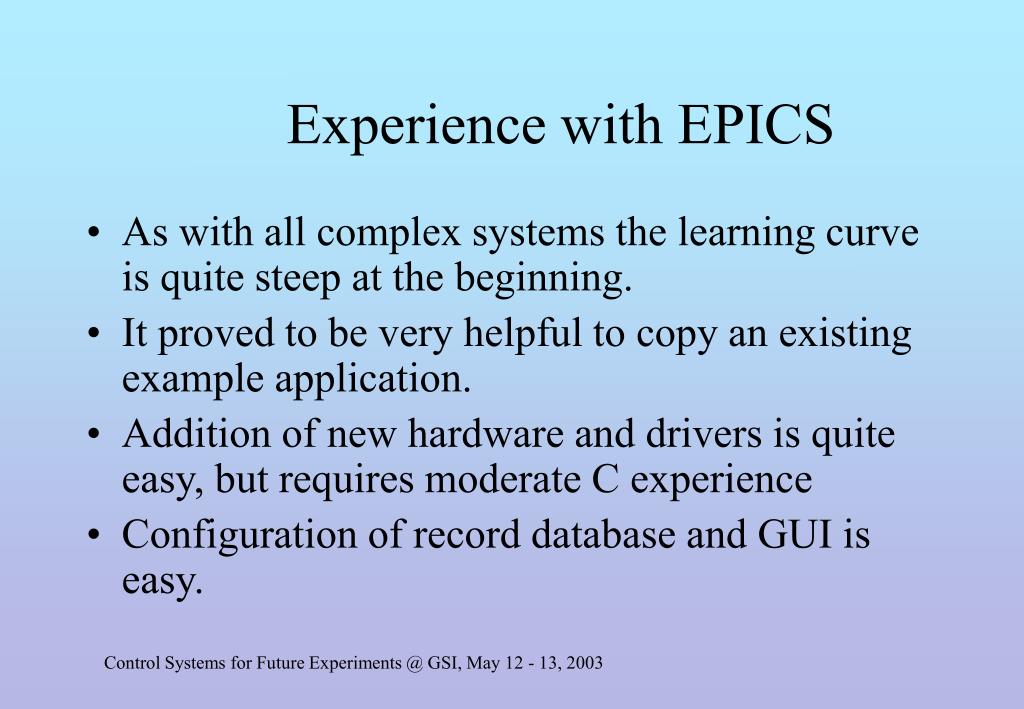

  15. Experience with EPICS • As with all complex systems the learning curve is quite steep at the beginning. • It proved to be very helpful to copy an existing example application. • Addition of new hardware and drivers is quite easy, but requires moderate C experience • Configuration of record database and GUI is easy. Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  16. Experience with EPICS • Connection to LabView works well • 1 to 2 persons is sufficient to build up and maintain the installation • Integration of a SQL database is a complex task and requires agents on host machines. • No version management of parameter sets Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

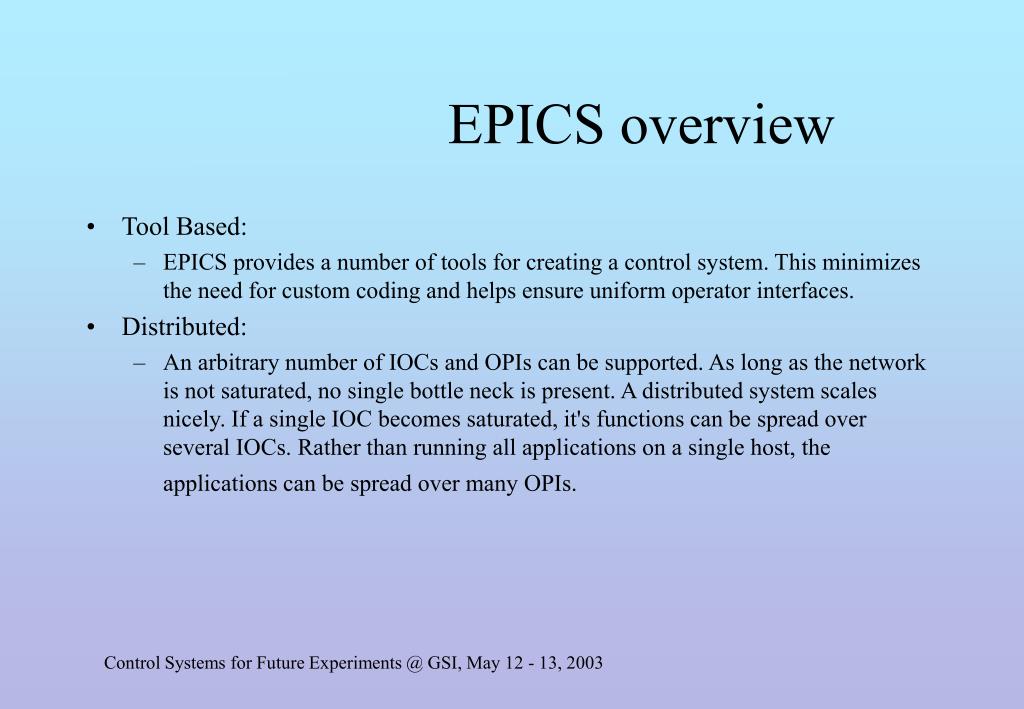

  17. EPICS overview • Tool Based: • EPICS provides a number of tools for creating a control system. This minimizes the need for custom coding and helps ensure uniform operator interfaces. • Distributed: • An arbitrary number of IOCs and OPIs can be supported. As long as the network is not saturated, no single bottle neck is present. A distributed system scales nicely. If a single IOC becomes saturated, it's functions can be spread over several IOCs. Rather than running all applications on a single host, the applications can be spread over many OPIs. Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

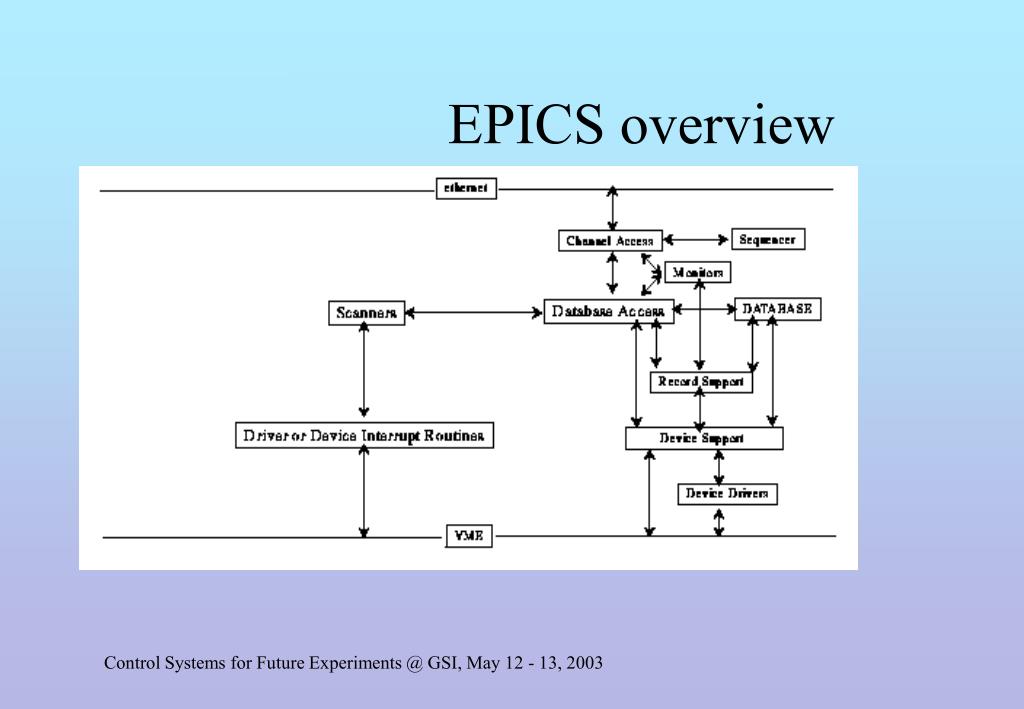

  18. EPICS overview Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

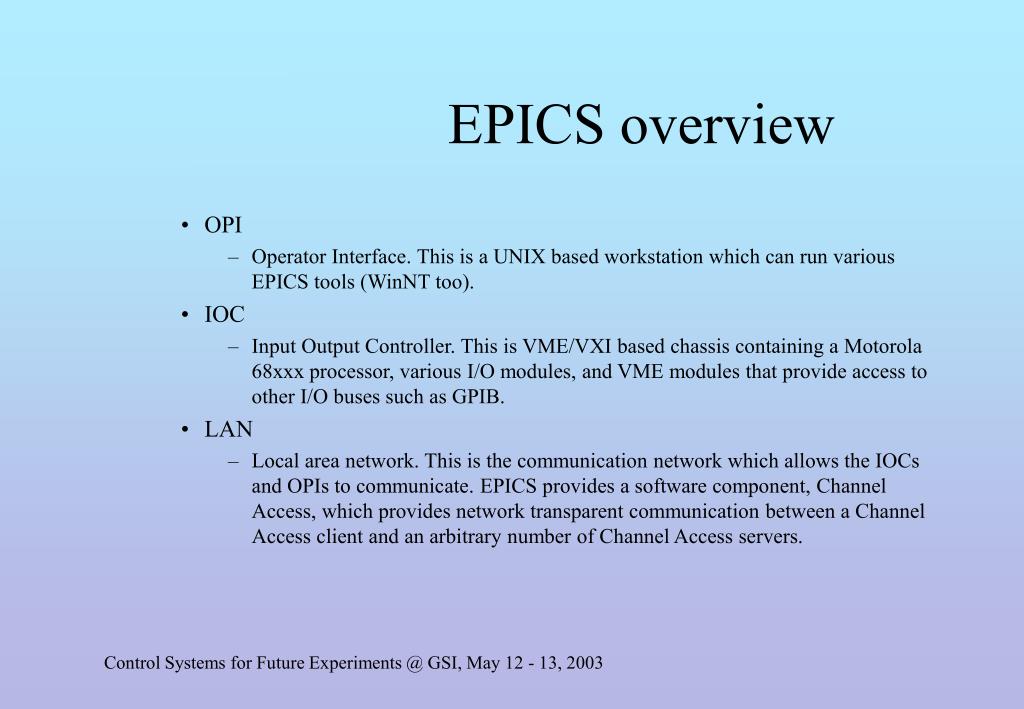

  19. EPICS overview • OPI • Operator Interface. This is a UNIX based workstation which can run various EPICS tools (WinNT too). • IOC • Input Output Controller. This is VME/VXI based chassis containing a Motorola 68xxx processor, various I/O modules, and VME modules that provide access to other I/O buses such as GPIB. • LAN • Local area network. This is the communication network which allows the IOCs and OPIs to communicate. EPICS provides a software component, Channel Access, which provides network transparent communication between a Channel Access client and an arbitrary number of Channel Access servers. Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  20. EPICS overview • DATABASE: • The memory resident database plus associated data structures. • Database Access: • Database access routines. With the exception of record and device support, all access to the database is via the database access routines. • Scanners: • The mechanism for deciding when records should be processed. • Record Support: • Each record type has an associated set of record support routines. • Device Support: • Each record type has one or more sets of device support routines. Control Systems for Future Experiments @ GSI, May 12 - 13, 2003

  21. EPICS overview • Device Drivers: • Device drivers access external devices. A driver may have an associated driver interrupt routine. • Channel Access: • The interface between the external world and the IOC. It provides a network independent interface to database access. • Monitors: • Database monitors are invoked when database field values change. • Sequencer • A finite state machine. Control Systems for Future Experiments @ GSI, May 12 - 13, 2003
