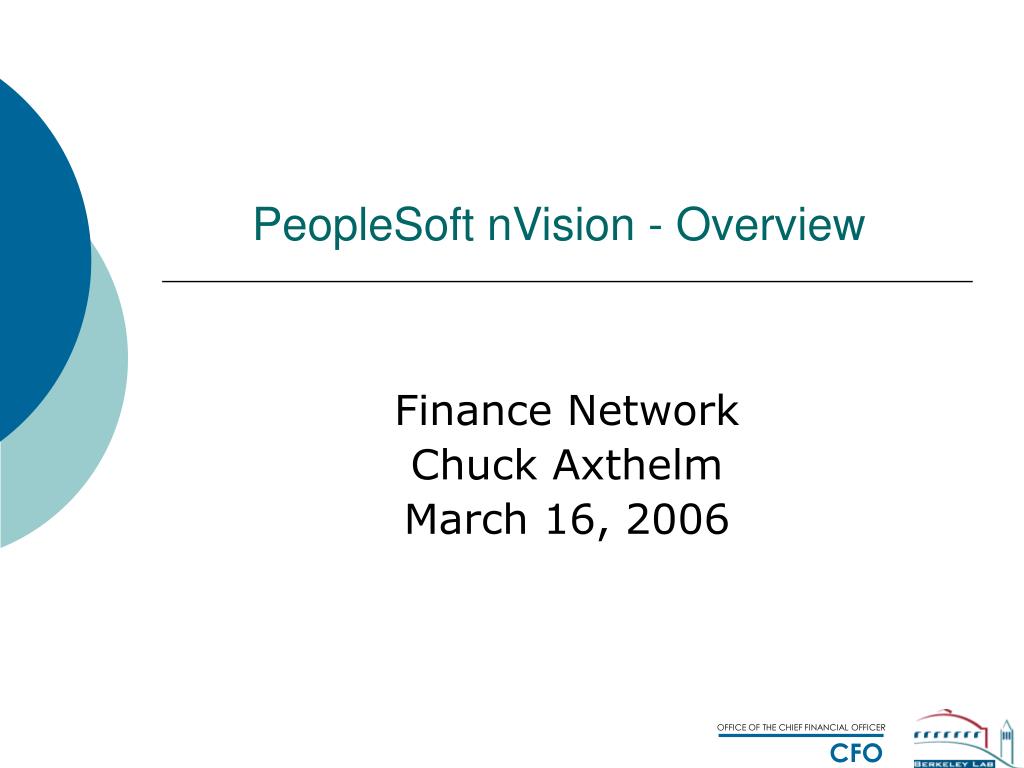

  1. PeopleSoft nVision - Overview Finance Network Chuck Axthelm March 16, 2006

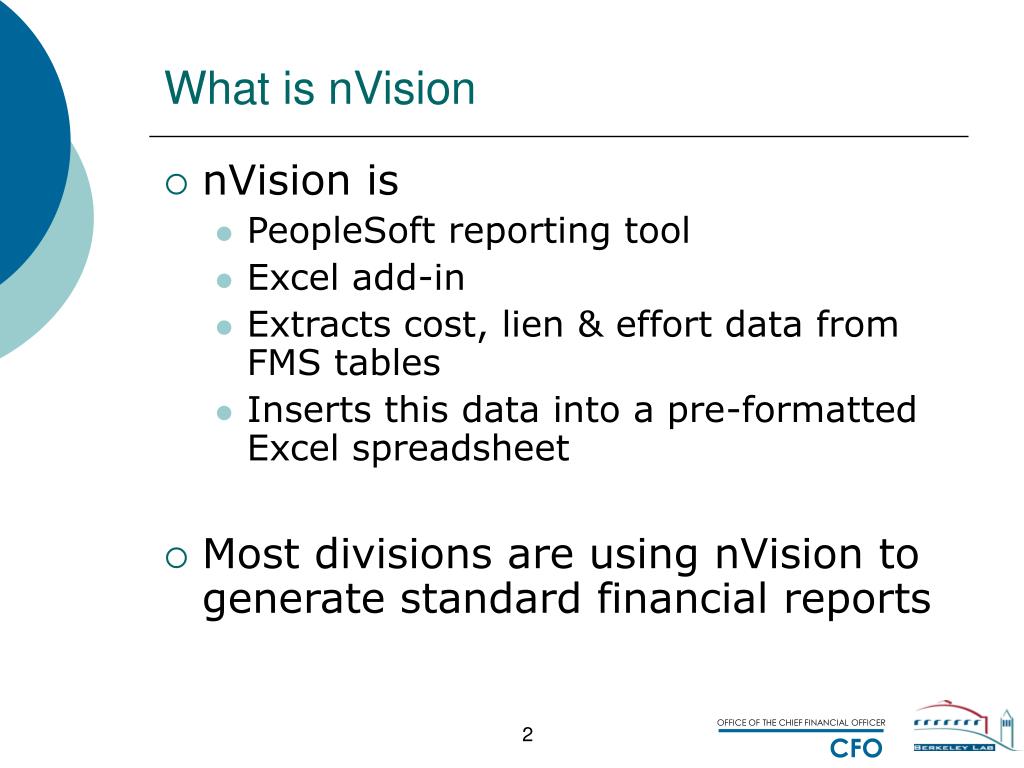

  2. What is nVision • nVision is • PeopleSoft reporting tool • Excel add-in • Extracts cost, lien & effort data from FMS tables • Inserts this data into a pre-formatted Excel spreadsheet • Most divisions are using nVision to generate standard financial reports

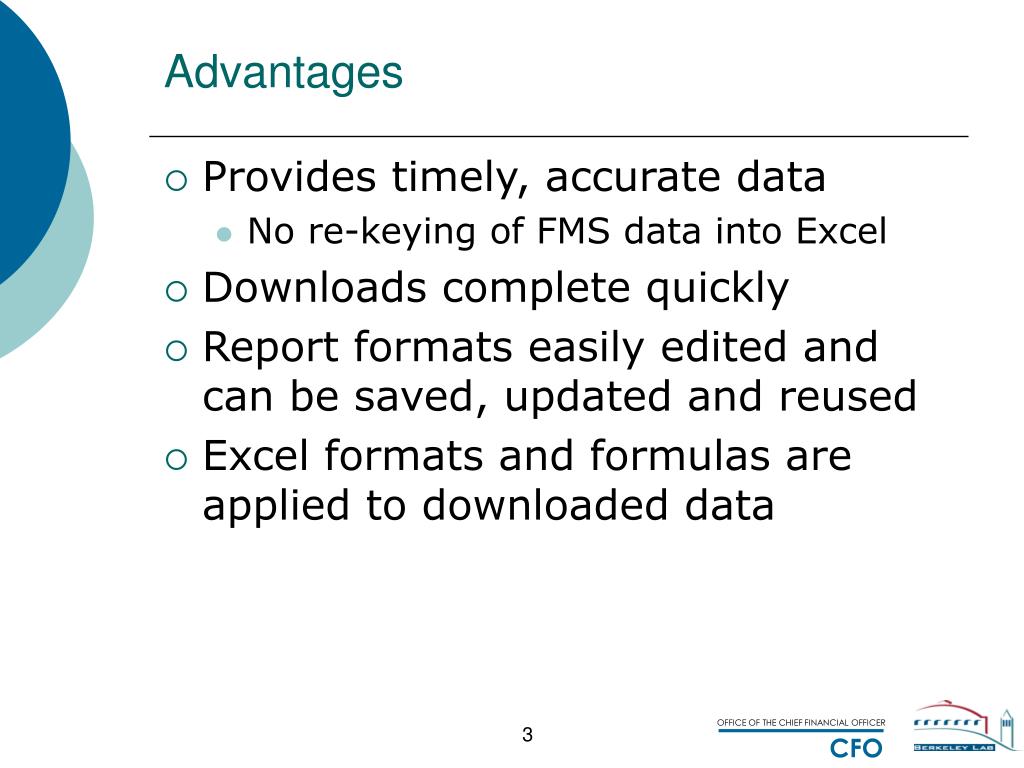

  3. Advantages • Provides timely, accurate data • No re-keying of FMS data into Excel • Downloads complete quickly • Report formats easily edited and can be saved, updated and reused • Excel formats and formulas are applied to downloaded data

  4. Disadvantages • Can only access data in FMS • Funding and budget data must be manually entered and maintained in Excel report layouts • nVision “language” can appear cryptic & hard to interpret • User must make and save format/formula changes in the layout not in the output • Not recommended for “on the fly” reports

  5. FMS Query nVision Layout nVision Report Request Report Output nVision Reporting 3-Step Process • Modify & Save Format • Update Report Request • Run Report

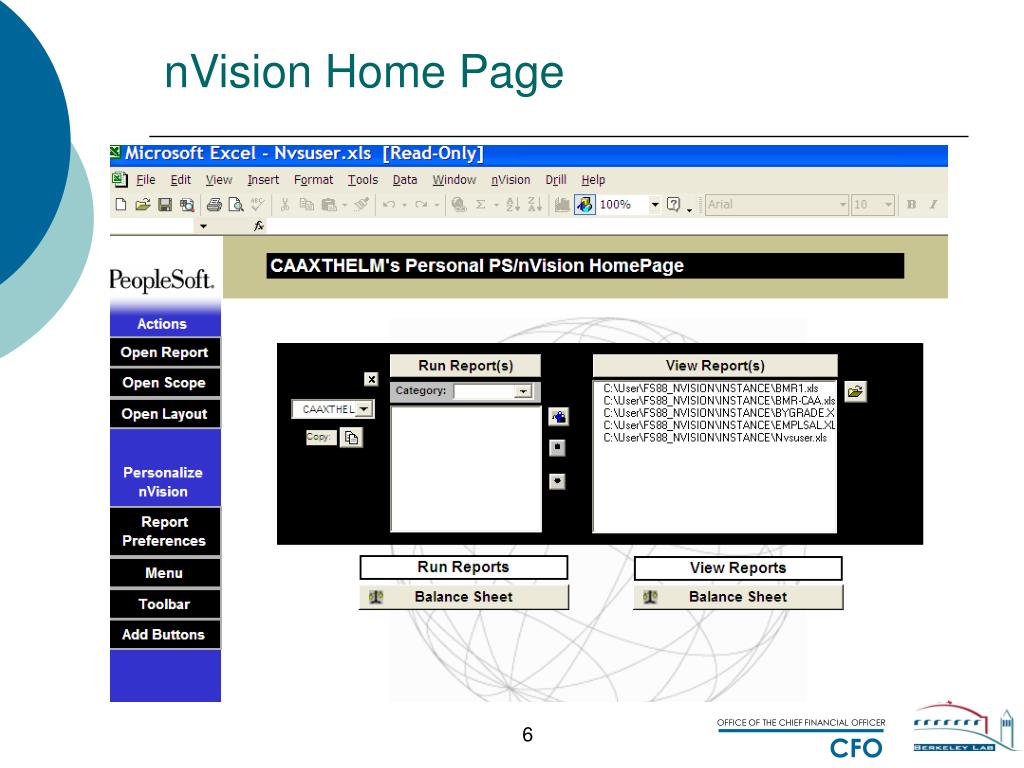

  6. nVision Home Page

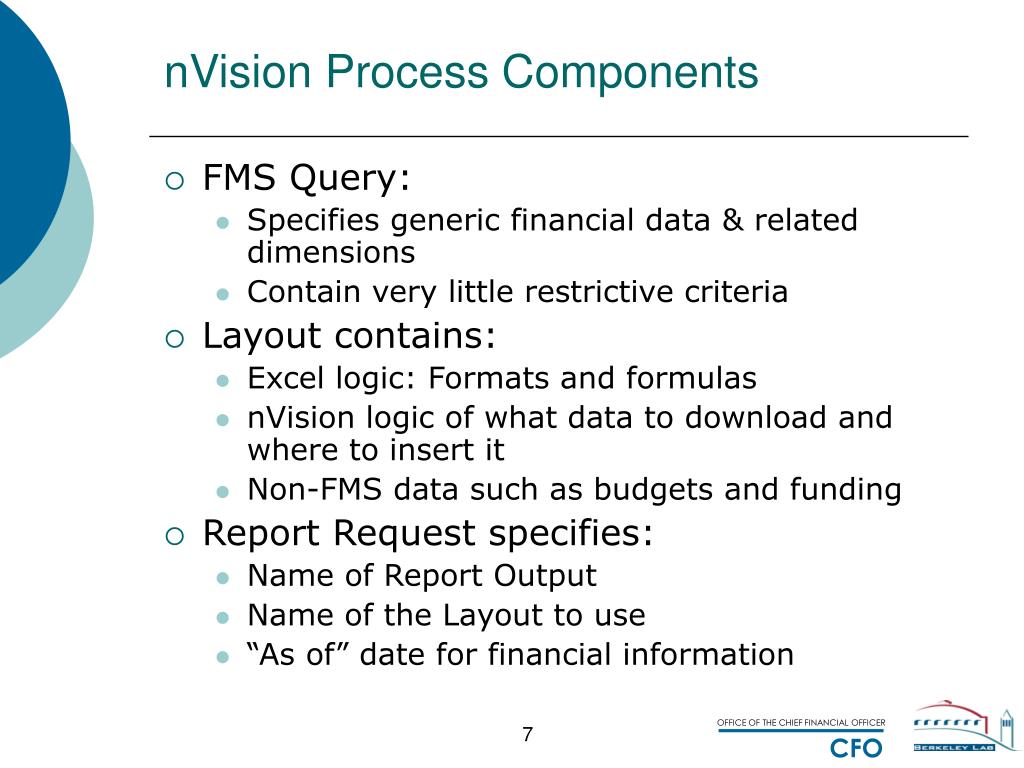

  7. nVision Process Components • FMS Query: • Specifies generic financial data & related dimensions • Contain very little restrictive criteria • Layout contains: • Excel logic: Formats and formulas • nVision logic of what data to download and where to insert it • Non-FMS data such as budgets and funding • Report Request specifies: • Name of Report Output • Name of the Layout to use • “As of” date for financial information

  8. How it Works • nVision criteria added to an Excel spreadsheet transforms it into an nVision report layout • Note: Only 1 layout per Workbook • Cell A1 typically specifies the source FMS query – applies to entire layout • Costs, liens or hours are retrieved at the intersection of row and column criteria

  9. Getting Started with nVision • Must have installed the client version of PS nVision (contact Aurora Pecoraro) • All users copy and modify existing nVision layouts • Very few create layouts from scratch • Dive in and try it • Worse thing that can happen is you don’t get the results you want

  10. Public nVision Layouts & How To Go To: OCFO Website/Financial Policy and Training/Training Materials Note: Save layouts to your desktop

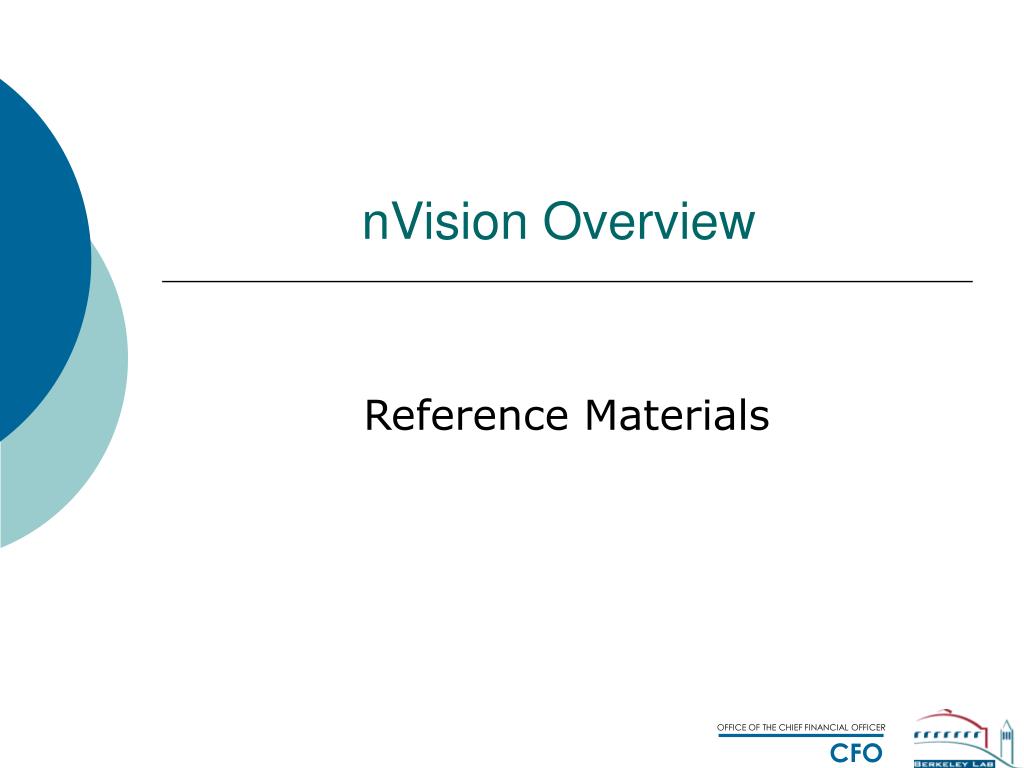

  11. nVision Overview Reference Materials

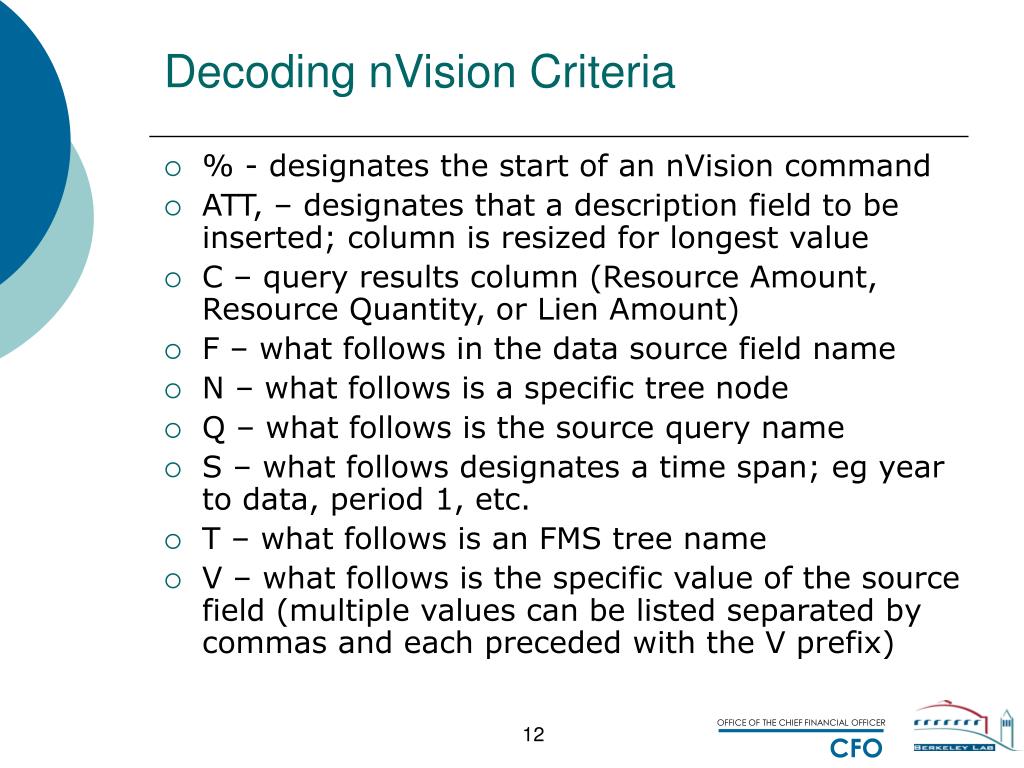

  12. Decoding nVision Criteria • % - designates the start of an nVision command • ATT, – designates that a description field to be inserted; column is resized for longest value • C – query results column (Resource Amount, Resource Quantity, or Lien Amount) • F – what follows in the data source field name • N – what follows is a specific tree node • Q – what follows is the source query name • S – what follows designates a time span; eg year to data, period 1, etc. • T – what follows is an FMS tree name • V – what follows is the specific value of the source field (multiple values can be listed separated by commas and each preceded with the V prefix)

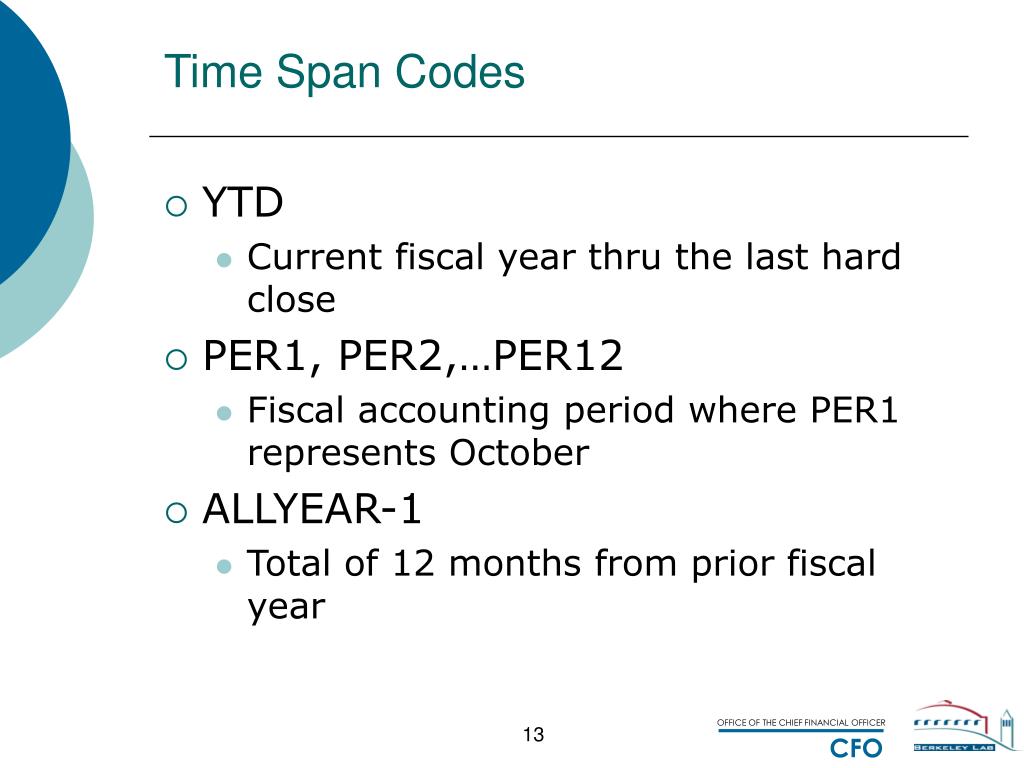

  13. Time Span Codes • YTD • Current fiscal year thru the last hard close • PER1, PER2,…PER12 • Fiscal accounting period where PER1 represents October • ALLYEAR-1 • Total of 12 months from prior fiscal year

  14. Query: nvZW_PC_RU_RC • Used for Project One-Line Layout • Fields • Project ID • Project Status • B&R • Resource Category • Fiscal Year • Accounting Period • Resource Amount & Effort Hours • Criteria • Analysis Type = ACT

  15. Query: UK_BUDGET_MANAGEMENT_COSTS • Used for BMR Layout • Fields • Resource Category* • Resource Amount & Effort Hours • Criteria • Analysis type = ACT * Note: The layout summarizes res cats using the FMS res cat hierarchy
