  1. Modelling Biochemical Pathways in PEPA Muffy CalderDepartment of Computing Science University of GlasgowJoint work with Jane Hillston and Stephen GilmoreOctober 2004

  2. Are you in the right room? Yes, this is computing science! Question Can we apply computing science theory and tools to biochemical pathways? If so, What analysis do these new models offer? How do these models relate to traditional ones? What are the implications for life scientists? What are the implications for computing science?

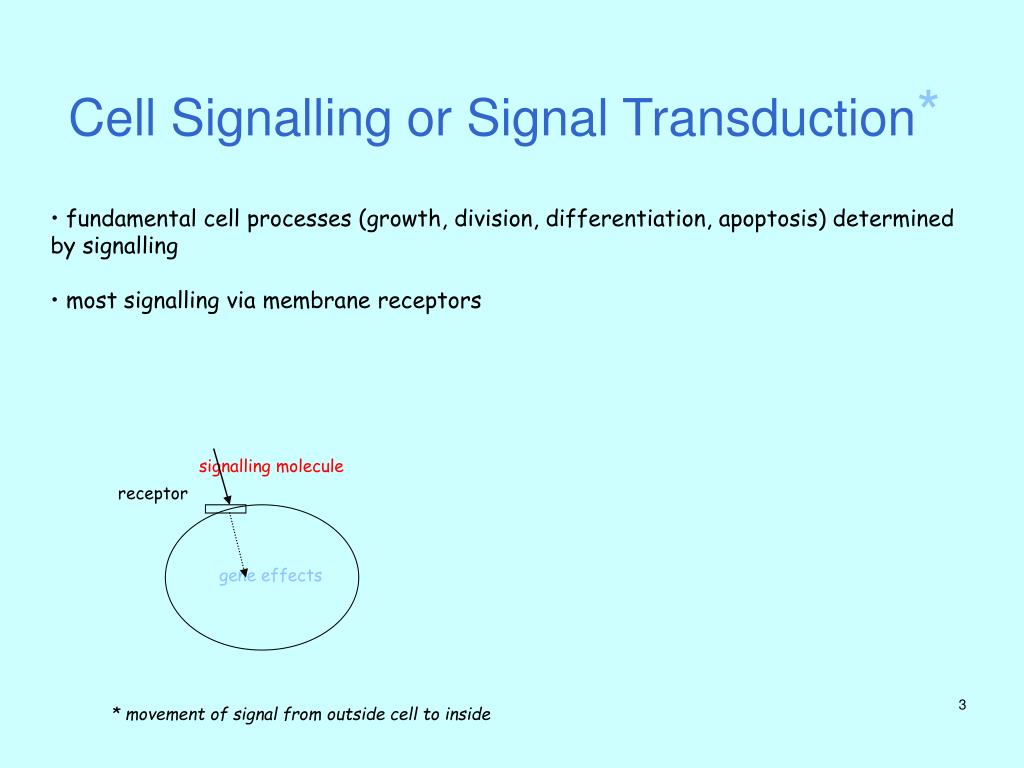

  3. Cell Signalling or Signal Transduction* • fundamental cell processes (growth, division, differentiation, apoptosis) determined by signalling • most signalling via membrane receptors • signalling molecule • receptor • gene effects * movement of signal from outside cell to inside

  4. A little more complex.. pathways/networks

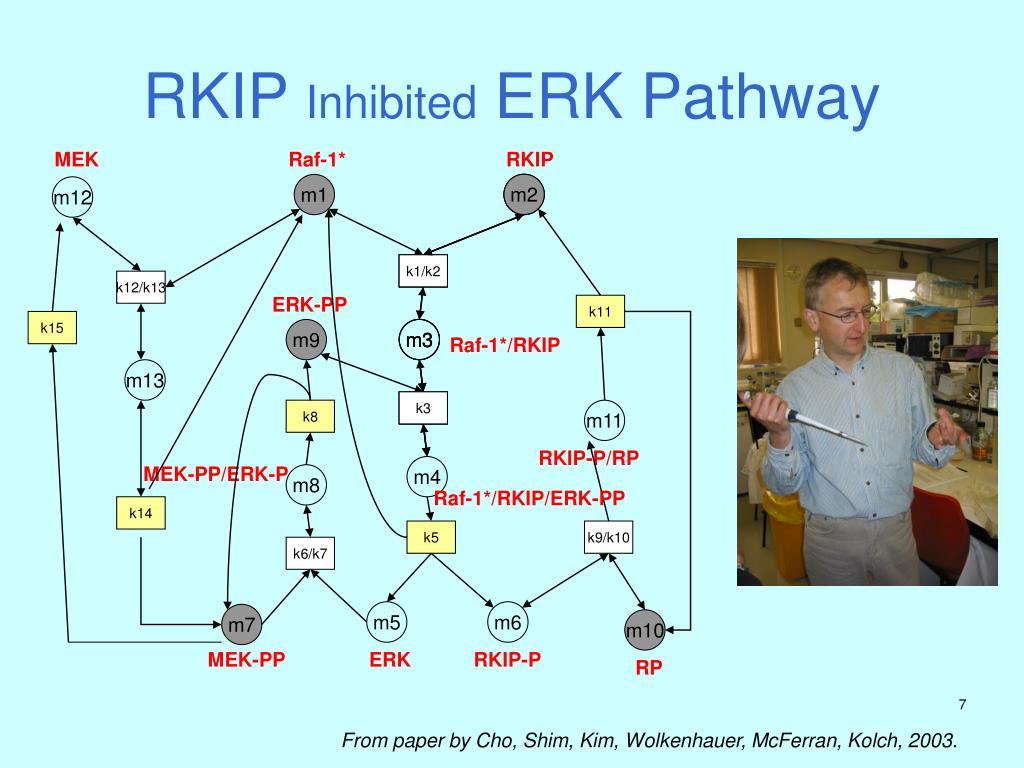

  5. RKIP Inhibited ERK Pathway MEK Raf-1* RKIP m2 m2 m1 m2 m12 k1/k2 k1 k1 K12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP From paper by Cho, Shim, Kim, Wolkenhauer, McFerran, Kolch, 2003.

  6. RKIP Inhibited ERK Pathway MEK Raf-1* RKIP m2 m2 m1 m2 m12 k1/k2 k1 k1 k12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP From paper by Cho, Shim, Kim, Wolkenhauer, McFerran, Kolch, 2003.

  7. RKIP protein expression is reduced in breast cancers

  8. RKIP Inhibited ERK Pathway MEK Raf-1* RKIP proteins/complexes forward /backward reactions (associations/disassociations) products (disassociations) m1, m2 .. concentrations of proteins k1,k2 ..: rate (performance) coefficients m2 m2 m1 m2 m12 k1/k2 k1 k1 k12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP

  9. RKIP Inhibited ERK Pathway MEK Raf-1* RKIP m2 m2 m1 m2 m12 This network seems to be very similar to producer/consumer networks. Why not to try using process algebras for modelling? k1/k2 k1 k1 k12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP

  10. Why process algebras for pathways? • Process algebras are high level formalisms that make interactions and constraints explicit. Structure becomes apparent. • Reasoning about livelocks and deadlocks. • Reasoning with (temporal) logics. • Equivalence relations between high level descriptions. • Stochastic process algebras allow performance analysis.

  11. Process algebra(for dummies) High level descriptions of interaction, communication and synchronisation Eventa (simple), a!34 (data offer), a?x (data receipt) Prefixa.S Choice S + S Synchronisation P |l| P ae l independent concurrent (interleaved) actions ae l synchronised action Constant A = S assign names to components Laws P1 + P2 @ P2 + P1 Relations@ (bisimulation) a a a a a a @ @ b c c b b b c

  12. PEPA Process algebra with performance, invented by Jane Hillston Prefix (a,r).S Choice S + S competition between components (race) Cooperation/ P |l| P a e l independent concurrent (interleaved) actions Synchronisation a e l shared action, at rate of slowest Constant A = S assign names to components P ::= S | P |l| P S ::= (a,r).S | S+S | A

  13. Rates l is a rate, from which a probability is derived

  14. Modelling the ERK Pathway in PEPA • Each reaction is modelled by an event, which has a performance coefficient. • Each protein is modelled by a process which synchronises others involved in a reaction. (reagent-centric view) • Each sub-pathway is modelled by a process which synchronises with other sub-pathways. (pathway-centric view)

  15. Signalling Dynamics P2 P1 m2 m1 Reaction Producer(s) Consumer(s) k1react {P2,P1} {P1/P2} k2react {P1/P2} {P2,P1} k3product {P1/P2} {P5} … k1react will be a 3-way synchronisation, k2react will be a 3-way synchronisation, k3product will be a 2-way synchronisation. k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  16. Modelling Signalling Dynamics • There is an important difference between computing science networks and biochemical networks • We have to distinguish between the individual and the population. • Previous approaches have modelled at molecular level (individual) • Simulation • State space explosion • Relation to population (what can be inferred?)

  17. Signalling Dynamics Reagent view: model whether or not a reagent can participate in a reaction (observable/unobservable). P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 k6/k7 m6 m5 P6 P5

  18. Signalling Dynamics Reagent view: model whether or not a reagent can participate in a reaction (observable/unobservable). : each reagent gives rise to a pair of definitions. P1H = (k1react,k1). P1L P1L = (k2react,k1). P2H P2H = (k1react,k1). P2L P2L = (k2react,k2). P2H + (k4react). P2H P1/P2H = (k2react,k2). P1/P2L + (k3react, k3). P1/P2L P1/P2L = (k1react,k1). P1/P2H P5H = (k6react,k6). P5L + (k4react,k4). P5L P5L = (k3react,k3). P5H +(k7react,k7). P5H P6H = (k6react,k6). P6L P6L = (k7react,k7). P6H P5/P6H = (k7react,k7). P5/P6L P5/P6L = (k6react,k6) . P5/P6H P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 k6/k7 m6 m5 P6 P5

  19. Signalling Dynamics Reagent view: model configuration P1H |k1react,k2react| P2H | k1react,k2react,k4react | P1/P2L |k1react,k2react,k3react| P5L |k3react,k6react,k4react| P6H |k6react,k7react| P5/P6L Assuming initial concentrations of m1,m2,m6. P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  20. MEK Raf-1* RKIP m2 m2 m1 m2 m12 k1 k1/k2 k1 k12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP Reagent view: Raf-1*H = (k1react,k1). Raf-1*L + (k12react,k12). Raf-1*L Raf-1*L = (k5product,k5). Raf-1*H +(k2react,k2). Raf-1*H + (k13react,k13). Raf-1*H + (k14product,k14). Raf-1*H … (26 equations)

  21. Signalling Dynamics Reagent view: model configuration Raf-1*H |k1react,k12react,k13react,k5product,k14product| RKIPH | k1react,k2react,k11product | Raf-1*H/RKIPL |k3react,k4react| Raf-1*/RKIP/ERK-PPL |k3react,k4react,k5product| ERK-PL |k5product,k6react,k7react| RKIP-PL |k9react,k10react| RKIP-PL|k9react,k10react| RKIP-P/RPL|k9react,k10react,k11product| RPH|| MEKL|k12react,k13react,k15product| MEK/Raf-1*L|k14product| MEK-PPH |k8product,k6react,k7react| MEK-PP/ERKL|k8product| MEK-PPH|k8product| ERK-PPH

  22. Signalling Dynamics Pathway view: model chains of behaviour flow P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  23. Signalling Dynamics Pathway view: model chains of behaviour flow. Two pathways, corresponding to initial concentrations: Path10 = (k1react,k1). Path11 Path11 = (k2react).Path10 + (k3product,k3).Path12 Path12 = (k4product,k4).Path10 + (k6react,k6).Path13 Path13 = (k7react,k7).Path12 Path20 = (k6react,k6). Path21 Path21 = (k7react,k6).Path20 Pathway view: model configuration Path10 | k6react,k7react | Path20 (much simpler!) P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  24. MEK Raf-1* RKIP m2 m2 m1 m2 m12 k1 k1/k2 k1 k12/k13 ERK-PP k11 k15 m3 m3 m9 m3 Raf-1*/RKIP m13 k3 k3 k3 k8 m11 RKIP-P/RP MEK-PP/ERK-P m4 m8 Raf-1*/RKIP/ERK-PP k14 k5 k9/k10 k6/k7 m5 m6 m7 m10 MEK-PP ERK RKIP-P RP Pathway view: Pathway10 = (k9react,k9). Pathway11 Pathway11 = (k11product,k11). Pathway10 + (k10react,k10). Pathway10 … (5 pathways)

  25. Pathway view: model configuration Pathway10 |k12react,k13react,k14product| Pathway40 |k3react,k4react,k5product,k6react,k7react,k8product| Pathway30 |k1react,k2react,k3react,k4react,k5product| Pathway20 |k9react,k10react,k11product| Pathway10

  26. What is the difference? • reagent-centric view is a fine grained view • pathway-centric view is a coarse grained view • reagent-centric is easier to derive from data • pathway-centric allows one to build up networks from already known components Formal proof shows that those two models are equivalent! This equivalence proof, based on bisimulation, unites two views of the same biochemical pathway.

  27. State space of reagent and pathway model statereagent-view s1 Raf-1*H, RKIPH,Raf-1*/RKIPL,Raf-1*/RKIPERK-PPL, ERKL,RKIP-PL, RKIP-P/RPL, RPH, MEKL,MEK/Raf-1*L,MEK-PPH,MEK-PP/ERKL/ERK-PPHpathway viewPathway50,Pathway40,Pathway20,Pathway10s2 …...s28 (28 states)

  28. State space of reagent and pathway model

  29. Quantitative Analysis Generate steady-state probability distribution (using linear algebra). 1. Use state finder (in reagent model) to aggregate probabilities. Example increase k1 from 1 to 100 and the probability of being in a state with ERK-PPH drops from .257 to .005 2. Perform throughput analysis (in pathway model)

  30. Quantitative Analysis Effect of increasing the rate of k1 on k8product throughput (rate x probability) i.e. effect of binding of RKIP to Raf-1* on ERK-PP

  31. Quantitative Analysis Effect of increasing the rate of k1 on k14product throughput (rate x probability) i.e. effect of binding of RKIP to Raf-1* on MEK-PP

  32. Quantitative Analysis - Conclusion Increasing the rate of binding of RKIP to Raf-1* dampens down the k14product and k8product reactions, In other words, it dampens down the ERK pathway.

  33. Signalling Dynamics Activity matrix k1 k2 k3 k4 k5 k6 k7 P1 -1 +1 0 0 0 0 0 P2 -1 +1 0 +1 0 0 0 P1/P2 +1 -1 0 0 0 0 0 P5 0 0 +1 -1 0 -1 +1 P6 0 0 0 0 0 -1 +1 P5/P6 0 0 0 0 0 +1 -1 Column: corresponds to a single reaction. Row: correspond to a reagent; entries indicate whether the concentration is +/- for that reaction. P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  34. Signalling Dynamics Activity matrix k1 k2 k3 k4 k5 k6 k7 P1 -1 +1 0 0 0 0 0 P2 -1 +1 0 +1 0 0 0 P1/P2 +1 -1 0 0 0 0 0 P5 0 0 +1 -1 0 -1 +1 P6 0 0 0 0 0 -1 +1 P5/P6 0 0 0 0 0 +1 -1 Differential equations Each row is labelled by a protein concentration. One equation per row. For row r, dr = S column c A[r,c]) * P row x f(A[x,c]) dt where f(A[x,c]) = if (A[x,c]== -) then x else 1 a rate is a product of the rate constant and current concentration of substrates consumed. P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  35. Signalling Dynamics Activity matrix k1 k2 k3 k4 k5 k6 k7 P1 -1 +1 0 0 0 0 0 P2 -1 +1 0 +1 0 0 0 P1/P2 +1 -1 0 0 0 0 0 P5 0 0 +1 -1 0 -1 +1 P6 0 0 0 0 0 -1 +1 P5/P6 0 0 0 0 0 +1 -1 Differential equations (mass action) dm1 = - k1 + k2 (two terms) dt P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  36. Signalling Dynamics Activity matrix k1 k2 k3 k4 k5 k6 k7 P1 -1 +1 0 0 0 0 0 P2 -1 +1 0 +1 0 0 0 P1/P2 +1 -1 0 0 0 0 0 P5 0 0 +1 -1 0 -1 +1 P6 0 0 0 0 0 -1 +1 P5/P6 0 0 0 0 0 +1 -1 Differential equations (mass action) dm1 = - k1*m1*m2 + k2 dt P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  37. Signalling Dynamics Activity matrix k1 k2 k3 k4 k5 k6 k7 P1 -1 +1 0 0 0 0 0 P2 -1 +1 0 +1 0 0 0 P1/P2 +1 -1 0 0 0 0 0 P5 0 0 +1 -1 0 -1 +1 P6 0 0 0 0 0 -1 +1 P5/P6 0 0 0 0 0 +1 -1 Differential equations (mass action) dm1 = - k1*m1*m2 + k2*m3 (nonlinear) dt P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

  38. Signalling Dynamics Differential equations (mass action) For RKIP inhibited ERK pathway, change in Raf-1* is: P2 P1 m2 m1 k1/k2 k4 P1/P2 m3 dm1 = - k1*m1*m2 + k2*m3 + k5*m4 – k12*m1*m12 dt +k13*m13 + k14*m13 (catalysis, inhibition, etc. ) P5/P6 m4 k3 K6/k7 m6 m5 P6 P5

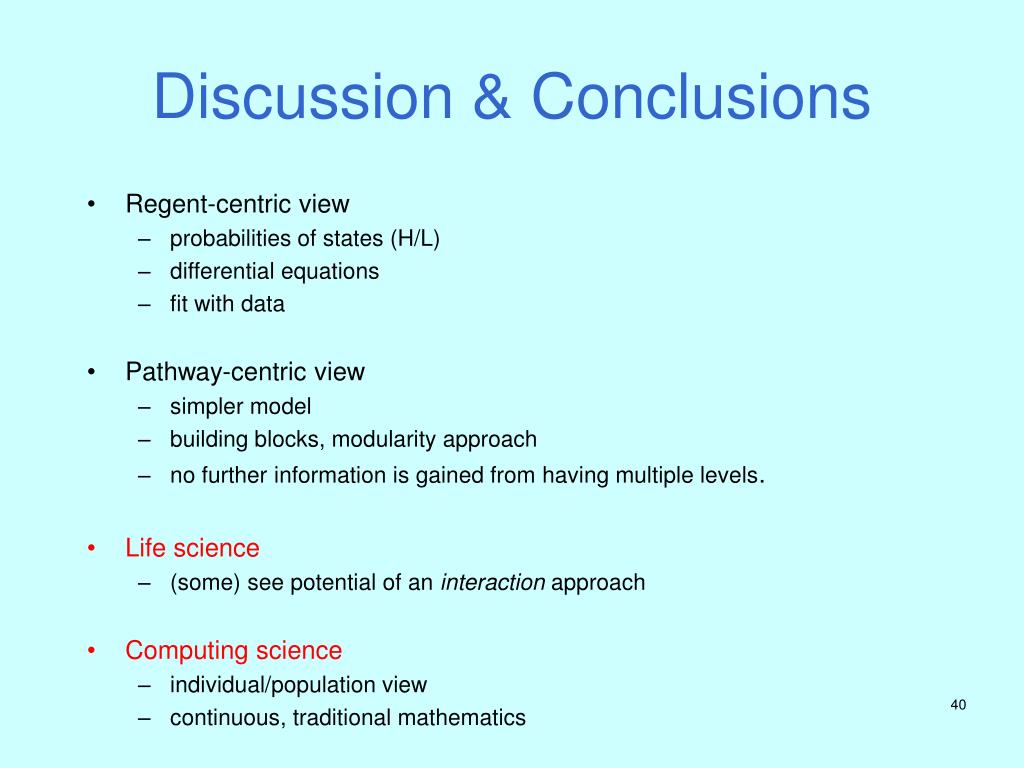

  39. Discussion & Conclusions • Regent-centric view • probabilities of states (H/L) • differential equations • fit with data • Pathway-centric view • simpler model • building blocks, modularity approach • no further information is gained from having multiple levels. • Life science • (some) see potential of an interaction approach • Computing science • individual/population view • continuous, traditional mathematics

  40. Further Challenges • Derivation of the reagent-centric model from experimental data. • Derivation of pathway-centric models from reagent-centric models and vice-versa. • Quantification of abstraction over networks • “chop” off bits of network • Model spatial dynamics (vesicles).

  41. The End Thank you.
