13E – comparing data sets

michi avatar
michi
12 diapositives · 398 Views · Jul 30, 2014

13E – comparing data sets. So far…. We have looked at different methods of analysing data: Measures of central tendency (mean, median, mode) to look at the middle/average of the data Measures of spread (range, interquartile range/IQR) to look at how far the data is spread out

13E – comparing data sets - slide 1
01 / 1213E – comparing data sets
1 / 17

Télécharger la présentation

13E – comparing data sets
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

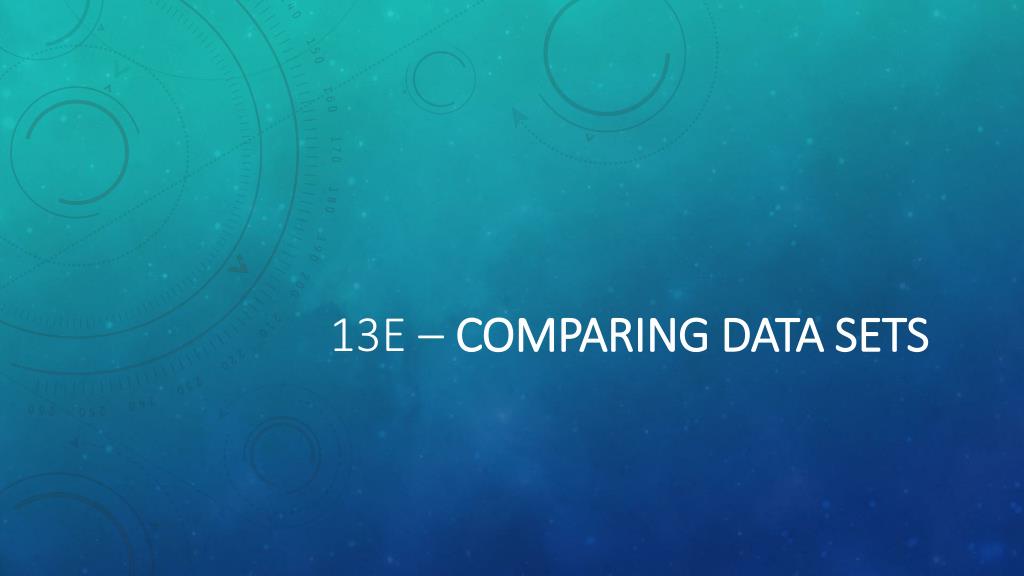

  1. 13E – comparing data sets

  2. So far… • We have looked at different methods of analysing data: • Measures of central tendency (mean, median, mode) to look at the middle/average of the data • Measures of spread (range, interquartile range/IQR) to look at how far the data is spread out • We have also looked at ways of summarising and representing the key information about the data: • Five point summaries (Xmin, Q1, median, Q3, Xmax) • Box and whisker plots (visual representation of the five point summary) • Today we are looking at how we can use this information to compare two or more sets of data in order to make judgements and draw conclusions about the data that has been gathered

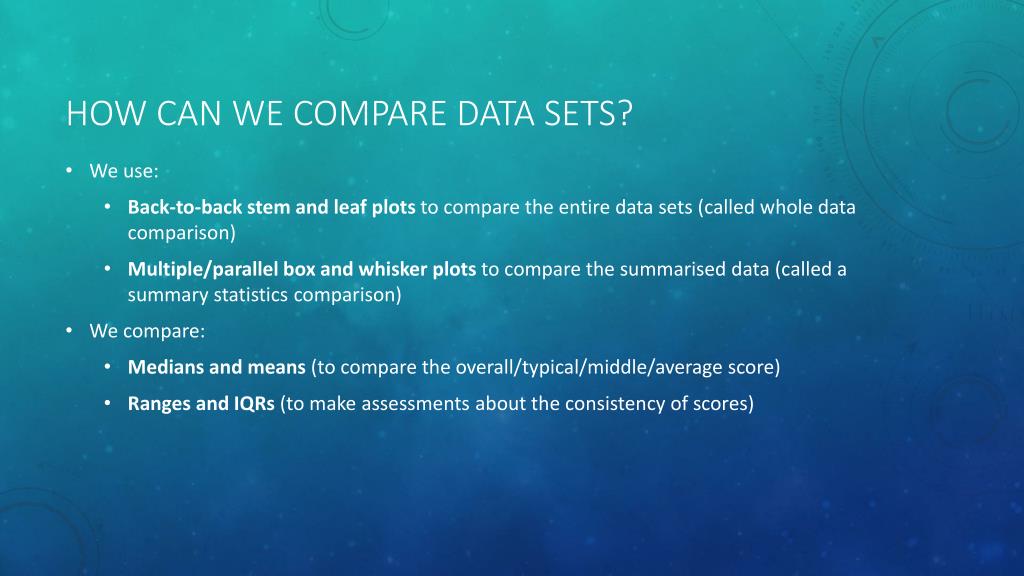

  3. How can we compare data sets? • We use: • Back-to-back stem and leaf plots to compare the entire data sets (called whole data comparison) • Multiple/parallel box and whisker plots to compare the summarised data (called a summary statistics comparison) • We compare: • Medians and means (to compare the overall/typical/middle/average score) • Ranges and IQRs (to make assessments about the consistency of scores)

  4. Worked example: WHOLE DATA COMPARISON (back to back stem and leaf plot)

  5. a. Median number of customers on weekends/weekdays • We need to find where the medians will be found in each set of data (weekend and weekdays) • n is the same for each set of data (20 weekdays; 20 weekend days) • n = 20 (number of scores, in this case the number of days that were observed) • Median = (n + 1) ÷ 2 = (20 + 1) ÷ 2 = 21 ÷ 2 = 10.5 This tells us that the median for each set of data will be between the 10th and 11th scores (remember to check that the scores are in order) For weekdays, the 10th score = 24 and the 11th score = 25; therefore the median is 24.5 For weekends, the 10th score = 16 and the 11th score is 16; therefore the median is 16

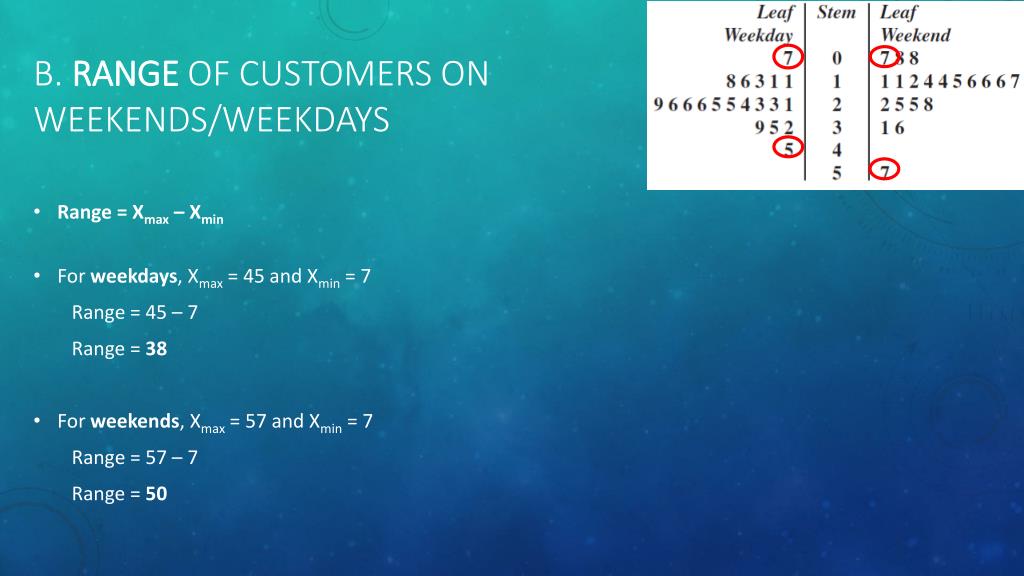

  6. B. Range of customers on weekends/weekdays • Range = Xmax – Xmin • For weekdays, Xmax = 45 and Xmin = 7 Range = 45 – 7 Range = 38 • For weekends, Xmax = 57 and Xmin = 7 Range = 57 – 7 Range = 50

  7. C. What conclusions can be drawn about the average number of customers on weekends and weekdays? • What are our observations based on our analysis of the data? (you can do this part in your head or write some dot points like I have done below) • Reflect on your results relating to the medians and ranges of the data sets, and compare them: • Less customers on weekends than weekdays (weekend has a lower median score) • There is an outlier in the weekend scores (57) which means there is a much bigger range for weekends than weekdays • Weekend scores tend to be clustered towards the lower end • Write a sentence or two to summarise your conclusions: • There are generally fewer customers on weekends. There is one outlier in the weekend scores, causing the range to be larger. However, apart from this outlier, the weekend scores are less spread out.

  8. Worked example: comparing data sets using lists of scores • Below are the scores for two students in eight math tests throughout the year. • John: 45, 51, 55, 58, 59, 62, 62, 64 • Penny: 37, 44, 45, 46, 50, 74, 80, 84 a. Find the mean and range for each student. b. Which student had the better overall performance on the eight tests? c. Which student was more consistent over the eight tests?

  9. a. Find the meanfor each student. • John: 45, 51, 55, 58, 59, 62, 62, 64 = = 57 • Penny: 37, 44, 45, 46, 50, 74, 80, 84 = = 57.5

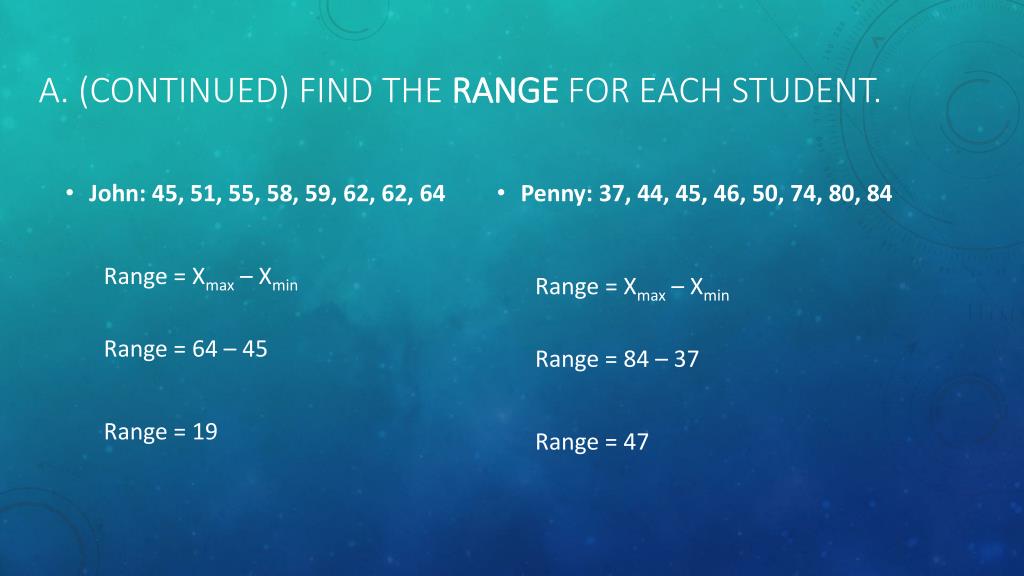

  10. a. (continued) Find the RANGE for each student. • John: 45, 51, 55, 58, 59, 62, 62, 64 Range = Xmax – Xmin Range = 64 – 45 Range = 19 • Penny: 37, 44, 45, 46, 50, 74, 80, 84 Range = Xmax – Xmin Range = 84 – 37 Range = 47

  11. B. and C. comparing the data b. Which student had the better overall performance on the eight tests? In order to look at overall performance, we compare the means John’s mean = 57 Penny’s mean = 57.5 Therefore, Penny performed slightly better overall. • c. Which student was more consistent over the eight tests? In order to look at consistency, we compare the ranges John’s range = 19 Penny’s range = 47 Because John’s range is lower than Penny’s, we can say that John performed more consistently on the tests than Penny

  12. Questions to do: • Exercise 13E page 455 questions 1 (a and b only), 2, 4, 5, 6(bcde), 8, 12
