Classifying the protein universe

1. Synapse-Associated Protein 97 Classifying the protein universe Ashwin Sivakumar Wu et al, 2002. EMBO J 19:5740-5751

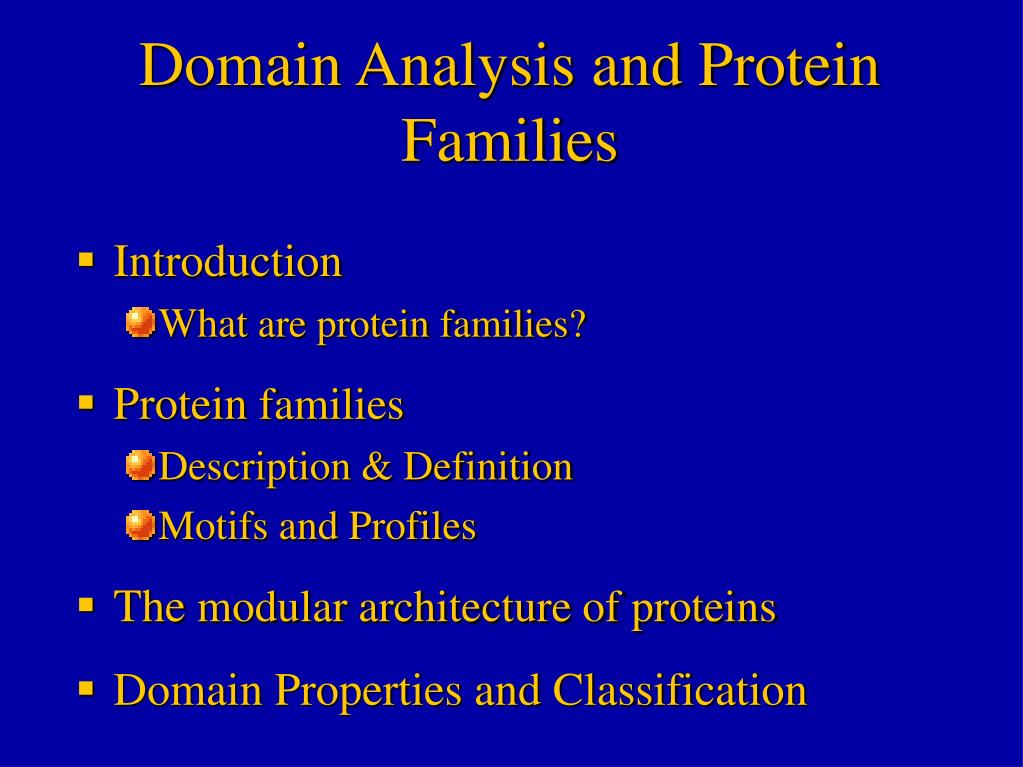

2. Domain Analysis and Protein Families • Introduction • What are protein families? • Protein families • Description & Definition • Motifs and Profiles • The modular architecture of proteins • Domain Properties and Classification

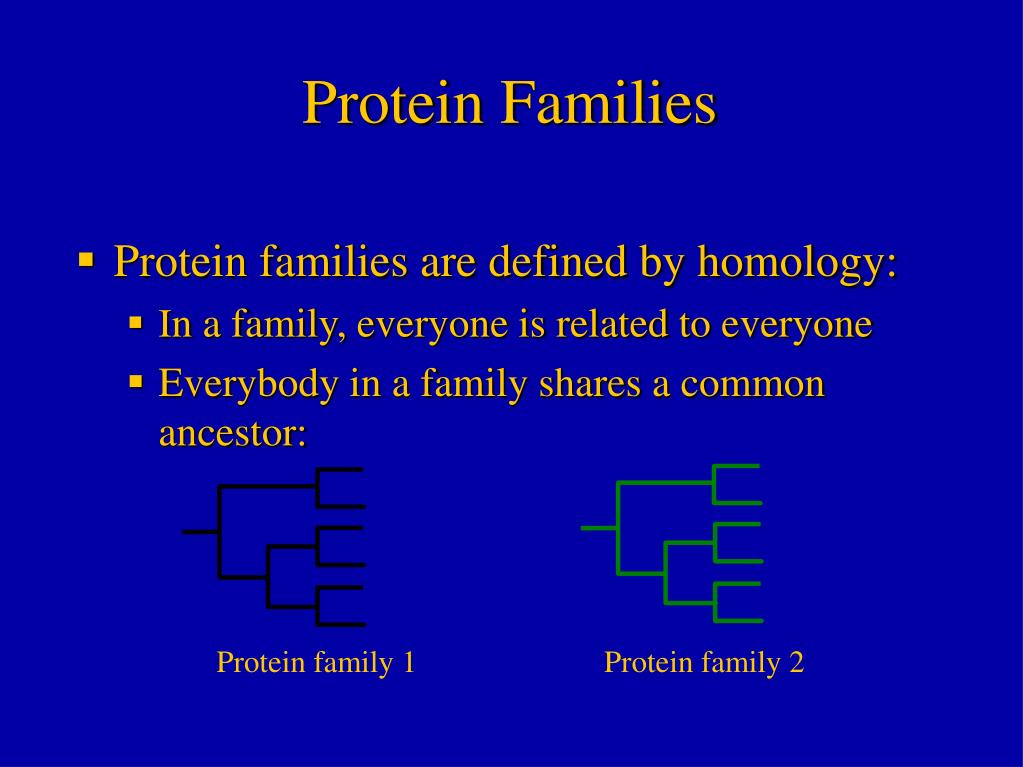

3. Protein family 1 Protein family 2 Protein Families • Protein families are defined by homology: • In a family, everyone is related to everyone • Everybody in a family shares a common ancestor:

4. 1chg 1sgt 1chg 1sgt Homology versus Similarity • Homologous proteins have similar 3D structures and (usually) share common ancestry: • 1chg and 1sgt  31% identity, 43% similarity • We can infer homology from similarity! Superfamily: Trypsin-like Serine Proteases

5. 1chg 1sgc 1chg 1sgc Homology versus Similarity • But Homologous proteins may not share sequence similarity: Superfamily: Trypsin-like Serine Proteases 1chg and 1sgc  15% identity, 25% similarity We cannot infer similarity from homology

6. 1chg 2baa 1chg 2baa Homology versus Similarity • Similar sequences may not have structural similarity: 1chg and 2baa  30% similarity, 140/245 aa We cannot assume homology from similarity!

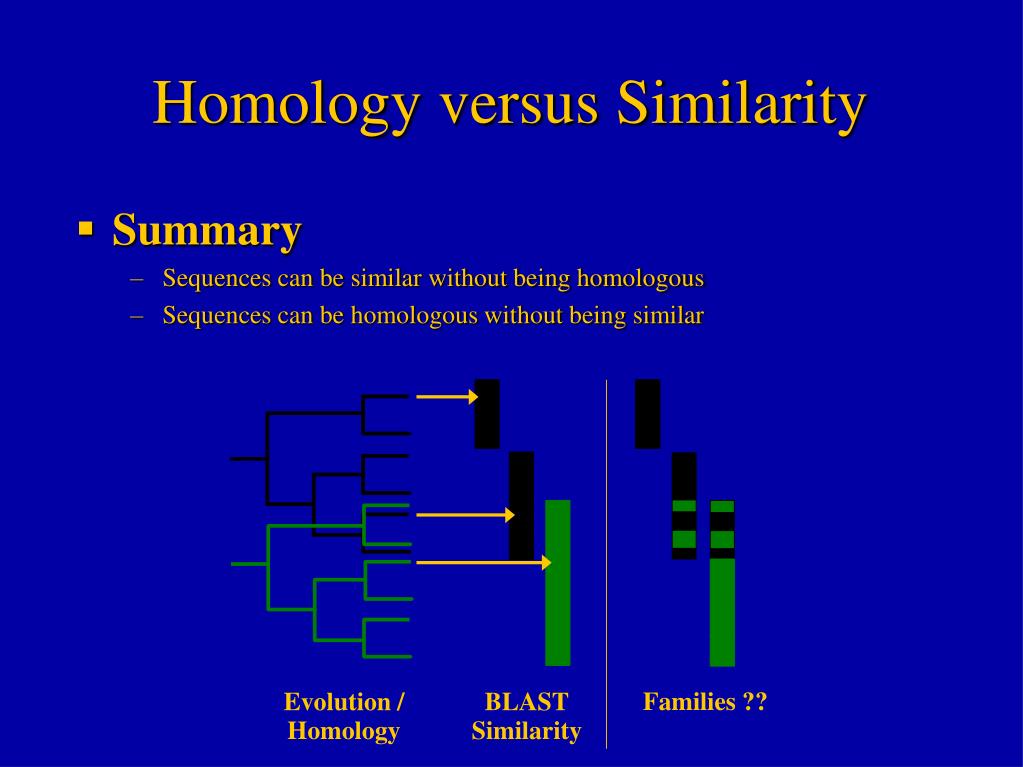

7. Homology versus Similarity • Summary • Sequences can be similar without being homologous • Sequences can be homologous without being similar Families ?? Evolution / Homology BLAST Similarity

8. Domain Analysis and Protein Families • Introduction • What are protein families? • Protein families • Description & Definition • Motifs and Profiles • The modular architecture of proteins • Domain Properties and Classification

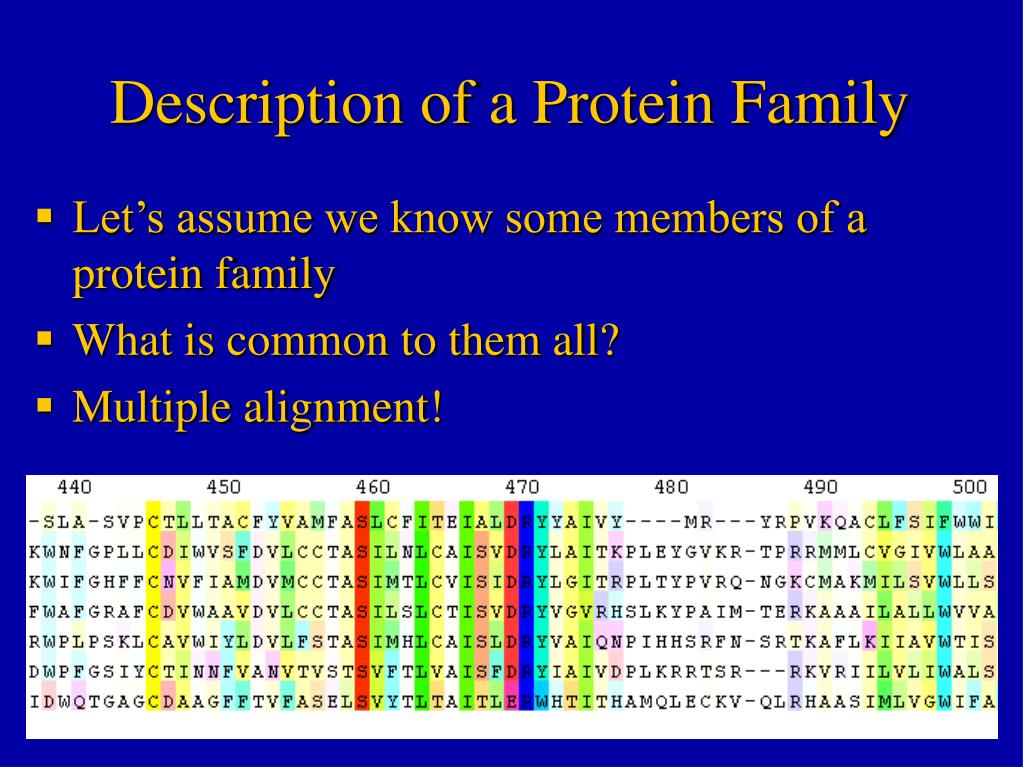

9. Description of a Protein Family • Let’s assume we know some members of a protein family • What is common to them all? • Multiple alignment!

10. Describing Sequences in a Protein Family • As a motif or rule • describes essential features of the protein family • catalytic residues, important structural residues • As a profile • describes variability in the family alignment

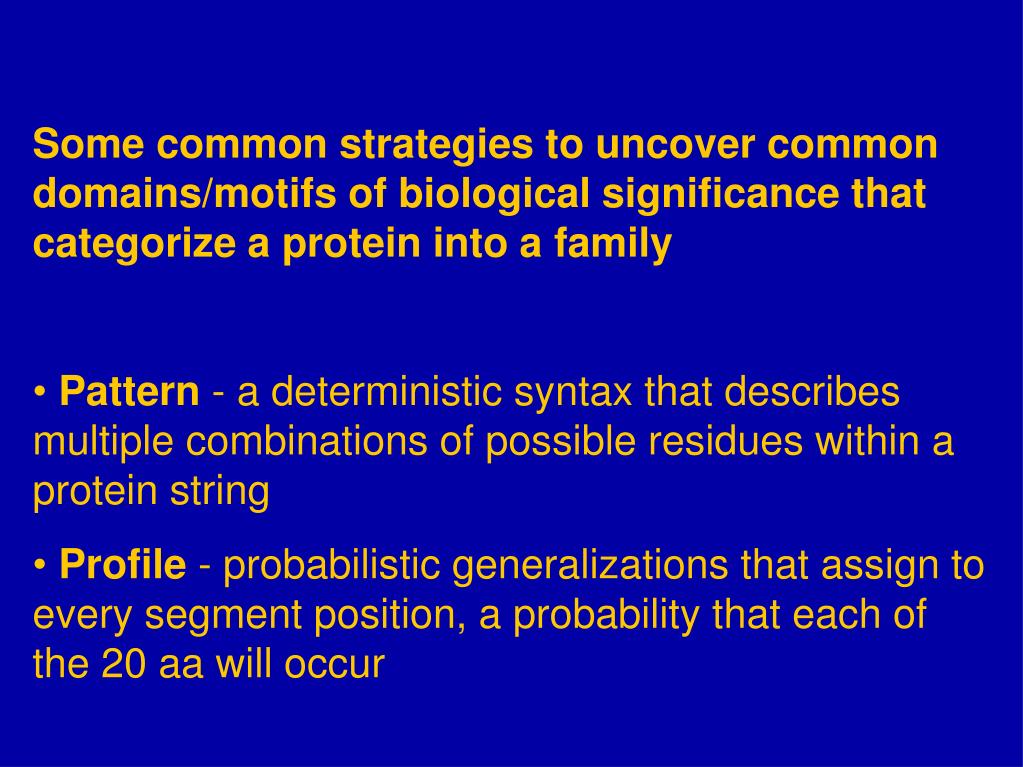

11. Techniques for searching sequence databases to Some common strategies to uncover common domains/motifs of biological significance that categorize a protein into a family • Pattern - a deterministic syntax that describes multiple combinations of possible residues within a protein string • Profile - probabilistic generalizations that assign to every segment position, a probability that each of the 20 aa will occur

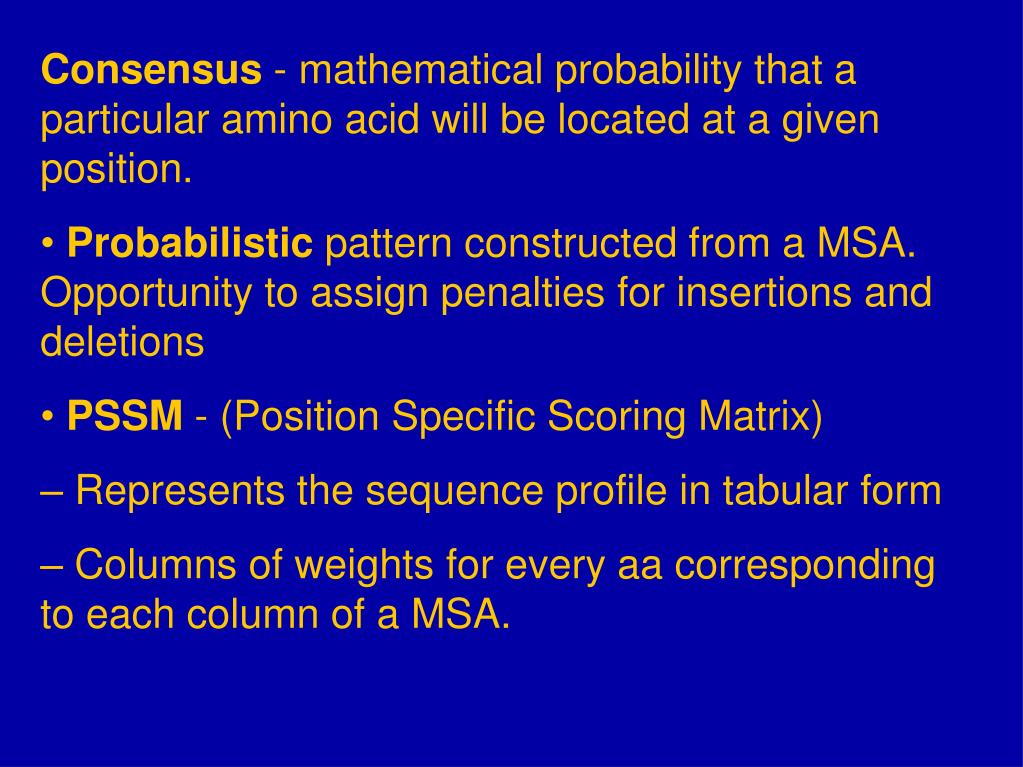

12. Consensus - mathematical probability that a particular amino acid will be located at a given position. • Probabilistic pattern constructed from a MSA. Opportunity to assign penalties for insertions and deletions • PSSM - (Position Specific Scoring Matrix) – Represents the sequence profile in tabular form – Columns of weights for every aa corresponding to each column of a MSA.

13. HMMs • Hidden Markov Models are Statistical methods that consider all the possible combinations of matches, mismatches, and gaps to generate a consensus (Higgins, 2000) • •Sequence ordering and alignments are not necessary at the onset (but in many cases alignments are recommended) • More the number of sequences better the models. • One can Generate a model (profile/PSSM), then search a database with it (Eg: PFAM)

14. Motif Description of a Protein Family • Regular expressions: ........C.............S...L..I..DRY..I.......................W... I E W V / C x{13} S x{3} [LI] x{2} I x{2} [DE] R [YW] x{2} [IV] x{10} – x{12} W / x = [AC-IK-NP-TVWY]

15. Motif Description of a Protein Family • Database: PROSITE “PROSITE is a database of protein families and domains. It is based on the observation that, while there is a huge number of different proteins, most of them can be grouped, on the basis of similarities in their sequences, into a limited number of families. Proteins or protein domains belonging to a particular family generally share functional attributes and are derived from a common ancestor. It is apparent, when studying protein sequence families, that some regions have been better conserved than others during evolution. These regions are generally important for the function of a protein and/or for the maintenance of its three-dimensional structure. By analyzing the constant and variable properties of such groups of similar sequences, it is possible to derive a signature for a protein family or domain, which distinguishes its members from all other unrelated proteins.” http://au.expasy.org/prosite/prosite_details.html

16. Automated Motif Discovery • Given a set of sequences: • GIBBS Sampler • http://bayesweb.wadsworth.org/cgi-bin/gibbs.8.pl?data_type=protein • MEME • http://meme.sdsc.edu/meme/ PRATT • http://www.ebi.ac.uk/pratt • TEIRESIAS • http://cbcsrv.watson.ibm.com/Tspd.html

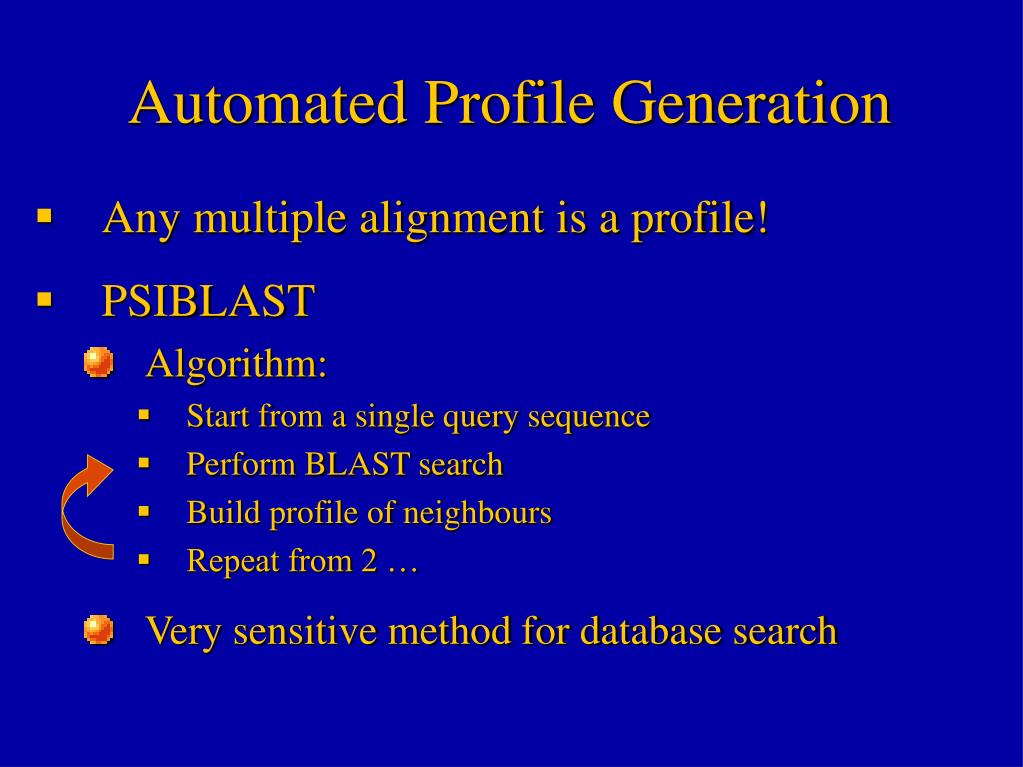

17. Automated Profile Generation • Any multiple alignment is a profile! • PSIBLAST • Algorithm: • Start from a single query sequence • Perform BLAST search • Build profile of neighbours • Repeat from 2 … • Very sensitive method for database search

18. PSI-Blast • Starts with a sequence, BLAST it, • align select results to query sequence, estimate a profile with the MSA, search database with the profile - constructs PSSM • Iterate until process stabilizes • Focus here is on domains, not entire sequences • Greatly improves sensitivity

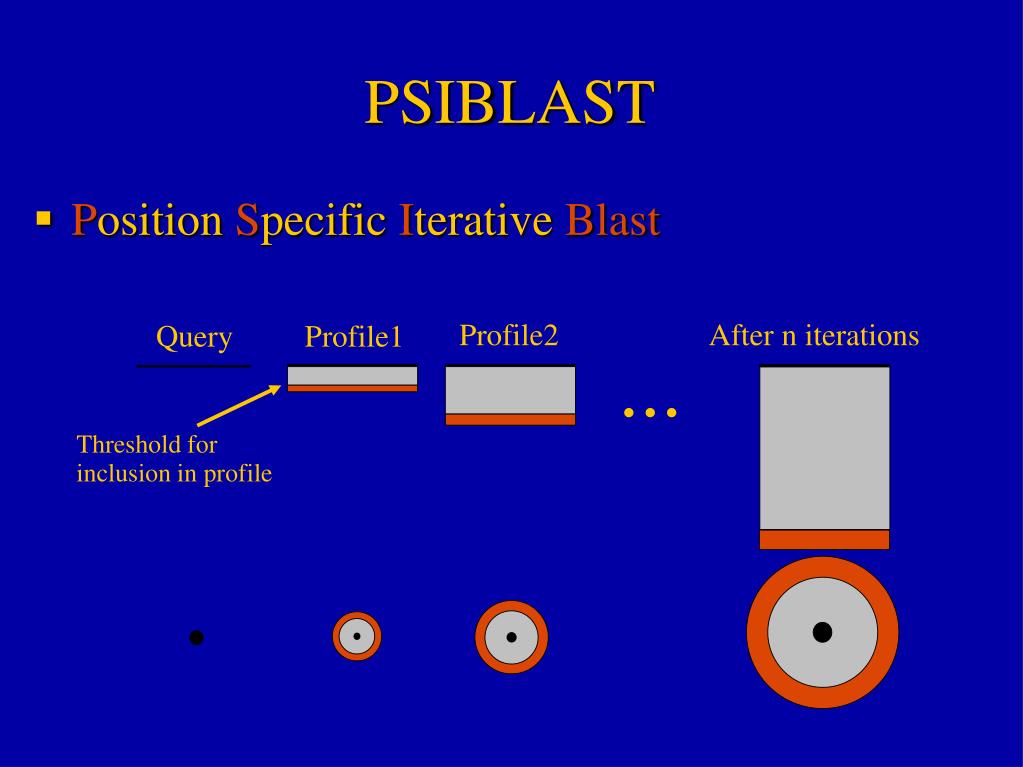

19. Profile2 After n iterations Query Profile1 ... Threshold for inclusion in profile PSIBLAST • Position Specific Iterative Blast

20. Benchmarking a motif/profile • You have a description of a protein family, and you do a database search… • Are all hits truly members of your protein family? • Benchmarking: TP: true positive TN: true negative FP: false positive FN: false negative Result family member Dataset not a family member unknown

21. Benchmarking a motif/profile • Precision / Selectivity • Precision = TP / (TP + FP) • Sensitivity / Recall • Sensitivity = TP / (TP + FN) • Balancing both: • Precision ~ 1, Recall ~ 0: easy but useless • Precision ~ 0, Recall ~ 1: easy but useless • Precision ~ 1, Recall ~ 1: perfect but very difficult

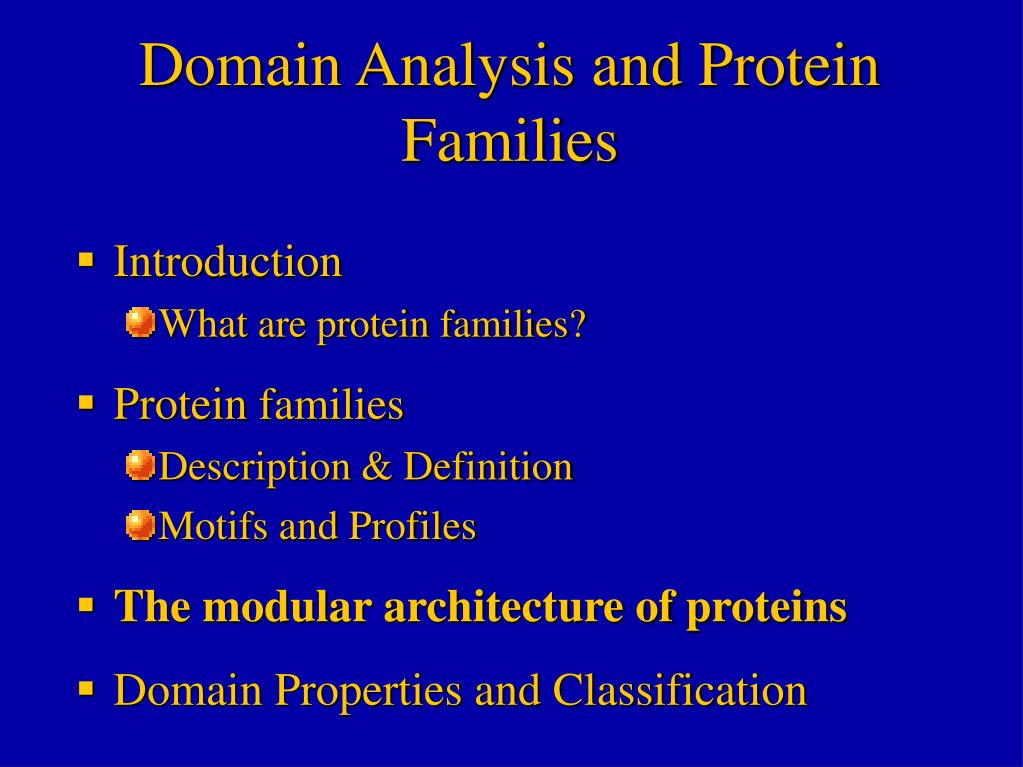

22. Domain Analysis and Protein Families • Introduction • What are protein families? • Protein families • Description & Definition • Motifs and Profiles • The modular architecture of proteins • Domain Properties and Classification

23. Triosephosphate isomerase Phosphoglycerate kinase The Modular Architecture of Proteins • BLAST search of a multi-domain protein

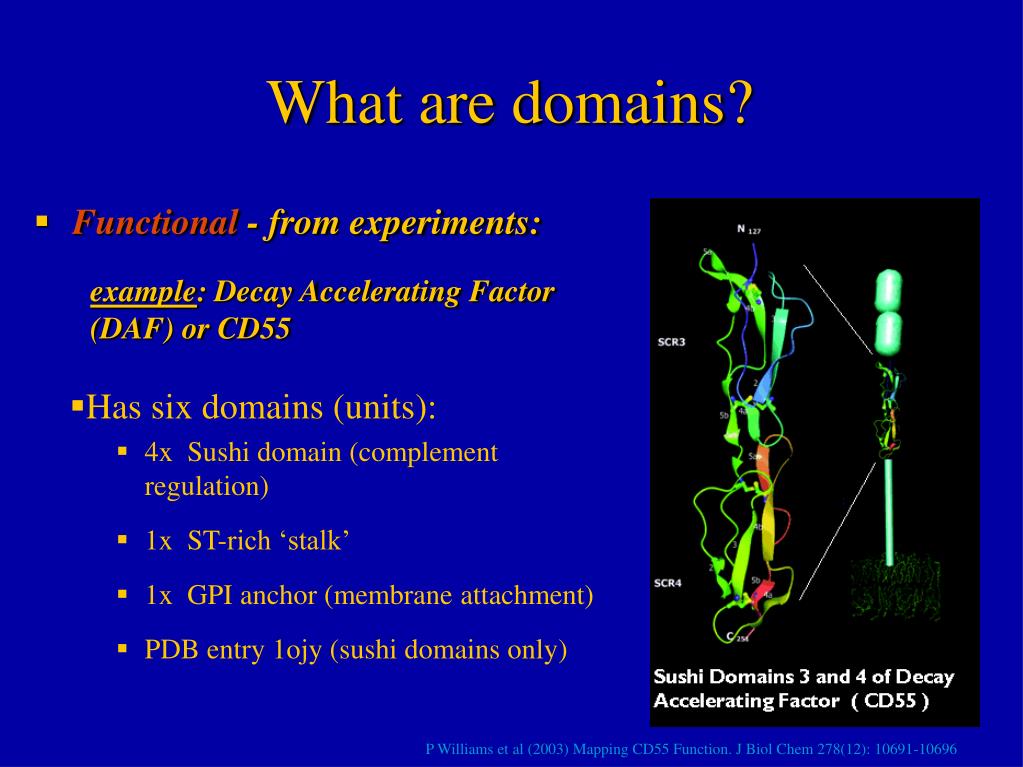

24. What are domains? • Functional - from experiments: example: Decay Accelerating Factor (DAF) or CD55 • Has six domains (units): • 4x Sushi domain (complement regulation) • 1x ST-rich ‘stalk’ • 1x GPI anchor (membrane attachment) • PDB entry 1ojy (sushi domains only) P Williams et al (2003) Mapping CD55 Function. J Biol Chem 278(12): 10691-10696

25. There is only so much we can conclude… • Classifying domains [To aid structure prediction (predict structural domains, molecular function of the domain)] • Classifying complete sequences (predicting molecular function of proteins, large scale annotation) • Majority of proteins are multi-domain proteins.

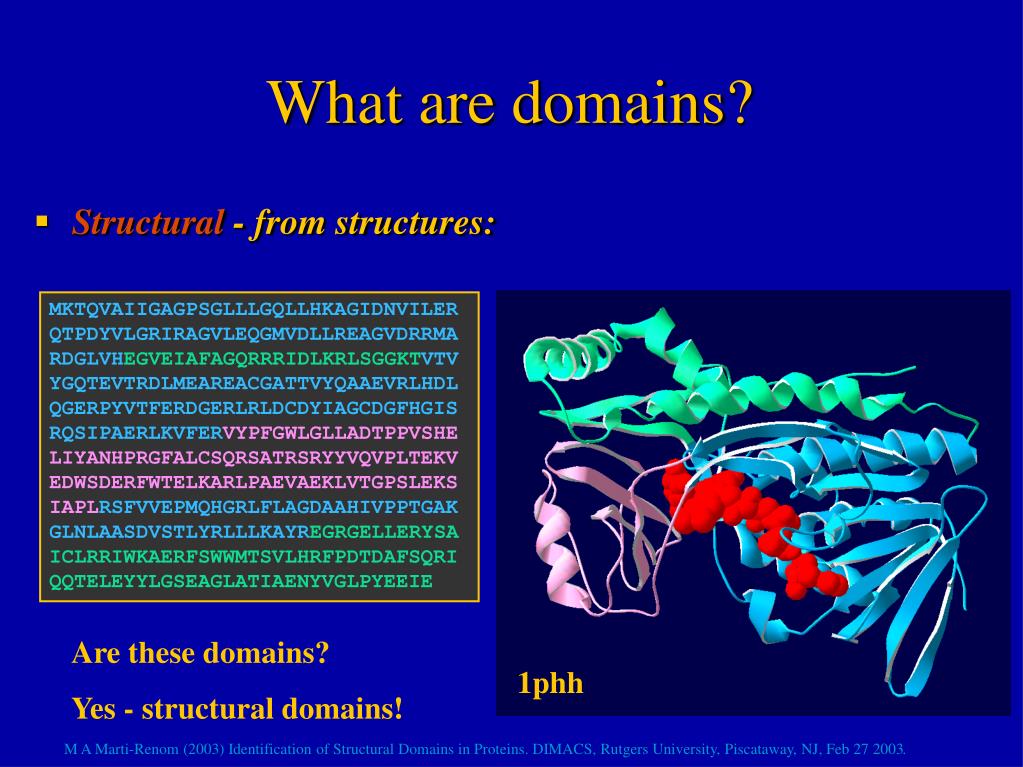

26. What are domains? • Structural - from structures: MKTQVAIIGAGPSGLLLGQLLHKAGIDNVILERQTPDYVLGRIRAGVLEQGMVDLLREAGVDRRMARDGLVHEGVEIAFAGQRRRIDLKRLSGGKTVTVYGQTEVTRDLMEAREACGATTVYQAAEVRLHDLQGERPYVTFERDGERLRLDCDYIAGCDGFHGISRQSIPAERLKVFERVYPFGWLGLLADTPPVSHELIYANHPRGFALCSQRSATRSRYYVQVPLTEKVEDWSDERFWTELKARLPAEVAEKLVTGPSLEKSIAPLRSFVVEPMQHGRLFLAGDAAHIVPPTGAKGLNLAASDVSTLYRLLLKAYREGRGELLERYSAICLRRIWKAERFSWWMTSVLHRFPDTDAFSQRIQQTELEYYLGSEAGLATIAENYVGLPYEEIE Are these domains? Yes - structural domains! 1phh M A Marti-Renom (2003) Identification of Structural Domains in Proteins. DIMACS, Rutgers University, Piscataway, NJ, Feb 27 2003.

27. What are domains? • Mobile – Sequence Domains: Protein 1 Protein 2 Protein 3 Protein 4 Mobile module

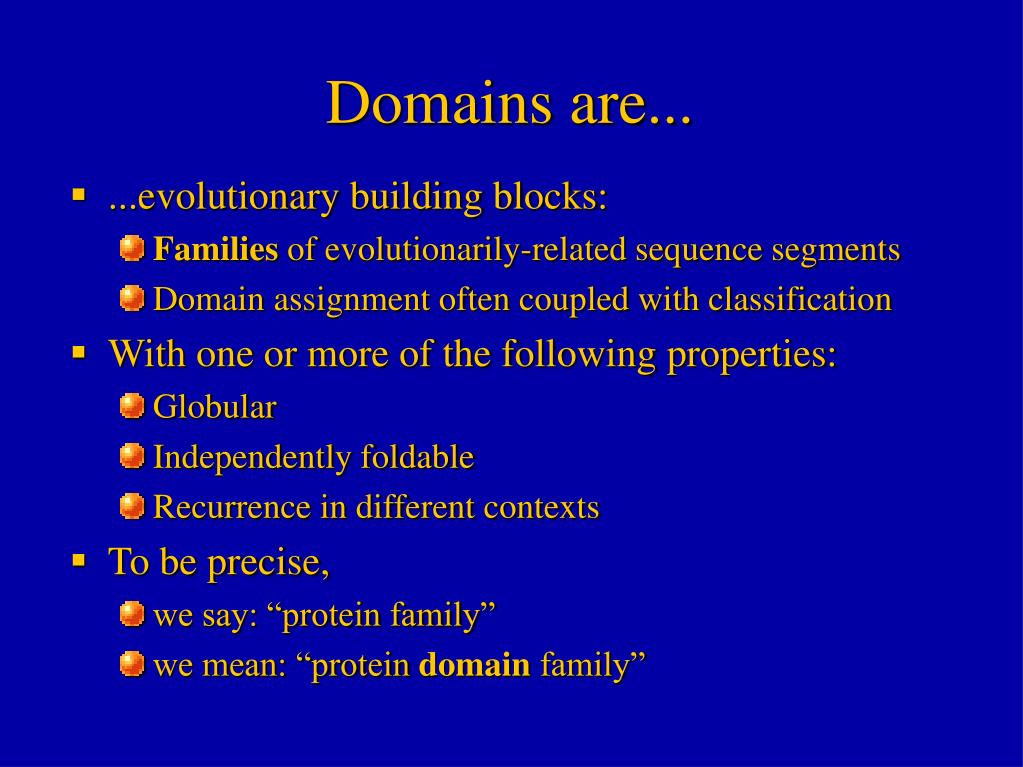

28. Domains are... • ...evolutionary building blocks: • Families of evolutionarily-related sequence segments • Domain assignment often coupled with classification • With one or more of the following properties: • Globular • Independently foldable • Recurrence in different contexts • To be precise, • we say: “protein family” • we mean: “protein domainfamily”

29. Example: global alignment • Phthalate dioxygenase reductase (PDR_BURCE) • Toluene - 4 -monooxygenase electron transfer component (TMOF_PSEME) Global alignment fails! Only aligns largest domain.

30. Sometimes even more complex! PGBM_HUMAN:“Basement membrane-specific heparan sulphate proteoglycan core protein precursor” 980 1960 2940 3920 4391 45 domains of 9 different type, according to PFam http://www.sanger.ac.uk/cgi-bin/Pfam/swisspfamget.pl?name=P98160 http://www.glycoforum.gr.jp/science/word/proteoglycan/PGA09E.html

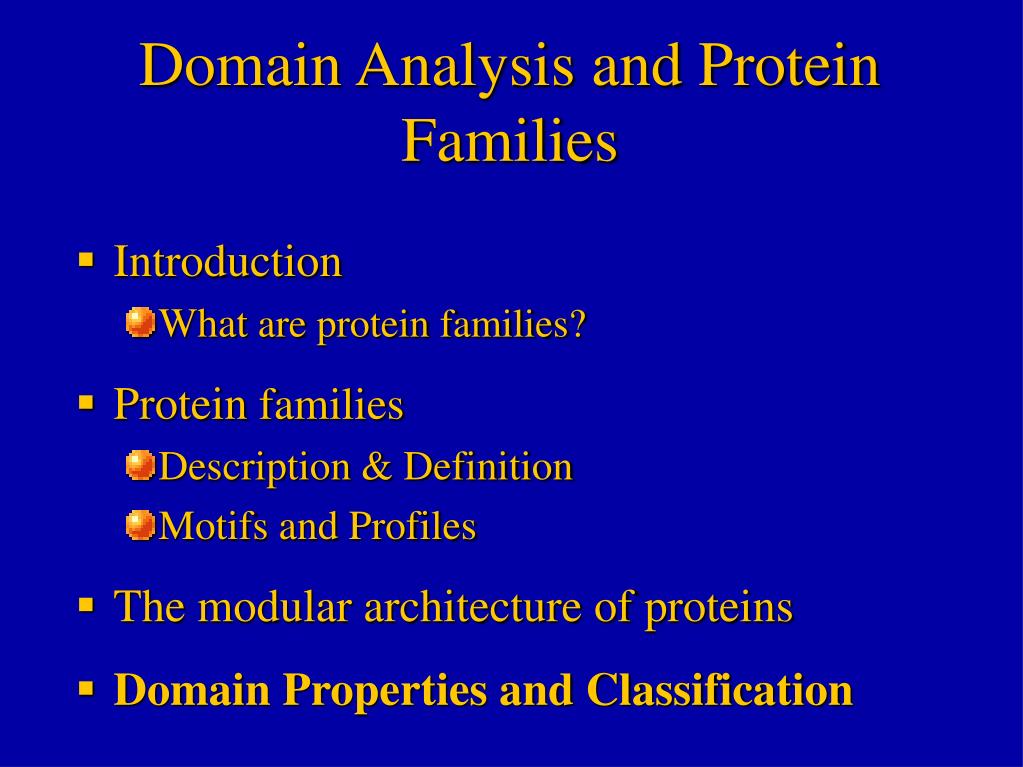

31. Domain Analysis and Protein Families • Introduction • What are protein families? • Protein families • Description & Definition • Motifs and Profiles • The modular architecture of proteins • Domain Properties and Classification

32. Categories of Domain Definitions Structure(discontinuous domains) Sequence(continuous domains) PFAM SCOP Curated SMART CATH PROSITE PRINTS ADDA DALI PUU DETEKTIVE DOMAINPARSER 1 & 2 DIAL STRUDL DOMAK DOMO TRIBE-MCL GENERAGE SYSTERS PROTOMAP Automatic

33. Pfam-Protein family database • Families of HMM profiles built from hand curated multiple alignments. (Pfam A) • Pfam A covers 7973 protein families. • You can search your sequence against these profiles to decipher family membership for your sequence. 7973

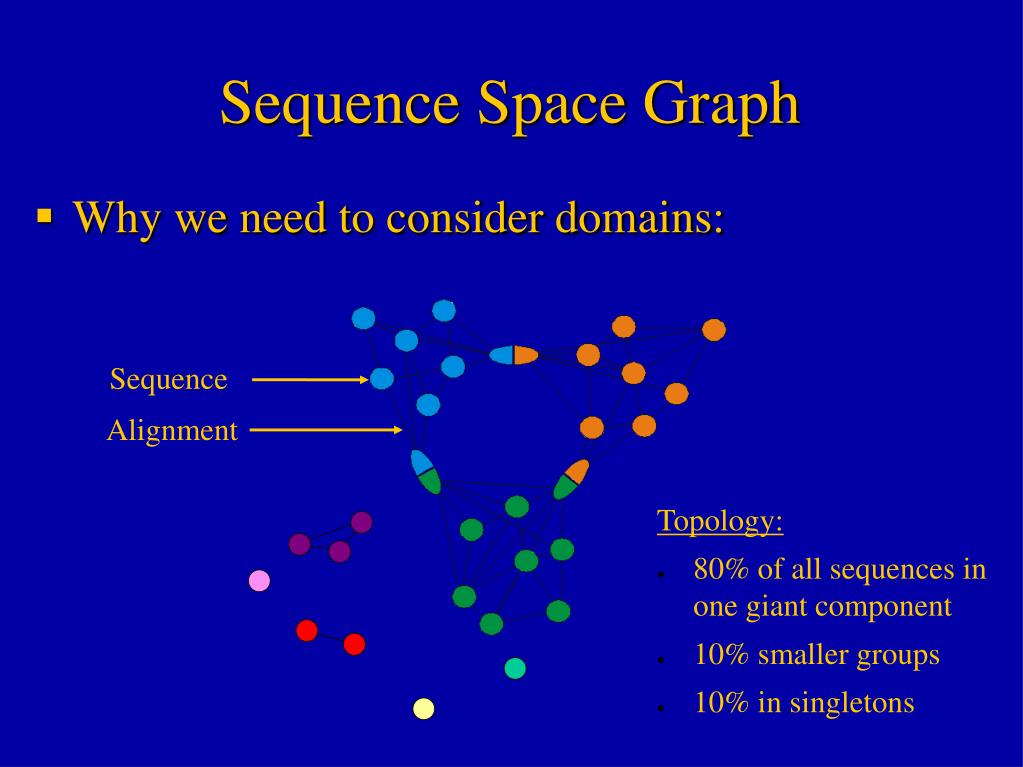

34. Sequence Space Graph • Why we need to consider domains: Sequence Alignment Topology: • 80% of all sequences in one giant component • 10% smaller groups • 10% in singletons

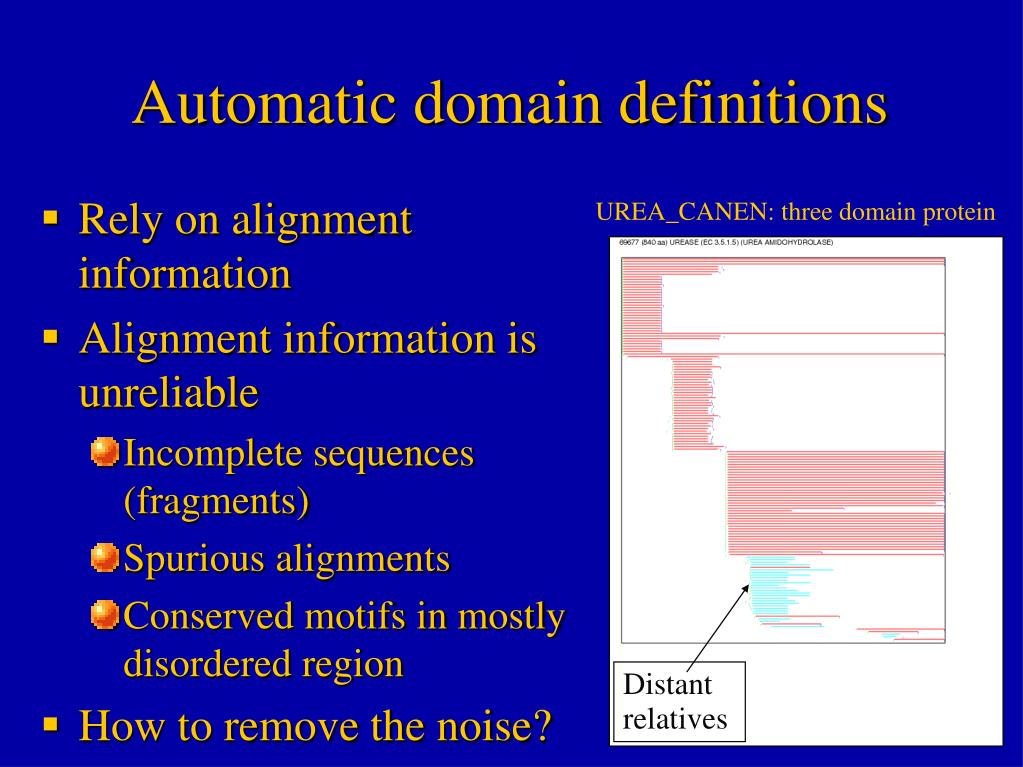

35. Distant relatives Automatic domain definitions • Rely on alignment information • Alignment information is unreliable • Incomplete sequences (fragments) • Spurious alignments • Conserved motifs in mostly disordered region • How to remove the noise? UREA_CANEN: three domain protein

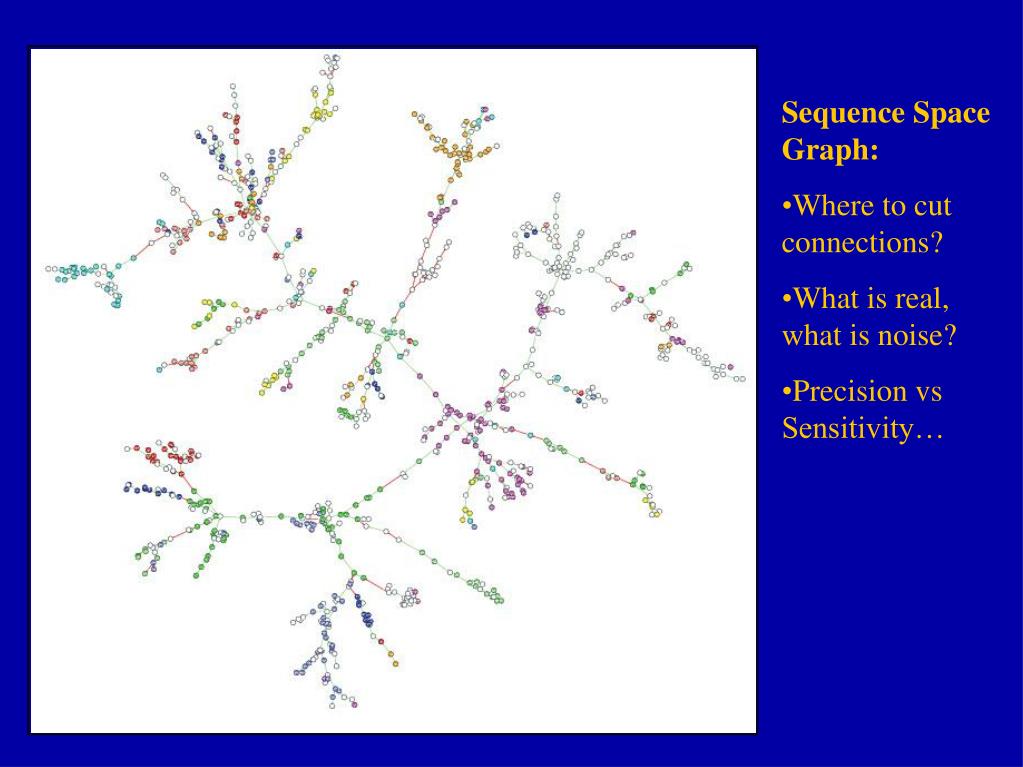

36. Sequence Space Graph: • Where to cut connections? • What is real, what is noise? • Precision vs Sensitivity…

37. ADDA • HolmGroup in-house database! • http://ekhidna.biocenter.helsinki.fi:9801/sqgraph/pairsdb • Classification of non-redundant sequences • 100% level: 1562243 sequences, 2697368 domains • 40% level: 479740 sequences, 827925 domains • PFAM-A benchmark • Sensitivity: 87% (average unification in single cluster) • Selectivity: 98% (average purity of cluster) • Coverage: 100% (all known proteins) [ Pfam ~50% ]

38. Example: ABC transporter PFAM PRODOM DOMO ADDA UniProt id: CFTR_BOVIN

39. Properties of domains • Most domains: size approx 75 – 200 residues

40. So, you have a sequence... • ...look it up in existing database • SRS: http://srs.ebi.ac.uk • INTERPRO: http://www.ebi.ac.uk/interpro • ...search against existing family descriptions • PFAM: http://www.sanger.ac.uk/Software/Pfam • SMART: http://smart.embl-heidelberg.de • PRINTS: http://bioinf.man.ac.uk/dbbrowser/PRINTS • PROSITE: http://us.expasy.org/prosite • ...look it up in ADDA

41. Manually Curated Protein Family Databases • PFAM (Hidden Markov Models) • http://www.sanger.ac.uk/Software/Pfam • SMART (Hidden Markov Models) • http://smart.embl-heidelberg.de • PROSITE (Regular Expressions, Profiles) • http://au.expasy.org/prosite • PRINTS (combination of Profiles) • http://bioinf.man.ac.uk/dbbrowser/PRINTS

42. Why a multiple alignment? • With a multiple alignment, we can • guess which residues are “important” • secondary structure prediction • transmembrane segments prediction • homology modelling • guide to wet-lab EXPERIMENTATION! • build a motif/profile and find more family members • build phylogenetic trees Multiple Alignments are THE central object in protein sequence analysis!
