  1. WORK

  2. Work changes the energy of a system by applying an external force through a displacement (x).

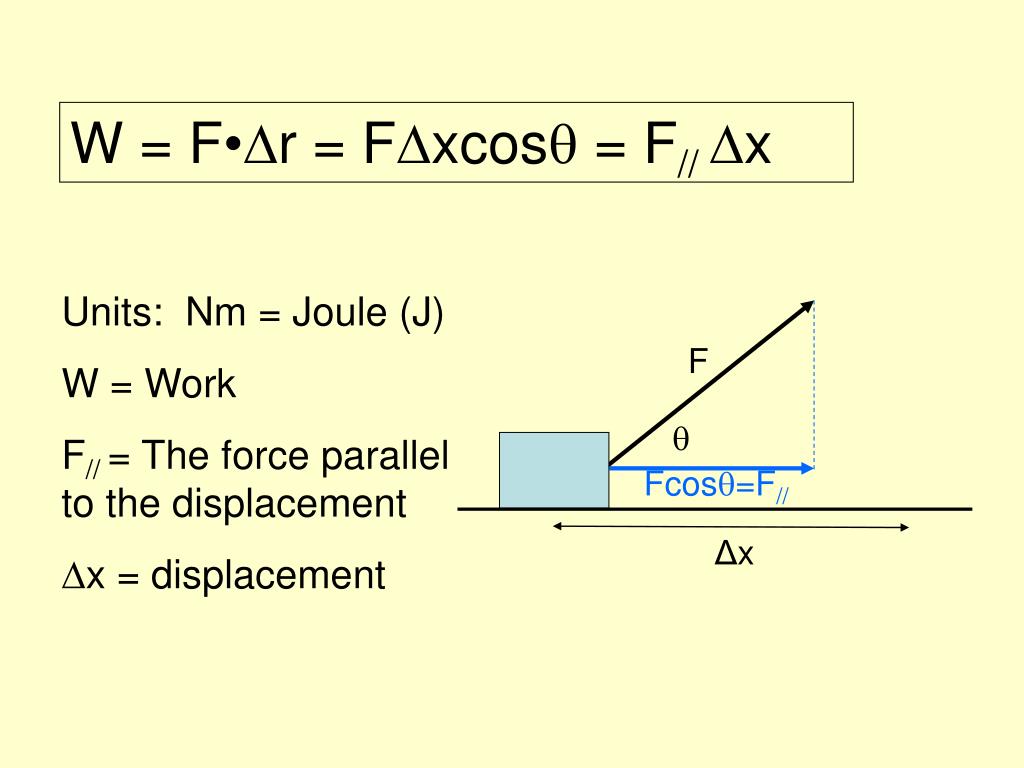

  3. F  Fcos=F// x Δx W = F•r = Fxcos = F// x Units: Nm = Joule (J) W = Work F// = The force parallel to the displacement x = displacement

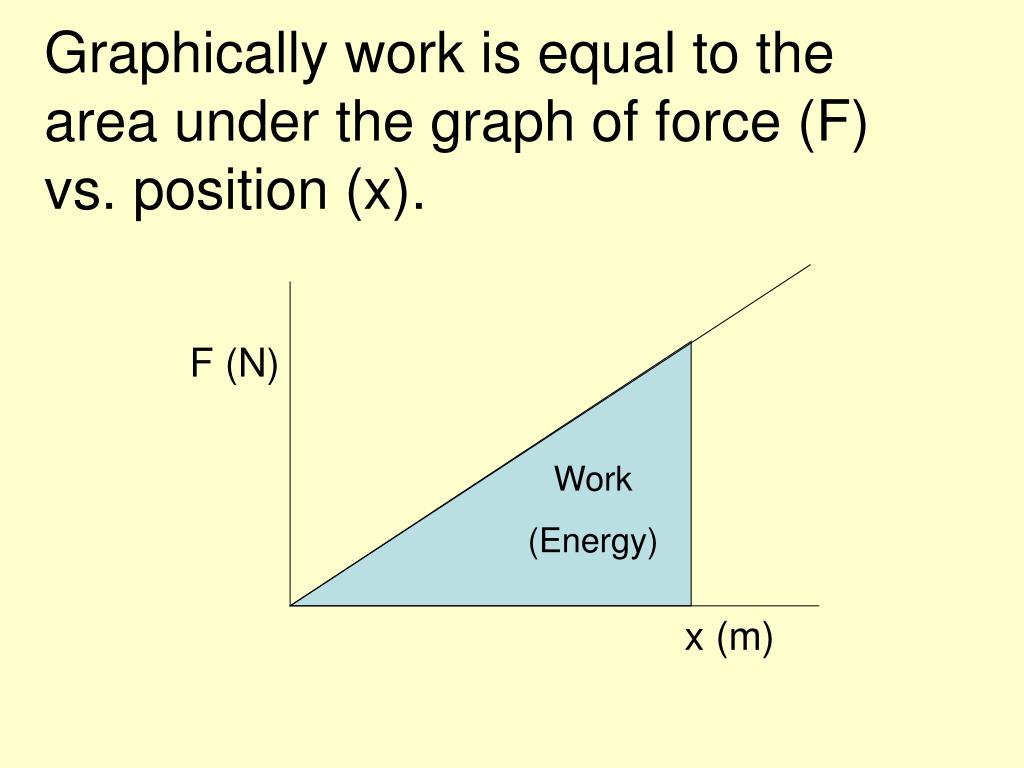

  4. F (N) Work (Energy) x (m) Graphically work is equal to the area under the graph of force (F) vs. position (x).

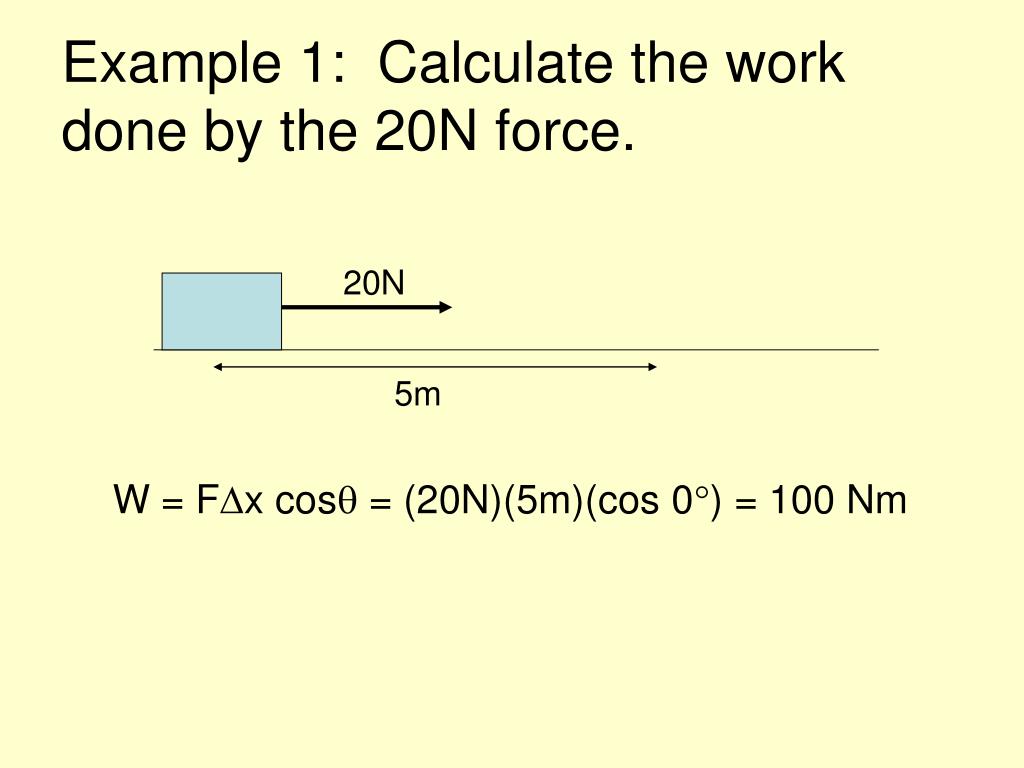

  5. 20N 5m Example 1: Calculate the work done by the 20N force. W = Fx cos = (20N)(5m)(cos 0) = 100 Nm

  6. 20N 30 5m Example 2: Calculate the work done by the 20N force. W = Fx cos = (20N)(5m)(cos 30) = 86.6 Nm

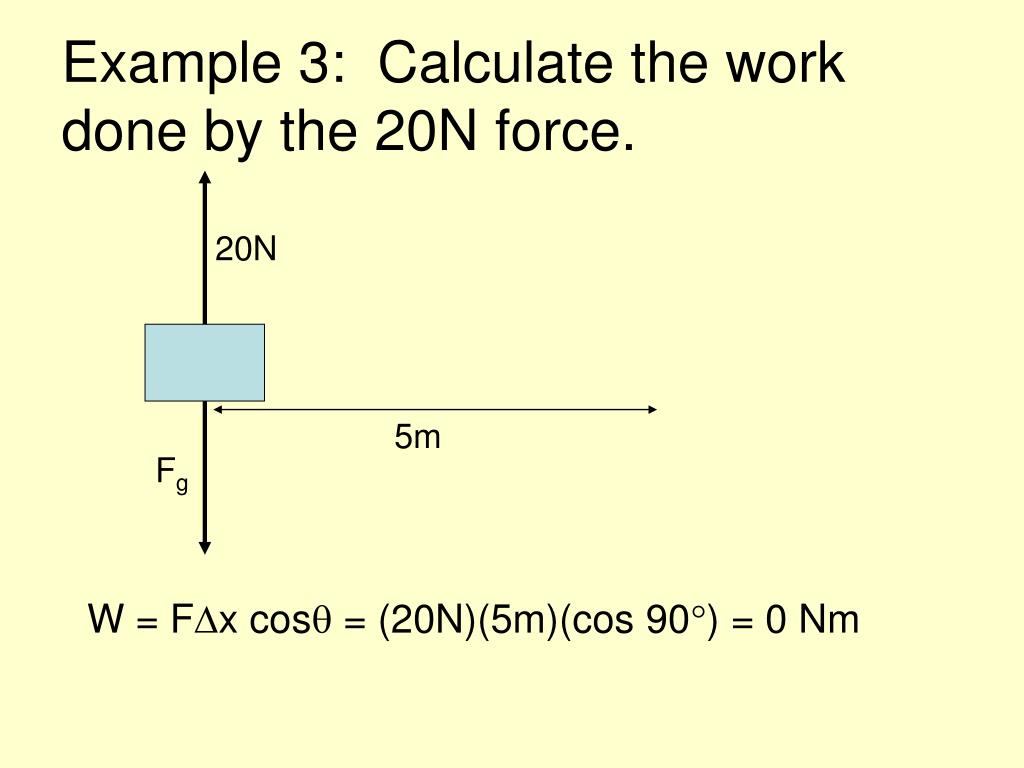

  7. 20N 5m Fg Example 3: Calculate the work done by the 20N force. W = Fx cos = (20N)(5m)(cos 90) = 0 Nm

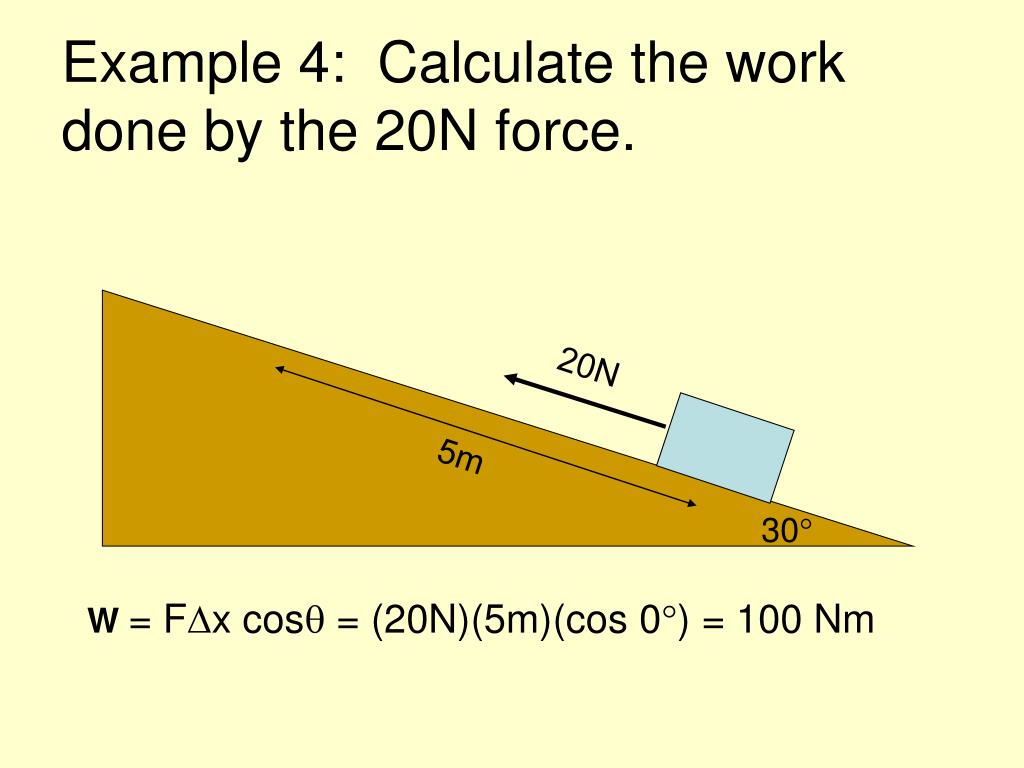

  8. 20N 5m 30 Example 4: Calculate the work done by the 20N force. W= Fx cos = (20N)(5m)(cos 0) = 100 Nm

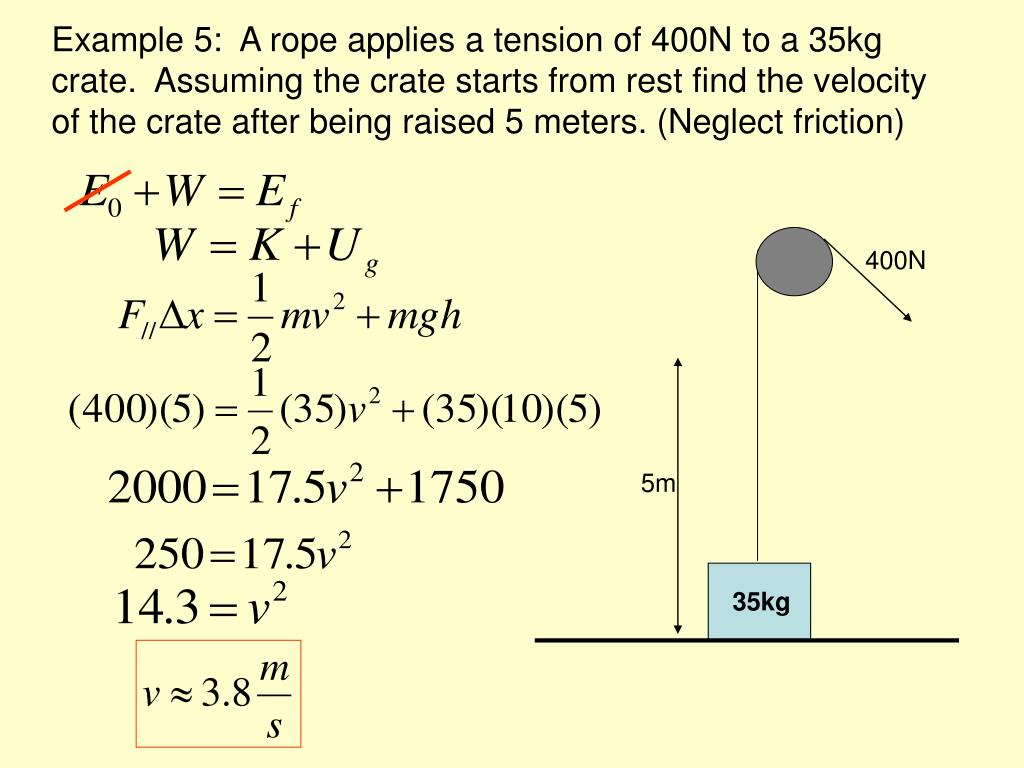

  9. 5m 35kg Example 5: A rope applies a tension of 400N to a 35kg crate. Assuming the crate starts from rest find the velocity of the crate after being raised 5 meters. (Neglect friction) 400N
