  1. Next Generation5.7” OCS ModelsRelease Plan March 2008 Horner APG

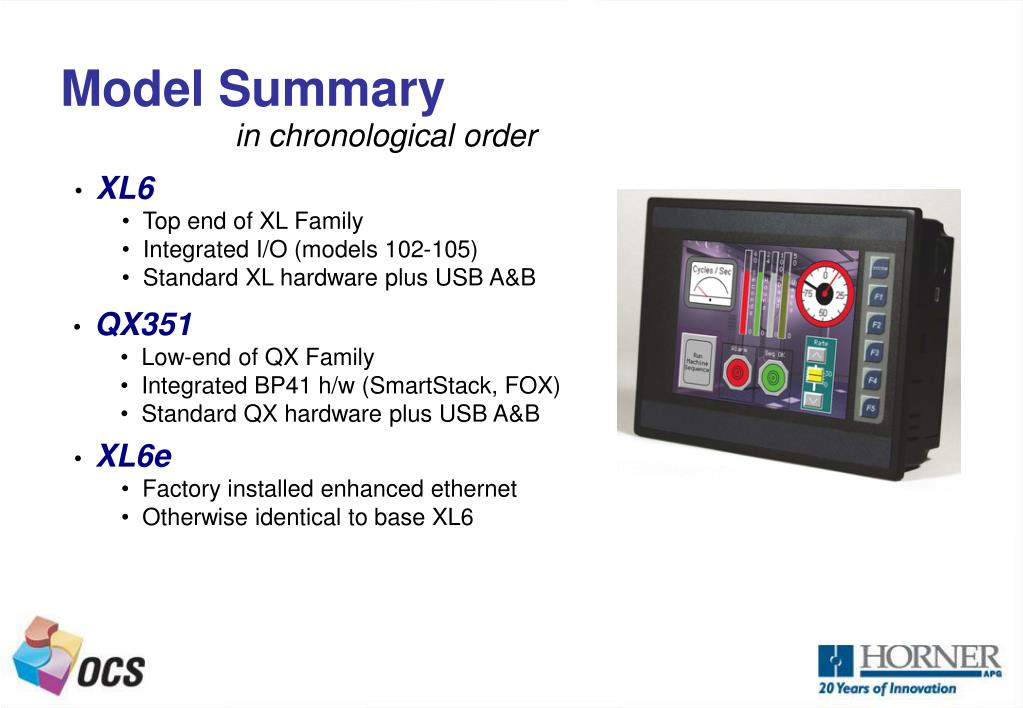

  2. Model Summary in chronological order • XL6 • Top end of XL Family • Integrated I/O (models 102-105) • Standard XL hardware plus USB A&B • QX351 • Low-end of QX Family • Integrated BP41 h/w (SmartStack, FOX) • Standard QX hardware plus USB A&B • XL6e • Factory installed enhanced ethernet • Otherwise identical to base XL6

  3. XL6 Launch May/June 2008 • Feature Set • Complete XLe/XLt functionality • 15-bt (32000+) Color Depth • Same Graphics Features as QX • What’s New • First Color-touch XL Family Member • First OCS to support USB programming • First SH3 OCS to support Menu Object • Modbus/TCP Capability for HE-XEC • New Features for other OCS • Modbus/TCP for HE-XEC • Pause ‘n Load Fixed • Subroutines • Timer Enhancements • 32-bit accumulator option • 1 second & 1 mS time bases

  4. QX351 Launch July/Aug, 2008 • Feature Set • H/W equivalent to QX451 + BP41 • Adds USB Programming • No Video Option • What’s New • New entry-level for QX Product Family • First QX with USB A & B support • USB FLASH drive capability • New Features for other OCS • USB FLASH drive capability • Copy from microSD/CF to USB Drive • Boot from microSD/CF • CRC/Checksums removed from NVRAM • Screen Update adjusted from %SR

  5. XL6e Launch Aug/Sep 2008 • Feature Set • Same Feature Set as XL6 • Factory-installed, Enhanced Ethernet • What’s New • First XL Family member with full ethernet • New Features for other OCS • Needs to be Solidified • Possible Ethernet enhancements • Possible OI Enhancements
