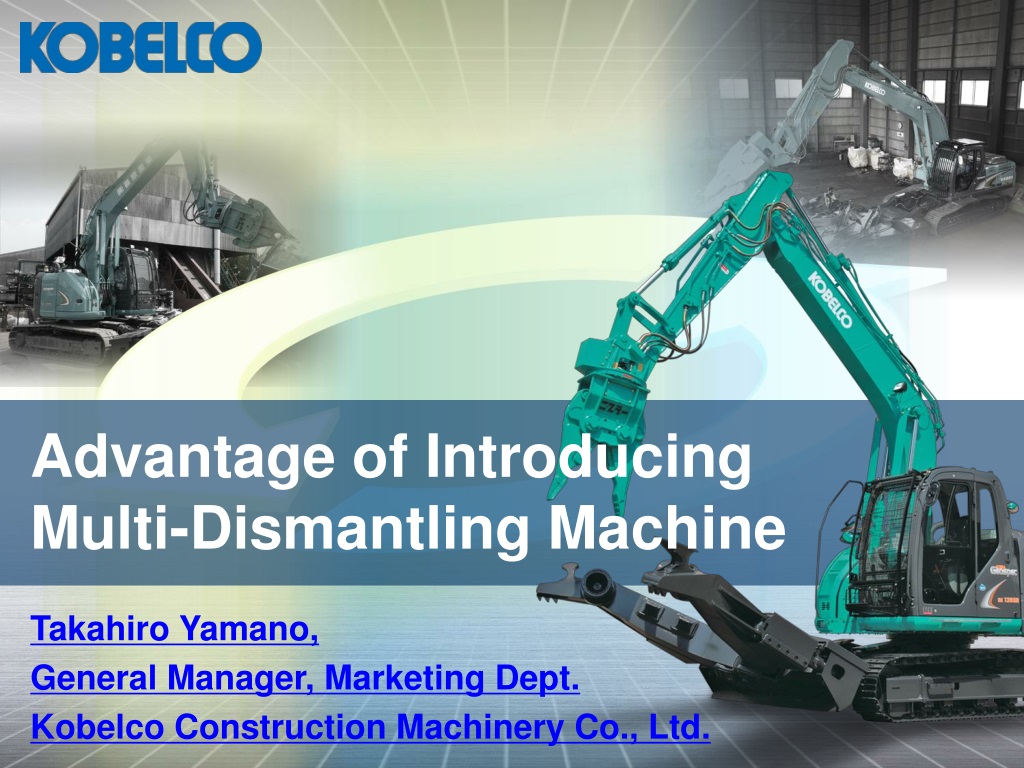

  1. Advantage of IntroducingMulti-Dismantling Machine Takahiro Yamano, General Manager, Marketing Dept. Kobelco Construction Machinery Co., Ltd.

  2. INDEX Company Profile of KOBELCO Advantage of Multi-Dismantling Machine ELV & Engine Dismantling Demonstration • Current Development • Electric Machines • Bus Dismantling Demonstration

  3. Company Profile Founded October, 1999 (Split-off from Kobe Steel) Capital 16 billion yen (US$200 million) Kobe Steel(80%) & CNH(20%) Stockholders President & CEO Jun FUJIOKA 313 billion yen (US$ 3,914 million) Sales Manufacture, sale and service of excavators BusinessOperations

  4. Product Line-up 4

  5. “Nibbler” developed Clamp Arm installed To hold cars stabled Developed in 1979 The First Car Dismantling Machine in the World 5

  6. Advantage of Multi-DismantlingMachine • Various Work Carried Out by One Machine • The Machine Works Wherever Without utility such as electricity, water, gas or compressed, inside or outside. Construction, installment or test run not required. • Operators Safety Operators inside cabin protected by safety guard, 3 -5 m away from the object. • Benefit from Mass Production, Excavators Main body and major part is the same as hydraulic excavators, produced more than 20,000 units annually worldwide. Bringing low production cost and availability of repairmen, parts and consumables. • Manual Operation Controlled manually by human operator depending on various types, models and conditions of ELV.

  7. ELV Dismantling 7

  8. Hold the car by the clamp arm Removed the bonnet ELV Dismantling 8

  9. ELV Dismantling Side chassis frame removed 9

  10. ELV Dismantling Electric wire and harness removed by fork pointed tooth Lights removed 10

  11. Radiator removed ELV Dismantling Electric wire and harness pulled out from the front 11

  12. Wiper motor removed Bumper taken off ELV Dismantling 12

  13. ELV Dismantling Windshield cut round and taken out 13

  14. ELV Dismantling Steering wheel and dashboard panel removed Panel separated by fork pointed tooth 14

  15. Roof pulled off ELV Dismantling Lining materials peeled 15

  16. Seats taken out ELV Dismantling Electric wire and harness under seats pulled off 16

  17. ELV Dismantling Window mechanisms in doors removed Door lining material pulled off 17

  18. Car body turned upside down ELV Dismantling 18

  19. Cover removed ELV Dismantling Car body secured in clamp arm 19

  20. Muffler pulled out Catalyst removed ELV Dismantling 20

  21. ELV Dismantling Member frame removed Suspensions removed 21

  22. ELV Dismantling Main frame opened Oil drained and gas drawn off from shock absorbers 22

  23. Engine removed ELV Dismantling 23

  24. ELV Dismantling Fuel tank removed Rear suspension removed 24

  25. ELV Dismantling Video 25

  26. Engine Dismantling 26

  27. Engine Dismantling Engine firmly secured by bowl-shaped grips of clamp arm Hoses, pipes and electric wire and harness removed 27

  28. Dynamo removed Engine Dismantling Compressor removed Starter-motor removed 28

  29. Engine Dismantling Transmissions block separated from engine body 29

  30. Engine Dismantling Remaining electric wire and harness and pipes removed 30

  31. Engine Dismantling Video 31

  32. Current Development • Electric Multi-Dismantling Machines in Japan • Decreasing emission of CO2 and Particulate Matter • For Natural Environment and Working Conditions 32

  33. Current Development • Electric Multi-Dismantling Machines in Japan • Three machines dismantle 30,000 vehicles annually 33

  34. Current Development • Dismantling Buses • One machine dismantle 10 buses daily in China 34

  35. Current Development • Dismantling Buses in Japan • Cut the pillar 35

  36. Current Development • Dismantling Buses in Japan • Open the roof 36

  37. Current Development • Dismantling Buses in Japan • Peel the outside cover 37

  38. Current Development • Dismantling Buses in Japan • Take out radiator 38

  39. Current Development • Dismantling Buses in Japan • Put the items into pressing machine(baler). 39

  40. Current Development • Dismantling Buses in Japan 40

  41. THANK YOU
