  1. Lecture 8: Javascript and the DOM. How to Create Your Own Website

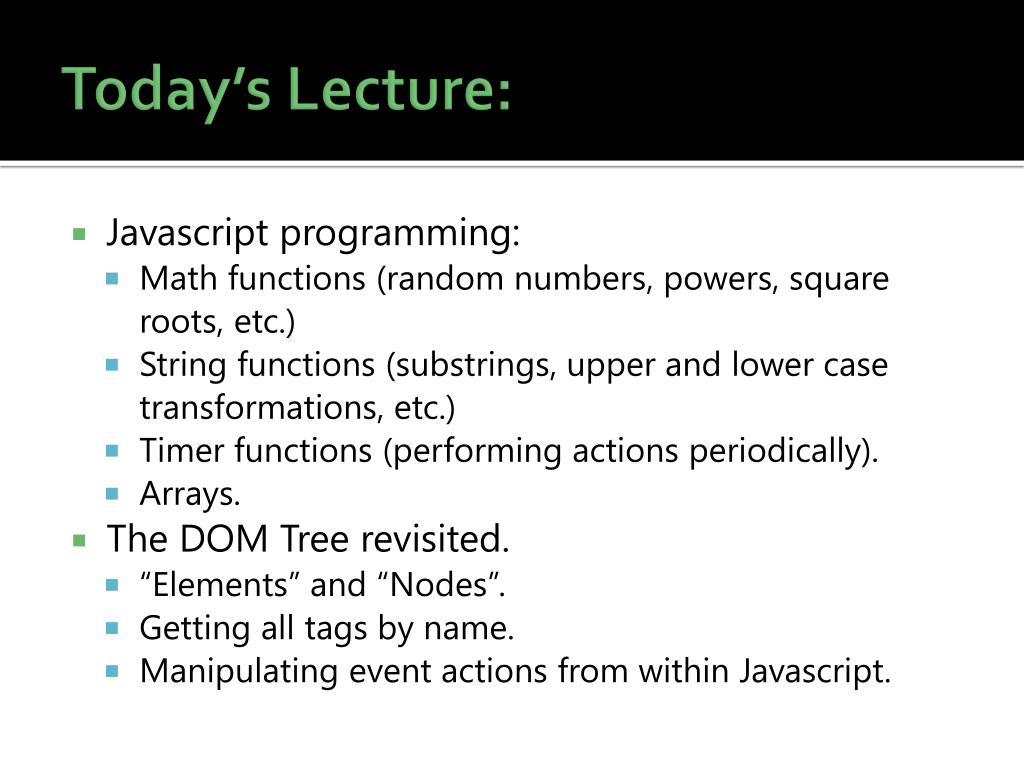

  2. Today’s Lecture: • Javascript programming: • Math functions (random numbers, powers, square roots, etc.) • String functions (substrings, upper and lower case transformations, etc.) • Timer functions (performing actions periodically). • Arrays. • The DOM Tree revisited. • “Elements” and “Nodes”. • Getting all tags by name. • Manipulating event actions from within Javascript.

  3. On Functions • We’ve said that functions were blocks of code that both: • Mapped input to output. • Allowed you to perform complex tasks many times without needing to copy and paste the entire function body. • E.g. Complexaction could be 100 lines long, but you can call it 3 times as follows: complexaction(4); complexaction(5); complexaction(6); • In addition to functions that we can write, Javascript comes with many of its own built-in.

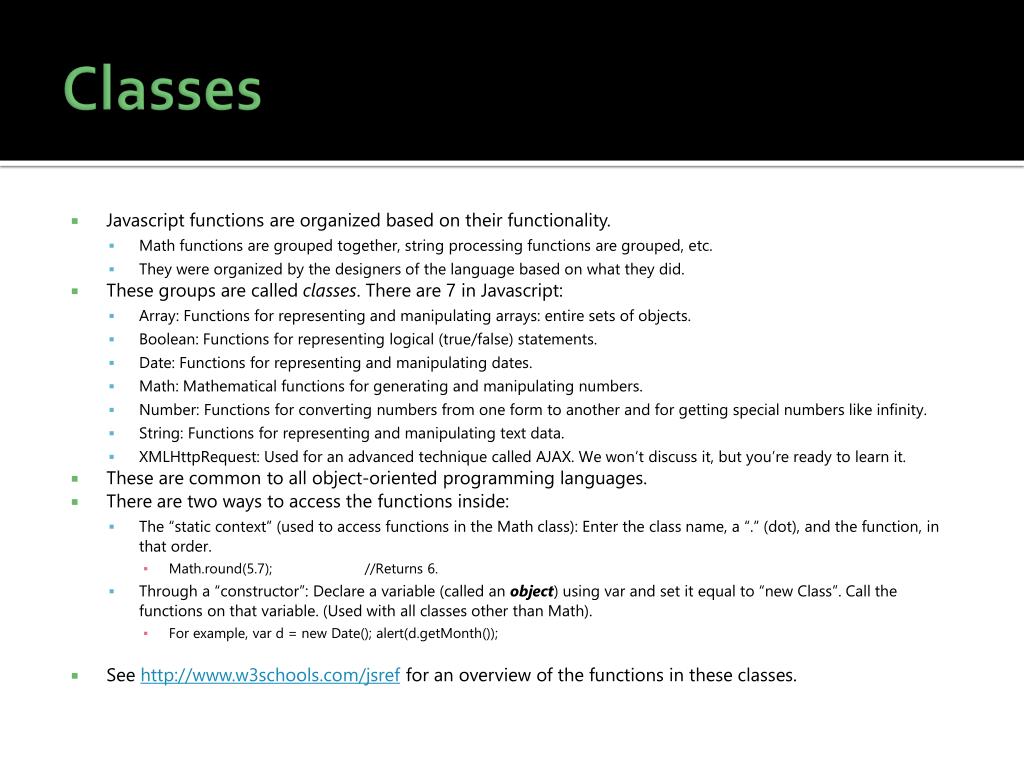

  4. Classes • Javascript functions are organized based on their functionality. • Math functions are grouped together, string processing functions are grouped, etc. • They were organized by the designers of the language based on what they did. • These groups are called classes. There are 7 in Javascript: • Array: Functions for representing and manipulating arrays: entire sets of objects. • Boolean: Functions for representing logical (true/false) statements. • Date: Functions for representing and manipulating dates. • Math: Mathematical functions for generating and manipulating numbers. • Number: Functions for converting numbers from one form to another and for getting special numbers like infinity. • String: Functions for representing and manipulating text data. • XMLHttpRequest: Used for an advanced technique called AJAX. We won’t discuss it, but you’re ready to learn it. • These are common to all object-oriented programming languages. • There are two ways to access the functions inside: • The “static context” (used to access functions in the Math class): Enter the class name, a “.” (dot), and the function, in that order. • Math.round(5.7); //Returns 6. • Through a “constructor”: Declare a variable (called an object) using var and set it equal to “new Class”. Call the functions on that variable. (Used with all classes other than Math). • For example, var d = new Date(); alert(d.getMonth()); • See for an overview of the functions in these classes.

  5. The Math Class • Contains functions primarily for manipulating and generating numbers. All are accessed statically (e.g. Math.random()). • random(): generates a random number between 0 and 1. • round(x): rounds x to the nearest integer. • min(x,y), max(x,y): returns the smaller (or larger) of x and y. • pow(x,y): computes x to the yth power (i.e. x^y). • sqrt(x): computes the square root of x. • floor(x), ceil(x): rounds x down or up, respectively. • sin(x), cos(x), tan(x), asin(x), acos(x), atan(x): Standard trigonometric functions. • log(x), exp(x): Natural logarithm of x and e^x, respectively. • Also contains some constants: • Math.E: Euler’s number (the e in e^x), approx. 2.71828. • Math.PI: Pi, approx. 3.14159. • Several others related to natural logarithms (Math.LN2, Math.LN10): • Useful to compute logs in arbitrary bases, since log_b(x) = log(x) / log(b).

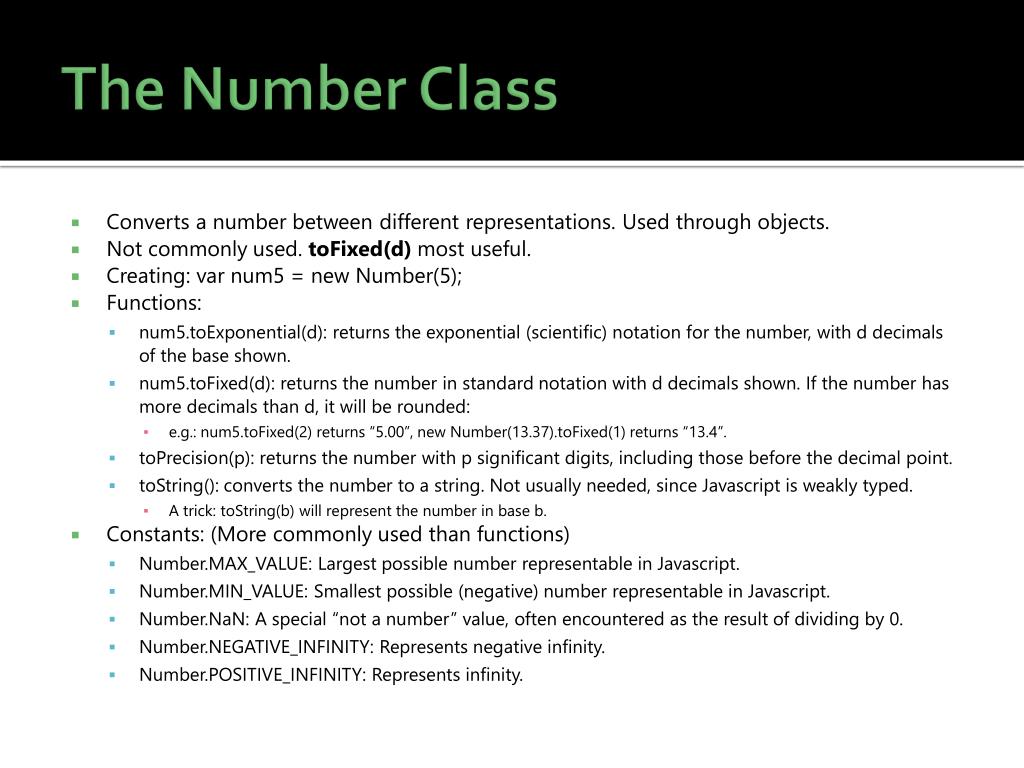

  6. The Number Class • Converts a number between different representations. Used through objects. • Not commonly used. toFixed(d) most useful. • Creating: var num5 = new Number(5); • Functions: • num5.toExponential(d): returns the exponential (scientific) notation for the number, with d decimals of the base shown. • num5.toFixed(d): returns the number in standard notation with d decimals shown. If the number has more decimals than d, it will be rounded: • e.g.: num5.toFixed(2) returns “5.00”, new Number(13.37).toFixed(1) returns “13.4”. • toPrecision(p): returns the number with p significant digits, including those before the decimal point. • toString(): converts the number to a string. Not usually needed, since Javascript is weakly typed. • A trick: toString(b) will represent the number in base b. • Constants: (More commonly used than functions) • Number.MAX_VALUE: Largest possible number representable in Javascript. • Number.MIN_VALUE: Smallest possible (negative) number representable in Javascript. • Number.NaN: A special “not a number” value, often encountered as the result of dividing by 0. • Number.NEGATIVE_INFINITY: Represents negative infinity. • Number.POSITIVE_INFINITY: Represents infinity.

  7. The Boolean Class • This is next to useless. It’s used as an object and has one useful function: • toString(): returns the string “true” if the condition is true, “false” if it’s not.

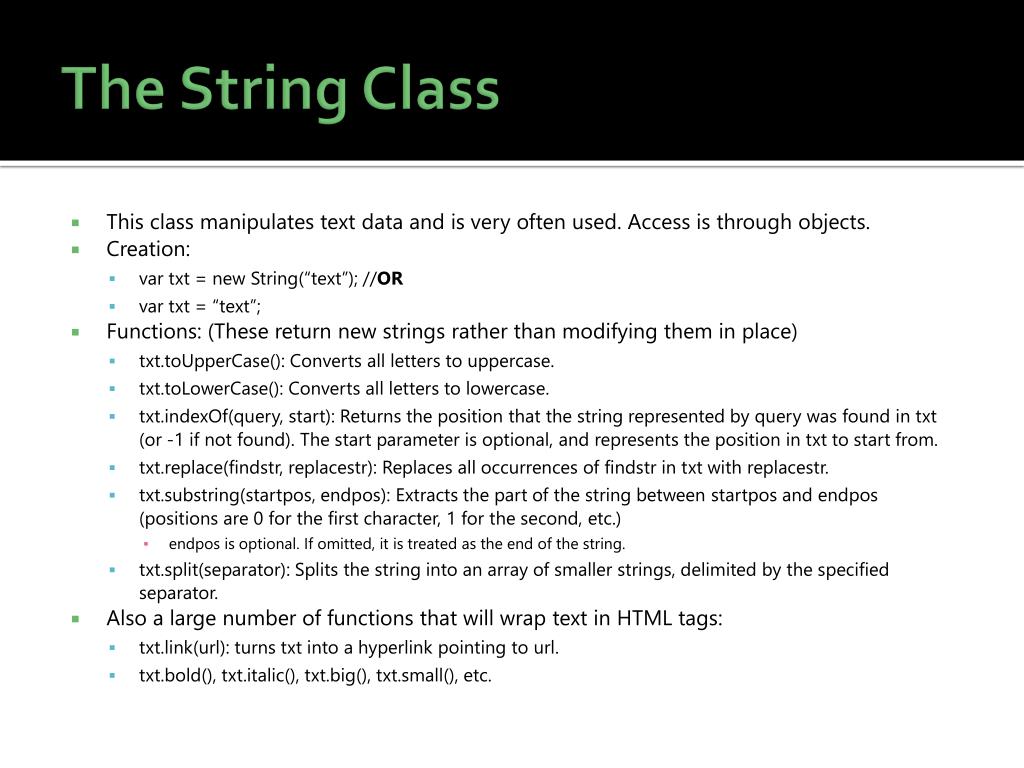

  8. The String Class • This class manipulates text data and is very often used. Access is through objects. • Creation: • var txt = new String(“text”); //OR • var txt = “text”; • Functions: (These return new strings rather than modifying them in place) • txt.toUpperCase(): Converts all letters to uppercase. • txt.toLowerCase(): Converts all letters to lowercase. • txt.indexOf(query, start): Returns the position that the string represented by query was found in txt (or -1 if not found). The start parameter is optional, and represents the position in txt to start from. • txt.replace(findstr, replacestr): Replaces all occurrences of findstr in txt with replacestr. • txt.substring(startpos, endpos): Extracts the part of the string between startpos and endpos (positions are 0 for the first character, 1 for the second, etc.) • endpos is optional. If omitted, it is treated as the end of the string. • txt.split(separator): Splits the string into an array of smaller strings, delimited by the specified separator. • Also a large number of functions that will wrap text in HTML tags: • turns txt into a hyperlink pointing to url. • txt.bold(), txt.italic(), txt.big(), txt.small(), etc.

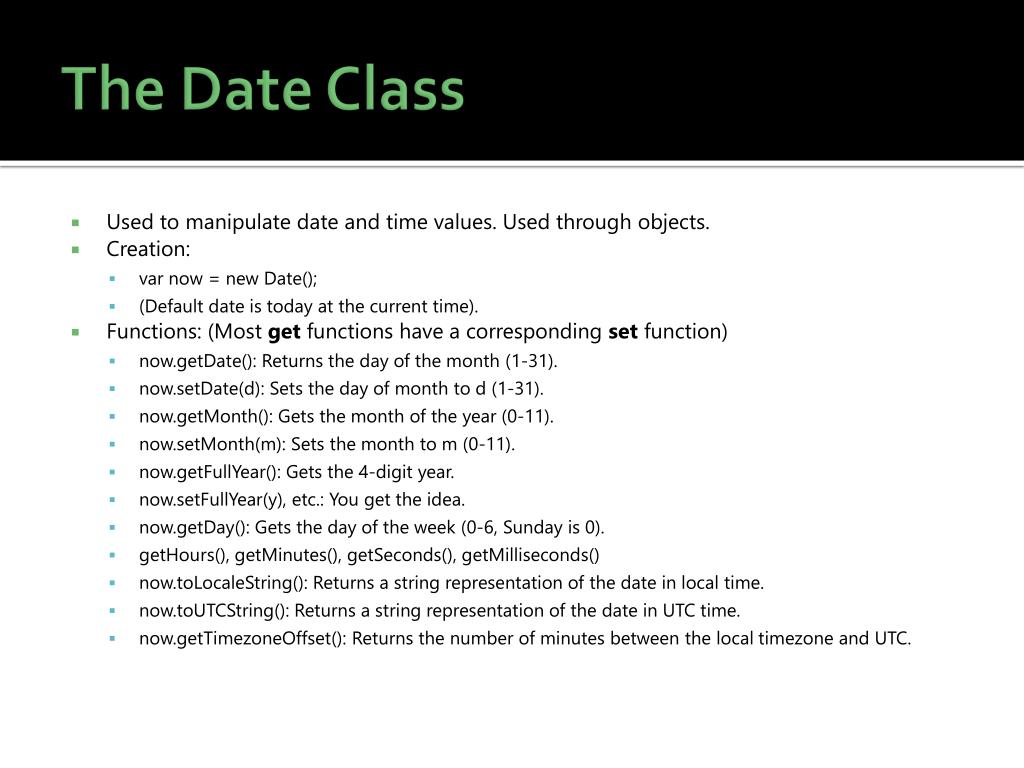

  9. The Date Class • Used to manipulate date and time values. Used through objects. • Creation: • var now = new Date(); • (Default date is today at the current time). • Functions: (Most get functions have a corresponding set function) • now.getDate(): Returns the day of the month (1-31). • now.setDate(d): Sets the day of month to d (1-31). • now.getMonth(): Gets the month of the year (0-11). • now.setMonth(m): Sets the month to m (0-11). • now.getFullYear(): Gets the 4-digit year. • now.setFullYear(y), etc.: You get the idea. • now.getDay(): Gets the day of the week (0-6, Sunday is 0). • getHours(), getMinutes(), getSeconds(), getMilliseconds() • now.toLocaleString(): Returns a string representation of the date in local time. • now.toUTCString(): Returns a string representation of the date in UTC time. • now.getTimezoneOffset(): Returns the number of minutes between the local timezone and UTC.

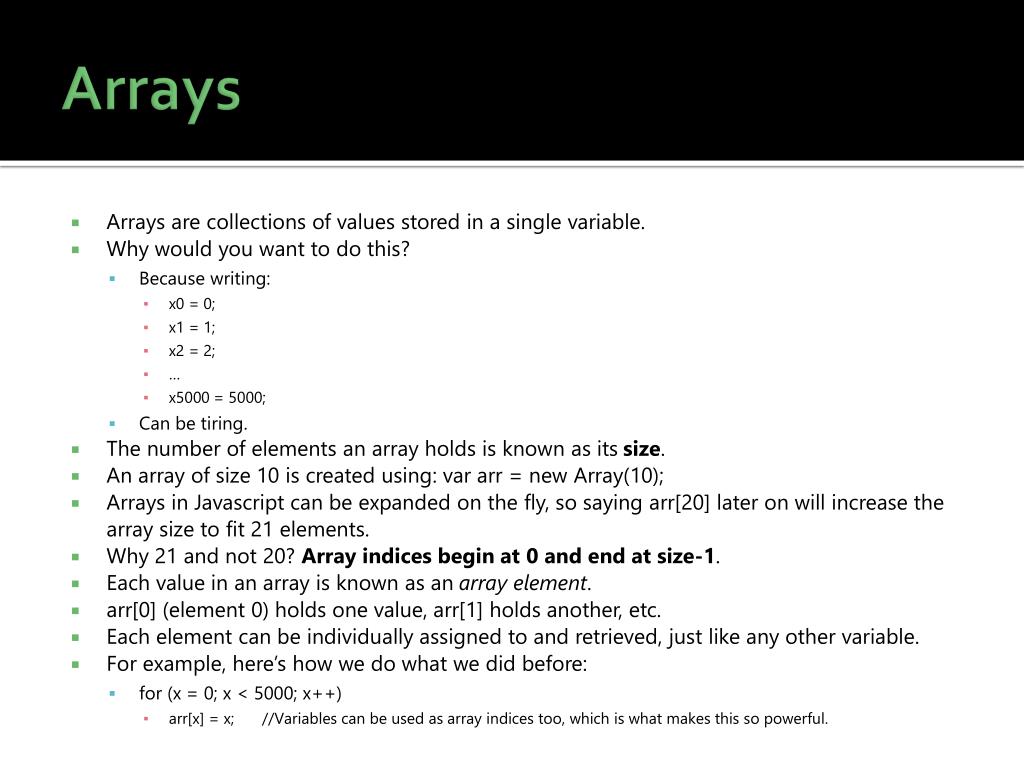

  10. Arrays • Arrays are collections of values stored in a single variable. • Why would you want to do this? • Because writing: • x0 = 0; • x1 = 1; • x2 = 2; • … • x5000 = 5000; • Can be tiring. • The number of elements an array holds is known as its size. • An array of size 10 is created using: vararr = new Array(10); • Arrays in Javascript can be expanded on the fly, so saying arr[20] later on will increase the array size to fit 21 elements. • Why 21 and not 20? Array indices begin at 0 and end at size-1. • Each value in an array is known as an array element. • arr[0] (element 0) holds one value, arr[1] holds another, etc. • Each element can be individually assigned to and retrieved, just like any other variable. • For example, here’s how we do what we did before: • for (x = 0; x < 5000; x++) • arr[x] = x; //Variables can be used as array indices too, which is what makes this so powerful.

  11. The Array Class • The array class provides functions for manipulating arrays, called using objects. • This is called directly on array objects: • arr.sort(); //arr is the array from last slide. • Functions: • arr.concat(arr2,arr3,…): Appends all arrays passed to this function to the end of arr. • arr.push(newelem): Adds an element to the end of the array, increasing the size by 1. Can take multiple elements. • arr.pop(): Returns the last element in the array and removes it, reducing the size by 1. Watch out for empty arrays. • arr.unshift(newelem): Like push, but adds to the beginning of the array, shifting up. • arr.shift(): Like pop, but removes from the beginning of the array, shifting down. • If it doesn’t matter where the elements go, prefer push() and pop() to unshift() and shift() - they’re faster. • arr.reverse(): Reverses the order of elements in the array. • arr.sort(): Very useful. Puts the elements in ascending order. • arr.join(separator): Turns the array into a string, with each element delimited by separator. • Variables: • One very useful variable: arr.length. This sets or returns the size of the array.

  12. Timers • “Global” functions: not in any class. • Allows you to call a function periodically. • These can be standard functions or functions you’ve written yourself. • You can also enter in short code fragments. • Times are specified in milliseconds; i.e. 1000 = 1s. • Two types: one-shot and recurring. • setTimeout(“alert(‘3 seconds have elapsed.’)”, 3000); • setTimeout sets a one-shot timer. • It pops up “3 seconds have elapsed” only once, 3 seconds after the code is called. • vartimerref = setInterval(“alert(‘Ding!’)”, 5000); • setInterval sets a recurring timer. • It pops up “Ding!” once every 5 seconds until the page is closed or until the timer is cleared. • Make sure to store the result in a variable, so you can clear it later. • clearInterval(timerref); • This cancels a timer set using setInterval. • The argument is the timer returned from setInterval.

  13. Using Arrays and Functions

  14. The DOM, again • In addition to the standard Javascript classes, every type of element on a page can be thought of as a class as well. • Documents themselves, form fields, links, frames, buttons, objects, images… all have corresponding classes! • And like the standard classes, these all have functions and fields. • There are far too many of these to cover all of them. • But there are fortunately some “rules” that they follow. • All elements inherit from the Node and Element classes. • This means that they can use all of the functions and variables defined in those two classes. • Be careful; while most Node functions are supported by every browser, many of the Element functions are IE-specific. • Many of the variables correspond to attribute names of the corresponding tags; e.g. the Anchor class (<a> tag) has a variable called “href”, which can be retrieved or set and which contains the destination of the link. • All elements additionally have a “style” variable, which itself contains variables corresponding to CSS rules: • E.g.,,

  15. Illustrated DOM: • Say we have the following page: • <html> • <head> • <title>DOM Test</title> • </head> • <body> • <ul> • <li>A list.</li> • <li>Of items.</li> • </ul> • <p>And a paragraph.</p> • </body> • </html> • The DOM tree of this page models the HTML and will look like this: • Window (node representing the browser window) • Document (the current HTML document) • HTMLElement (<html>) • Head (<head>) • Title (<title>) • TextNode (“DOM Test”) • Body (<body>) • ul (<ul>) • li (<li>) • TextNode (“A list.”) • li (<li>) • TextNode (“Of items.”) • p (<p>) • TextNode (“And a paragraph.”) • You can view this tree on live webpages using the Firebug add-on’s DOM tab.

  16. Node • The Node class contains common functionality to all classes in the DOM tree; i.e. all elements of the page. • All elements allow the following functions: • appendChild(childnode): adds a new node as a child of the current one, effectively nesting an HTML tag (or text!) inside of this one. Adds after all existing children. • insertBefore(childnode, oldnode): Same, but adds before oldnode. • removeChild(childnode): removes an existing child node, effectively removing a nested HTML tag. • replaceChild(newnode, oldnode): replaces an existing child node with a new node. • hasChildNodes(): returns true if child nodes exist, false otherwise. • And have the following fields: • childNodes: An array of all direct children of this node. • firstChild, lastChild: Convenient access to the first and last children. • parentNode: This node’s parent (goes “up” the tree). • previousSibling: The node before this one on the same level, if one exists. • nextSibling: The node after this one on the same level, if one exists. • nodeName: The name of the element. For HTML elements, this is the name of the tag (without the <>s; e.g. “p”, “ul”, “li”). • ownerDocument: Gets the Document node that this node is a descendent of.

  17. Document • Primary use is in locating and creating elements. • Functions: • getElementById(id): Very commonly used. Retrieves a reference to a node by its ID attribute. • getElementsByName(name): Returns an array of nodes with the specified name attribute. Useful on pages with forms. • getElementsByTagName(tag): Actually in the Element class. Gets all elements with the given tag name (e.g. “p”). • createElement(tagname): Creates a new element with the specified tag name (e.g. “p”). • This does not insert the new element into the document; call appendChild or insertBefore on the new parent node with the new element to do that. • write(html): Inserts arbitrary HTML into the page.

  18. Setting Events • HTML events (onmouseover, onmouseout, onclick, onsubmit, etc.) are attributes as well. • Thus they can be modified in script. • This is performed as follows: • Write a function: e.g., “function myfunc() { }” • Set the desired event to the name of the function, without quotes and without (). • e.g. mybutton.onclick = myfunc; • This will call the function myfunc whenever the button referenced by mybutton is clicked.

  19. Next Time • Coding Review: Manipulating the DOM using Javascript. • Creating new page elements “on the fly” using createElement and appendChild. • Removing and reordering elements. • Manipulating all elements of a certain type (i.e. all links that point to MP3 files). • After that, the final lecture (Lecture 10) will integrate everything we have done.
