Advanced Integration Board for Data Acquisition and Sensor Management

This advanced integration board is designed to meet customer requirements for data acquisition from external cameras and inertial navigation systems (INS). It features a versatile power input range of 9V to 36V, along with multiple interfaces, including RS-232, GigE, Camera Link, and LVDS, all conveniently panel-mounted with cable connections to the FPGA board. The system is optimized for performance and complexity reduction, incorporating translation circuits as needed, and supports NovAtel OEM boards (OEMV-2 or OEMV-3) to ensure compatibility with various spatial sensor components.

moeshe
Télécharger la présentation

Advanced Integration Board for Data Acquisition and Sensor Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Connector Board • Meets customer need • 6. Accept data from auxiliary external cameras and INS units • Power • Input • Regulation • Monitoring

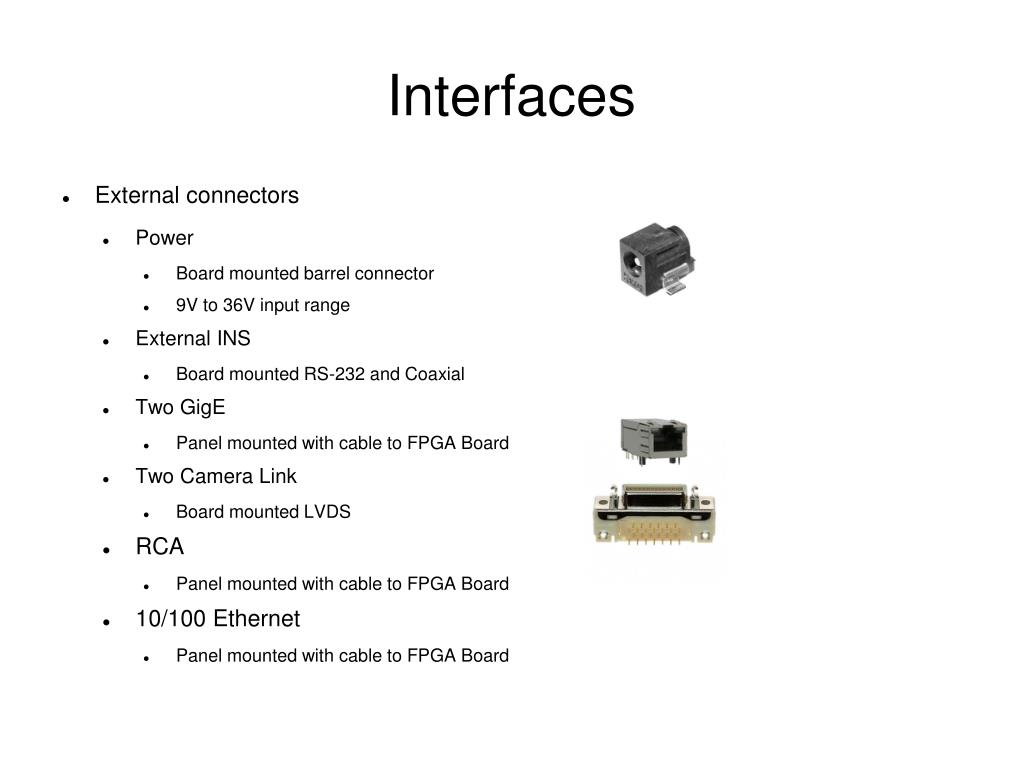

  2. Interfaces • External connectors • Power • Board mounted barrel connector • 9V to 36V input range • External INS • Board mounted RS-232 and Coaxial • Two GigE • Panel mounted with cable to FPGA Board • Two Camera Link • Board mounted LVDS • RCA • Panel mounted with cable to FPGA Board • 10/100 Ethernet • Panel mounted with cable to FPGA Board

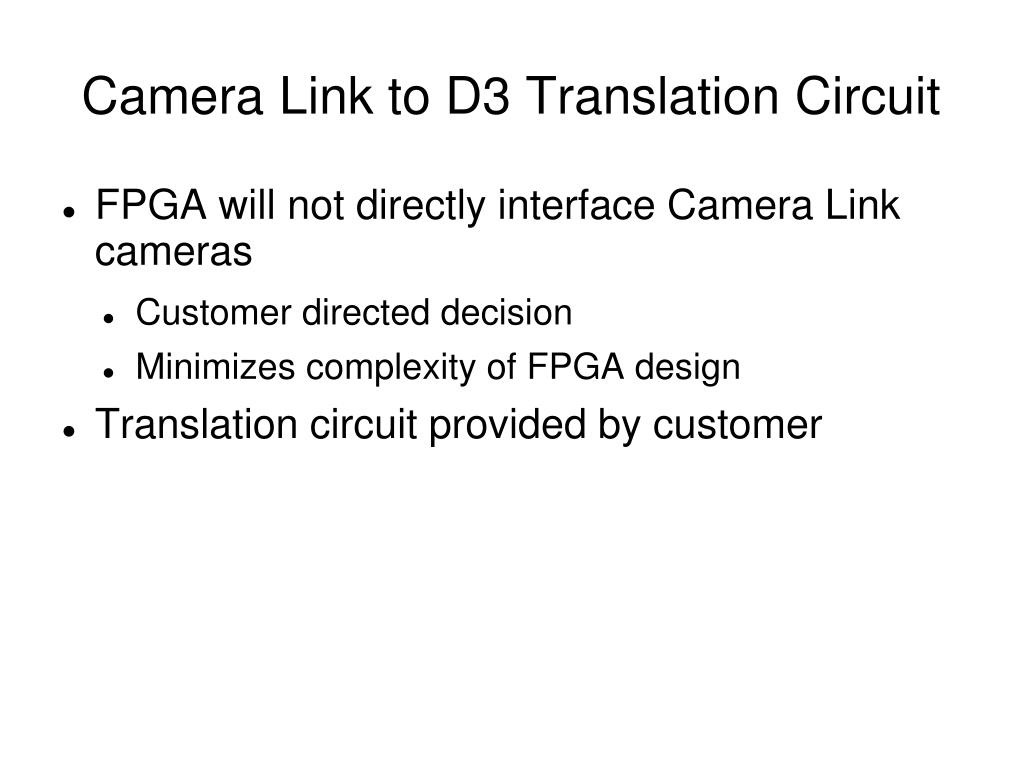

  3. Camera Link to D3 Translation Circuit • FPGA will not directly interface Camera Link cameras • Customer directed decision • Minimizes complexity of FPGA design • Translation circuit provided by customer

  4. Inertial Measurement Unit • Meets customer need • 1. Integrate supplied components • b. Spatial Sensors

  5. Inertial Measurement Unit • Selection must meet customer needs • 14. Support NovAtel OEM board

  6. Inertial Measurement Unit • Will use NovAtel OEMV-2 or OEMV-3 • Availability is primary determinante OEMV-2 OEMV-3
