  1. Microbiology Overview KWWOA April 09, 2014 Department for Environmental ProtectionEnergy & Environment Cabinet

  2. Topics

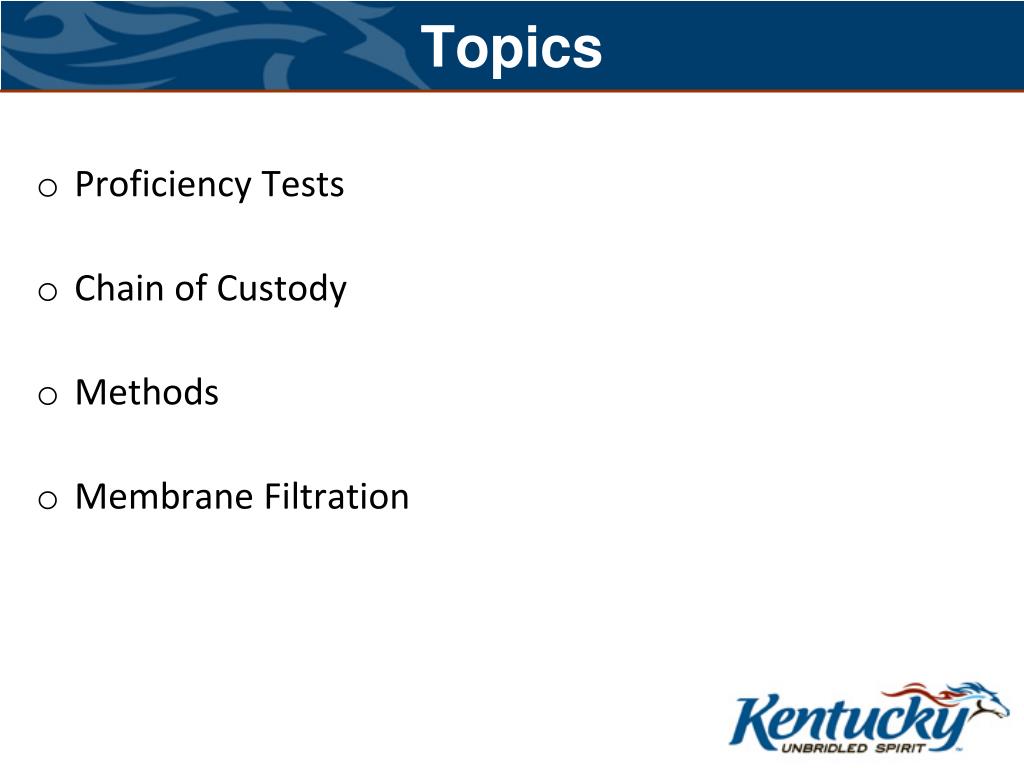

  3. Topics • Proficiency Tests • Chain of Custody • Methods • Membrane Filtration

  4. Proficiency Tests

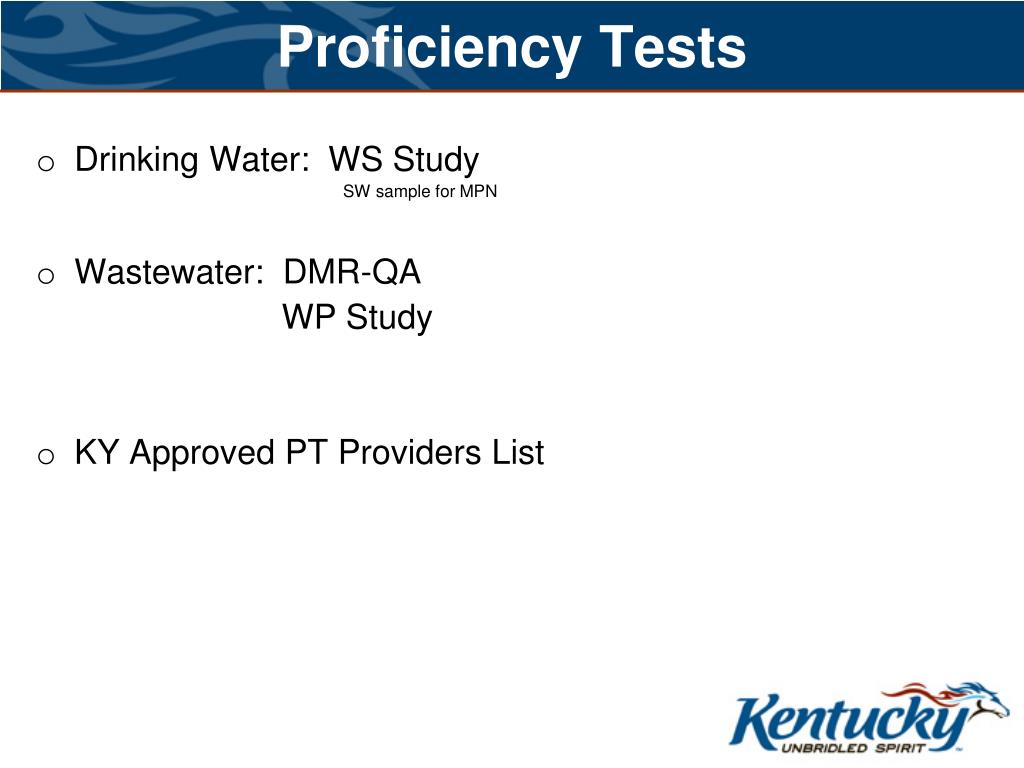

  5. Proficiency Tests • Drinking Water: WS Study SW sample for MPN • Wastewater: DMR-QA WP Study • KY Approved PT Providers List

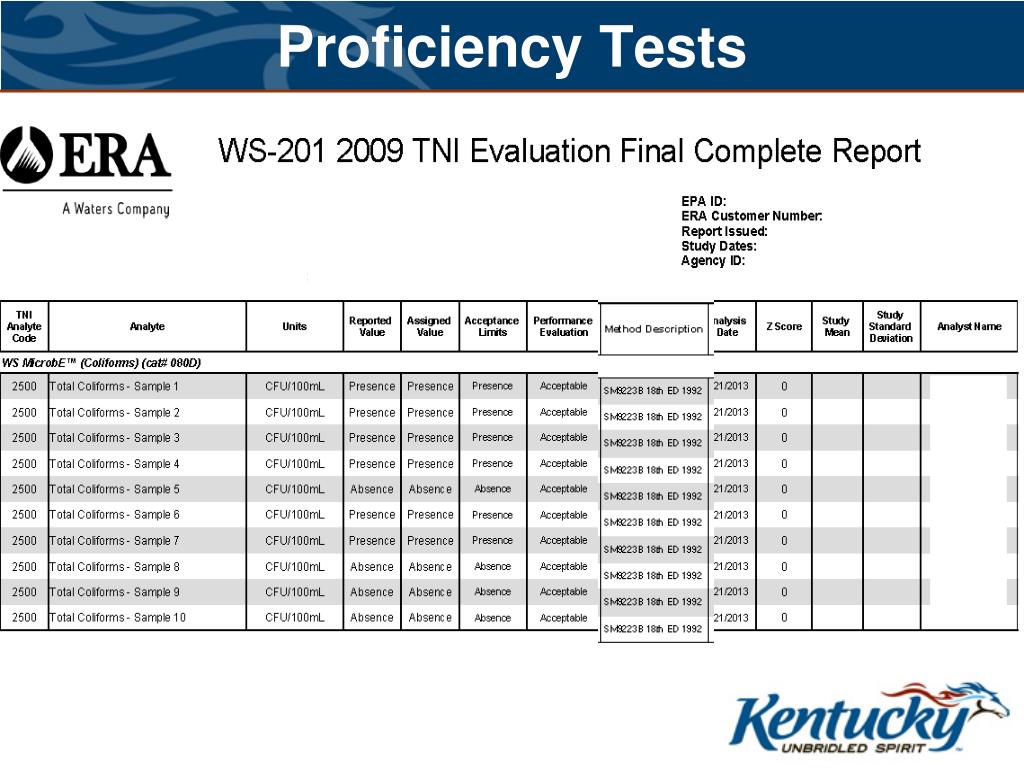

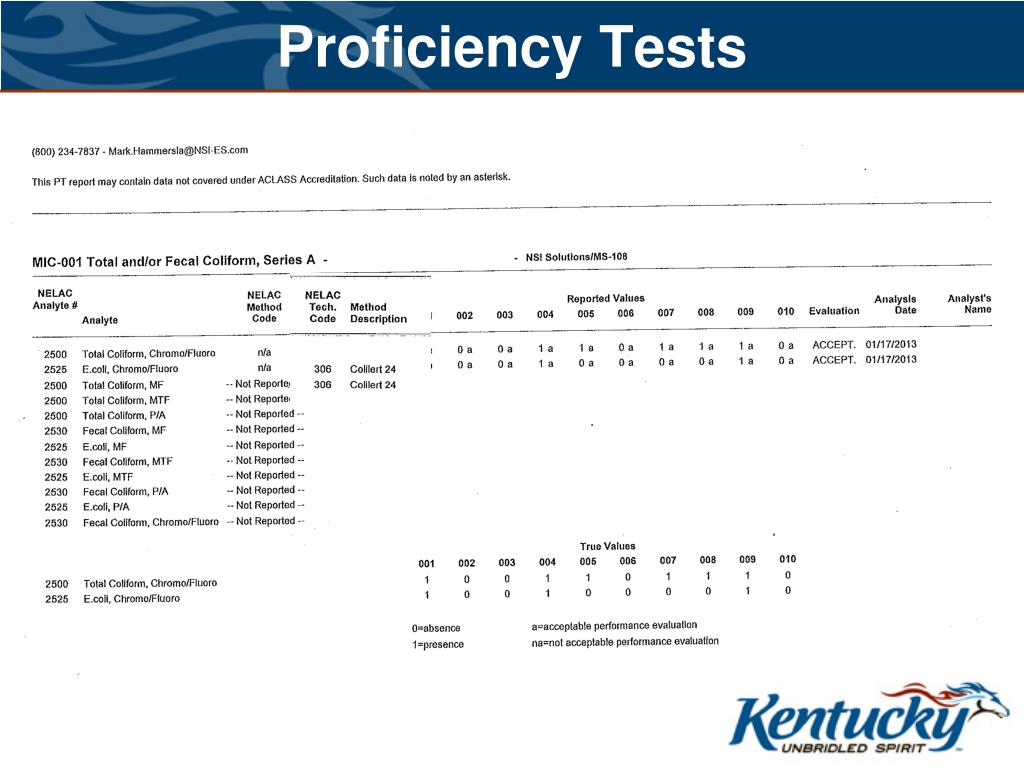

  6. Proficiency Tests

  7. Proficiency Tests

  8. Proficiency Tests

  9. Proficiency Tests Revised reports will not be accepted. Photo: peoplesdaily.com

  10. Chain of Custody

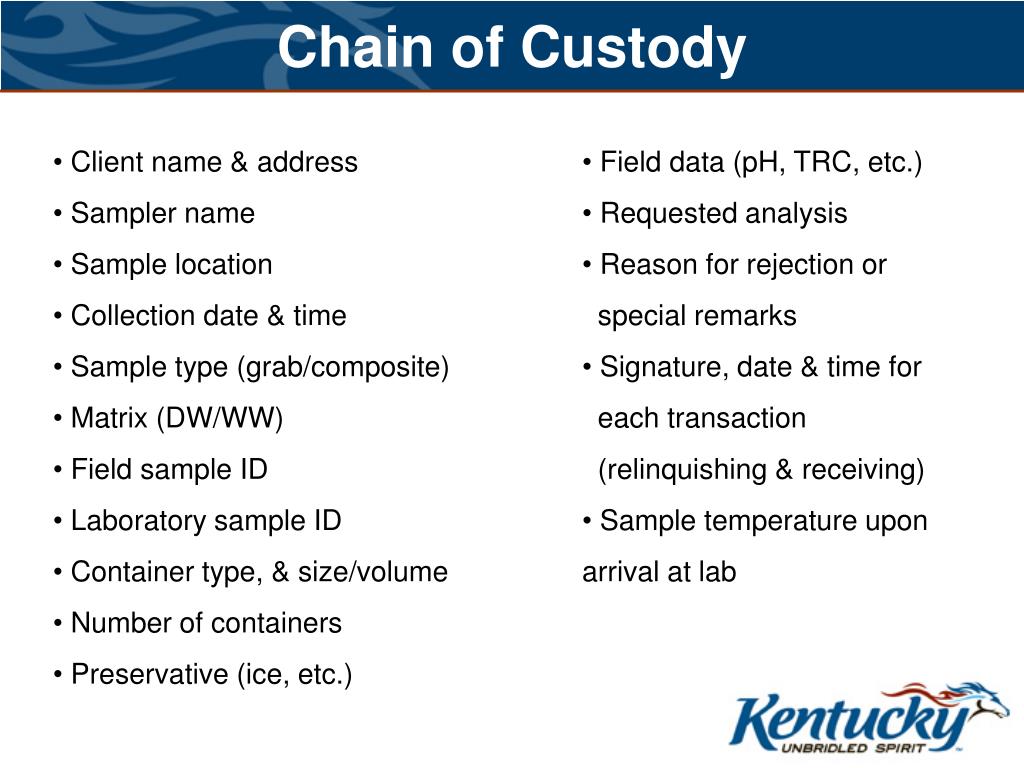

  11. Chain of Custody • Client name & address • Sampler name • Sample location • Collection date & time • Sample type (grab/composite) • Matrix (DW/WW) • Field sample ID • Laboratory sample ID • Container type, & size/volume • Number of containers • Preservative (ice, etc.) • Field data (pH, TRC, etc.) • Requested analysis • Reason for rejection or • special remarks • Signature, date & time for • each transaction • (relinquishing & receiving) • Sample temperature upon arrival at lab

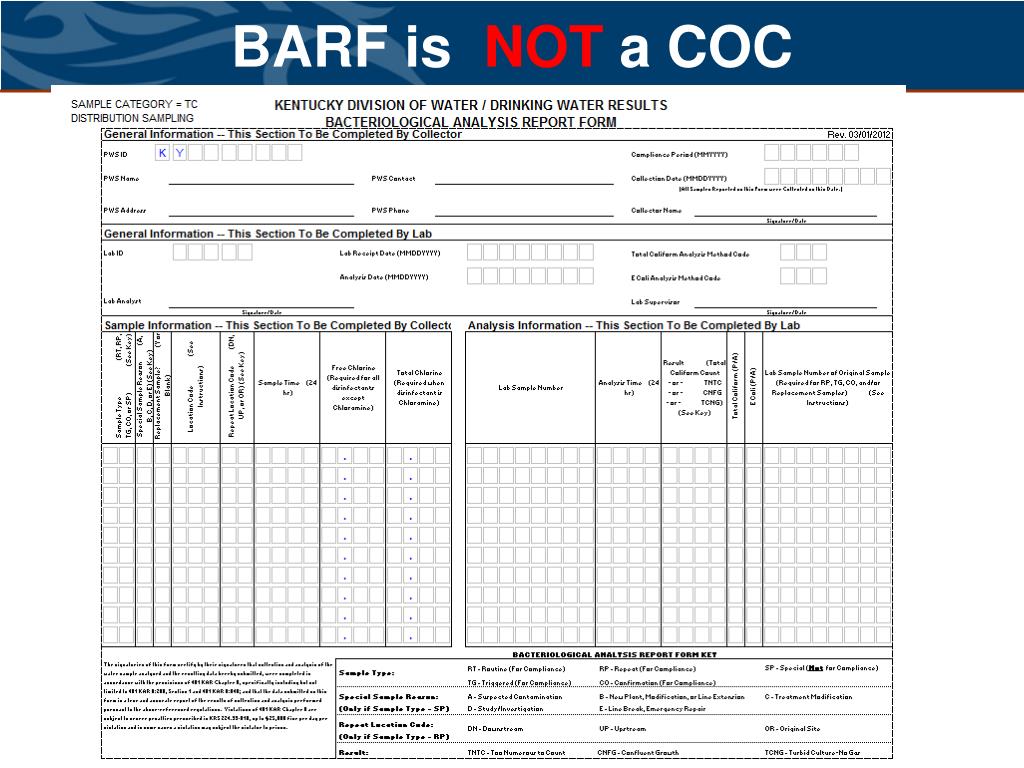

  12. BARF is NOT a COC

  13. Methods

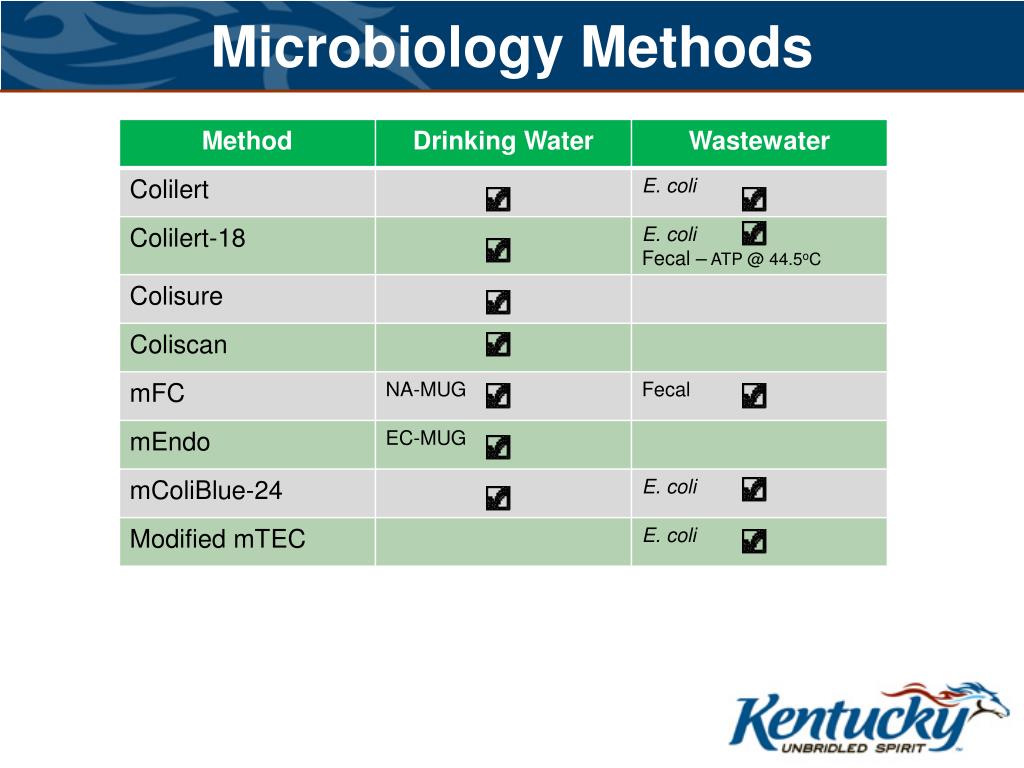

  14. Microbiology Methods

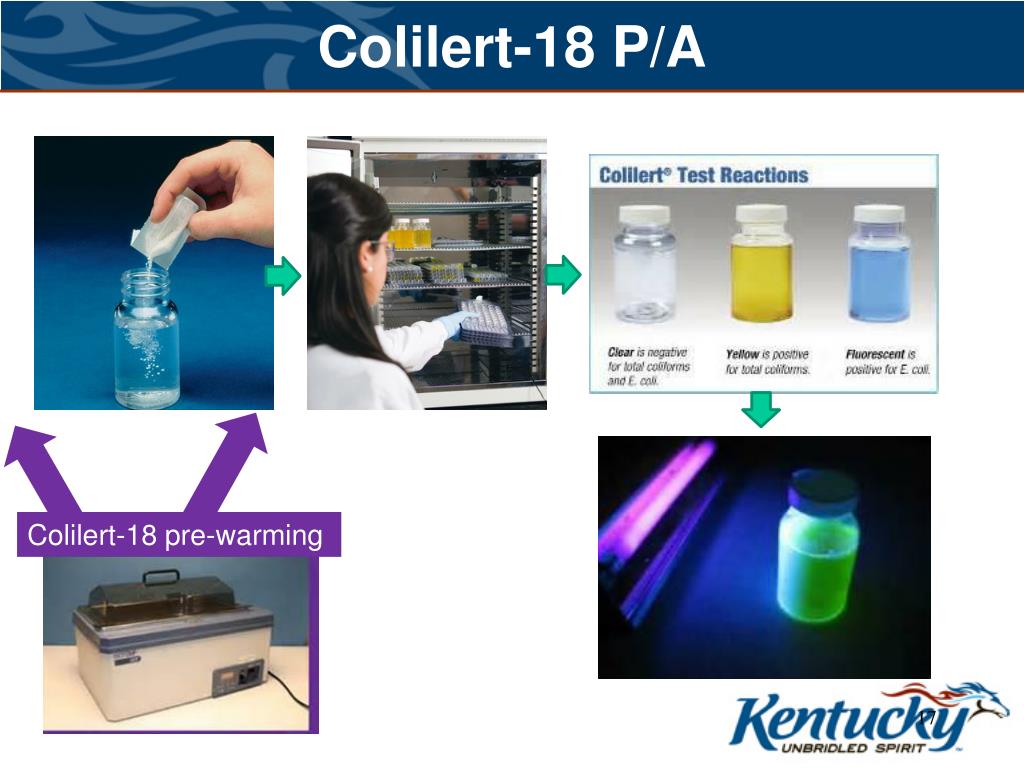

  15. Colilert-18 P/A Colilert-18pre-warming

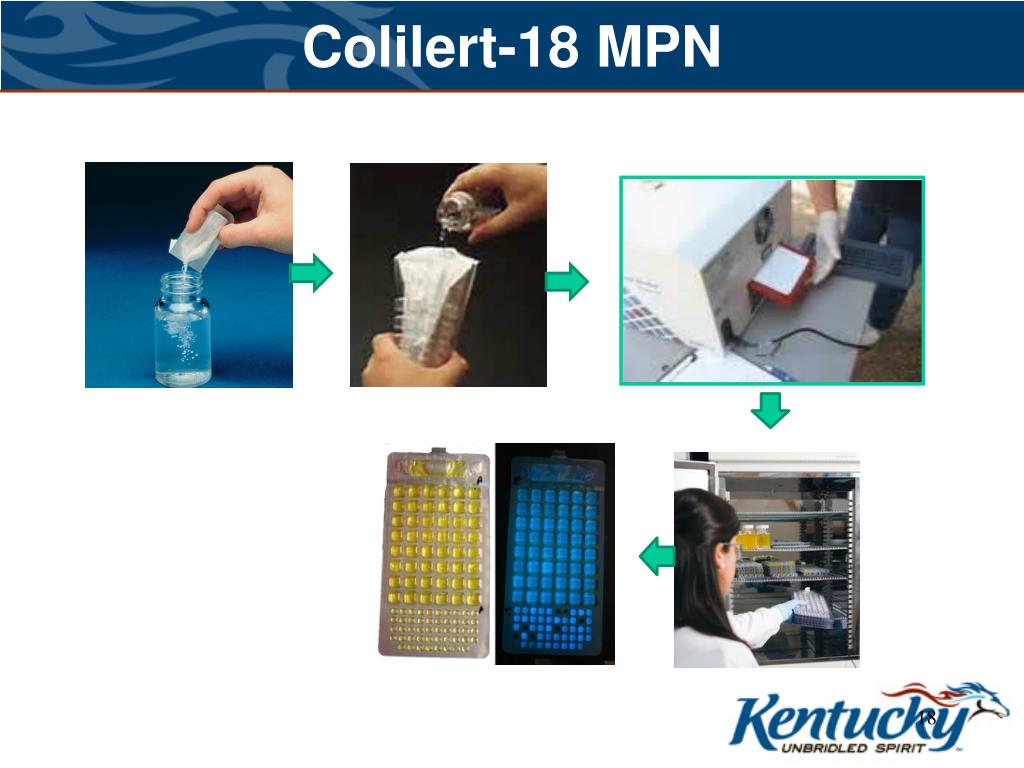

  16. Colilert-18 MPN

  17. Membrane Filtration

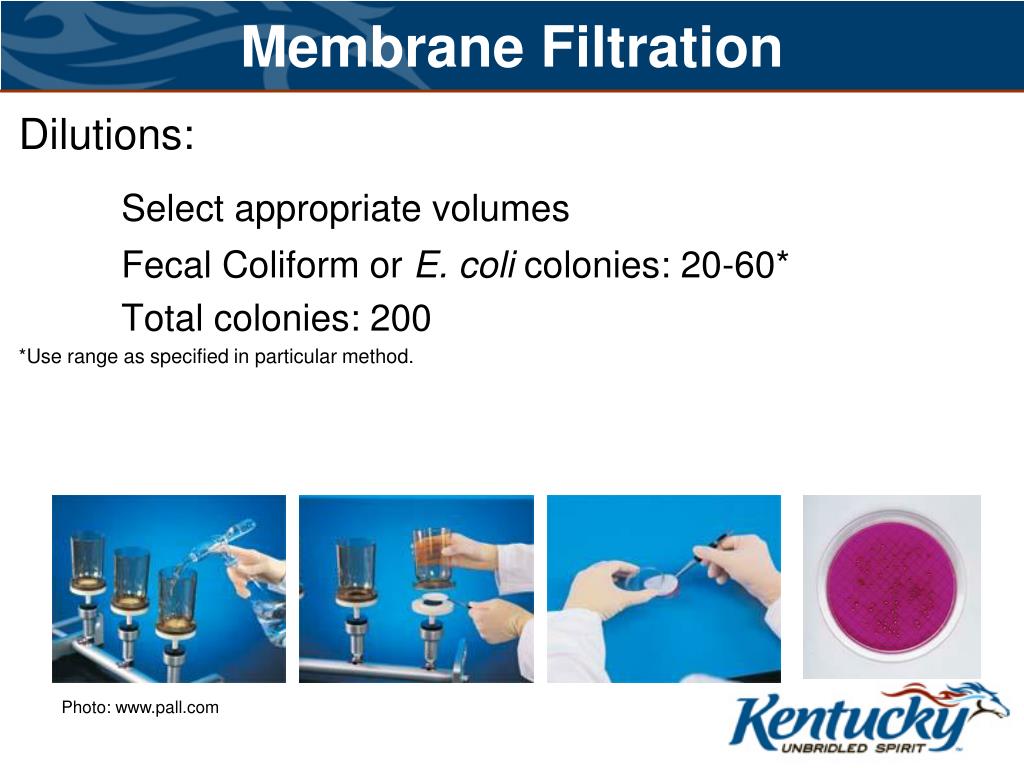

  18. Membrane Filtration Dilutions: Select appropriate volumes Fecal Coliform or E. coli colonies: 20-60* Total colonies: 200 *Use range as specified in particular method. Photo: www.pall.com

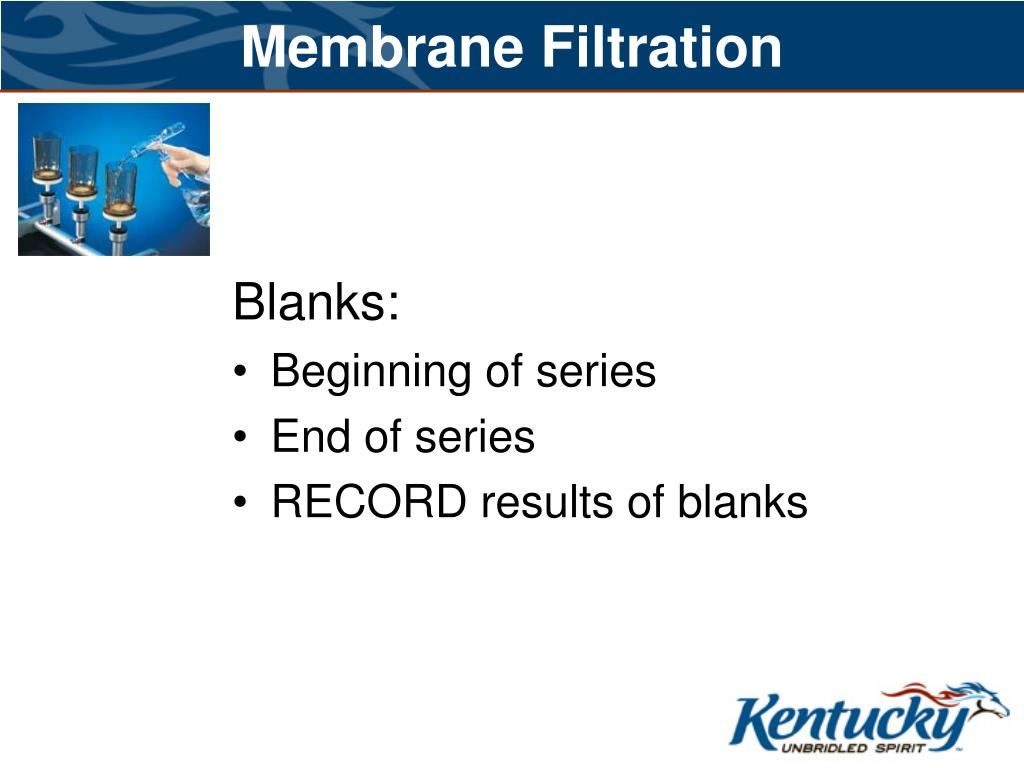

  19. Membrane Filtration Blanks: • Beginning of series • End of series • RECORD results of blanks

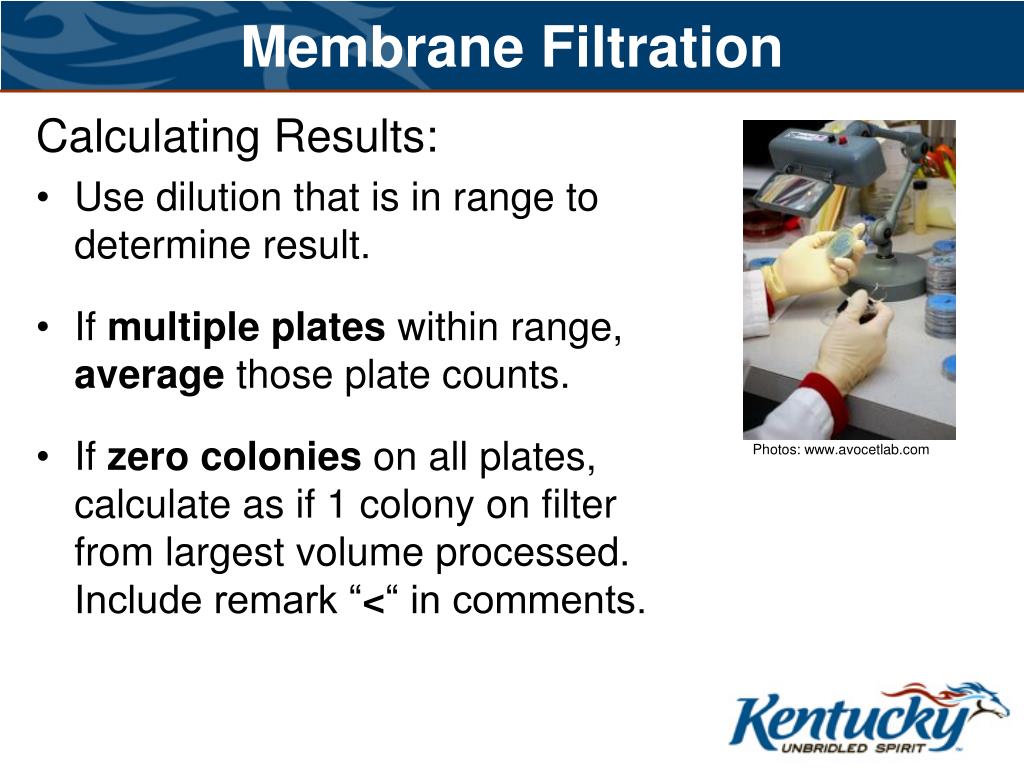

  20. Membrane Filtration Calculating Results: • Use dilution that is in range to determine result. • If multipleplateswithin range, average those plate counts. • If zero colonies on all plates, calculate as if 1 colony on filter from largest volume processed. Include remark “<“ in comments. Photos: www.avocetlab.com

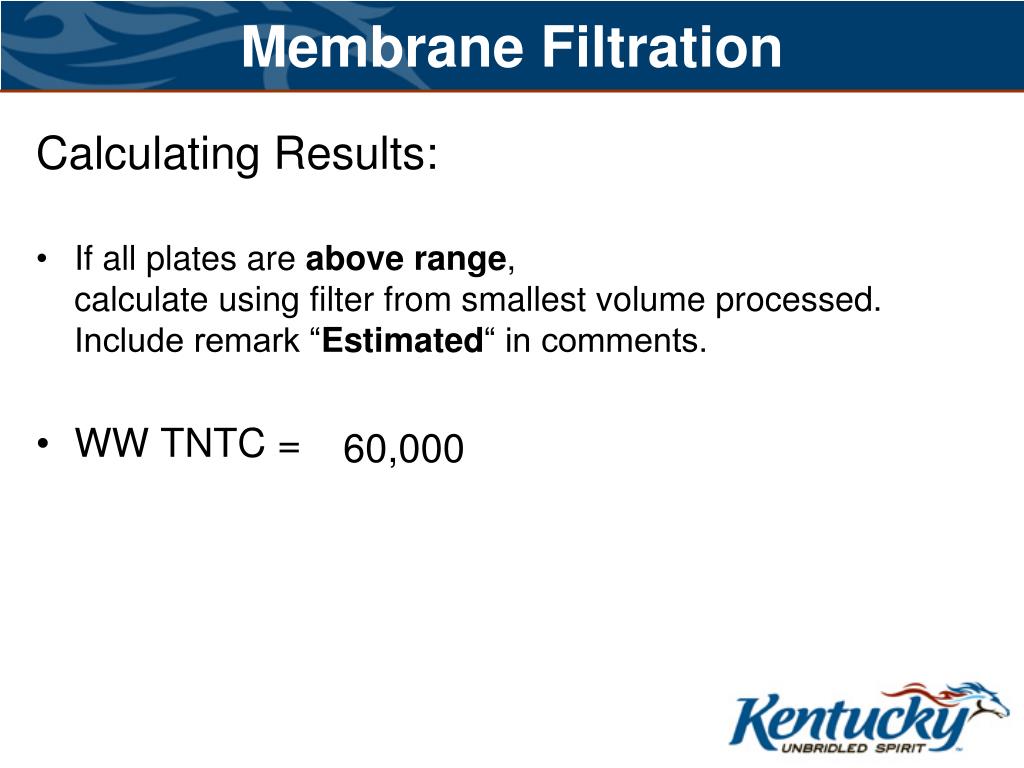

  21. Membrane Filtration Calculating Results: • If all plates are above range, calculate using filter from smallest volume processed. Include remark “Estimated“ in comments. • WW TNTC = 60,000

  22. Contact Information Tiffany Nolan Kentucky Department for Environmental Protection Division of Water 200 Fair Oaks Lane; 4th Floor Frankfort, KY 40601 Phone: (502) 564-3410 Email: Tiffany.Nolan@ky.gov
