  1. DPW-W1, W2

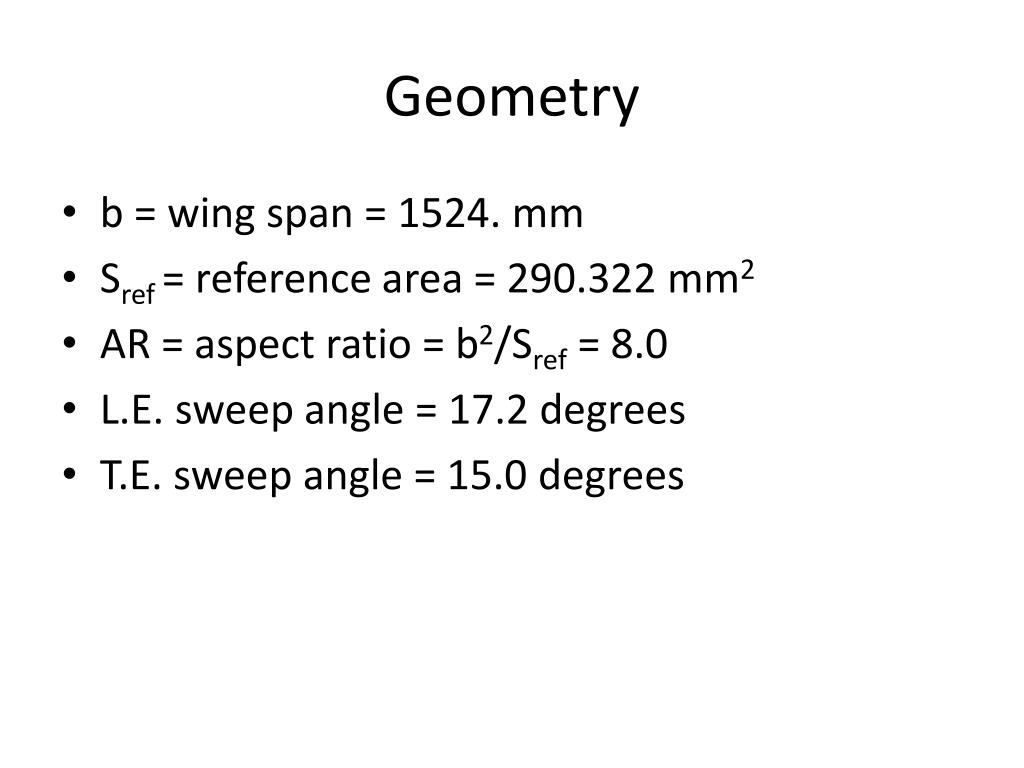

  2. Geometry • b = wing span = 1524. mm • Sref= reference area = 290.322 mm2 • AR = aspect ratio = b2/Sref = 8.0 • L.E. sweep angle = 17.2 degrees • T.E. sweep angle = 15.0 degrees

  3. Wing Flow Conditions • M = inlet Mach number = 0.76 • Compressible flow • ReL = Reynolds number = 5,000,000 • Turbulent flow •  = angle of attack = -1.0, 0.0, 0.5, 1.0, 1.5, 2.0, 2.5, 3.0

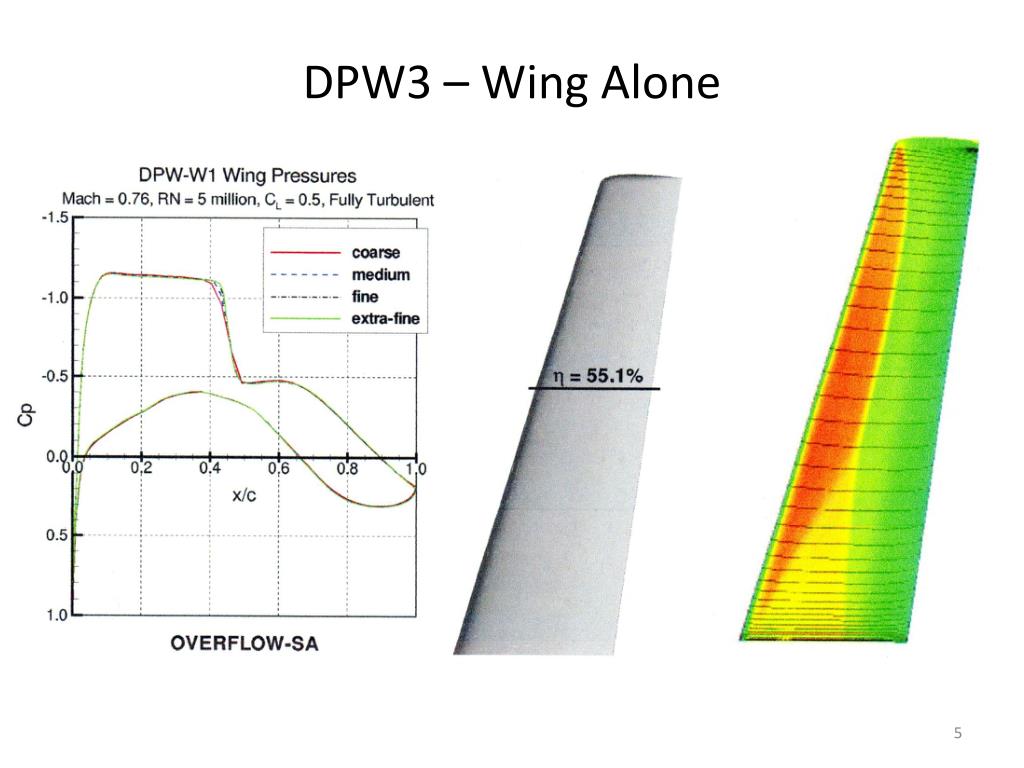

  4. DPW3 – Wing Alone
