  1. HVAC sensors

  2. Smoke detection

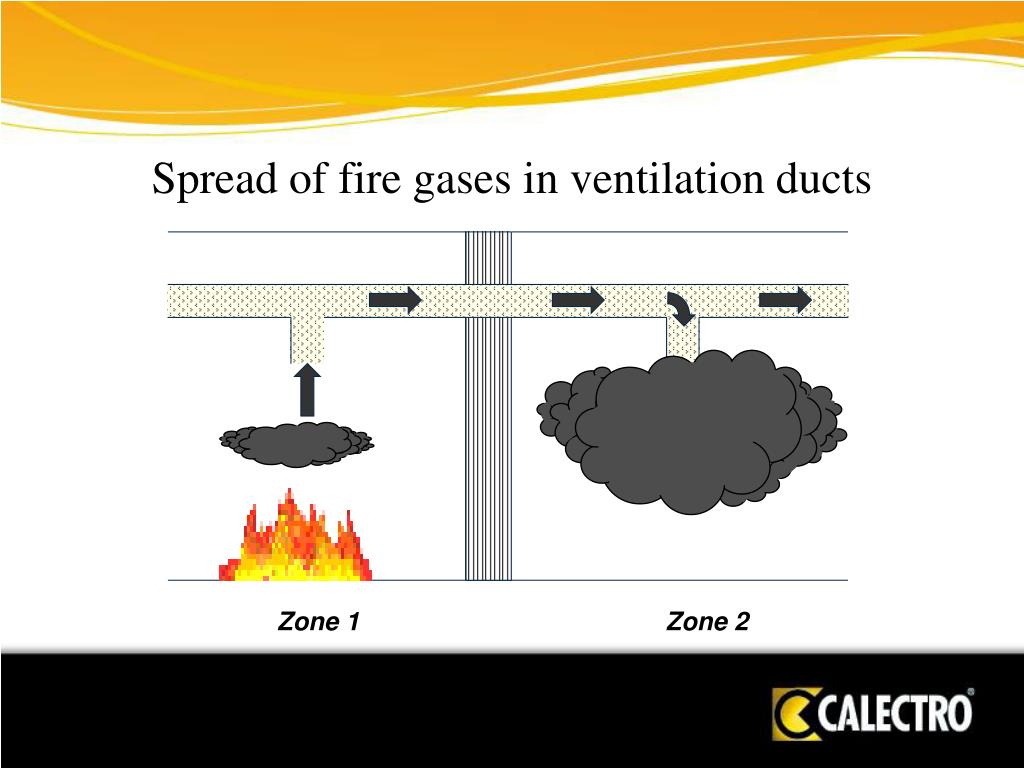

  3. Spread of fire gases in ventilation ducts Zone 1 Zone 2

  4. Zone 1 Zone 2 Spread of fire gases in ventilation ducts

  5. Protection against spread of firegases in ventilation ducts Fire damper Smoke detector Zone 1 Zone 2 Zone 3

  6. New smoke detector

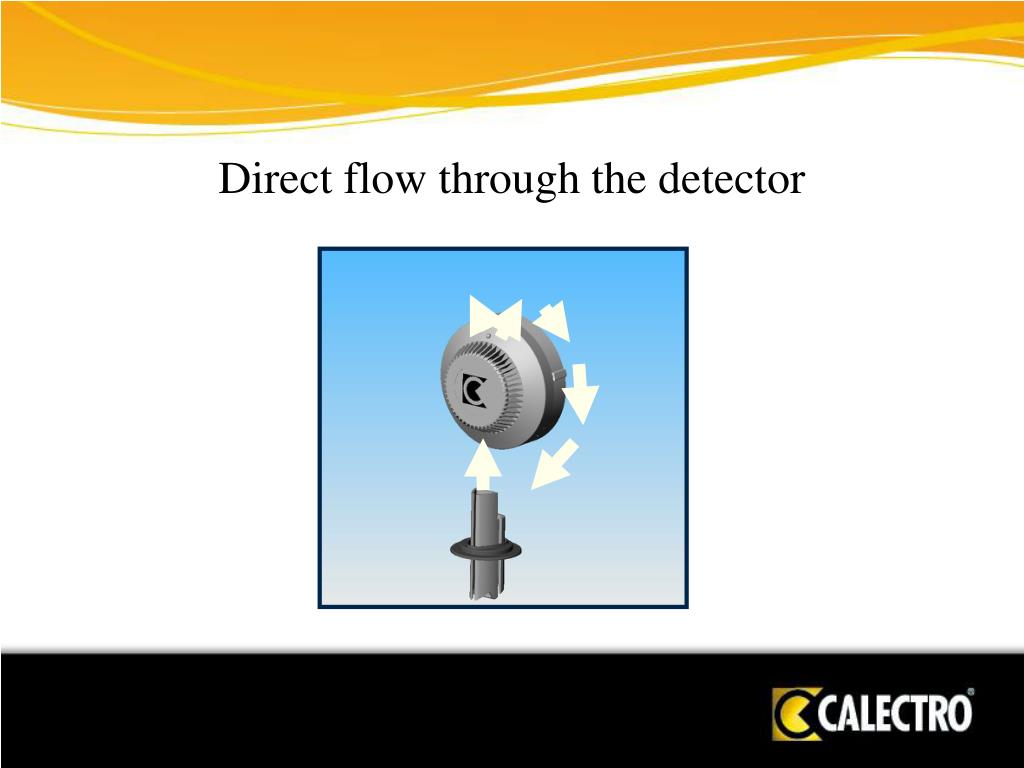

  7. Direct flow through the detector

  8. New detector housing

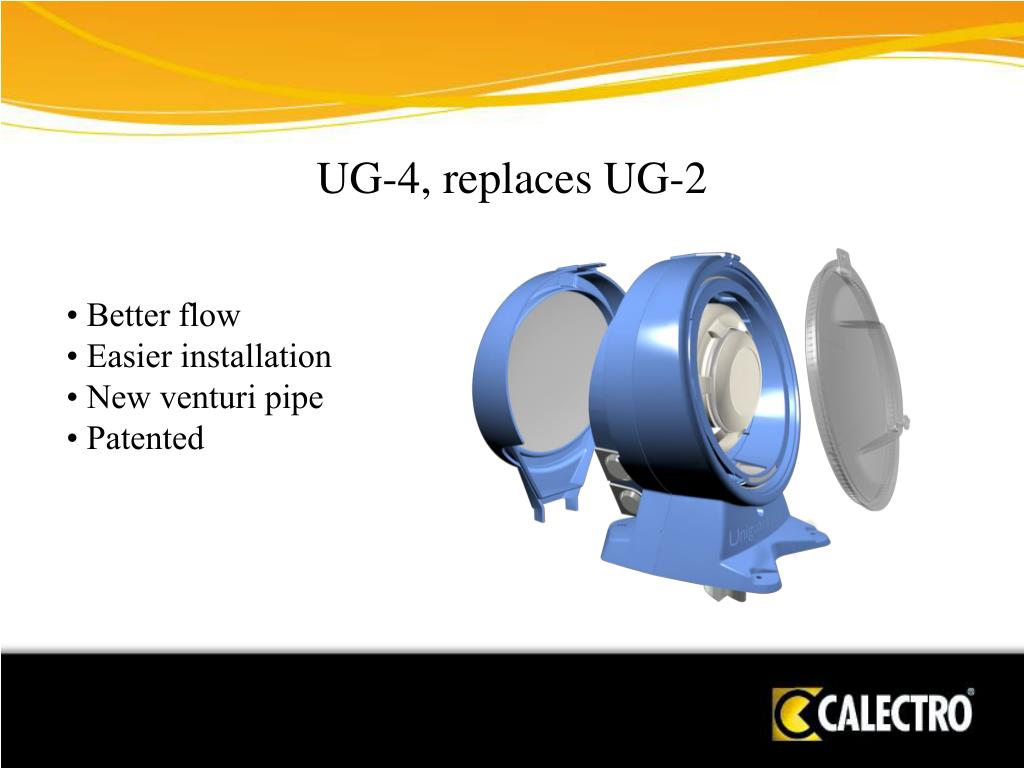

  9. UG-4, replaces UG-2 • Better flow • Easier installation • New venturi pipe • Patented

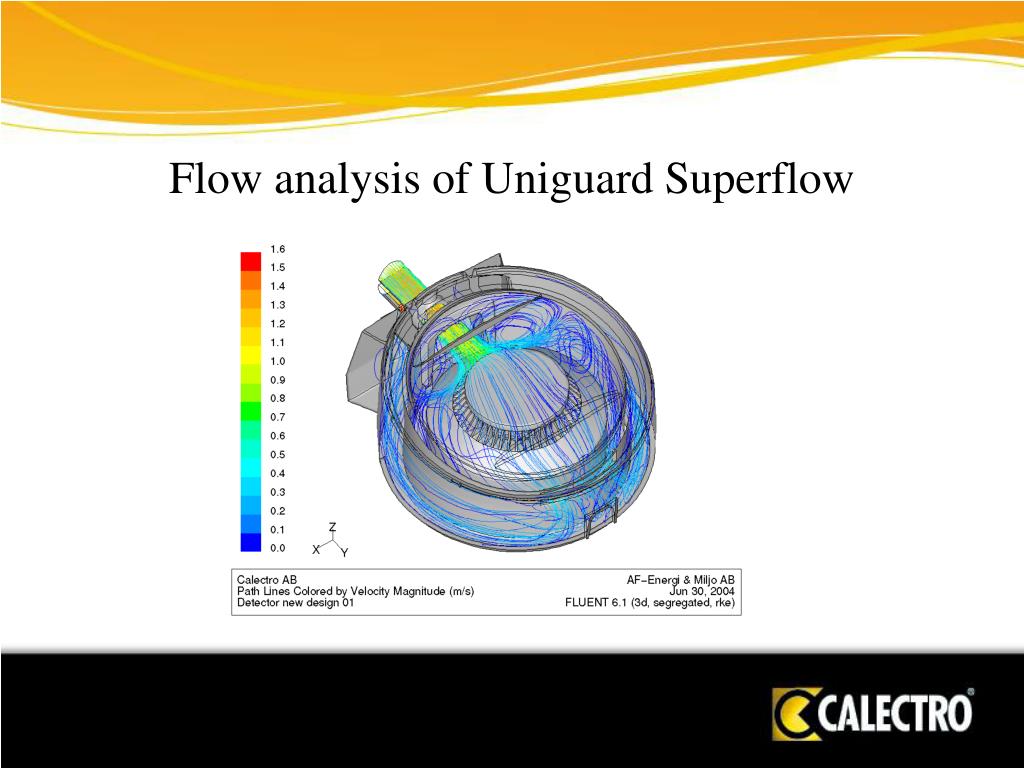

  10. Flow analysis of Uniguard Superflow

  11. Flow analysis of Uniguard Superflow

  12. For more information visit www.calectro.com
