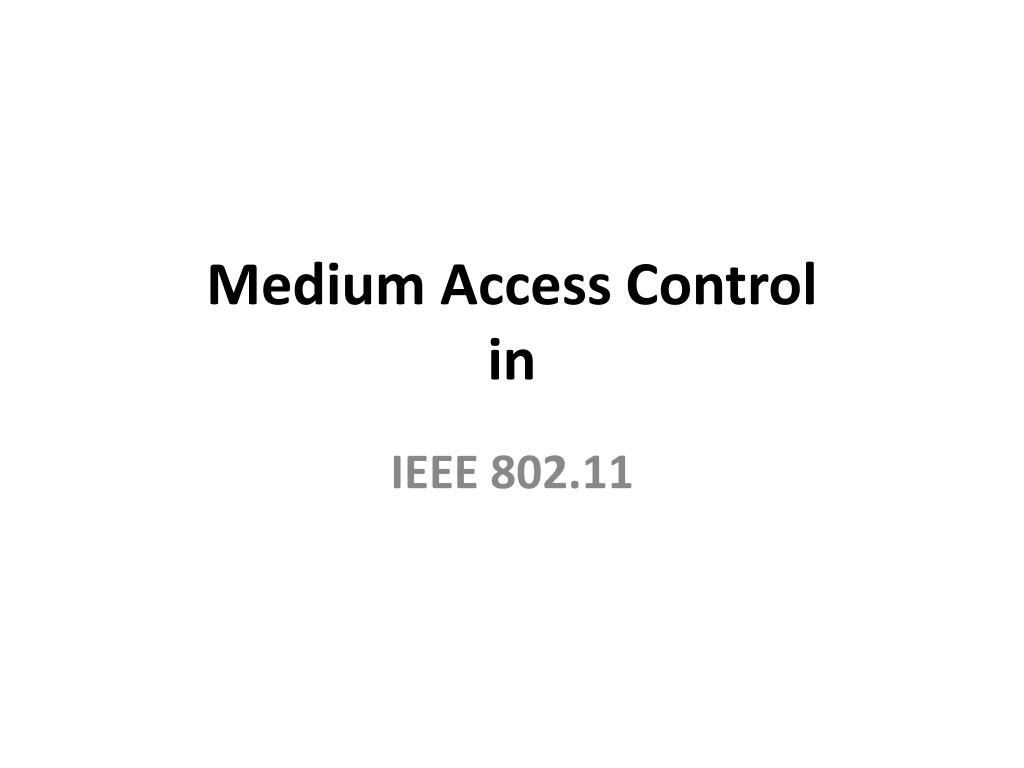

  1. Medium Access Controlin IEEE 802.11

  2. Introduction • This presentation deals with the principles of Medium Access Control in wireless LAN under standards IEEE 802.11

  3. Medium Access Control MAC • Methods of Access Control: • Polling from a central control: • Controller coordinates the access of devices to the medium • Token Passing: • The access to the medium is determined by the reservation of a token frame • Contention: • Devices fight, with equal rights, for the access to the medium

  4. Contention for the Medium Access Control • Contention: • Devices fight, with equal rights and rules, for the access to the medium Medium

  5. Contention Mechanism • Detect if medium is free to be used • By sensing the carrier signal in the medium • If medium is idle, then attempt to transmit • Otherwise, wait and keep listening to the medium until there is an opportunity to transmit Medium

  6. Carrier Sense and Multiple Access • CSMA I can read the signals in the medium And I can access the medium Medium I can read the signals in the medium And I can access the medium I can read the signals in the medium And I can access the medium

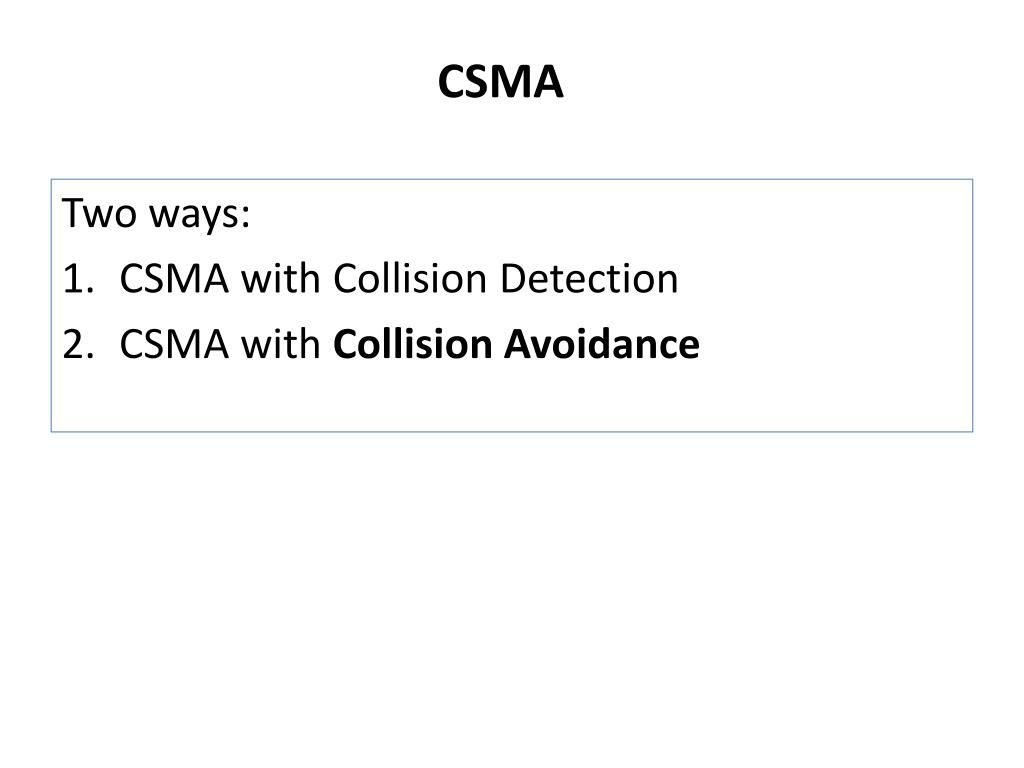

  7. CSMA Two ways: • CSMA with Collision Detection • CSMA with Collision Avoidance

  8. Collision Avoidance in 802.11 • The radio frequency RF devices can either transmit or receive, but not both at the same time • They are half-duplex by design since a channel is being used for both transmit and receive • Consequently, they can not directly detect (by listening) if the collision of a frame has happened • A system such as Collision Detection is not the right one in 802.11 • Instead, Collision Avoidance is implemented RF Medium

  9. CSMA CSMA with Collision Detection CSMA with Collision Avoidance Listen to the medium If idle, wait for a certain time There are ways to notify this time • Listen to the medium • If idle, attempt to transmit • If collision happens, back-off with a random time

  10. Access method for 802.11 • Distributed Coordination Function (DCF) • DCF is the access method defined in the standard 802.11 • The method has components that seek out that only one device is transmitting at any given time • There are four components in the method: • Inter frame space (time gap actually) • Virtual Carrier Sense • Physical carrier sense • Random back-off timer

  11. Inter Frame Space • Wireless PC-A sends a unicast frame to be received by wireless AP Unicast Frame PC-A

  12. Inter Frame Space • Wireless PC-A sends a unicast frame to be received by wireless AP • AP receives the frame and waits for a SIFS time Unicast Frame PC-A

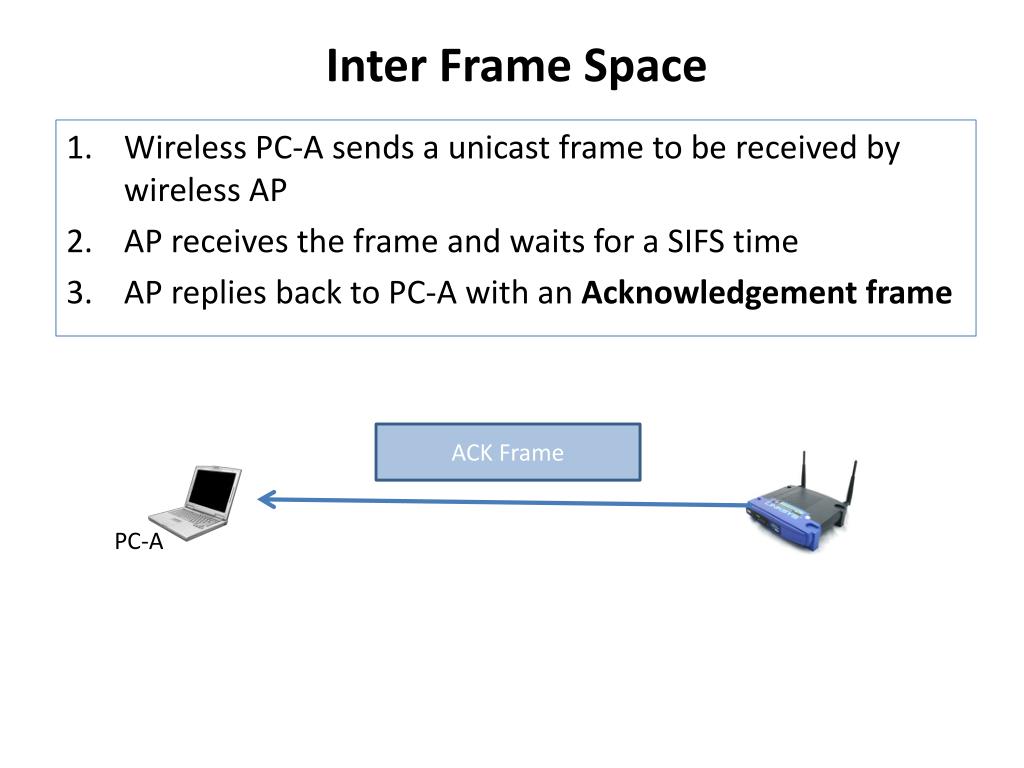

  13. Inter Frame Space • Wireless PC-A sends a unicast frame to be received by wireless AP • AP receives the frame and waits for a SIFS time • AP replies back to PC-A with an Acknowledgement frame ACK Frame PC-A

  14. Inter Frame Space • Wireless PC-A sends a unicast frame to be received by wireless AP • AP receives the frame and waits for a SIFS time • AP replies back to PC-A with an Acknowledgement frame ACK Frame PC-A

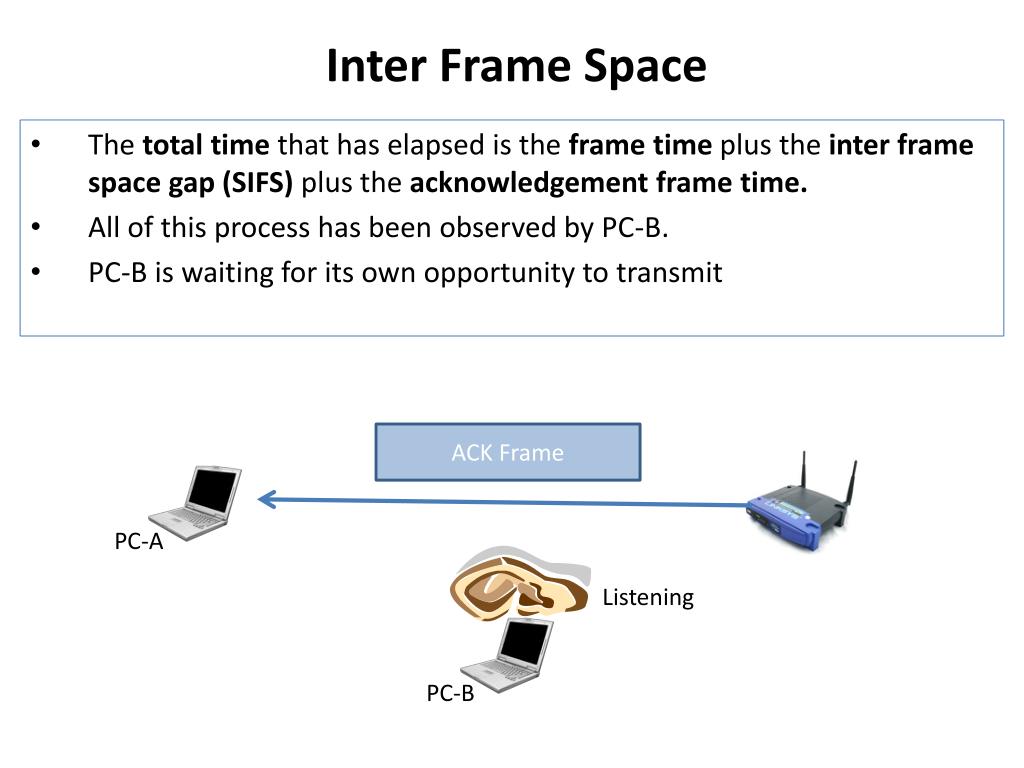

  15. Inter Frame Space • The total time that has elapsed is the frame time plus the inter frame space gap (SIFS) plus the acknowledgement frame time. • All of this process has been observed by PC-B. • PC-B is waiting for its own opportunity to transmit ACK Frame PC-B PC-A Listening

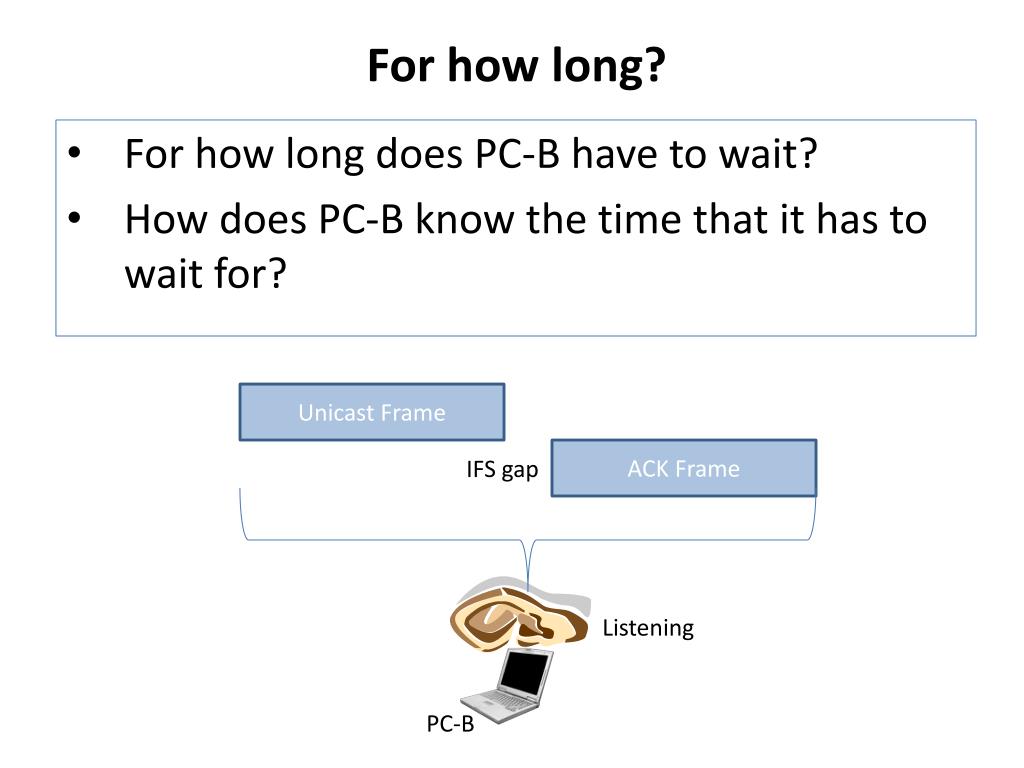

  16. For how long? • For how long does PC-B have to wait? • How does PC-B know the time that it has to wait for? ACK Frame PC-B PC-A Listening

  17. For how long? • For how long does PC-B have to wait? • How does PC-B know the time that it has to wait for? Unicast Frame ACK Frame IFS gap PC-B Listening

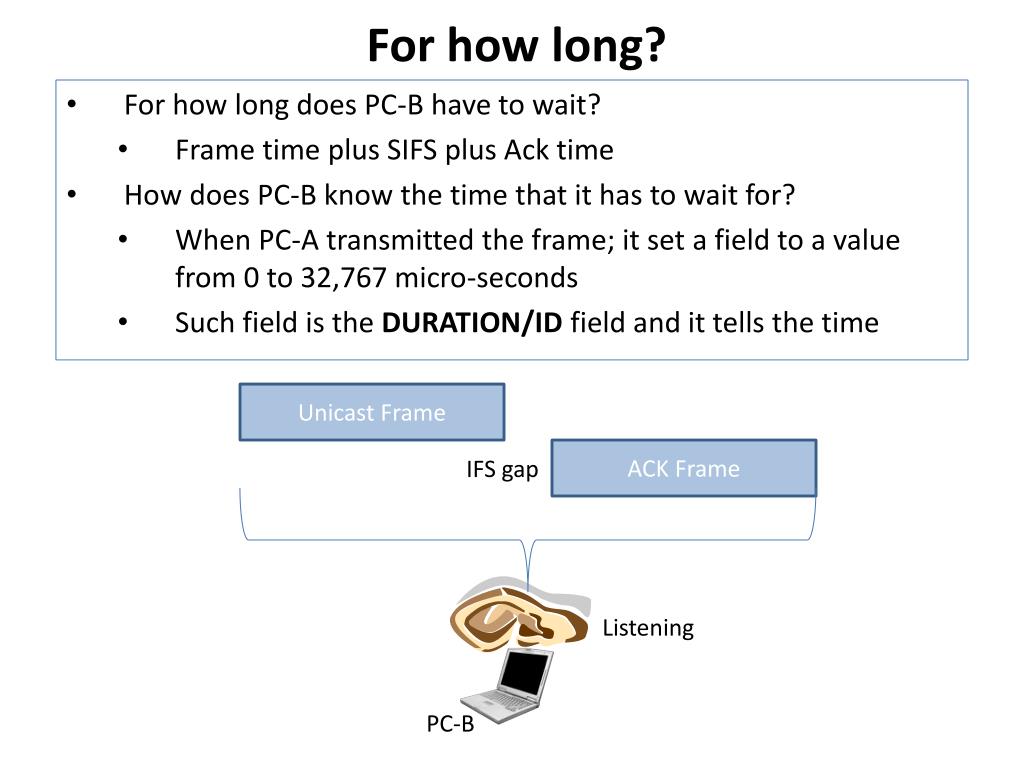

  18. For how long? • For how long does PC-B have to wait? • Frame time plus SIFS plus Ack time • How does PC-B know the time that it has to wait for? • When PC-A transmitted the frame; it set a field to a value from 0 to 32,767 micro-seconds • Such field is the DURATION/ID field and it tells the time Unicast Frame ACK Frame IFS gap PC-B Listening

  19. Inter Frame Space IFS • There are rules for what kind of frame will be following a specific IFS • There are 5 types of IFS: • SIFS short IFS. • The highest priority and shortest IFS. • Frames like ACK and CTS follow SIFS • PIFS • Second best priority • DIFS • Lowest priority. • Most frames are preceded by DIFS • AIFS • Arbitration for QoS • EIFS • Extended IFS for retransmissions

  20. Carrier Sense in 802.11 • Virtual: • Wireless nodes listen to wireless frames Frame

  21. Virtual carrier-sense mechanism • Provided by the MAC sub-layer. • Referred to as the network allocation vector (NAV). • RTS/CTS frames are exchanged before the actual exchange of data. • The NAV is set based on the information announced by the RTS/CTS exchange. • The NAV maintains a prediction of future traffic on the medium.

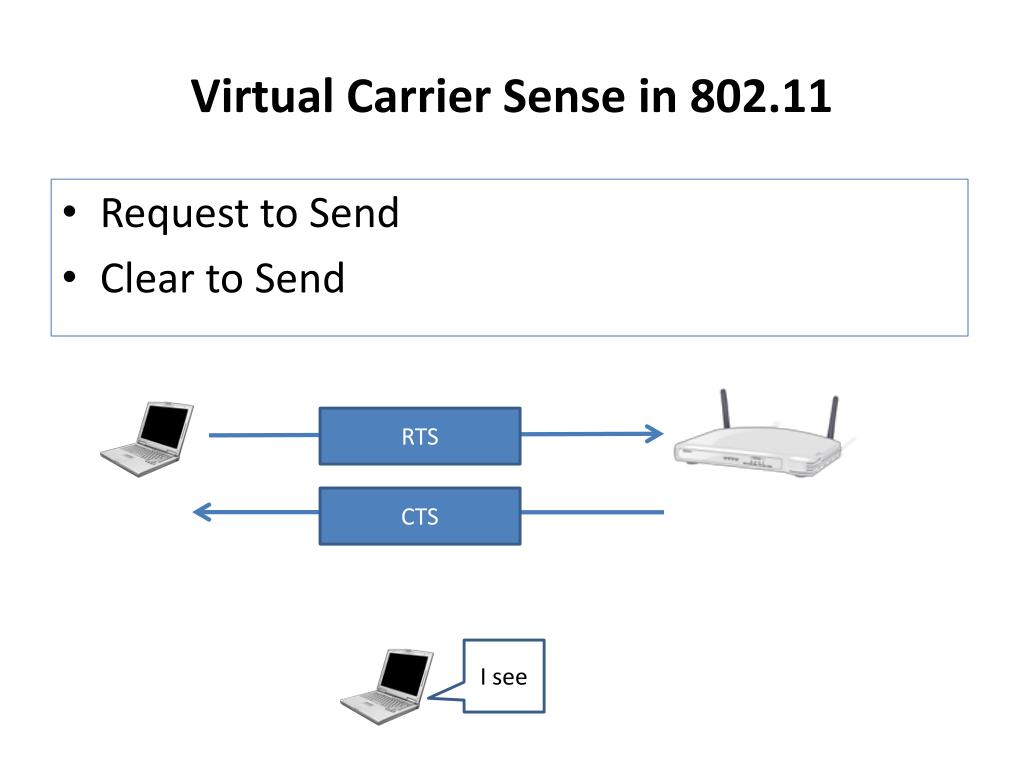

  22. Virtual Carrier Sense in 802.11 • Request to Send • Clear to Send RTS CTS I see

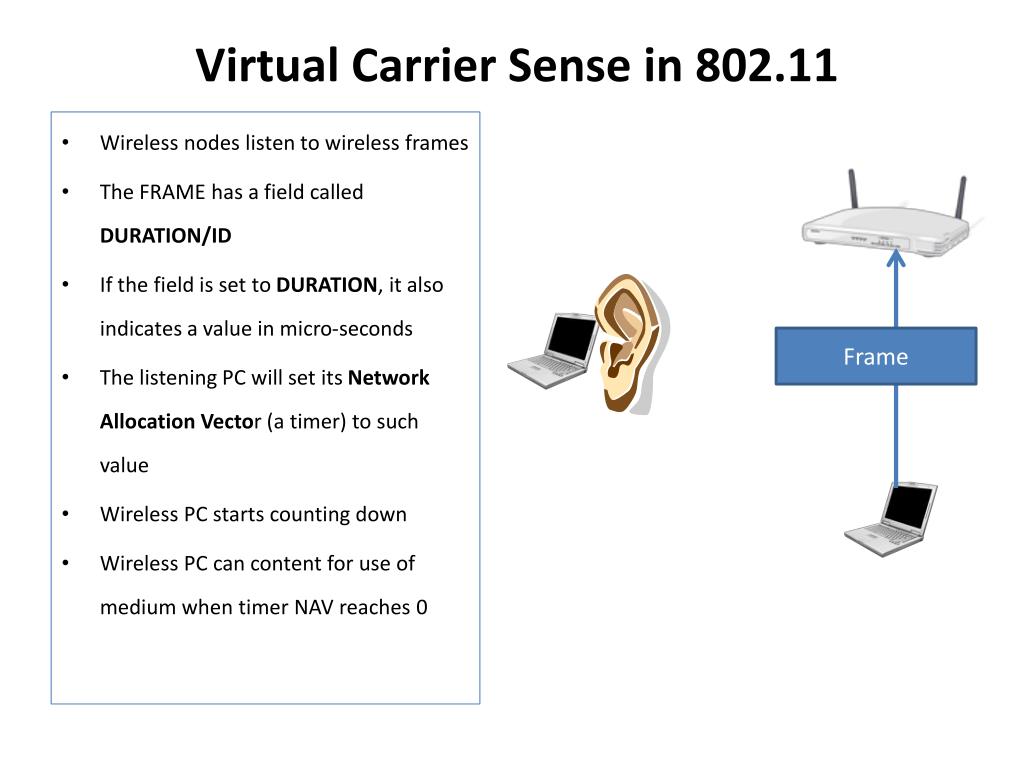

  23. Virtual Carrier Sense in 802.11 • Wireless nodes listen to wireless frames • The FRAME has a field called DURATION/ID • If the field is set to DURATION, it also indicates a value in micro-seconds • The listening PC will set its Network Allocation Vector (a timer) to such value • Wireless PC starts counting down • Wireless PC can content for use of medium when timer NAV reaches 0 Frame

  24. Physical Carrier Sense in 802.11 • Stations might have just missed the Duration field of a frame when they start listening to the medium • They listen to RF signals anyways • They perform a CCA clear channel assessment

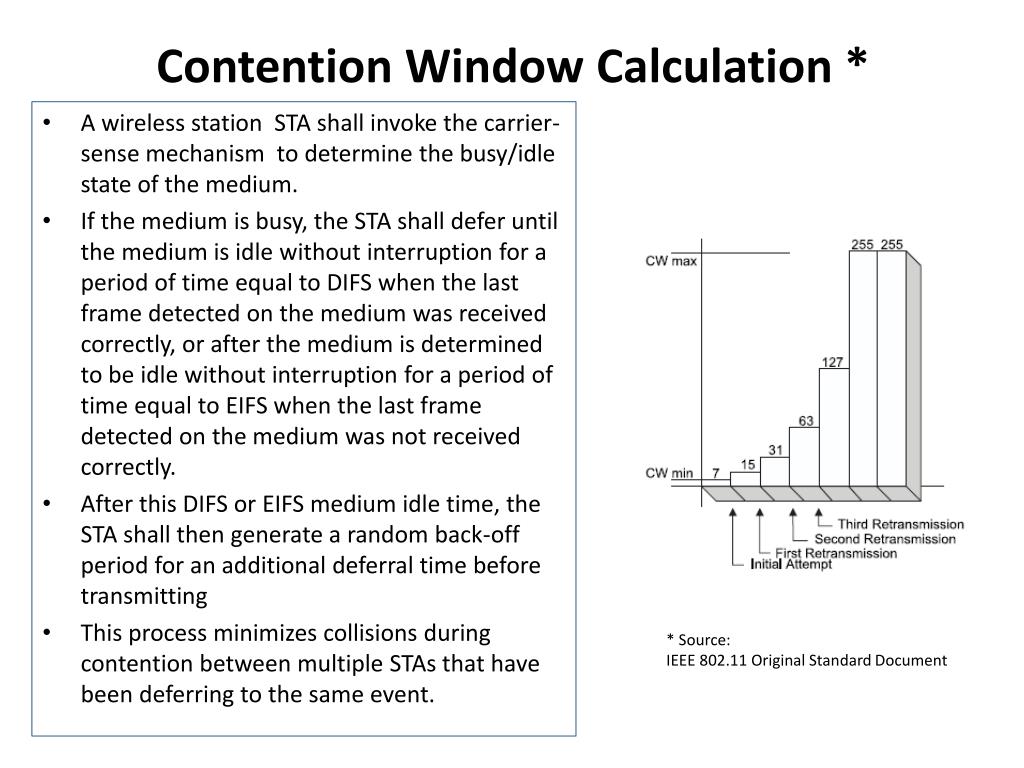

  25. Contention Window Calculation * • A wireless station STA shall invoke the carrier-sense mechanism to determine the busy/idle state of the medium. • If the medium is busy, the STA shall defer until the medium is idle without interruption for a period of time equal to DIFS when the last frame detected on the medium was received correctly, or after the medium is determined to be idle without interruption for a period of time equal to EIFS when the last frame detected on the medium was not received correctly. • After this DIFS or EIFS medium idle time, the STA shall then generate a random back-off period for an additional deferral time before transmitting • This process minimizes collisions during contention between multiple STAs that have been deferring to the same event. * Source: IEEE 802.11 Original Standard Document

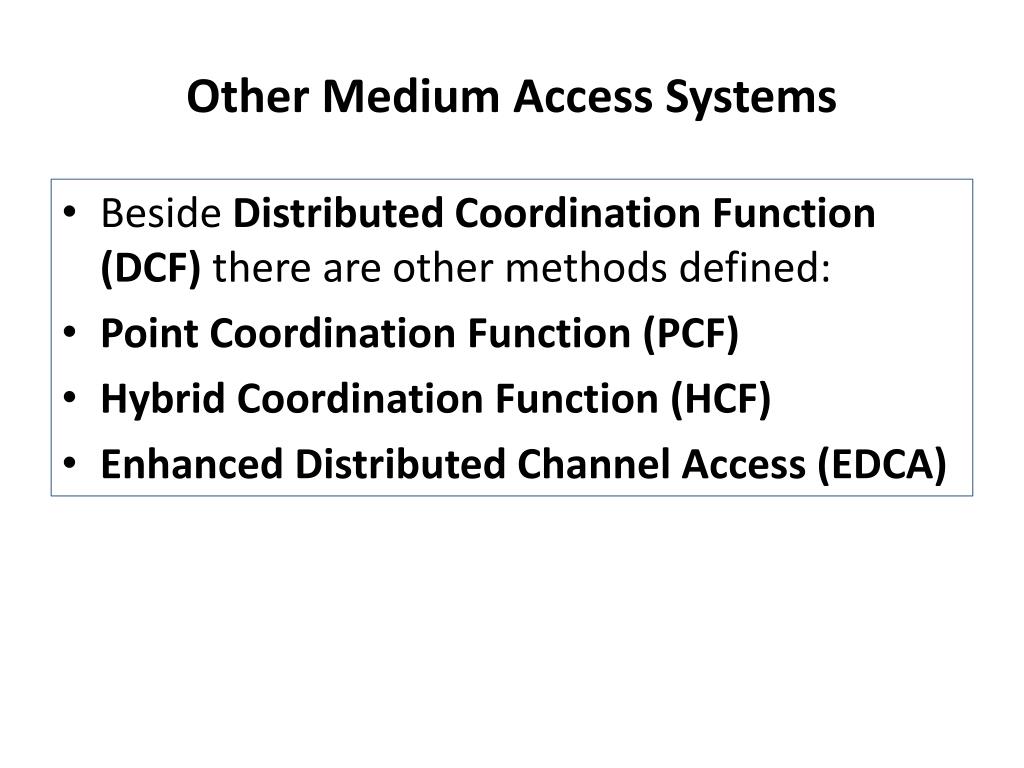

  26. Other Medium Access Systems • Beside Distributed Coordination Function (DCF) there are other methods defined: • Point Coordination Function (PCF) • Hybrid Coordination Function (HCF) • Enhanced Distributed Channel Access (EDCA)

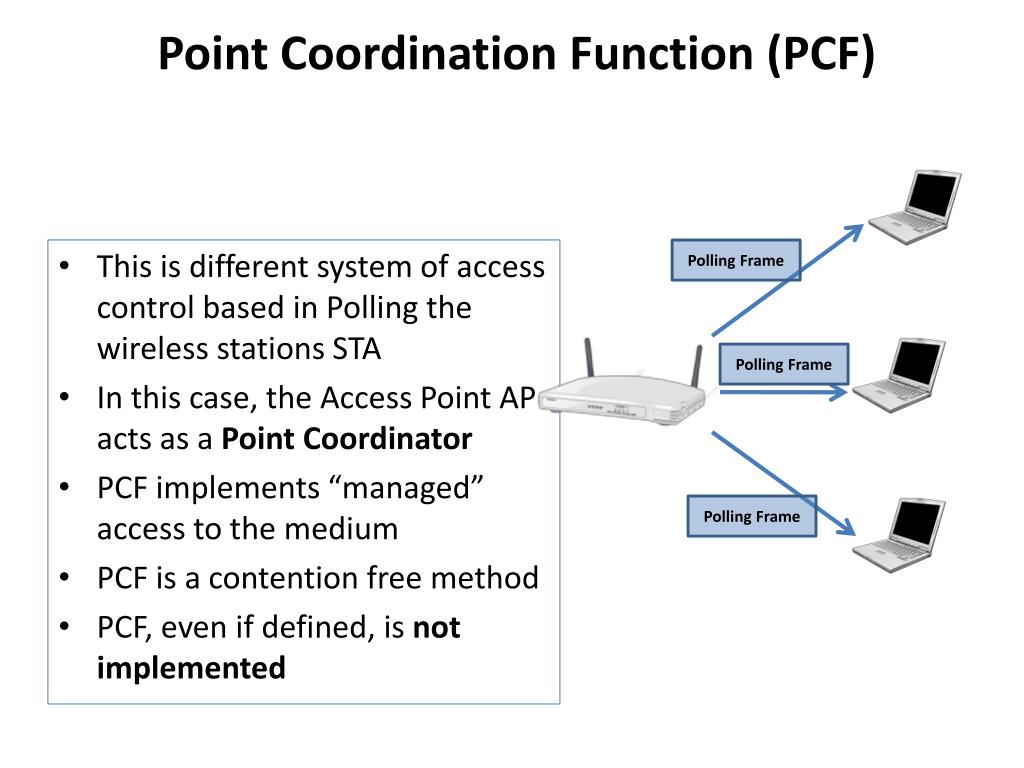

  27. Point Coordination Function (PCF) • This is different system of access control based in Polling the wireless stations STA • In this case, the Access Point AP acts as a Point Coordinator • PCF implements “managed” access to the medium • PCF is a contention free method • PCF, even if defined, is not implemented Polling Frame Polling Frame Polling Frame

  28. Hybrid Coordination Function (HCF) Transmit Opportunity TXOP • In this system the HFC client receives an allotted amount of time to send a burst of frames continuously • This is for Quality of Service purposes • Defined in 802.11e for QoS amendment • Process: • Transmit a frame • Short IFS wait • Transmit a frame • Short IFS wait Frame SIFS Frame SIFS Frame

  29. Hybrid Coordination Function (HCF) • Block Acknowledgement: • Rather than acknowledging every frame, the AP can ACK a range or block of frames • Obviously, there must be a field in the frames (sequence number) that can be used as a reference index to point out to the beginning and end of the block of frames Transmit Opportunity TXOP BLOCK ACK Frames 1 to 3 Frame 1 SIFS Frame 2 SIFS Frame3

  30. Enhanced Distributed Channel Access (EDCA) • Method that provides differentiated service access for stations using 8 user priority levels • 23 = 8 tags or levels or service • The lowest value is the less preferred • The highest value is the most preferred • Defined in 802.11D priority tags Voice over IP tags: 7 and 6 IP Video tags: 5 and 4 Best effort: 0 and 3 Background: 2 and 1

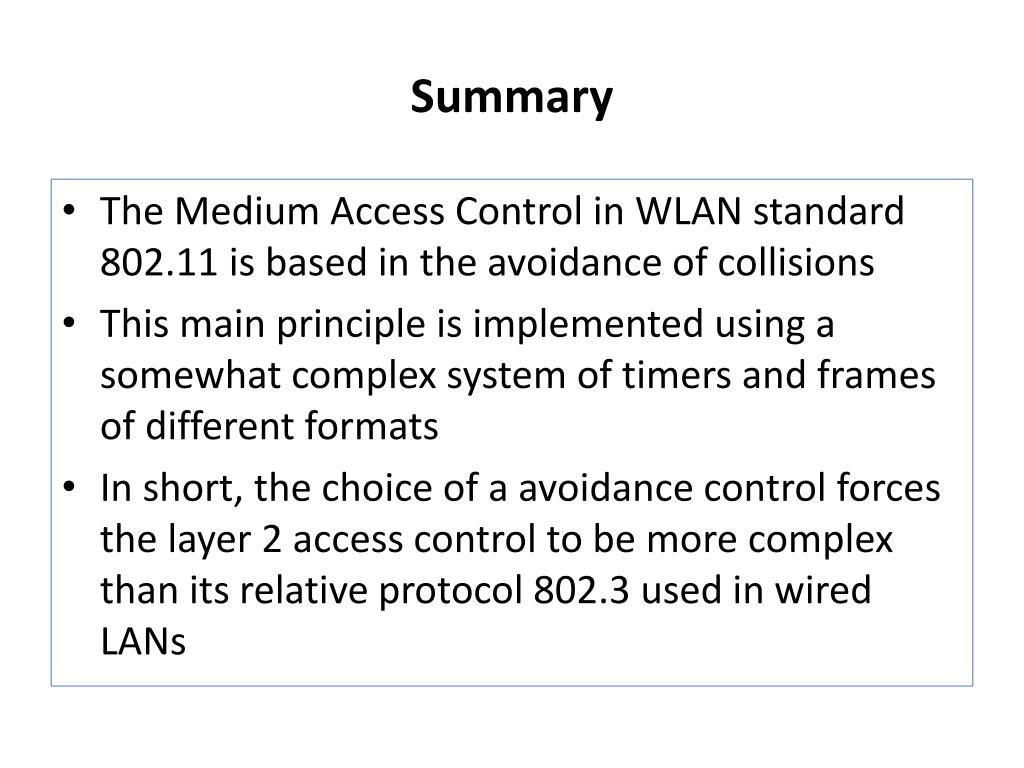

  31. Summary • The Medium Access Control in WLAN standard 802.11 is based in the avoidance of collisions • This main principle is implemented using a somewhat complex system of timers and frames of different formats • In short, the choice of a avoidance control forces the layer 2 access control to be more complex than its relative protocol 802.3 used in wired LANs
