  1. Data Visualization Lecture 11 Information Presentation

  2. Napoleon’s March to Moscow

  3. Six Principles of Visualization Design • 1 • 2 • 3 • 4 • 5 • 6

  4. English Translation!

  5. The Best Online Version! John Shneider

  6. Recreation of Minard’s Graphic Shaw and Tigg, Mathematica

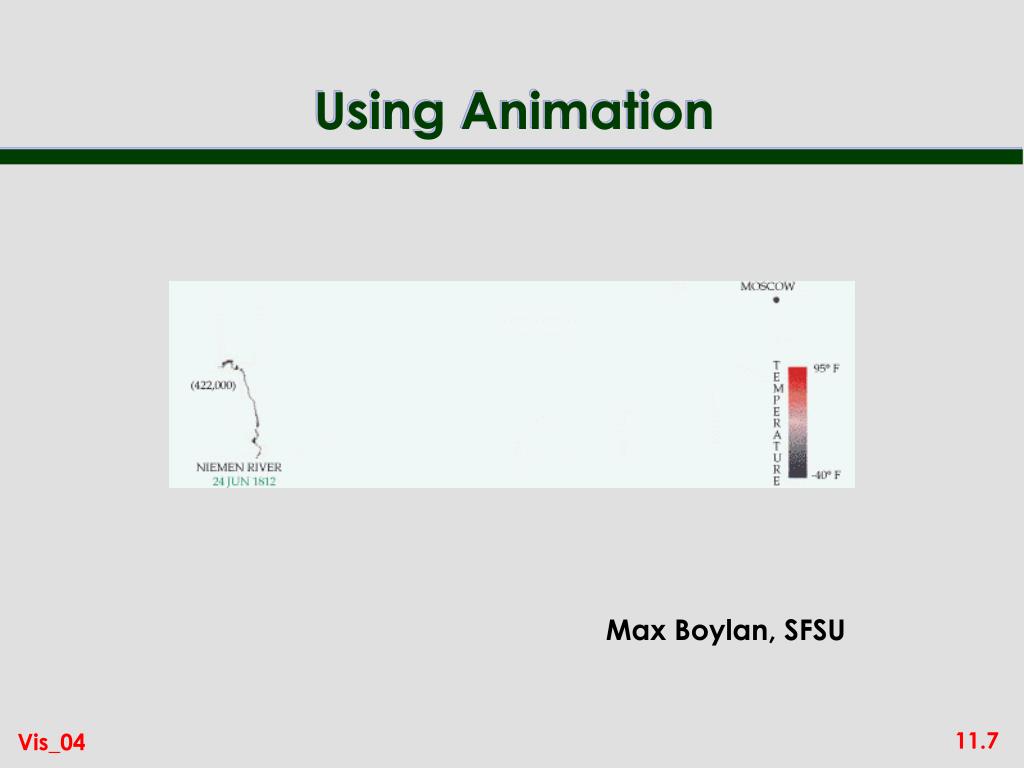

  7. Using Animation Max Boylan, SFSU

  8. Another Animation

  9. Using 3D Menno-Jan Kraak

  10. Action Plan

  11. Part One

  12. Information Content • Telephone directory • Book • Computer screen • OHP

  13. Part Two Space Shuttle Challenger

  14. Title Chart

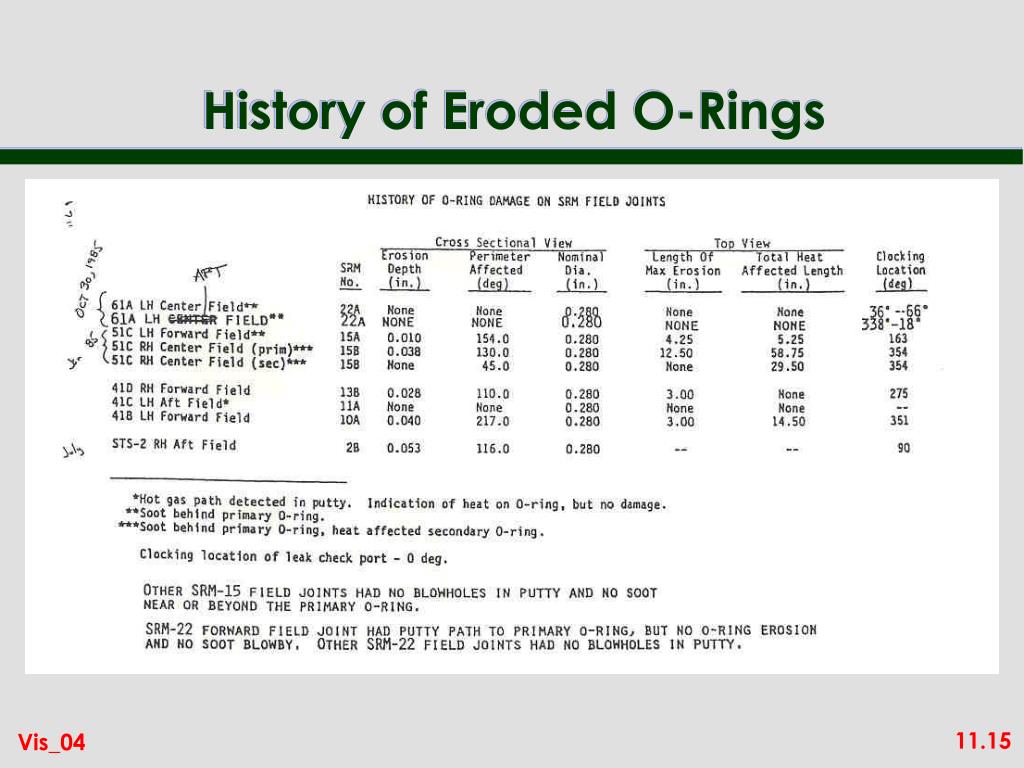

  15. History of Eroded O-Rings

  16. Erosion in Primary and Secondary O-Rings

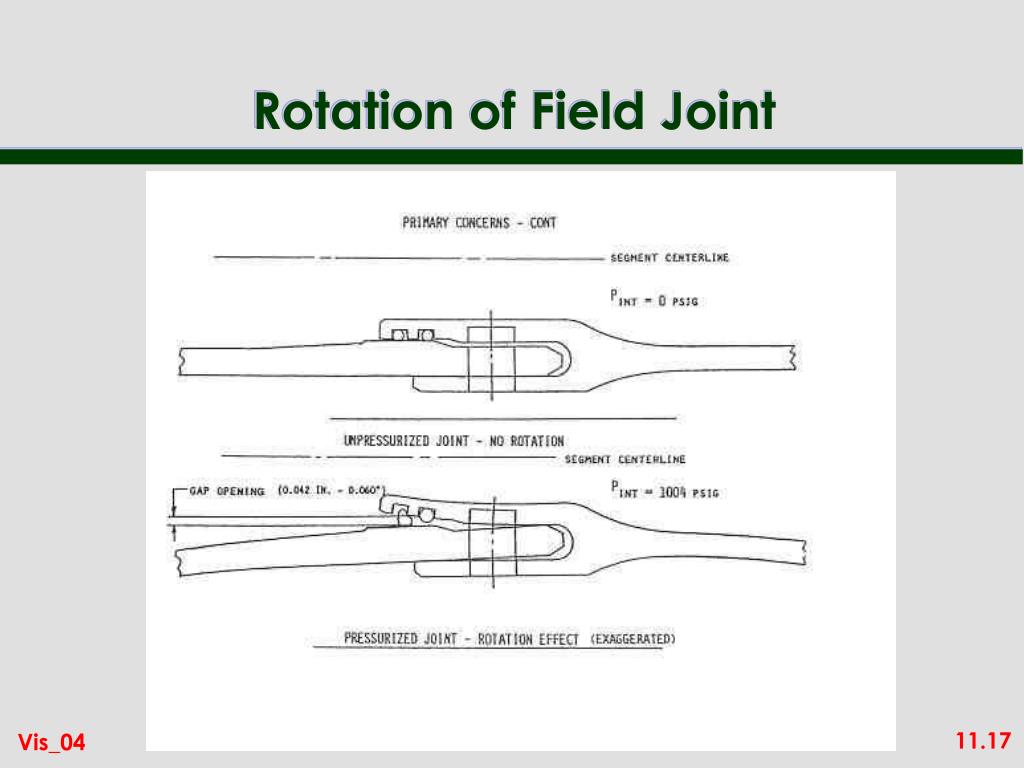

  17. Rotation of Field Joint

  18. Blow-by History

  19. Conclusions

  20. Recommendations

  21. Data Matrix

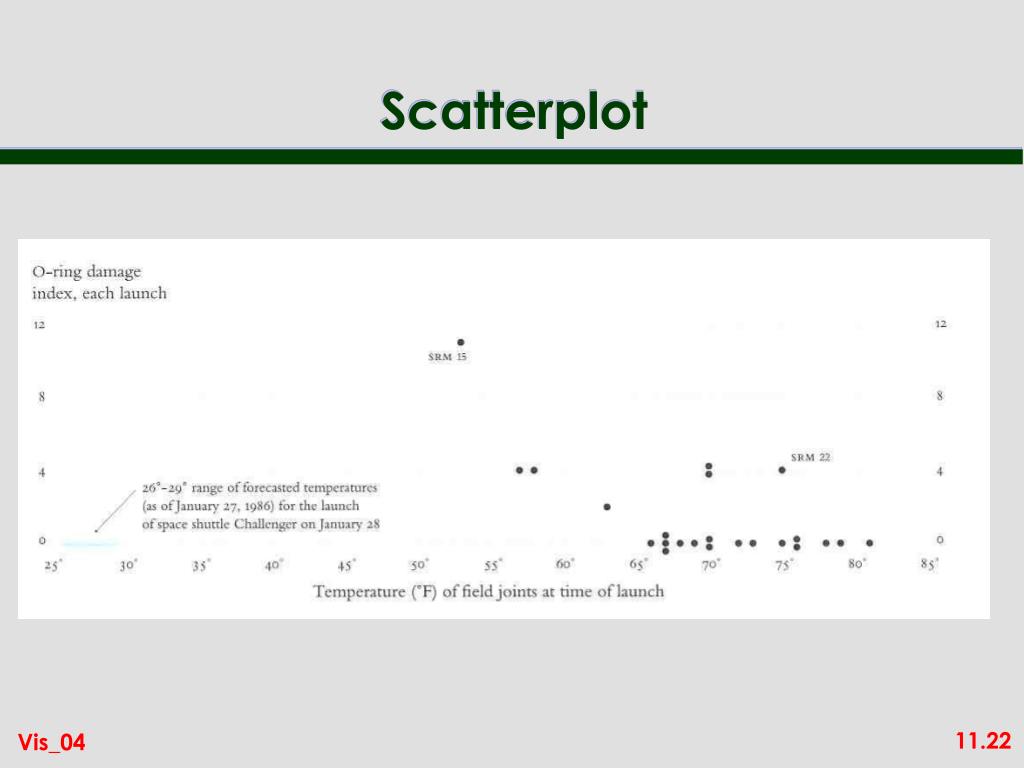

  22. Scatterplot

  23. Evidence to Presidential Commission

  24. History (continued)

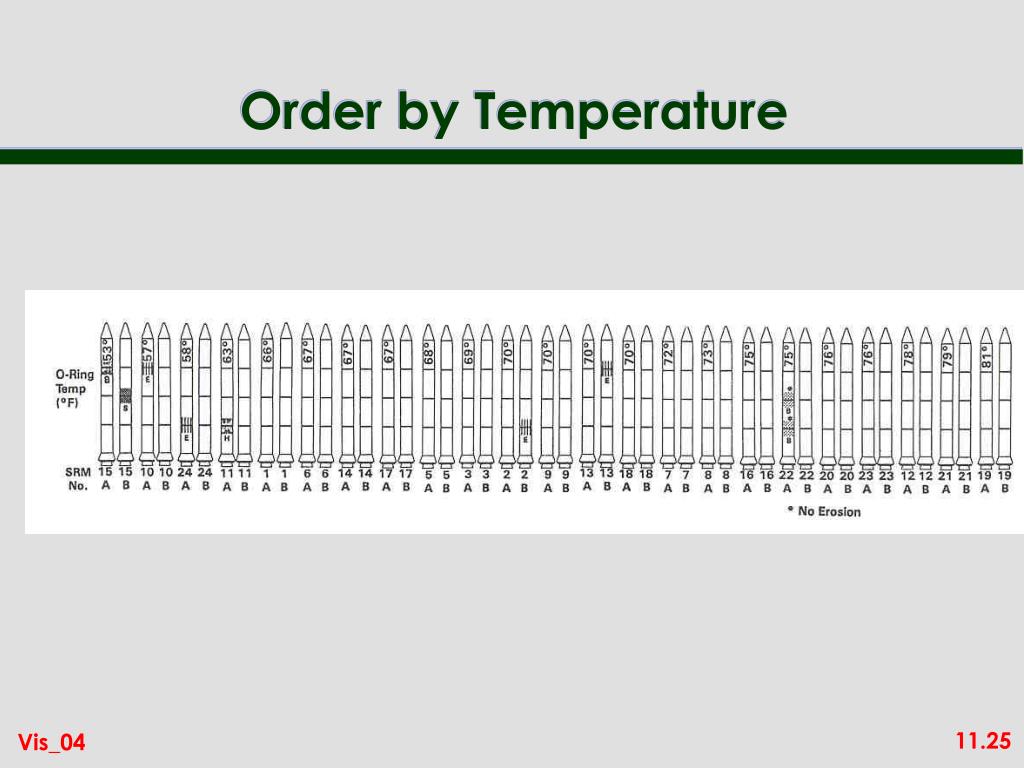

  25. Order by Temperature

  26. Adding Scale

  27. Richard Feynman

  28. The Feynman Experiment

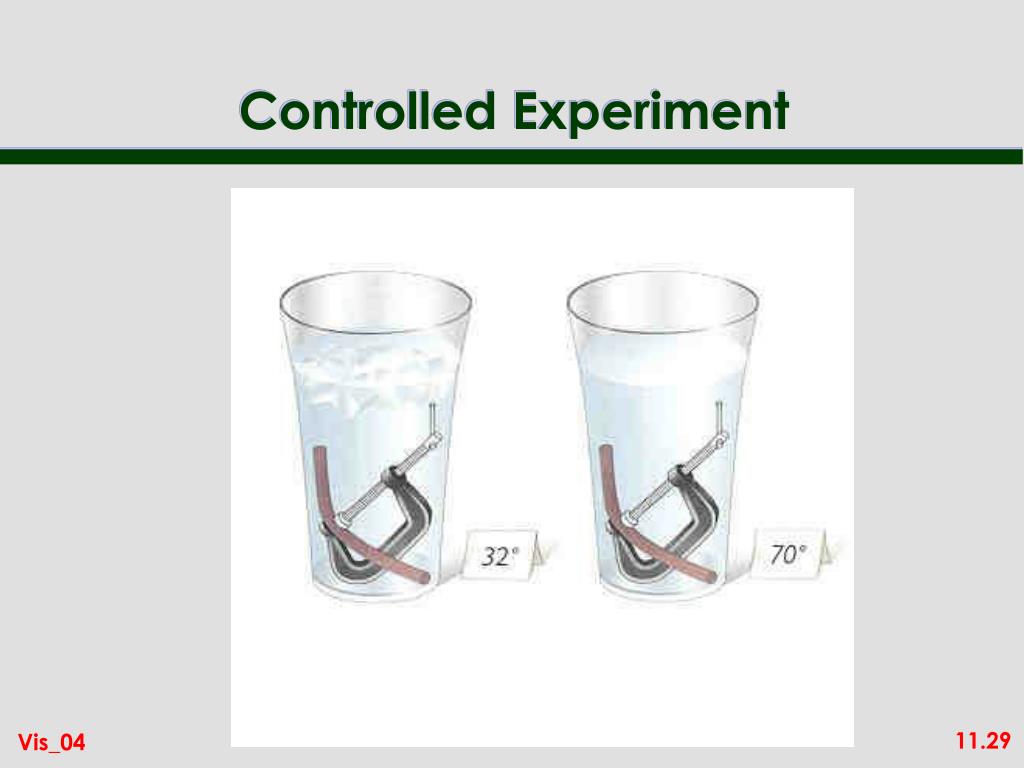

  29. Controlled Experiment

  30. Lessons from the Shuttle Disaster

  31. Part 3 Lies, lies and more lies….

  32. What is Wrong with This?

  33. Message • With visualization comes responsibility to tell the truth…

  34. Find Out More About… • Edward Tufte • Jacques Bertin • Colin Ware • Fred Brooks

  35. Next Week • Monday 15th November • Lecture 10.00 till 11.00 • Parkinson 108 • Final CFD lecture • Practical 11.30 – 12.30 • Friday 19th November • No lecture • Monday 22nd November • Lecture 10.00 – 11.00 … DMS students only
