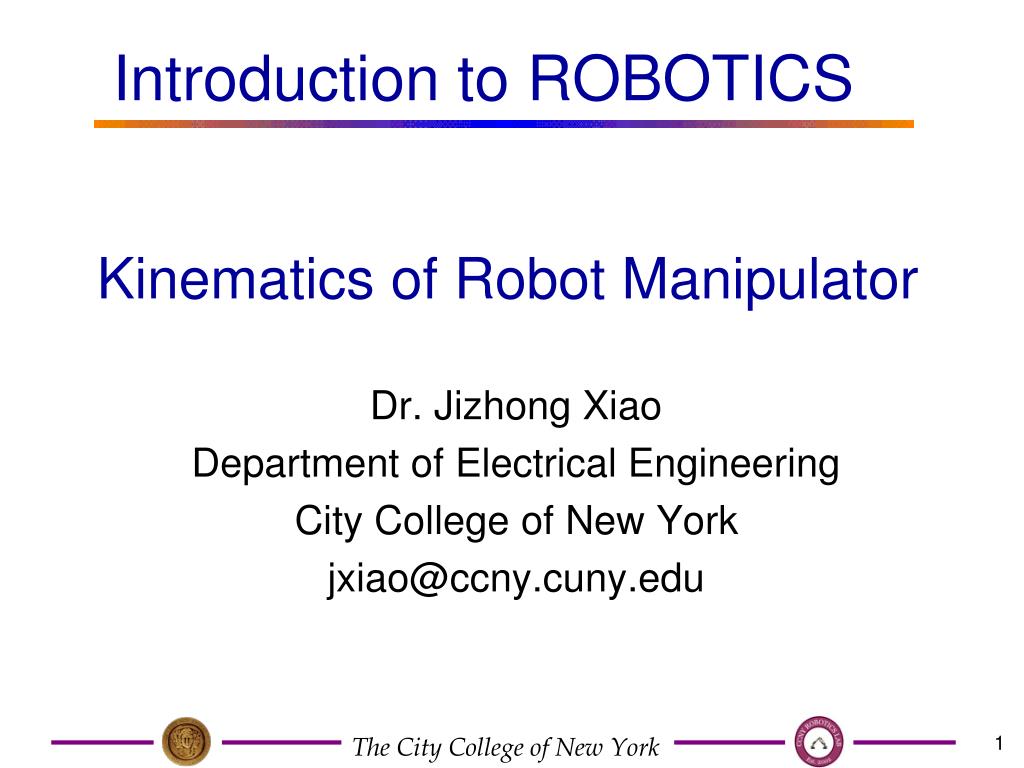

  1. Introduction to ROBOTICS Kinematics of Robot Manipulator Dr. Jizhong Xiao Department of Electrical Engineering City College of New York jxiao@ccny.cuny.edu

  2. Outline • Review • Robot Manipulators • Robot Configuration • Robot Specification • Number of Axes, DOF • Precision, Repeatability • Kinematics • Preliminary • World frame, joint frame, end-effector frame • Rotation Matrix, composite rotation matrix • Homogeneous Matrix • Direct kinematics • Denavit-Hartenberg Representation • Examples • Inverse kinematics

  3. Review • What is a robot? • By general agreement a robot is: • A programmable machine that imitates the actions or appearance of an intelligent creature–usually a human. • To qualify as a robot, a machine must be able to: 1) Sensing and perception: get information from its surroundings 2) Carry out different tasks: Locomotion or manipulation, do something physical–such as move or manipulate objects 3) Re-programmable: can do different things 4) Function autonomously and/or interact with human beings • Why use robots? • Perform 4A tasks in 4D environments 4A: Automation, Augmentation, Assistance, Autonomous • 4D: Dangerous, Dirty, Dull, Difficult

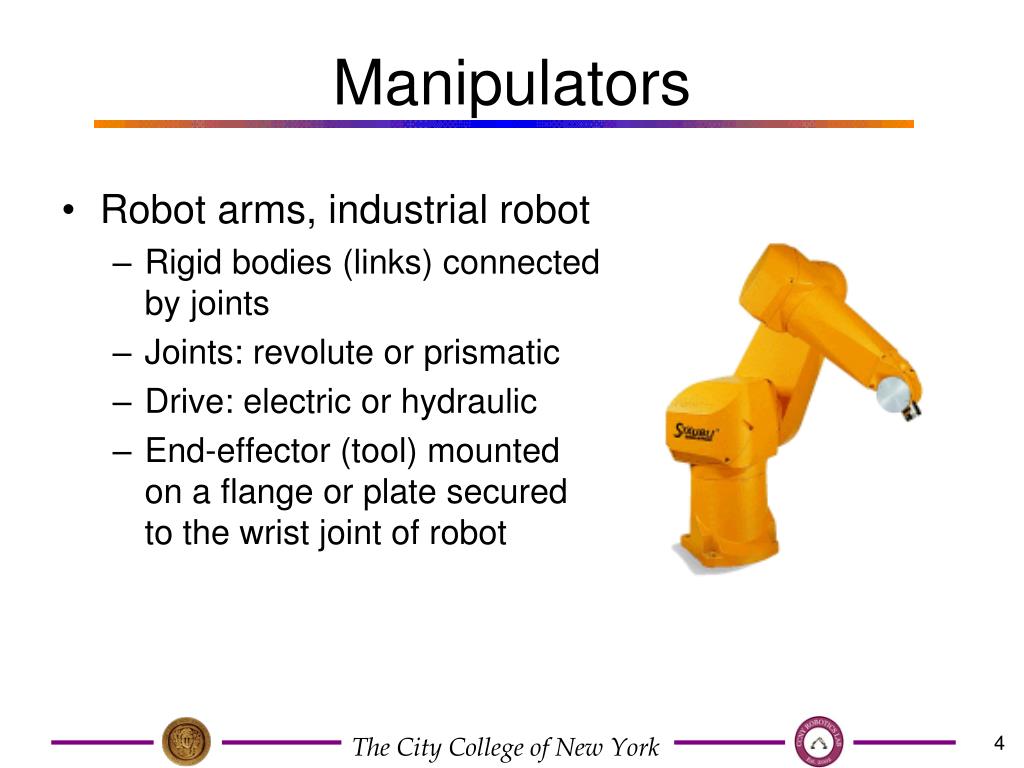

  4. Manipulators • Robot arms, industrial robot • Rigid bodies (links) connected by joints • Joints: revolute or prismatic • Drive: electric or hydraulic • End-effector (tool) mounted on a flange or plate secured to the wrist joint of robot

  5. Manipulators • Robot Configuration: Cartesian: PPP Cylindrical: RPP Spherical: RRP Hand coordinate: n: normal vector; s: sliding vector; a: approach vector, normal to the tool mounting plate SCARA: RRP (Selective Compliance Assembly Robot Arm) Articulated: RRR

  6. Manipulators • Motion Control Methods • Point to point control • a sequence of discrete points • spot welding, pick-and-place, loading & unloading • Continuous path control • follow a prescribed path, controlled-path motion • Spray painting, Arc welding, Gluing

  7. Manipulators • Robot Specifications • Number of Axes • Major axes, (1-3) => Position the wrist • Minor axes, (4-6) => Orient the tool • Redundant, (7-n) => reaching around obstacles, avoiding undesirable configuration • Degree of Freedom (DOF) • Workspace • Payload (load capacity) • Precision v.s. Repeatability how accurately a specified point can be reached how accurately the same position can be reached if the motion is repeated many times Which one is more important?

  8. What is Kinematics • Forward kinematics Given joint variables End-effector position and orientation, -Formula?

  9. What is Kinematics • Inverse kinematics End effector position and orientation Joint variables -Formula?

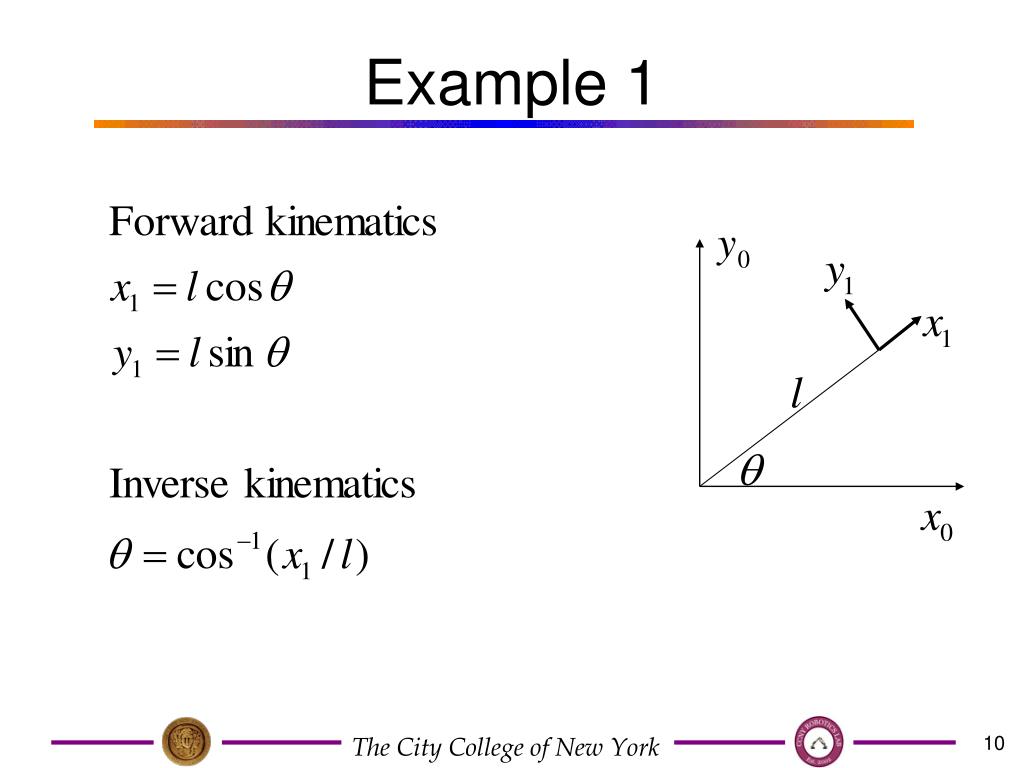

  10. Example 1

  11. Preliminary • Robot Reference Frames • World frame • Joint frame • Tool frame T P W R

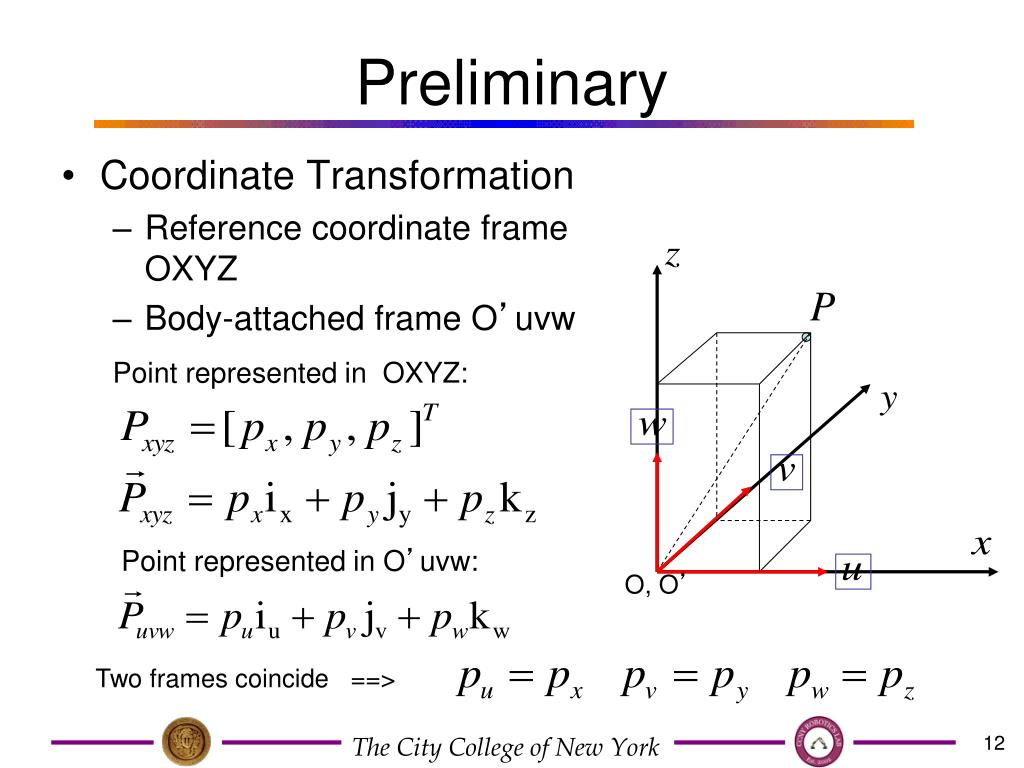

  12. O, O’ Preliminary • Coordinate Transformation • Reference coordinate frame OXYZ • Body-attached frame O’uvw Point represented in OXYZ: Point represented in O’uvw: Two frames coincide ==>

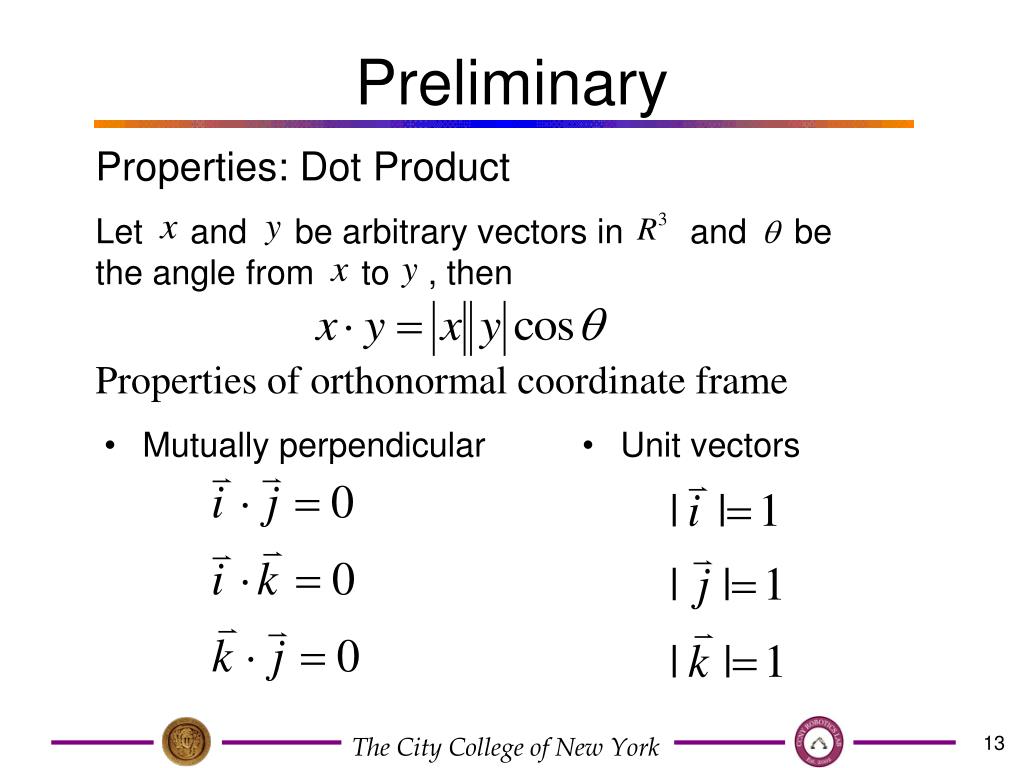

  13. Mutually perpendicular Unit vectors Preliminary Properties: Dot Product Let and be arbitrary vectors in and be the angle from to , then Properties of orthonormal coordinate frame

  14. Preliminary • Coordinate Transformation • Rotation only How to relate the coordinate in these two frames?

  15. Preliminary • Basic Rotation • , , and represent the projections of onto OX, OY, OZ axes, respectively • Since

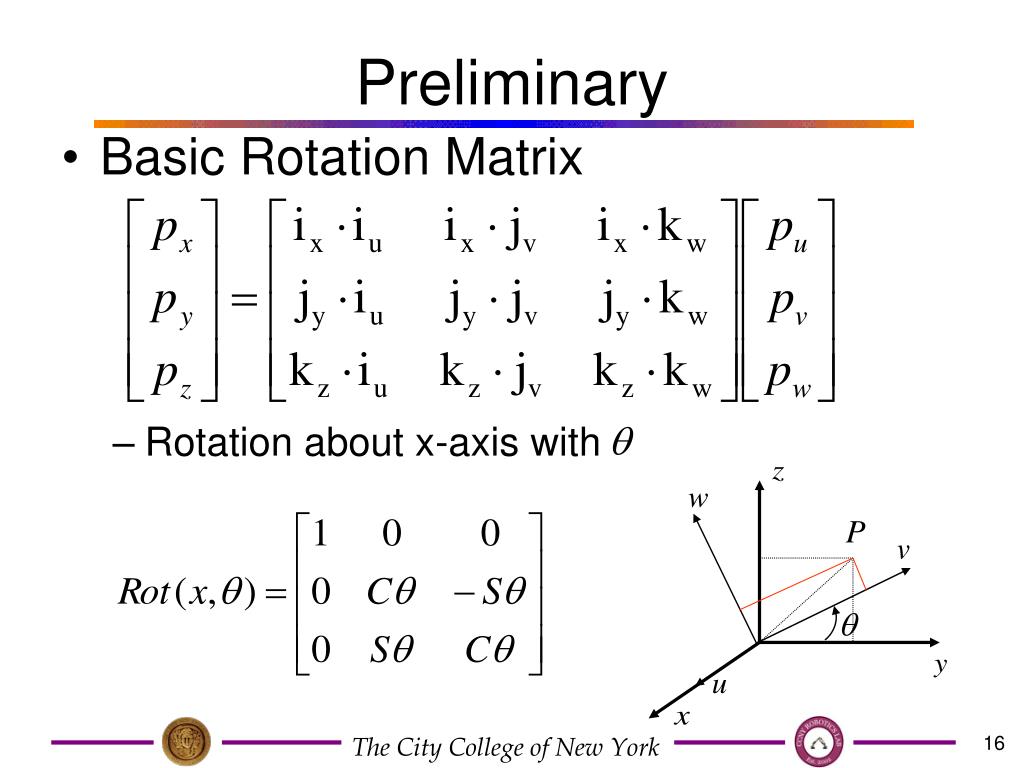

  16. Preliminary • Basic Rotation Matrix • Rotation about x-axis with

  17. Preliminary • Is it True? • Rotation about x axis with

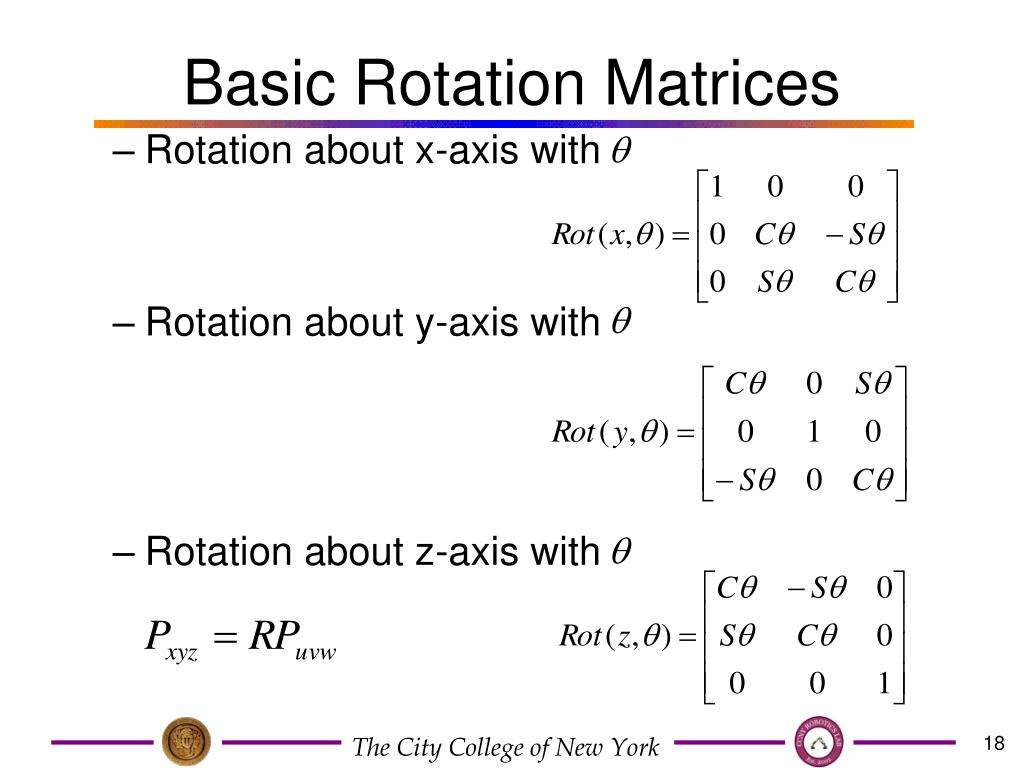

  18. Basic Rotation Matrices • Rotation about x-axis with • Rotation about y-axis with • Rotation about z-axis with

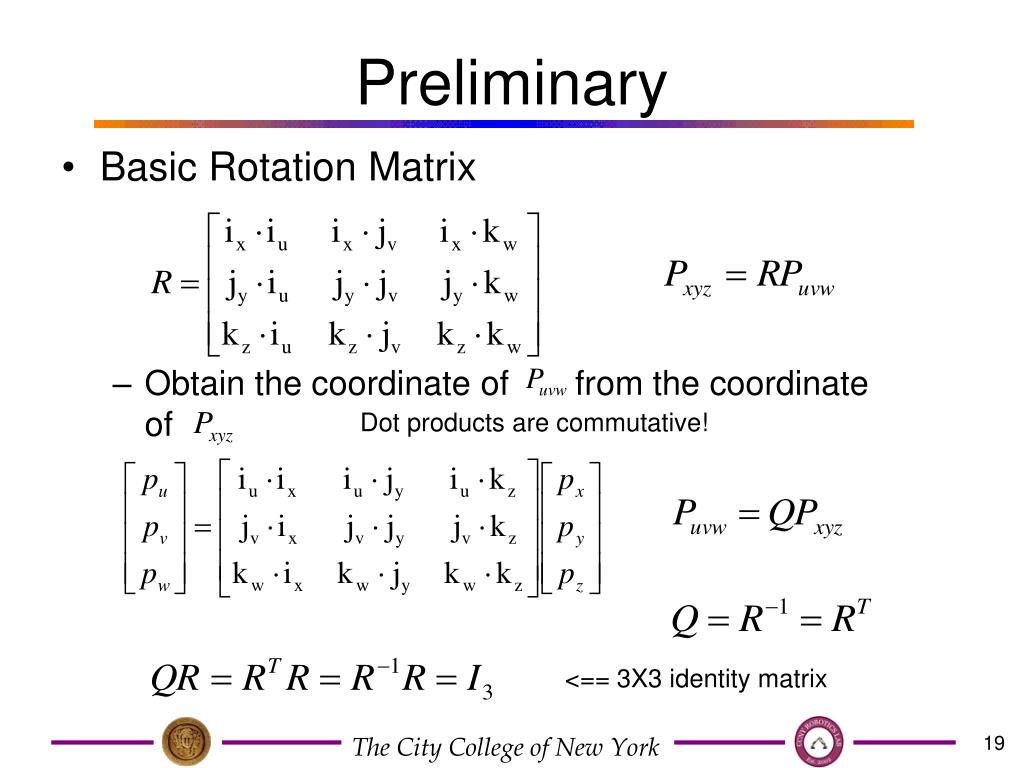

  19. Preliminary • Basic Rotation Matrix • Obtain the coordinate of from the coordinate of Dot products are commutative! <== 3X3 identity matrix

  20. Example 2 • A point is attached to a rotating frame, the frame rotates 60 degree about the OZ axis of the reference frame. Find the coordinates of the point relative to the reference frame after the rotation.

  21. Example 3 • A point is the coordinate w.r.t. the reference coordinate system, find the corresponding point w.r.t. the rotated OU-V-W coordinate system if it has been rotated 60 degree about OZ axis.

  22. Composite Rotation Matrix • A sequence of finite rotations • matrix multiplications do not commute • rules: • if rotating coordinate O-U-V-W is rotating about principal axis of OXYZ frame, then Pre-multiply the previous (resultant) rotation matrix with an appropriate basic rotation matrix • if rotating coordinate OUVW is rotating about its own principal axes, then post-multiply the previous (resultant) rotation matrix with an appropriate basic rotation matrix

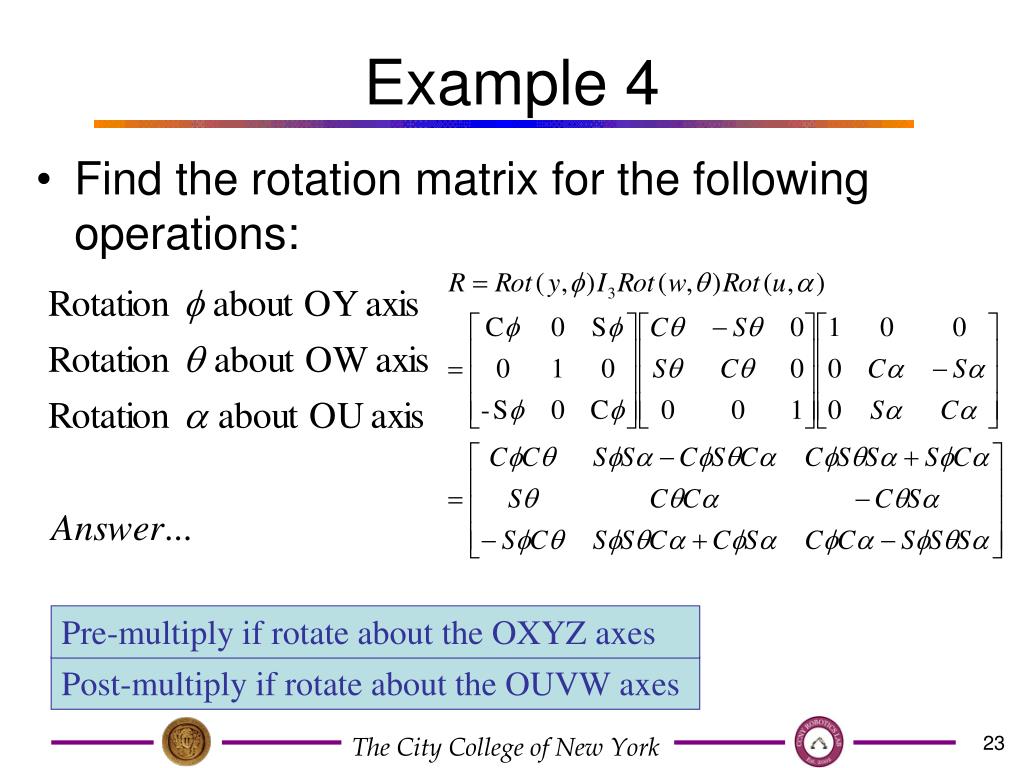

  23. Example 4 • Find the rotation matrix for the following operations: Pre-multiply if rotate about the OXYZ axes Post-multiply if rotate about the OUVW axes

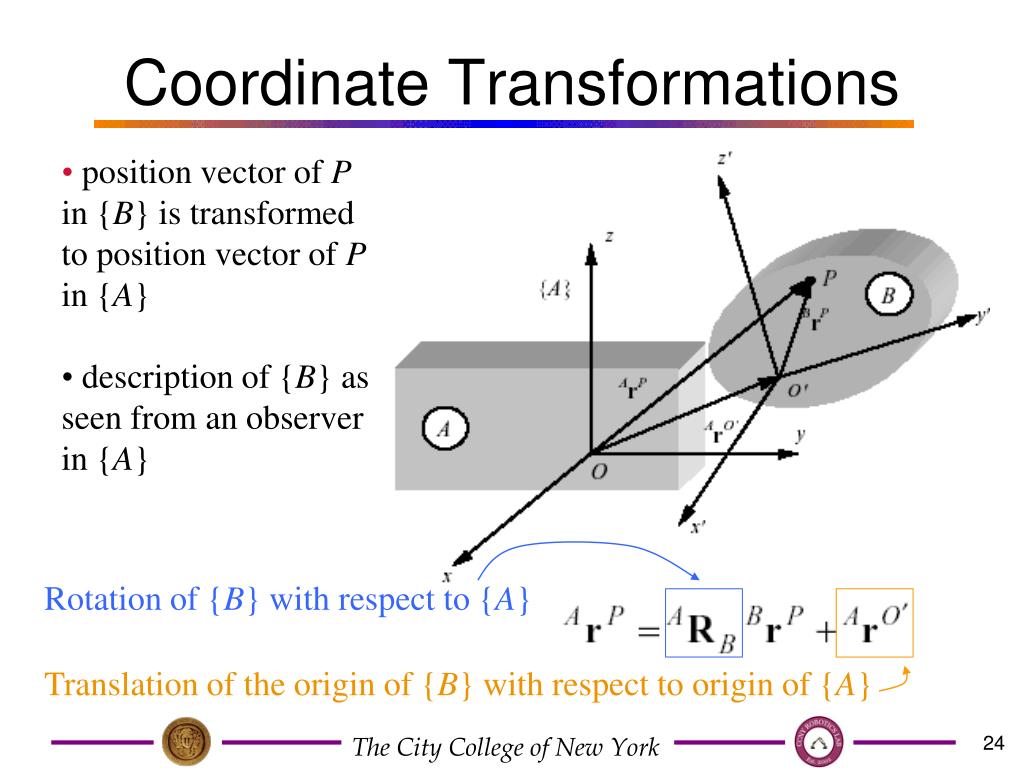

  24. Coordinate Transformations • position vector of P in {B} is transformed to position vector of P in {A} • description of {B} as seen from an observer in {A} Rotation of {B} with respect to {A} Translation of the origin of {B} with respect to origin of {A}

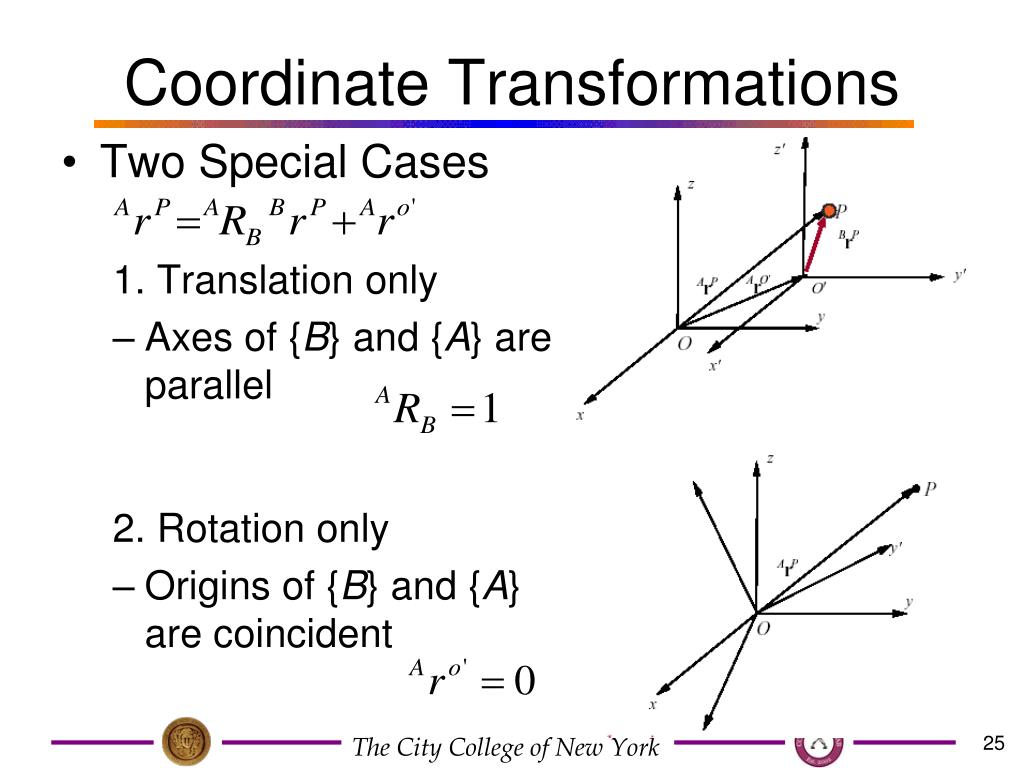

  25. Coordinate Transformations • Two Special Cases 1. Translation only • Axes of {B} and {A} are parallel 2. Rotation only • Origins of {B} and {A} are coincident

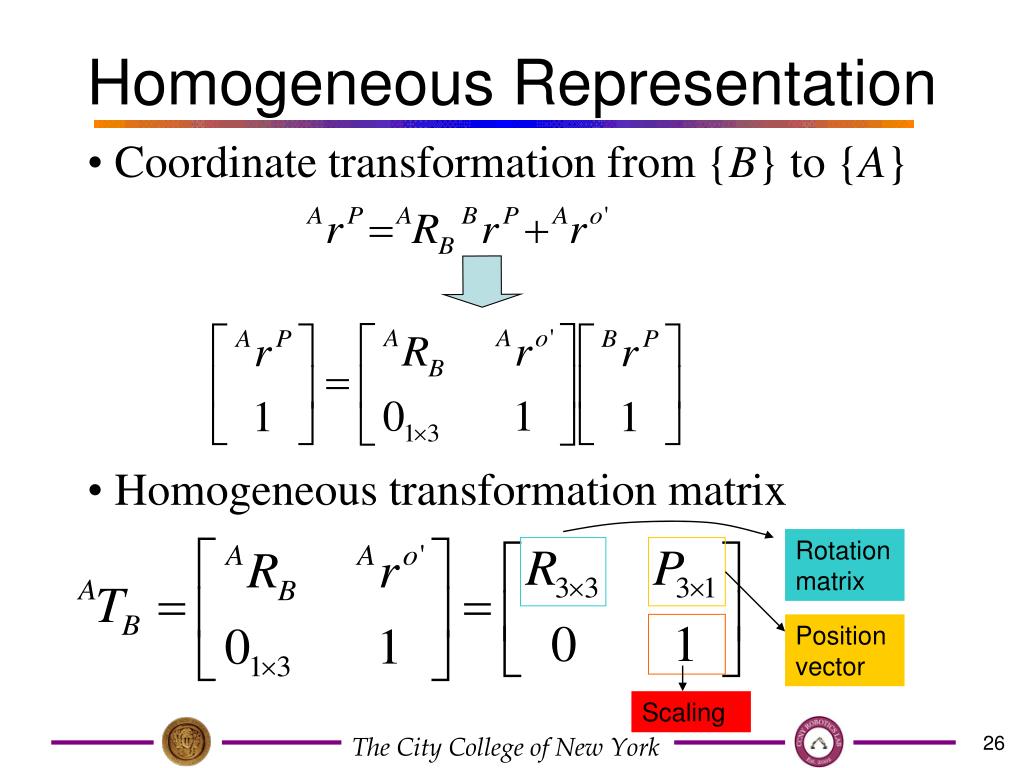

  26. Homogeneous Representation • Coordinate transformation from {B} to {A} • Homogeneous transformation matrix Rotation matrix Position vector Scaling

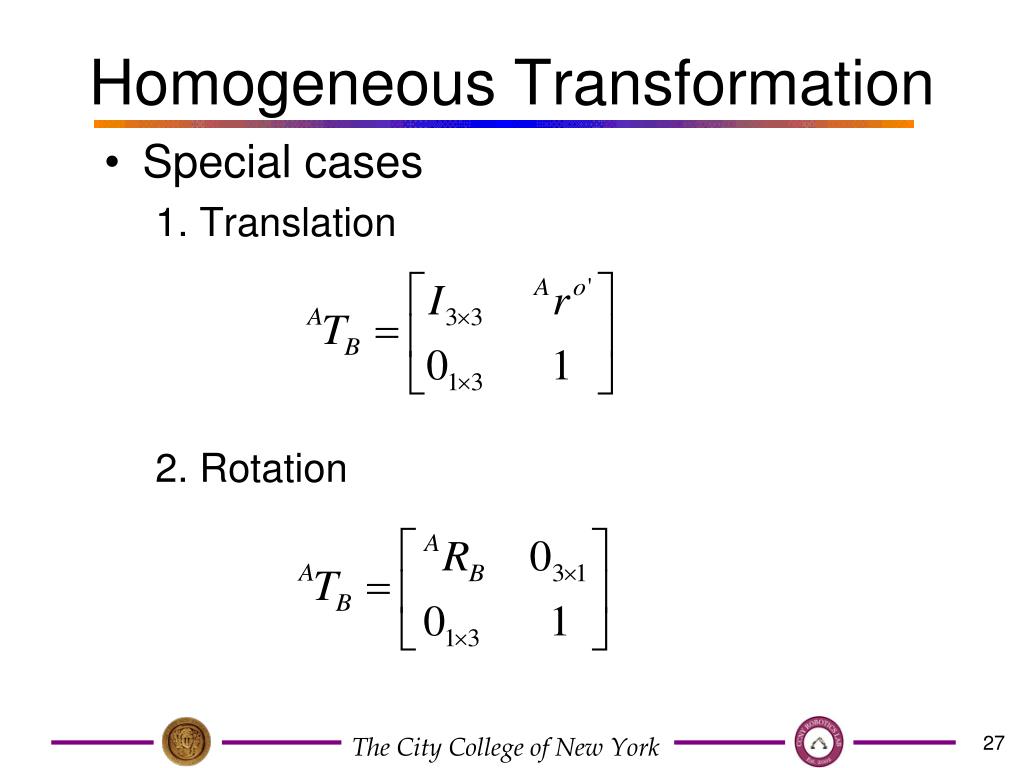

  27. Homogeneous Transformation • Special cases 1. Translation 2. Rotation

  28. O, O’ O, O’ h Example 5 • Translation along Z-axis with h:

  29. Example 6 • Rotation about the X-axis by

  30. Homogeneous Transformation • Composite Homogeneous Transformation Matrix • Rules: • Transformation (rotation/translation) w.r.t (X,Y,Z) (OLD FRAME), using pre-multiplication • Transformation (rotation/translation) w.r.t (U,V,W) (NEW FRAME), using post-multiplication

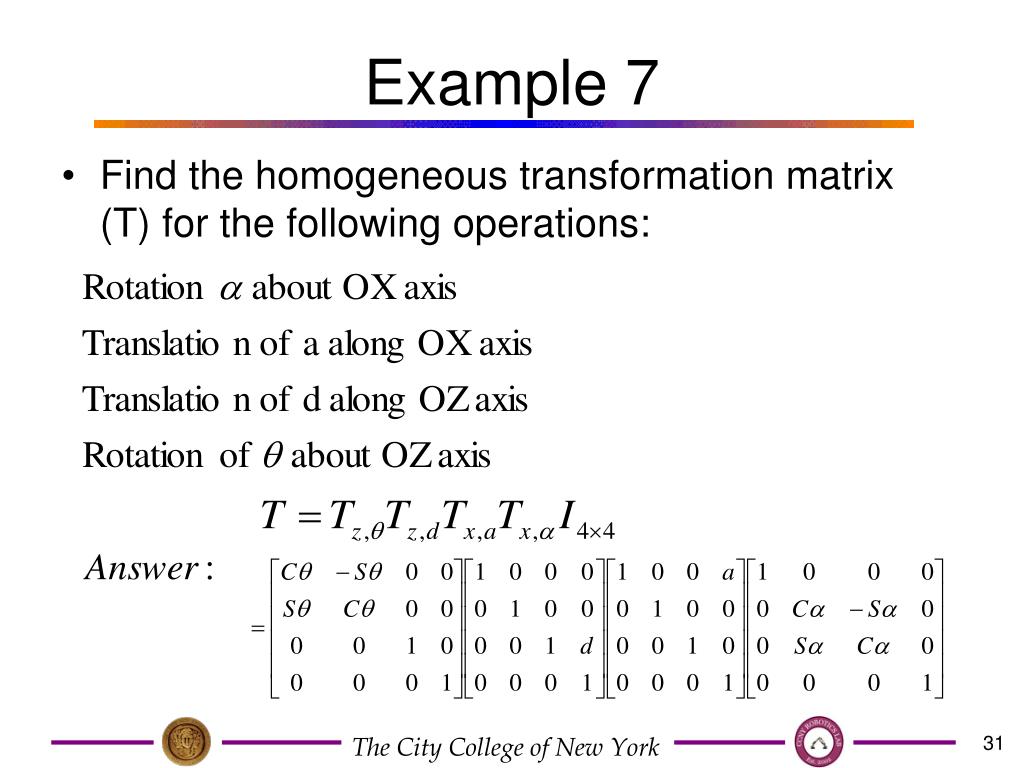

  31. Example 7 • Find the homogeneous transformation matrix (T) for the following operations:

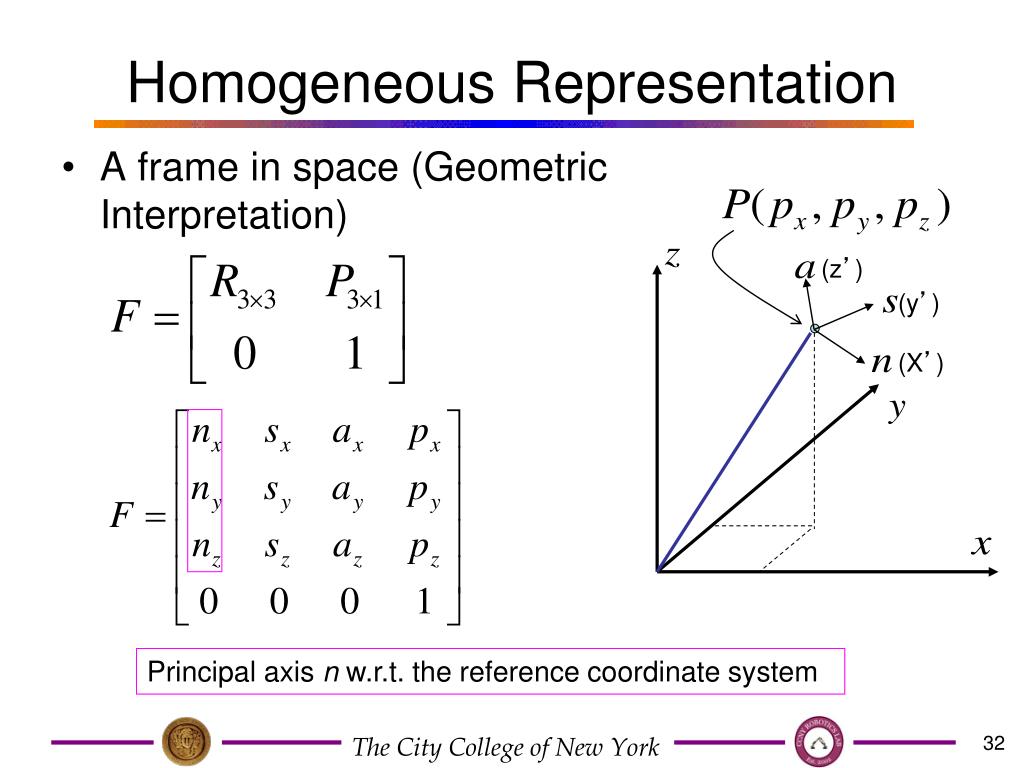

  32. Homogeneous Representation • A frame in space (Geometric Interpretation) (z’) (y’) (X’) Principal axis n w.r.t. the reference coordinate system

  33. Homogeneous Transformation • Translation

  34. ? Homogeneous Transformation Composite Homogeneous Transformation Matrix Transformation matrix for adjacent coordinate frames Chain product of successive coordinate transformation matrices

  35. Example 8 • For the figure shown below, find the 4x4 homogeneous transformation matrices and for i=1, 2, 3, 4, 5 Can you find the answer by observation based on the geometric interpretation of homogeneous transformation matrix?

  36. Orientation Representation • Rotation matrix representation needs 9 elements to completely describe the orientation of a rotating rigid body. • Any easy way? Euler Angles Representation

  37. Euler Angle I Euler Angle II Roll-Pitch-Yaw Sequence about OZ axis about OZ axis about OX axis of about OU axis about OV axis about OY axis Rotations about OW axis about OW axis about OZ axis Orientation Representation • Euler Angles Representation ( , , ) • Many different types • Description of Euler angle representations

  38. Euler Angle I, Animated w'= z w'"= w" f v'" v "  v' y u'"  u' =u" x

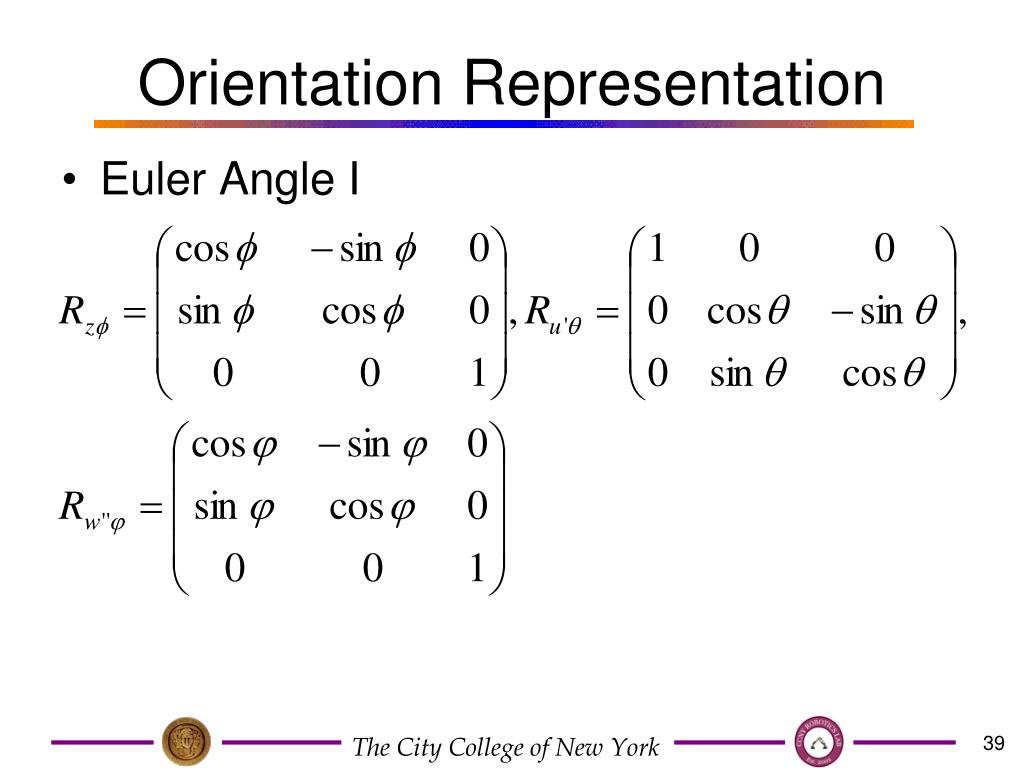

  39. Orientation Representation • Euler Angle I

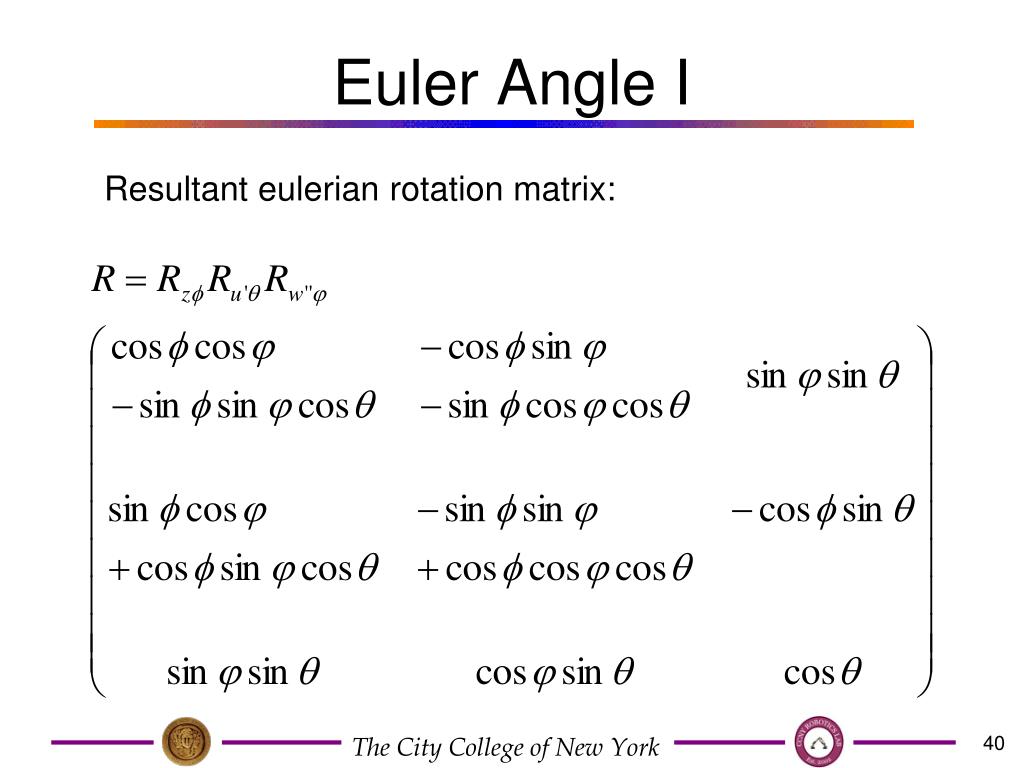

  40. Euler Angle I Resultant eulerian rotation matrix:

  41. Euler Angle II, Animated w'= z w" w"'=  v"'  v' =v"  y u"' u" Note the opposite (clockwise) sense of the third rotation, f. u' x

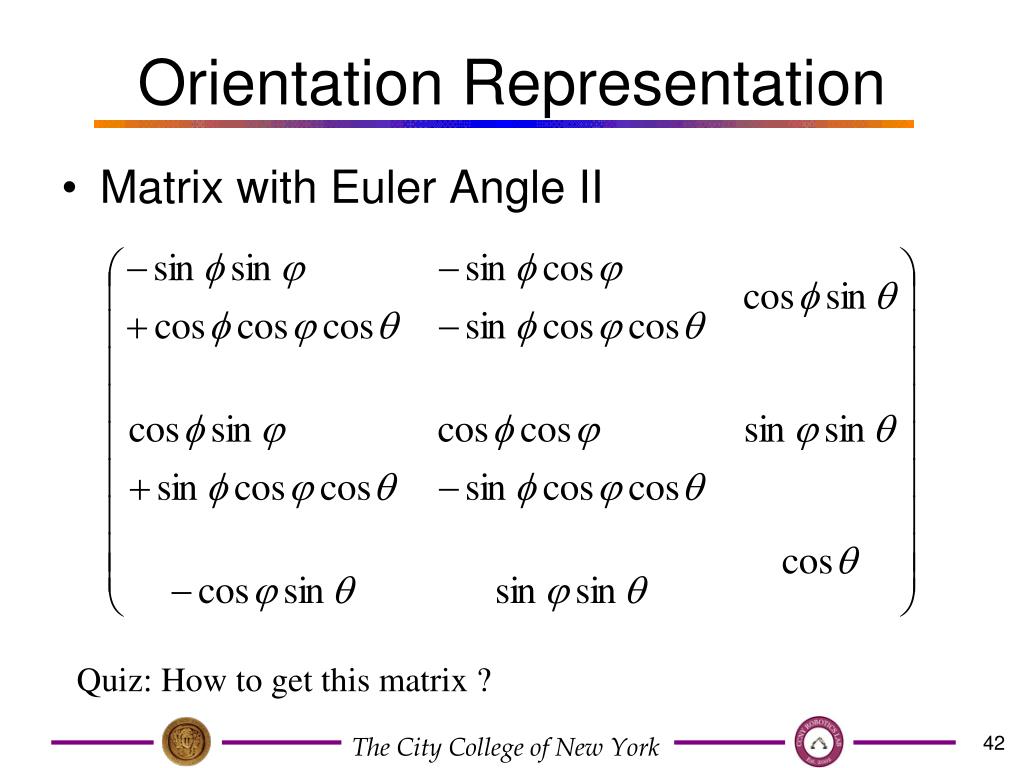

  42. Orientation Representation • Matrix with Euler Angle II Quiz: How to get this matrix ?

  43. Orientation Representation • Description of Roll Pitch Yaw Z Y X Quiz: How to get rotation matrix ?

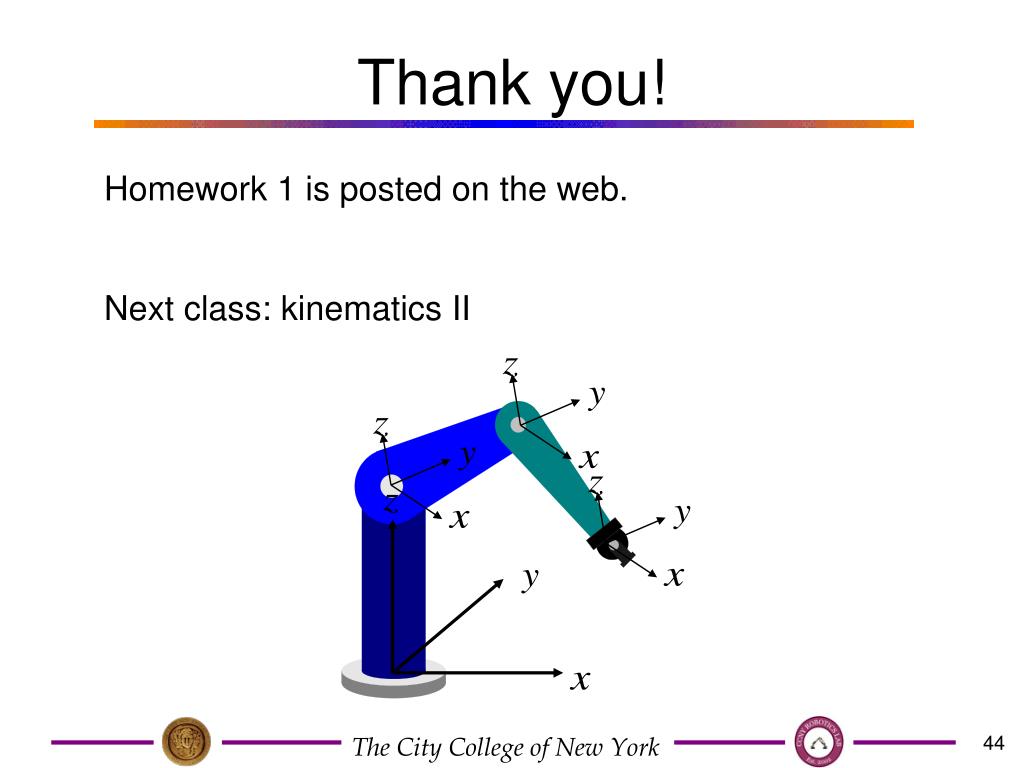

  44. Thank you! Homework 1 is posted on the web. Next class: kinematics II
