Robot Dynamics – The Action of a Manipulator When Forced

1. Robot Dynamics – The Action of a Manipulator When Forced ME 4135 Fall 2011 R. R. Lindeke, Ph. D.

2. We will examine two approaches to this problem • Euler – Lagrange Approach: • Develops a “Lagrangian Function” which relates Kinetic and Potential Energy of the manipulator thus dealing with the manipulator “As a Whole” in building force/torque equations • Newton – Euler Approach: • This approach tries to separate the effects of each link by writing down its motion as a linear and angular motion. But due to the highly coupled motions it requires a forward recursion through the manipulator for building velocity and acceleration models followed by a backward recursion for force and torque

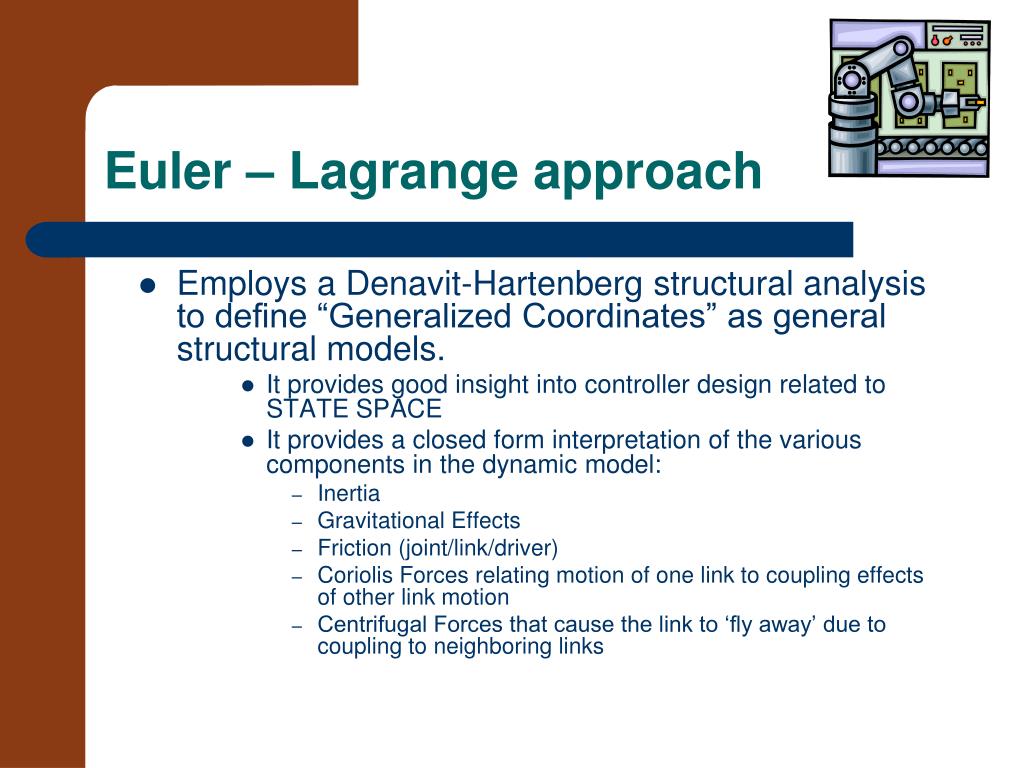

3. Euler – Lagrange approach • Employs a Denavit-Hartenberg structural analysis to define “Generalized Coordinates” as general structural models. • It provides good insight into controller design related to STATE SPACE • It provides a closed form interpretation of the various components in the dynamic model: • Inertia • Gravitational Effects • Friction (joint/link/driver) • Coriolis Forces relating motion of one link to coupling effects of other link motion • Centrifugal Forces that cause the link to ‘fly away’ due to coupling to neighboring links

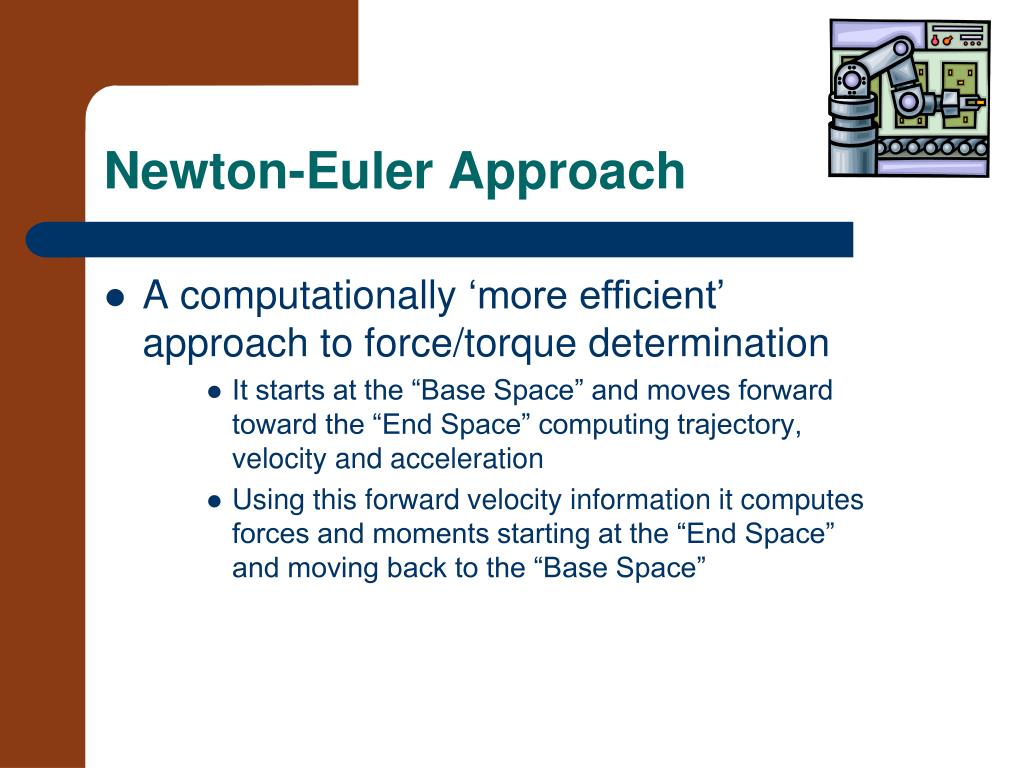

4. Newton-Euler Approach • A computationally ‘more efficient’ approach to force/torque determination • It starts at the “Base Space” and moves forward toward the “End Space” computing trajectory, velocity and acceleration • Using this forward velocity information it computes forces and moments starting at the “End Space” and moving back to the “Base Space”

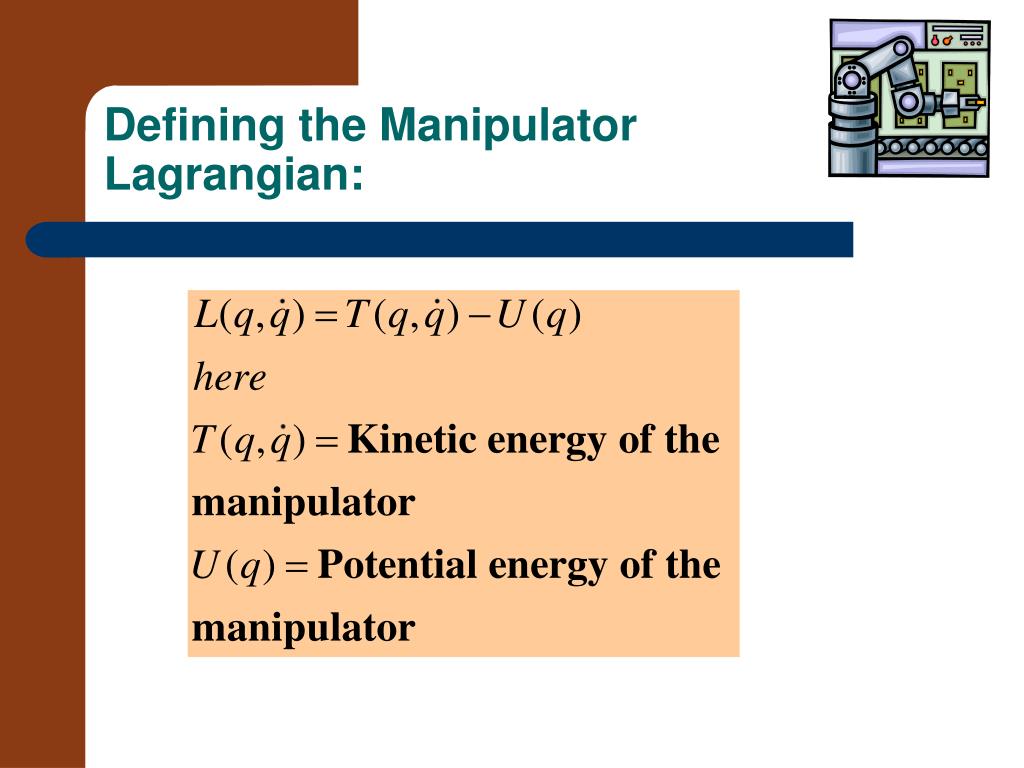

5. Defining the Manipulator Lagrangian:

6. Generalized Equation of Motion of the Manipulator: Fi is the Generalized Force acting on Link i

7. Starting Generalized Equation Solution • We begin with focus on the Kinetic energy term (the hard one!) • Remembering from physics: • K. Energy = ½ mV2 • Lets define for the Center of Mass of a Link ‘K’:

8. Rewriting the Kinetic Energy Term: • mK is Link Mass • DK is a 3x3 Inertial Tensor of Link K about its center of mass expressed WRT the base frame which characterizes mass distribution of a rigid object

9. Focusing on DK: Looking at a(ny) link

10. For this Link: DC is its Inertial Tensor About it Center of Mass • In General:

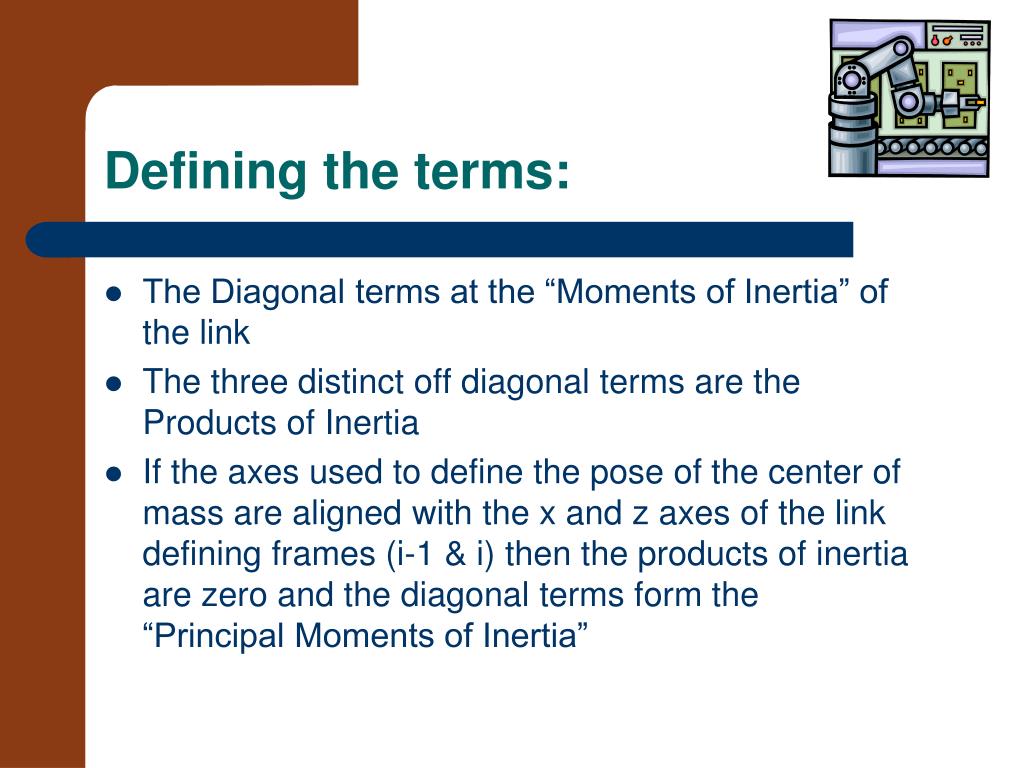

11. Defining the terms: • The Diagonal terms at the “Moments of Inertia” of the link • The three distinct off diagonal terms are the Products of Inertia • If the axes used to define the pose of the center of mass are aligned with the x and z axes of the link defining frames (i-1 & i) then the products of inertia are zero and the diagonal terms form the “Principal Moments of Inertia”

12. Continuing after this simplification:

13. If the Link is a Rectangular Rod (of uniform mass): This is a reasonable approximation for many arms!

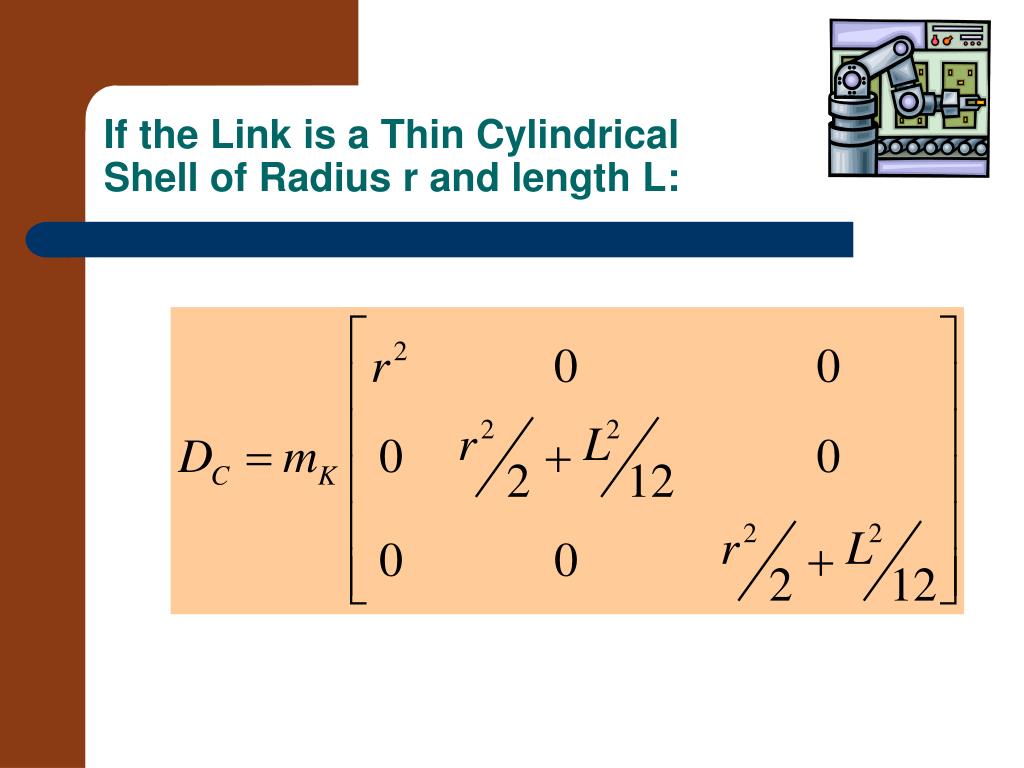

14. If the Link is a Thin Cylindrical Shell of Radius r and length L:

15. Some General Link Shape Moments of Inertia: From: P.J. McKerrow, Introduction to Robotics, Addison-Wesley, 1991.

16. We must now Transform each link’s Dc • Dc must be defined in the Base Space To add to the Lagrangian Solution for kinetic energy (we will call it DK): • Where: DK= [0RK*Dc *(0RK)T] • Here 0RKis the rotational sub-matrix defining the Link frame K (at the end of the link!) to the base space -- thinking back to the DH ideas

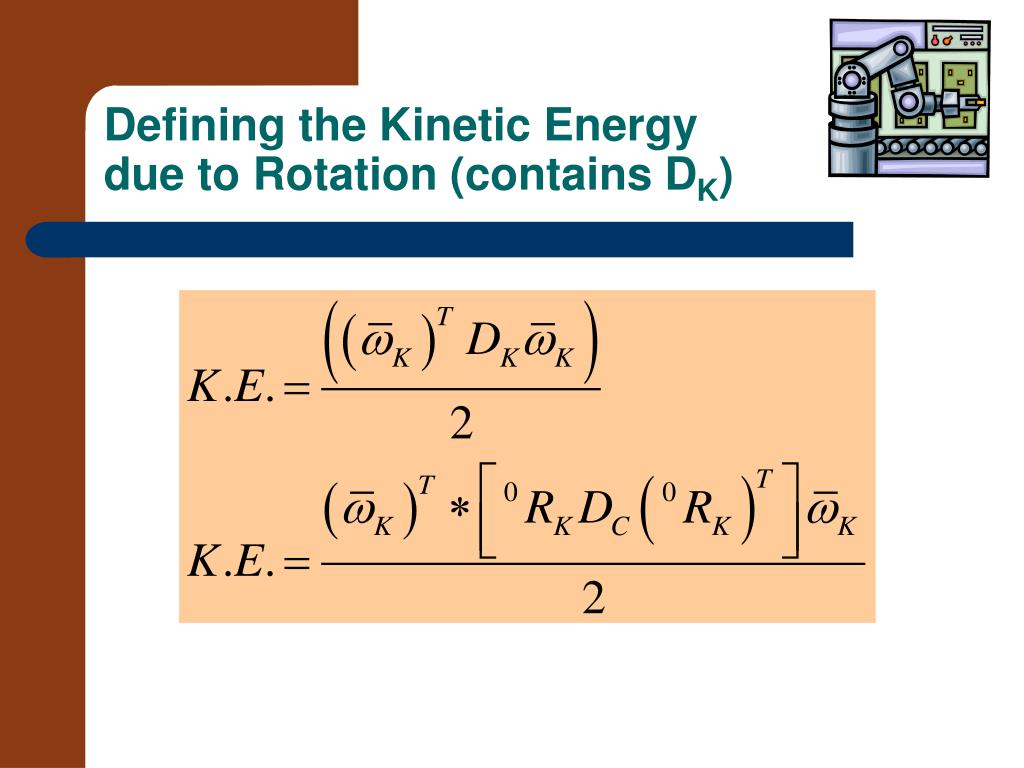

17. Defining the Kinetic Energy due to Rotation (contains DK)

18. Completing our models of Kinetic Energy: • Remembering:

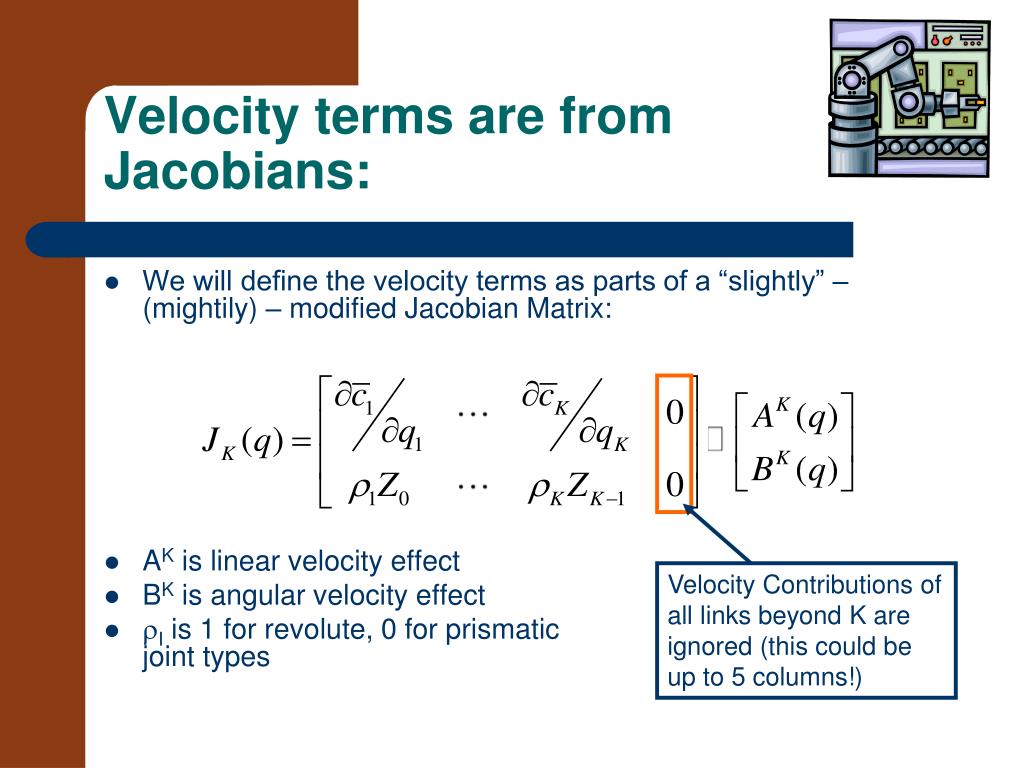

19. Velocity terms are from Jacobians: • We will define the velocity terms as parts of a “slightly” – (mightily) – modified Jacobian Matrix: • AK is linear velocity effect • BK is angular velocity effect • I is 1 for revolute, 0 for prismaticjoint types Velocity Contributions of all links beyond K are ignored (this could be up to 5 columns!)

20. Focusing on in the modified jacobian • This is a generalized coordinate of the center of mass of a link • It is given by: A Matrix that essentially strips off the bottom row of the solution

21. Re-Writing K. Energy for the ARM:

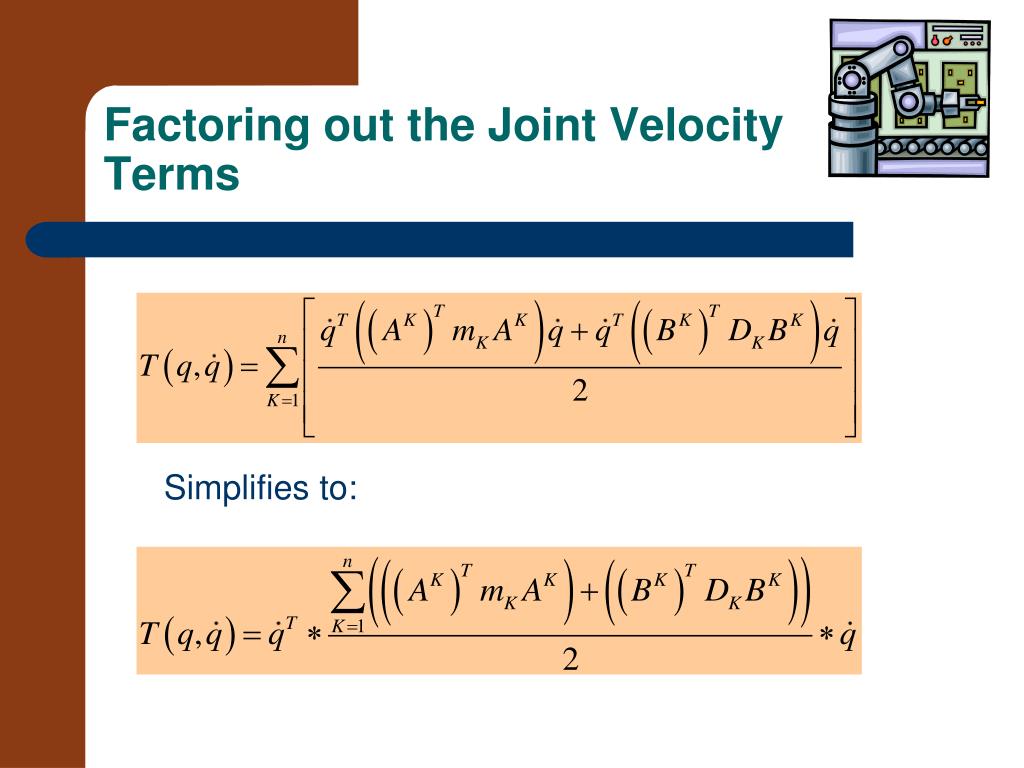

22. Factoring out the Joint Velocity Terms Simplifies to:

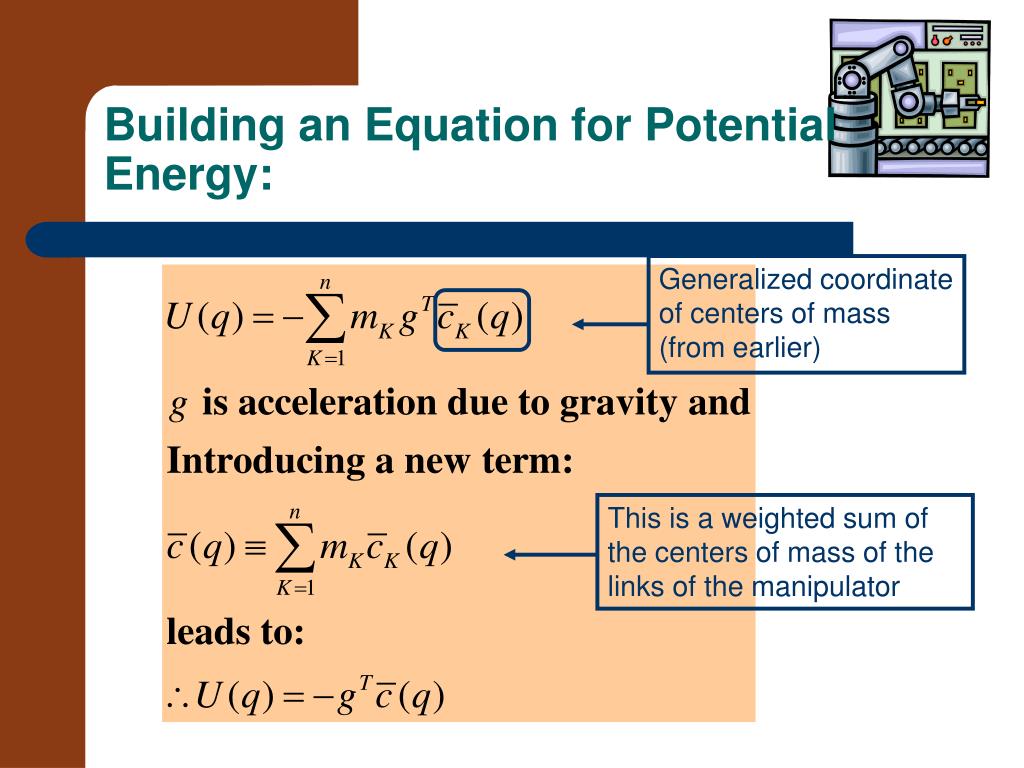

23. Building an Equation for Potential Energy: Generalized coordinate of centers of mass (from earlier) This is a weighted sum of the centers of mass of the links of the manipulator

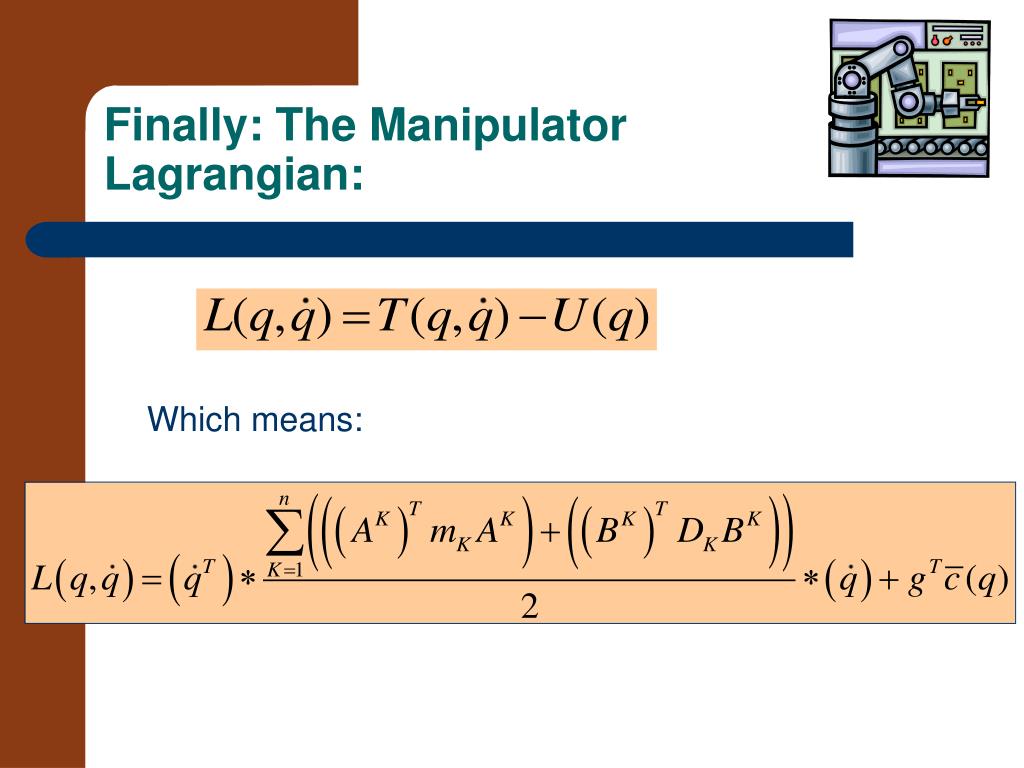

24. Finally: The Manipulator Lagrangian: Which means:

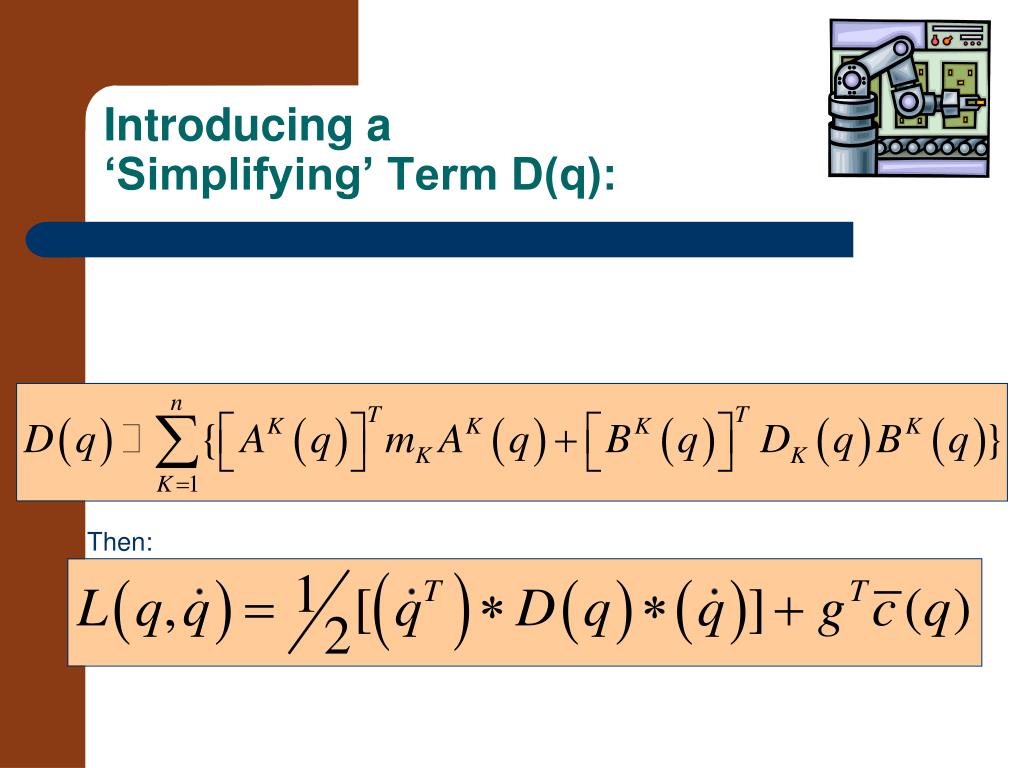

25. Introducing a ‘Simplifying’ Term D(q): Then:

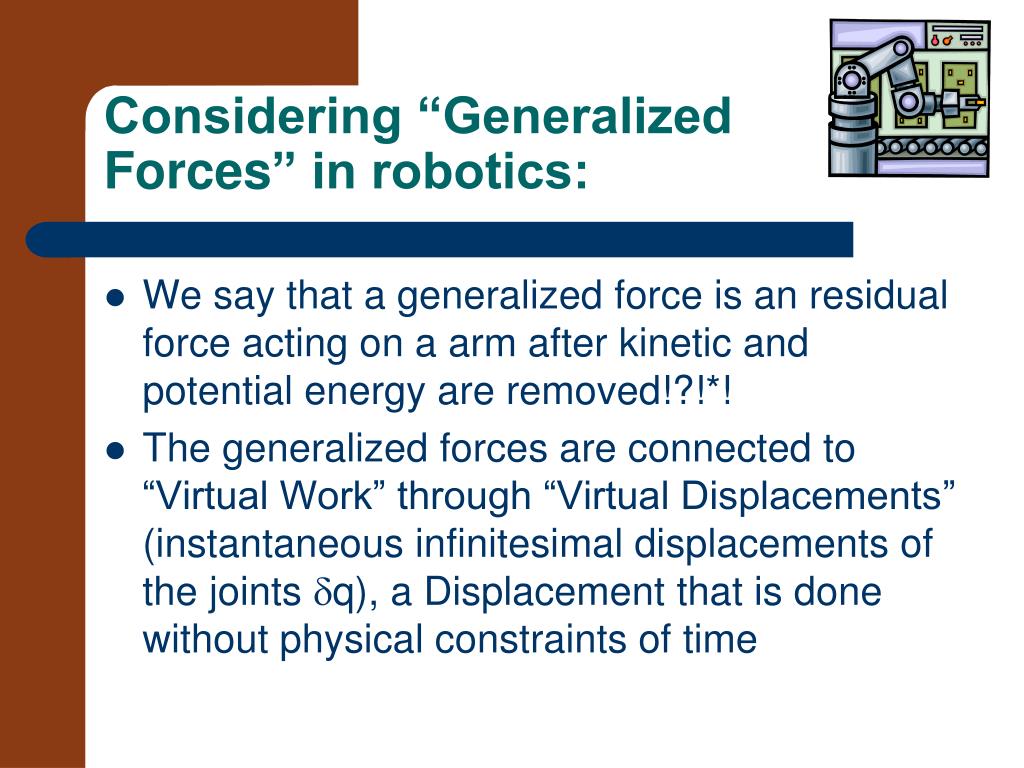

26. Considering “Generalized Forces” in robotics: • We say that a generalized force is an residual force acting on a arm after kinetic and potential energy are removed!?!*! • The generalized forces are connected to “Virtual Work” through “Virtual Displacements” (instantaneous infinitesimal displacements of the joints q), a Displacement that is done without physical constraints of time

27. Generalized Forces on a Manipulator • We will consider in detail two (of the readily identified three): • Actuator Force (torque) → • Frictional Effects → • Tool Forces →

28. Examining Friction – in detail • Defining a Generalized Coefficient of Friction for a link: C. Viscous Friction C. Dynamic Friction C. Static Friction

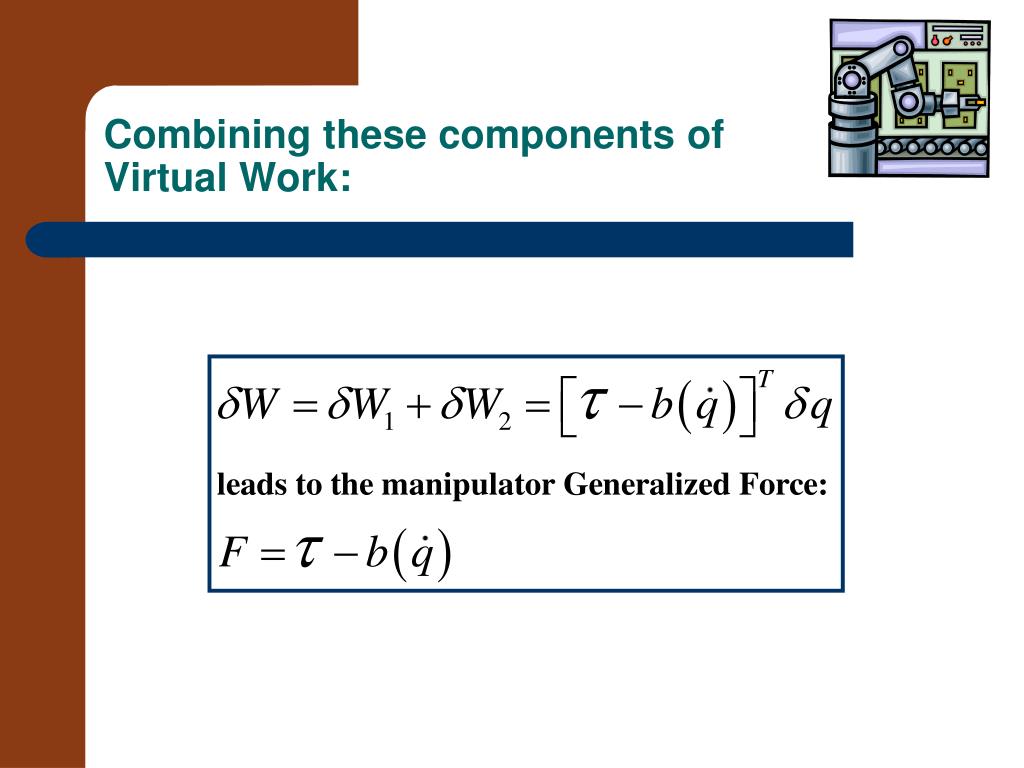

29. Combining these components of Virtual Work:

30. Building a General L-E Dynamic Model • Remembering: Starting with this term

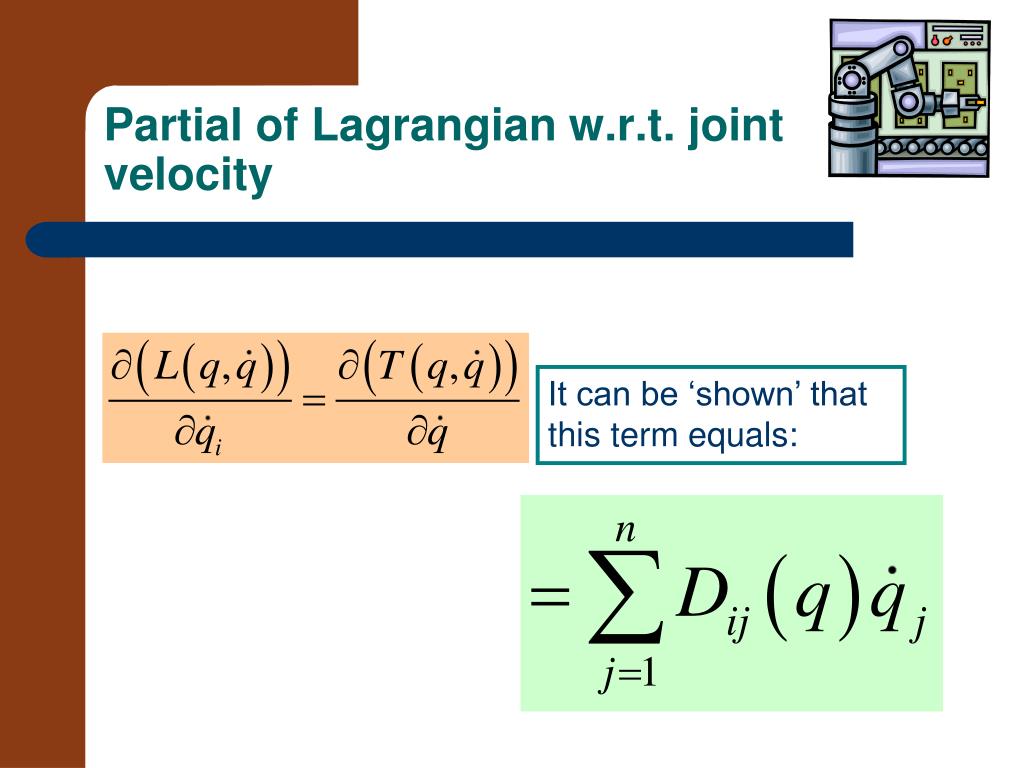

31. Partial of Lagrangian w.r.t. joint velocity It can be ‘shown’ that this term equals:

32. Completing the 1st Term: This is found to equal:

33. Completing this 1st term of the L-E Dynamic Model:

34. Looking at the 2nd Term: This term can be shown to be:

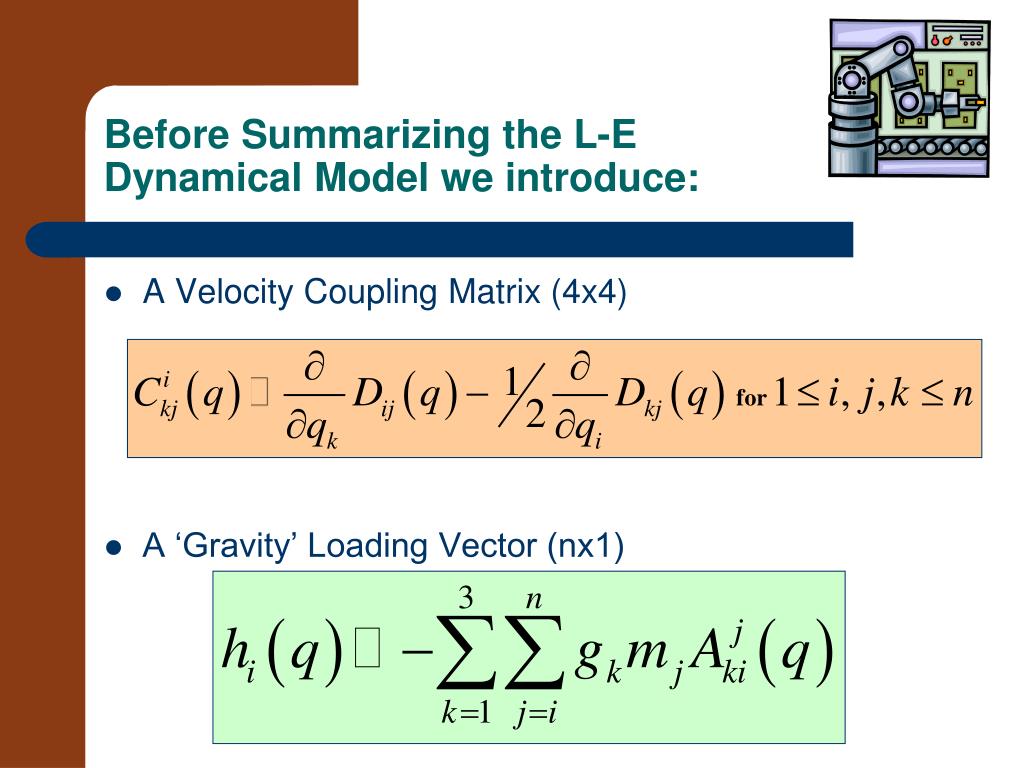

35. Before Summarizing the L-E Dynamical Model we introduce: • A Velocity Coupling Matrix (4x4) • A ‘Gravity’ Loading Vector (nx1)

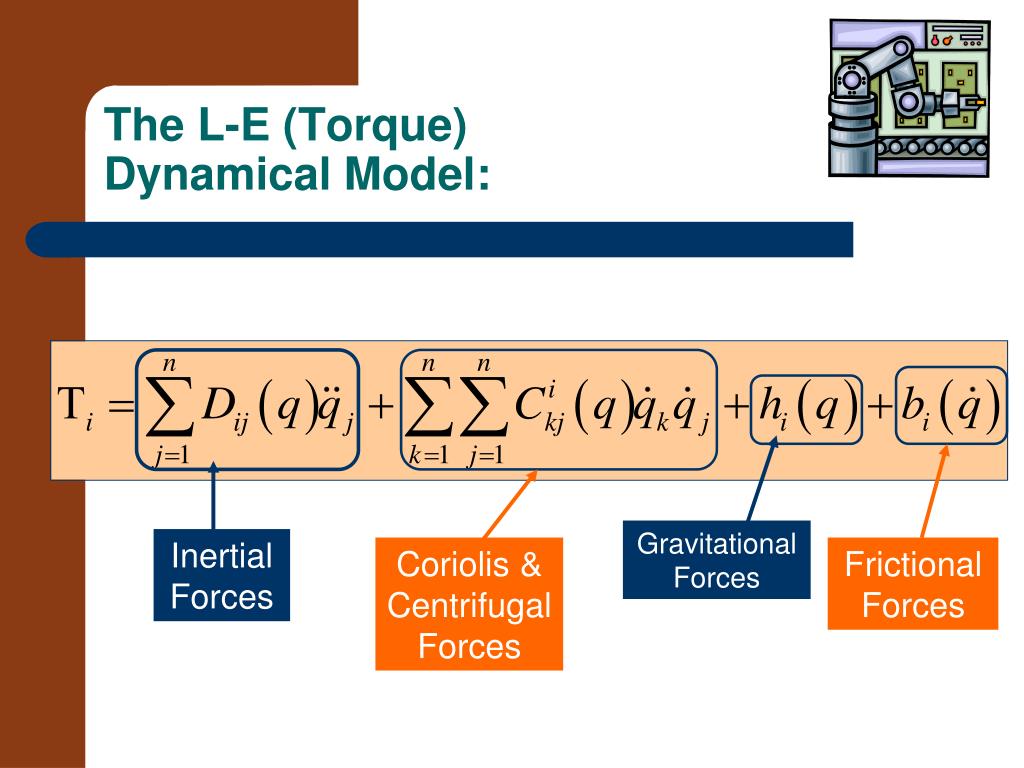

36. The L-E (Torque) Dynamical Model: Gravitational Forces Inertial Forces Coriolis & Centrifugal Forces Frictional Forces
