Implicit Probabilistic Models of Human Motion for Synthesis and Tracking

This paper presents a probabilistic model for the synthesis and tracking of human motion using a recursive Bayesian formulation. The model incorporates non-linear motion with strong dependencies and uses a tree structure sorted with PCA coefficients for efficient search. It demonstrates the use of texture synthesis and motion examples to generate smooth and plausible-looking motion. The model can be applied to various motions in a database without the need for learning, making it suitable for stochastic search and Bayesian tracking.

nease
Télécharger la présentation

Implicit Probabilistic Models of Human Motion for Synthesis and Tracking

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

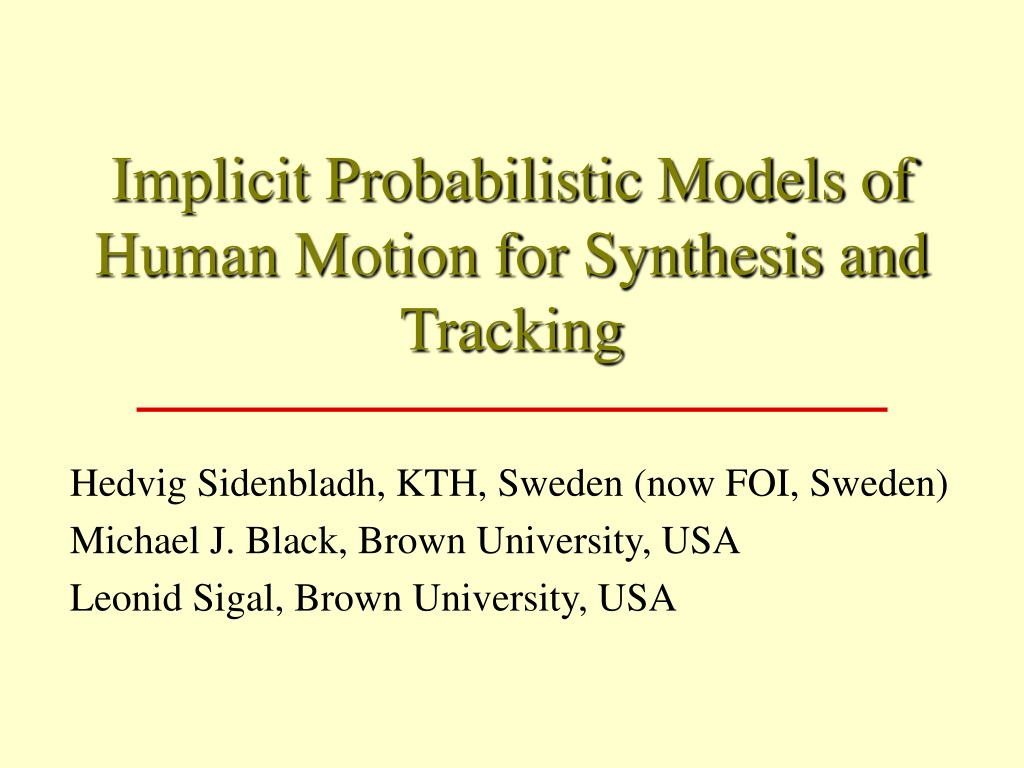

  1. Implicit Probabilistic Models of Human Motion for Synthesis and Tracking Hedvig Sidenbladh, KTH, Sweden (now FOI, Sweden) Michael J. Black, Brown University, USA Leonid Sigal, Brown University, USA

  2.  = model parameters I = image Recursive Bayesian formulation: Articulated 3D tracking

  3. Non-linear motion, strong dependencies Extreme case Modeling Human Motion • Model dependencies analytically • e.g. [Hogg, Rohr] for walking • Dynamical models • e.g. [Wren&Pentland , Bruderlin&Calvert] • Learn from Mocap examples • e.g. [Bowden, Brand, Molina&Hilton]

  4. Texture Synthesis Synthetic Texture “Database” • e.g. [De Bonnet&Viola, Efros&Leung, Efros&Freeman, Paztor&Freeman, Hertzmann et al] • Image(s) as an implicit probabilistic model. Efros & Freeman’01

  5. Motion Texture • Motion examples as an implicit probabilistic model.

  6. Sampling from , taking t = i Sampling from Database example i Generative model: Problem:Model for all motions i in the database! Probabilistic Formulation No learning required, all the variability in the data captured.

  7. joint angles • No need to visit all database examples - only need to sample from distribution • Sort into tree-structure according to PCA coefficients time c =[c1, c2,c3,c4] Probabilistic Database Search • Sort database in some way to enable search in sublinear time • Linear search infeasible for large database!

  8. Probabilistic Database Search Each level in the tree corresponds to one coefficient l. Sort examples i into tree: Left subtree for negative value of cl,i, right for positive value.

  9. Approximated by sampling from tree iteratively: Probabilistic Database Search

  10. Synthesis Goal:Generate smooth and plausible-looking motion. Running Walking Small database with running, walking, skipping, dance etc. Changing color indicates new example sequence. Future work: Add editing possibility, gravity model, goal function.

  11. Tracking Goal:Efficiently generate samples (image data will sort out which are good). Temperature parameter controls randomness of tree search.

  12. Arm Tracking Example 1000 samples ~1 min/frame Image likelihood model from [Sidenbladh & Black, ICCV 01] Constant velocity model Example based model

  13. ”Mocap Soup” [Cohen] at SIGGRAPH 02 • Arikan & Forsyth. Interactive motion generation from examples • Li et al. Motion textures: A two-level statistical model for character motion synthesis • Lee et al. Interactive control of avatars animated with human motion data • Kovar et al. Motion graphs • Pullen & Bregler. Motion capture assisted animation: Texturing and synthesis Here we formulate a probabilistic model suitable for stochastic search search and Bayesian tracking.

  14. Probabilistic tree search - sampling from the tree approximates sampling from Conclusions • Implicit motion model - replace learning with search • Analog to example based texture synthesis • Larger database - sub-linear time search • Tree structure sorted with PCA coefficients
