  1. One Flange Doesn’t Fit All: SS Flange Selection for Industrial Piping Systems

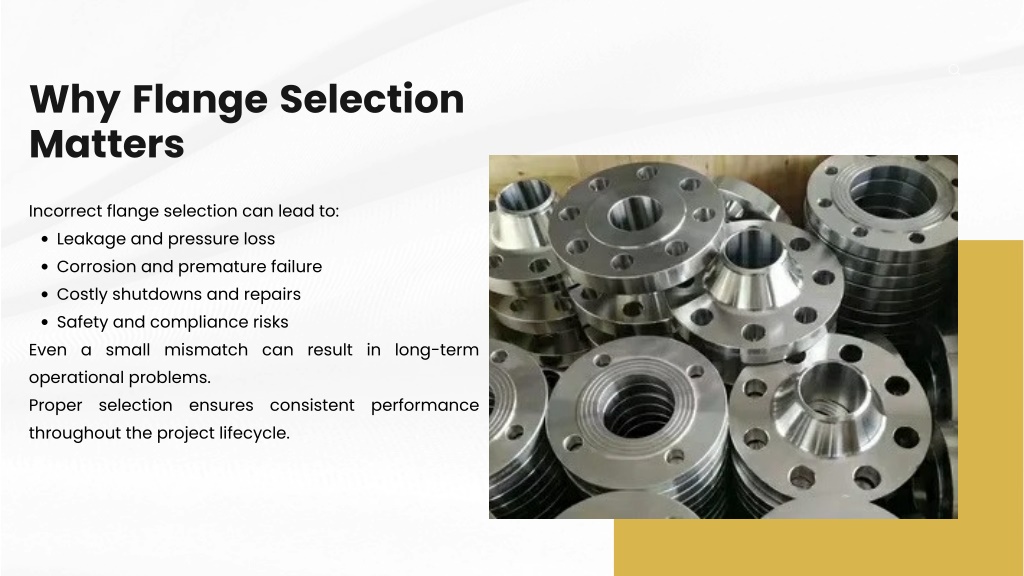

  2. Why Flange Selection Matters Incorrect flange selection can lead to: Leakage and pressure loss Corrosion and premature failure Costly shutdowns and repairs Safety and compliance risks Even a small mismatch can result in long-term operational problems. Proper selection ensures consistent performance throughout the project lifecycle.

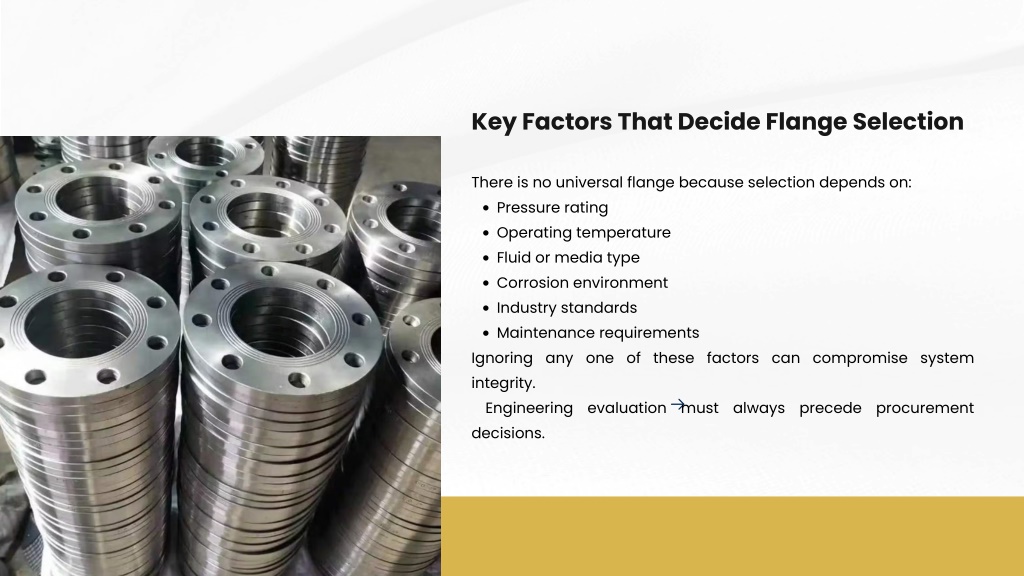

  3. Key Factors That Decide Flange Selection There is no universal flange because selection depends on: Pressure rating Operating temperature Fluid or media type Corrosion environment Industry standards Maintenance requirements Ignoring any one of these factors can compromise system integrity. Engineering evaluation must always precede procurement decisions.

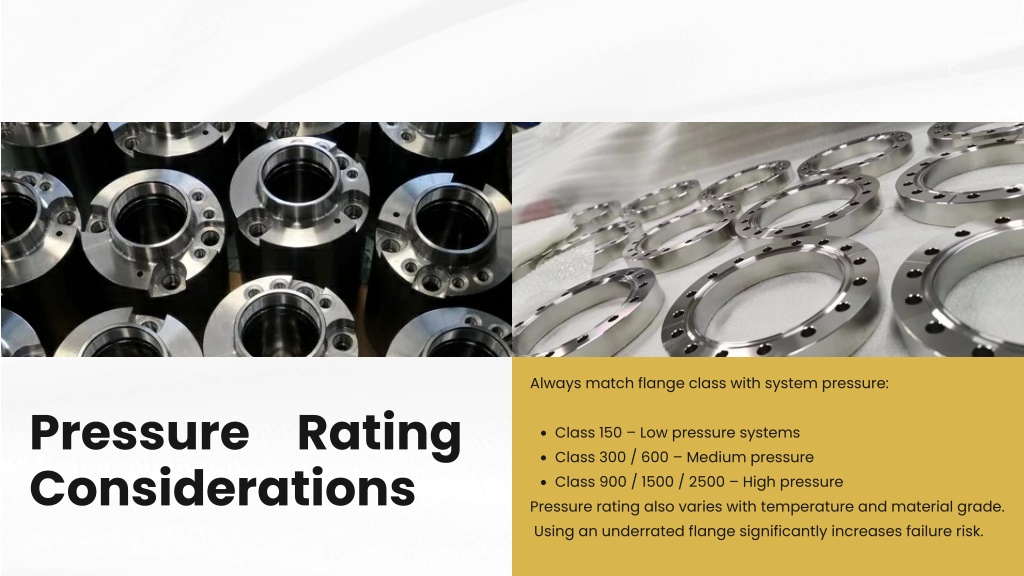

  4. Always match flange class with system pressure: Pressure Rating Considerations Class 150 – Low pressure systems Class 300 / 600 – Medium pressure Class 900 / 1500 / 2500 – High pressure Pressure rating also varies with temperature and material grade. Using an underrated flange significantly increases failure risk.

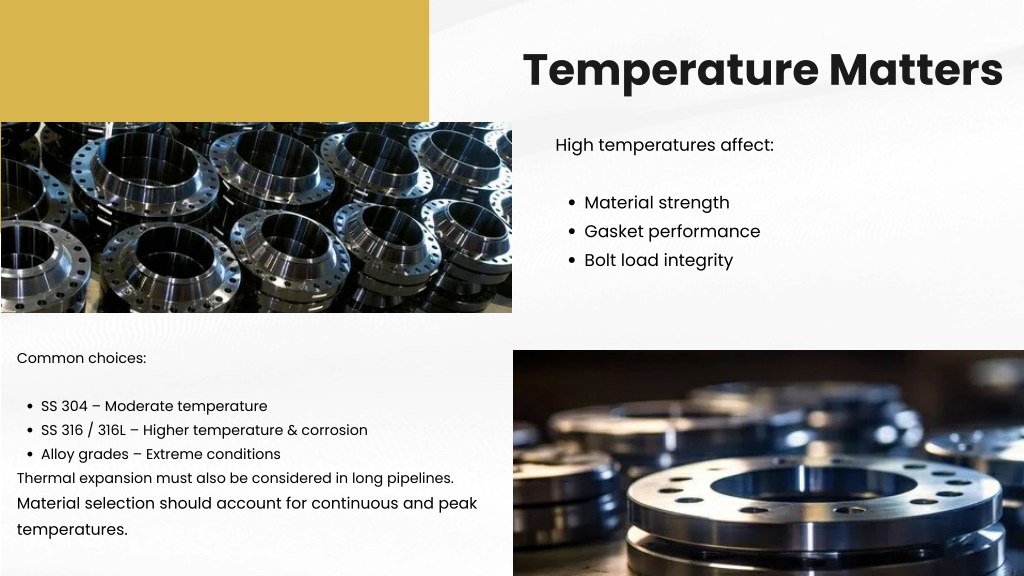

  5. Temperature Matters High temperatures affect: Material strength Gasket performance Bolt load integrity Common choices: SS 304 – Moderate temperature SS 316 / 316L – Higher temperature & corrosion Alloy grades – Extreme conditions Thermal expansion must also be considered in long pipelines. Material selection should account for continuous and peak temperatures.

  6. Media & Corrosion Resistance The fluid inside the pipeline decides the grade: Water & air → SS 304 Chemicals & seawater → SS 316 / 316L Acids & aggressive media → Duplex / Super Duplex Chemical composition directly affects corrosion resistance. Selecting the wrong grade can reduce flange life drastically.

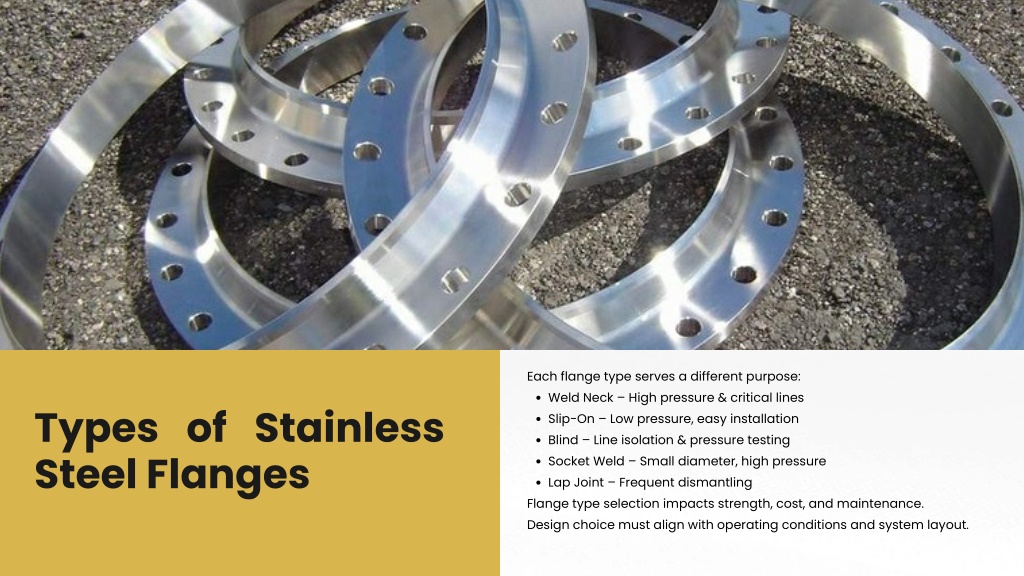

  7. Each flange type serves a different purpose: Weld Neck – High pressure & critical lines Slip-On – Low pressure, easy installation Blind – Line isolation & pressure testing Socket Weld – Small diameter, high pressure Lap Joint – Frequent dismantling Flange type selection impacts strength, cost, and maintenance. Design choice must align with operating conditions and system layout. Types of Stainless Steel Flanges

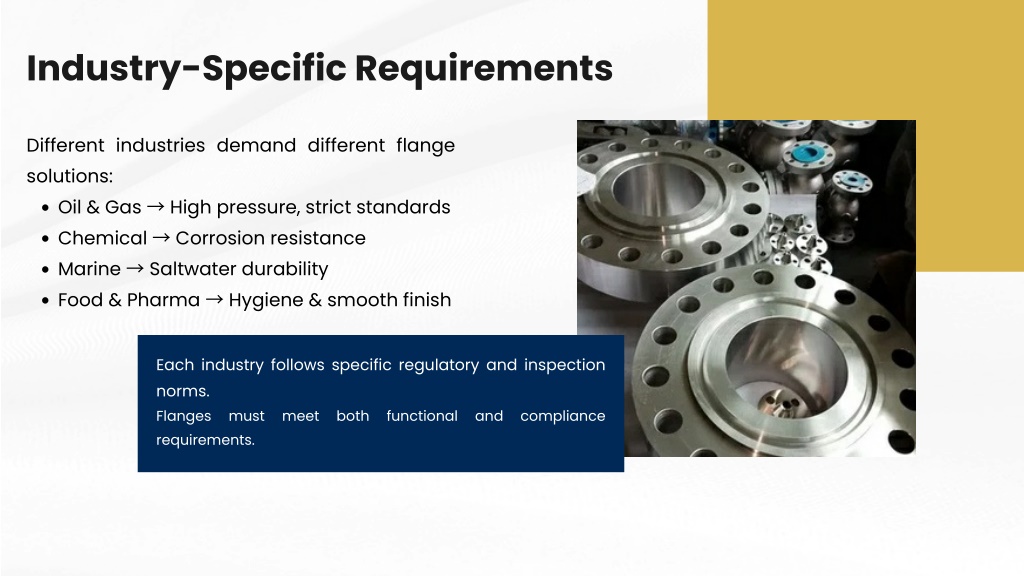

  8. Industry-Specific Requirements Different industries demand different flange solutions: Oil & Gas → High pressure, strict standards Chemical → Corrosion resistance Marine → Saltwater durability Food & Pharma → Hygiene & smooth finish Each industry follows specific regulatory and inspection norms. Flanges must meet both requirements. functional and compliance

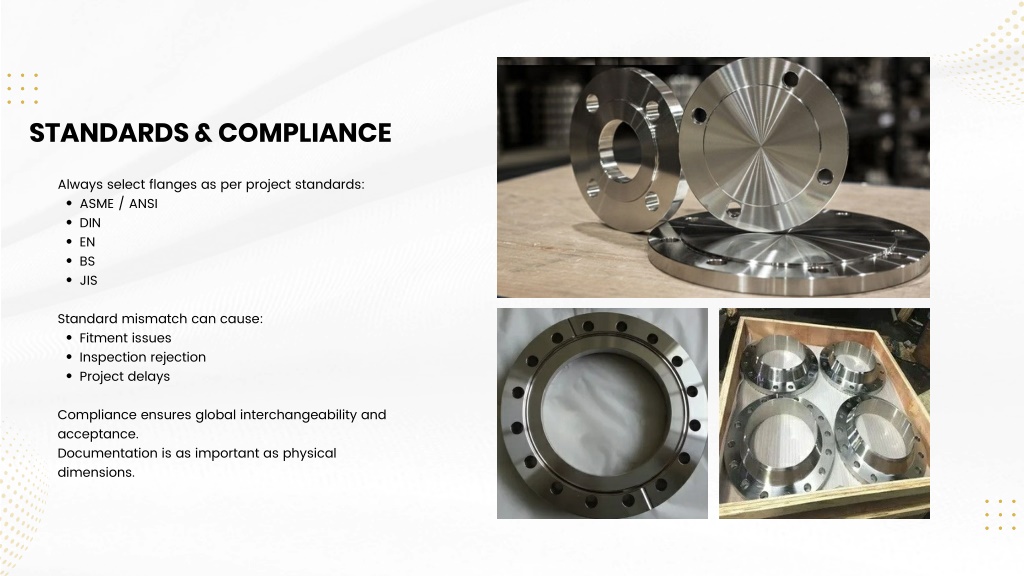

  9. STANDARDS & COMPLIANCE Always select flanges as per project standards: ASME / ANSI DIN EN BS JIS Standard mismatch can cause: Fitment issues Inspection rejection Project delays Compliance ensures global interchangeability and acceptance. Documentation is as important as physical dimensions.

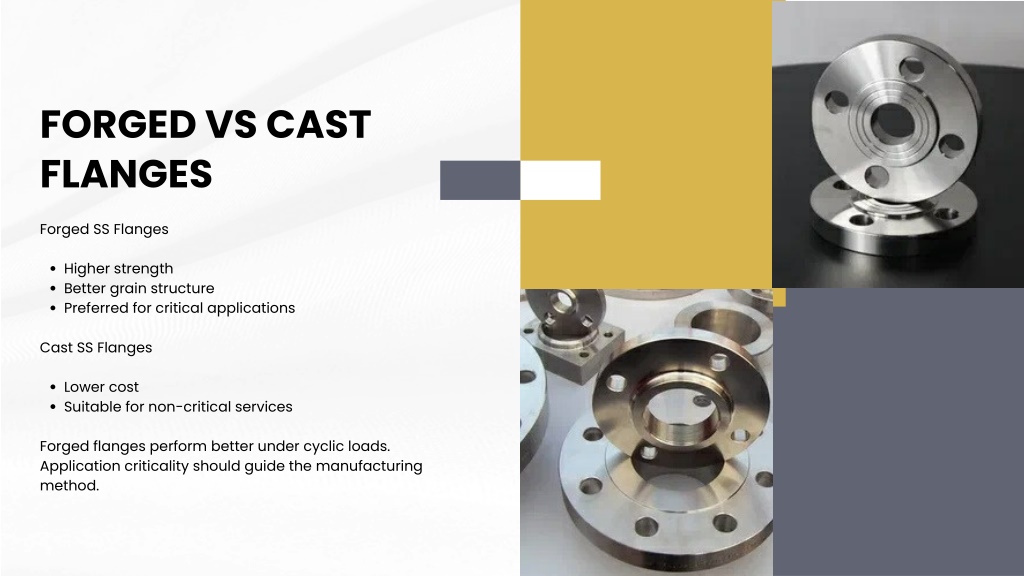

  10. FORGED VS CAST FLANGES Forged SS Flanges Higher strength Better grain structure Preferred for critical applications Cast SS Flanges Lower cost Suitable for non-critical services Forged flanges perform better under cyclic loads. Application criticality should guide the manufacturing method.

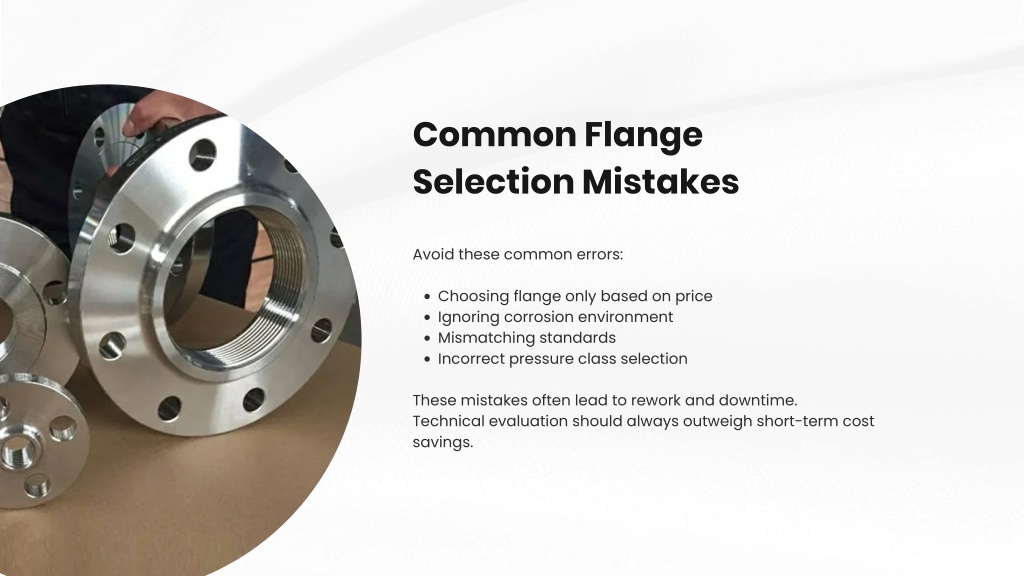

  11. Common Flange Selection Mistakes Avoid these common errors: Choosing flange only based on price Ignoring corrosion environment Mismatching standards Incorrect pressure class selection These mistakes often lead to rework and downtime. Technical evaluation should always outweigh short-term cost savings.

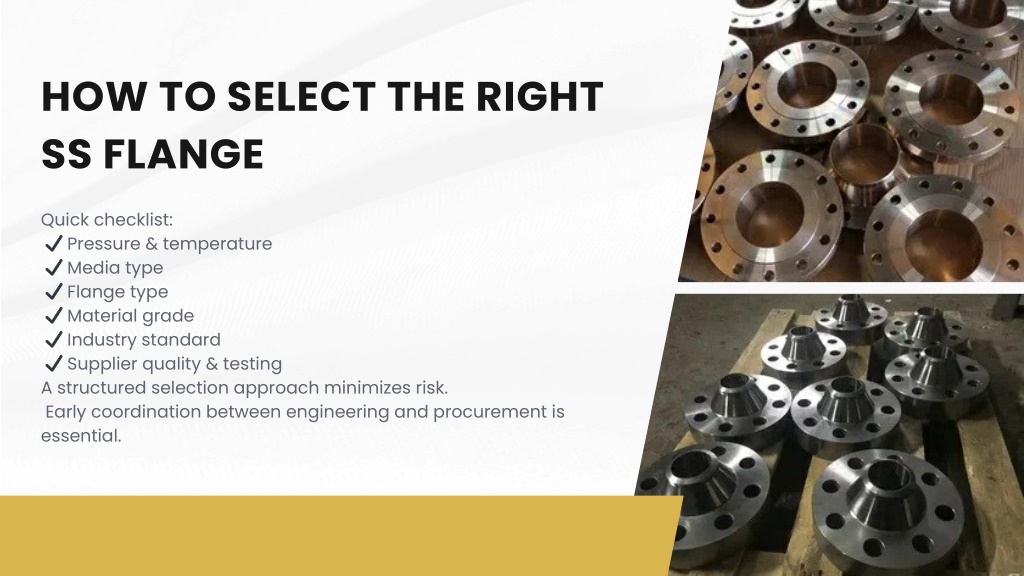

  12. HOW TO SELECT THE RIGHT SS FLANGE Quick checklist: ✔ Pressure & temperature ✔ Media type ✔ Flange type ✔ Material grade ✔ Industry standard ✔ Supplier quality & testing A structured selection approach minimizes risk. Early coordination between engineering and procurement is essential.

  13. Why the Right Manufacturer Matters A reliable manufacturer ensures: Certified raw material Dimensional accuracy Pressure & NDT testing Traceability & documentation Manufacturing quality directly impacts flange performance. Trusted suppliers reduce failure risks and project delays.

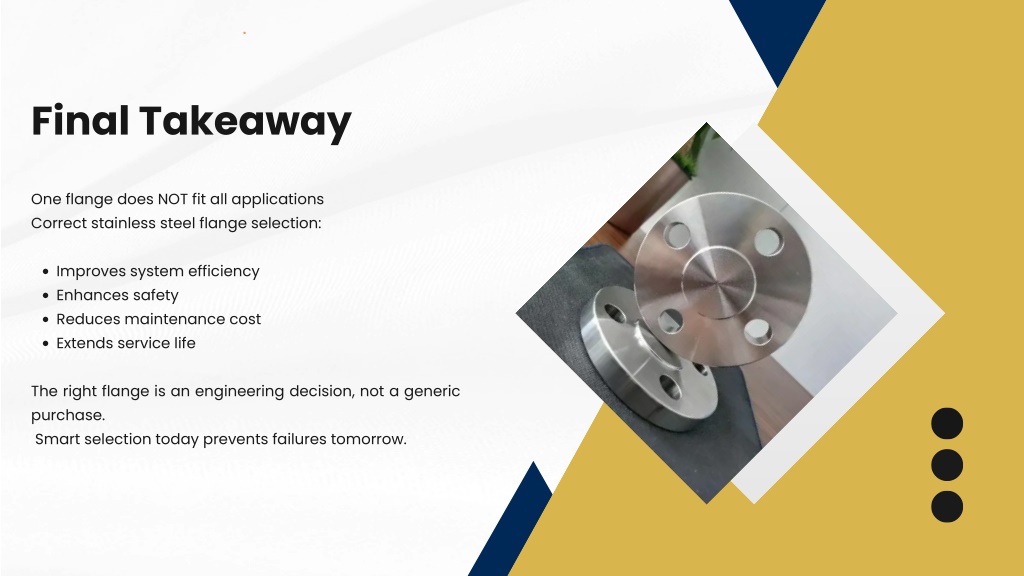

  14. Final Takeaway One flange does NOT fit all applications Correct stainless steel flange selection: Improves system efficiency Enhances safety Reduces maintenance cost Extends service life The right flange is an engineering decision, not a generic purchase. Smart selection today prevents failures tomorrow.

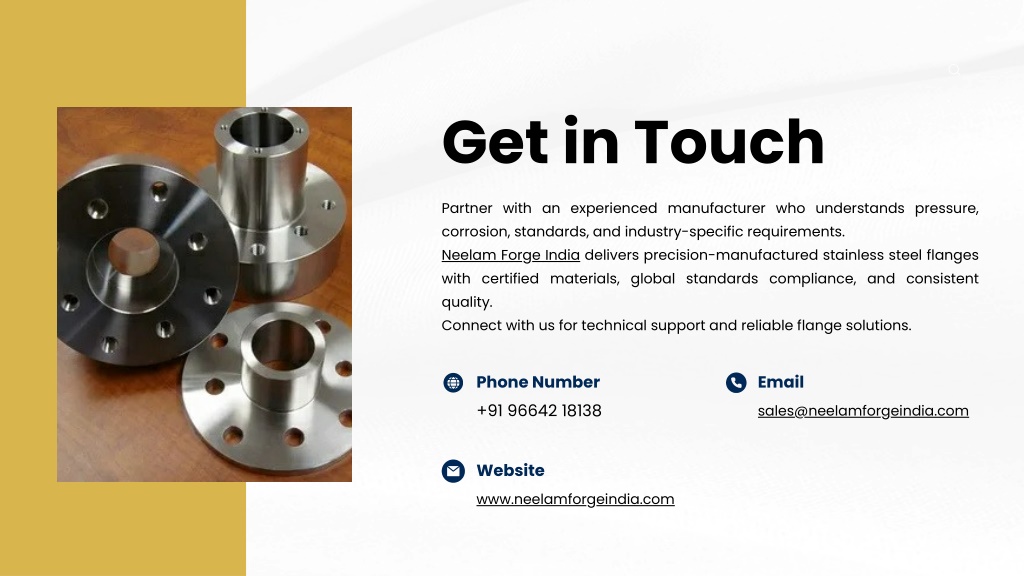

  15. Get in Touch Partner with an experienced manufacturer who understands pressure, corrosion, standards, and industry-specific requirements. Neelam Forge India delivers precision-manufactured stainless steel flanges with certified materials, global standards compliance, and consistent quality. Connect with us for technical support and reliable flange solutions. Phone Number +91 96642 18138 Email sales@neelamforgeindia.com Website www.neelamforgeindia.com
