  1. Arrangement of detectors for beam test at FNBF by FIT & UvaPreliminary Aug. 12, 2013

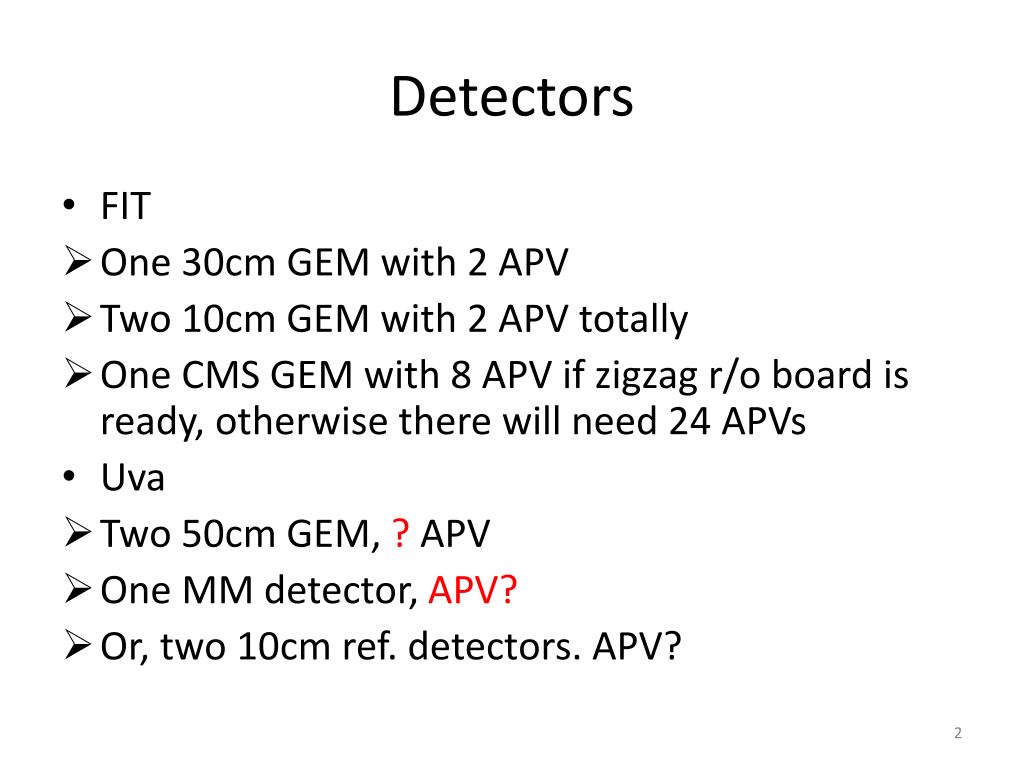

  2. Detectors • FIT • One 30cm GEM with 2 APV • Two 10cm GEM with 2 APV totally • One CMS GEM with 8 APV if zigzag r/o board is ready, otherwise there will need 24 APVs • Uva • Two 50cm GEM, ? APV • One MM detector, APV? • Or, two 10cm ref. detectors. APV?

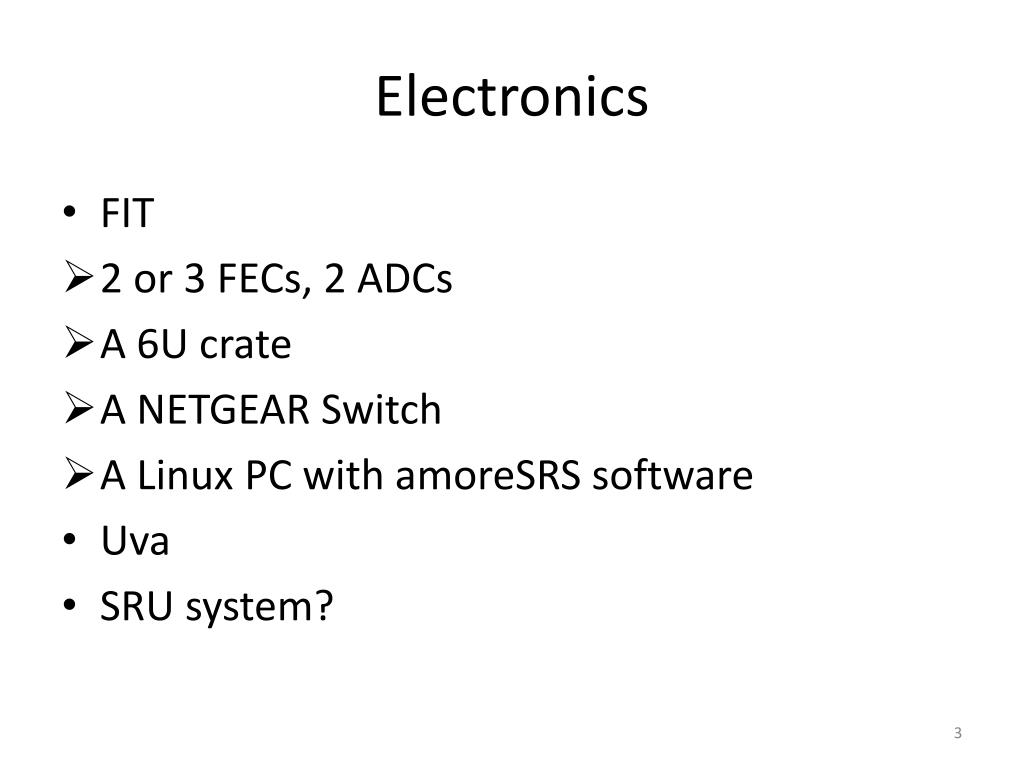

  3. Electronics • FIT • 2 or 3 FECs, 2 ADCs • A 6U crate • A NETGEAR Switch • A Linux PC with amoreSRS software • Uva • SRU system?

  4. sketch 50cm GEM Two 10cm GEM w/ zigzag r/o 1cm MM chamber for ref. 10cm GEM for ref. 10cm GEM for ref. 30cm GEM w/ Zigzag r/o 50cm GEM for test and for ref. CMS GEM UVa or FIT UVa or FIT UVa UVa FIT UVa FIT
