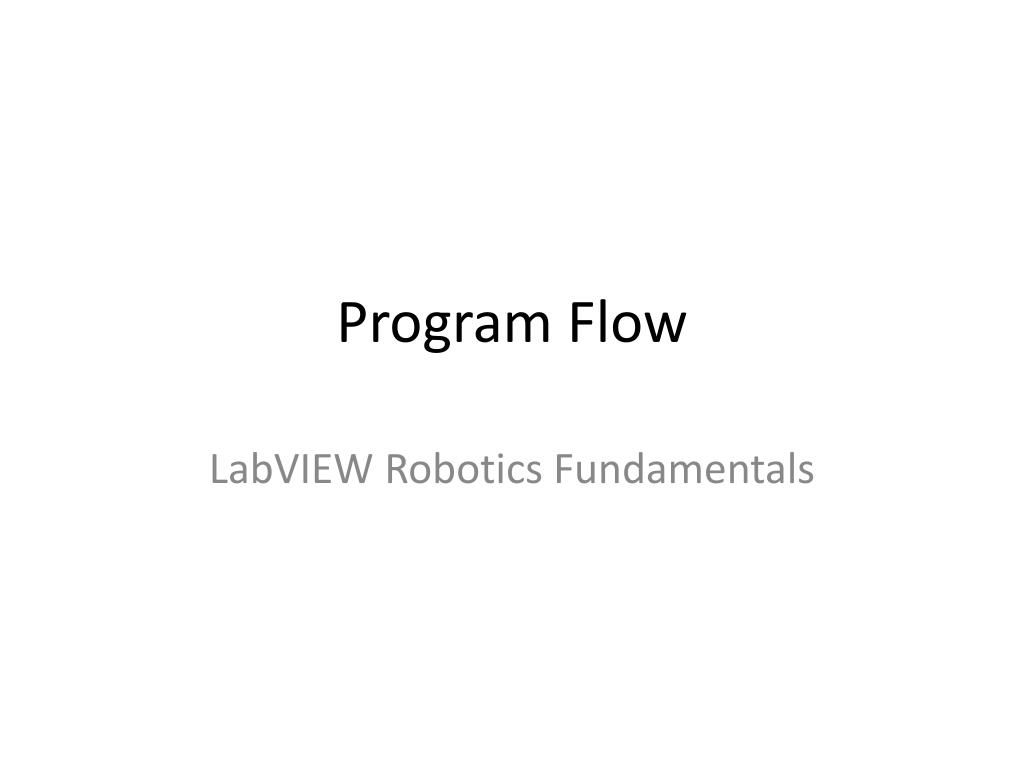

  1. Program Flow LabVIEW Robotics Fundamentals

  2. Unintuition • You know what this program does… • So what does this one do? Inserted code

  3. Unintuition • Nope until TouchSensor pressed? then then “Wide” turn with right wheel planted Move forward Wait in place 1 second

  4. Unintuition • Nope until Touch Sensor pressed? then “Wide” turn with right wheel planted Move forward 1 sec

  5. Unintuition • Correct answer: • But why? And how do you explain it? until Touch Sensor pressed then Turn in place Move forward 1 sec

  6. Intuition • Commands in LabVIEW follow simple rules: • Commands run when the program reaches them • Robots are very literal

  7. Intuition • Run when the program reaches you • Blocks “pass” control of the program between them as they are done • Motor commands pass control when they are done setting the motor power (usually instantly) • Wait commands pass control when done waiting

  8. Intuition Be the Block Exercise: • One person gets to “be” each command • One person gets to “be” the robot • Use a ball or other prop to represent control of the program

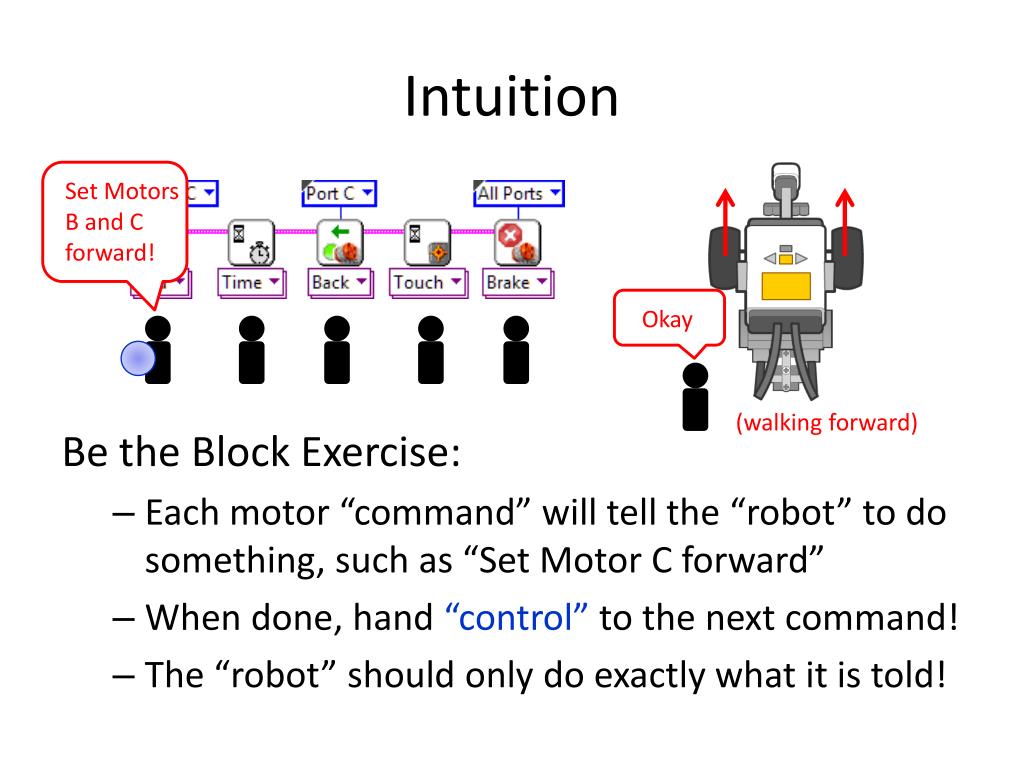

  9. Intuition Set Motors B and C forward! Be the Block Exercise: • Each motor “command” will tell the “robot” to do something, such as “Set Motor C forward” • When done, hand “control” to the next command! • The “robot” should only do exactly what it is told! Okay (walking forward)

  10. Intuition • To see this happen LIVE in LabVIEW: • Turn on Highlight Execution (near the Run button): • Then Run the program; commands will animate to show which one is running! Active command
