IPTV SET-TOP BOX MAG322

newtechuk avatar
newtechuk
3 diapositives · 73 Views · Jul 08, 2019

MAG322 is an amazing set-top box containing a superior processor on the BCM75839 chipset, and 512MB RAM. It's the ideal answer for speedy dispatch of your IPTV\/OTT venture.
Moreover, the set-top box is intended to satisfy current market needs. Your clients can appreciate the most astounding video and sound quality with HDMI 1.4b and S\/PDIF (discretionary) yields. HEVC bolster will drastically decrease your system load.

#mag box 322

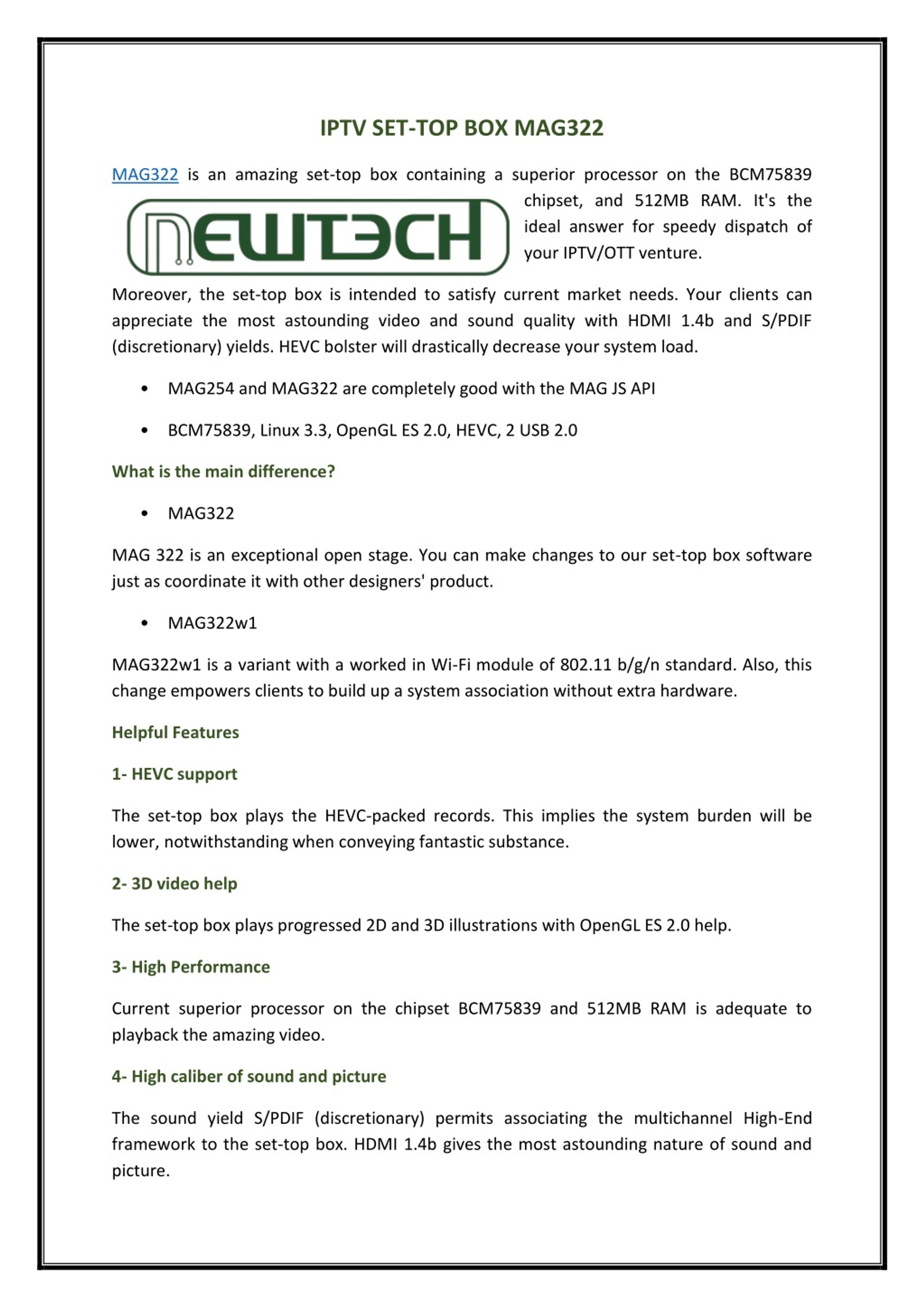

IPTV SET-TOP BOX MAG322 - slide 1
01 / 3IPTV SET-TOP BOX MAG322
1 / 17

Télécharger la présentation

IPTV SET-TOP BOX MAG322
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. IPTV SET-TOP BOX MAG322 MAG322 is an amazing set-top box containing a superior processor on the BCM75839 chipset, and 512MB RAM. It's the ideal answer for speedy dispatch of your IPTV/OTT venture. Moreover, the set-top box is intended to satisfy current market needs. Your clients can appreciate the most astounding video and sound quality with HDMI 1.4b and S/PDIF (discretionary) yields. HEVC bolster will drastically decrease your system load. •MAG254 and MAG322 are completely good with the MAG JS API •BCM75839, Linux 3.3, OpenGL ES 2.0, HEVC, 2 USB 2.0 What is the main difference? •MAG322 MAG 322 is an exceptional open stage. You can make changes to our set-top box software just as coordinate it with other designers' product. •MAG322w1 MAG322w1 is a variant with a worked in Wi-Fi module of 802.11 b/g/n standard. Also, this change empowers clients to build up a system association without extra hardware. Helpful Features 1- HEVC support The set-top box plays the HEVC-packed records. This implies the system burden will be lower, notwithstanding when conveying fantastic substance. 2- 3D video help The set-top box plays progressed 2D and 3D illustrations with OpenGL ES 2.0 help. 3- High Performance Current superior processor on the chipset BCM75839 and 512MB RAM is adequate to playback the amazing video. 4- High caliber of sound and picture The sound yield S/PDIF (discretionary) permits associating the multichannel High-End framework to the set-top box. HDMI 1.4b gives the most astounding nature of sound and picture.

  2. SPECIFICATIONS •Measurements Width/height/depthy, (mm)132x87x26 •Weight, g 144 •Chipset BCM75839 •Processor MIPS 4KE Dual Core CPU 750Mhz •Perfomance 2000 DMIPS •RAM 512 MB •Streak memory 512 Mb •Software •Working system Linux 3.3 •Built in Media Portal with WebKit-based IPTV-usefulness, HTTP 1.1, HTML 4.01 XHTML 1.0/1.1; DOM 1, 2, 3, CSS 1, 2, 3; XML 1.0, XSLT 1.0, XPath 1.0 ; SOAP 1.1; JavaScript ECMA-262, update 5; Media JavaScript API; C layer SDK •Middleware supported Ministra multiscreen TV stage •Interfaces •Sound yield S/PDIF (discretionary), HDMI 1.4-yield, Composite + stereo A/V yield, Ethernet 100 Mb/s, USB 2.0х2 Sources of media content •PC and NAS in neighborhood arrange, Stream media conventions (RTSP,RTP, UDP, IGMP, HTTP), USB-gadgets

  3. Sound and video •Sound сodecs MPEG-1 layer I/II/III, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital •Sound formats MP3, MPA, M4A, Ogg, WAV •Video modes 1080i, 1080p, 720p, 576p, PAL, NTSC •Video сodecs MPEG-1/2, MPEG-4, H.264/AVC HP@L4.2, H.265/HEVC Main and Main10 profile up to 1080p at 60 fps, XviD, 3D video help Video containers MKV, MPEG-TS, MPEG-PS, M2TS, VOB, AVI, MOV, MP4, ASF, QT Picture formats JPEG, PNG, BMP, GIF Subtitles ttxt sub*, DVB, WebVtt, PGS, Ass/Ssa*, Srt*, Sub*, Closed inscriptions Playlist formats M3U Standard set •MAG322 Set-Top Box, User Manual, HDMI link, Power connector 12V 1A, Remote control, 2 AAA batteries, Packaging Pros •Great processor •Better glimmer memory •Somewhat improved form quality •Included batteries and HDMI link •Solid wi-fi signal •Simple to setup Newtech Store Limited Unit A & B Station Yard Coombe Road Kingston Upon Thames Kt2 7az +44 (0) 8006890873 |Info@Newtech.Co.Uk Website: https://newtech.co.uk/
