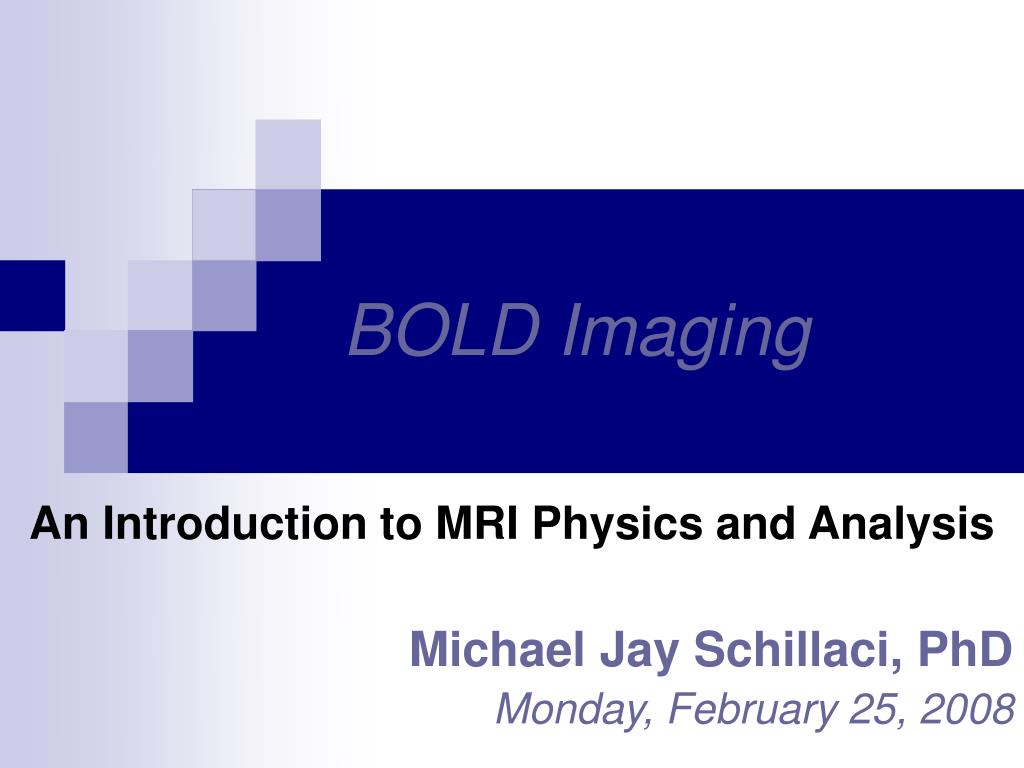

  1. BOLD Imaging An Introduction to MRI Physics and Analysis Michael Jay Schillaci, PhD Monday, February 25, 2008

  2. Overview • Neurophysiology • The brain’s vascular system • Neurons, dendrites and pumps • Energy in the brain • BOLD Imaging • Source of BOLD Signal • The Hemodynamic response • BOLD Artifacts

  3. Neurophysiology

  4. Arteries (1-25mm)Arterioles (10 - 300 microns)precapillary sphinctersCapillaries (5-10 microns)Venules (8-50 microns)Veins Duvernoy, H. M., Delon, S., & Vannson, J. L. (1981). Cortical blood vessels of the human brain. Brain Research Bulletin, 7(5), 519-579.

  5. (anastomosis of internal carotids and basilar artery)

  6. ACA – Medial cortex MCA – Anterolateral cortex PCA – Posterior temporal and occipital lobes

  7. Sinus. n. An separation of the dura mater in which blood drains into the venous system.

  8. Distribution of vascularization - occurs across cortical layers

  9. Capillary structure

  10. Oxygen (via hemoglobin) Glucose

  11. Facts about energy supply to brain • 30-50 μmol/g/min of ATP for awake brain • 10 μmol/g/min of ATP for comatose brain • Information processing accounts for >75% of ATP consumption • 54mL/min of blood for each 100 g of brain tissue • Brain is ~3% of body weight, but demands 15-20% of blood flow and ~20% of blood oxygen

  12. There are two primary types of information flow in the CNS: • Signaling via action potentials (axonal activity) and • Integration via dendritic activity

  13. Action potential Depolarization opens CA2+ channels Vesicles fuse with presynaptic membrane Neurotransmitter release Neurotransmitters open ion channels on postsynaptic membrane Change in potential IPSP or EPSP

  14. Energy Demands of Integration/Signaling Following activity, neurons require energy to restore concentration gradients of key ions. Sodium-Potassium pump takes sodium out of the cell while bringing potassium into the cell. Note that for action potentials, the movement of ions is along gradients. Key concept: activity of neurons does not itself require energy; restoring membrane potentials afterward does.

  15. BOLD Imaging

  16. BOLD - Endogenous Contrast • Blood Oxyenation Level Dependent Contrast • dHb is paramagnetic, Hb is less • Susceptibility of blood increases linearly with oxygenation • BOLD subject to T2* criteria • Oxygen is extracted from capillaries • Arteries are fully oxygenated • Venous blood has increased proportion of dHb • Difference between Hb and dHb states is greater for veins • Therefore BOLD is result of venous blood changes

  17. Blood flow Metabolism Neuronal activity BOLD signal [dHb] Blood volume Sources of the BOLD Signal BOLD is a very indirect measure of activity…

  18. Facts about blood flow • Aorta peak flow: 90 cm/s • Internal carotid flow: ~ 40 cm/s • Smaller arteries: ~10-250 mm/s • Capillaries: ~ 1 mm/s • Venules and small veins: ~10-250 mm/s

  19. Change in arteriole dilation as a function of distance from active neurons Iadecola, Nature Reviews Neuroscience, 2004

  20. How does the vascular system respond to neuronal activity? Physiological data suggests that blood flow changes may be associated with preponderance of dendritic activity, but disconnections are possible. Iadecola, Nature Reviews Neuroscience, 2004

  21. Neuronal Origins of BOLD BOLD response predicted by dendritic activity (LFPs) Increased neuronal activity results in increased MR (T2*) signal LFP=Local Field Potential; MUA=Multi-Unit Activity; SDF=Spike-Density Function Adapted from Logothetis et al. (2002)

  22. ACTIVE BASELINE

  23. Hemoglobin and Magnetism • The Hemoglobin (Hb) Molecule • An organic molecule containing four heme groups (with iron in each) and globular protein (globin). • Oxygen Characteristics • Oxygen bound - oxyhemoglobin (Hb) • No oxygen bound - deoxyhemoglobin (dHb) • Magnetic Properties • Hb is diamagnetic - no dipole • dHb is paramagnetic - slight dipole

  24. Oxygen and Field Strength • Apply magnetic field to brain • Blood oxygen level differs • dHb is paramagnetic • Local field increased • Hb diamagnetic • Local field decreased

  25. Blamire et al., 1992 This was the first event-related fMRI study. It used both blocks and pulses of visual stimulation. Gray Matter Hemodynamic response to long stimulus durations. White matter Hemodynamic response to short stimulus durations. Outside Head

  26. fMRI and Contrast • Endogenous Mechanism • Blood deoxygenation affects T2 Recovery T2 Decreasing Relaxation Time T1 Increasing Blood Oxygenation Level

  27. Basic Form of Hemodynamic Response

  28. Initial Dip (Hypo-oxic Phase) • Transient increase in oxygen consumption, before change in blood flow • Menon et al., 1995; Hu, et al., 1997 • Shown by optical imaging studies • Malonek & Grinvald, 1996 • Smaller amplitude than main BOLD signal • 10% of peak amplitude (e.g., 0.1% signal change) • Potentially more spatially specific • Oxygen utilization may be more closely associated with neuronal activity than perfusion response

  29. Early Evidence for the Initial Dip C A B Menon et al, 1995

  30. Why is the initial dip controversial? • Not seen in most studies • Spatially localized to Minnesota • May require high field • Increasing field strength increases proportion of signal drawn from small vessels • Of small amplitude/SNR; may require more signal • Yacoub and Hu (1999) reported at 1.5T • May be obscured with large voxels or ROI analyses • May be selective for particular cortical regions • Yacoub et al., 2001, report visual and motor activity • Mechanism unknown • Probably represents increase in activity in advance of flow • But could result from flow decrease or volume increase

  31. Yacoub et al., 2001

  32. Subject: 74y male with transient ischemic attack (6m prior) Revealed to have arterial occlusion in left hemisphere Tested in bimanual motor task Found negative bold in LH, earlier than positive in right Negative BOLD response caused by impaired oxygen supply Rother, et al., 2002

  33. Convolving HDR Time-shifted Epochs Introduction of Gaps The Hemodynamic Response Lags Neural Activity Experimental Design

  34. The fMRI Linear Transform

  35. Boynton et al., 1996 Varied contrast of checkerboard bars as well as their interval (B) and duration (C).

  36. Boynton, et al, 1996

  37. Refractory Periods • Definition: a change in the responsiveness to an event based upon the presence or absence of a similar preceding event • Neuronal refractory period • Vascular refractory period

  38. Dale & Buckner, 1997 • Responses to consecutive presentations of a stimulus add in a “roughly linear” fashion • Subtle departures from linearity are evident

  39. Intra-Pair Interval (IPI) Inter-Trial Interval (16-20 seconds) 6 sec IPI 4 sec IPI 2 sec IPI 1 sec IPI Single-Stimulus 500 ms duration Huettel & McCarthy, 2000

  40. Hemodynamic Responses to Closely Spaced Stimuli

  41. “Rough Linearity” Signal Change over Baseline(%) Time since onset of second stimulus (sec)

  42. T2*: fMRI Signal is an Artifact

  43. BOLD artifacts • fMRI is a T2* image – we will have all the artifacts that a spin-echo sequence attempts to remove. • Dephasing near air-tissue boundaries (e.g., sinuses) results in signal dropout. BOLD Non-BOLD

  44. Neuro-Vascular coupling
