  1. Booster Cogging TeststandProgress Update KiyomiSeiya, Alex Waller, Craig Drennan August 22, 2012

  2. MFC VXI Module provided by the AD/ RF Group.

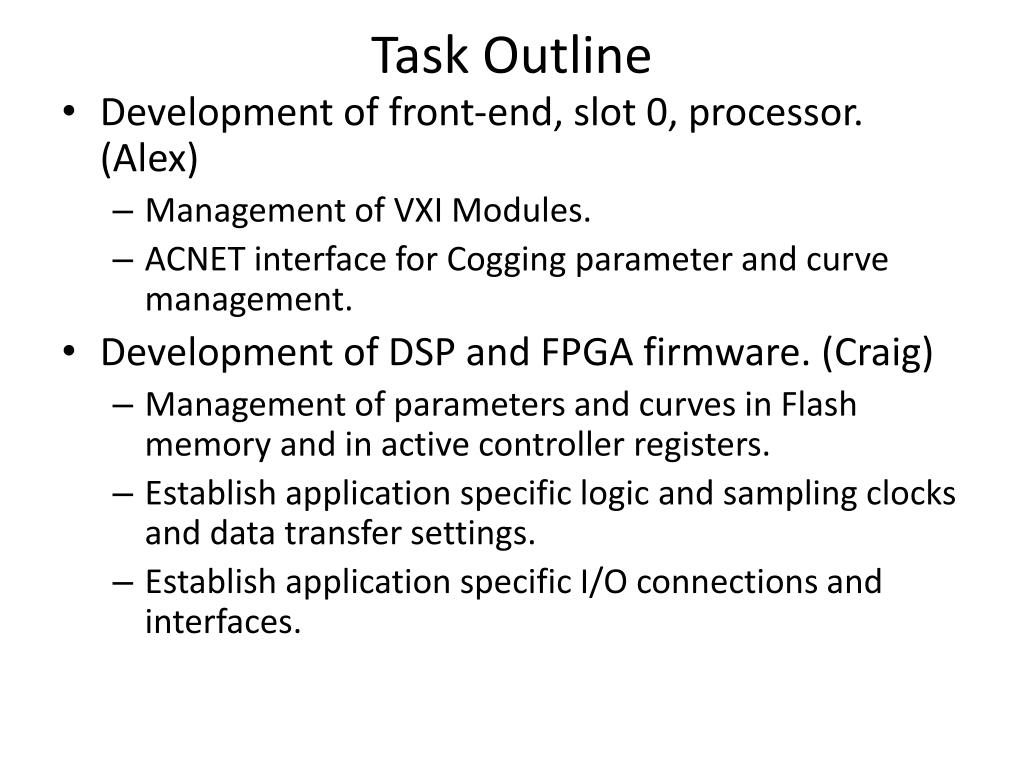

  3. Task Outline • Development of front-end, slot 0, processor. (Alex) • Management of VXI Modules. • ACNET interface for Cogging parameter and curve management. • Development of DSP and FPGA firmware. (Craig) • Management of parameters and curves in Flash memory and in active controller registers. • Establish application specific logic and sampling clocks and data transfer settings. • Establish application specific I/O connections and interfaces.

  4. Task Outline (cont.) • Development and testing of cogging method, algorithm, controller. (Kiyomi) • Establish a method for doing the magnetic cogging. • Determine the controller algorithm, structure, and operator programmable parameters and curves. • Build and test the controller firmware/software on the bench. • Establish connections to the Booster LLRF controls for testing with beam. • Perform testing and commissioning of new magnetic cogging.

  5. Progress on Slot 0 Front-End • Adopted the full VXI Resource Manager • Manages module memory allocation and statically and dynamically allocated address offsets. • Brought the Cogging development test stand online using the MVME 2434. • MVME 2434 is currently used in AD/RFapplications. • Adopted library of Slot 0 software routines for configuring and testing the MFC module. • Establish and tested network and boot settings.

  6. Progress on Slot 0 Front-End (cont.) • Updating Slot 0 Processor for Booster LLRF • Cogging and other LLRF VXI controls will employ the MVME 5500 and VxWorks 6.4. • First Booster MVME 5500 node was brought online earlier this month. • Then new processor has its own ACNET node (BSTRTS) and Booster Slot 0 routines are successfully running on this node.

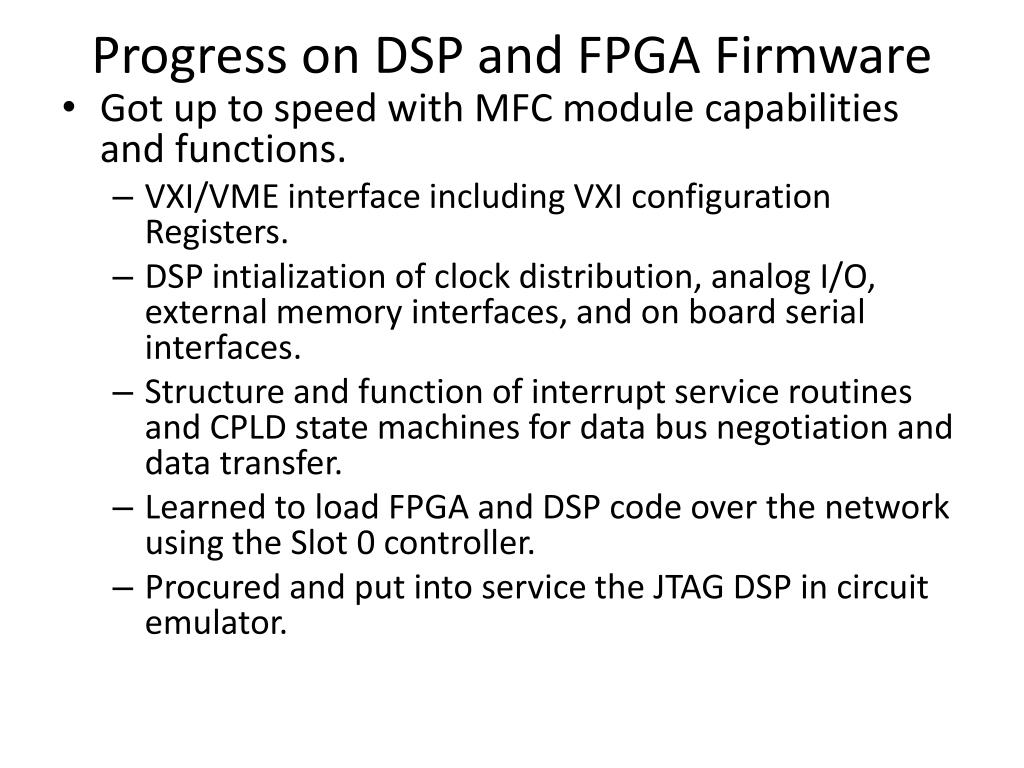

  7. Progress on DSP and FPGA Firmware • Got up to speed with MFC module capabilities and functions. • VXI/VME interface including VXI configuration Registers. • DSPintialization of clock distribution, analog I/O, external memory interfaces, and on board serial interfaces. • Structure and function of interrupt service routines and CPLD state machines for data bus negotiation and data transfer. • Learned to load FPGA and DSP code over the network using the Slot 0 controller. • Procured and put into service the JTAGDSP in circuit emulator.

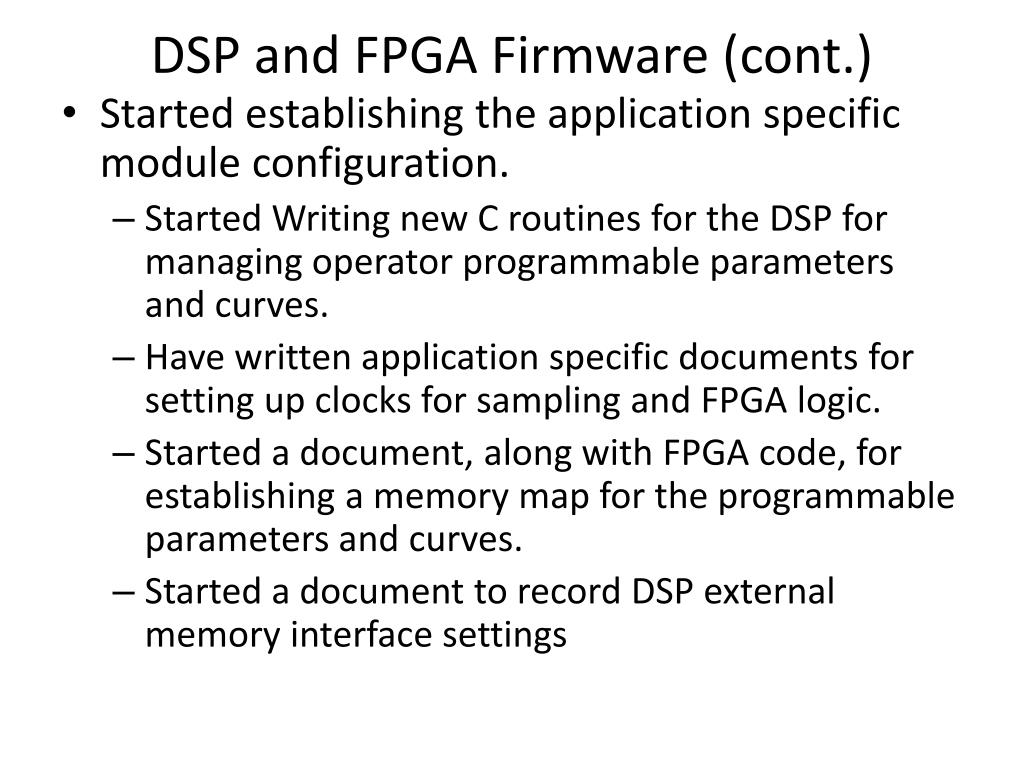

  8. DSP and FPGA Firmware (cont.) • Started establishing the application specific module configuration. • Started Writing new C routines for the DSP for managing operator programmable parameters and curves. • Have written application specific documents for setting up clocks for sampling and FPGA logic. • Started a document, along with FPGA code, for establishing a memory map for the programmable parameters and curves. • Started a document to record DSP external memory interface settings

  9. Progress on Cogging Controller • See Kiyomi’s slides from the July 11th PIP meeting. • \\beamssrv1\pip.bd\Public\Meetings\PIP_July11_2012.pptx • A general method for magnetic cogging using the Booster dipole correctors has been established. • Feasibility tests on Booster beam using the correctors have been made.
