  1. Chapter 7 :: Topics • Introduction • Performance Analysis • Single-Cycle Processor • Multicycle Processor • Pipelined Processor • Exceptions • Advanced Microarchitecture

  2. Microarchitecture: how to implement an architecture in hardware Processor: Datapath: functional blocks Control: control signals Introduction

  3. Multiple implementations for a single architecture: Single-cycle: Each instruction executes in a single cycle Multicycle: Each instruction is broken into series of shorter steps Pipelined: Each instruction broken up into series of steps & multiple instructions execute at once Microarchitecture

  4. Program execution time Execution Time = (#instructions)(cycles/instruction)(seconds/cycle) Definitions: CPI: Cycles/instruction clock period: seconds/cycle IPC: instructions/cycle = IPC Challenge is to satisfy constraints of: Cost Power Performance Processor Performance

  5. Consider subset of MIPS instructions: R-type instructions: and, or, add, sub, slt Memory instructions: lw, sw Branch instructions: beq MIPS Processor

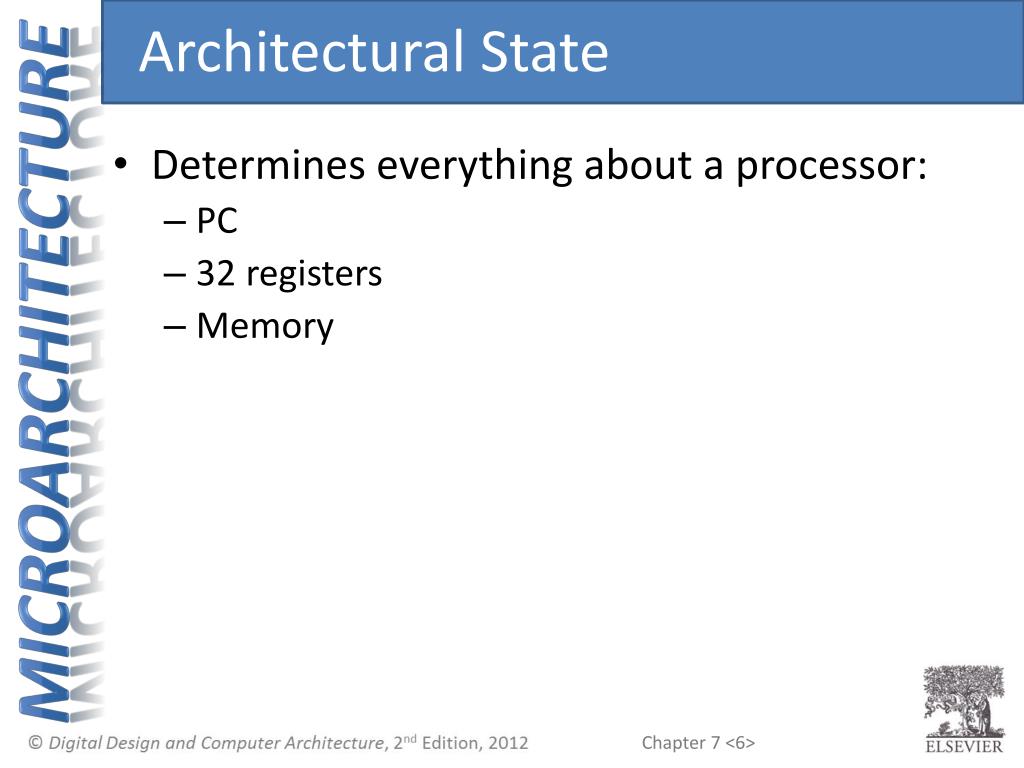

  6. Determines everything about a processor: PC 32 registers Memory Architectural State

  7. MIPS State Elements

  8. Datapath Control Single-Cycle MIPS Processor

  9. STEP 1:Fetch instruction Single-Cycle Datapath: lw fetch

  10. STEP 2:Read source operands from RF Single-Cycle Datapath: lw Register Read

  11. STEP 3:Sign-extend the immediate Single-Cycle Datapath: lw Immediate

  12. STEP 4: Compute the memory address Single-Cycle Datapath: lw address

  13. STEP 5:Read data from memory and write it back to register file Single-Cycle Datapath: lw Memory Read

  14. STEP 6: Determine address of next instruction Single-Cycle Datapath: lw PC Increment

  15. Write data in rt to memory Single-Cycle Datapath: sw

  16. Read from rs and rt Write ALUResult to register file Write to rd (instead of rt) Single-Cycle Datapath: R-Type

  17. Determine whether values in rs and rt are equal Calculate branch target address: BTA = (sign-extended immediate << 2) + (PC+4) Single-Cycle Datapath: beq

  18. Single-Cycle Processor

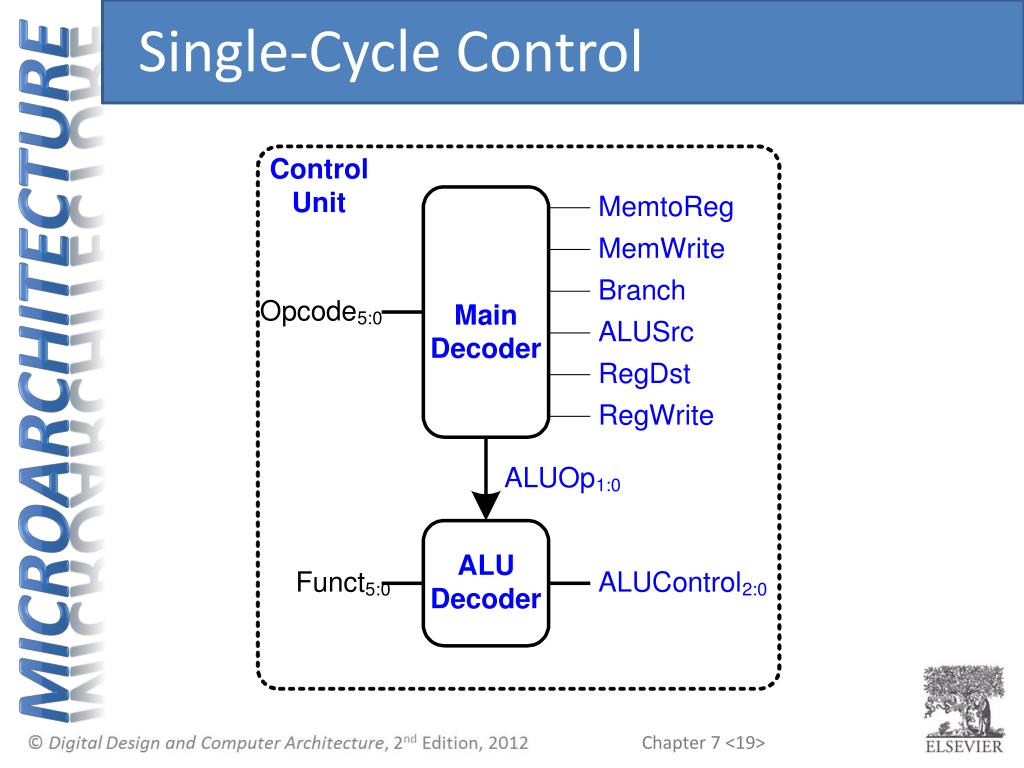

  19. Single-Cycle Control

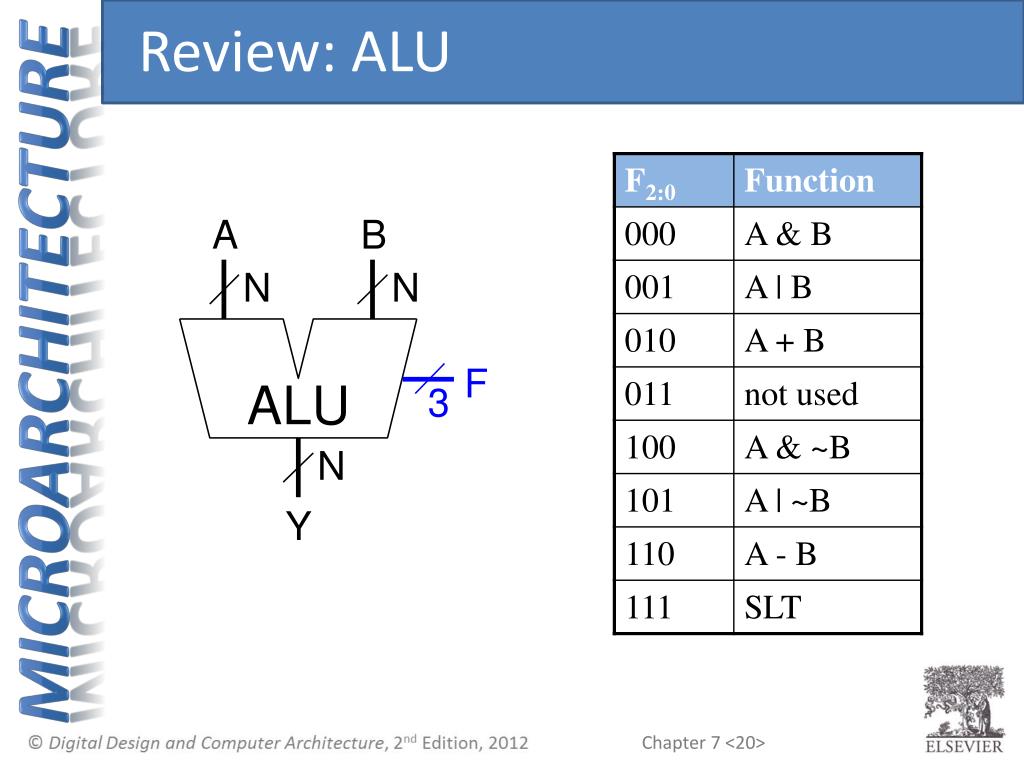

  20. Review: ALU

  21. Review: ALU

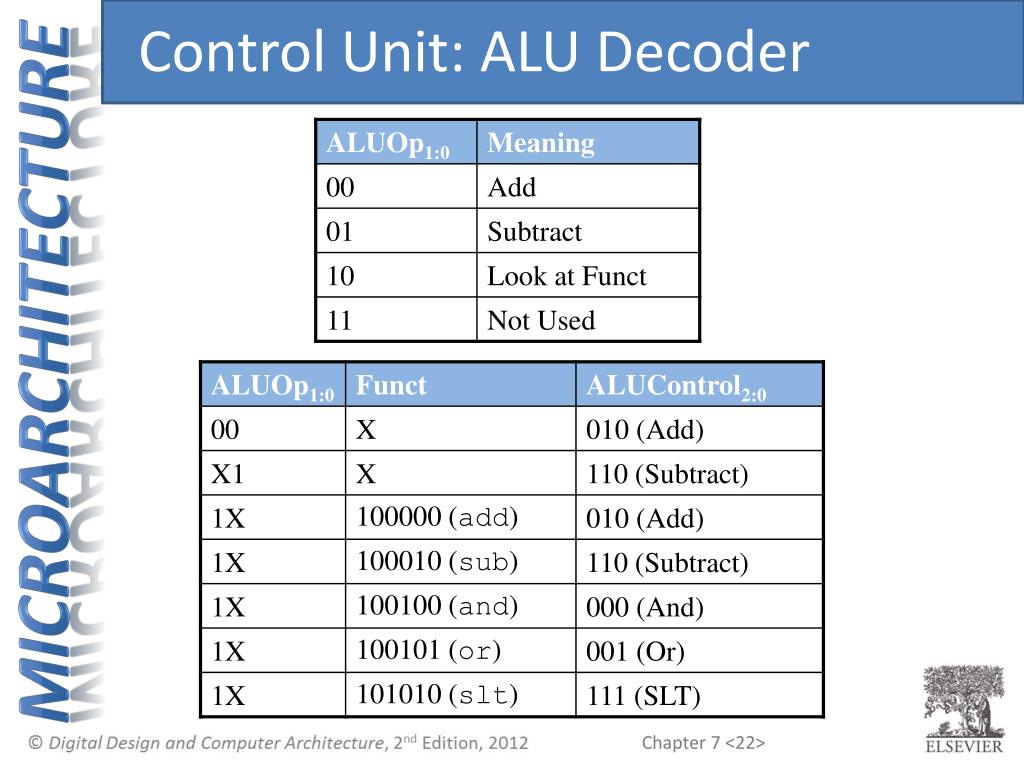

  22. Control Unit: ALU Decoder

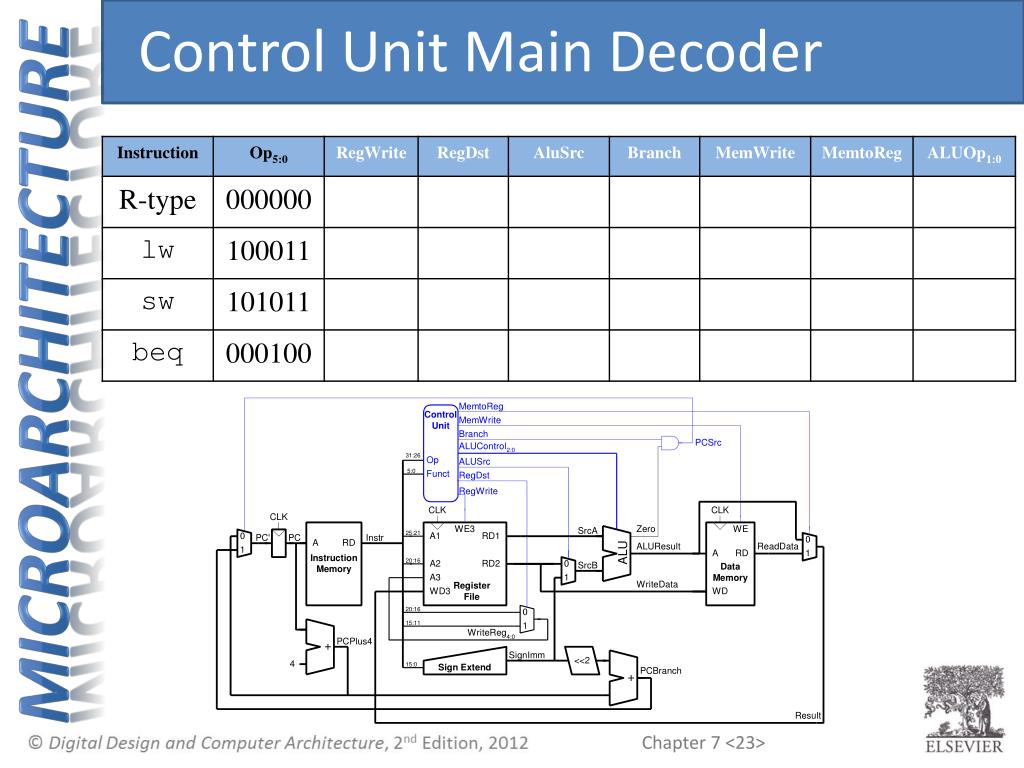

  23. Control Unit Main Decoder

  24. Control Unit: Main Decoder

  25. Single-Cycle Datapath: or

  26. Extended Functionality: addi No change to datapath

  27. Control Unit: addi

  28. Control Unit: addi

  29. Extended Functionality: j

  30. Control Unit: Main Decoder

  31. Control Unit: Main Decoder

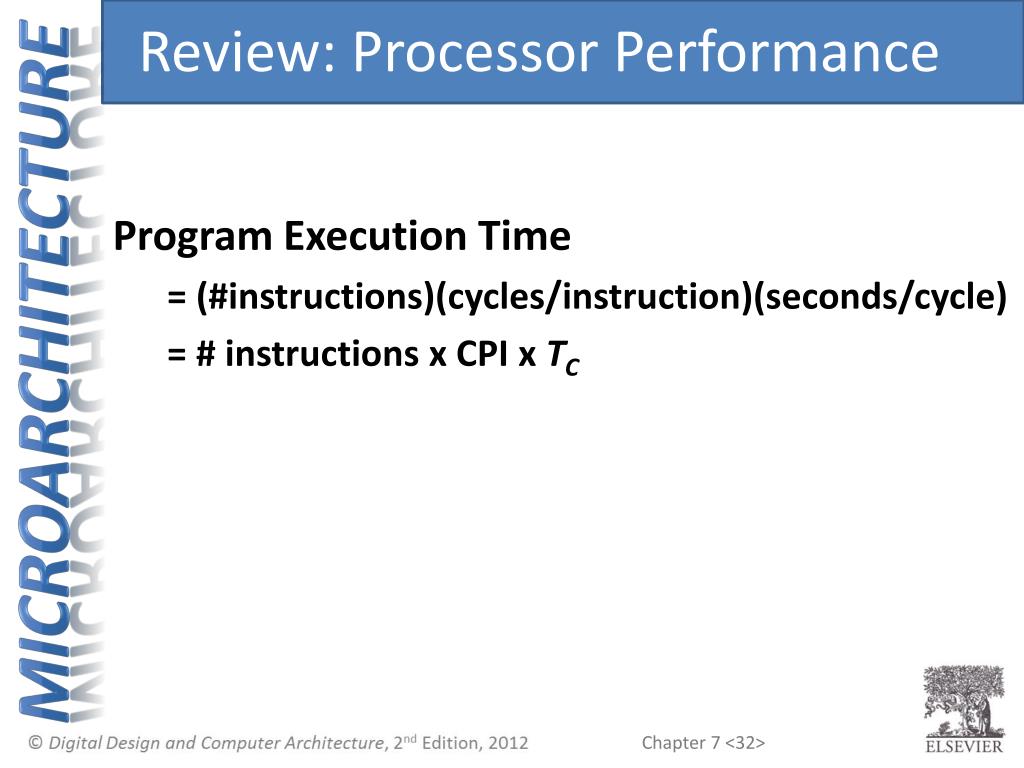

  32. Program Execution Time = (#instructions)(cycles/instruction)(seconds/cycle) = # instructions x CPI x TC Review: Processor Performance

  33. Single-Cycle Performance TClimited by critical path (lw)

  34. Single-Cycle Performance • Single-cycle critical path: • Tc = tpcq_PC + tmem + max(tRFread, tsext + tmux) + tALU + tmem + tmux + tRFsetup • Typically, limiting paths are: • memory, ALU, register file • Tc = tpcq_PC + 2tmem + tRFread + tmux + tALU + tRFsetup

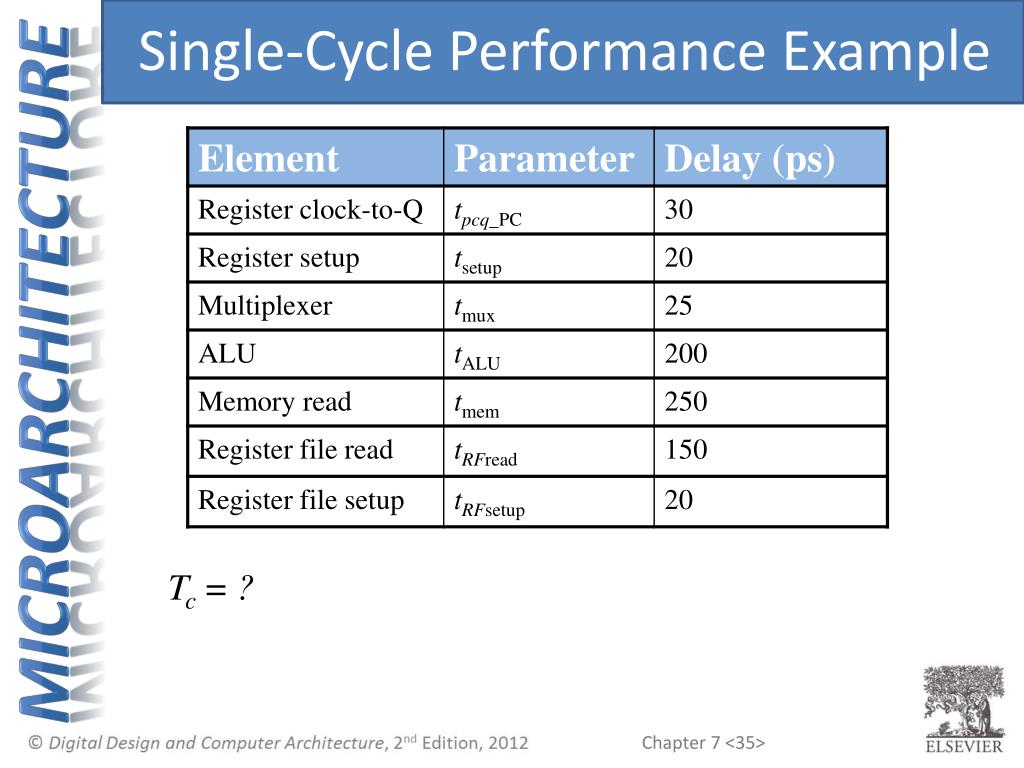

  35. Single-Cycle Performance Example Tc = ?

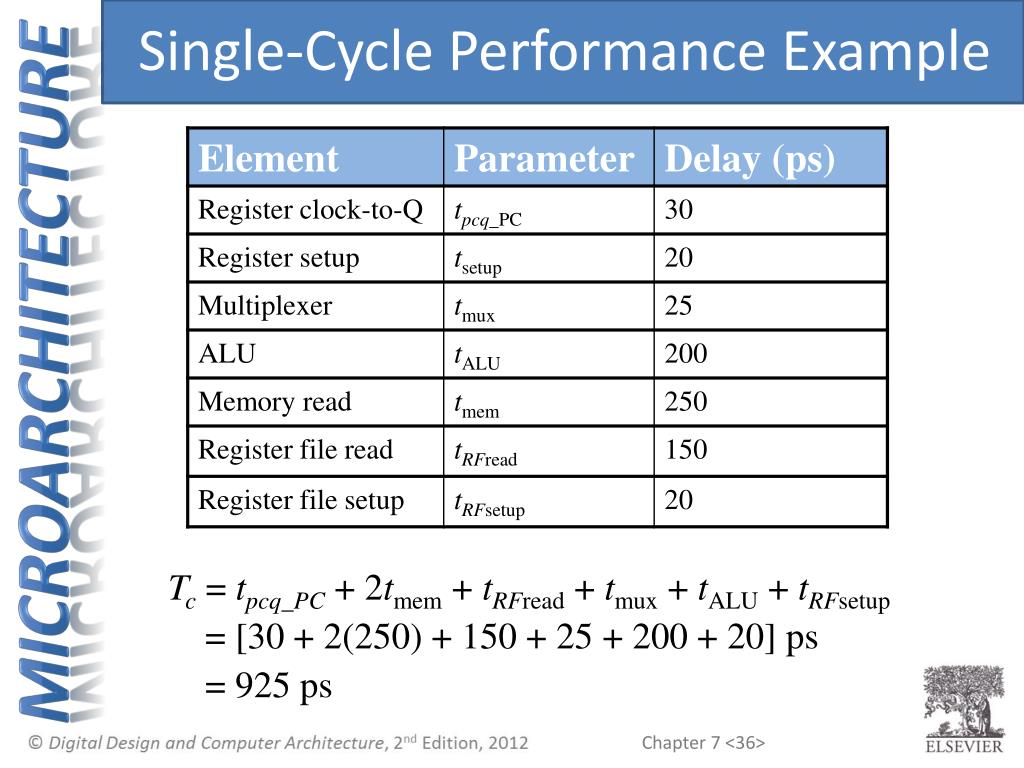

  36. Single-Cycle Performance Example Tc = tpcq_PC + 2tmem + tRFread + tmux + tALU + tRFsetup = [30 + 2(250) + 150 + 25 + 200 + 20] ps = 925 ps

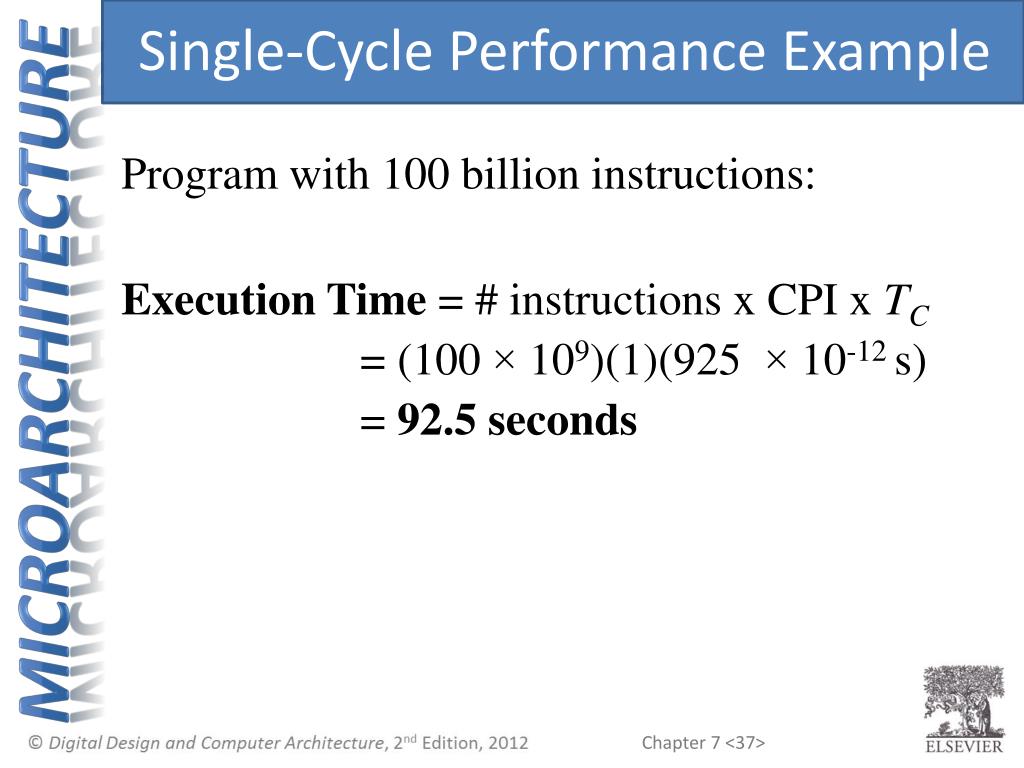

  37. Single-Cycle Performance Example Program with 100 billion instructions: Execution Time = # instructions x CPI x TC = (100 × 109)(1)(925 × 10-12 s) = 92.5 seconds

  38. Single-cycle: + simple cycle time limited by longest instruction (lw) 2 adders/ALUs & 2 memories Multicycle: + higher clock speed + simpler instructions run faster + reuse expensive hardware on multiple cycles - sequencing overhead paid many times Same design steps: datapath & control Multicycle MIPS Processor

  39. Multicycle State Elements • Replace Instruction and Data memories with a single unified memory – more realistic

  40. MulticycleDatapath: Instruction Fetch STEP 1: Fetch instruction

  41. MulticycleDatapath: lwRegister Read STEP 2a:Read source operands from RF

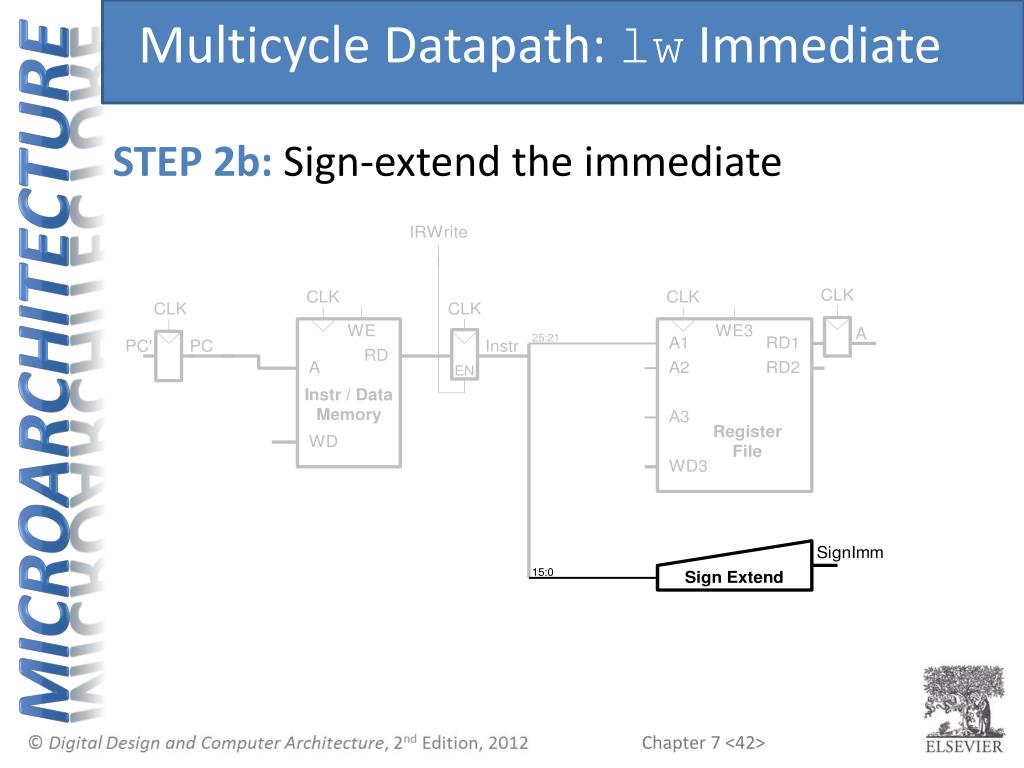

  42. MulticycleDatapath: lw Immediate STEP 2b: Sign-extend the immediate

  43. MulticycleDatapath: lw Address STEP 3: Compute the memory address

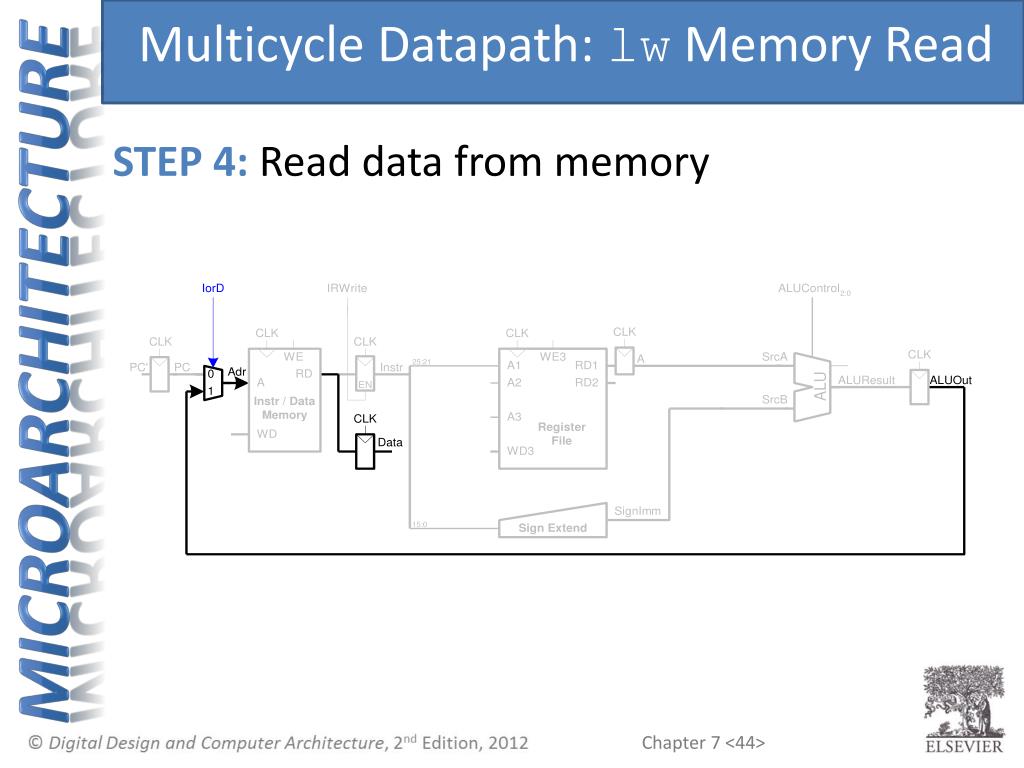

  44. MulticycleDatapath: lw Memory Read STEP 4: Read data from memory

  45. MulticycleDatapath: lw Write Register STEP 5: Write data back to register file

  46. MulticycleDatapath: Increment PC STEP 6: Increment PC

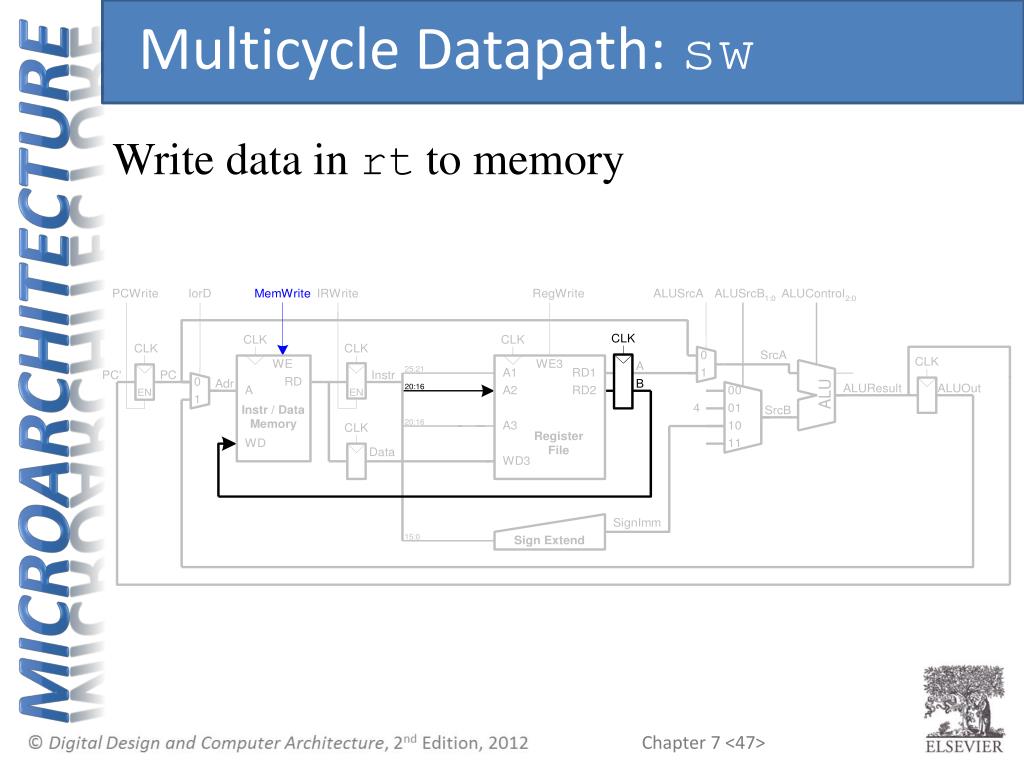

  47. MulticycleDatapath: sw Write data in rt to memory

  48. MulticycleDatapath: R-Type • Read from rs and rt • Write ALUResult to register file • Write to rd (instead of rt)

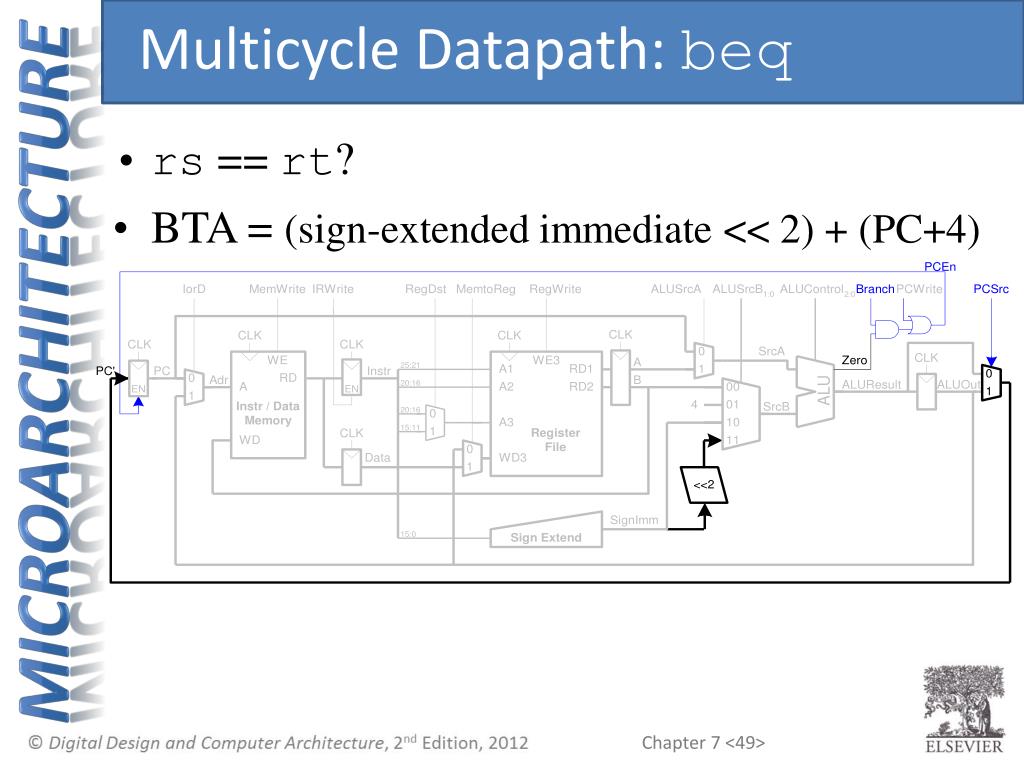

  49. MulticycleDatapath: beq • rs == rt? • BTA = (sign-extended immediate << 2) + (PC+4)

  50. Multicycle Processor
