Verification of SHUR Macro Cell Library in a Fault Tolerant Digital Signal Processor Application

1. Verification of SHUR Macro Cell Library in a Fault Tolerant Digital Signal Processor Application D. Breuner, P. Coakley, S. Lutjens, and M. Rose Jaycor, Inc., San Diego, CA MAPLD International Conference September 10-12, 2002 DTRA Contract No. DTRA01-99-C-0180

2. Program Objective Develop and Demonstrate a Library of Macro Cells to Implement System Hardening – Upset Recovery (SHUR) in Application-Specific Integrated Circuits (ASICs) and Programmable Logic Devices (PLDs)

3. SHUR Develops and DemonstratesUpset Recovery Technologies As a “Gate Keeper” SHUR Preserves Signal Integrity

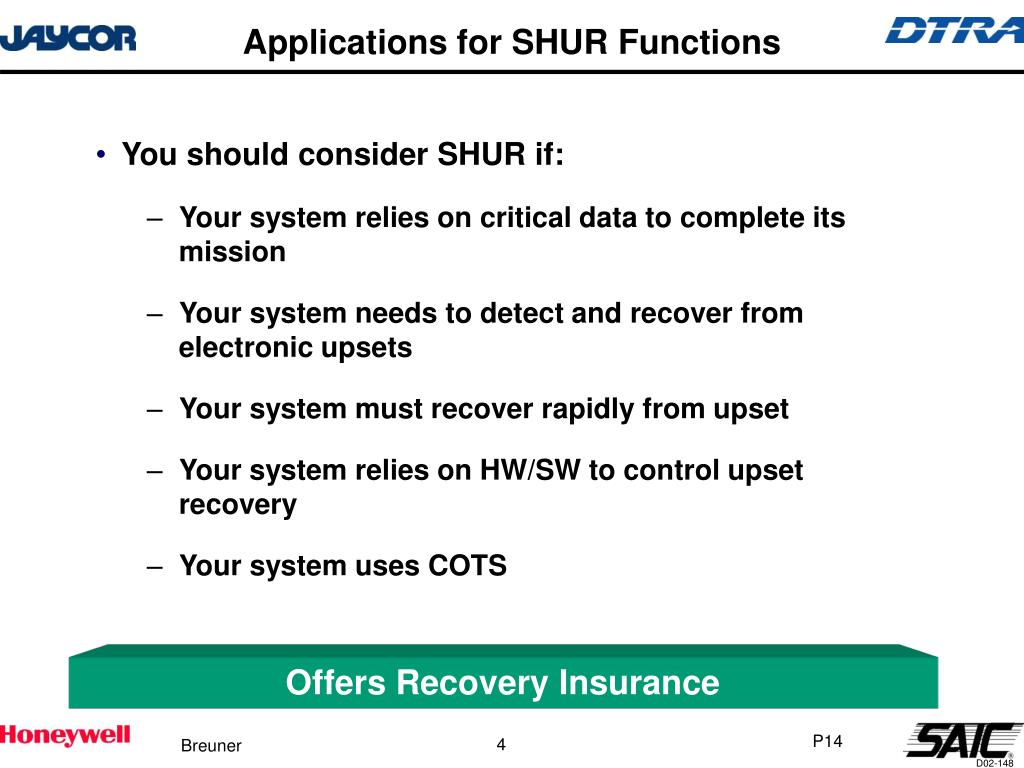

4. Applications for SHUR Functions • You should consider SHUR if: • Your system relies on critical data to complete its mission • Your system needs to detect and recover from electronic upsets • Your system must recover rapidly from upset • Your system relies on HW/SW to control upset recovery • Your system uses COTS Offers Recovery Insurance

5. SHUR Technology Products • SHUR provides system designers • Library of upset and recovery building blocks (macro cells) • Performance specifications for library cells • Application guidelines for using library cells • ASIC demonstrating SHUR building block performance • POD’s for contractor evaluation • Software recommendations for rapid recovery SHUR Provides the Building Blocks -- You Providethe Creative Engineering

6. SHUR Macro Library Combines Features of Circumvention Recovery and Fault Tolerance • Circumvention Recovery • Event detection1 • Protect electronics and critical data2 • Reset post event or timed period4 • Restart at a known state5 • Recover essential data8 • Complete recovery – operational system9 • Fault Tolerance • Errors trapped3 • Errors purged6 • System returned to state without fault7 • * Numbers represent sequence of events executed using SHUR technology

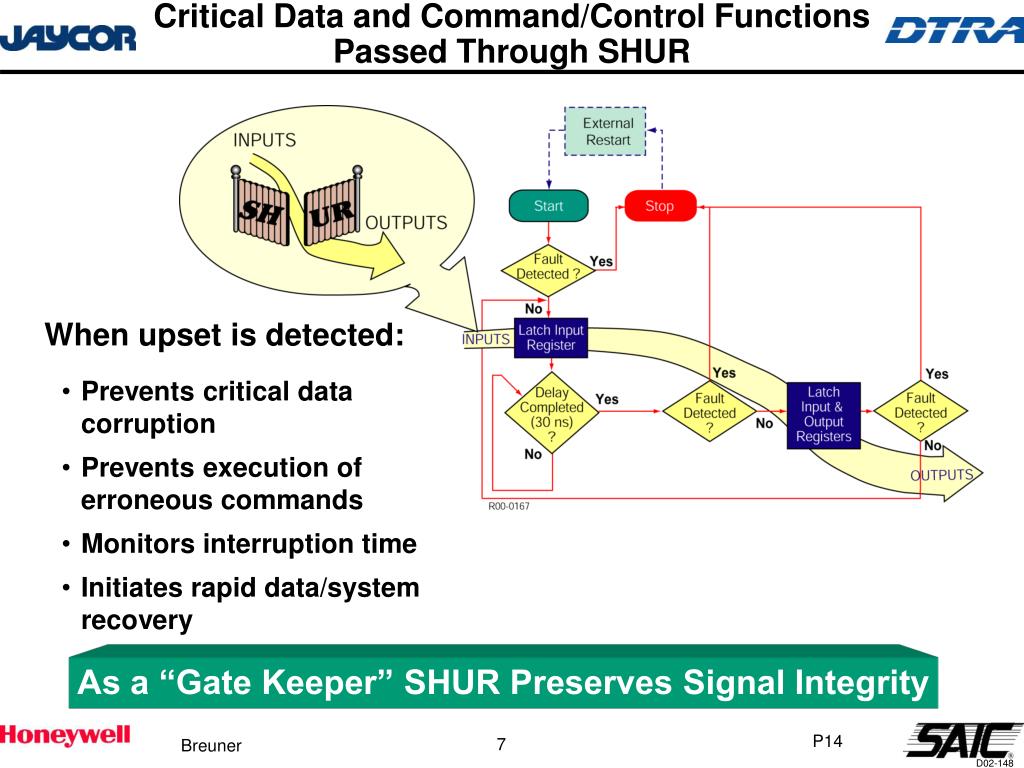

7. Critical Data and Command/Control FunctionsPassed Through SHUR When upset is detected: • Prevents critical data corruption • Prevents execution of erroneous commands • Monitors interruption time • Initiates rapid data/system recovery As a “Gate Keeper” SHUR Preserves Signal Integrity

8. Major Function Capability 1. System clock generation 2. Parallel I/O interface 3. Fault Processing 4. General purpose interfaces • Single primary oscillator used to generate internal clock frequencies 66 MHz via phase-locked loop • User selectable output frequency for power saving with glitch free transition • Gated and free running outputs • SRAM like interface provides compatibility with any processor architecture • False-write protection preserves data integrity • Outputs clamped to known state during fault condition • Multiple fault inputs and responses • Configurable matrix for masking or mapping fault signals to corrective responses • Retained data facilitates rapid system recovery • Compliant with system specific hardware sequencing requirements • Bidirectional discrete data lines with false-write protection to enhance system operability, test, and diagnostic capability. • Interfaces can be tailored to meet unique system requirements SHUR Macro Library Implements Four Major System Functions

9. False-Write Macro Features • Latches address and data into internal SHUR registers • Delays write pulse to non-upsettable memory to ensure data integrity (30 ns minimum) • Generates memory acknowledge signal for processors using automatic wait-state allocation Port Description Name Type Function CLK I System clock NSM_SEL I Selects SHUR function (low) NRESET I Resets logic during power-up (low) INHIBIT I Halts generation of NHWR (low) NHWR O Delayed write pulse ( ) NLATCH O Latches data into SHUR register (low) DMACK O Memory acknowledge Timing

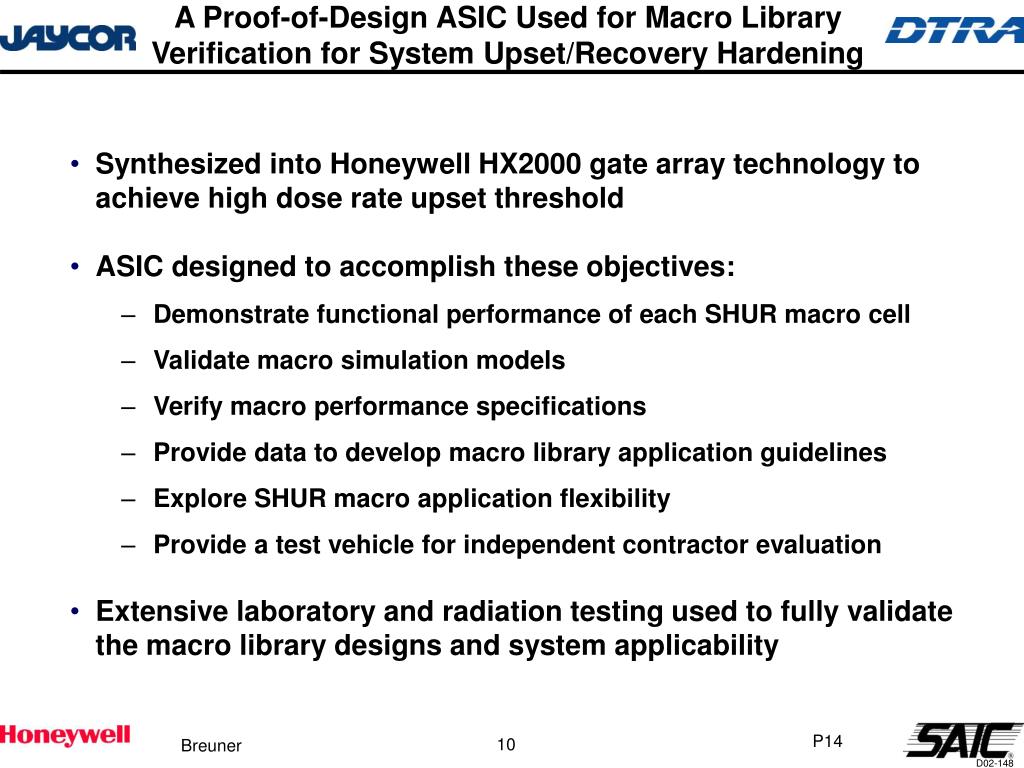

10. A Proof-of-Design ASIC Used for Macro LibraryVerification for System Upset/Recovery Hardening • Synthesized into Honeywell HX2000 gate array technology to achieve high dose rate upset threshold • ASIC designed to accomplish these objectives: • Demonstrate functional performance of each SHUR macro cell • Validate macro simulation models • Verify macro performance specifications • Provide data to develop macro library application guidelines • Explore SHUR macro application flexibility • Provide a test vehicle for independent contractor evaluation • Extensive laboratory and radiation testing used to fully validate the macro library designs and system applicability

11. Proof-of-Design ASIC Data Sheet DATA SHEET JAYCOR • SRAM False-Write Protection • Prompt Immune Signal Pass-through • Clock Generation Circuitry • Recall Registers: • Last SHUR Address Written • Last SHUR SRAM Address Written • Off-Line Timer • Interrupt Handler, Router, Sorter • 16 Storage Registers • 2 Programmable Reset Timers / Outputs • 16 Discrete Output Lines • 16 Discrete Input Lines • Event Counter • Latchup Immune • Total Dose Hardness to 106Rad(Si) • Prompt Dose Upset Level >1010Rad(Si)/sec. • Prompt Dose Survivability Level 1012Rad(Si)/sec. • 5 Volt Operation • 352 Pin Quad Flat Pack SHUR POD ASIC D02-080 11

12. DMWR DMRD SM_SEL DMACK PRIW_N - Non-upsettable interfaces SHUR_RST SPWR_OK Top Level Block Diagram of POD ASIC SRAM_DATA(15:0) Free-running clocks (4) D_SRAM(15:0) DISC_IN(15:0) 22 MHz A_SRAM(19:0) Gated clocks (4) DISC_OUT(15:0) CRYSTAL Internal clock nets (4) FREQ_SEL(2) DO_ENB NOE (66 MHz, CPU_CLK, 1 MHz, 100 kHz) Monitor System Clocks NCS PLL System Clocks Discrete I/O NWE 66MHz CLK SRAM Interface Read/Write Control SRAM Interface HWR_N 66MHz CLK IDATA(31:0) DATA_SYS(31:0) IADD(31:0) ADD_SYS(31:0) SHUR_OUT(31:0) LAST_RADD(31:0) LAST_ADD(31:0) INT_DATA(31:0) INHIBIT RESET Register File CLAMP_N (16x32) Parallel I/O 66MHz CLK HWR_N Read/Write Control Signals 66MHz CLK EC_OUT(31:0) OFF_TIME(23:0) SHUR_STATUS(31:0) FAULT(3:0) PTO(2:0) DATA_EXT_OUT(11:0) DATA_EXT_IN(11:0) STO(2:0) DATA_VAL FLT_INT PWR_EXTN CLAMP Ext Cmd/Control Pass-Through HALT CPU_CLK PRST SRST RESET Fault I/O Fault I/O Fault Processing 66MHz,1MHz,100kHz CLKS

13. Testability and Risk Reduction Primary Considerations for PLL Insertion Phase-Lock Loop PLL Output External Clock MUX Clock Select ASIC Core

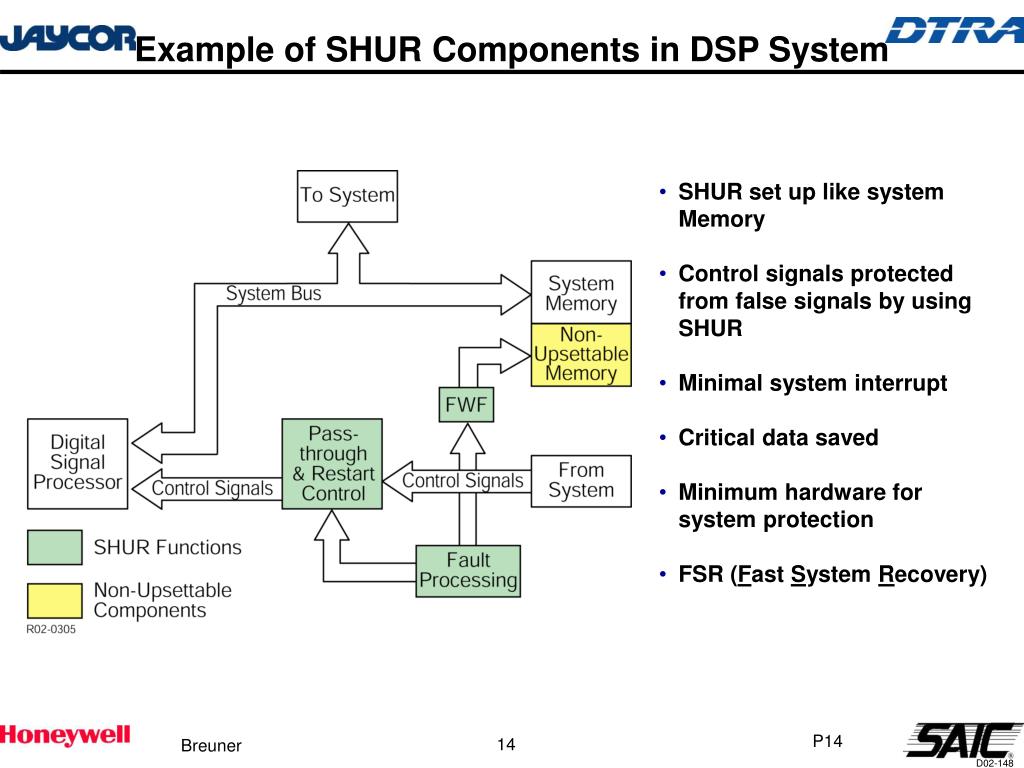

14. Example of SHUR Components in DSP System • SHUR set up like system Memory • Control signals protected from false signals by using SHUR • Minimal system interrupt • Critical data saved • Minimum hardware for system protection • FSR (Fast System Recovery)

15. SHUR Test Evaluation Board

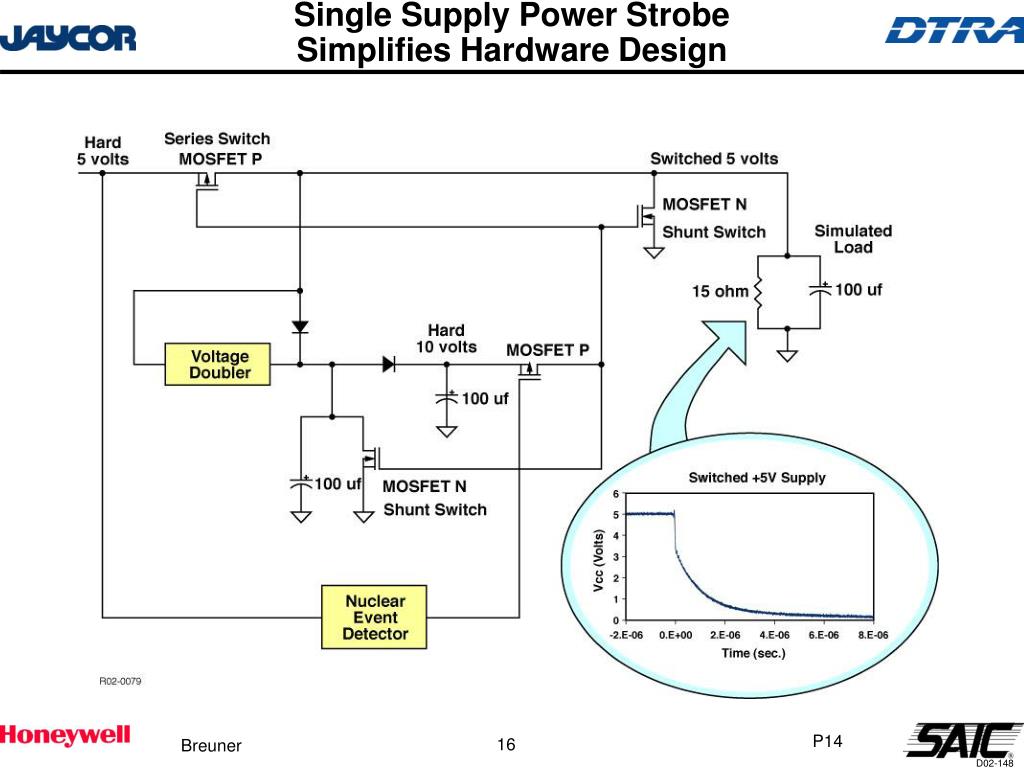

16. Single Supply Power StrobeSimplifies Hardware Design

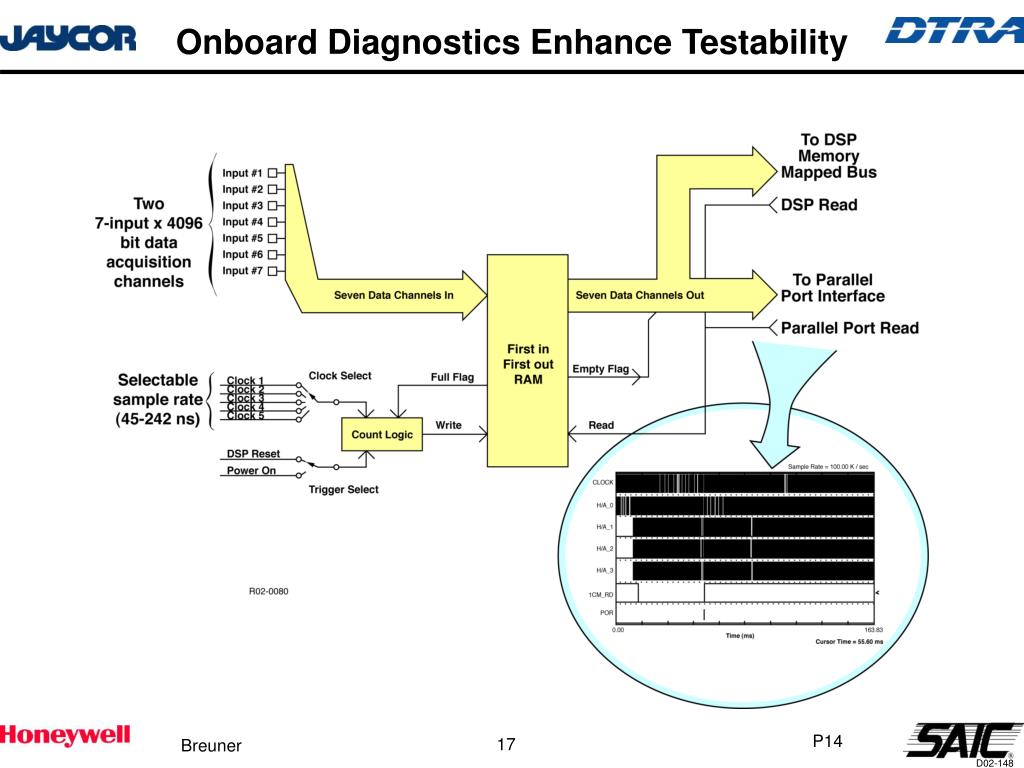

17. Onboard Diagnostics Enhance Testability

18. SHUR Integration Into System Design SHUR Functions Provide Flexible Upset Recovery Solutions

19. SHUR Functions Integratedin a Star Tracker ASIC R01-0455

20. SHUR Functions Reduce RecoveryTimeline for GPS/INS Ship or Ground Platform GPS GPS/INS Hot Start Block Diagram Crypto Key Loaded At Factory MISSILE GPS Board GPS Data Collection System GPS Receiver GPS Receiver Fiber-optic Interface Timemark or PTTI Pulse (1 Hz) Initialization Message From Mission CPU Almanac, Ephemeris, Position, Velocity, Time Data Processor Navigation Processor Missile GPS/INS Block Diagram Navigation Processor [CPU] RAM ROM GPS Antenna Gate Array (ASIC) GPS Receiver Module To Mission CPU Fiber Optic Link IMU Digital Data To Missile I/O IMU Extend GPS/INS “Hot Start” Concept to In-Flight Nuclear Upset/Recovery via SHUR Technology

21. SHUR Functional Implementationin a Multiple Processor Subsystem

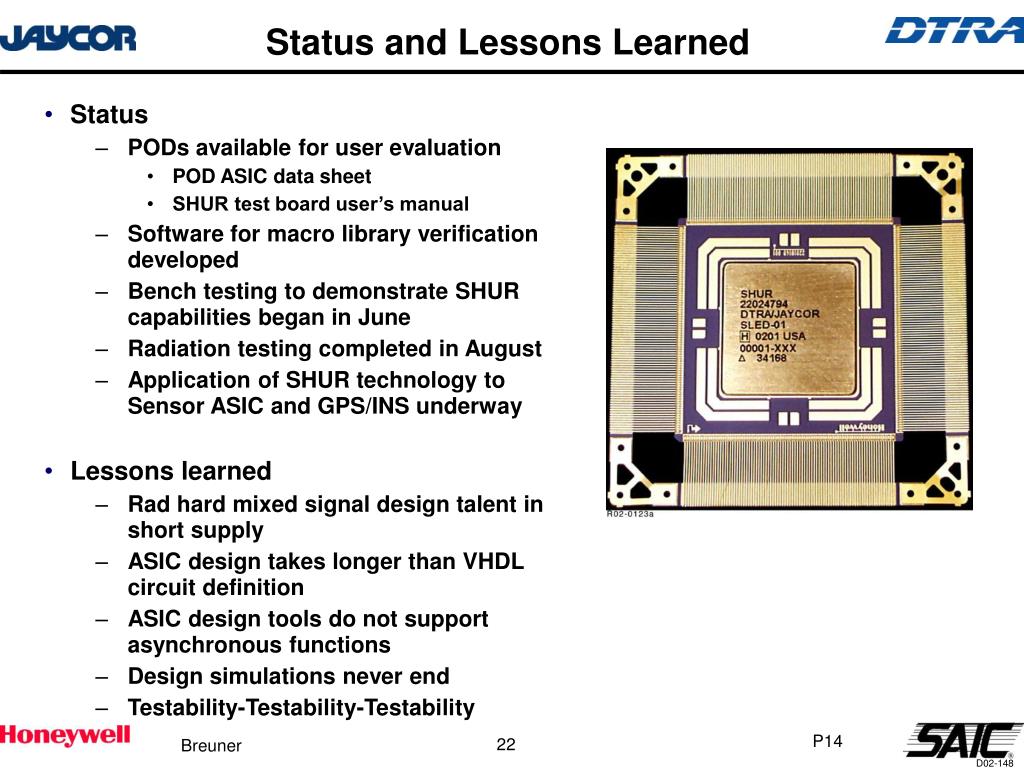

22. Status and Lessons Learned • Status • PODs available for user evaluation • POD ASIC data sheet • SHUR test board user’s manual • Software for macro library verification developed • Bench testing to demonstrate SHUR capabilities began in June • Radiation testing completed in August • Application of SHUR technology to Sensor ASIC and GPS/INS underway • Lessons learned • Rad hard mixed signal design talent in short supply • ASIC design takes longer than VHDL circuit definition • ASIC design tools do not support asynchronous functions • Design simulations never end • Testability-Testability-Testability
