Labnet & PTSchemes : Installation guidelines

1. Labnet & PTSchemes : Installation guidelines FSC Brussel, 26-28/10/2010

2. Prerequisites (1) • On each computer that should run the ptschemes, labnet or extlab application, at least following microsoft component should be installed: • Microsoft .Net Framework 2.0 • This add-on is available for most MS-Windows platforms (Windows 98, Windows-ME, Windows 2000, Windows XP, Windows Vista….) • The installation is not needed on Windows7: the Windows7 - OS, already contains the .Net Framework 3.5 SP1, as upward compatibility is guaranteed by Microsoft, this version implicitly contains .Net FW 2.0 SP2 • Exacte prerequisites / download can be found on : http://www.microsoft.com/downloads

3. Prerequisites: Installation .Net 2.0 Framework (1)

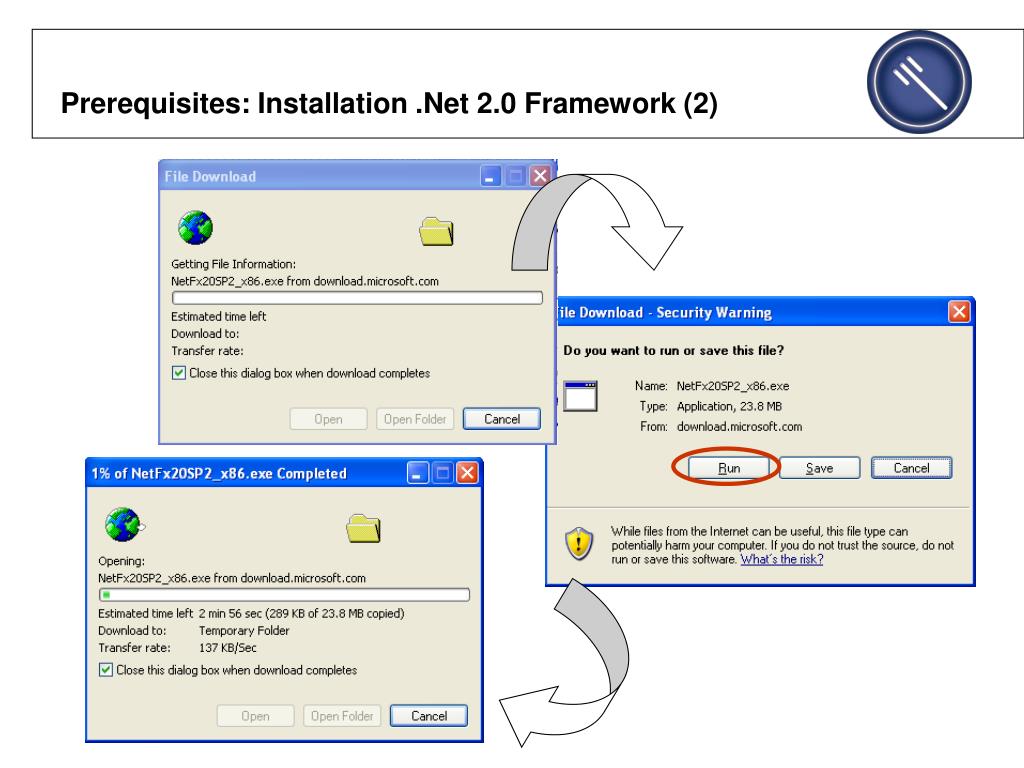

4. Prerequisites: Installation .Net 2.0 Framework (2)

5. Prerequisites: Installation .Net 2.0 Framework (3) 1 1 3 2

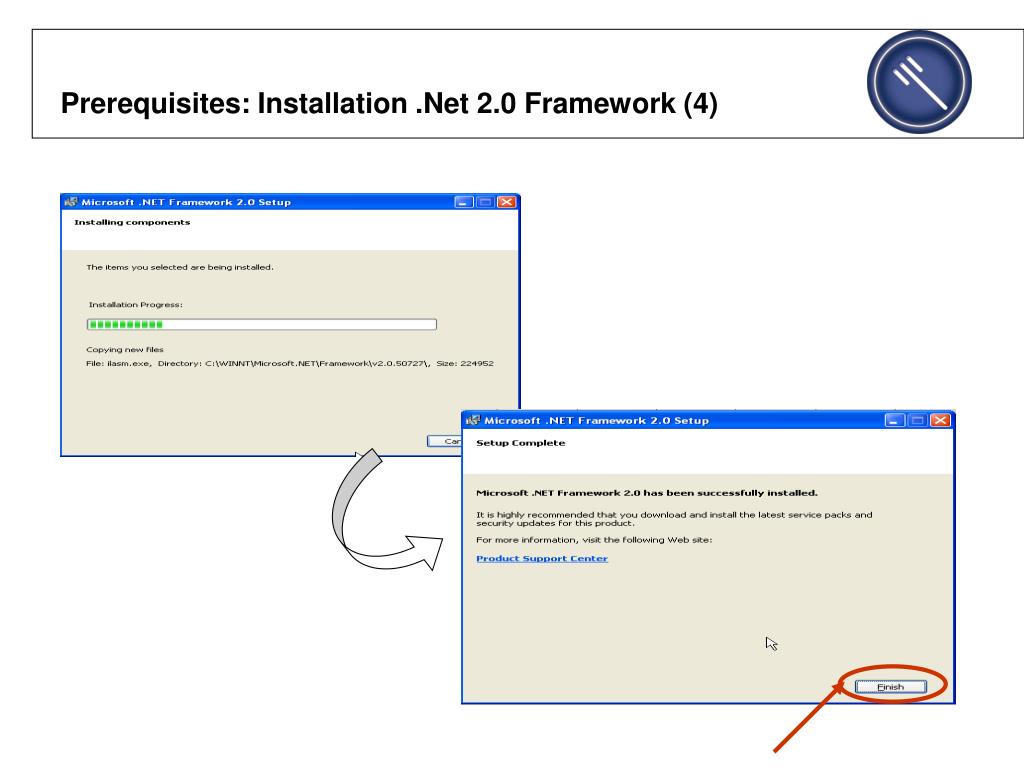

6. Prerequisites: Installation .Net 2.0 Framework (4)

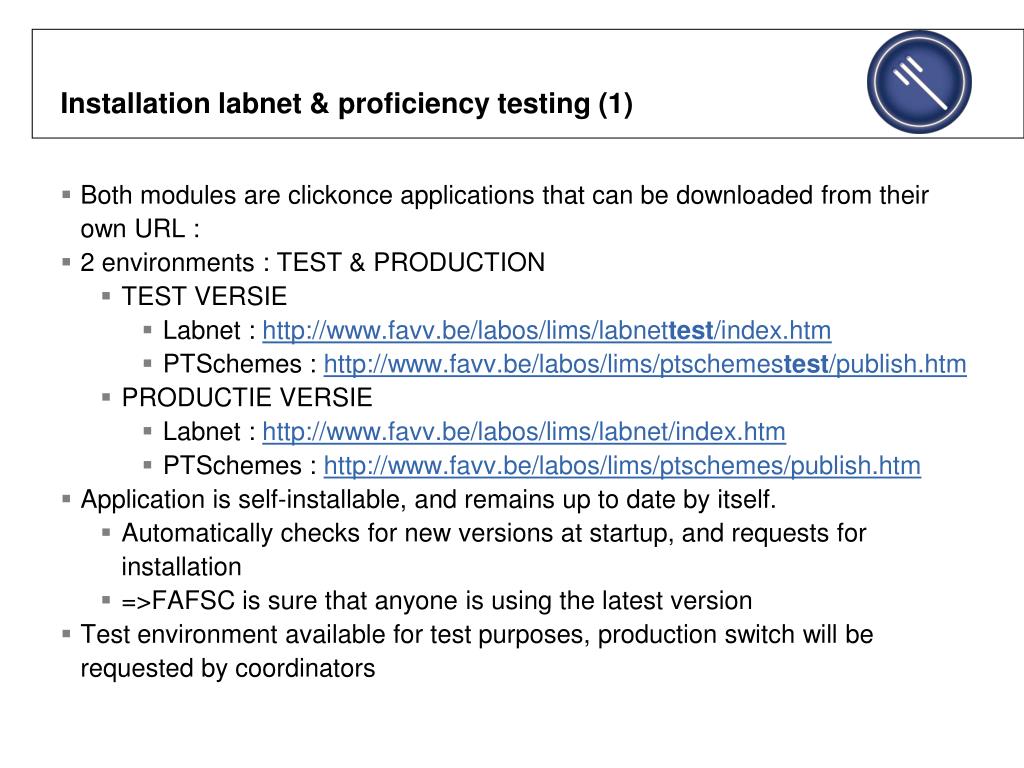

7. Installation labnet & proficiency testing (1) • Both modules are clickonce applications that can be downloaded from their own URL : • 2 environments : TEST & PRODUCTION • TEST VERSIE • Labnet : http://www.favv.be/labos/lims/labnettest/index.htm • PTSchemes : http://www.favv.be/labos/lims/ptschemestest/publish.htm • PRODUCTIE VERSIE • Labnet : http://www.favv.be/labos/lims/labnet/index.htm • PTSchemes : http://www.favv.be/labos/lims/ptschemes/publish.htm • Application is self-installable, and remains up to date by itself. • Automatically checks for new versions at startup, and requests for installation • =>FAFSC is sure that anyone is using the latest version • Test environment available for test purposes, production switch will be requested by coordinators

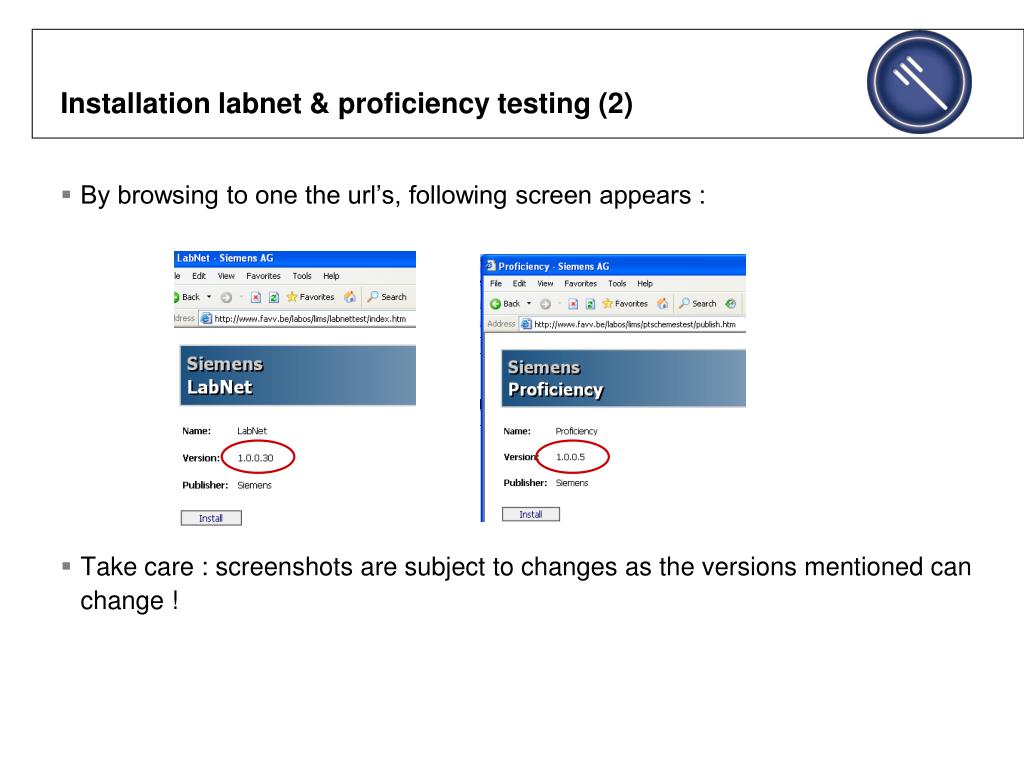

8. Installation labnet & proficiency testing (2) • By browsing to one the url’s, following screen appears : • Take care : screenshots are subject to changes as the versions mentioned can change !

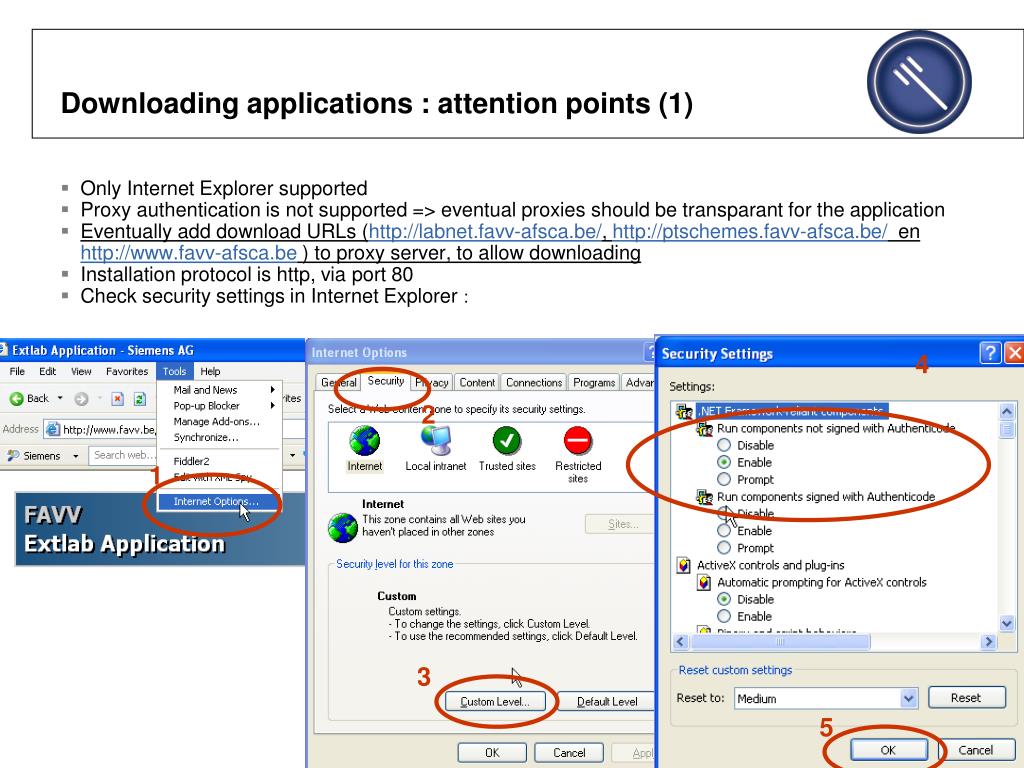

9. Downloading applications : attention points (1) • Only Internet Explorer supported • Proxy authentication is not supported => eventual proxies should be transparant for the application • Eventually add download URLs (http://labnet.favv-afsca.be/, http://ptschemes.favv-afsca.be/  en http://www.favv-afsca.be ) to proxy server, to allow downloading • Installation protocol is http, via port 80  • Check security settings in Internet Explorer : 4 2 1 3 5

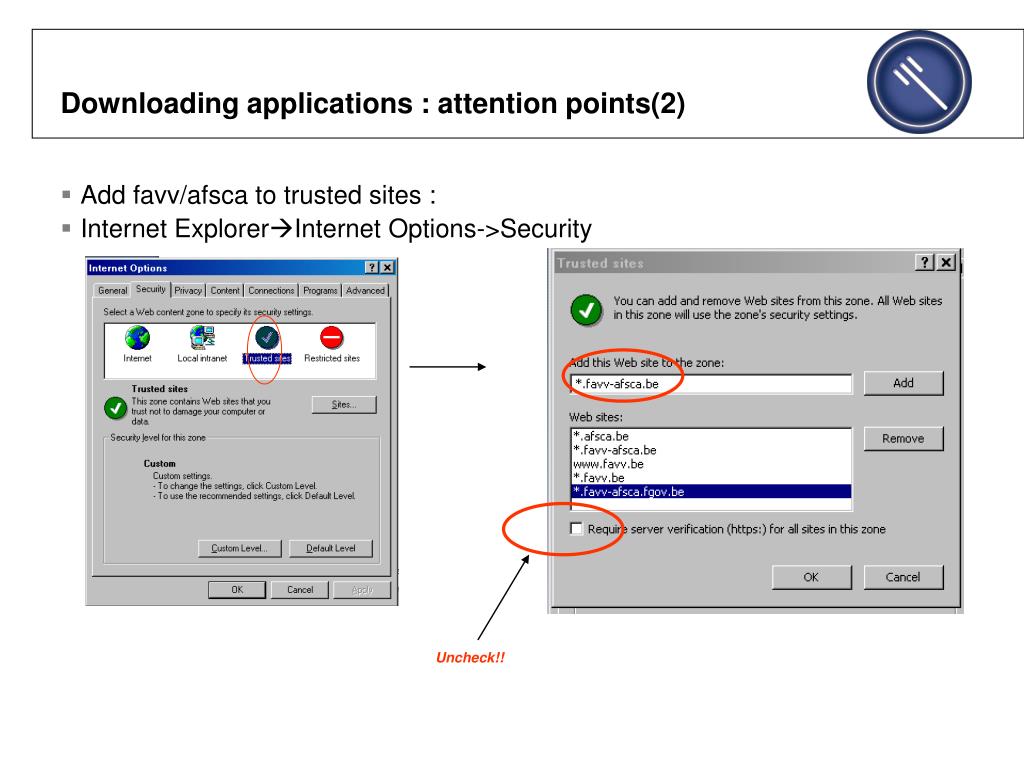

10. Downloading applications : attention points(2) • Add favv/afsca to trusted sites : • Internet ExplorerInternet Options->Security Uncheck!!

11. Downloading the applications Version changes in time ! 1 2

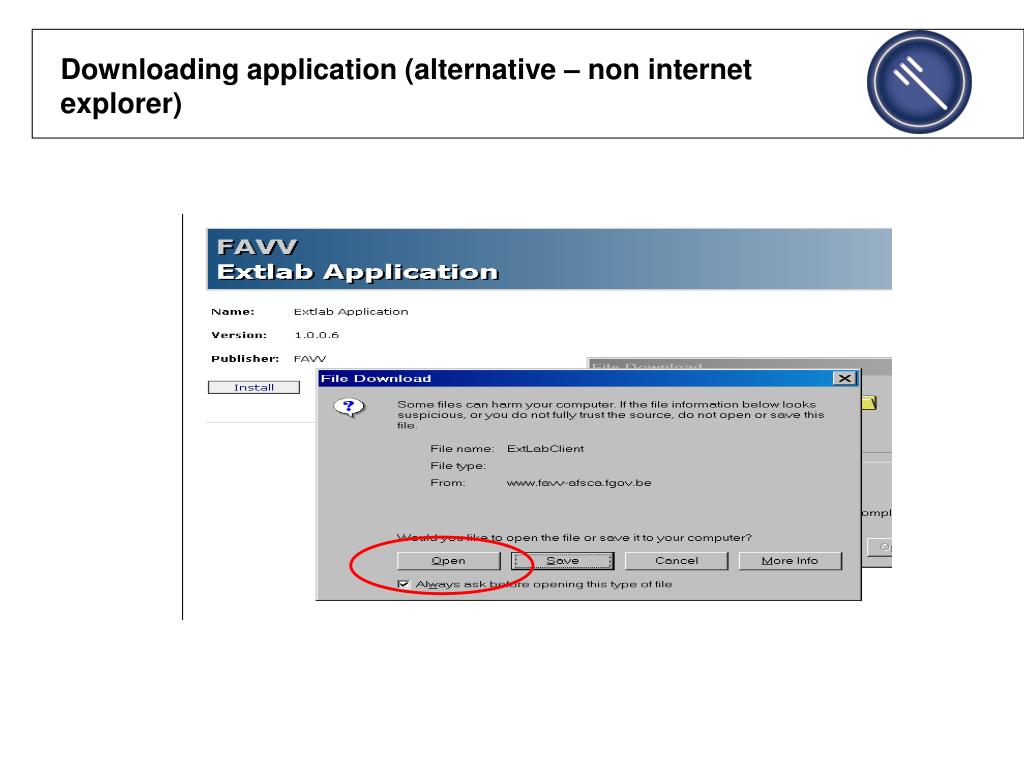

12. Downloading application (alternative – non internet explorer)

13. Downloading application (alternative)

14. Launch applications Immediately after downloading/installation, application launches itself For each new version, the system asks for ‘working language’ Once installed, application can be started : A) From windows start menu. B) By browsing to the URL, and pressing install button In either way, the application automaticallychecks for updates Page 14 Aug-14

15. Start up applications : login • Immediately on startup, the application asks for login credentials (<>extlab) • Log in by using LDAP account • = intralab login • = extlab send/receive account

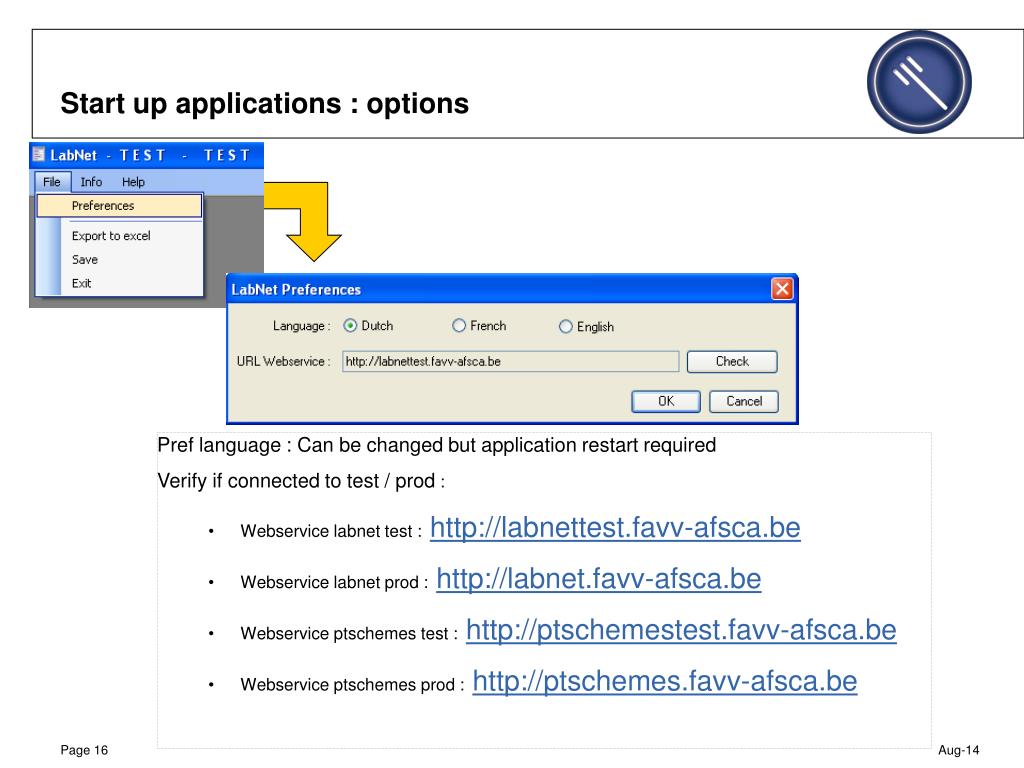

16. Start up applications : options • Pref language : Can be changed but application restart required • Verify if connected to test / prod : • Webservice labnet test :http://labnettest.favv-afsca.be • Webservice labnet prod :http://labnet.favv-afsca.be • Webservice ptschemes test :http://ptschemestest.favv-afsca.be • Webservice ptschemes prod :http://ptschemes.favv-afsca.be Page 16 Aug-14

17. Kurt Verstichel Phone :+32 54 312 722 E-mail : kurt.verstichel@siemens.com Veerle Landsheere Phone BXL : +32 2 211.87.41 Phone FLVVG :+32 9 210.21.87 E-mail : veerle.landsheere@favv.be
