Covalent Bonding

Covalent Bonding. Where sharing electrons is caring!. What is a Covalent Bond?. A covalent bond is when two or more non-metal atoms join together to form a molecule. In a covalent bond atoms share one or more electrons. Properties of Covalent Bonds. These types of bonds are weak.

nituna
Télécharger la présentation

Covalent Bonding

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Covalent Bonding Where sharing electrons is caring!

  2. What is a Covalent Bond? • A covalent bond is when two or more non-metalatoms join together to form a molecule. • In a covalent bond atomsshare one or more electrons.

  3. Properties of Covalent Bonds • These types of bonds are weak. • Therefore they have properties like: low boiling points and are soft or brittle. • Recall: Boiling Pt.=Temp. @ liquidgas. • Since they don’t have metals in them they don’tconduct electricity or dissolve in water.

  4. How Do You Name Them? • We use prefixes that indicate the number of atoms. • 1. The first element in the formula keeps its name the same. • 2. The second element in the formula changes the ending of its name to “ide”. • 3. If there is more than one atom of the first element then we have to add the correct prefix. • 4. We have to add the correct prefix for the second element.

  5. Let’s Try An Example • We are given the formula CF4 • Q: How can you tell if it is a covalent or ionic compound? • A: It is covalent because it is two non-metals. • A:Because the first element is a non-metal. • To name it follow the rules off the previous slide: • Identify the name of the first element is by looking at the symbol and finding its name on the PT. • Write the name of this element down. • Repeat steps 1+2 for the second element but change the ending of its name to “ide”.

  6. Let’s Try An Example • We are give the formula CF4 • To name it follow the rules off the previous slide: • Look at the number of atoms of the first element. • Choose the correct prefix from the table. • Add this prefix to the beginning of the name. • Repeat steps 4-6 for the 2nd element. • So far we have: Carbon tetra fluoride If the 1st non metal has only one atom = no prefix The 2nd non-metal ALWAYS gets a prefix

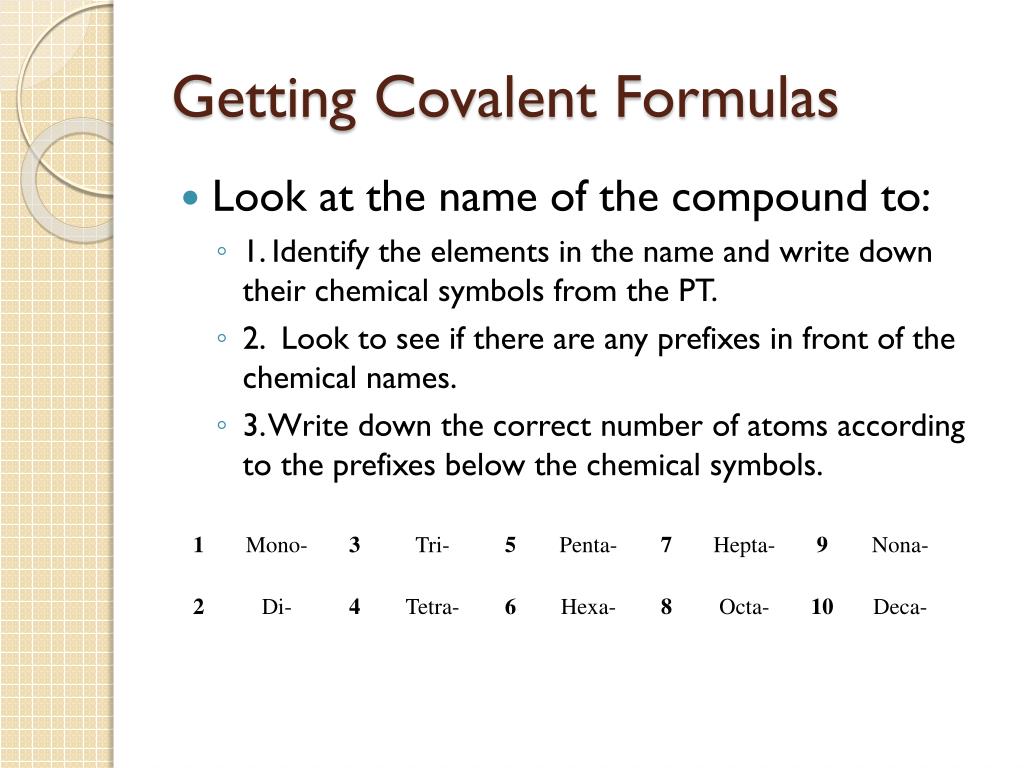

  7. Getting Covalent Formulas • Look at the name of the compound to: • 1. Identify the elements in the name and write down their chemical symbols from the PT. • 2. Look to see if there are any prefixes in front of the chemical names. • 3. Write down the correct number of atoms according to the prefixes below the chemical symbols.

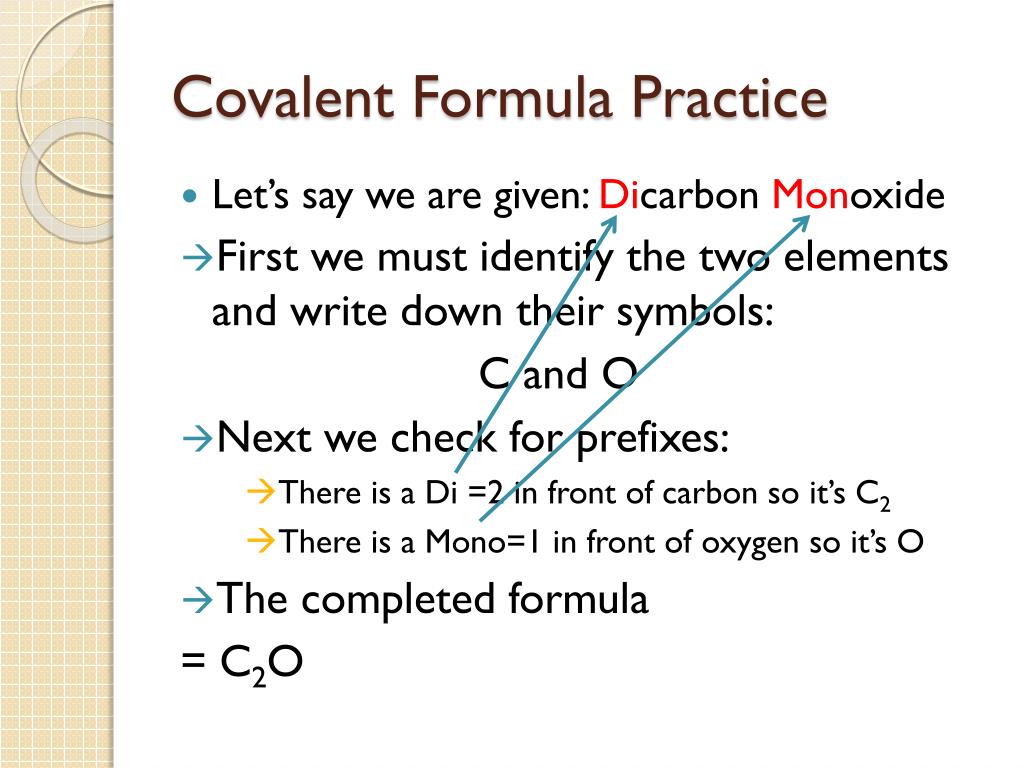

  8. Covalent Formula Practice • Let’s say we are given: DicarbonMonoxide • First we must identify the two elements and write down their symbols: C and O • Next we check for prefixes: • There is a Di =2 in front of carbon so it’s C2 • There is a Mono=1 in front of oxygen so it’s O • The completed formula = C2O

  9. Diatomic Elements • Are elements which bond to themselves. Making a general formula of X2 • They are an E.G. of covalent bonding. • An acronym to remember the diatomic elements is Mr. H.O.F.Br.I.N.Cl. (Symbols for elements that do this.)

  10. HOFBrINCl Formulas and Naming • The name stays the same as on the P.T. followed by the word “gas”. • E.G. If you were asked to name O2 : • The name would be oxygen gas. • This is the same of the rest of HOFBrINCl • The formula is always the symbol of the element with a “2” beneath it. • E.G. If you were asked to get the formula for Chlorine Gas: • The formula would be Cl2
