PLC Stepper Motor Control Basics You Must Know

PLC Stepper Motor Control is essential for modern automation. This guide explains how PLCs manage stepper motors, controlling their speed, direction, and position accurately.

nmagroup
Télécharger la présentation

PLC Stepper Motor Control Basics You Must Know

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PLC Stepper Motor Control Basics Master the fundamentals of controlling stepper motors with PLCs for precise automation applications.

  2. Understanding Stepper Motor Types Permanent Magnet Variable Reluctance Simple design with permanent magnet rotor. Best for low-speed applications with moderate torque requirements. No permanent magnets, uses magnetic reluctance. Excellent for high-speed positioning with lower holding torque. Hybrid Combines both technologies for superior performance. High precision and torque make it ideal for industrial automation.

  3. PLC Control Fundamentals Speed & Direction Control • Pulse frequency determines motor speed • Direction pin controls rotation direction • Step resolution affects positioning accuracy • Acceleration/deceleration profiles prevent stalling Key Programming Elements Use pulse train outputs and digital I/O for precise motor control through ladder logic programming.

  4. Industrial Applications Conveyor Systems Robotic Positioning Precise positioning and speed control for material handling. Perfect for sorting, packaging, and assembly line operations. Accurate joint control in robotic arms and automated machinery. Essential for pick-and-place operations. CNC & 3D Printing Valve Control High-precision movement control for cutting tools and print heads. Critical for manufacturing accuracy. Precise opening and closing of industrial valves. Ensures accurate flow control in process automation.

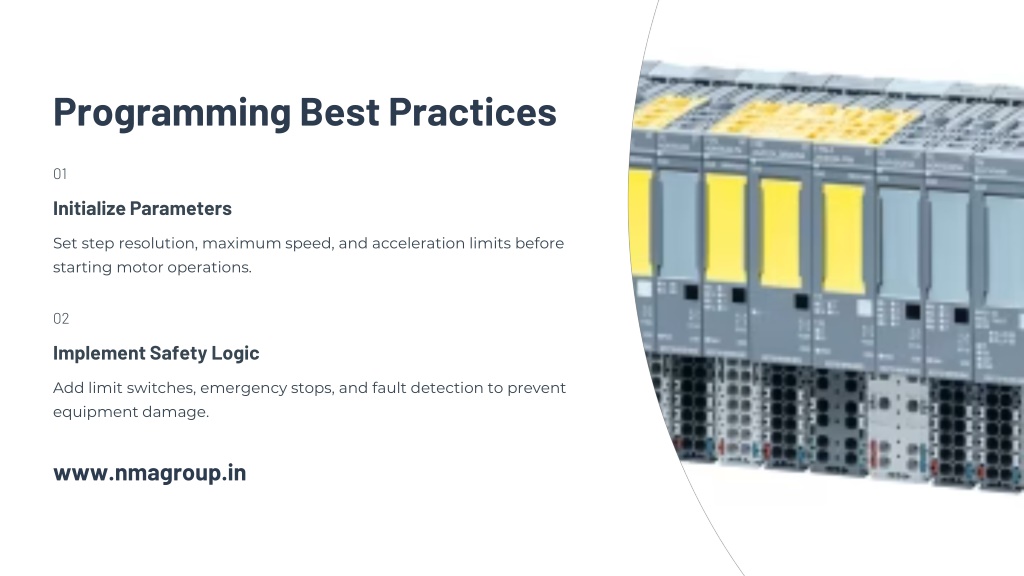

  5. Programming Best Practices 01 Initialize Parameters Set step resolution, maximum speed, and acceleration limits before starting motor operations. 02 Implement Safety Logic Add limit switches, emergency stops, and fault detection to prevent equipment damage. www.nmagroup.in
