PRESS F5 TO START. This presentation contains Credit past paper questions complete with solutions. The questions are sorted into topics based on the Credit course. To access a particular question from the main grid just simply click on the question number.

nora-white
Télécharger la présentation

Main Grid

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. PRESS F5 TO START This presentation contains Credit past paper questions complete with solutions. The questions are sorted into topics based on the Credit course. To access a particular question from the main grid just simply click on the question number. To access the formula sheet press the button. To begin click on Main Grid. F Main Grid

  2. 2011 - 2006-2010

  3. 2011 - 2001-2005

  4. 2006-2010 2001-2005

  5. Sine rule: Cosine rule: Area of a triangle: Standard deviation: Main Grid

  6. Solution F Main Grid

  7. Q1 BODMAS 2.6 × 4 = 10.4 3.1 + 2.6 × 4 3.1 + 10.4 = 13.5 Main Grid

  8. Solution F Main Grid

  9. Q2 Main Grid

  10. Solution F Main Grid

  11. Q3 Main Grid

  12. Solution F Main Grid

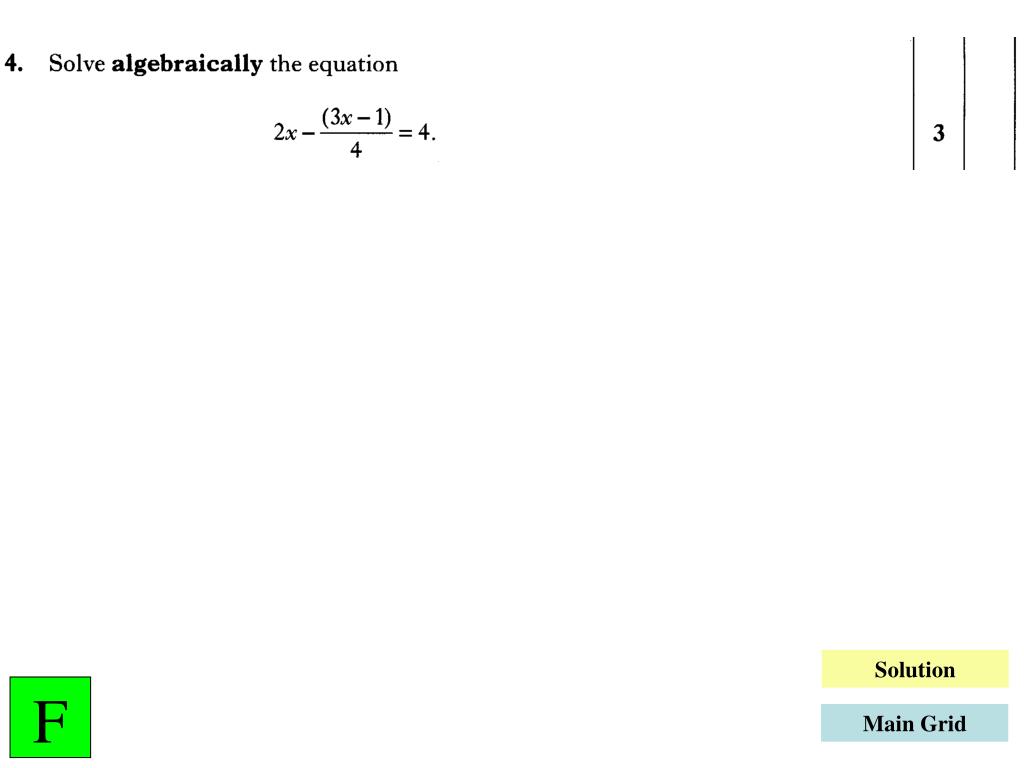

  13. Q4 Main Grid

  14. Solution F Main Grid

  15. Q5 10 15 20 25 30 35 40 45 50 55 60 Time in Days Furniture Delivery Time Timberplan Allwoods For consistency of delivery the furniture maker should use Timberplan, because a smaller interquartile range suggests a smaller range of delivery times, therefore, more consistent. Main Grid

  16. Solution F Main Grid

  17. Q6 Main Grid

  18. Solution F Main Grid

  19. Q7 Main Grid

  20. F Solution Main Grid

  21. Q8 Main Grid

  22. Solution F Main Grid

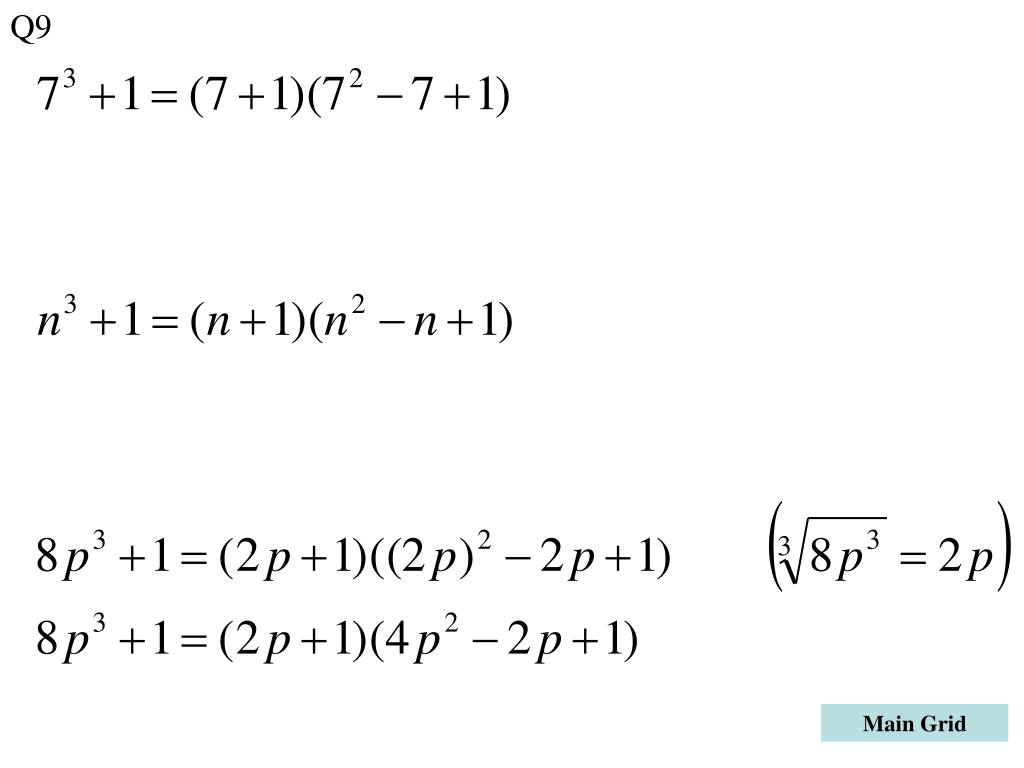

  23. Q9 Main Grid

  24. Solution F Main Grid

  25. Q10 Main Grid

  26. Solution F Main Grid

  27. Q11 Main Grid

  28. Solution F Main Grid

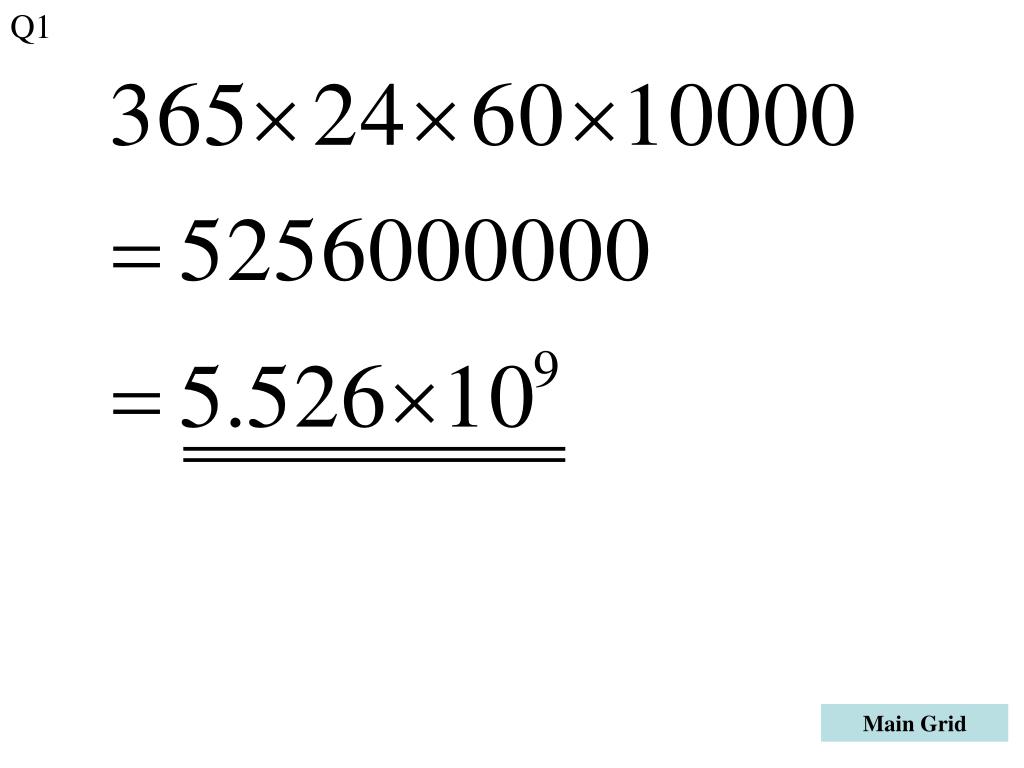

  29. Q1 Main Grid

  30. Solution F Main Grid

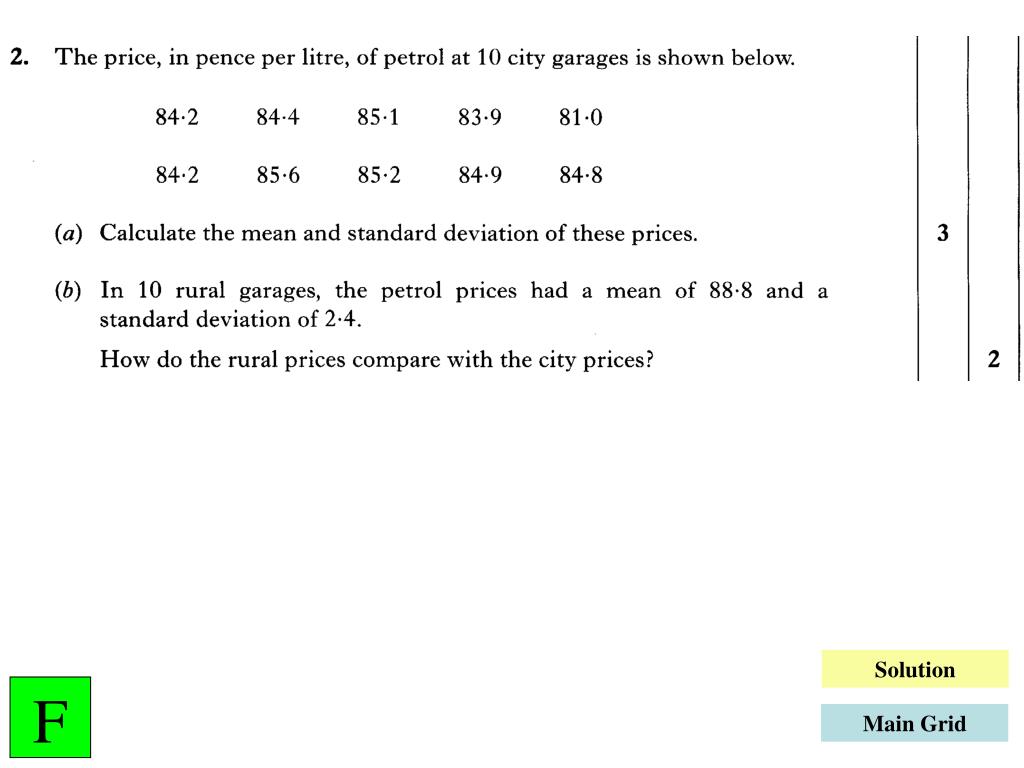

  31. Q2 In rural areas petrol prices are higher on average and there is a greater variation on prices. Main Grid

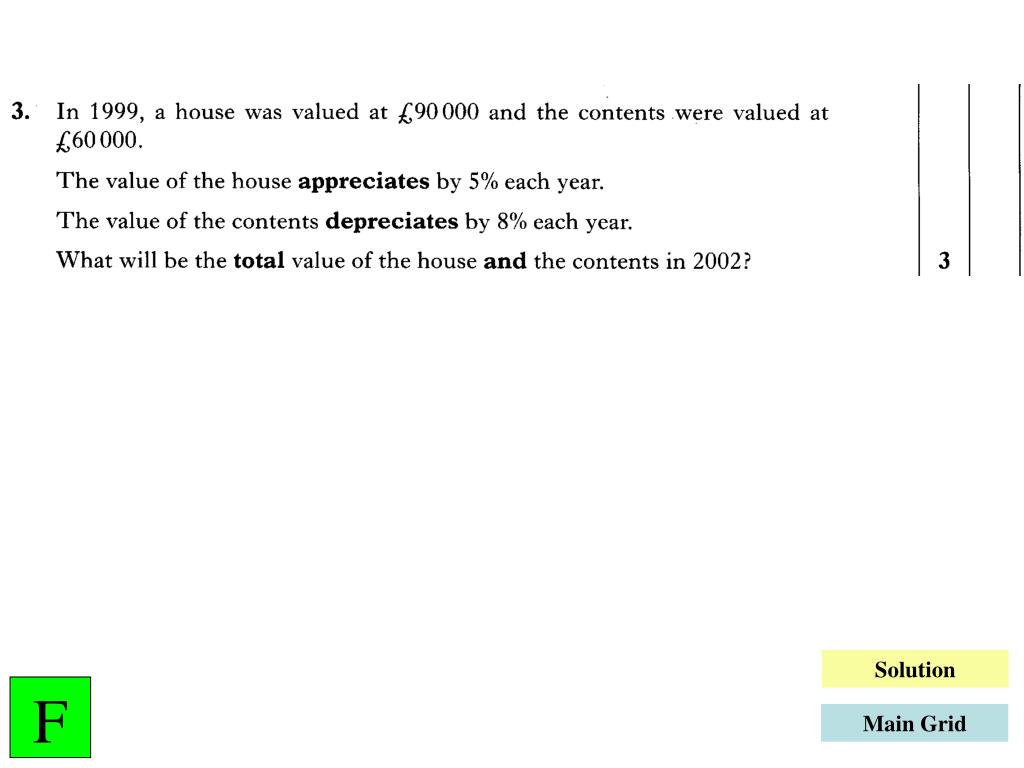

  32. Solution F Main Grid

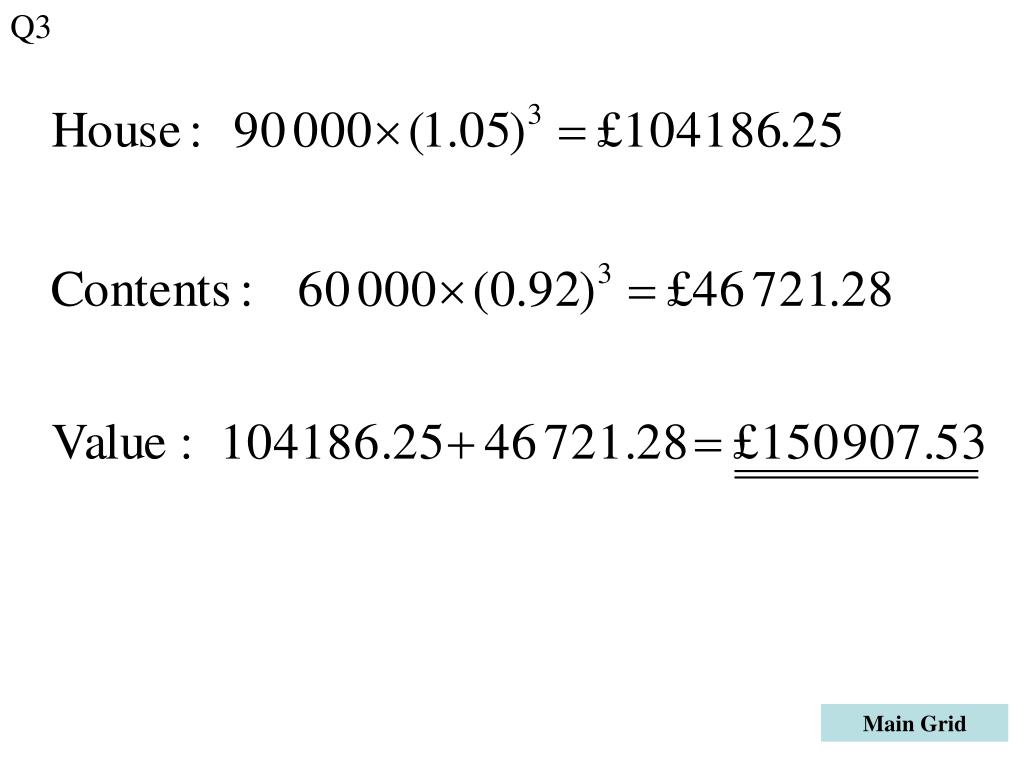

  33. Q3 Main Grid

  34. F Solution Main Grid

  35. Q4 Q4b Main Grid

  36. Solution F Main Grid

  37. Q5 Main Grid

  38. F Solution Main Grid

  39. Q6 We need to calculate angle W. Use the sine rule to calculate angle P. Main Grid

  40. Solution F Main Grid

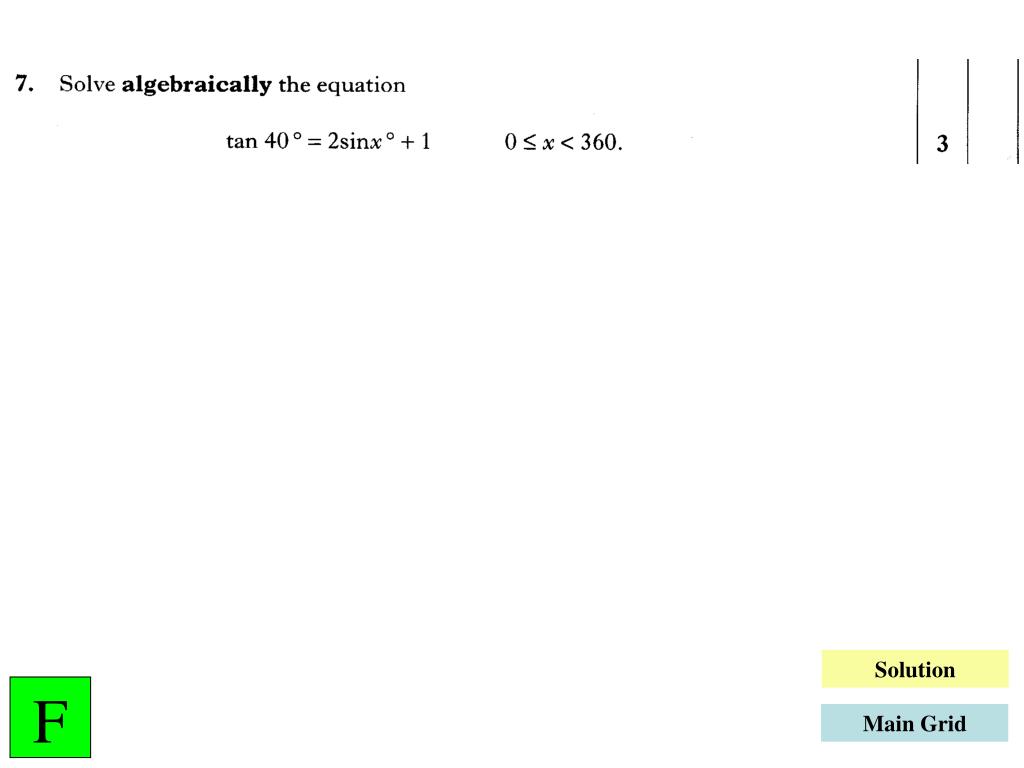

  41. Q7 Main Grid

  42. Solution F Main Grid

  43. Volume = end area × depth Q8 Main Grid

  44. Solution F Main Grid

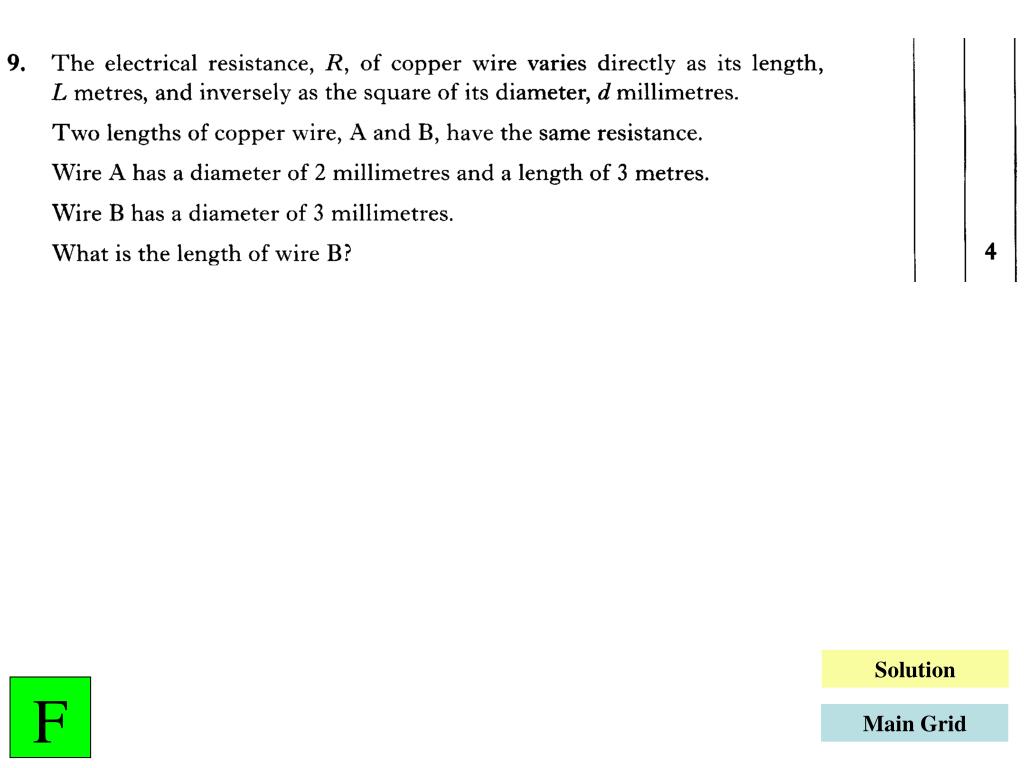

  45. Q9 Main Grid

  46. Solution F Main Grid

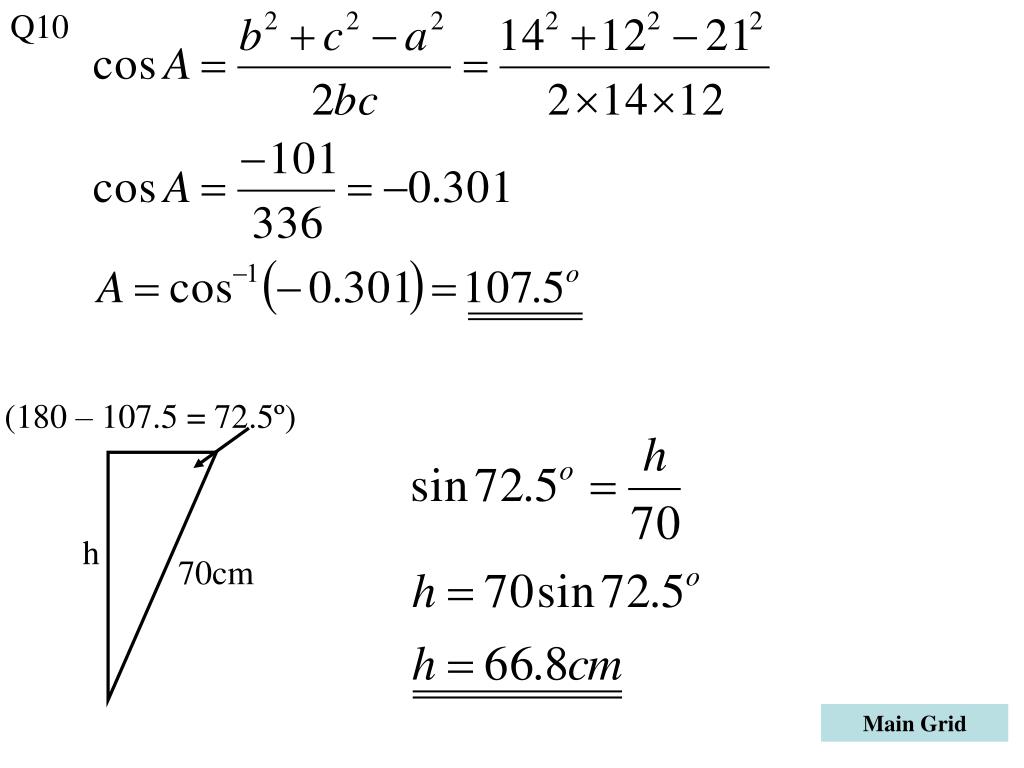

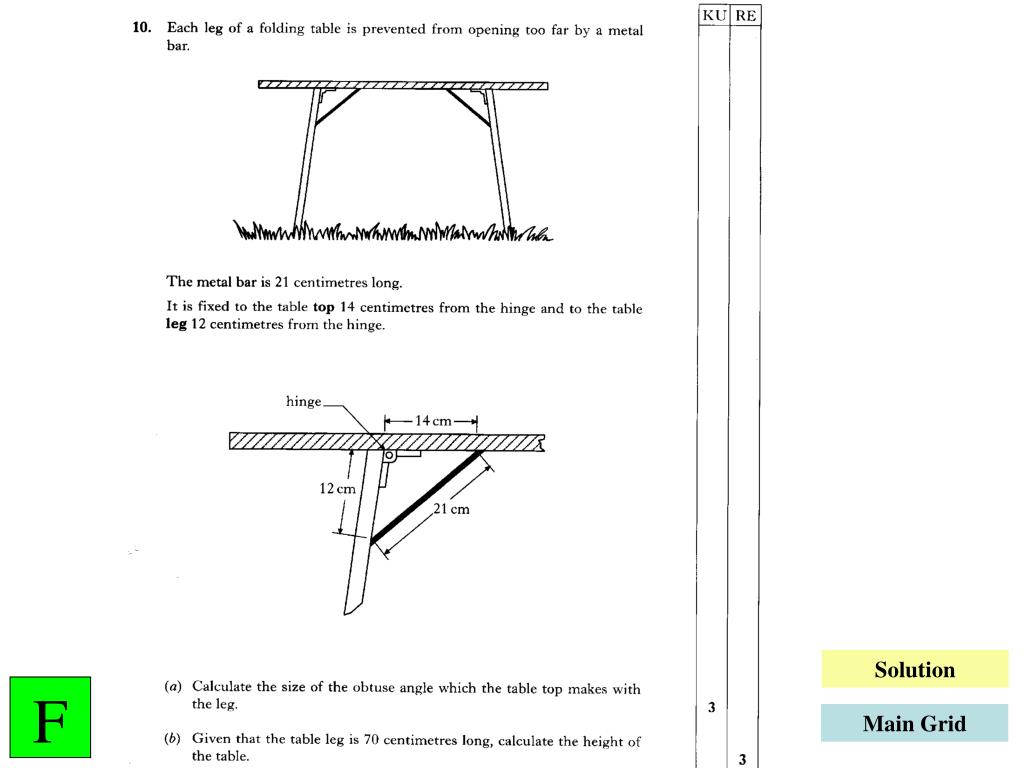

  47. Q10 (180 – 107.5 = 72.5º) h 70cm Main Grid

  48. Solution 11ab Solution 11c F Main Grid

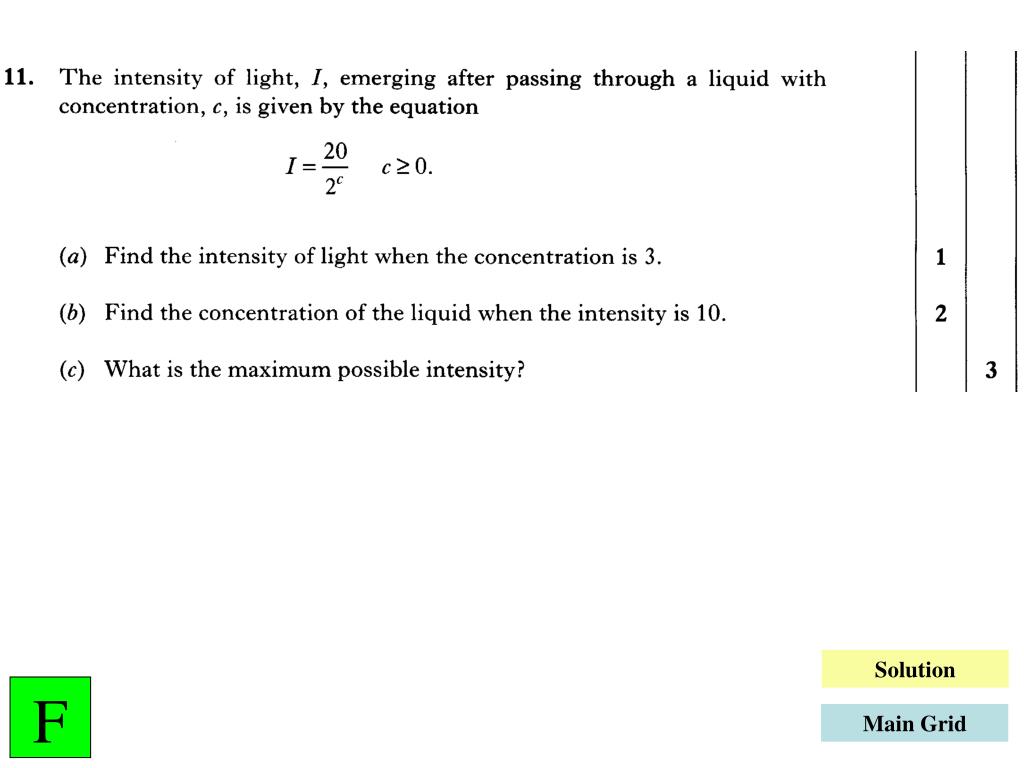

  49. Q11ab Solution 11c Main Grid
