  1. HTML tutorial part 2 • Tables • Forms • Frames

  2. Tables • <TABLE> • ALIGN {LEFT, RIGHT, CENTER} • BGCOLOR {#COLORDEF} • BORDER {1-N} • CELLPADDING {1-N} • CELLSPACING {1-N} • WIDTH {1-N, %} • <TR> • BGCOLOR {#COLORDEF} • ALIGN {LEFT, RIGHT, CENTER, JUSTIFY} • VALIGN {TOP, BOTTOM, MIDDLE, BASELINE}

  3. Tables Continued… • <TD> • ALIGN {LEFT, RIGHT, CENTER, JUSTIFY} • VALIGN {TOP, MIDDLE, BOTTOM, BASELINE} • BGCOLOR {#COLORDEF} • COLSPAN {1-N} • ROWSPAN {1-N} • HEIGHT {1-N} • WIDTH {1-N} • <TH>

  4. Tables Continued… • Examples <table> <tr> <td>100</td> <td>200</td> <td>300</td> </tr> <tr> <td>400</td> <td>500</td> <td>600</td> </tr> </table> <table border="1"> <tr> <th>Name</th> <th>Telephone</th> <th>Telephone</th> </tr> <tr> <td>Bill Gates</td> <td>555 77 854</td> <td>555 77 855</td> </tr> </table>

  5. Tables Continued • Examples <table border="1"> <tr> <th>First Name:</th> <td>Bill Gates</td> </tr> <tr> <th rowspan="2">Telephone:</th> <td>555 77 854</td> </tr> <tr> <td>555 77 855</td> </tr> </table> <table border="1"> <tr> <th>Name</th> <th colspan="2">Telephone</th> </tr> <tr> <td>Bill Gates</td> <td>555 77 854</td> <td>555 77 855</td> </tr> </table>

  6. Forms • <FORM></FORM> • ACTION {URL} • METHOD {GET, POST} • NAME {FORM_NAME} <form action="form_action.asp“ method="get"> First name: <input type="text" name="fname" value="Mickey" /> <br /> Last name: <input type="text" name="lname" value="Mouse" /> <br /> <input type="submit" value="Submit" /> </form>

  7. Forms Continued… • <INPUT></INPUT> • NAME • TYPE {BUTTON, CHECKBOX, PASSWORD, RADIO, SUBMIT, TEXT} • ALIGN {LEFT, RIGHT, TOP, BOTTOM} • MAXLENGTH {1-N} • VALUE {TEXT ON BUTTON, VALUE FOR RADIO BUTTONS AND CHECKBOXES} • CHECKED • DISABLED • READONLY

  8. Forms Continued… • Examples (Input Type = Text/Password) <form> Username: <input type="text" name="user" size="20" /> <br /> Password: <input type="password" name="password" size="20" /> </form>

  9. Forms Continued • Examples (Input Type = Checkbox) <form> I have a bike: <input type="checkbox" name="Bike" /> <br /> I have a car: <input type="checkbox" name="Car" /> </form>

  10. Forms Continued… • Examples (Input Type = Radio) <form> Male: <input type="radio" name="Sex" value="male" checked="checked" /> <br /> Female: <input type="radio" name="Sex" value="female" /> </form>

  11. Forms Continued… • Examples (Input Type = Button/Submit) <form> <input type="button" value="Hello world!" /> </form>

  12. Forms Continued… • Examples (Working Form) <form name="input" action="form_action.asp" method="get"> Full Name: <input type="text" name="FullName" value="Mickey" size="20" /> <br /> Student of Batch 2006: <input type="checkbox" name=“Student06" checked="checked" /> <br /> Male: <input type="radio" name="Sex" value="Male" checked="checked" /> <br /> Female: <input type="radio" name="Sex" value="Female" /> <br /> <input type="submit" value="Submit" /> </form>

  13. Forms Continued… • <TEXTAREA></TEXTAREA> • COLS {1-N} • ROWS {1-N} • NAME {TEXTAREA_NAME} • DISABLED • READONLY

  14. Forms Continued… • Examples (Text Area) <textarea rows="10" cols="30"> The cat was playing in the garden. </textarea>

  15. Frames • <FRAMESET></FRAMESET> • COLS {PIXELS, %, *} • ROWS {PIXELS, %, *} • <FRAME> • NAME {FRAME_NAME} • SRC {FRAME_SOURCE} • FRAMEBORDER {0,1} • MARGINHEIGHT {1-N} • MARGINWIDTH {1-N} • NORESIZE • SCROLLING {YES, NO, AUTO}

  16. Frames Continued… • Examples (Vertical Frames) <frameset cols="25%,50%,25%"> <frame src="frame_a.htm" /> <frame src="frame_b.htm" /> <frame src="frame_c.htm" /> </frameset>

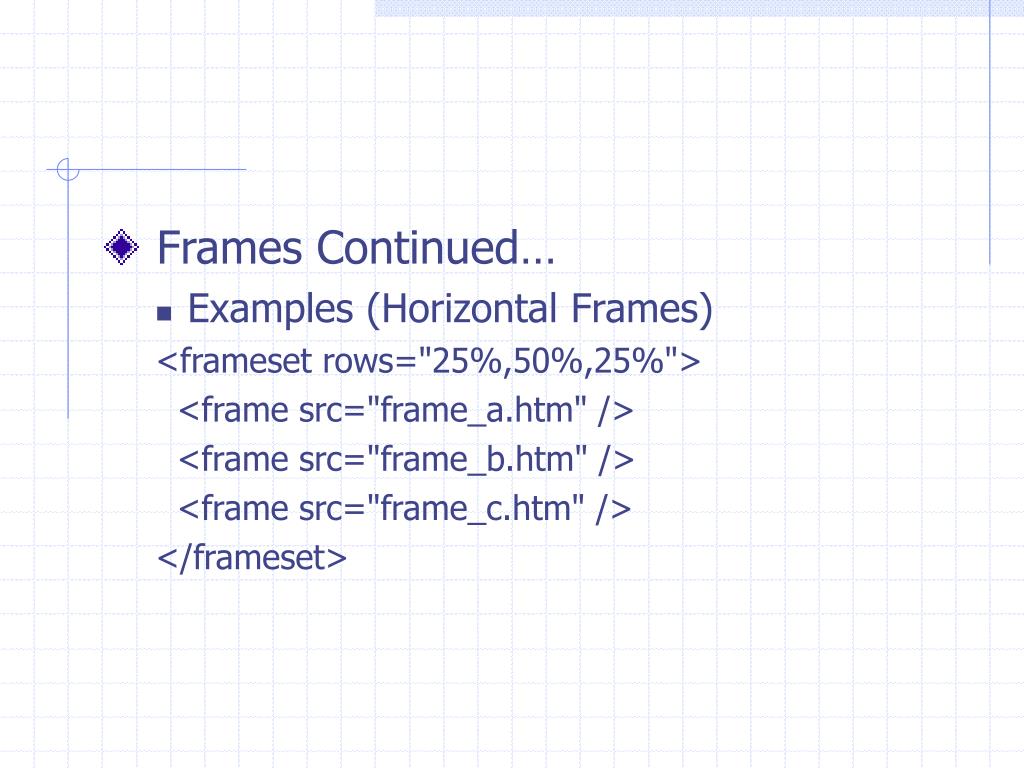

  17. Frames Continued… • Examples (Horizontal Frames) <frameset rows="25%,50%,25%"> <frame src="frame_a.htm" /> <frame src="frame_b.htm" /> <frame src="frame_c.htm" /> </frameset>

  18. Frames Continued… • Examples (Mixed Frames) <frameset rows="50%,50%"> <frame src="frame_a.htm" /> <frameset cols="25%,75%"> <frame src="frame_b.htm" /> <frame src="frame_c.htm" /> </frameset> </frameset>

  19. Frames Continued… • Examples (Non Frame Supporting Browsers) <frameset cols="25%,50%,25%"> <frame src="frame_a.htm"> <frame src="frame_b.htm"> <frame src="frame_c.htm"> <noframes> <body>Your browser does not handle frames!</body> </noframes> </frameset>

  20. Frames Continued… • Examples (Non-Resizable Frames) <frameset rows="50%,50%"> <frame noresize="noresize" src="frame_a.htm" /> <frameset cols="25%,75%"> <frame noresize="noresize" src="frame_b.htm" /> <frame noresize="noresize" src="frame_c.htm" /> </frameset> </frameset>

  21. Frames Continued… • Examples (Navigation Frames) Index.htm … <frameset cols="120,*"> <frame src=“Contents.htm" /> <frame src=“Page1.html" name="showframe" /> </frameset> … Contents.htm … <a href=“Page1.html” target=“showframe”> Link to Page 1 <a><br> <a href=“Page2.html” target=“showframe”> Link to Page 2 <a><br> <a href=“Page3.html” target=“showframe”> Link to Page 3 <a><br> …
