  1. HTML Tables Summer Smith

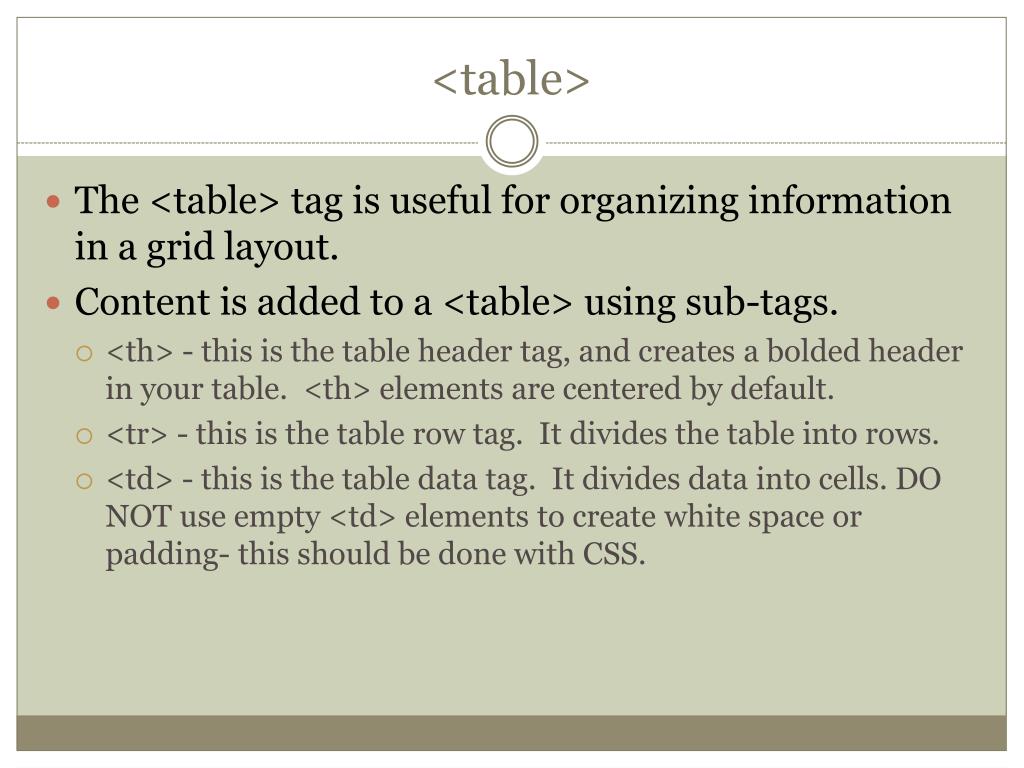

  2. <table> • The <table> tag is useful for organizing information in a grid layout. • Content is added to a <table> using sub-tags. • <th> - this is the table header tag, and creates a bolded header in your table. <th> elements are centered by default. • <tr> - this is the table row tag. It divides the table into rows. • <td> - this is the table data tag. It divides data into cells. DO NOT use empty <td> elements to create white space or padding- this should be done with CSS.

  3. Basic table html output

  4. <table border="1" style="border-collapse:collapse"> <table border=“1“> Border Adding the border attribute creates a border around the table The styling attribute “border-collapse” allows you to create a one-line border. <table border=“8“>

  5. Setting table width <table border=“1“ style=“width:300px”> Setting the width of the table can help space the data to make the information clearer. <table style=“width:300px”>

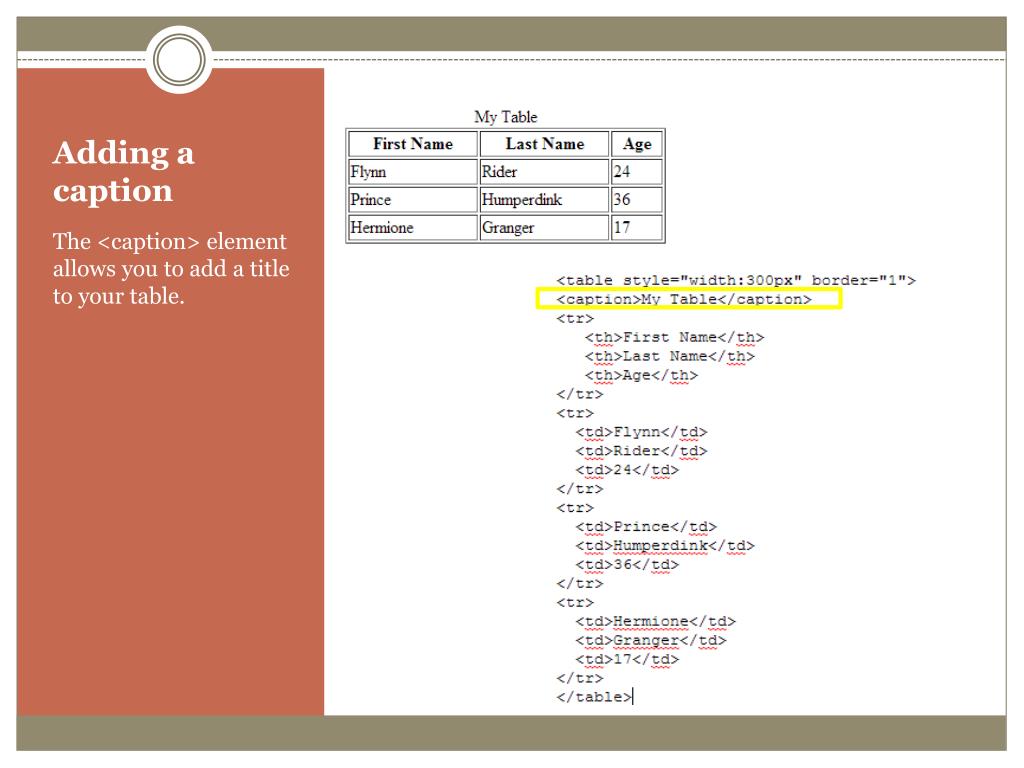

  6. Adding a caption The <caption> element allows you to add a title to your table.

  7. <tr> <td<Princess Peach</td> </tr> Spanning The colspan and rowspan attributes allow one cell to span multiple columns or rows. A cell cannot span more rows or columns than are contained in the table. <tr> <td colspan="2"> Princess Peach</td> </tr> <tr> <td colspan=“4"> Princess Peach</td> </tr>

  8. <table style="width:300px; border-color:orchid;" border="1"> <tr style="background-color:orange; color:white"> <th>First Name</th> <th>Last Name</th> <th>Age</th> </tr> <tr style="color:blue"> <td>Flynn</td> <td>Rider</td> <td>24</td> </tr> <tr> <td style="background-color:lightGreen; color:salmon;">Prince</td> <td>Humperdink</td> <td>36</td> </tr> <tr> <td>Hermione</td> <td style="text-align:right">Granger</td> <td>17</td> </tr> </table> Styling tables You can style specific <tr>, <th>, and <td> elements individually using inline styles. Tables can be styled by element or as a whole using an external Cascading Style Sheet.

  9. CSS added: td { padding: 15px; } Padding cells Using CSS, you can manipulate the padding to change the look of the table. You can also customize the width and height of a table using CSS. CSS added: th { height: 50px; } CSS added: th { width:150px; }

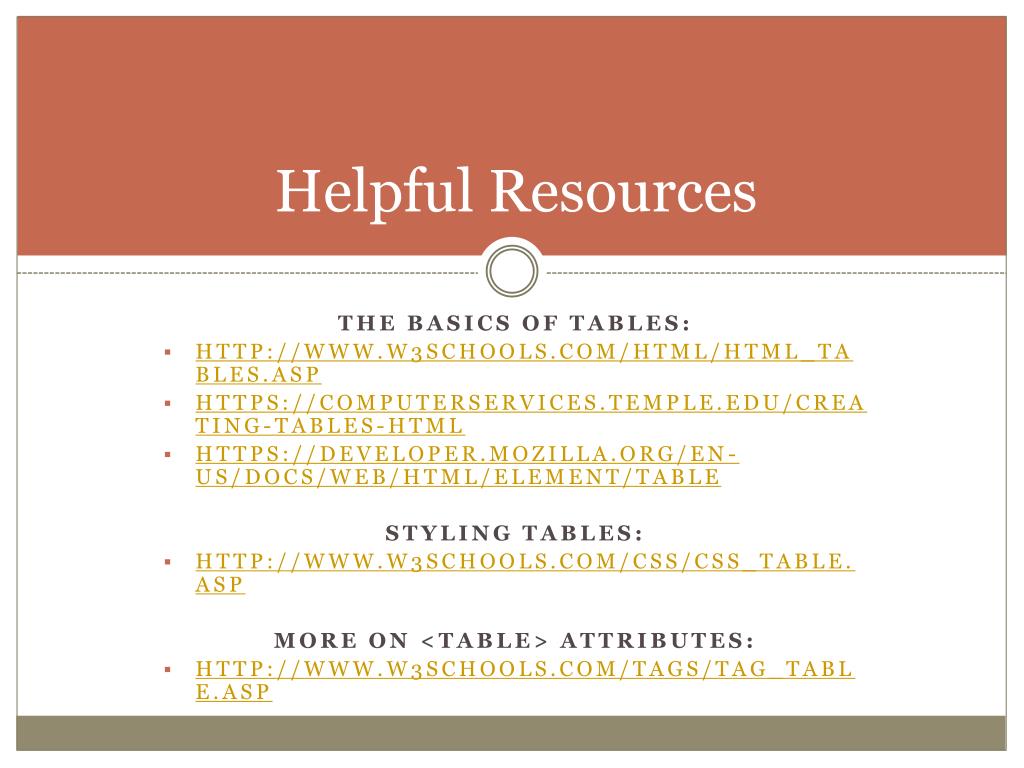

  10. Helpful Resources The basics of Tables: http://www.w3schools.com/html/html_tables.asp https://computerservices.temple.edu/creating-tables-html https://developer.mozilla.org/en-US/docs/Web/HTML/Element/table Styling tables: http://www.w3schools.com/css/css_table.asp More on <table> attributes: http://www.w3schools.com/tags/tag_table.asp
