Starter: Equations of lines What are the equations of the following lines?

y. 5. 4. 3. 2. 1. x. -5. -4. -3. -2. -1. 0. 1. 2. 3. 4. 5. -1. -2. -3. -4. -5. Starter: Equations of lines What are the equations of the following lines?. B. A. C. D. E. y. 5. 4. 3. 2. 1. x. -5. -4. -3. -2. -1. 0. 1. 2. 3. 4. 5. -1. -2. -3. -4. -5.

norman-bowman
Télécharger la présentation

Starter: Equations of lines What are the equations of the following lines?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A C D E

  2. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A A: y = x C D E

  3. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A A: y = x B: y = x + 4 C D E

  4. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A A: y = x B: y = x + 4 C: y = x - 2 C D E

  5. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A A: y = x B: y = x + 4 C: y = x – 2 D: y = -x + 1 C D E

  6. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Starter: Equations of linesWhat are the equations of the following lines? B A A: y = x B: y = x + 4 C: y = x – 2 D: y = -x + 1 E: y = -x - 4 C D E

  7. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations Where do the lines C and E cross? C E

  8. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations Where do the lines C and E cross? By observation they cross at (-1, -3) C E

  9. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations Where do the lines C and E cross? By observation they cross at (-1, -3) You could have worked this out algebraically without drawing the graphs……… C E

  10. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations The equations of the lines are y = x – 2 …and… y = -x – 4 C E

  11. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations The equations of the lines are y = x – 2 …and… y = -x – 4 Because they are both y = something, we can write x – 2 = -x - 4 C E

  12. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations The equations of the lines are y = x – 2 …and… y = -x – 4 Because they are both y = something, we can write x – 2 = -x – 4 2x = -2 C E

  13. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations The equations of the lines are y = x – 2 …and… y = -x – 4 Because they are both y = something, we can write x – 2 = -x – 4 2x = -2 x = -1 C E

  14. y 5 4 3 2 1 x -5 -4 -3 -2 -1 0 1 2 3 4 5 -1 -2 -3 -4 -5 Objective: To understand simultaneous equations The equations of the lines are y = x – 2 …and… y = -x – 4 Because they are both y = something, we can write x – 2 = -x – 4 2x = -2 x = -1 Therefore y = -1 – 2 = -3 They cross at (-1, -3) C E

  15. Objective: To understand simultaneous equations Simultaneous equations are written in the form: y – 3x = 2 y – 2x = 5

  16. Objective: To understand simultaneous equations Simultaneous equations are written in the form: y – 3x = 2 y – 2x = 5 This is the same as: y = 3x + 2 y = 2x + 5

  17. Objective: To understand simultaneous equations Simultaneous equations are written in the form: y – 3x = 2 y – 2x = 5 This is the same as: y = 3x + 2 y = 2x + 5 So, 3x + 2 = 2x + 5

  18. Objective: To understand simultaneous equations Simultaneous equations are written in the form: y – 3x = 2 y – 2x = 5 This is the same as: y = 3x + 2 y = 2x + 5 So, 3x + 2 = 2x + 5 x = 3 If x = 3, y = 11

  19. Objective: To understand simultaneous equations Questions: Solve the simultaneous equations 1.) y – 4x = 1 5.) 2x – y = 4 y – x = 7 -x – y = 7 2.) x + y = 8 6.) 2x – y = 6 x + 2y = 14 x – y = 2 3.) y + x = 6 7.) 3x + 2y = 18 y + 2x = 10 3x + 4y = 24 Extension/plenary 4.) 3x + y = 10 8.) 2x + 3y = 24 4x + y = 13 x + 2y = 14

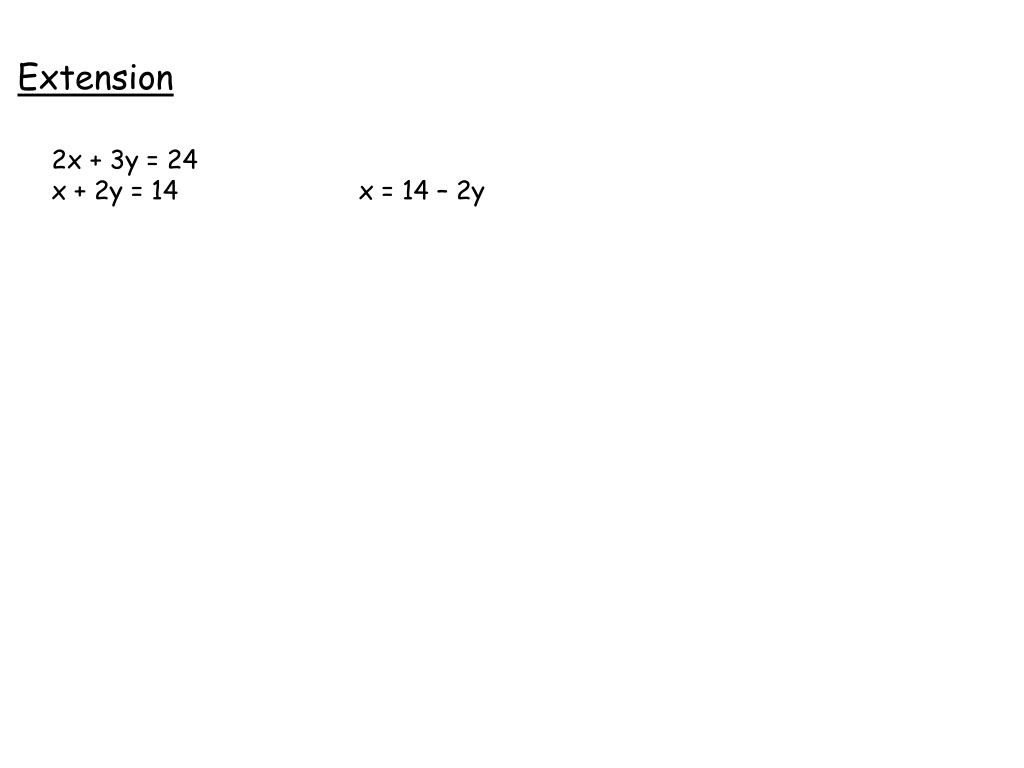

  20. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y

  21. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24

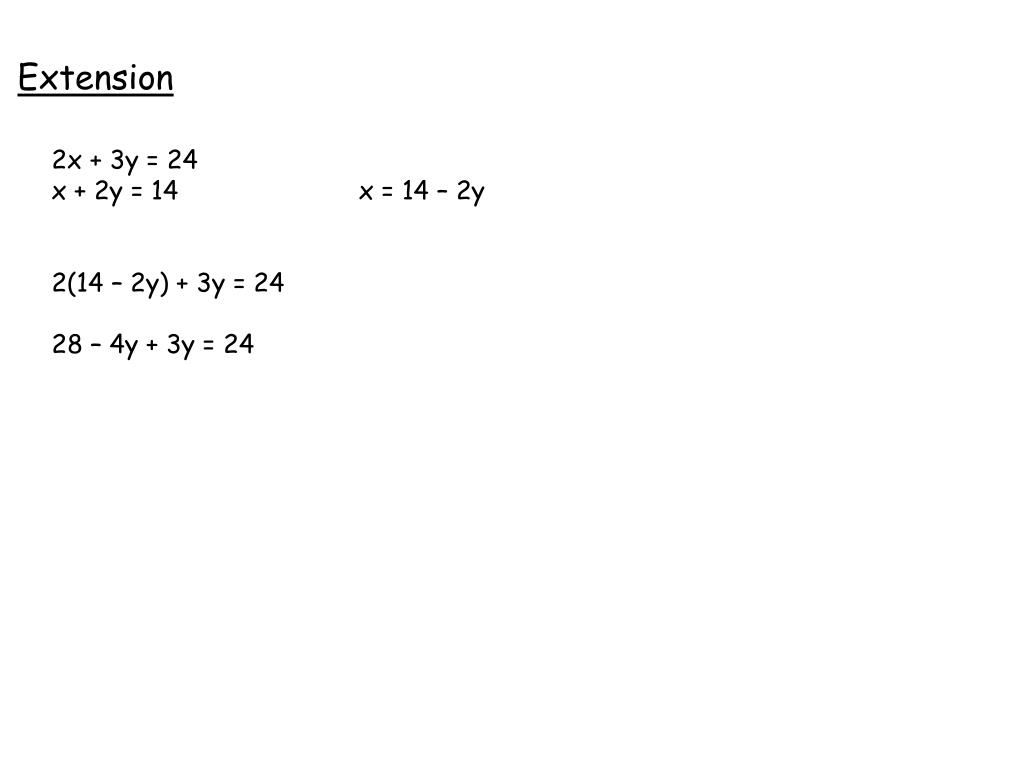

  22. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24 28 – 4y + 3y = 24

  23. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24 28 – 4y + 3y = 24 -y = -4

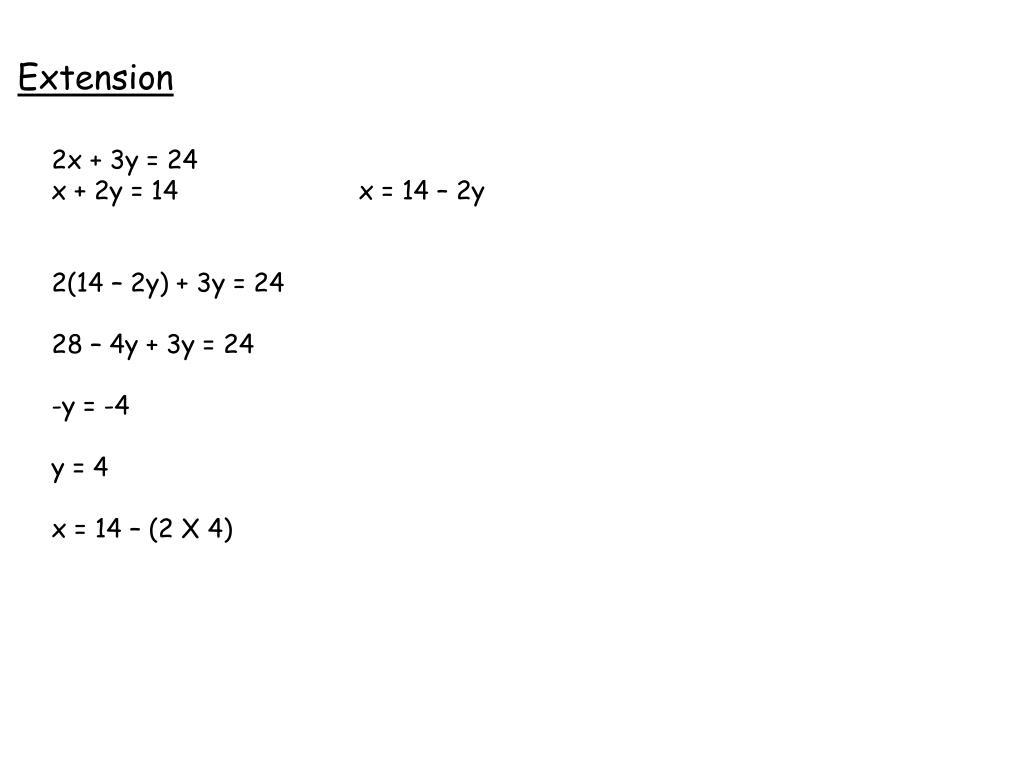

  24. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24 28 – 4y + 3y = 24 -y = -4 y = 4 x = 14 – (2 X 4)

  25. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24 28 – 4y + 3y = 24 -y = -4 y = 4 x = 14 – (2 X 4) x = 14 - 8

  26. Extension 2x + 3y = 24 x + 2y = 14 x = 14 – 2y 2(14 – 2y) + 3y = 24 28 – 4y + 3y = 24 -y = -4 y = 4 x = 14 – (2 X 4) x = 14 – 8 x = 6
