GEOMETRY IN PERCEPTRON LEARNING

novia avatar
novia
26 diapositives · 439 Views · Feb 10, 2014

GEOMETRY IN PERCEPTRON LEARNING. Reference: GEOMETRY IN LEARNING, tech. report by KRISTIN P. BENNETT AND ERIN J. BREDENSTEINER, RENSSELAER POLYTECHNIC INSTITUTE IE 5970 SPRING, 2,000. PRESENTATION OUTLINE. 1. INTRODUCTION 2. A SIMPLE LEARNING MODEL: CONCEPT OF A PERCEPTRON

#studied #quadrivium #skilled #second #trivium #geometric #solid geometry #elliptic geometry
GEOMETRY IN PERCEPTRON LEARNING - slide 1
01 / 26GEOMETRY IN PERCEPTRON LEARNING
1 / 17

Télécharger la présentation

GEOMETRY IN PERCEPTRON LEARNING
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. GEOMETRY IN PERCEPTRON LEARNING Reference: GEOMETRY IN LEARNING, tech. report by KRISTIN P. BENNETT AND ERIN J. BREDENSTEINER, RENSSELAER POLYTECHNIC INSTITUTE IE 5970 SPRING, 2,000

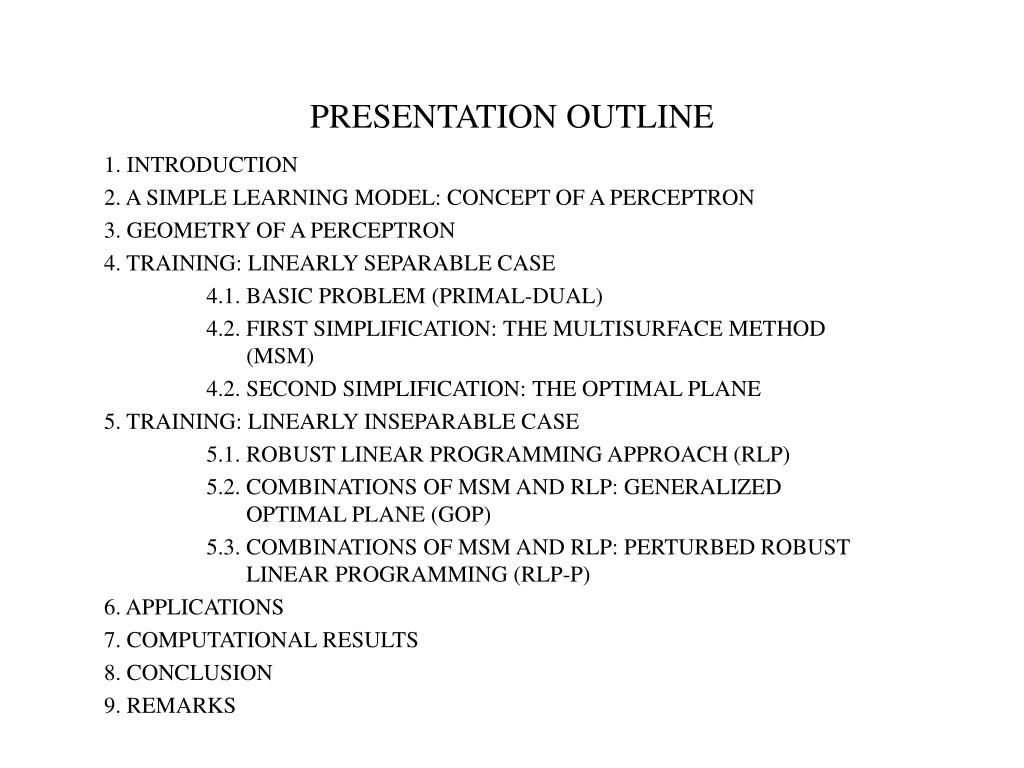

  2. PRESENTATION OUTLINE 1. INTRODUCTION 2. A SIMPLE LEARNING MODEL: CONCEPT OF A PERCEPTRON 3. GEOMETRY OF A PERCEPTRON 4. TRAINING: LINEARLY SEPARABLE CASE 4.1. BASIC PROBLEM (PRIMAL-DUAL) 4.2. FIRST SIMPLIFICATION: THE MULTISURFACE METHOD (MSM) 4.2. SECOND SIMPLIFICATION: THE OPTIMAL PLANE 5. TRAINING: LINEARLY INSEPARABLE CASE 5.1. ROBUST LINEAR PROGRAMMING APPROACH (RLP) 5.2. COMBINATIONS OF MSM AND RLP: GENERALIZED OPTIMAL PLANE (GOP) 5.3. COMBINATIONS OF MSM AND RLP: PERTURBED ROBUST LINEAR PROGRAMMING (RLP-P) 6. APPLICATIONS 7. COMPUTATIONAL RESULTS 8. CONCLUSION 9. REMARKS

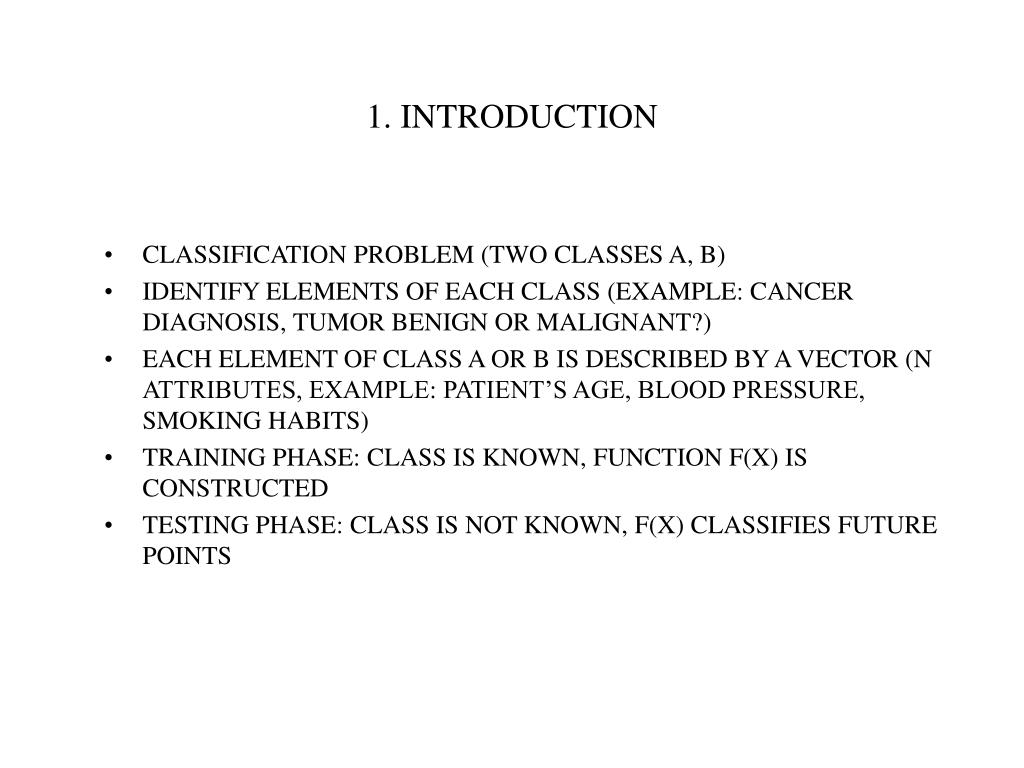

  3. 1. INTRODUCTION • CLASSIFICATION PROBLEM (TWO CLASSES A, B) • IDENTIFY ELEMENTS OF EACH CLASS (EXAMPLE: CANCER DIAGNOSIS, TUMOR BENIGN OR MALIGNANT?) • EACH ELEMENT OF CLASS A OR B IS DESCRIBED BY A VECTOR (N ATTRIBUTES, EXAMPLE: PATIENT’S AGE, BLOOD PRESSURE, SMOKING HABITS) • TRAINING PHASE: CLASS IS KNOWN, FUNCTION F(X) IS CONSTRUCTED • TESTING PHASE: CLASS IS NOT KNOWN, F(X) CLASSIFIES FUTURE POINTS

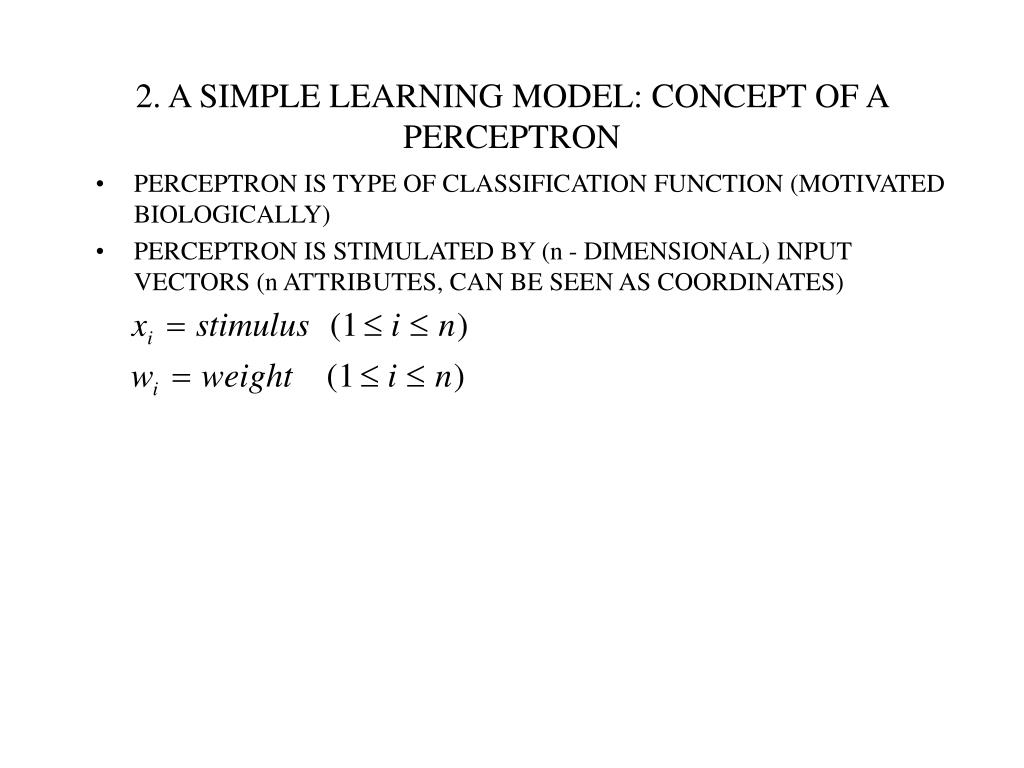

  4. 2. A SIMPLE LEARNING MODEL: CONCEPT OF A PERCEPTRON • PERCEPTRON IS TYPE OF CLASSIFICATION FUNCTION (MOTIVATED BIOLOGICALLY) • PERCEPTRON IS STIMULATED BY (n - DIMENSIONAL) INPUT VECTORS (n ATTRIBUTES, CAN BE SEEN AS COORDINATES)

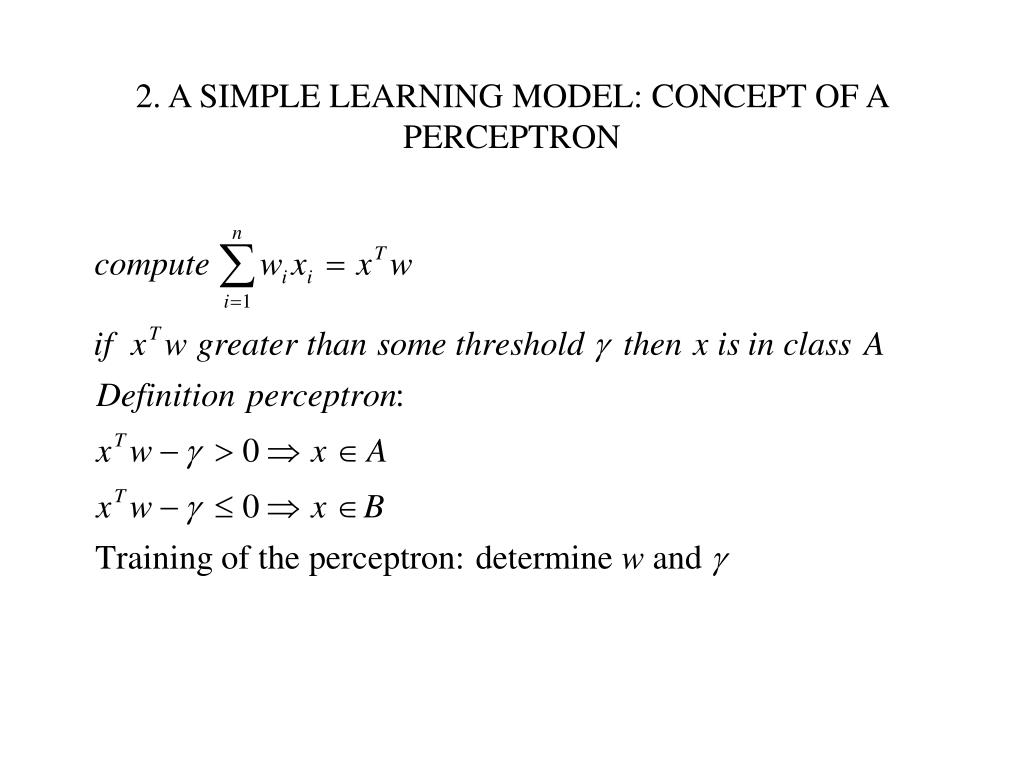

  5. 2. A SIMPLE LEARNING MODEL: CONCEPT OF A PERCEPTRON

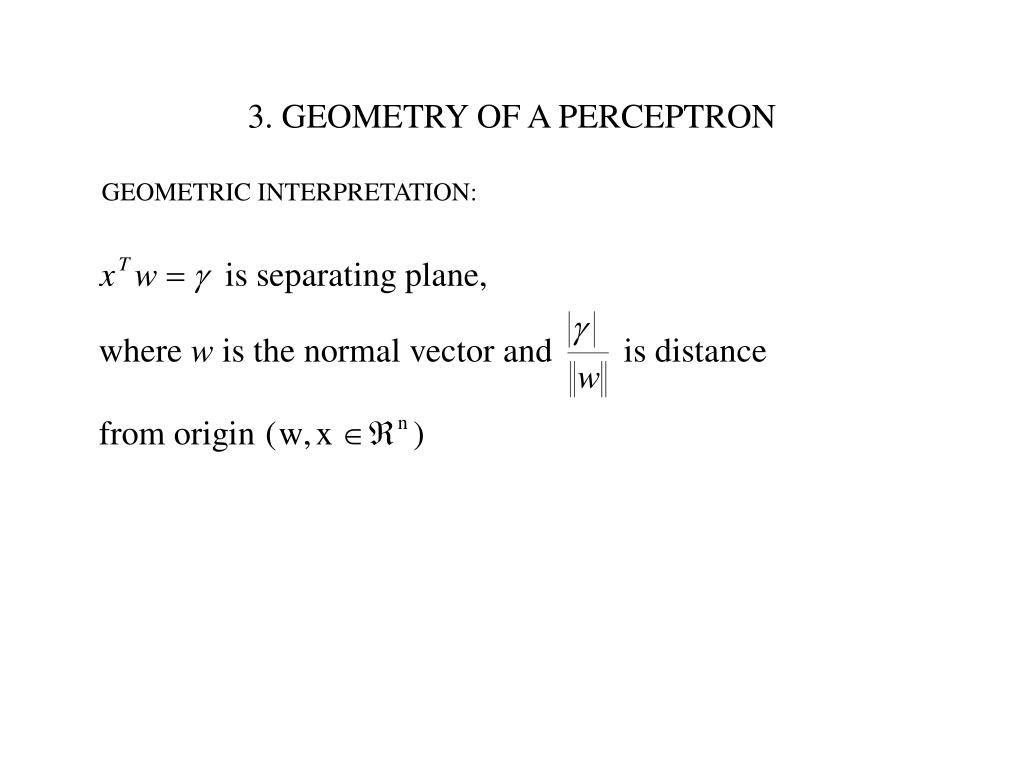

  6. 3. GEOMETRY OF A PERCEPTRON GEOMETRIC INTERPRETATION:

  7. 3. GEOMETRY OF A PERCEPTRON

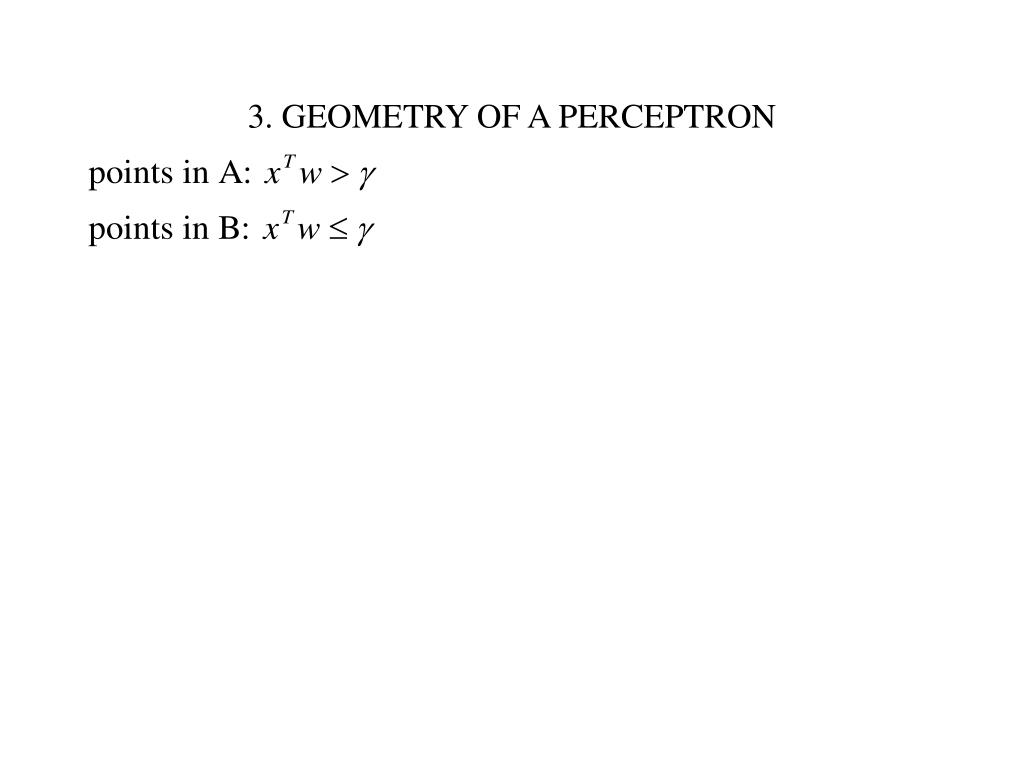

  8. 3. GEOMETRY OF A PERCEPTRON

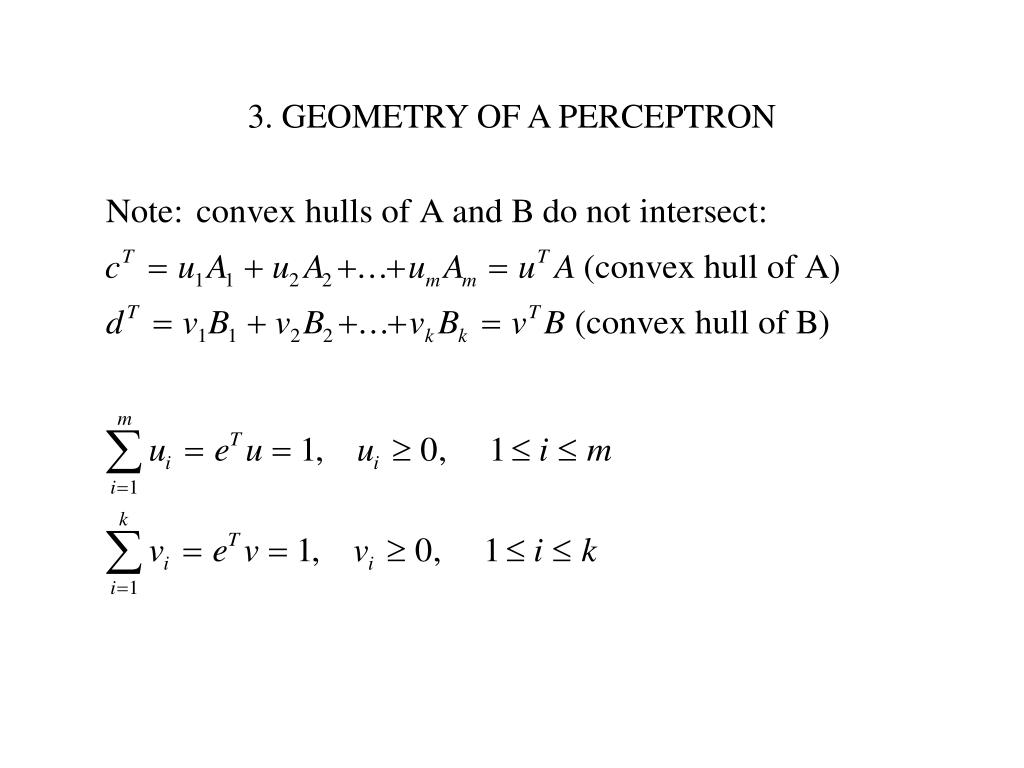

  9. 3. GEOMETRY OF A PERCEPTRON

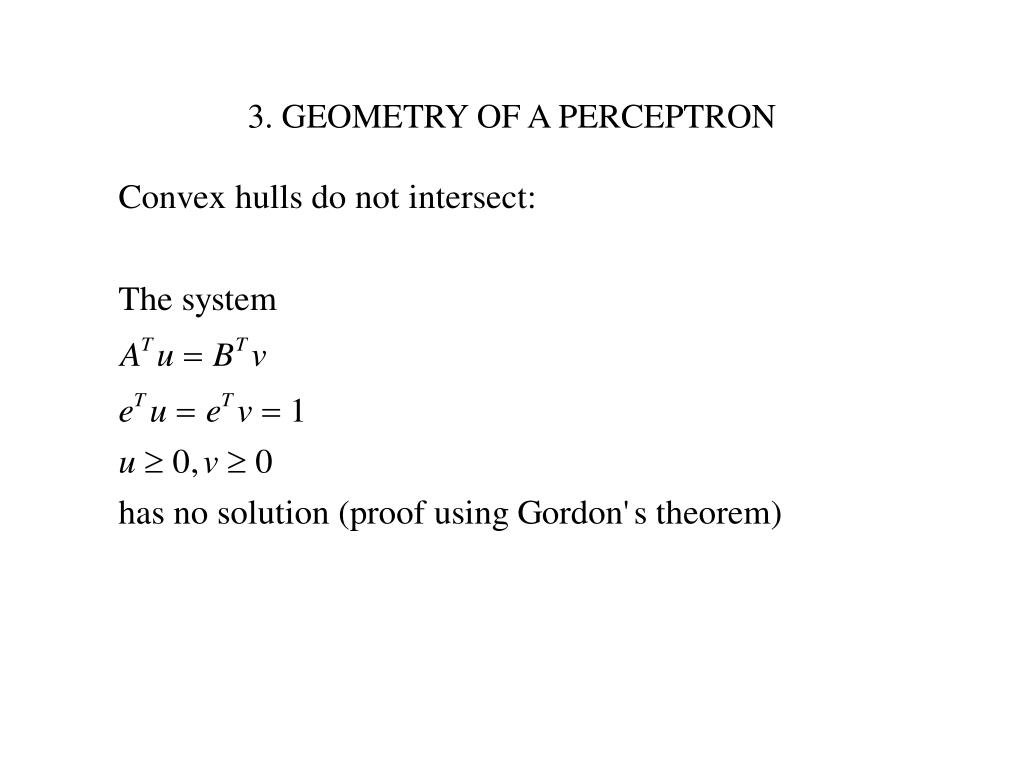

  10. 3. GEOMETRY OF A PERCEPTRON

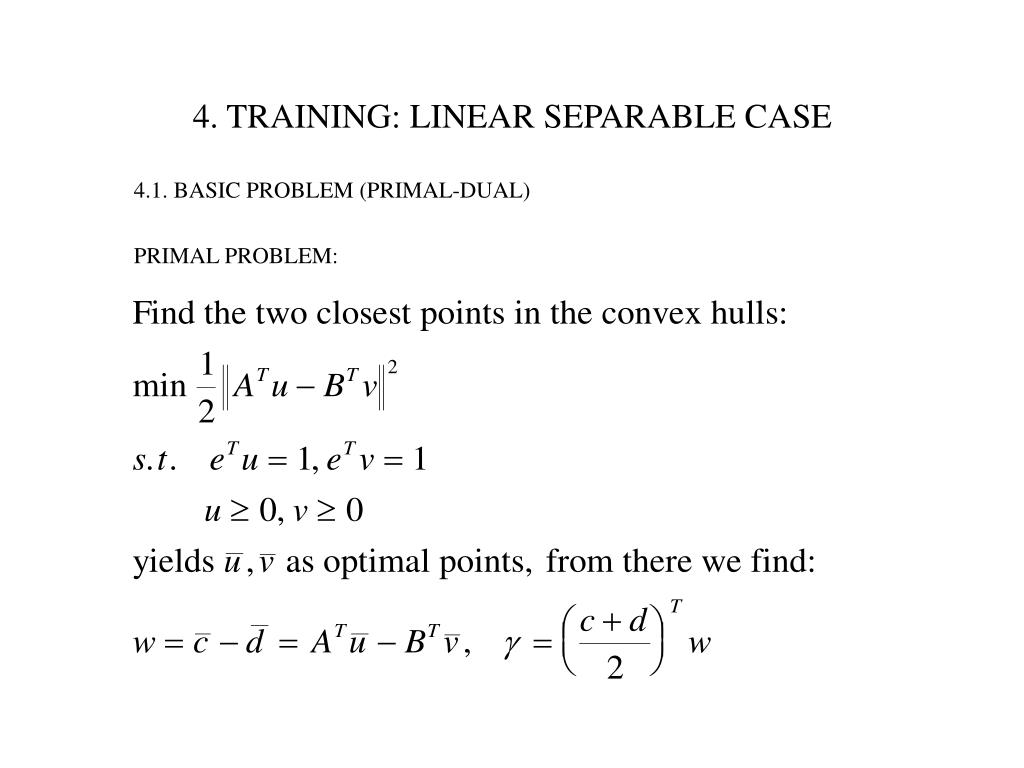

  11. 4. TRAINING: LINEAR SEPARABLE CASE 4.1. BASIC PROBLEM (PRIMAL-DUAL) PRIMAL PROBLEM:

  12. 4. TRAINING: LINEAR SEPARABLE CASE 4.1. BASIC PROBLEM (PRIMAL-DUAL) GRAPHICAL INTERPRETATION OF THE PRIMAL PROBLEM:

  13. 4. TRAINING: LINEAR SEPARABLE CASE 4.1. BASIC PROBLEM (PRIMAL-DUAL) DUAL PROBLEM:

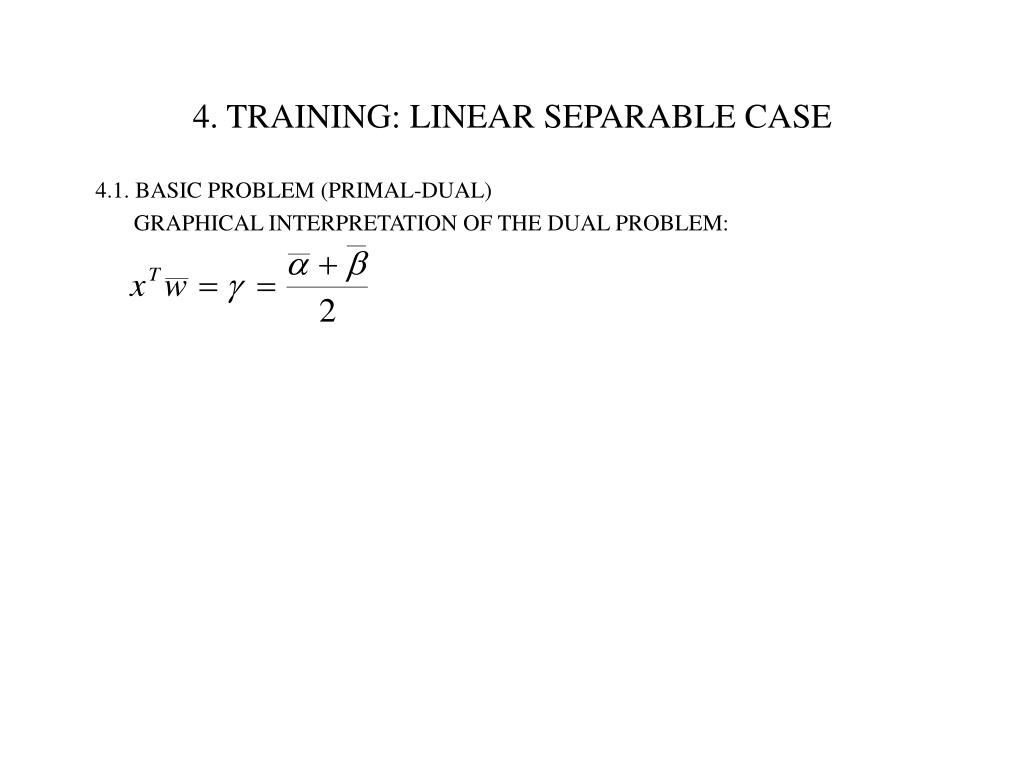

  14. 4. TRAINING: LINEAR SEPARABLE CASE 4.1. BASIC PROBLEM (PRIMAL-DUAL) GRAPHICAL INTERPRETATION OF THE DUAL PROBLEM:

  15. 4. TRAINING: LINEAR SEPARABLE CASE 4.2. FIRST SIMPLIFICATION: THE MULTISURFACE METHOD (MSM)

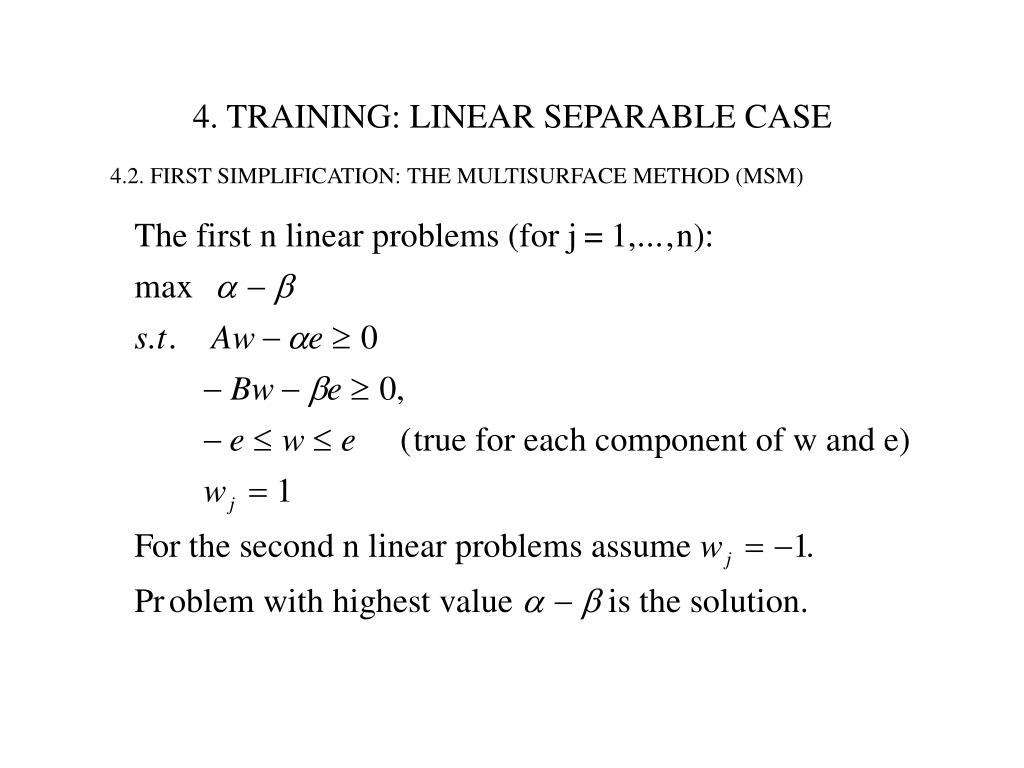

  16. 4. TRAINING: LINEAR SEPARABLE CASE 4.2. FIRST SIMPLIFICATION: THE MULTISURFACE METHOD (MSM)

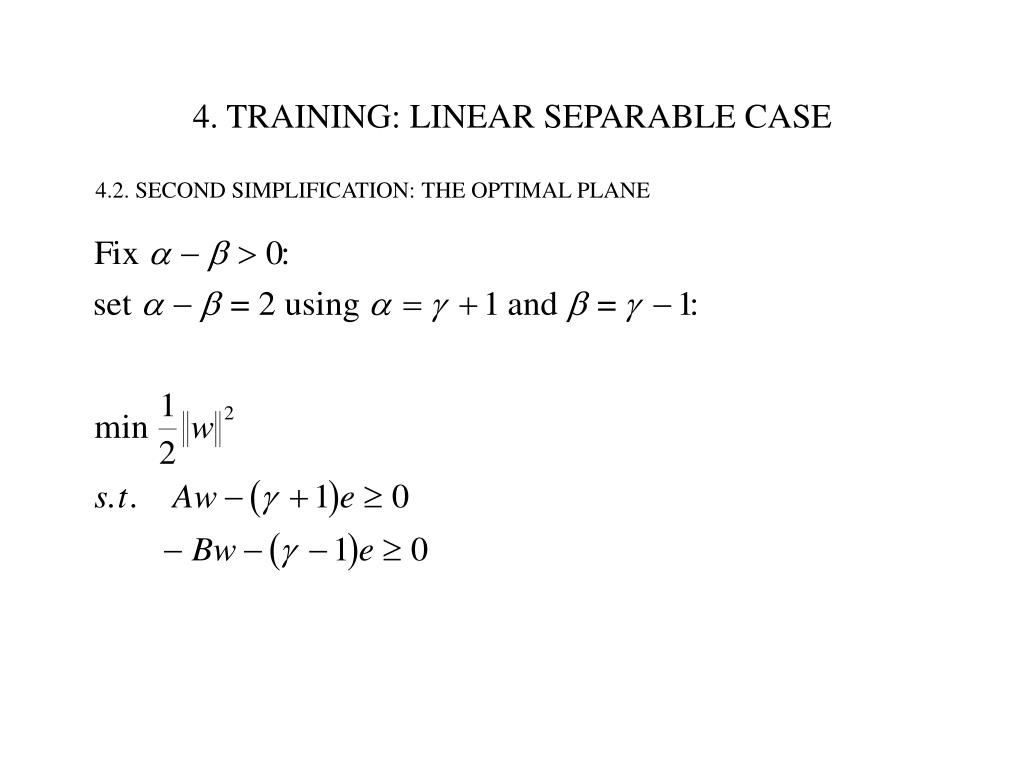

  17. 4. TRAINING: LINEAR SEPARABLE CASE 4.2. SECOND SIMPLIFICATION: THE OPTIMAL PLANE

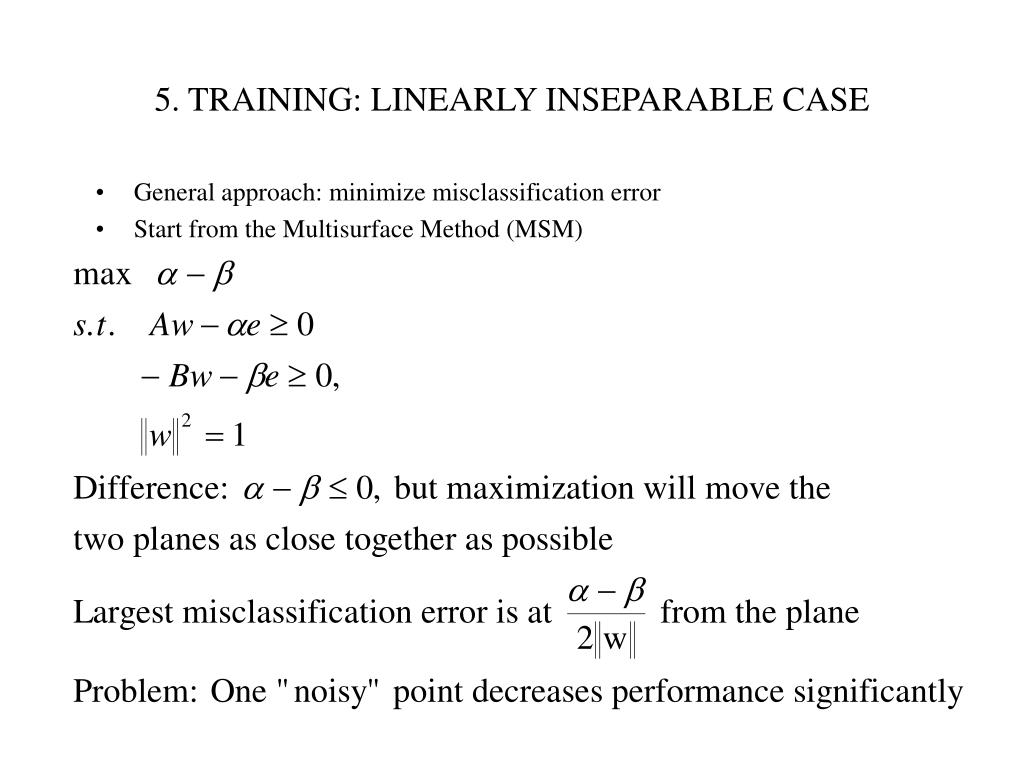

  18. 5. TRAINING: LINEARLY INSEPARABLE CASE • General approach: minimize misclassification error • Start from the Multisurface Method (MSM)

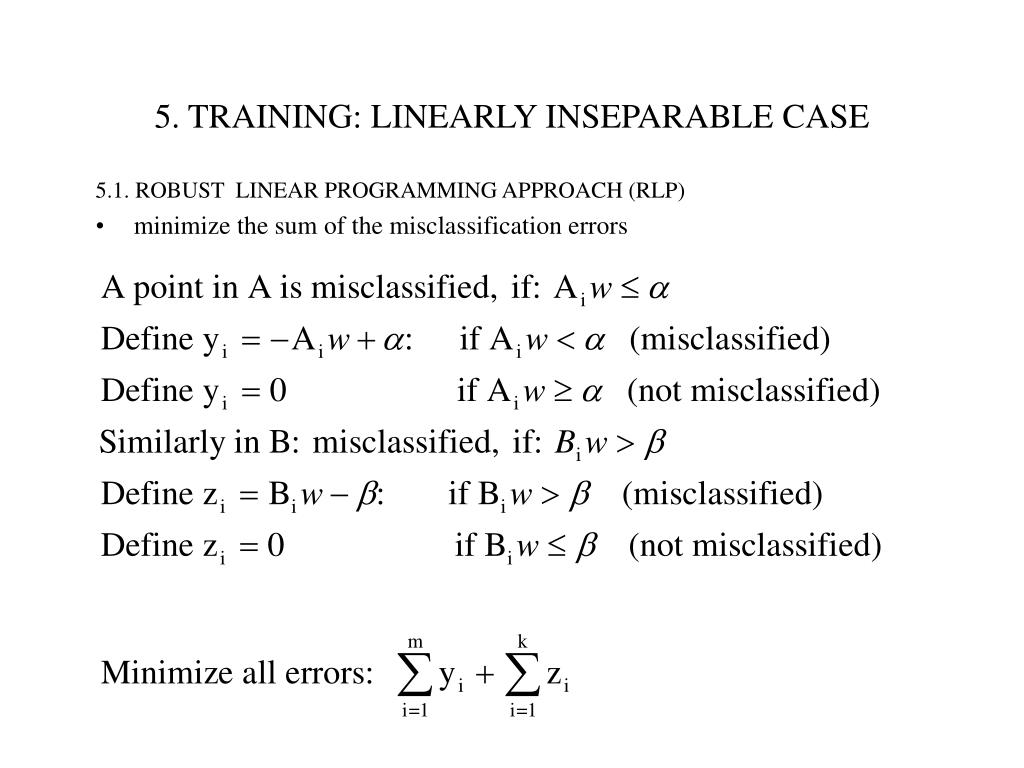

  19. 5. TRAINING: LINEARLY INSEPARABLE CASE • 5.1. ROBUST LINEAR PROGRAMMING APPROACH (RLP) • minimize the sum of the misclassification errors

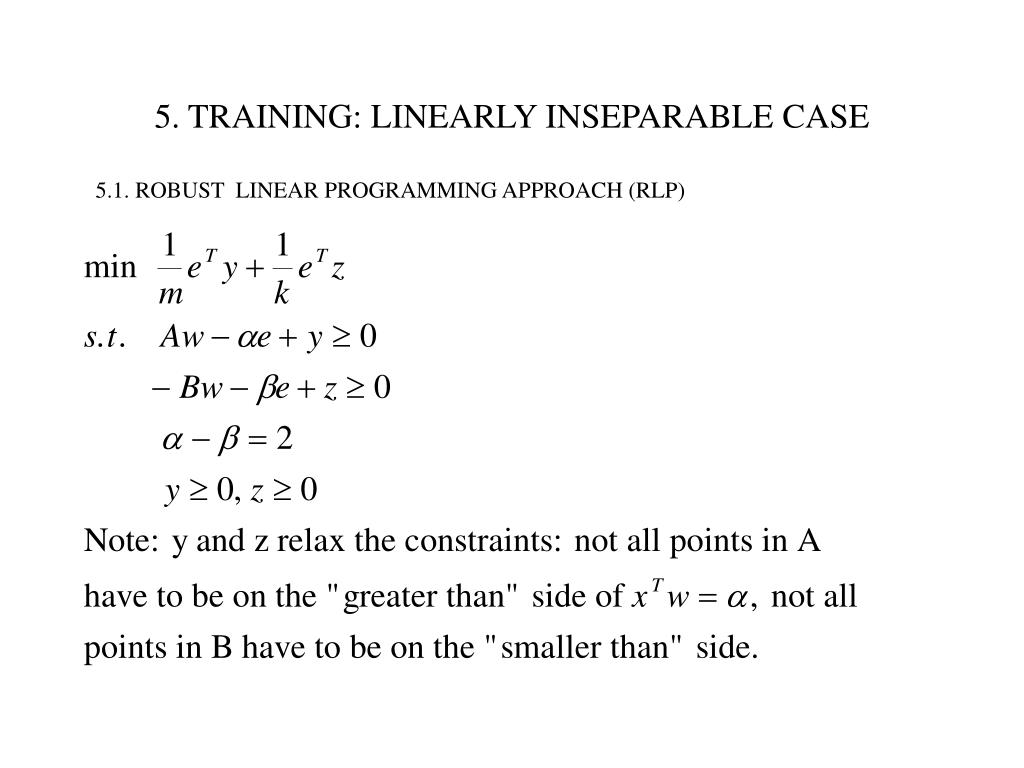

  20. 5. TRAINING: LINEARLY INSEPARABLE CASE 5.1. ROBUST LINEAR PROGRAMMING APPROACH (RLP)

  21. 5. TRAINING: LINEARLY INSEPARABLE CASE 5.2. COMBINATIONS OF MSM AND RLP: GENERALIZED OPTIMAL PLANE (GOP)

  22. 5. TRAINING: LINEARLY INSEPARABLE CASE 5.3. COMBINATIONS OF MSM AND RLP: PERTURBED ROBUST LINEAR PROGRAMMING (RLP-P)

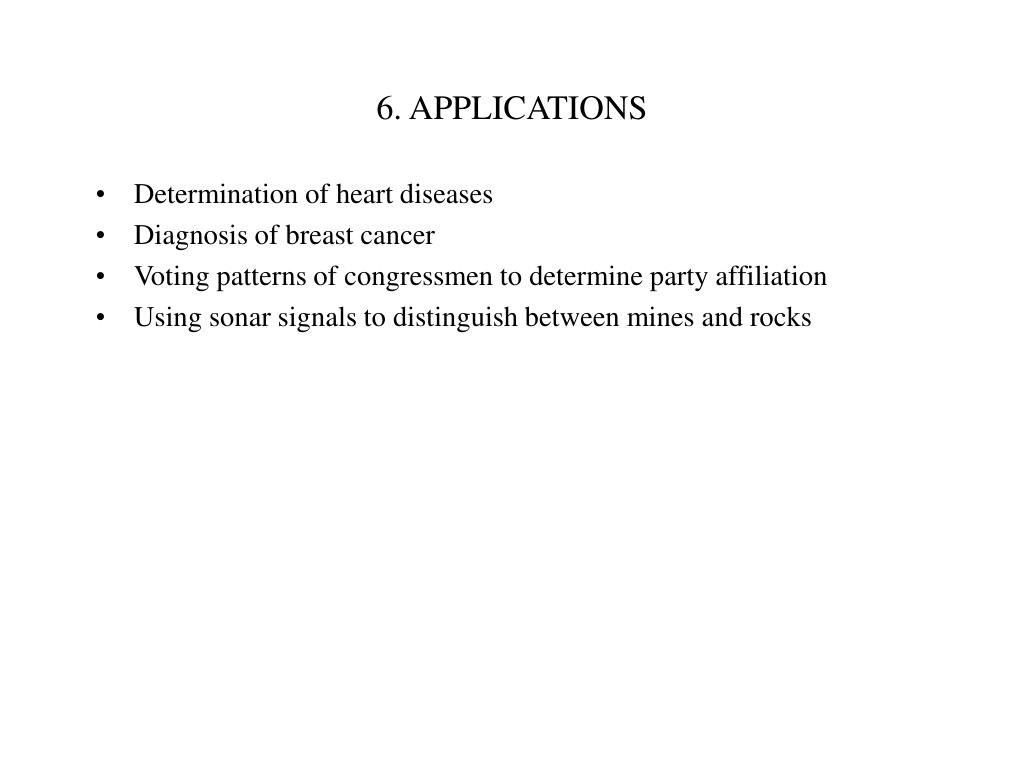

  23. 6. APPLICATIONS • Determination of heart diseases • Diagnosis of breast cancer • Voting patterns of congressmen to determine party affiliation • Using sonar signals to distinguish between mines and rocks

  24. 7. COMPUTATIONAL RESULTS USING MINOS (The sonar data set is completely separable.)

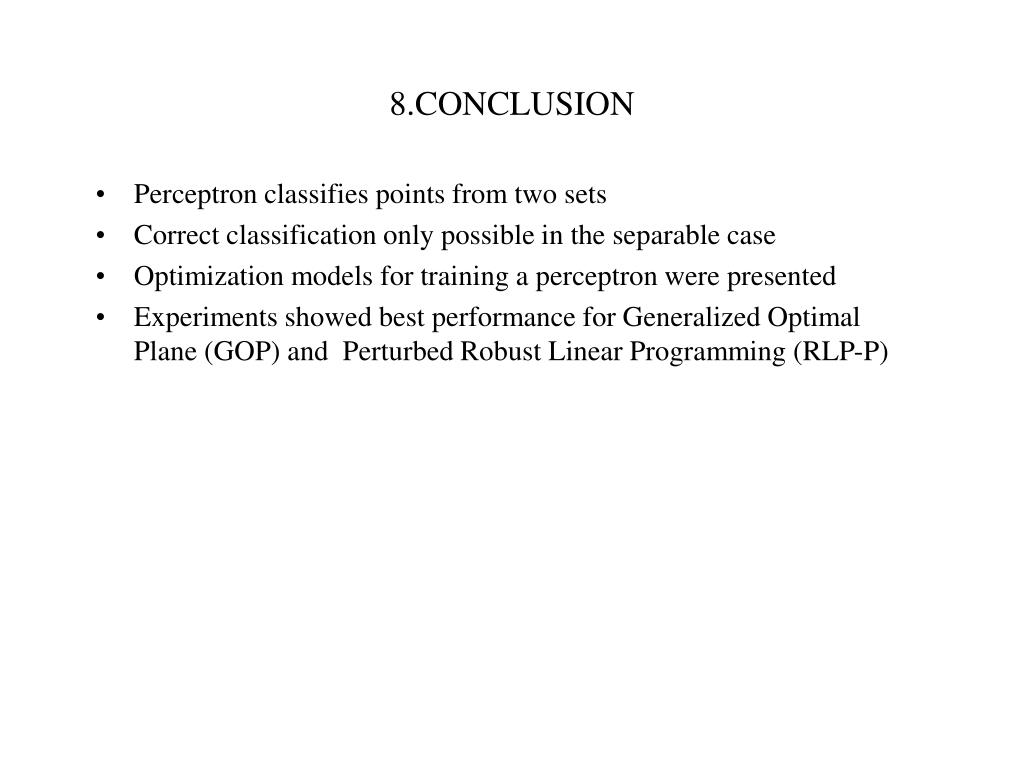

  25. 8.CONCLUSION • Perceptron classifies points from two sets • Correct classification only possible in the separable case • Optimization models for training a perceptron were presented • Experiments showed best performance for Generalized Optimal Plane (GOP) and Perturbed Robust Linear Programming (RLP-P)

  26. 9. REMARKS • Interesting connection between learning processes and geometry • Limitation to two classes • For RLP-P and GOP the right selection of the parameter lambda • is very important
