  1. Unit 7, Chapter 24 CPO Science Foundations of Physics

  2. Unit 7: Electricity and Magnetism Chapter 24 Electricity and Magnetism • 24.1 Semiconductors • 24.2 Circuits with Diodes and Transistors • 24.3 Digital Electronics

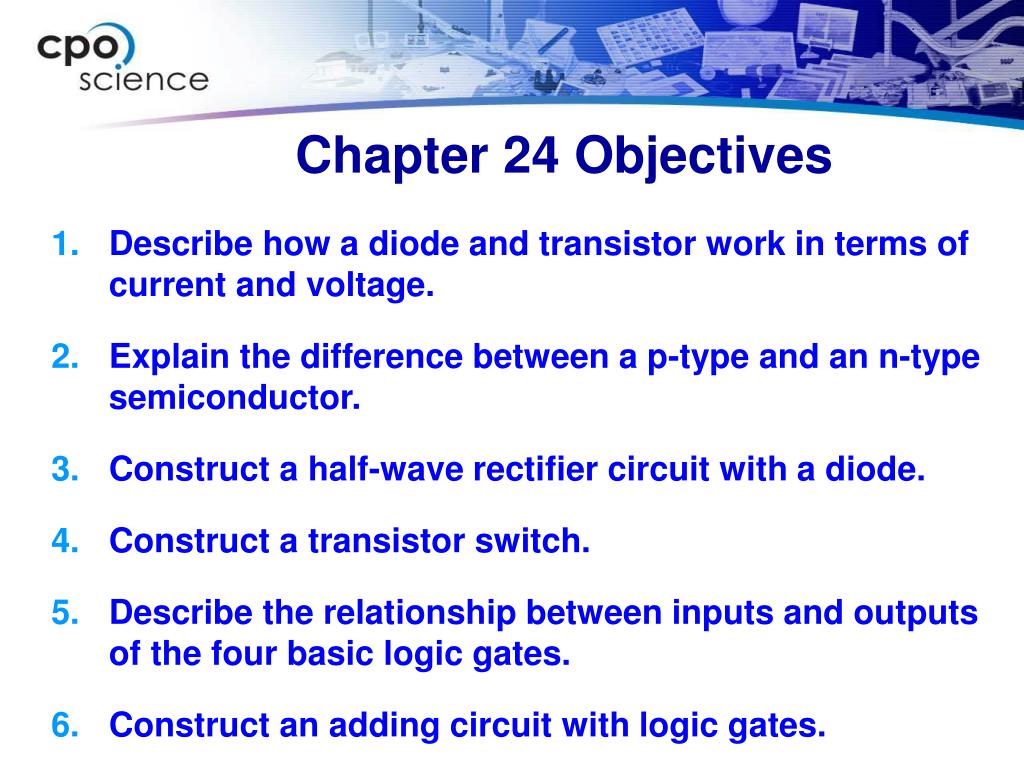

  3. Chapter 24 Objectives • Describe how a diode and transistor work in terms of current and voltage. • Explain the difference between a p-type and an n-type semiconductor. • Construct a half-wave rectifier circuit with a diode. • Construct a transistor switch. • Describe the relationship between inputs and outputs of the four basic logic gates. • Construct an adding circuit with logic gates.

  4. Chapter 24 Vocabulary Terms • forward bias • reverse bias • bias voltage • p-type • n-type • depletion region • hole • collector • emitter • base • conductivity • p-n junction • logic gate • rectifier • diode • transistor • amplifier • gain • analog • digital • AND • OR • NAND • NOR • binary • CPU • program • memory • bit • integrated circuit

  5. Key Question: What are some useful properties of semiconductors? 24.1 Semiconductors *Students read Section 24.1 AFTER Investigation 24.1

  6. 24.1 Diodes • A diode is a one-way valve for electric current. • Diodes are a basic building block of all electronics and are used to control the direction of current flowing in circuits.

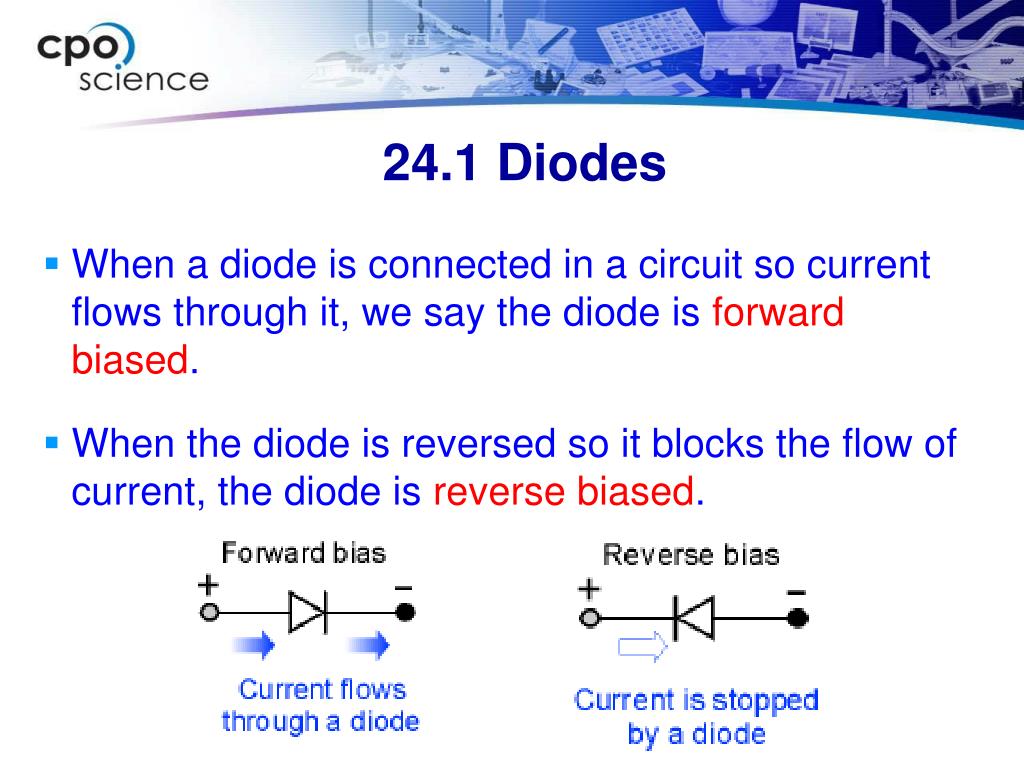

  7. 24.1 Diodes • When a diode is connected in a circuit so current flows through it, we say the diode is forward biased. • When the diode is reversed so it blocks the flow of current, the diode is reverse biased.

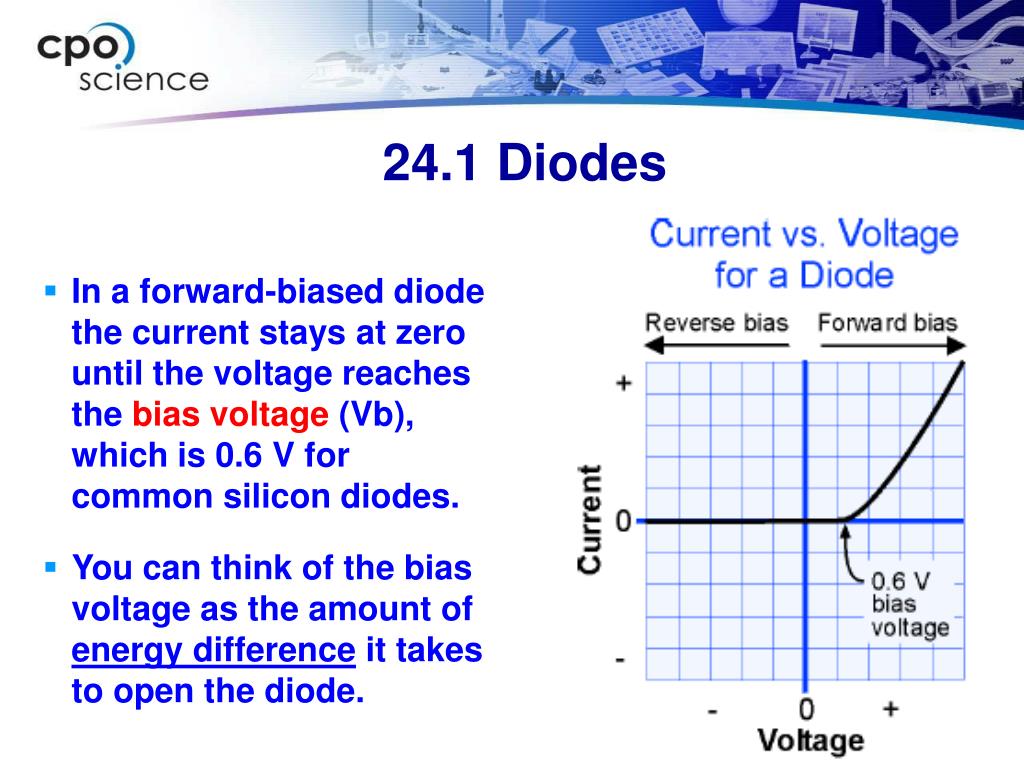

  8. In a forward-biased diode the current stays at zero until the voltage reaches the bias voltage (Vb), which is 0.6 V for common silicon diodes. You can think of the bias voltage as the amount of energy difference it takes to open the diode. 24.1 Diodes

  9. 24.1 Transistors • A transistor allows you to controlthe current, not just block it in one direction. • A good analogy for a transistor is a pipe with an adjustable gate.

  10. A transistor has three terminals. The main path for current is between the collector and emitter. The base controls how much current flows, just like the gate controlled the flow of water in the pipe. 24.1 Transistors

  11. The current versus voltage graph for a transistor is more complicated than for a simple resistor because there are three variables. A transistor is very sensitive; ten-millionths of an amp makes a big difference in the resistance between the collector and emitter. 24.1 Transistors

  12. 24.1 Conductivity and semiconductors • The relative ease at which electric current flows through a material is known as conductivity. • Conductors (like copper) have very high conductivity. • Insulators (like rubber) have very low conductivity. • The conductivity of a semiconductor depends on its conditions. • For example, at low temperatures and low voltages a semiconductor acts like an insulator. • When the temperature and/or the voltage is increased, the conductivity increases and the material acts more like a conductor.

  13. 24.1 Metals as conductors • Metals are good conductors because a small percentage of electrons are free to separate from atoms and move independently.

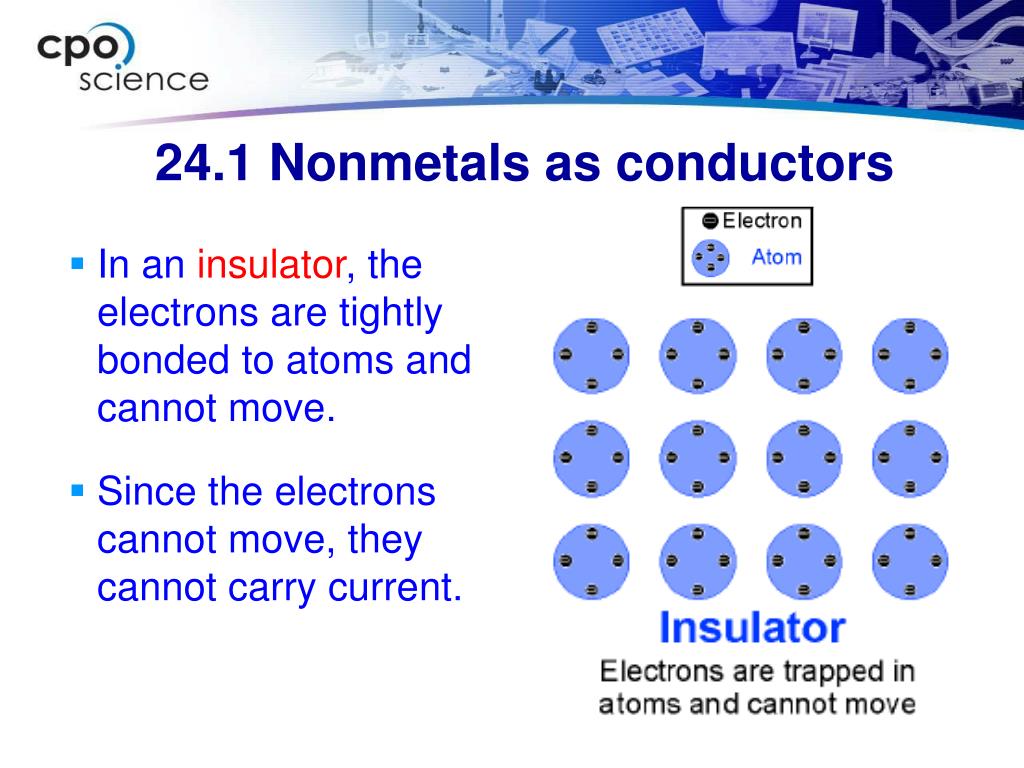

  14. 24.1 Nonmetals as conductors • In an insulator, the electrons are tightly bonded to atoms and cannot move. • Since the electrons cannot move, they cannot carry current.

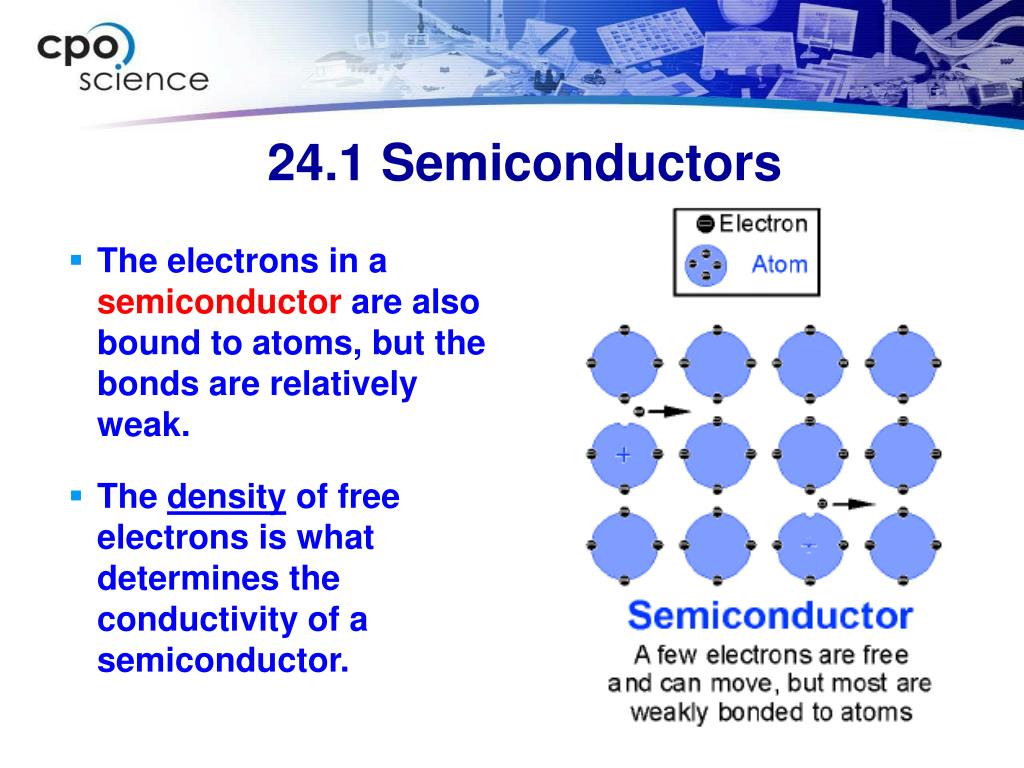

  15. 24.1 Semiconductors • The electrons in a semiconductor are also bound to atoms, but the bonds are relatively weak. • The density of free electrons is what determines the conductivity of a semiconductor.

  16. 24.1 Semiconductors • If there are many free electrons to carry current, the semiconductor acts more like a conductor. • If there are few electrons, the semiconductor acts like an insulator. • Silicon is the most commonly used semiconductor. • Atoms of silicon have 14 electrons. • Ten of the electrons are bound tightly inside the atom. • Four electrons are near the outside of the atom and only loosely bound.

  17. 24.1 Changing conductivity • Anything that changes the number of free electrons has a huge effect on conductivity in a semiconductor. • Adding a phosphorus impurity to silicon increases the number of electrons that can carry current. • Silicon with a phosphorus impurity makes an n-type semiconductor with current of negative charge.

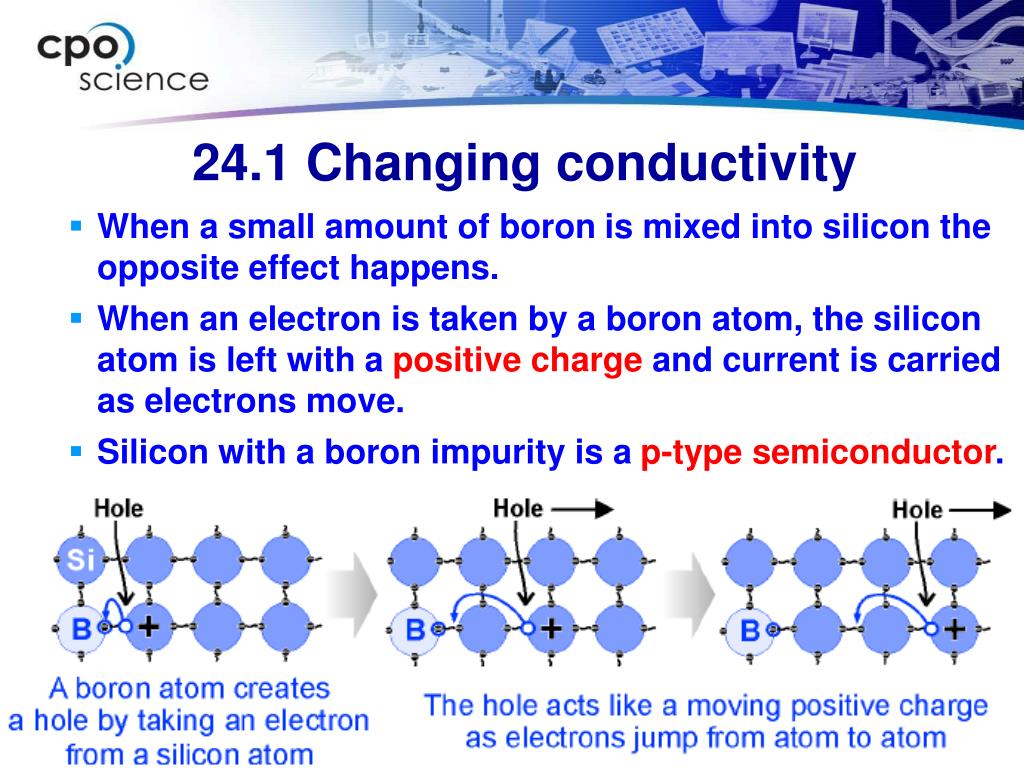

  18. 24.1 Changing conductivity • When a small amount of boronis mixed into silicon the opposite effect happens. • When an electron is taken by a boron atom, the silicon atom is left with a positive charge and current is carried as electrons move. • Silicon with a boron impurity is a p-type semiconductor.

  19. 24.1 The p-n junction • A p-n junction forms where p-type and n-type semiconductor materials meet. • The depletion region becomes an insulating barrier to the flow of current because electrons and holes have combined to make neutral silicon atoms.

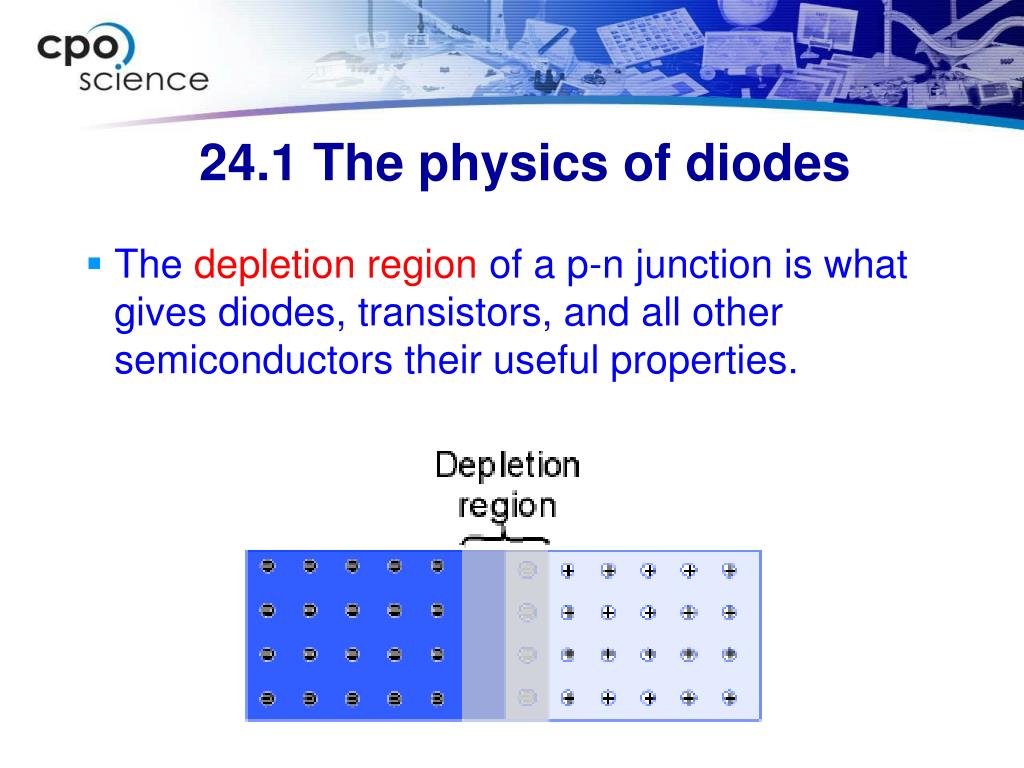

  20. The depletion region of a p-n junction is what gives diodes, transistors, and all other semiconductors their useful properties. 24.1 The physics of diodes

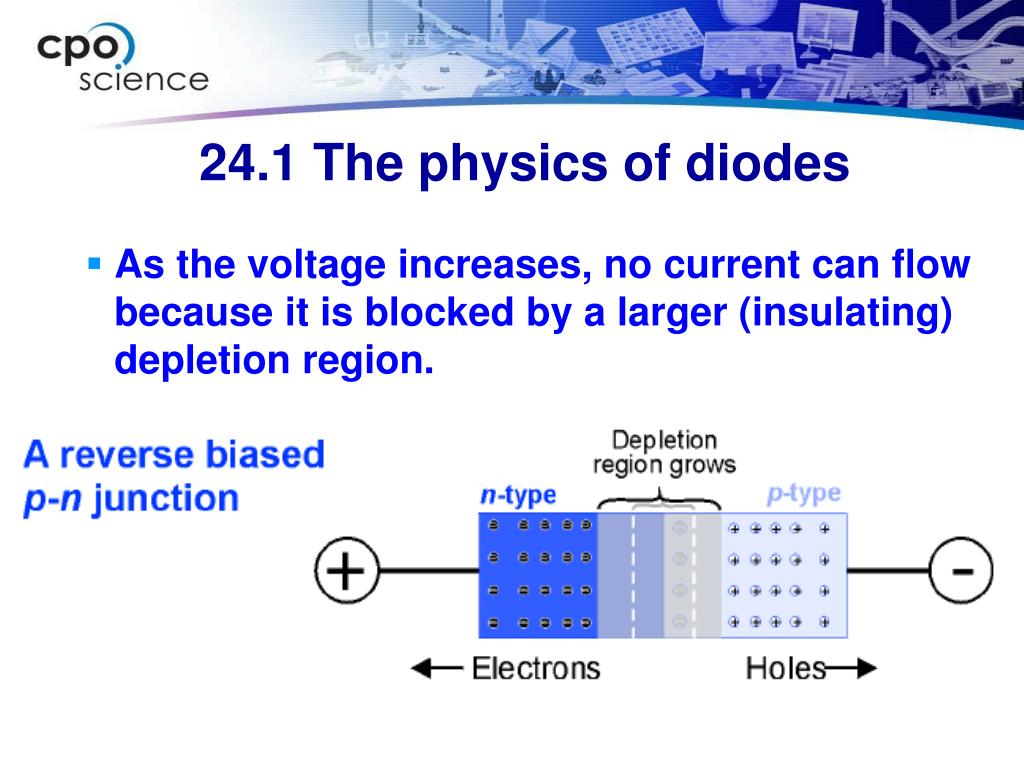

  21. As the voltage increases, no current can flow because it is blocked by a larger (insulating) depletion region. 24.1 The physics of diodes

  22. If the opposite voltage is applied, both electrons and holes are repelled towardthe depletion region. As a result, the depletion region gets smaller. Once the depletion region is gone, electrons are free to carry current across the junction and the semiconductor becomes a conductor. 24.1 The physics of diodes

  23. In short, a p-n junction is a diode. The p-njunction blocksthe flow of current from the n side to the p side. The p-njunction allowscurrent to flow from the p side to the n side if the voltage difference is more than 0.6 volts. 24.1 The physics of diodes

  24. A transistor is made from two p-n junctions back to back. An npntransistor has a p-type layer sandwiched between two n-type layers. A pnptransistor is the inverse. An n-type semiconductor is between two layers of p-type. 24.1 The physics of transistors

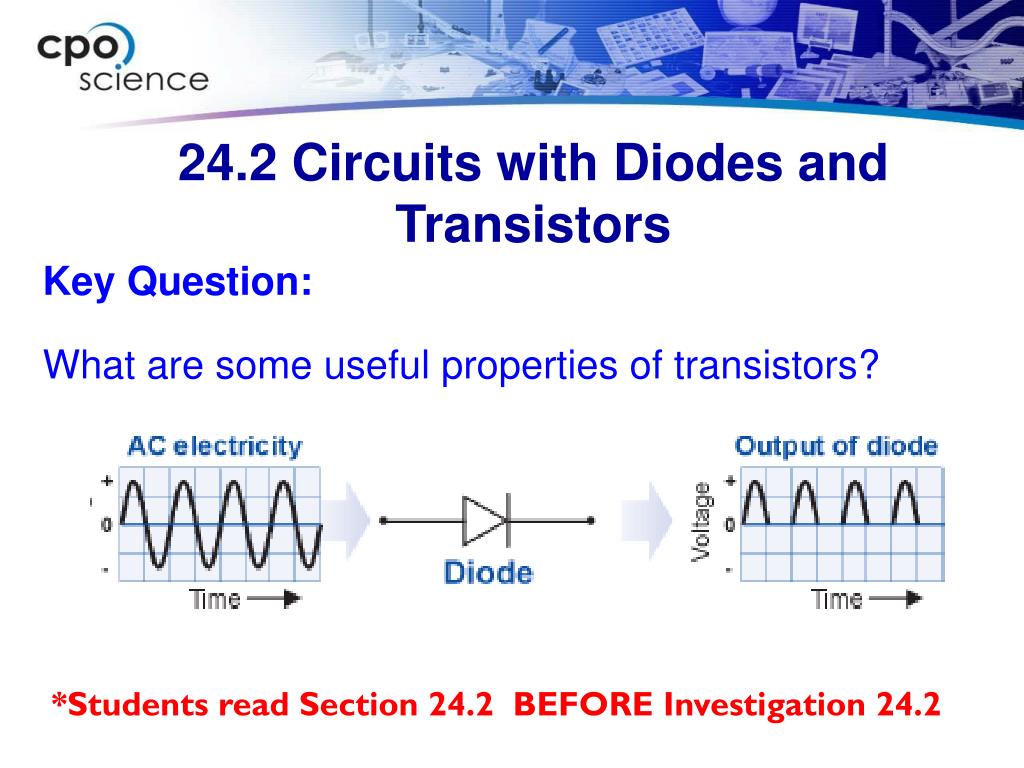

  25. 24.2 Circuits with diodes and transistors • A diode can convert alternating current electricity to direct current. • When the AC cycle is positive, the voltage passes through the diode because the diode is conducting and has low resistance. • A single diode is called a halfwave rectifiersince it converts half the AC cycle to DC.

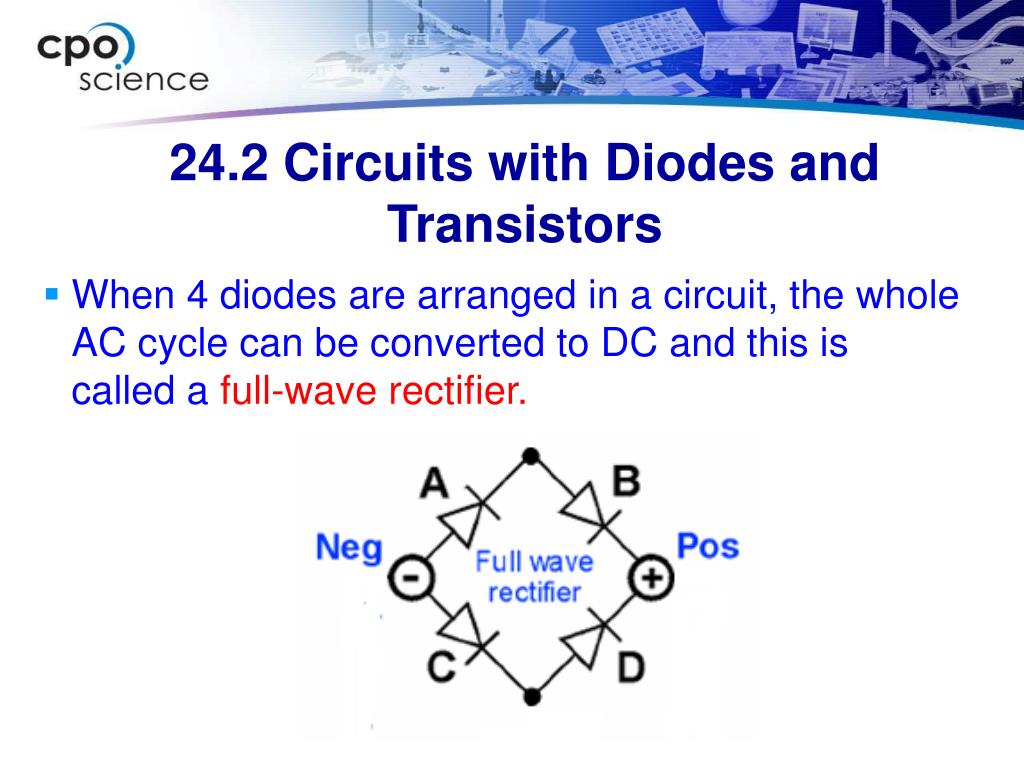

  26. 24.2 Circuits with Diodes and Transistors • When 4 diodes are arranged in a circuit, the whole AC cycle can be converted to DC and this is called a full-wave rectifier.

  27. A bridge-rectifier circuit uses the entire AC cycle by inverting the negative portions. This version of the full-wave rectifier circuit is in nearly every AC adapter you have ever used. 24.2 AC into DC

  28. In many electronic circuits a small voltage or current is used to switch a much larger voltage or current. Transistors work very well for this application because they behave like switches that can be turned on and off electronicallyinstead of using manual or mechanical action. 24.2 A transistor switch

  29. When the current into the base is zero, a transistor has a resistance of 100,000 ohms or more. When a tiny current flows into the base, the resistance drops to 10 ohms or less. 24.2 A transistor switch

  30. The resistance difference between “on” and “off” for a transistor switch is good enough for many useful circuits such as an indicator light bulb in a mechanical circuit. 24.2 A transistor switch

  31. One of the most important uses of a transistor is to amplify a signal. In electronics, the word “amplify” means to make the voltage or current of the input signal larger without changing the shape of the signal. 24.2 A transistor amplifier

  32. In an amplifier circuit, the transistor is not switched fully “on” like it is in a switching circuit. Instead, the transistor operates partially on and its resistance varies between a few hundred ohms and about 10,000 ohms, depending on the specific transistor. 24.2 A transistor amplifier

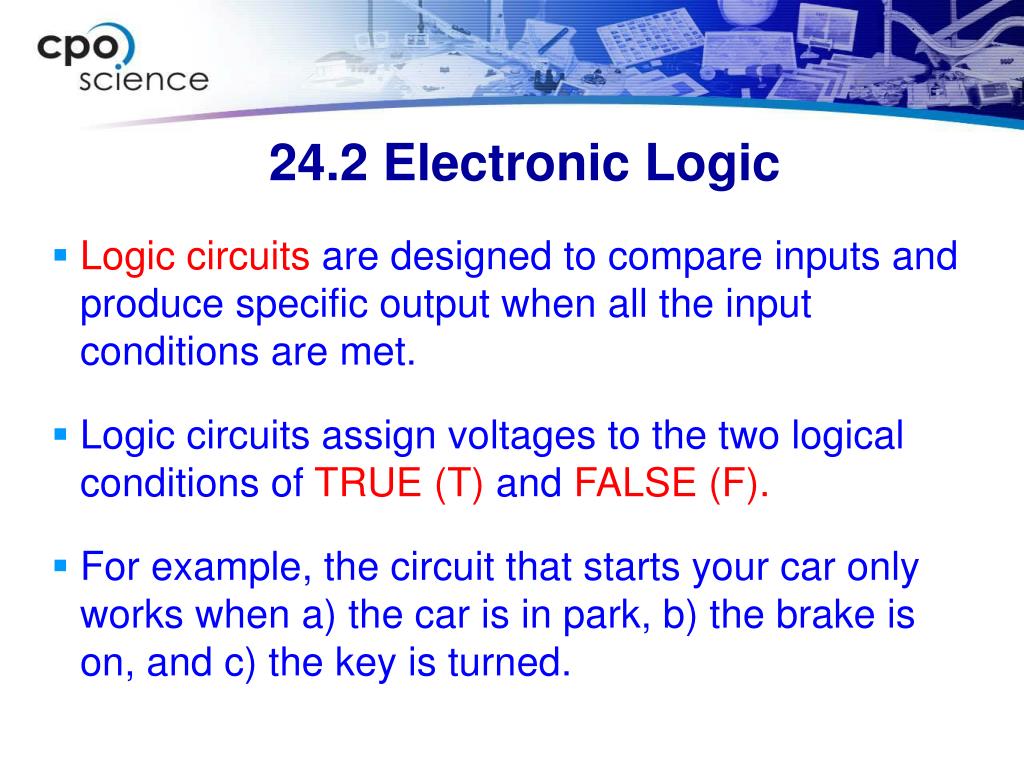

  33. 24.2 Electronic Logic • Logic circuits are designed to compare inputs and produce specific output when all the input conditions are met. • Logic circuits assign voltages to the two logical conditions of TRUE (T) and FALSE (F). • For example, the circuit that starts your car only works when a) the car is in park, b) the brake is on, and c) the key is turned.

  34. 24.2 Electronic Logic • There is one output which starts the car if TRUE and does not start the car if FALSE.

  35. The only way for the output to be 3 V is when all three transistors are on, which only happens if all three inputs are TRUE. 24.2 A transistor logic circuit

  36. Key Question: What are some useful properties of transistors? 24.2 Circuits with Diodes and Transistors *Students read Section 24.2 BEFORE Investigation 24.2

  37. 24.3 Digital Electronics • A signal is anything that carries information. • Today the word signal usually means a voltage, current, or light wave that carries information. • A microphone converts the variations in air pressure from the sound wave into variations in voltage in an analog electrical signal.

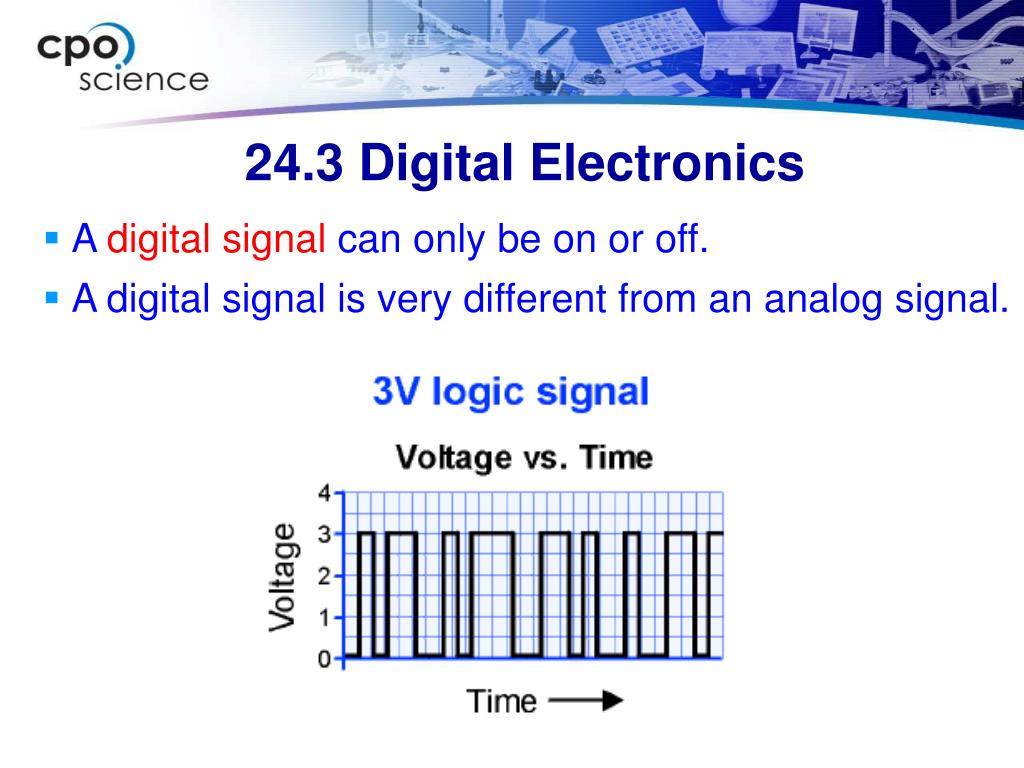

  38. 24.3 Digital Electronics • A digital signal can only be on or off. • A digital signal is very different from an analog signal.

  39. 24.3 Digital Electronics • Digital signals can send billions of ones and zeros per second, carrying more information than analog signals.

  40. 24.3 Digital Electronics • Digital signals are also easier to store, process, and reproduce than analog signals.

  41. 24.3 Digital Electronics

  42. A computer is an electronic device for processing digital information. All computers have three key systems: memory central processing unit, or cpu input-output system or I/O 24.3 Computers

  43. Circuits called logic gates are the basic building blocks of computers and almost all digital systems. The fundamental logic gates are called AND, OR, NAND,and NOR. 24.3 Computers

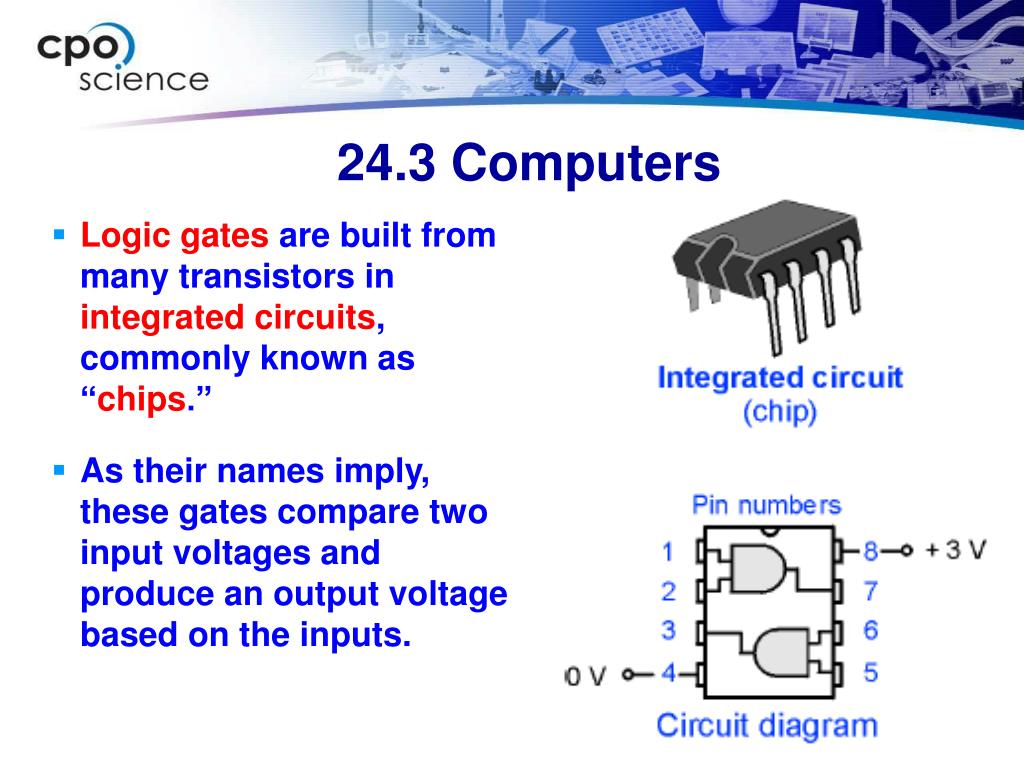

  44. Logic gates are built from many transistors in integrated circuits, commonly known as “chips.” As their names imply, these gates compare two input voltages and produce an output voltage based on the inputs. 24.3 Computers

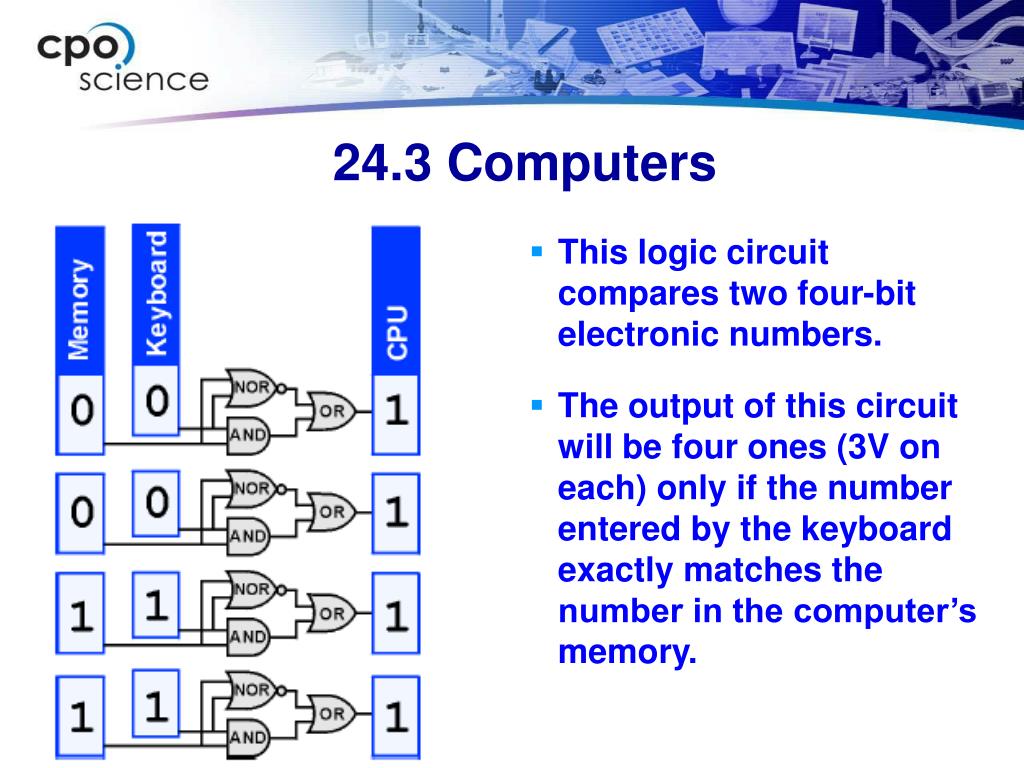

  45. This logic circuit compares two four-bit electronic numbers. The output of this circuit will be four ones (3V on each) only if the number entered by the keyboard exactly matches the number in the computer’s memory. 24.3 Computers

  46. Key Question: How do you construct electronic logic circuits? 24.3 Digital Electronics *Students read Section 24.3 BEFORE Investigation 24.3

  47. Application: Electronic Addition of Two Numbers
