Attenuation of Diffracted Multiples

Attenuation of Diffracted Multiples. Gabriel Alvarez Biondo Biondi Antoine Guitton. Stanford University. Goal. Introduce a method to attenuate diffracted multiples on 2D data, based on an apex-shifted Radon transform.

nubia
Télécharger la présentation

Attenuation of Diffracted Multiples

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Attenuation of Diffracted Multiples Gabriel Alvarez Biondo Biondi Antoine Guitton Stanford University

  2. Goal Introduce a method to attenuate diffracted multiples on 2D data, based on an apex-shifted Radon transform. The method is applied in image space, in particular to Angle Domain Common Image Gathers (ADCIG). Alvarez-Biondi-Guitton

  3. Motivation Aperture angle Aperture angle Aperture angle -60 0 60 -60 0 60 -60 60 0 1000 Depth (m) 4000 ADCIG Multiples Primaries Alvarez-Biondi-Guitton

  4. Motivation Aperture angle Aperture angle Aperture angle -60 0 60 -60 0 60 -60 0 60 1000 Depth (m) 4000 ADCIG Primaries Multiples Alvarez-Biondi-Guitton

  5. Apex-shifted Multiple Horizontal Coordinate (m) Aperture angle (degrees) -1000 3000 0 20 40 1.35 500 Time (s) Depth (m) 3000 1.6 Receiver-side peg-leg multiples Arrival times 0 Alvarez-Biondi-Guitton

  6. A Note on Terminology Diffracted multiples: Multiples with apex-shifted residual moveout on ADCIGs migrated with primary velocity. Specularly-reflected multiples: Multiples whose residual moveout have their apex at zero aperture angle on ADCIGs migrated with primary velocity. Alvarez-Biondi-Guitton

  7. What about SRME? Can Surface-Related Multiple Elimination (SRME) attenuate the apex-shifted multiples? Yes, but SRME requires dense, regular, large-aperture acquisition which is not generally available with today’s 3D streamer geometries. An alternative: apex-shifted Radon transform of ADCIGs. Alvarez-Biondi-Guitton

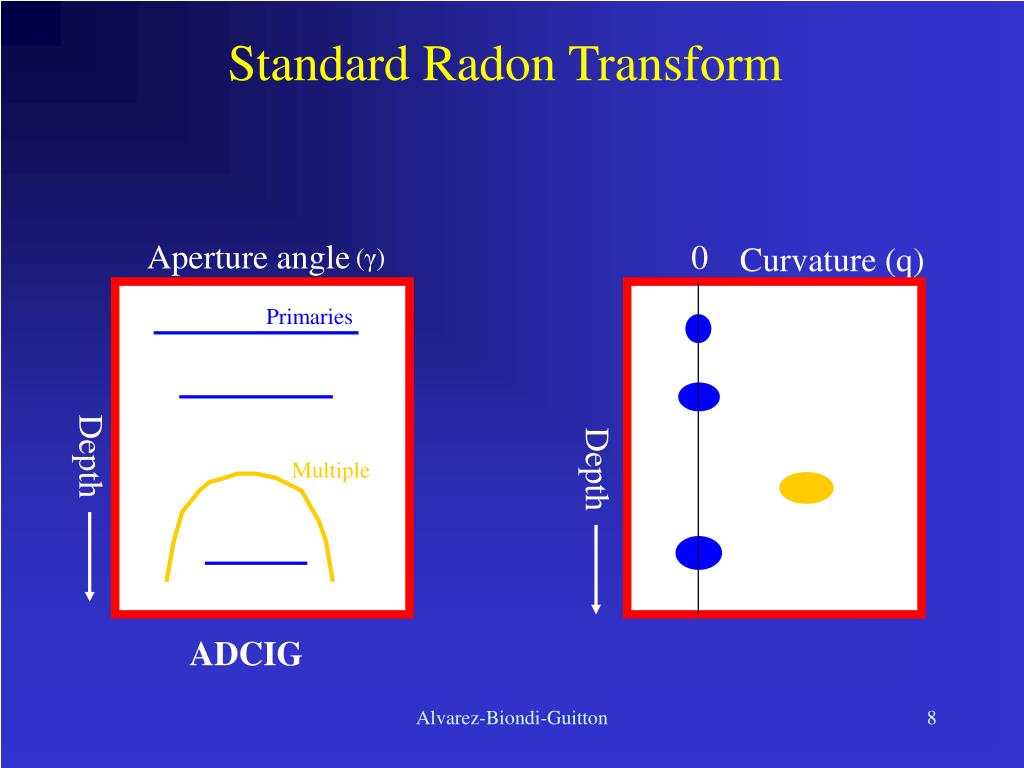

  8. Aperture angle 0 Curvature (q) (γ) Primaries Depth Depth Multiple ADCIG Standard Radon Transform Alvarez-Biondi-Guitton

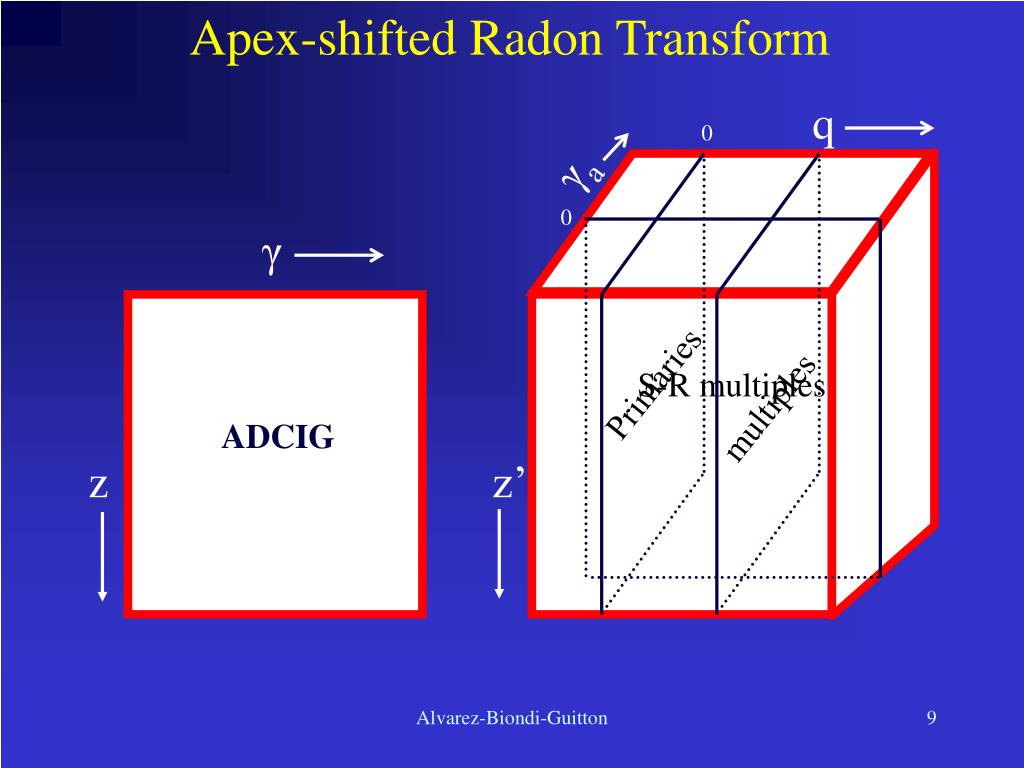

  9. Apex-shifted Radon Transform 0 q γ γa 0 Primaries S-R multiples multiples ADCIG z z’ Alvarez-Biondi-Guitton

  10. Separating Primaries and Multiples hγ 0 q 0 τ,z’ Zero out the primary region in the (z’,q,h) cube. Map the multiples back to the (z,γ) plane (ADCIG). Subtract the multiples from the original ADCIG to get the primaries. Alvarez-Biondi-Guitton

  11. Image space vs. data space In complex geology the primaries are more likely to be horizontal in ADCIGs than in NMO-corrected CMPs. However In data space the multiple moveout is more intuitive (predictable)and easy to visualize. Delaying the multiple removal after imaging may compromise the choice of the migration velocities for the primaries. Alvarez-Biondi-Guitton

  12. From model space to data space (ADCIGs): γ: aperture angle q: moveout curvature γa: apex-shift distance z, z’: depth Apex-shifted Radon Transform The transform is implemented as a least-squares inverse with a sparsity constraint. Alvarez-Biondi-Guitton

  13. 2D GOM seismic line CMP position 4000 24000 1000 Depth (m) 5000 Stack of migrated angle gathers Alvarez-Biondi-Guitton

  14. ADCIGs Aperture-angle (degrees) Aperture-angle (degrees) -60 0 60 -60 0 60 1000 1000 Depth (m) Depth (m) 5000 5000 Sediments Below salt Alvarez-Biondi-Guitton

  15. 2D GOM seismic line CMP position 4000 24000 1000 Depth (m) 5000 Stack of migrated angle gathers Alvarez-Biondi-Guitton

  16. Salt-edge ADCIGs Aperture-angle (degrees) Aperture-angle (degrees) -60 0 60 -60 0 60 1000 1000 Depth (m) Depth (m) 5000 5000 ADCIG1: Left edge ADCIG2: Right edge Alvarez-Biondi-Guitton

  17. Comparison of Radon Transforms Curvature (m) Curvature (m) -400 0 2000 -400 0 2000 1000 1000 Primaries Depth (m) Depth (m) 5000 5000 2D transform γa=0 plane from 3D transform Alvarez-Biondi-Guitton

  18. A look at the 3-D Radon cube Apex-shift (degrees) Apex-shift (degrees) Curvature (m) -30 0 30 -30 0 30 -400 0 2000 1000 Depth (m) 4000 plane q=0 plane q=1200 plane γa=10 Alvarez-Biondi-Guitton

  19. Results of Multiple Attenuation Aperture-angle (degrees) Aperture-angle (degrees) -60 0 60 -60 0 60 1000 1000 Depth (m) Depth (m) 5000 5000 ADCIG1: Left edge ADCIG2: Right edge Alvarez-Biondi-Guitton

  20. Primaries ADCIG 1 Aperture-angle (degrees) Aperture-angle (degrees) -40 0 40 -40 0 40 3200 3200 Depth (m) Depth (m) 5200 5200 standard transform apex-shifted transform Alvarez-Biondi-Guitton

  21. Multiples ADCIG 1 Aperture-angle (degrees) Aperture-angle (degrees) -40 0 40 -40 0 40 3200 3200 Depth (m) Depth (m) 5200 5200 standard transform apex-shifted transform Alvarez-Biondi-Guitton

  22. Discrimination of Multiples ADCIG 1 Aperture-angle (degrees) Aperture-angle (degrees) -40 0 40 -40 0 40 3200 3200 Depth (m) Depth (m) 5200 5200 Diffracted multiples S-R multiples Alvarez-Biondi-Guitton

  23. Primaries ADCIG 2 Aperture-angle (degrees) Aperture-angle (degrees) -40 0 40 -40 0 40 3200 3200 Depth (m) Depth (m) 5200 5200 Standard transform Apex-shifted transform Alvarez-Biondi-Guitton

  24. Multiples ADCIG 2 Aperture-angle (degrees) Aperture-angle (degrees) -40 0 40 -40 0 40 3200 3200 Depth (m) Depth (m) 5200 5200 Standard transform Apex-shifted transform Alvarez-Biondi-Guitton

  25. 2D GOM seismic line CMP position 4000 24000 1000 Depth (m) 5000 Stack of migrated angle gathers Alvarez-Biondi-Guitton

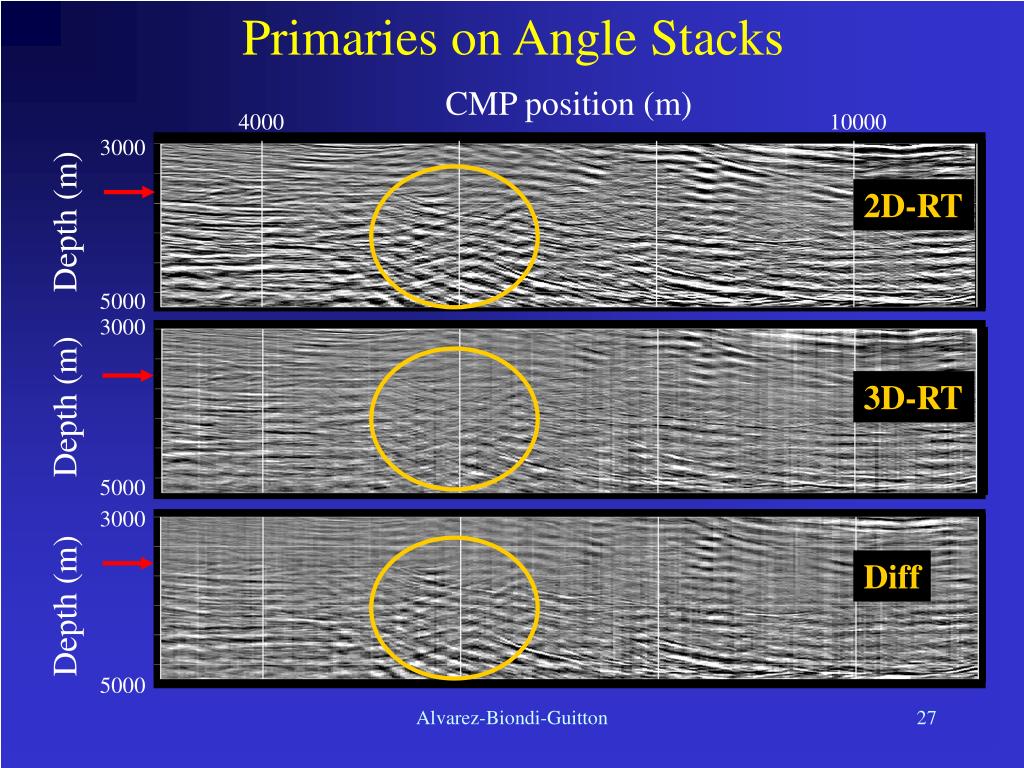

  26. Primaries on Angle Stacks CMP position (m) 4000 10000 3000 Depth (m) 5000 3000 3D-RT Depth (m) 5000 3000 Diff Depth (m) 5000 2D-RT Alvarez-Biondi-Guitton

  27. Multiples on Angle Stacks CMP position (m) 10000 4000 3000 2D-RT Depth (m) 5000 3000 3D-RT Depth (m) 5000 3000 Diff Depth (m) 5000 Alvarez-Biondi-Guitton

  28. Conclusions The apex-shifted Radon transform is an effective way to attenuate diffracted multiples in the image space. The usual trade-off between multiple attenuation and primary preservation remains. Alvarez-Biondi-Guitton

  29. Opportunities and challenges In 3D data, the apex-shift is a function of azimuth as well as aperture angle. We will takeadvantage of the development of 3D ADCIGs. The challenge is to handle the increased dimensionality of the problem. Alvarez-Biondi-Guitton

  30. Thank you for your attention. I will be happy to entertain your questions. Alvarez-Biondi-Guitton

  31. From model space to data space (ADCIGs): From data space to model space: γ: aperture angle γ: aperture angle q: moveout curvature q: moveout curvature h: apex-shift distance h: apex-shift distance z, z’: depth z, z’: depth Apex-shifted Radon Transform Alvarez-Biondi-Guitton

  32. Constrained LS inversion Apex-shifted Radon transform: Objective Function: Cauchy regularization ε: controls level of sparsity in model space b: controls minimum value below which to zero out model space Alvarez-Biondi-Guitton
