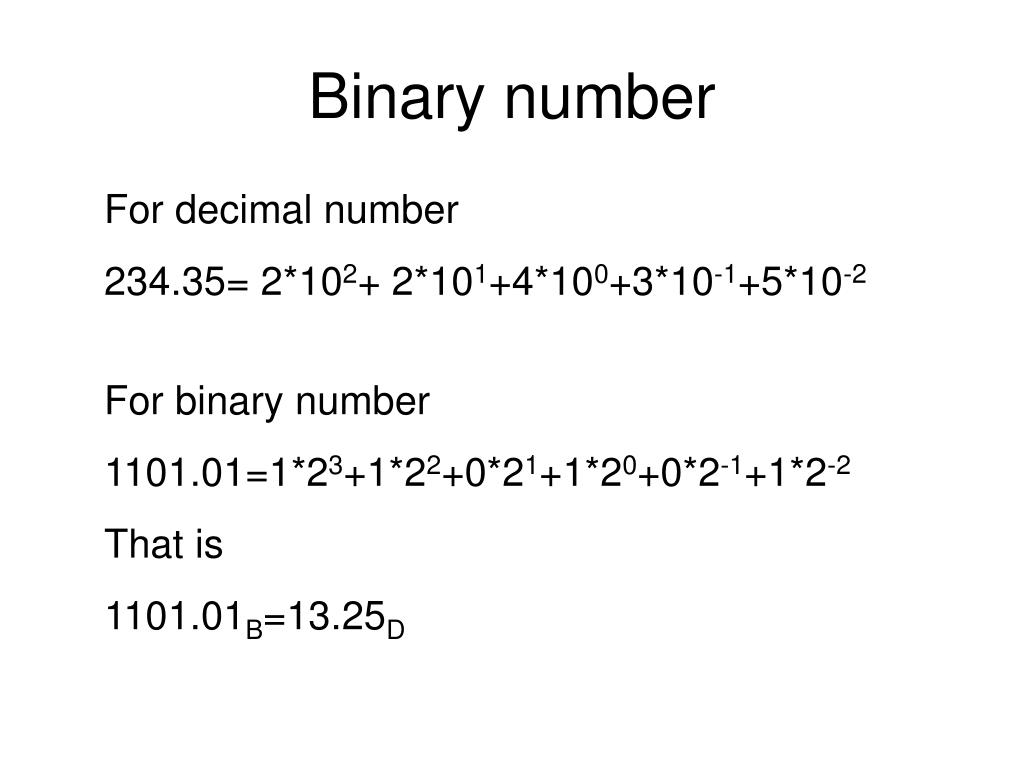

Binary number For decimal number 234.35= 2*102+ 2*101+4*100+3*10-1+5*10-2 For binary number 1101.01=1*23+1*22+0*21+1*20+0*2-1+1*2-2 That is 1101.01B=13.25D
reference voltage in “multiplying” DAC i.e., 00...0 => 0 volts; 11....1 => k volts (slightly less) k / 2n = “step size” Digital-to-analog conversion
Digital-to-analog conversion • When data is in binary form, the 0's and 1's may be of several forms such as the TTL form where the logic zero may be a value up to 0.8 volts and the 1 may be a voltage from 2 to 5 volts. • The data can be converted to clean digital form using gates which are designed to be on or off depending on the value of the incoming signal. Data in clean binary digital form can be converted to an analog form by using a summing amplifier. • For example, a simple 4 bit Dac can be made with a four-input summing amplifier. More practical is the R-2R Network DAC.

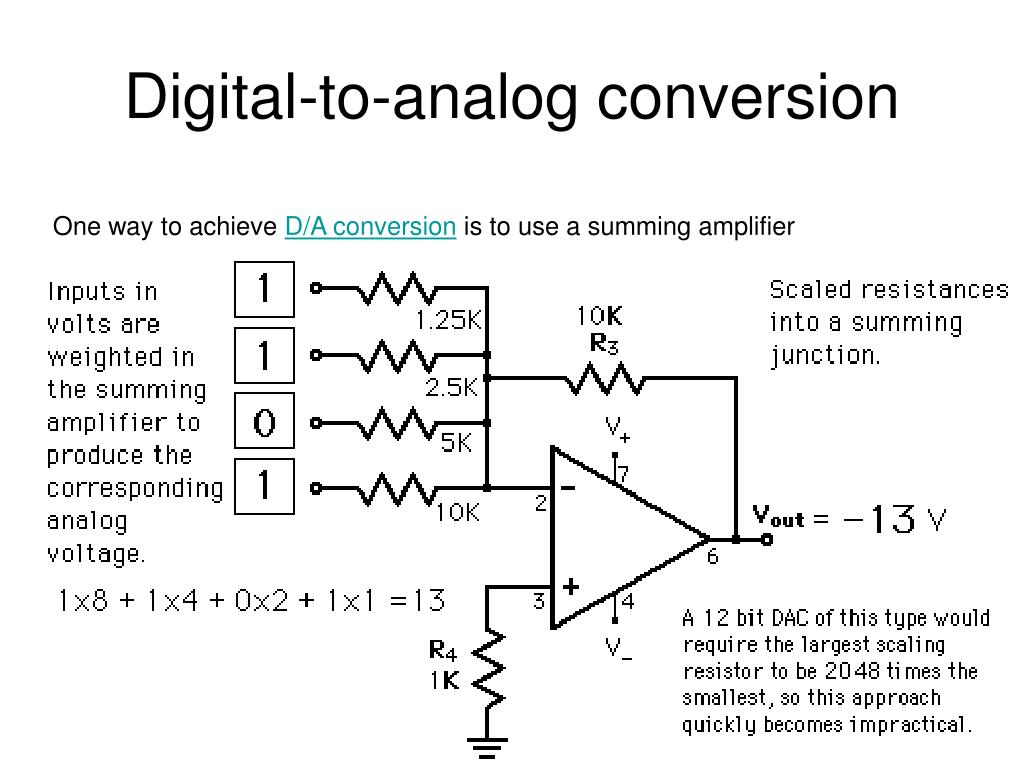

Digital-to-analog conversion One way to achieve D/A conversion is to use a summing amplifier

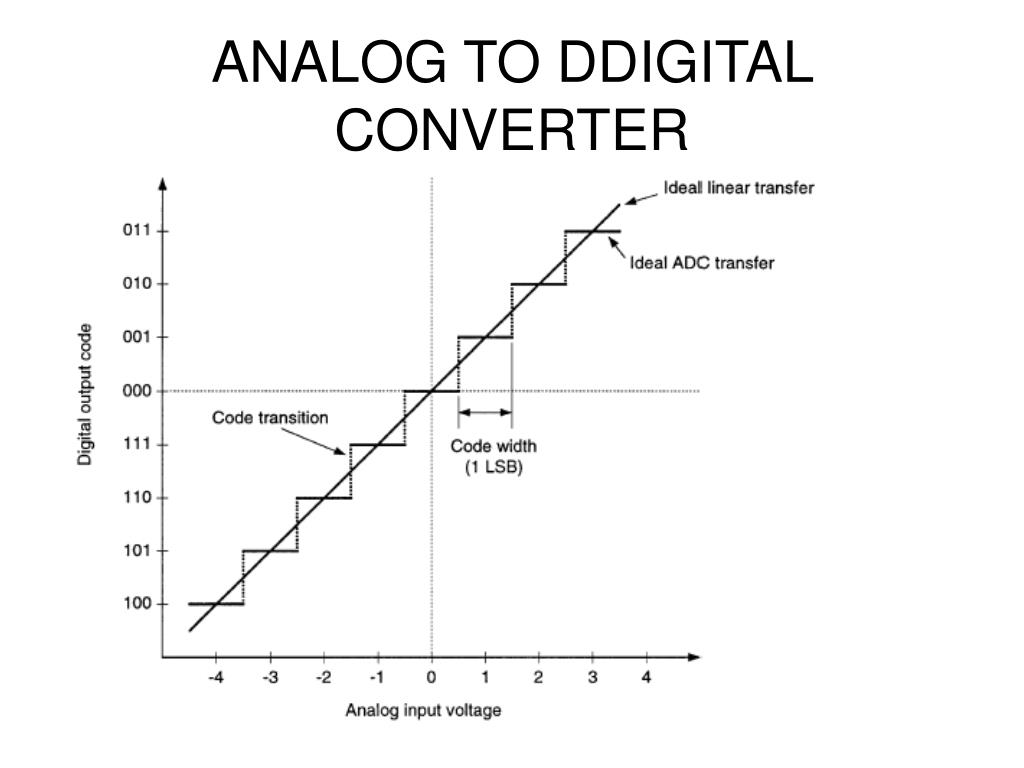

ANALOG TO DIGITAL CONVERSION ADC ANALOG IN DIGITAL OUT

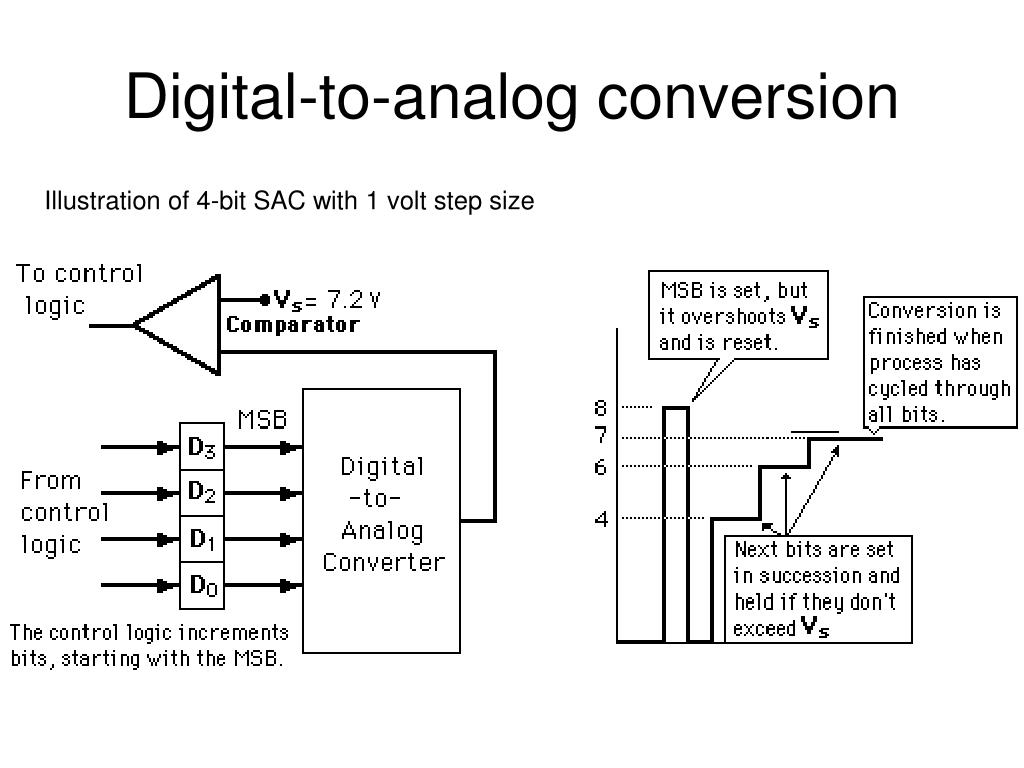

Digital-to-analog conversion Illustration of 4-bit SAC with 1 volt step size

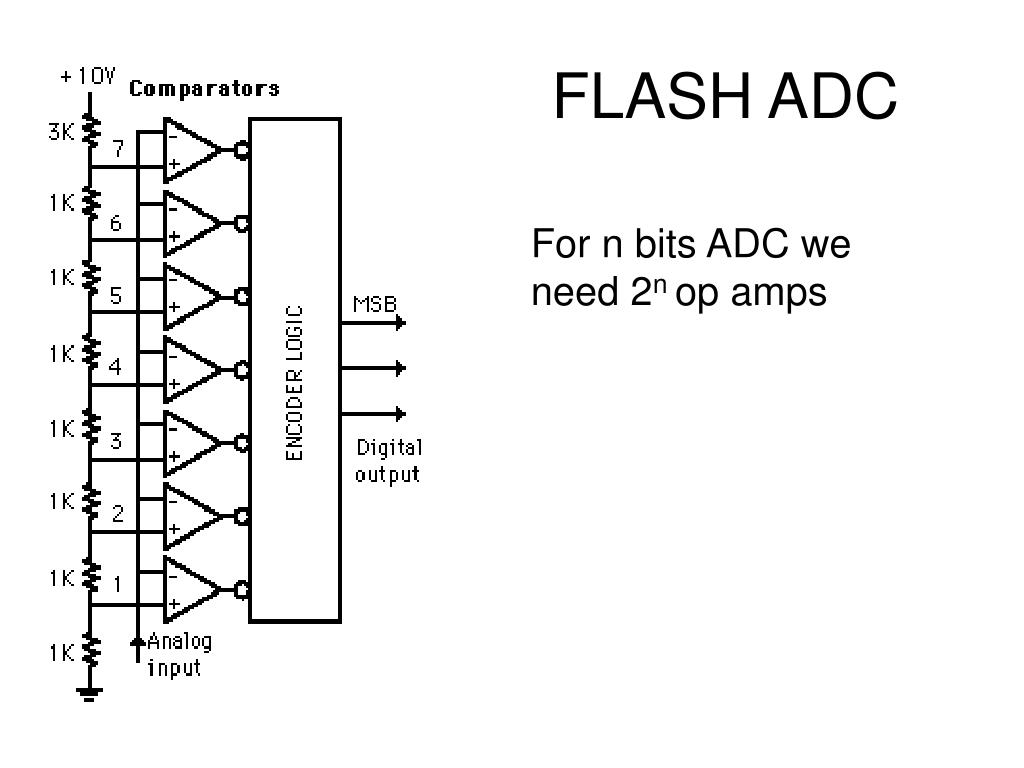

FLASH ADC For n bits ADC we need 2n op amps
