  1. The Domain Name Service, Etc. Jeff Chase Duke University, Department of Computer Science CPS 212: Distributed Information Systems

  2. Today • 1. Domain Name Service (DNS) illustrates: • issues and structure for large-scale naming systems • naming contexts • use of hierarchy for scalability • decentralized administration of the name space • hierarchical authority and trust • 2. Role of DNS in wide-area request routing • DNS round robin • Content Distribution Networks: Akamai, Digital Island

  3. DNS 101 • Domain names are the basis for the Web’s global URL space. • provides a symbolic veneer over the IP address space • names for autonomous naming domains, e.g., cs.duke.edu • names for specific nodes, e.g., fran.cs.duke.edu • names for service aliases (e.g., www, mail servers) • Almost every Internet application uses domain names when it establishes a connection to another host. • The Domain Name System (DNS) is a planetary name service that translates Internet domain names. • maps <node name> to <IP address> • (mostly) independent of location, routing etc.

  4. Domain Name Hierarchy DNS name space is hierarchical: - fully qualified names are “little endian” - scalability - decentralized administration - domains are naming contexts replaces primordial flat hosts.txt namespace com gov org generic TLDs net firm top-level domains (TLDs) shop arts web us fr country-code TLDs .edu duke washington unc mc cs env cs cs www (prophet) whiteout How is this different from hierarchical directories in distributed file systems? Do we already know how to implement this?

  5. DNS Implementation 101 • DNS protocol/implementation: • UDP-based client/server • client-side resolvers • typically in a library • gethostbyname, gethostbyaddr • cooperating servers • query-answer-referral model • forward queries among servers • server-to-server may use TCP (“zone transfers”) • common implementation: BIND WWW server for nhc.noaa.gov (IP 140.90.176.22) “www.nhc.noaa.gov is 140.90.176.22” DNS server for nhc.noaa.gov “lookup www.nhc.noaa.gov” local DNS server

  6. DNS Name Server Hierarchy DNS servers are organized into a hierarchy that mirrors the name space. Specific servers are designated as authoritative for portions of the name space. com Root servers list servers for every TLD. gov org net firm shop arts web us .edu fr Servers may delegate management of subdomains to child name servers. Subdomains correspond to organizational (admininstrative) boundaries, which are not necessarily geographical. ... unc duke Servers are bootstrapped with pointers to selected peer and parent servers. cs env Parents refer subdomain queries to their children. mc Resolvers are bootstrapped with pointers to one or more local servers; they issue recursive queries.

  7. DNS: The Politics • He who controls DNS controls the Internet. • TLD registry run by Network Solutions, Inc. until 9/98. • US government (NSF) granted monopoly, regulated but not answerable to any US or international authority. • Registration is transitioning to a more open management structure involving an alphabet soup of organizations. • For companies, domain name == brand. • Squatters register/resell valuable domain name “real estate”. • Who has the right to register/use, e.g., coca-cola.com?

  8. DNS: The Big Issues • 1. Naming contexts • I want to use short, unqualified names like whiteout instead of whiteout.cs.duke.edu when I’m in the cs.duke.edu domain. • 2. What about trust? How can we know if a server is authoritative, or just an impostor? • What happens if a server lies or behaves erratically? What denial-of-service attacks are possible? What about privacy? • 3. What if an “upstream” server fails? • 4. Is the hierarchical structure sufficient for scalability? • more names vs. higher request rates

  9. query response DNS Caching TLD root Local server caches .edu, duke.edu, cs.duke.edu, and prophet.cs.duke.edu. .edu Caching of query responses allows subsequent queries to bypass the roots of the server hierarchy. duke Each response is stamped with a time-to-live (TTL) to limit damage from stale cache entries. What about negative caching: is it worthwhile to cache negative responses? cs prophet.cs.duke.edu

  10. .edu duke primary secondary mc cs query query (backup) zone transfer DNS Replication • Every DNS domain has or should have at least one secondary name server replica. • - configure peers to offload queries from primary • - serve as authoritative backup domain admin updates primary Secondary replicas keep themselves up to date by periodically fetching/refreshing the entire naming database via zone transfer (TCP). The primary database is timestamped with a “serial number” to short-circuit if no updates have occurred since last zone transfer. How to load-balance the secondaries? What if primary is overloaded with too many secondaries requesting zone transfers?

  11. Reverse Translation 152 3 4... ...2 ... 140 ... ... 5 (prophet) 152.3.140.5

  12. The Server Selection Problem server array A server farm B Which server? Which network site? “Contact the weather service.”

  13. DNS Round Robin a b c d Brisco (Rutgers), RFC 1794 What about DNS caching? How to handle server failures? How effective is the load-balancing? “www.nhc.noaa.gov is IP address a” (or {b,c,d}) DNS server for nhc.noaa.gov Cisco DistributedDirector uses a more sophisticated DNS load balancing approach, based on its Director Response Protocol (DRP), and also incorporates HTTP redirection. “lookup www.nhc.noaa.gov” local DNS server

  14. Generalized Cache/CDN (External View) Origin Servers {push, request, reply} Content Distribution Networks Web Caches {request, reply} Clients

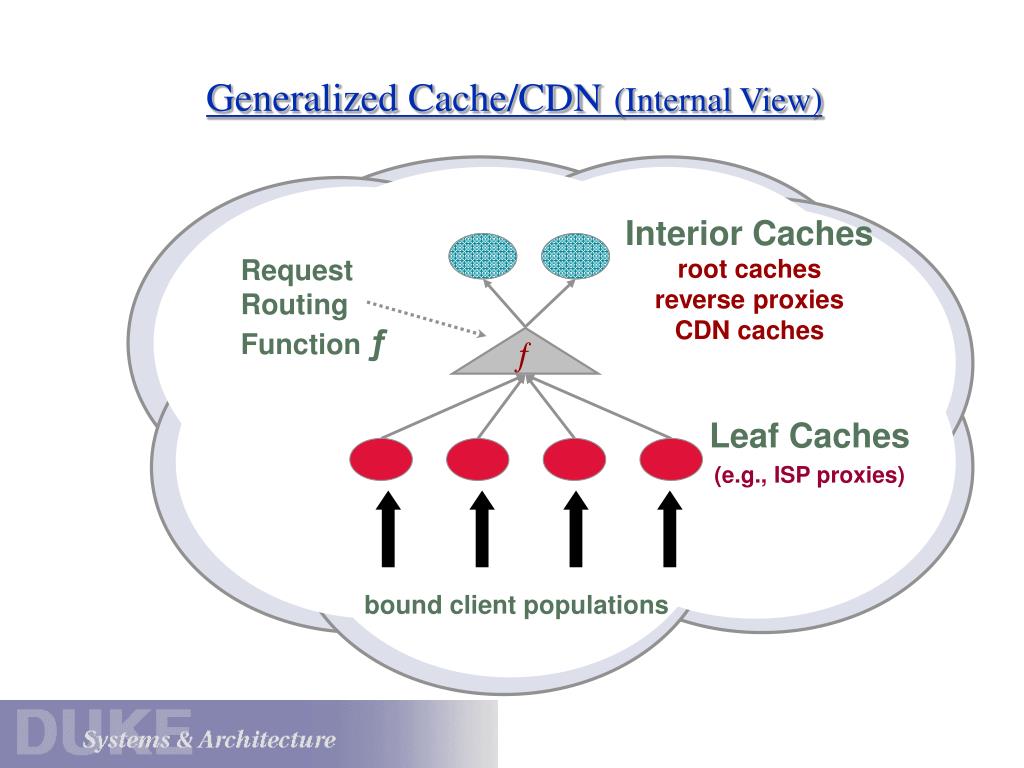

  15. Generalized Cache/CDN(Internal View) Interior Caches root caches reverse proxies CDN caches Request Routing Function ƒ ƒ Leaf Caches (e.g., ISP proxies) bound client populations

  16. DNS-based Request Routing • How to apply the request routing function ƒ? • Some intermediary intercepts the request, and directs it to a selected site. • Smart proxies or switches? E.g., look at URL or server IP address. • Or, interpose on the binding procedure, before the client sends the request itself. • Smart clients, Active Names, RPC binding, or DNS lookup • Third-party CDNs are based on DNS servers that select the cache/replica site on DNS lookup for the request. • Akamai, Digital Island, Web hosting providers (e.g., Exodus), etc. • Like DNS-RR....but smarter...

  17. Using DNS for Third-party CDNs • Intelligent DNS-based request routing has some tricky parts: • Third-party CDNs contract with content providers (e.g., Web sites such as cnn.com) to serve a subset of their content. • Resource-rich content, e.g., images, audio, video. • To use DNS request routing, the CDN must assume DNS duties for the URLs that reference the content it serves. • The content provider does not want to designate the CDN as the authoritative DNS server for its domain (e.g., cnn.com). • Solution: make up new DNS domains for the client provider’s content served by the CDN.

  18. Domain Granularity and “Akamaizing” • CDN (e.g., Akamai) creates new domain names for each client content provider. • e.g., a128.g.akamai.net • The CDN’s DNS servers are authoritative for the new domains. • The client content provider modifies its content so that embedded URLs reference the new domains. • “Akamaize” content, e.g.: http://www.cnn.com/image-of-the-day.gif becomes http://a128.g.akamai.net/image-of-the-day.gif. • Using multiple domain names for each client allows the CDN to further subdivide the content into groups. • DNS sees only the requested domain name, but it can route requests for different domains independently.

  19. The Akamai et. al. DNS Hook akamai.net DNS servers www.nhc.noaa.gov “Akamaizes” its content. Akamai servers store/cache secondary content for “Akamaized” services. a lookup a128.g.akamai.net b DNS server for nhc.noaa.gov c get http://www.nhc.noaa.gov local DNS server “Akamaized” response object has inline URLs for secondary content at a128.g.akamai.net and other Akamai-managed DNS names.

  20. Wide-Area Request Routing • What information does a DNS-based request routing function ƒ have available to it? • client’s or proxy’s DNS resolver’s IP address • Gives the best guess at where the client is...can we do better? • domain name embedded in URL • content domain • NOT the rest of the URL • other information about server load or network state • The CDN decides where to cache/replicate each content domain, and which cache/replica to serve each request.

  21. Directory Services (e.g., LDAP) • A directory service is a souped-up a name service. • read-mostly access to named entries with unique, global distinguished names • clients see a uniform view of a hierarchical name space • authority to serve the name space is partitioned across a collection of servers • partitioning reflects geographical or organizational boundaries • context-based lookups with referrals • simple updates: add/delete/update single entry • large-scale caching/replication with soft consistency

  22. Attributes and Searching • Directory services are augmented with support for attributes. • e.g., LDAP: Lightweight Directory Access Protocol (X.500) • An entry is a named collection of attributes. • An attribute is a typed collection of values, whose format is defined by its type. • e.g., printer, name=buzzard, location=LSRC 312, resolution=600dpi • Attributes are more useful if their types are standardized. • Attributes can be used as the basis for searches that find an object with specified properties. • can specify filters, scope of search, etc. • goal: attribute-based definition of services
